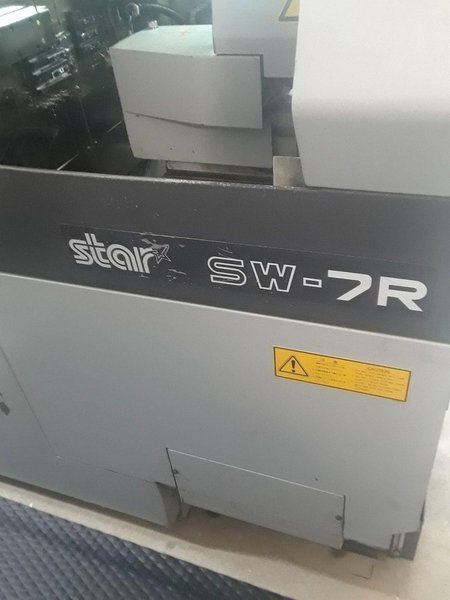

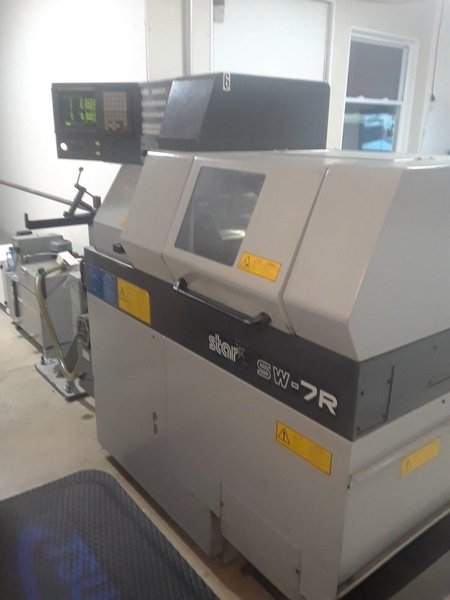

Star SW-7R CNC Swiss Lathe, 2001 – LNS Bar Loader, Fanuc Control

Maximum Turning Diameter: 7 mm (0.27″) Maximum Headstock Stroke: 70 mm (2.75″)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Maximum Drilling Capacity: Stationary Tool: 4 mm (0.15″) Power-Driven Attachment: 3 mm (0.11″)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Maximum Tapping Capacity: Stationary Tool: M4 x P0.7 Power-Driven Attachment: M2.5 x P0.45

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Maximum Milling Capacity: 6 mm (0.23″) Maximum Die Cutting Capacity: M4 x P0.7 Maximum Slotting Capacity: 1.0mm x 2.0mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Main Spindle: Spindle Speed: 500 – 15,000 RPM Minimum Indexing Angle: 0.01° (C- Axis Control) Main Spindle Bore: 11mm (0.43″)

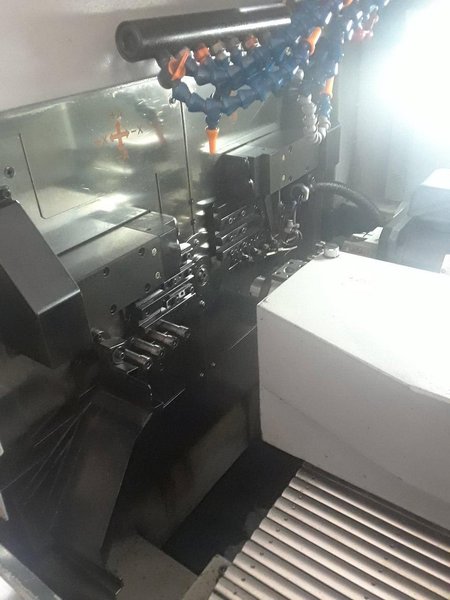

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Tool Post Specs: Type: Twin Gang Tool Post Tool: 6 Power Driven Tools: 4

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Sub Spindle Specs: Maximum Chucking Diameter: 7mm (0.27″) Maximum Part Length for Parts Ejection: 70 mm (2.75″) Maximum Part Projection Length: 20mm (0.78″) Spindle Speed: 500 – 10,000 RPM Maximum Indexing Angle: 1 degree standard

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,4 Spindle Endworking Attachment: Number of Tools: 4 Maximum Drilling Capacity: 4mm (0.15″) Maximum Tapping Capacity: M4 x P0.7 Maximum Die Cutting Capacity: M4 x P0.7

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

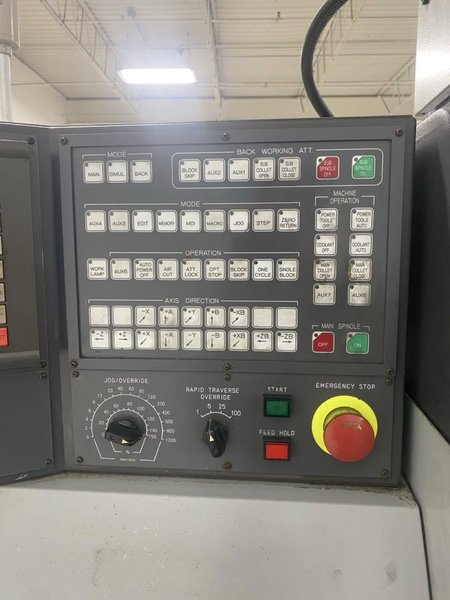

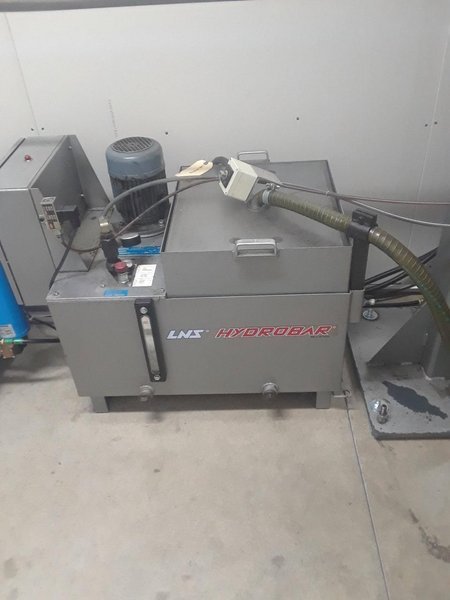

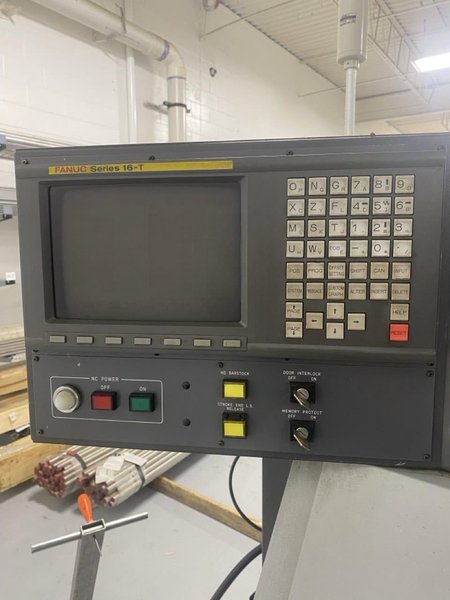

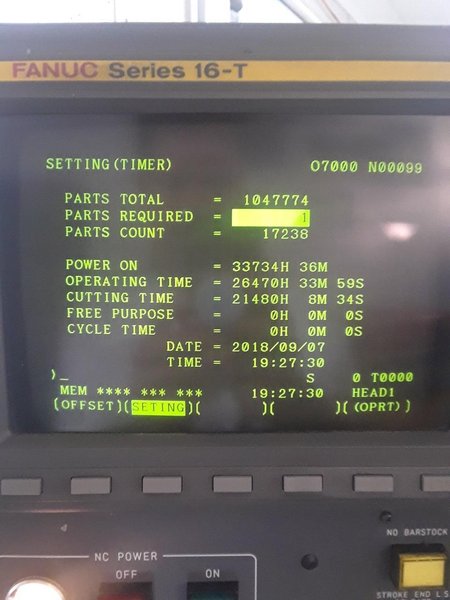

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Fanuc 16-T Control LNS Mono Bar Loader
