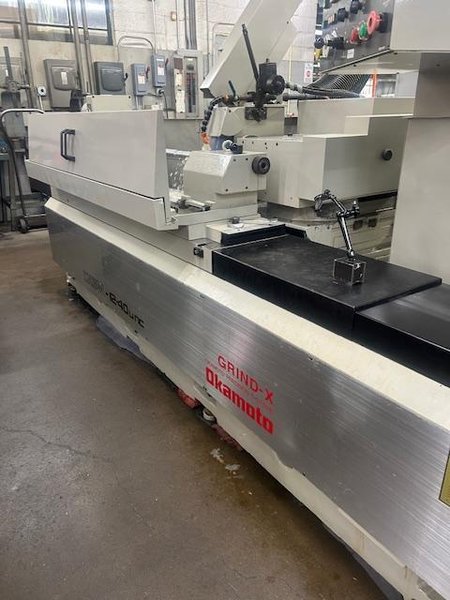

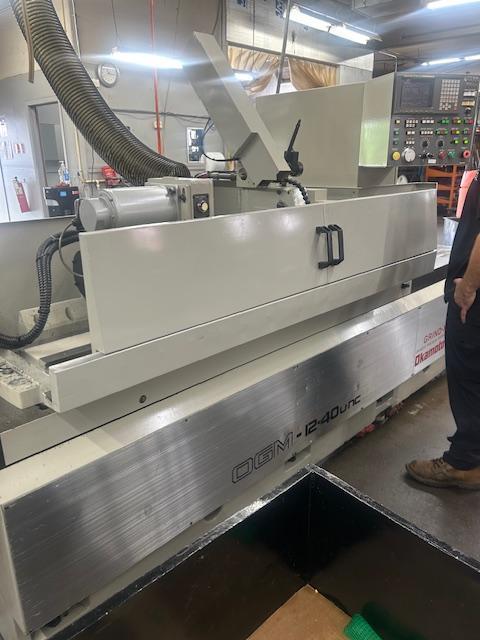

39″ Okamoto 1240 OGM-UNC CNC Grinder, 1998

Swing Over Table: 12.6″ Distance Between Centers: 39″ Maximum Diameter to be Ground: 12″ Maximum Weight between Centers: 330lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Grinding Wheel Size: 14″ x 1.5″ x 5″ Wheelhead Total Stroke 11.8″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Table Maximum Table Travel: 50″ Swivel Angle: +1 ~-5 degrees

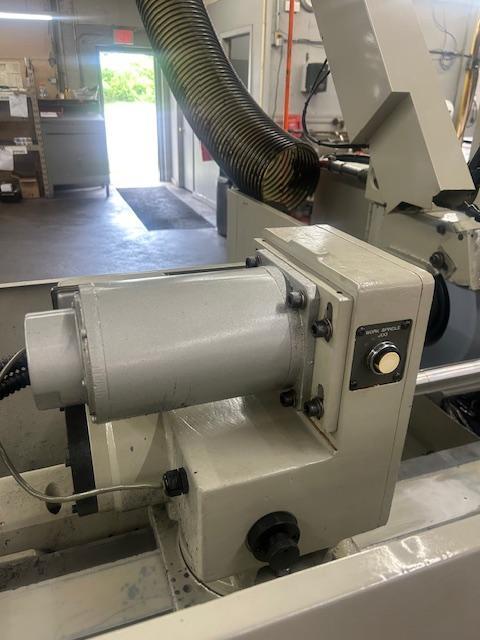

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Workhead Center: MT No. 4 +30 to-90 Degree Swivel Grinding Wheel Spindle: 7.5HP

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machine Dimensions: 184″ x 77″ 68″ Machine Weight: 9,250lbs

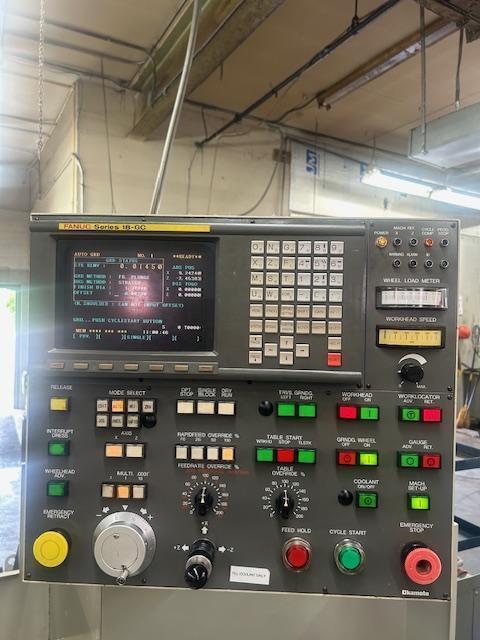

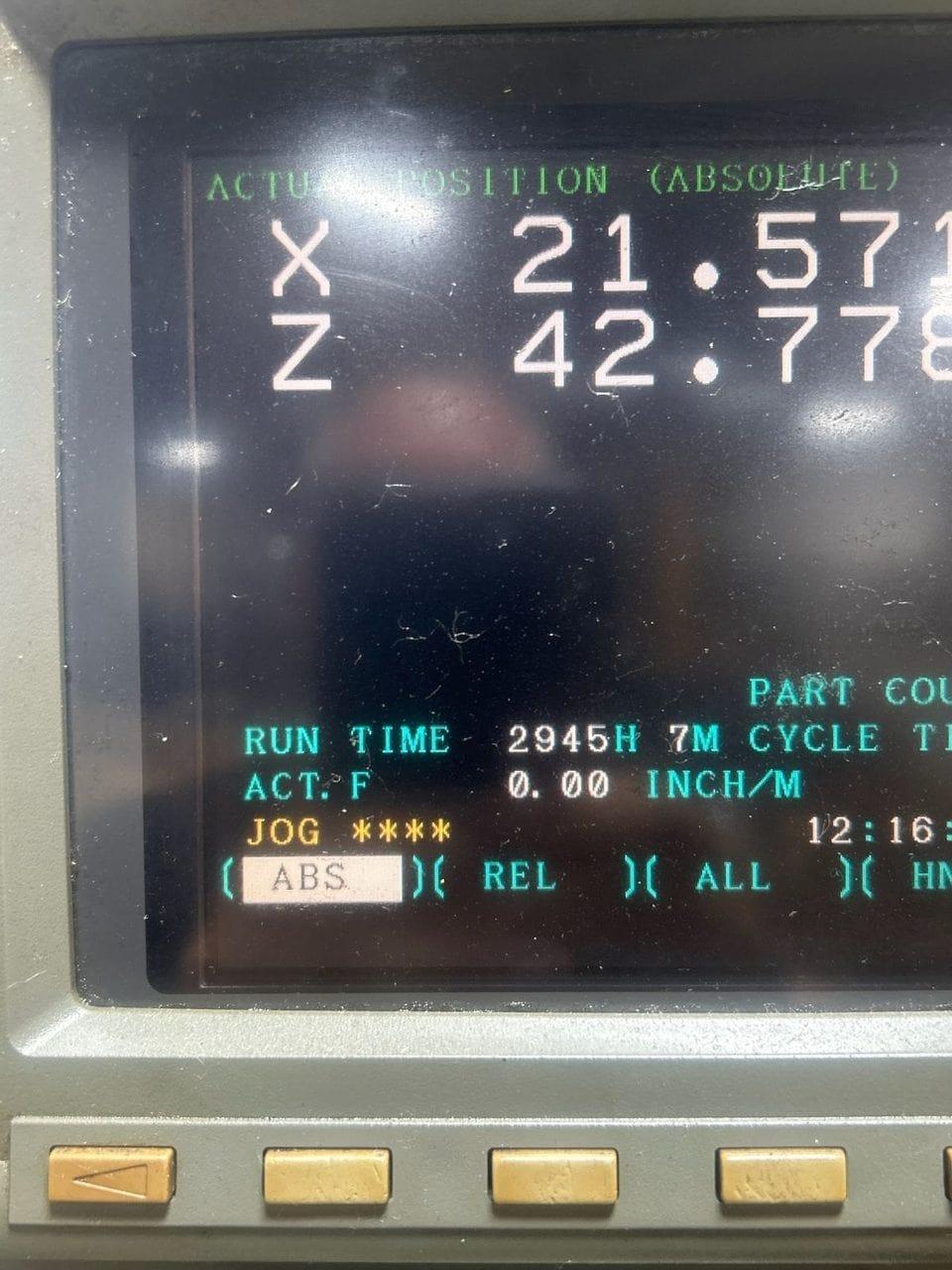

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With FANUC 18GCA CNC Control Conversational and G&M Code Programming Table Swivel Device Double “V” Ways I.D. Grinding Attachment

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
