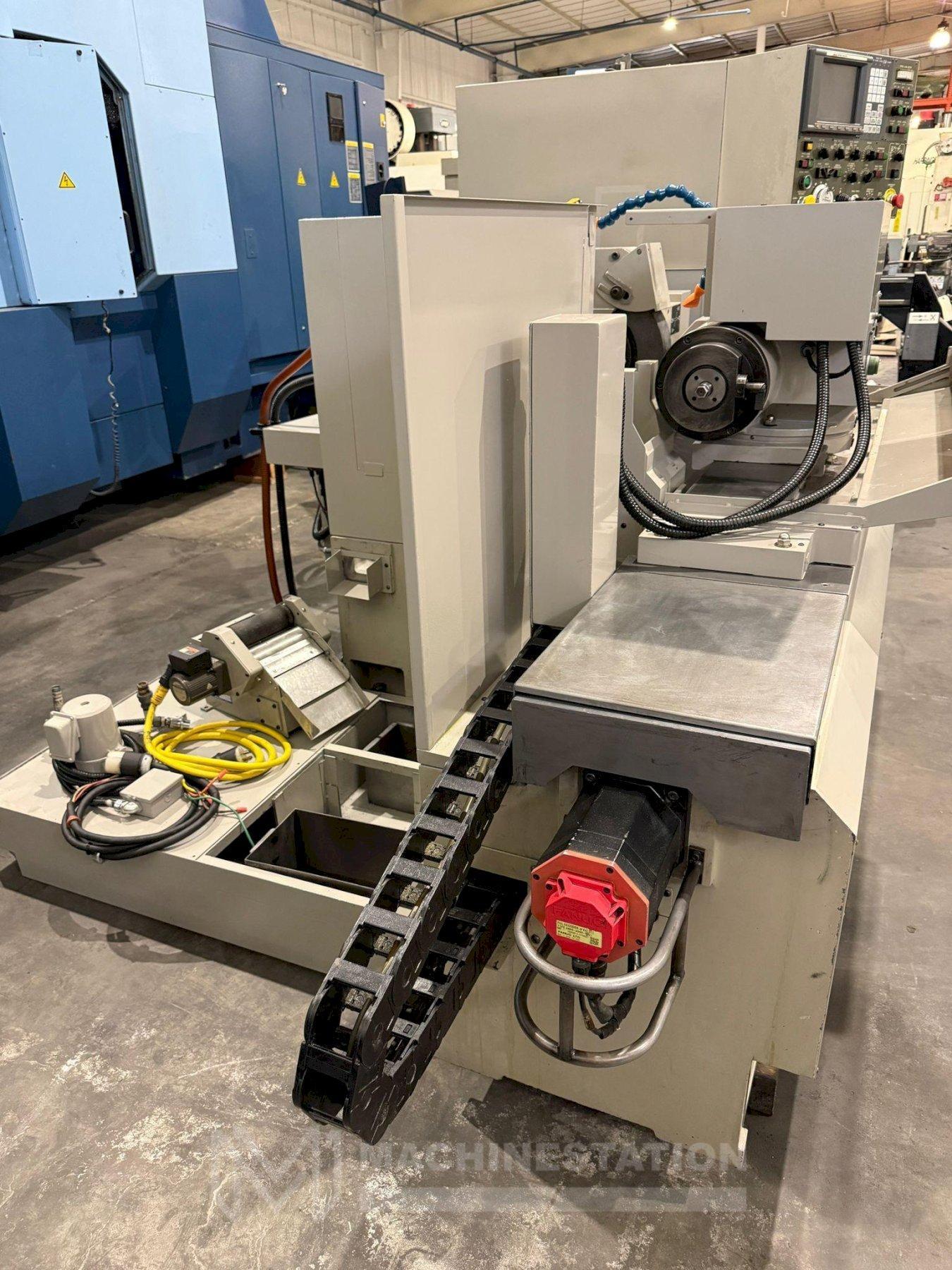

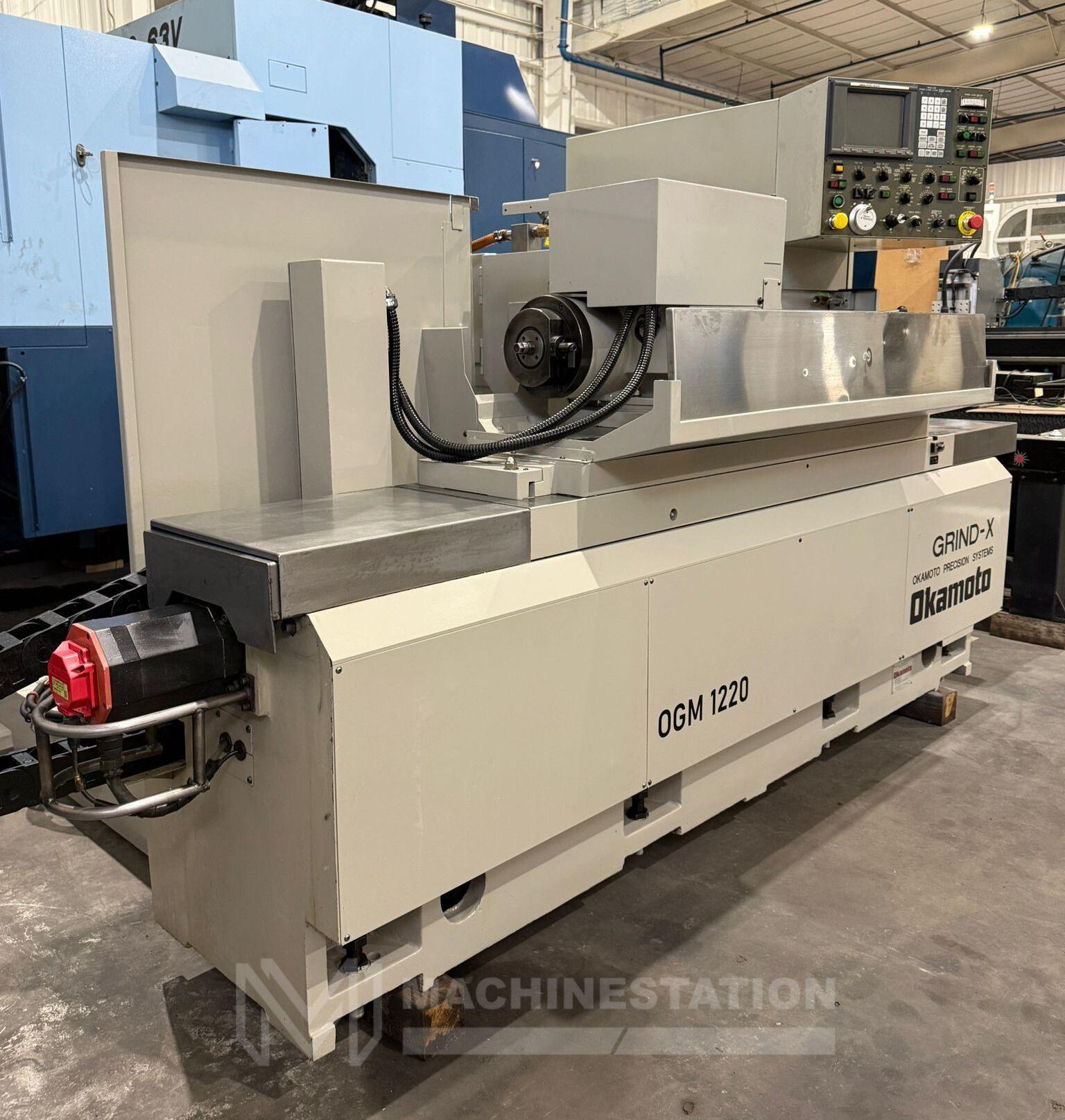

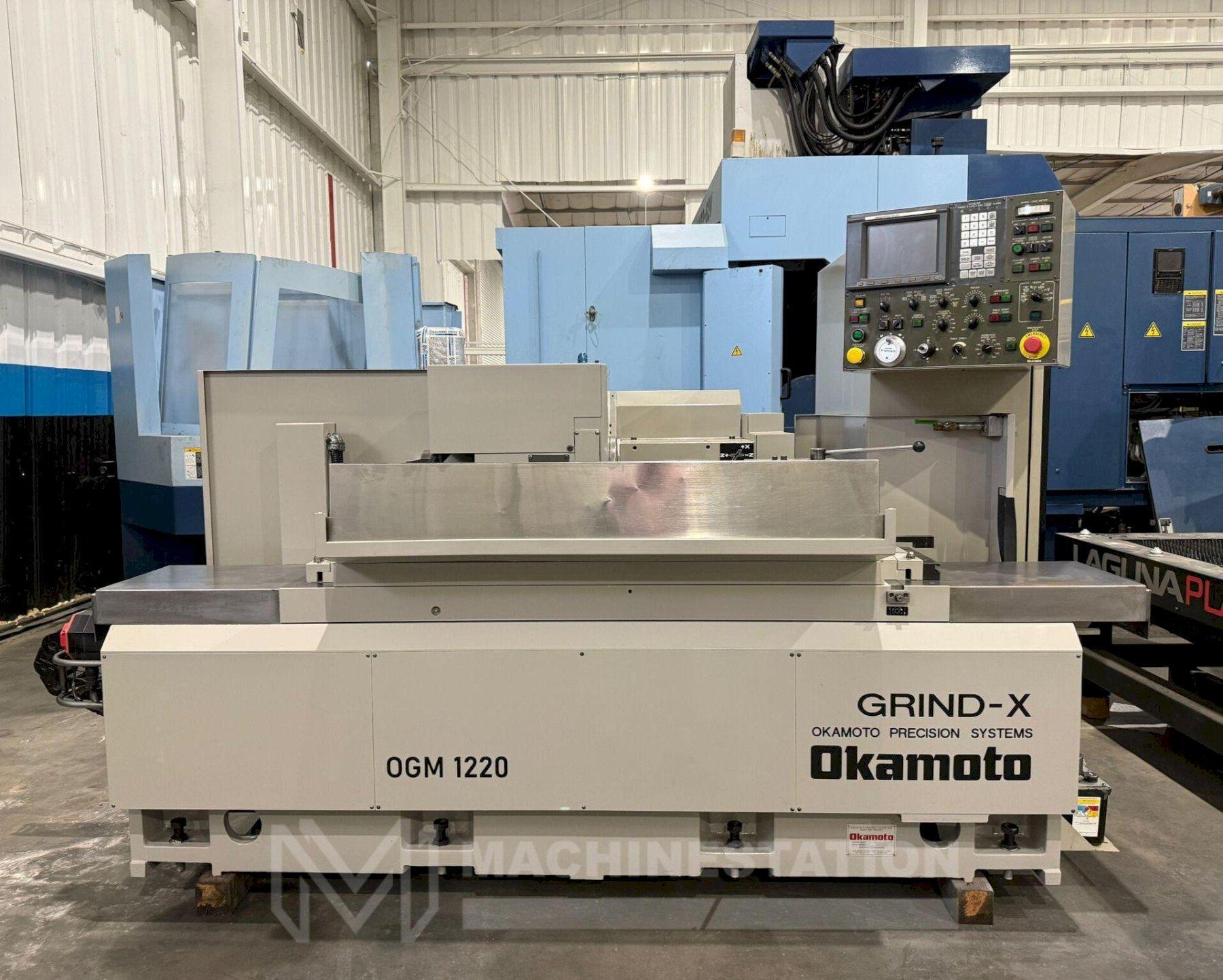

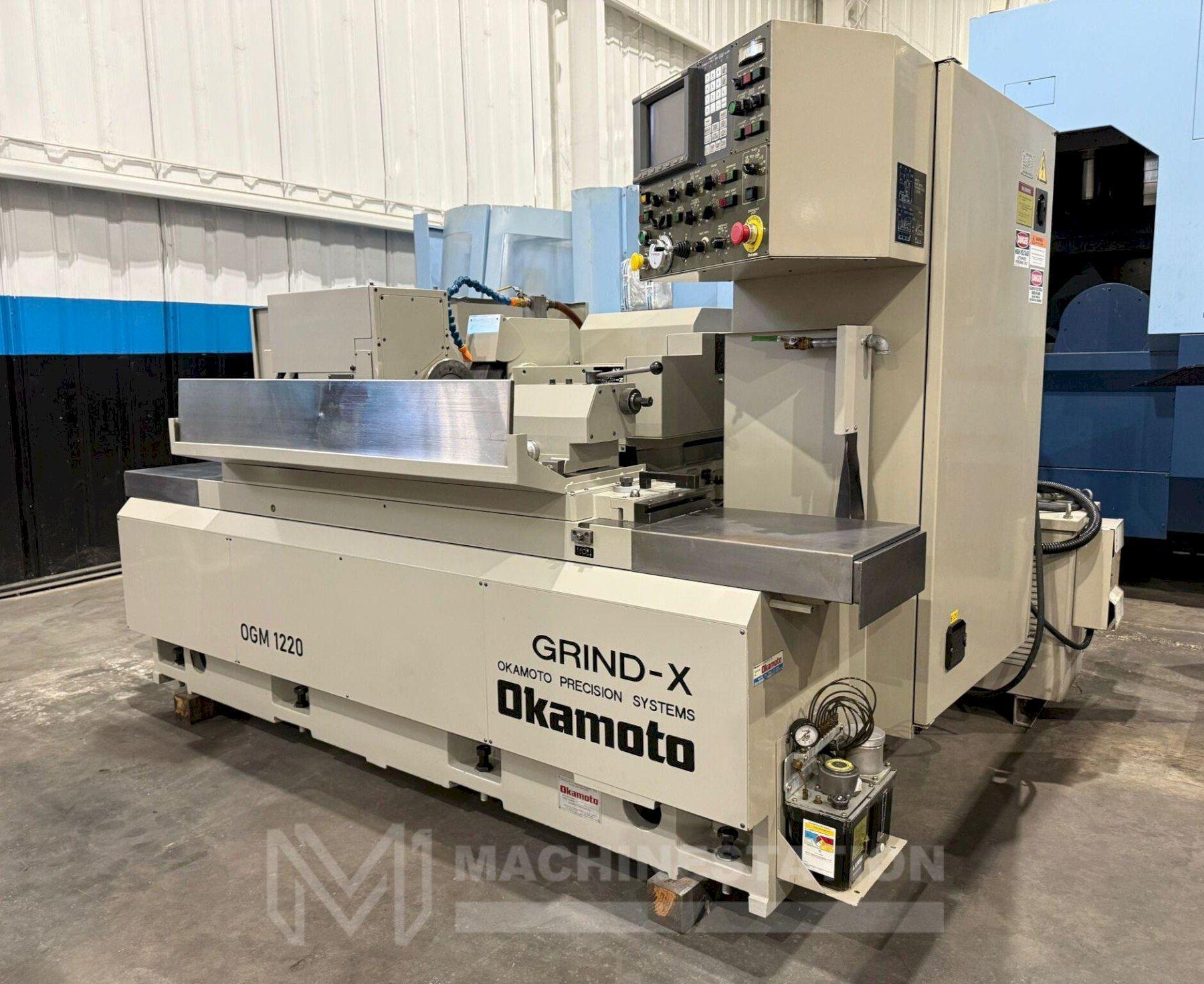

Okamoto OGM 12-20PB CNC Cylindrical Grinder

Brand
OKAMOTO
Category
Grinding Machines
Type
Grinders
Model
OKAMOTO OGM 12-20PB
Stock #
112763
Year
2007
Condition
Not specified

Location

Not specified

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: OKAMOTO
Model: OGM 12-20PB
Year: 2007
Condition: Used – Good
Features:

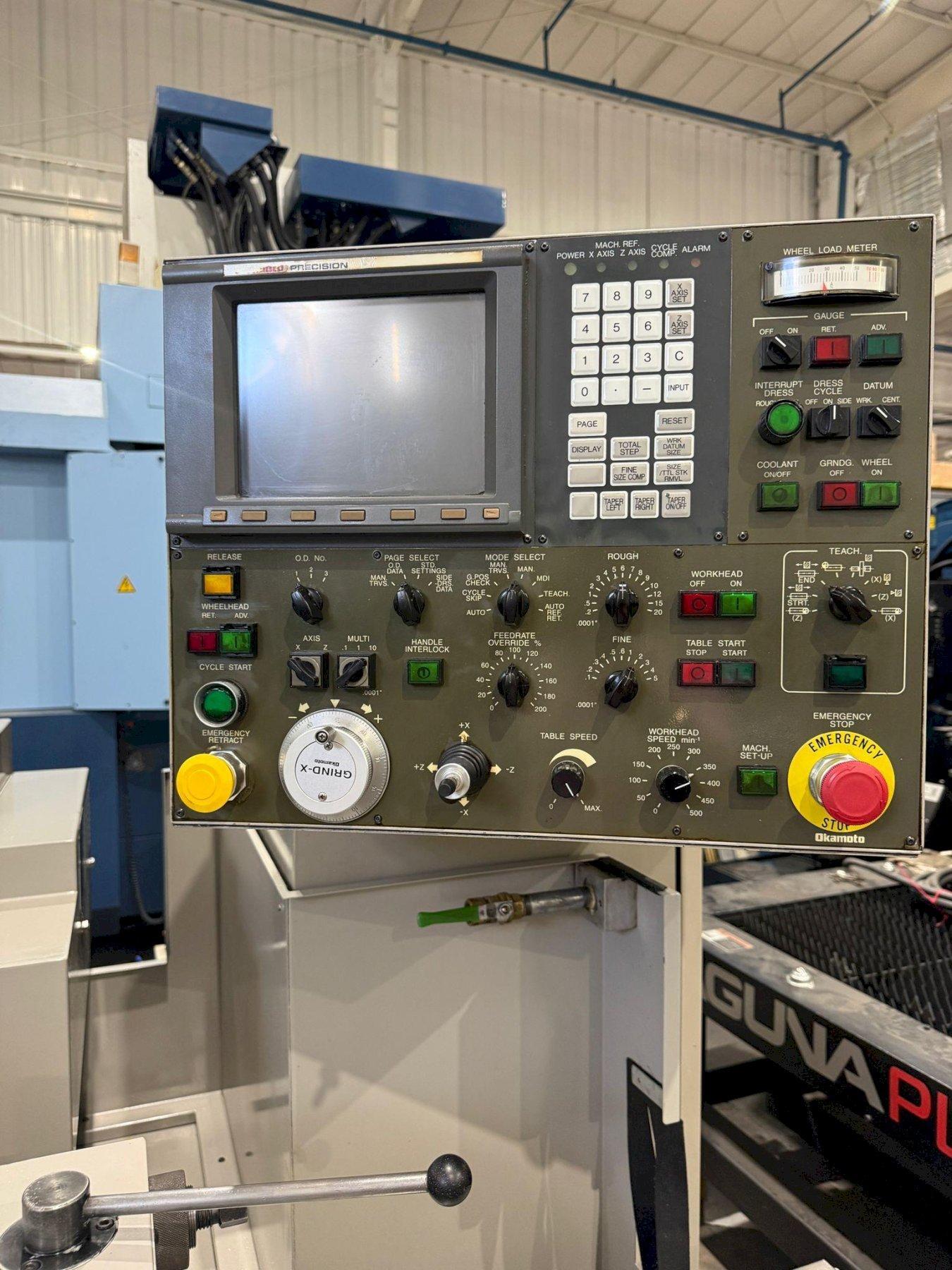

Fanuc Oi-TB CNC Control
Absolute/Incremental Combined Programming
Swivelable Table
MPG Control
Inch / Metric Conversion
Tailstock
Auto Reference Point Return

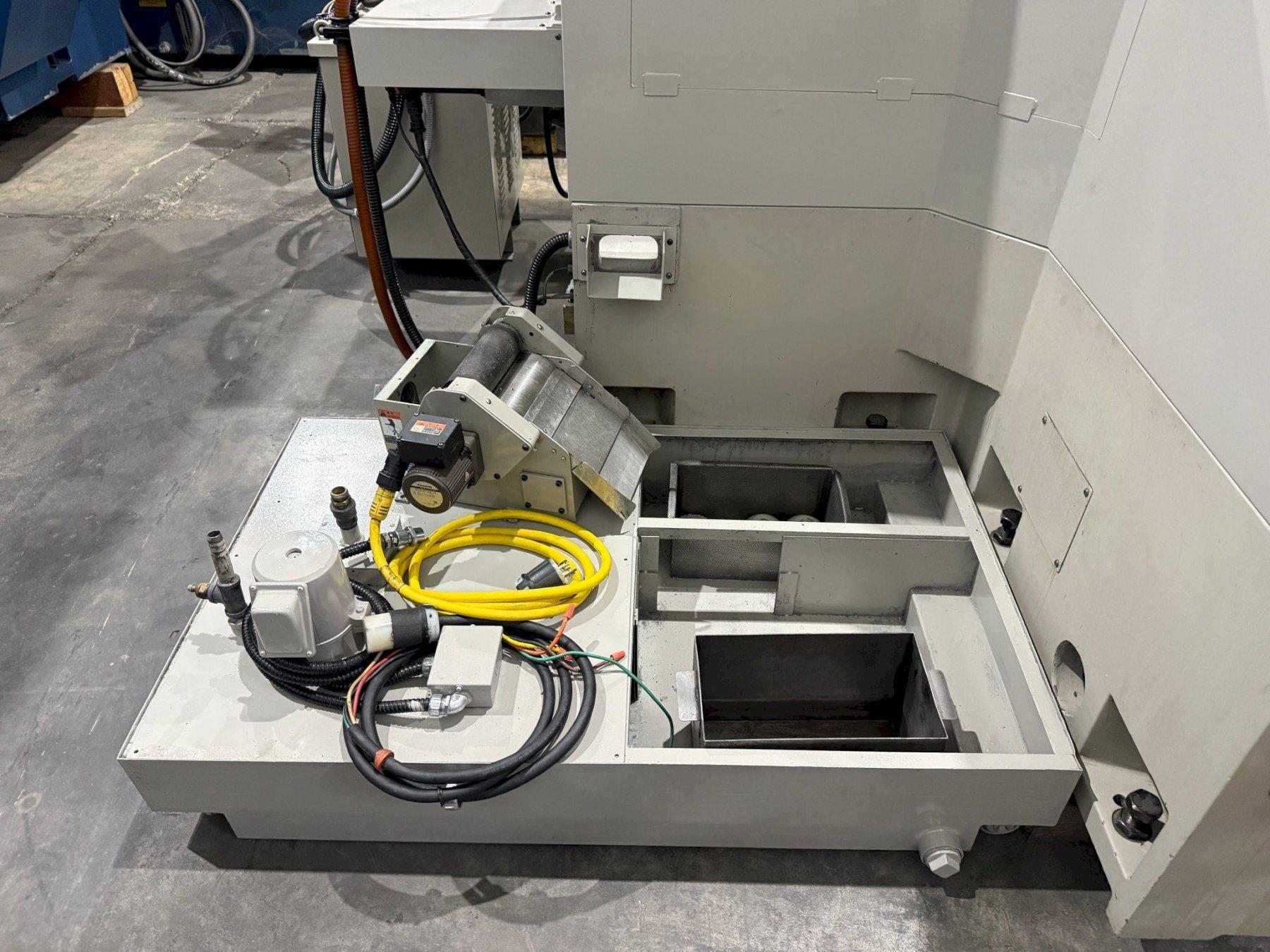

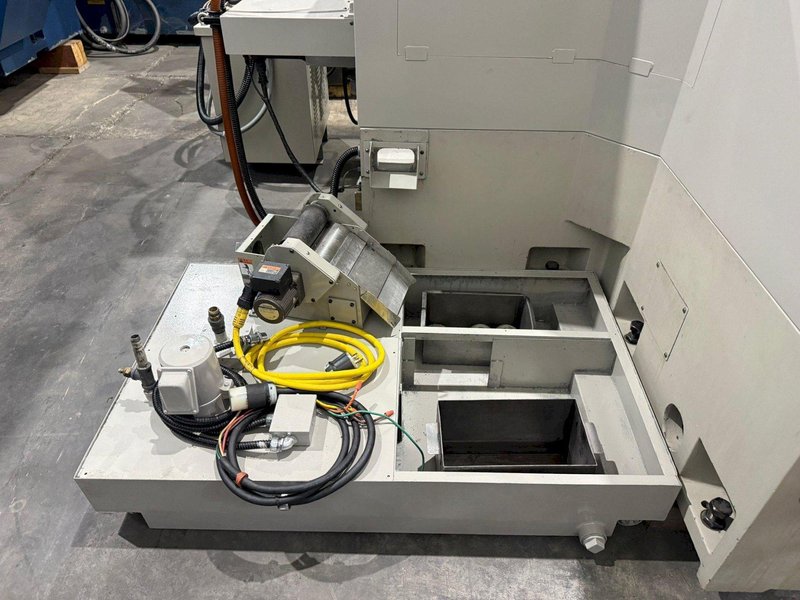

Coolant System

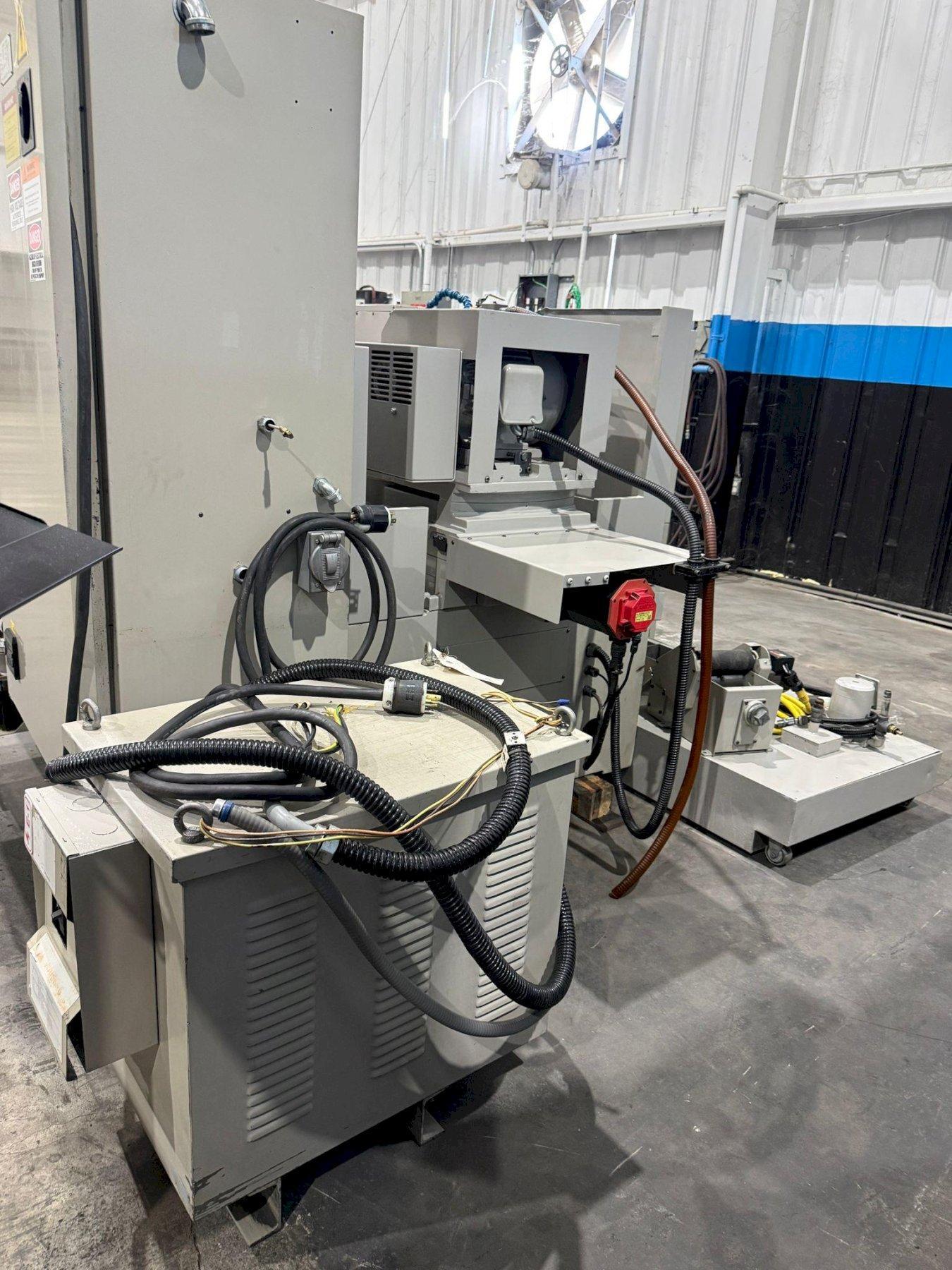

Transformer
Capacity:
Max Grinding Diameter: 12.0″
Max Grinding Length: 19.68″
Max Weight Between Centers: 330 lbs
Swing Over Table: 12.6″
Distance Between Centers: 20.0″
Grinding Wheel:
Speed: 1845 RPM
wheel Size: 16″ x 2″ x 5″
Grinding Wheel Spindle Motor: 5 HP
Wheelhead:
Total Stroke (X-Axis): 11.8″
Automatic Infeed: 0.00001” – 0.004″
Minimum Increment: 0.00001”
Continuous Feedrate: 160 IPM
Manual Pulse Feed (x.1 , x1, x10) : 0.00001″ , 0.0001″ , 0.001″
Wheelhead Rapid Retract: 1.5″
Grind Feed Override: 0 – 200%

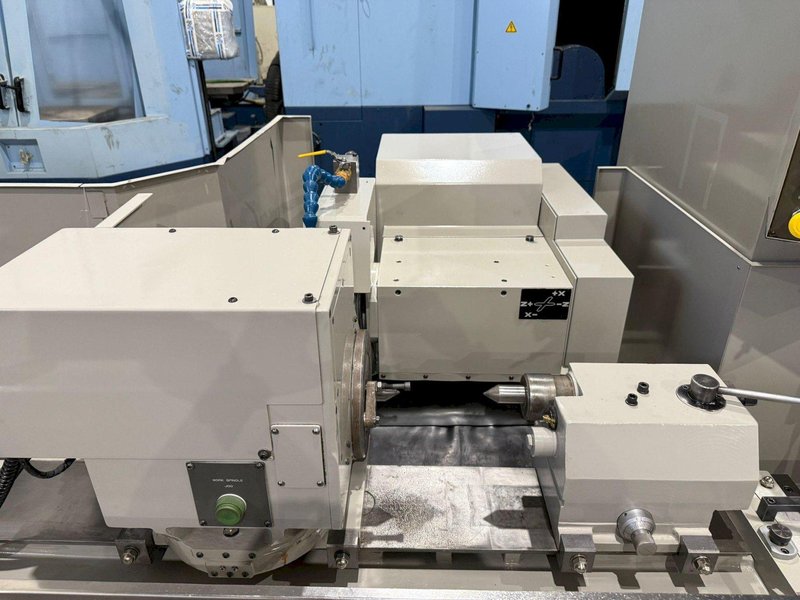

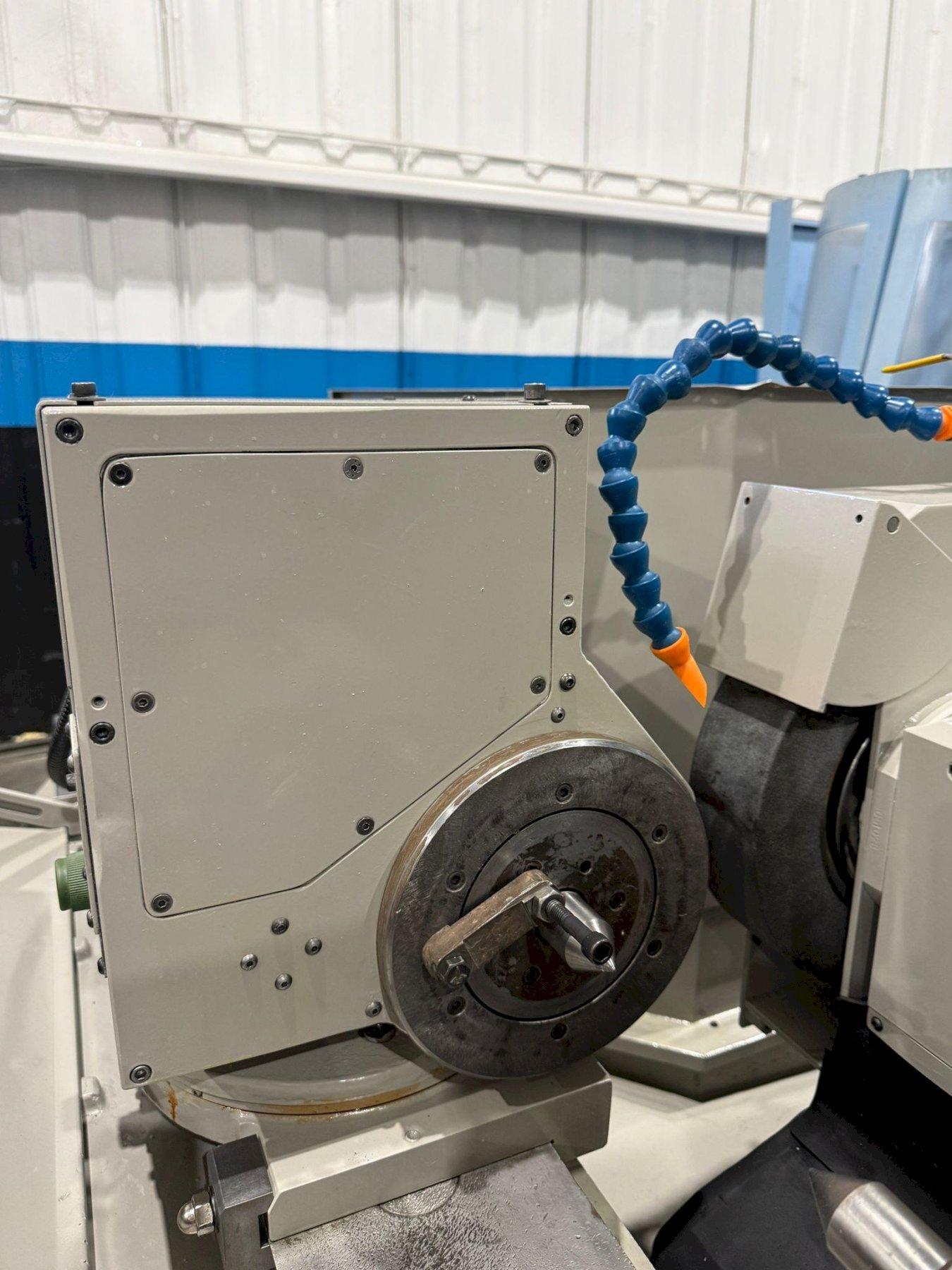

Workhead:
Center Taper: MT-4
Speed: 10 – 500 RPM
Motor: 1 HP
Table:
Maximum Table Travel: 34″
Swivel Angle: 0 to .10°
Traverse Speed: 0 – 400 IPM
Manual Pulse Feed (x.1 , x1, x10) : 0.00001″ , 0.0001″ , 0.001″
Rapid Feedrate: 400 IPM
Feedrate Override: 0 – 200%
Tailstock:
Tailstock Quill Stroke: 1.2″
Tailstock Taper: MT-4
General:

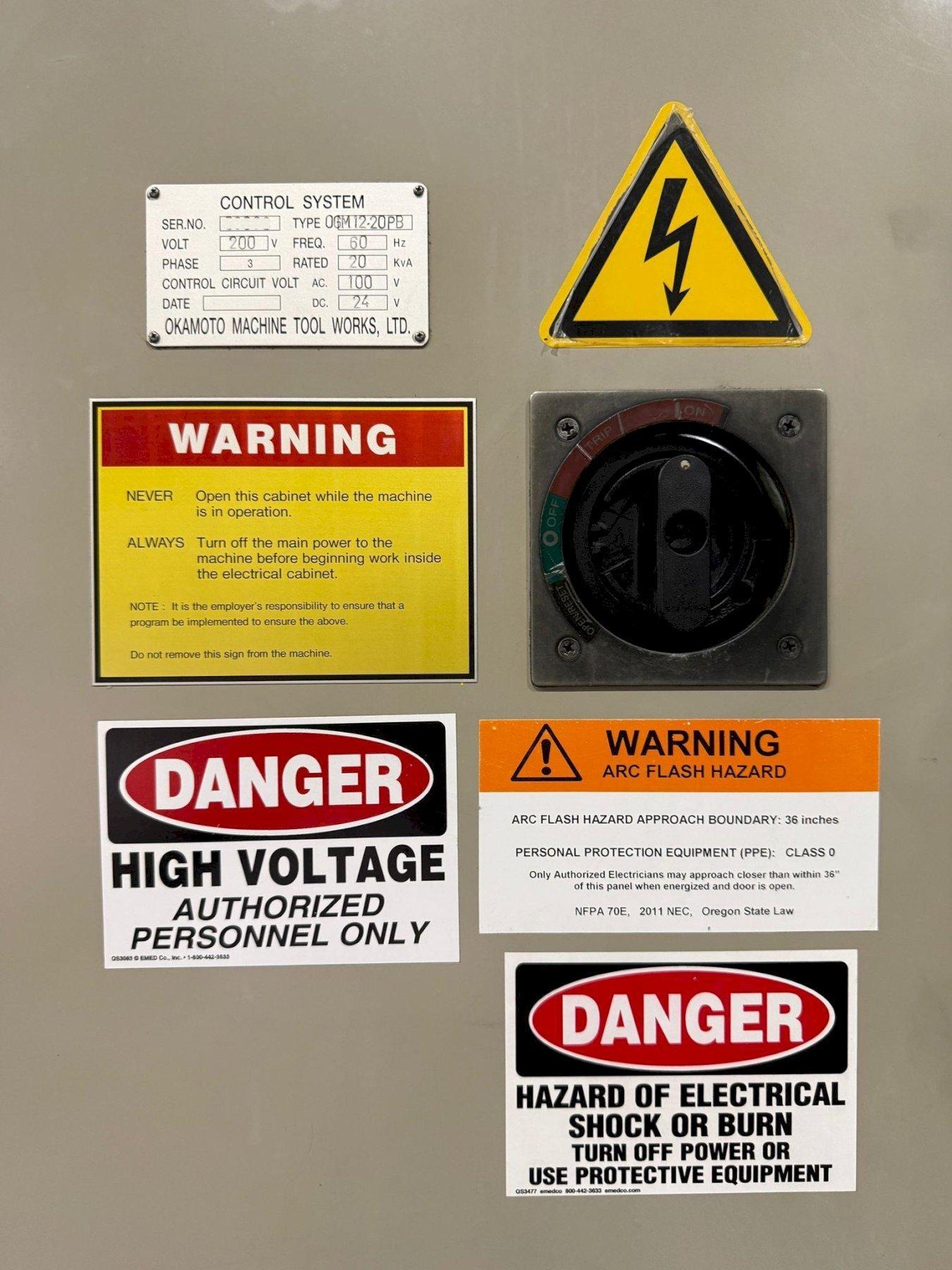

Power Source: AC 200 V Three Phase 60 Hz
Power Requirement: 20 kva
Overall Dimensions: 143″ x 76″ x 67″ High
Weight : 7700 lbs Approx.
