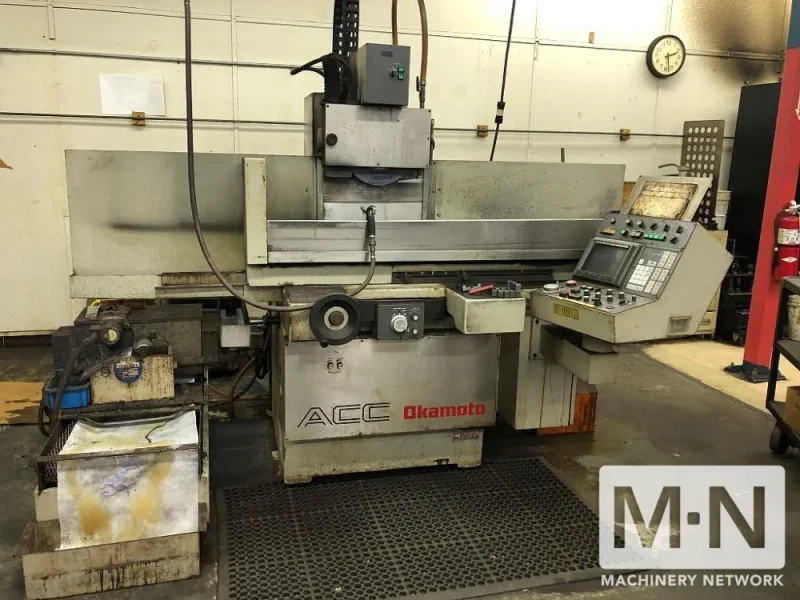

Okamoto ACC12-24EX Automatic Surface Grinder

Okamoto ACC12-24EX Automatic Surface Grinder

Name: Okamoto ACC12-24EX Automatic Surface Grinder
Brand: OKAMOTO
SKU: 41781
Availability: PreOrder

Brand

OKAMOTO

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

GRINDERS, SURFACE, RECIPROCATING TABLE, (Horizontal Spindle)

Manufacturer:

OKAMOTO

Model:

ACC12-24EX

Condition:

Good

Year:

2000

Stock #:

41781

Status:

For Sale

Description

Servo Cross & vertical feeds, auto dress & wheel wear comp. EM chuck

Specifications

ImperialMetric

Table size	12" x 24"	12" x 24"
Table travel - longitudinal	29.5"	29.5"
Distance - spindle center to table	13.6	13.6
Max table load	925 lb	419.6 kg
Longitudinal table speeds	3 - 82 FPM	3 - 82 FPM
Cross feed - manual, per rev.	.0001/.0005/.002	.0001/.0005/.002
Cross feed - automatic	.02" .8"	.02" .8"
Down feed - auto incremental	.00005 - .0015	.00005 - .0015
Power rapid elevation	40 IPM	40 IPM
Power	5 hp	3.7 kW
Grinding wheel dimensions	12" x 1.5" x 5" bore	12" x 1.5" x 5" bore
Grinding wheel speed	1800 RPM	1800 RPM
Dimensions	108" x 82" x 71"H	108" x 82" x 71"H
Weight	6200 Lbs	6200 Lbs

Equipped With:

12"x24" Fine pole electro magnetic chuck
Okamoto Fanuc Programmable MDI control
Servo driven cross & vertical feeds
Programmable over the wheel dresser with auto dressing, auto wheel wear compensation and auto dress infeed, rough & fine dress feed, speeds & intervals
Rough & fine feeds
Rapid wheelhead advance
Wheel retract to start position
Shift plunge griding cycle
Chuck datum grinding cycle
Automatic sparkout
Coolant system with magnetic swarf separation
