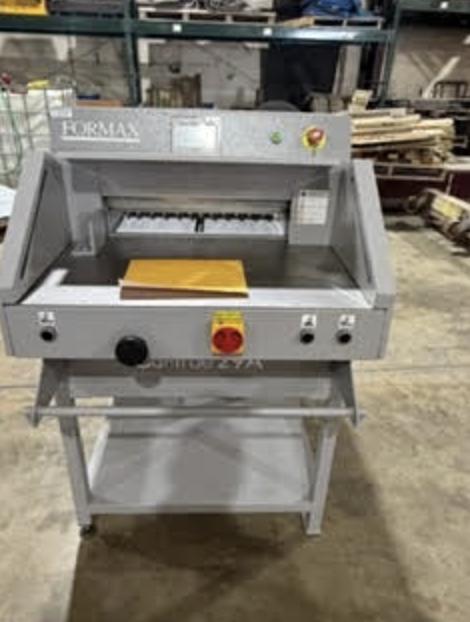

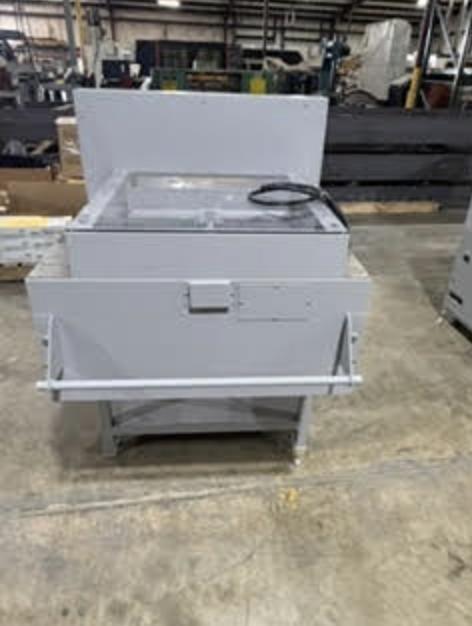

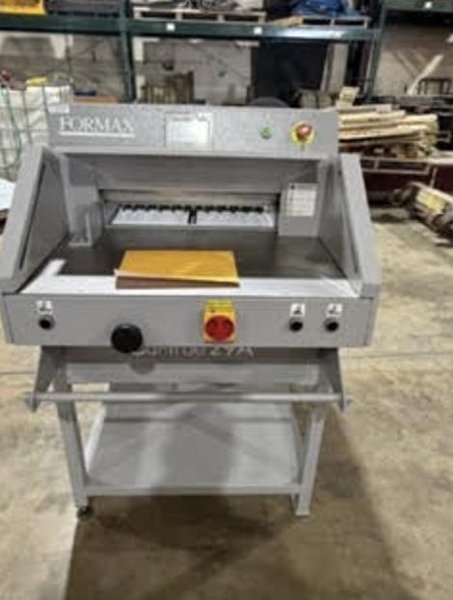

Formax Cut True 29A Paper Cutter, 2023

The 2023 Formax Cut-True 29A Paper Cutter is a heavy-duty, programmable electric guillotine cutter designed to provide high-precision trimming for commercial print shops and in-plant operations. It features an intuitive 7-inch color touchscreen control panel capable of managing up to 100 multi-step jobs alongside a fully automated, micro-adjustable back gauge. Engineered with prioritized operator safety, the machine utilizes electronically controlled two-hand operation and an integrated infrared light beam safety curtain to immediately halt all cycles if the cutting boundary is breached.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Maximum Cutting Width: 20.5” (520 mm) Maximum Paper Stack Height: 3.15” (80 mm) Cutting Accuracy: 0.1 mm Length Behind Blade: 20.5” (520 mm) Length in Front of Blade: 18.25” (464 mm) Minimum Cut (with False Clamp): 1.6” (40 mm) Minimum Cut (without False Clamp): 0.98” (25 mm) Control Panel Type: 7″ Full-Color Touchscreen Job Program Memory: Up to 100 programs (with up to 100 steps each) Cutting Mechanism/Drive: Dual-button electric, hardened steel blade Clamping System: Push-button automatic, electronically adjustable pressure Table Surface Type: Anti-friction low-resistance deck Standard Table Dimensions: 30.75” W x 15.75” D (781 x 400 mm) Safety Features: Infrared light beam curtain, safety key lock, dual-button activation, and automatic blade return Alignment Aid: Bright red LED laser cut line Power Supply Requirements: 220V, 60Hz, 20A dedicated line (NEMA 6-20P plug configuration) Approx. Weight: 683 lbs (310 kg)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
