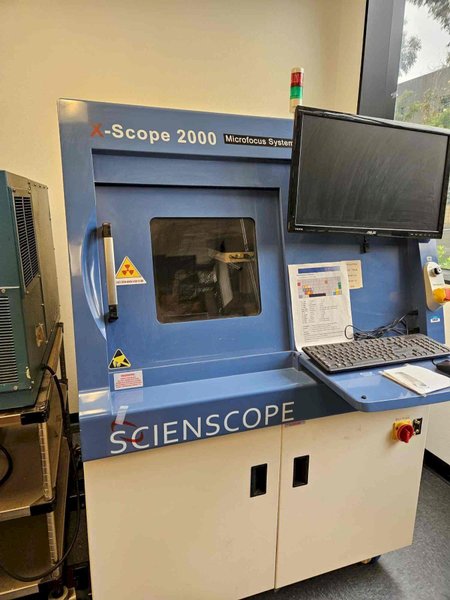

Scienscope X-Scope 2000 Microfocus System for X-Ray Inspection, 2018

Scienscope X-Scope 2000 Microfocus System for X-Ray Inspection

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Applications: – BGA Inspection – Inspection of over molded electrical connectors – Encapsulated components – Aluminum die castings – Molded plastic components – Ceramics – Aerospace components – Electrical / mechanical components – Electronic components – Pharmaceuticals – Automotive assemblies – Agriculture – Counterfeit inspection – Cell phone battery inspection

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,X-Ray Tube Specs:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Tube Style: Closed Type – Tube Voltage: 90kV / 110kV – Tube Current: 0.256mA / 0.315mA – Focal Spot Size: 5 Micron – Tube Cooling: Forced Air – Geometric Magnification: 150X – System Magnification: 750X

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Digital Flat Panel X-Ray Detector:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Gray Scale: 14-bit (16,384 shades of – – grayscale) – Speed: 30 FPS – Camera Resolution: 99 m (1.2 MP) – Detector Size: 4″ x 3″ high resolution

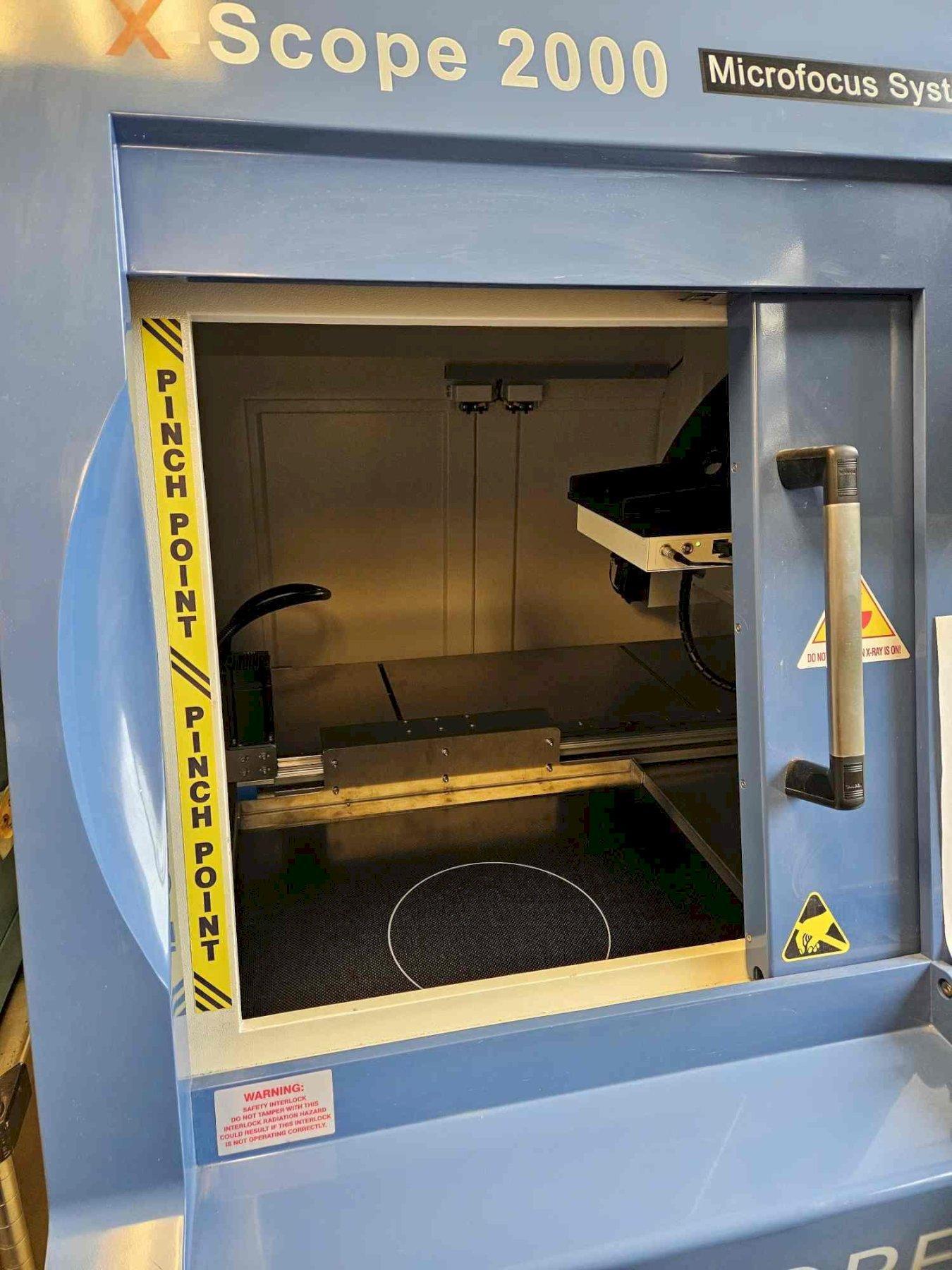

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,X-Ray Cabinet:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Dimension (mm): 46.5″ (L) x 53.5″ (W) x 65″ (H) – Sample Table Size: 22″ (X) x 21″ (Y) – Sample Table Tilt 70 degree – Sample Table Movement: X Axisz: 20.5″, Y Axis: 19.7″ Z Axis: 15.8″ – Weight: 1100 kg / 2425 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Automatic switching power supply: 110 – 230 VAC 50/60 Hz Operating System: Microsoft Windows 7 PRO
