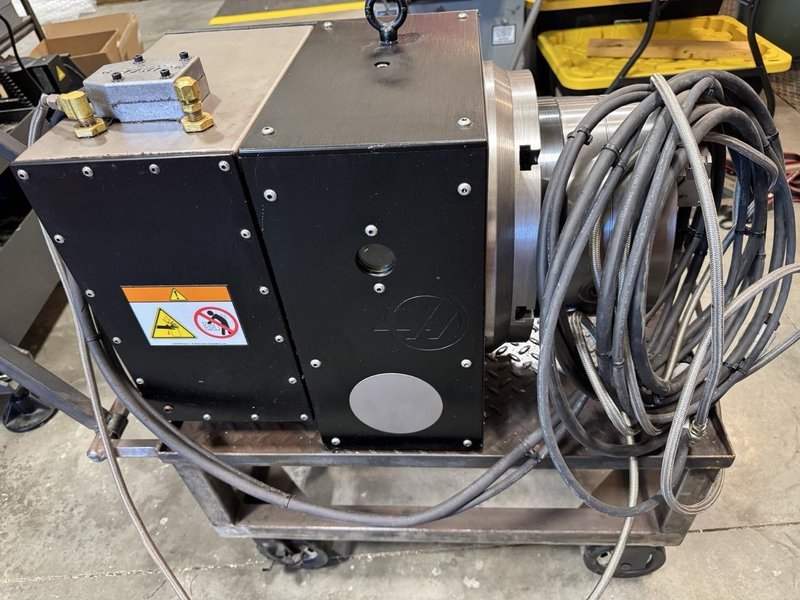

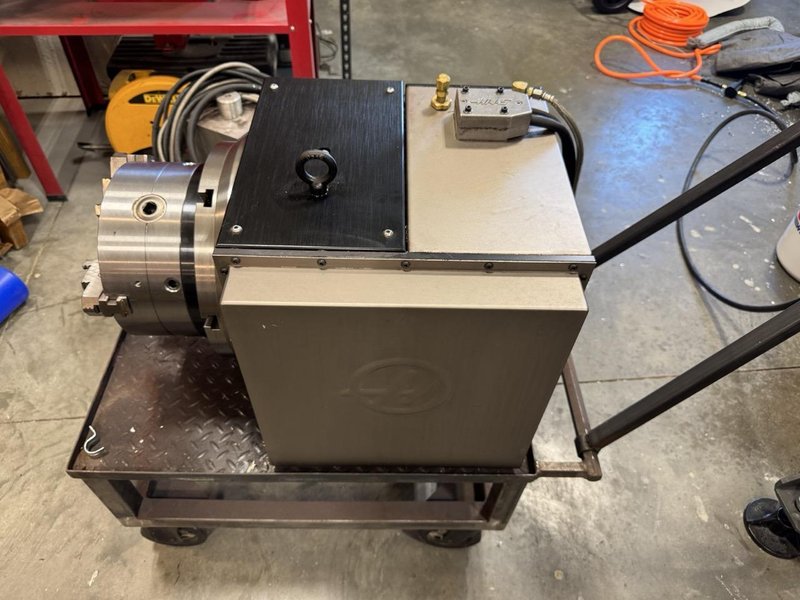

Haas HRT310SP 4th Axis Rotary, 2019 – New 8″ 3-Jaw Chuck, Tombstone, A-Support Included

Platter Diameter: 12.2″ Center Height: 9.0″ Platter Bore Hole: 3.250″ diameter × 9.875″ depth Number Of T-Slots: 6 @ 60° Max Torque (Continuous): 300 ft-lb Max Brake Torque (100 psi): 500 ft-lb Max Speed: 75 °/sec Accuracy (±): 15 arc-sec Repeatability: 10 arc-sec Resolution: 0.001° Runout Max: 0.0010″ Backlash: 30 arc-sec Worm Gear Diameter: 9.4″ Gear Ratio: 72:1 Max Rotation per Step: 999.999° Power Requirement: 115 VAC ±10% @ 15 A Air Pressure Max: 150 psi Weight: 435 lb (supported); 218 lb (unsupported) Duty Cycle (Full/Low Speed): 50% / 100%

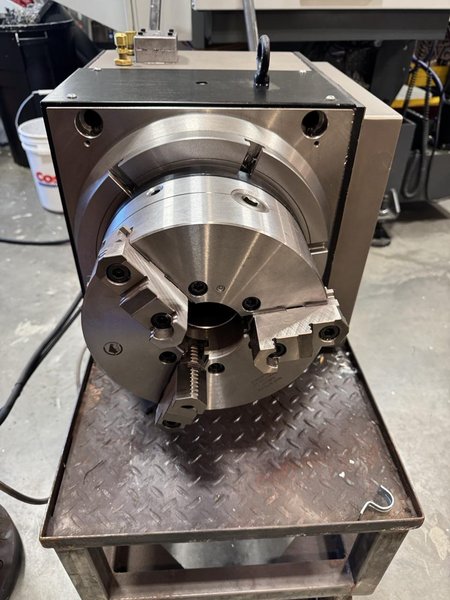

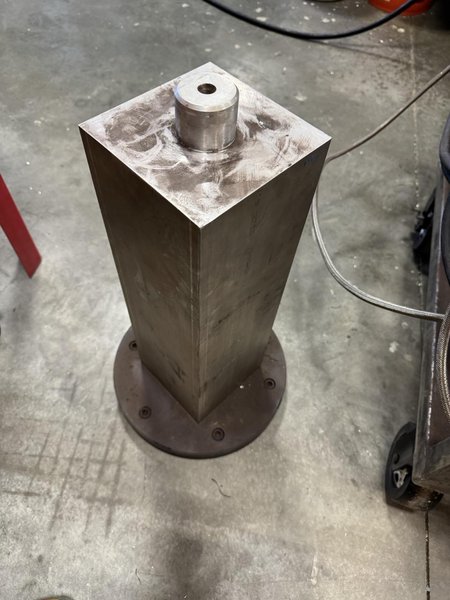

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: 8″ 3-Jaw Chuck (New) Tombstone Blank for A-axis Use Haas A-Axis Support Stand

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
