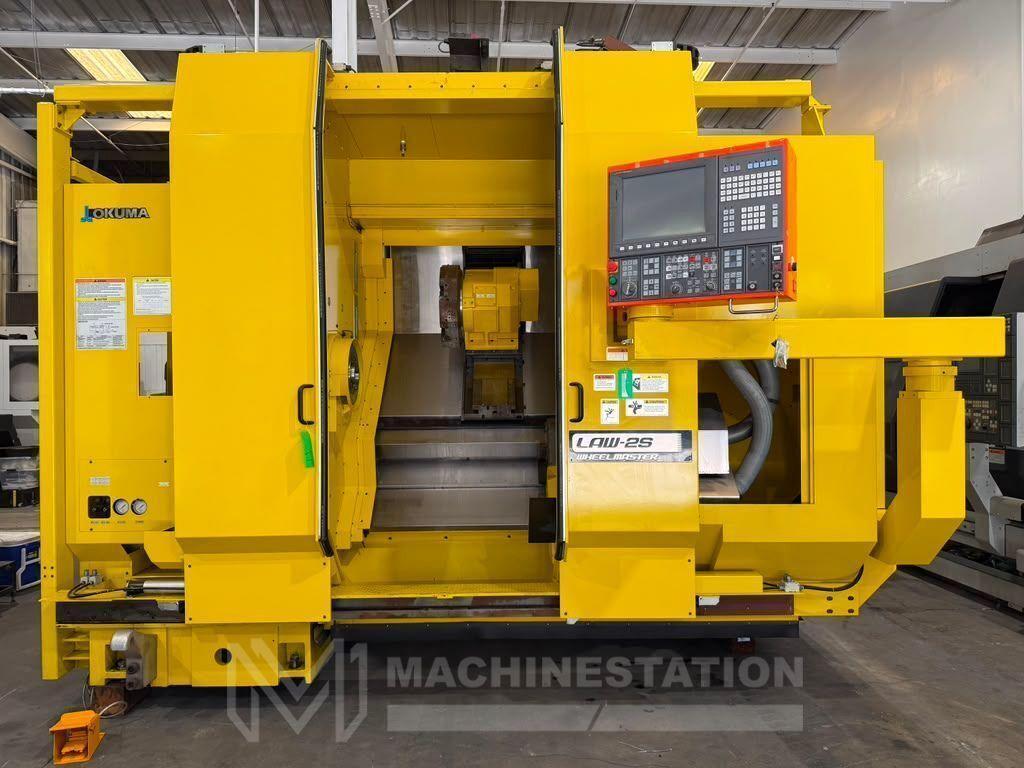

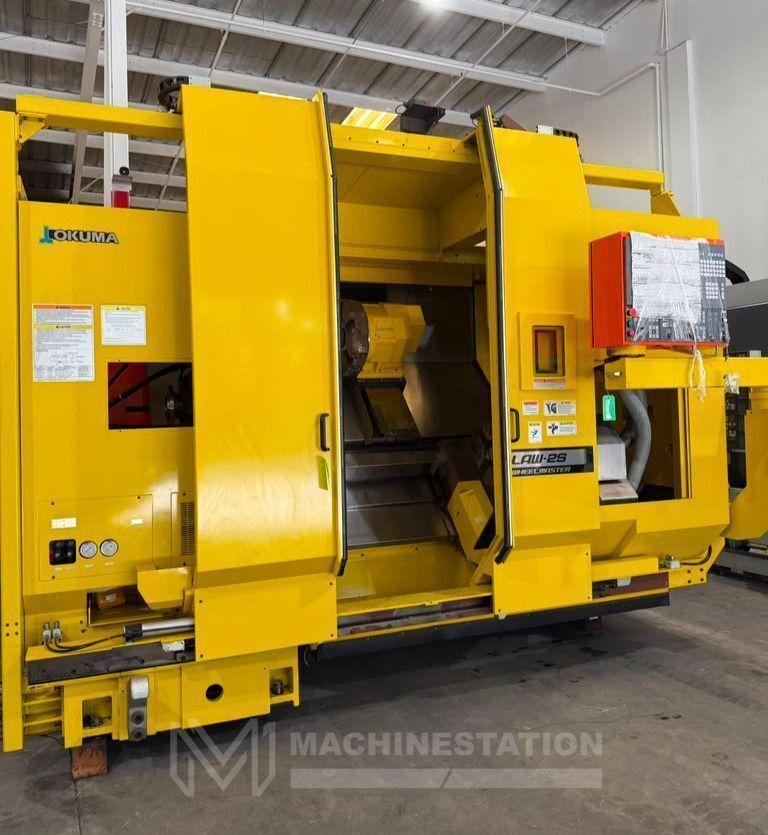

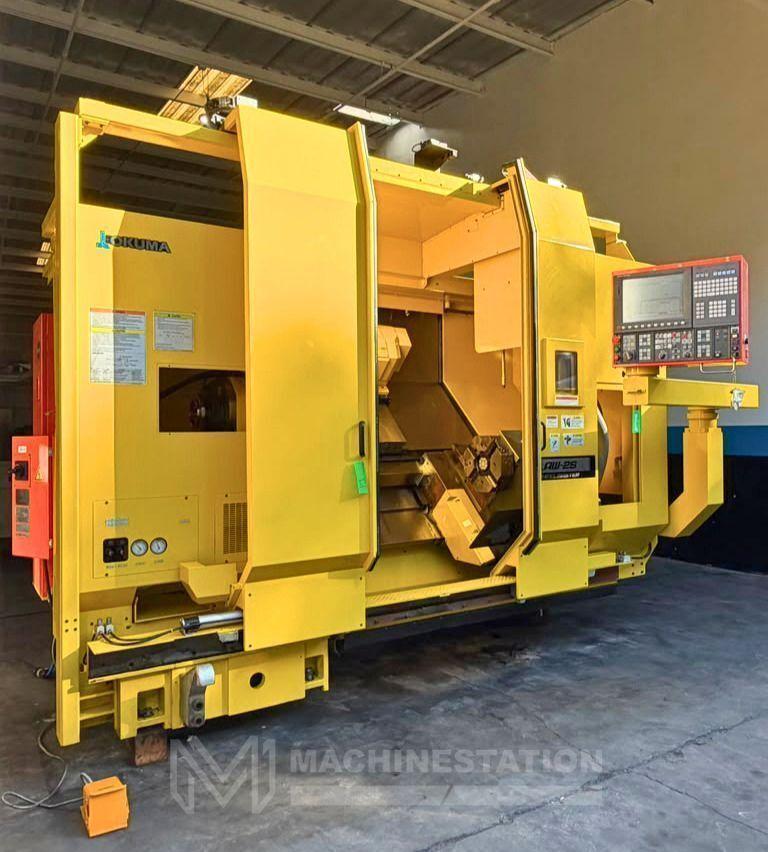

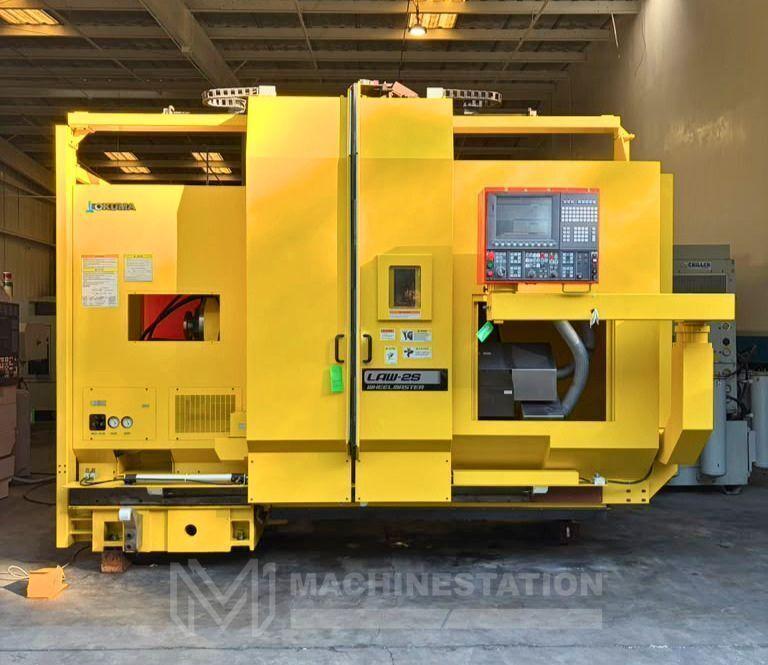

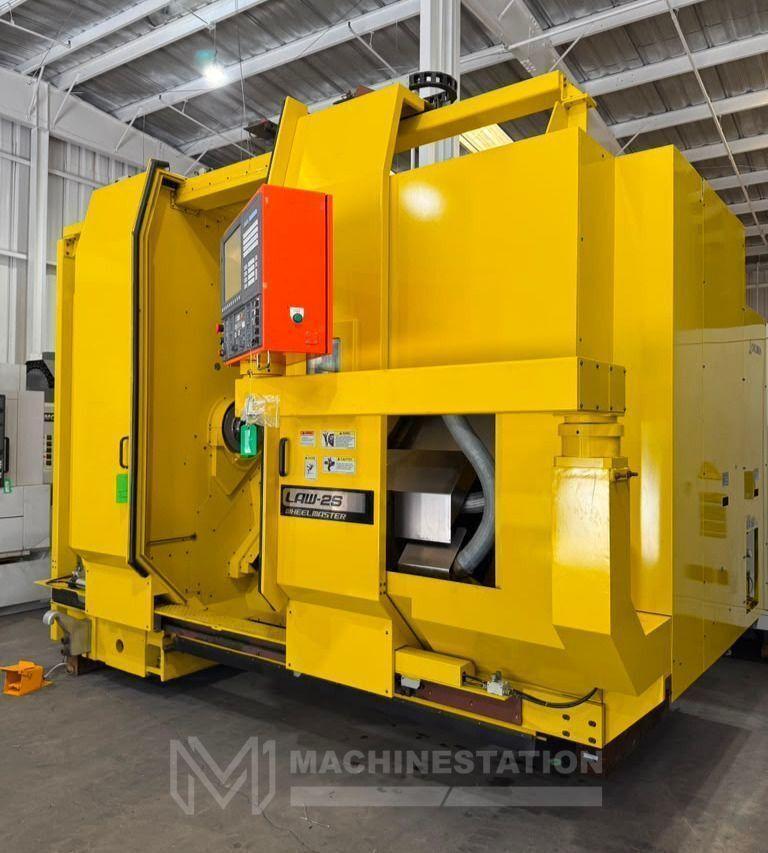

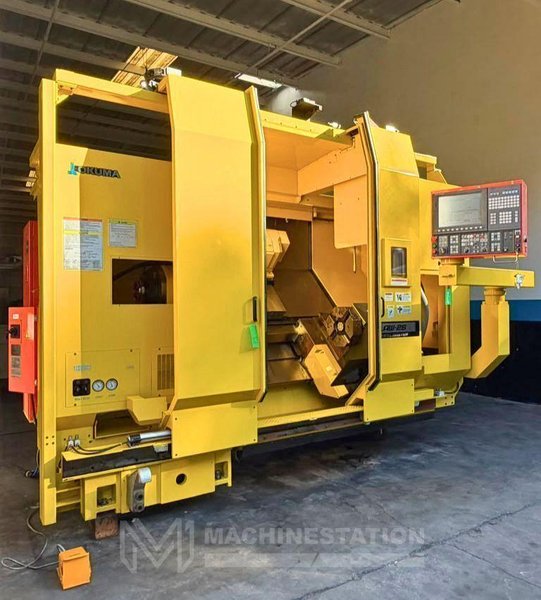

Okuma LAW-2S Wheelmaster 4-Axis Aluminum Wheel CNC Turning Center – 2023 Lathe

Brand
OKUMA
Category
Lathes & Turning Machines
Type
Turning Centers
Model
LAW-2S
Stock #
113637
Year
Not specified
Condition
Not specified

Location

Not specified

*All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Make: OKUMA
Model: LAW-2S Wheelmaster
Year: 2023
Features:

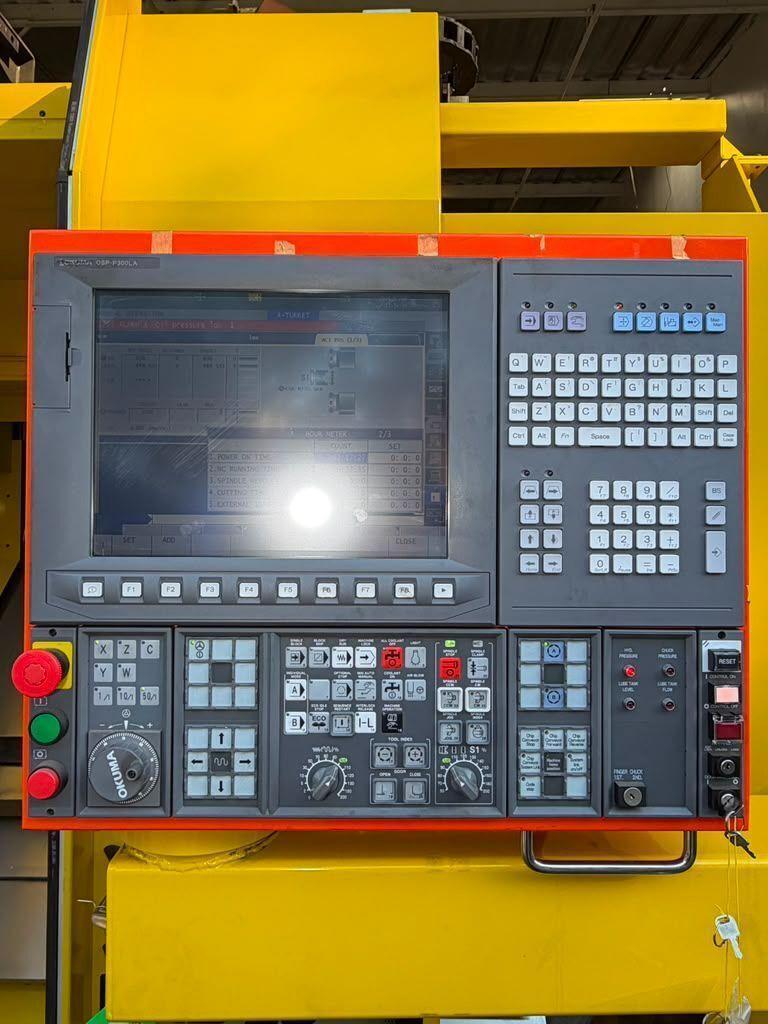

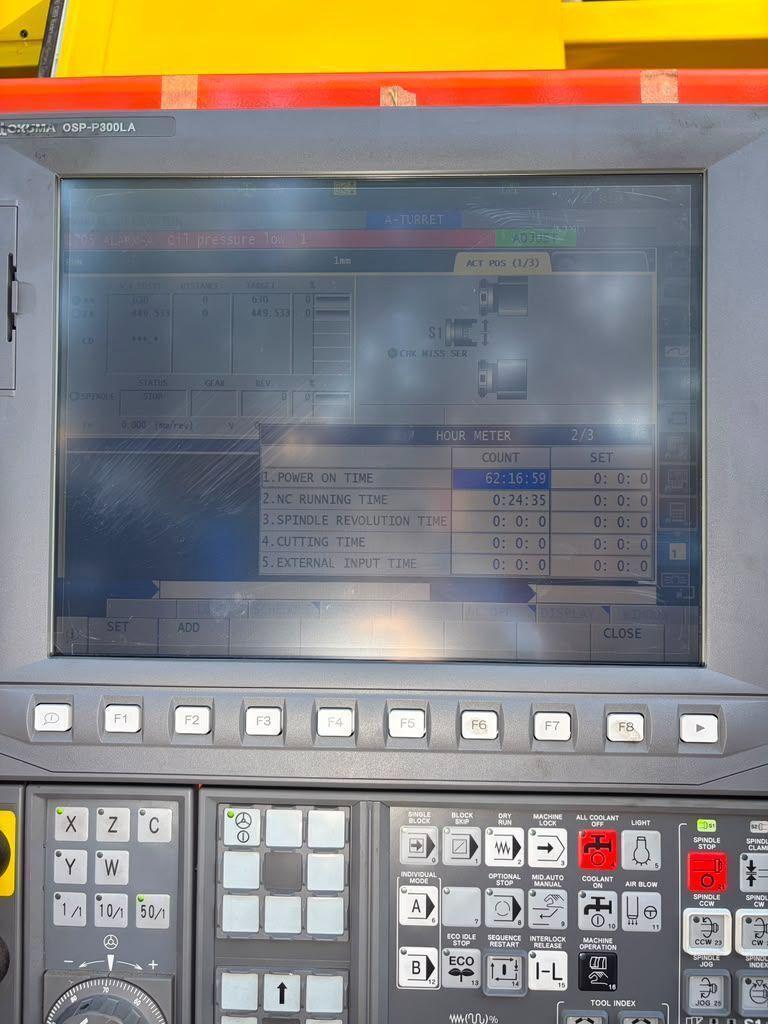

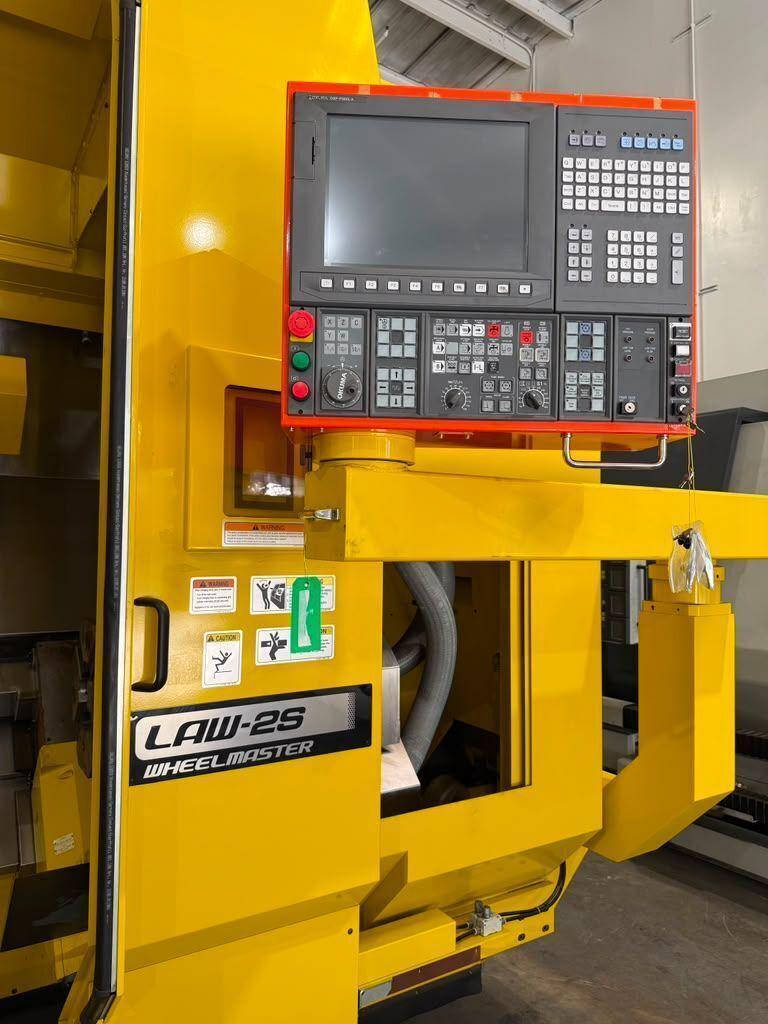

Okuma OSP-P300LA CNC Control
Simultaneous 4-Axis Turning Capability

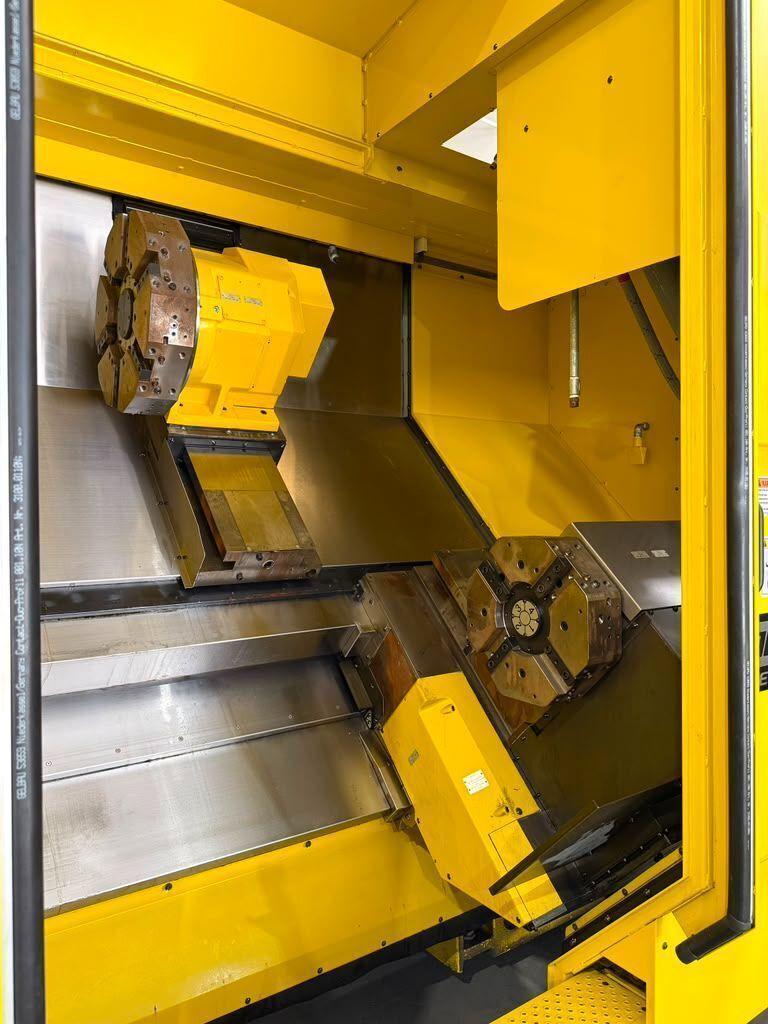

Dual Turret Configuration
Upper V6 6-Station Turret
Lower V4 4-Station Turret
A2-8, 3,000 RPM Spindle
75 HP Spindle Motor
Rigid Tapping
Foot Switch
Capacity:
Maximum Turning Diameter – Upper Turret: 24.80″
Maximum Wheel Size: 20″
Swing Over Bed: 31.10″
Swing Over Saddle: 20.87″
Travels:
X1-Axis / Cross Slide Travel: 14.96″
Z1-Axis / Saddle Travel: 34.06″
X2-Axis / Cross Slide Travel: 9.84″
Z2-Axis / Saddle Travel: 35.35″
Rapid Traverse Z-Axis: 787 IPM
Rapid Traverse X-Axis: 591 IPM
Spindle:
Spindle Speed Range: 200 – 3,000 RPM

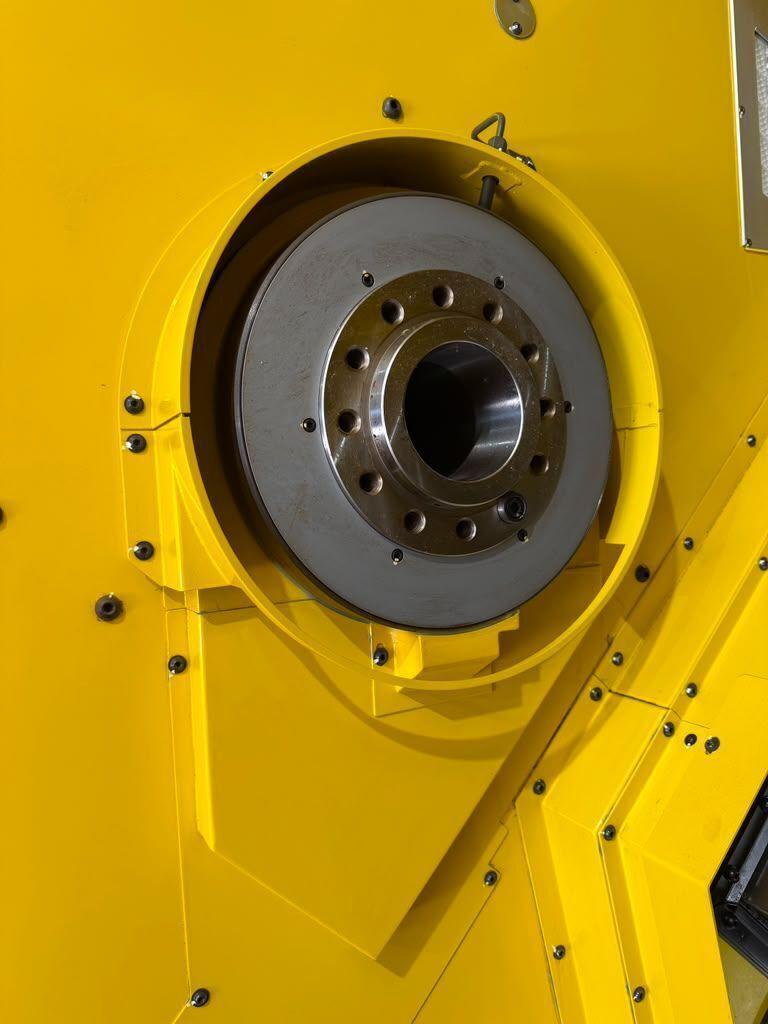

Spindle Nose: A2-8
Spindle Bore Diameter: 2.09″
Spindle Motor: 75 HP / 60 HP (20-Minute / Continuous)

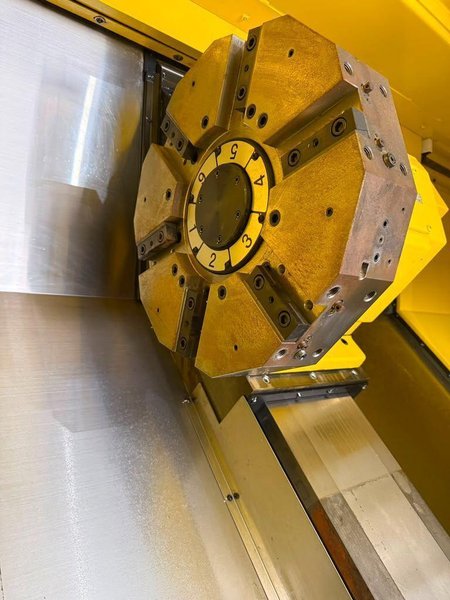

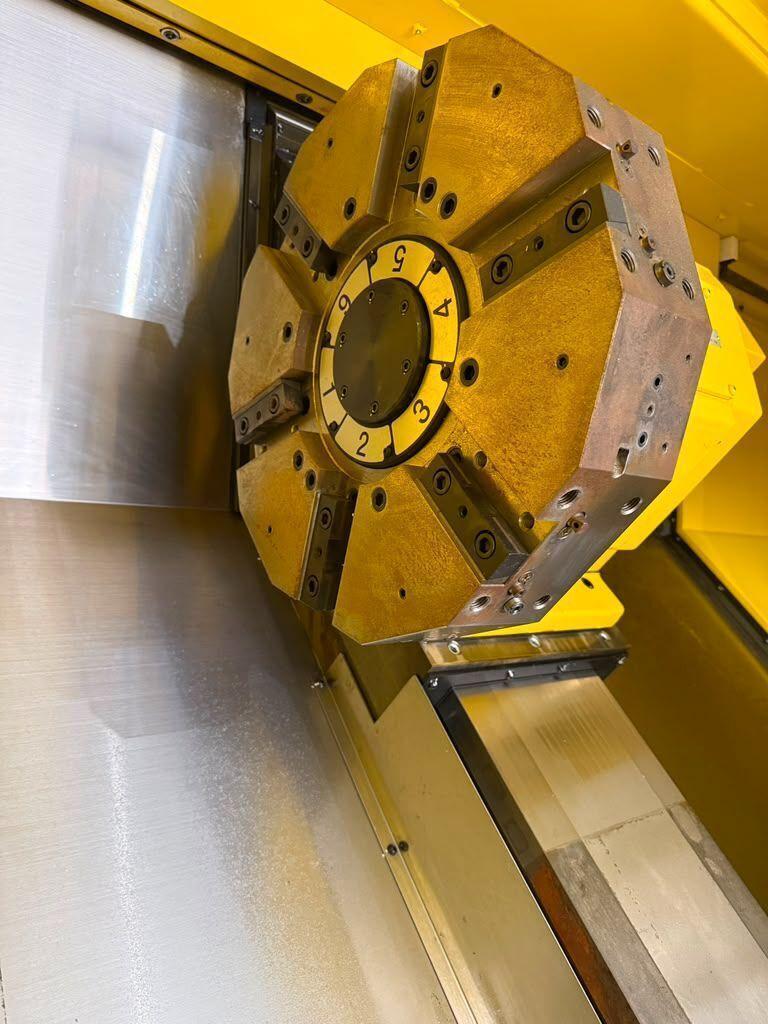

Upper Turret:
Turret Type: V6
Number of Tool Stations: 6

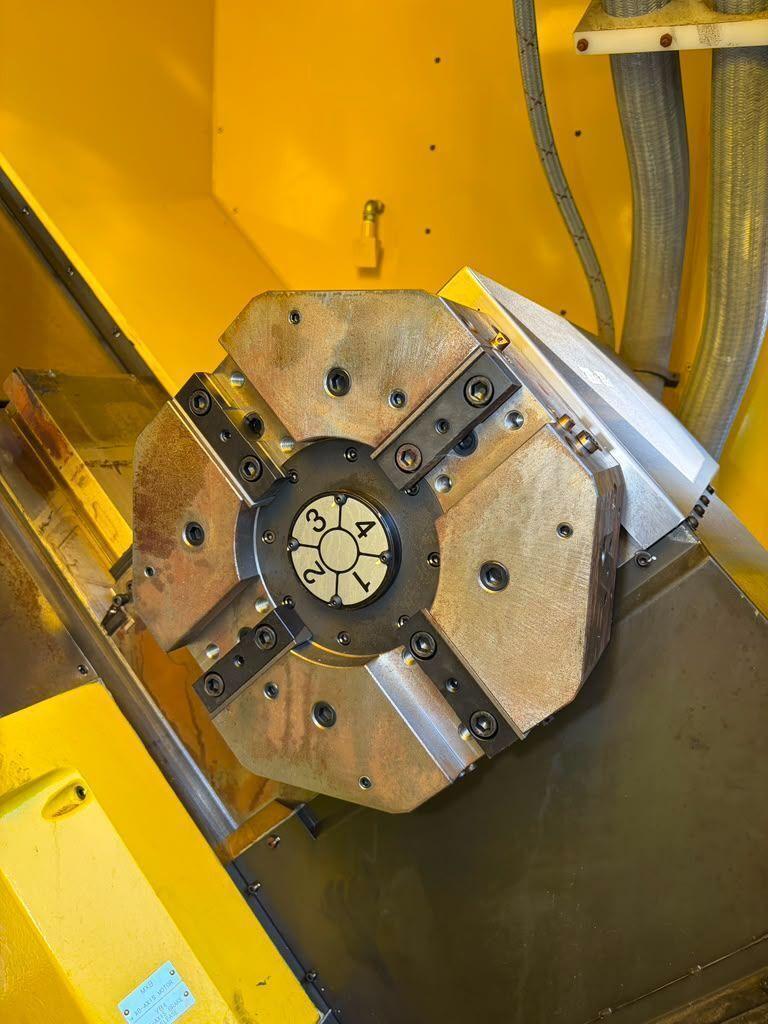

Lower Turret:
Turret Type: V4
Number of Tool Stations: 4
General:

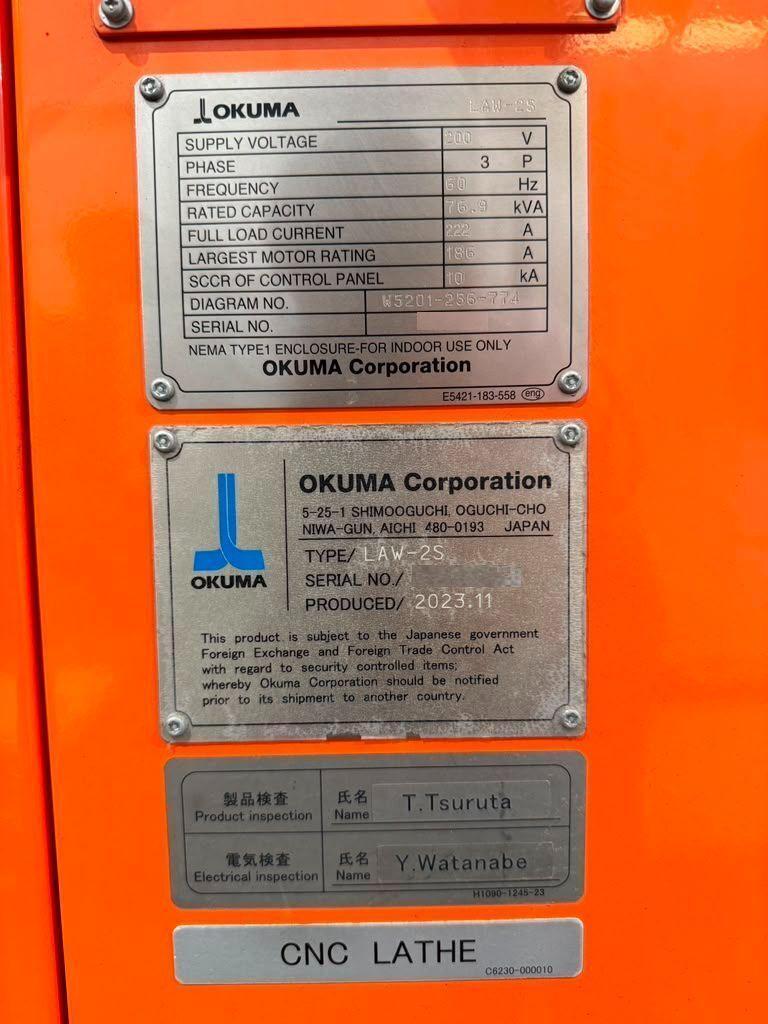

Power Supply: 200 V / 3-Phase / 50 Hz
Rated Capacity: 76.9 kVA
Machine Dimensions (W × D × H): 195.79″ × 101.57″ × 112.20″ Approx.
Machine Weight: 25,300 lbs Approx.
