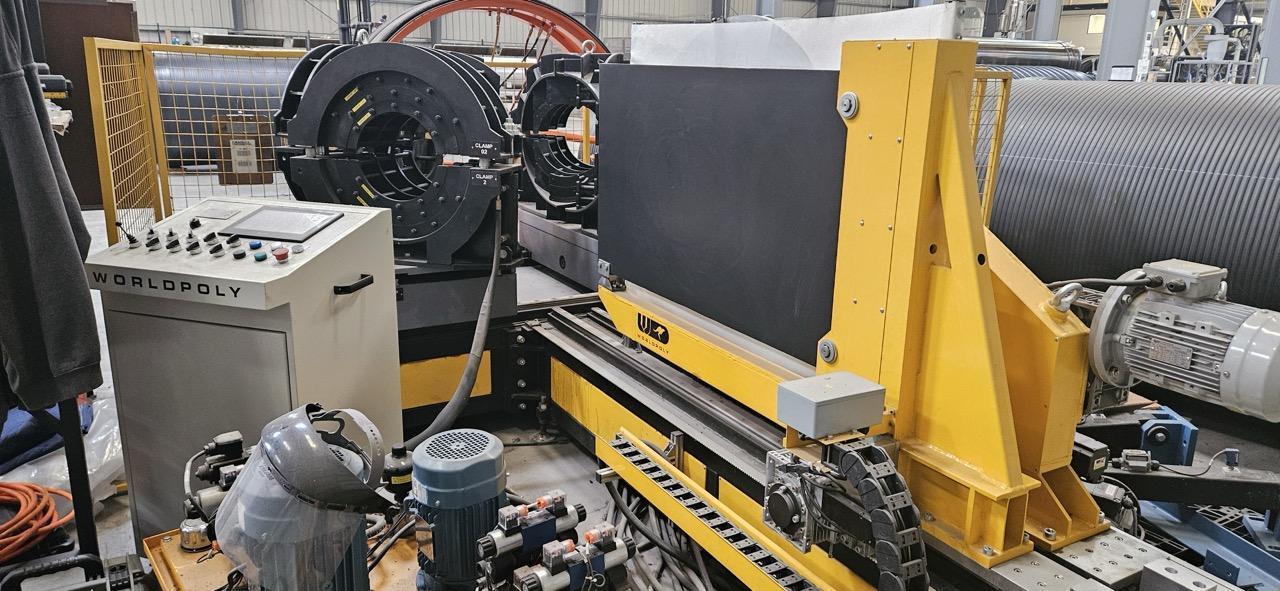

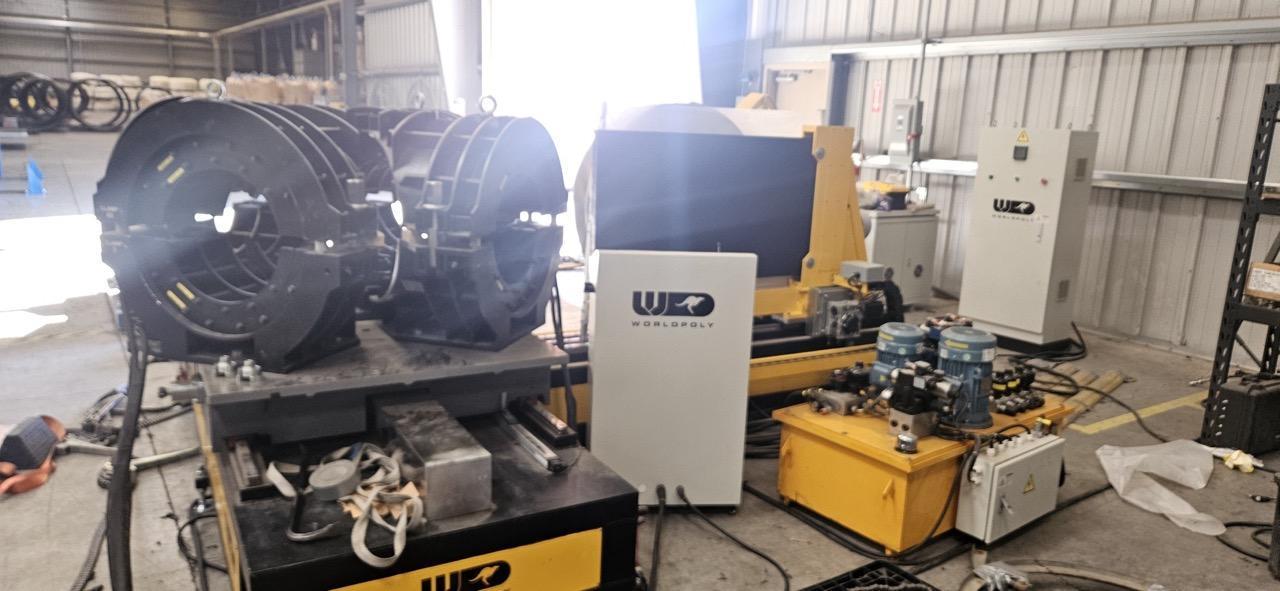

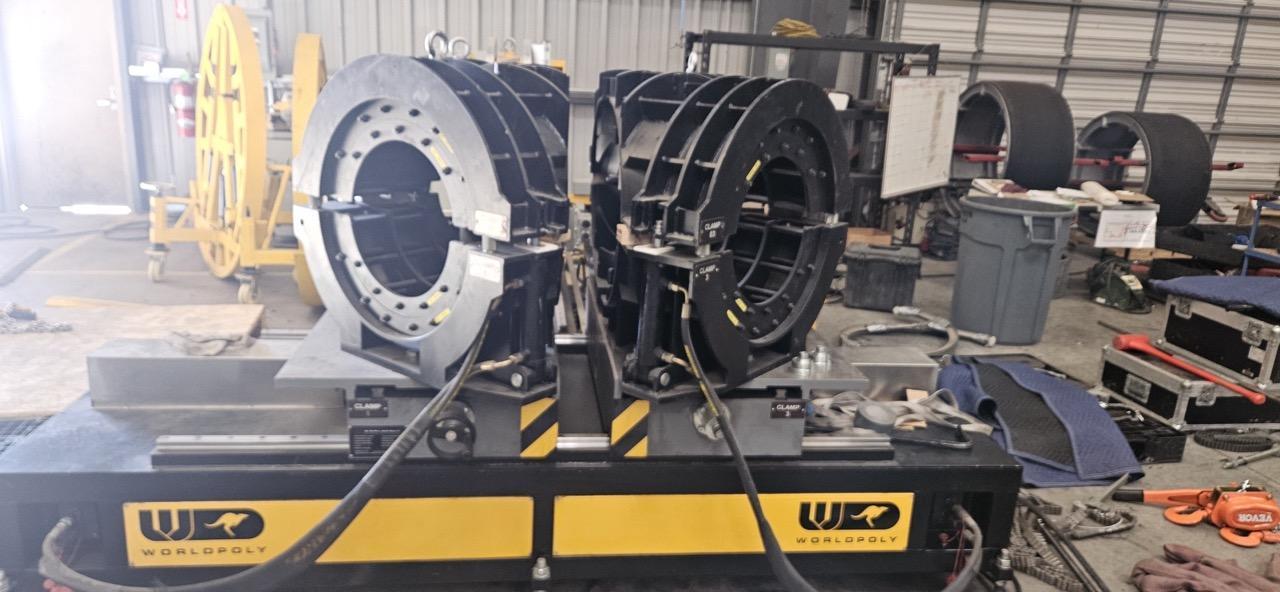

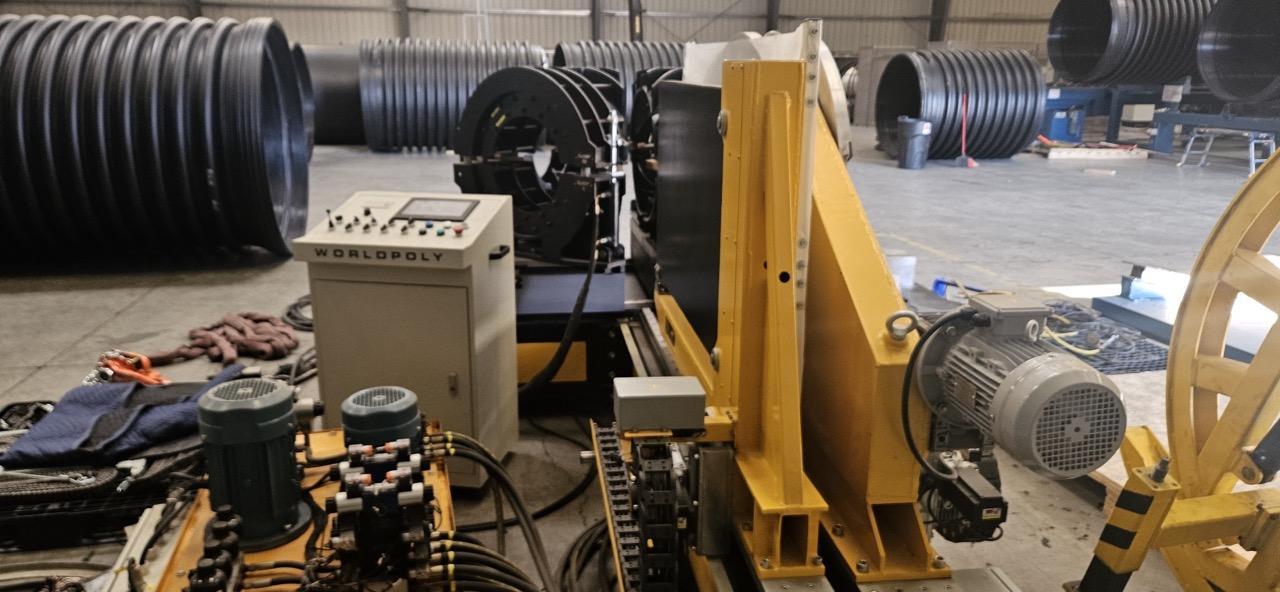

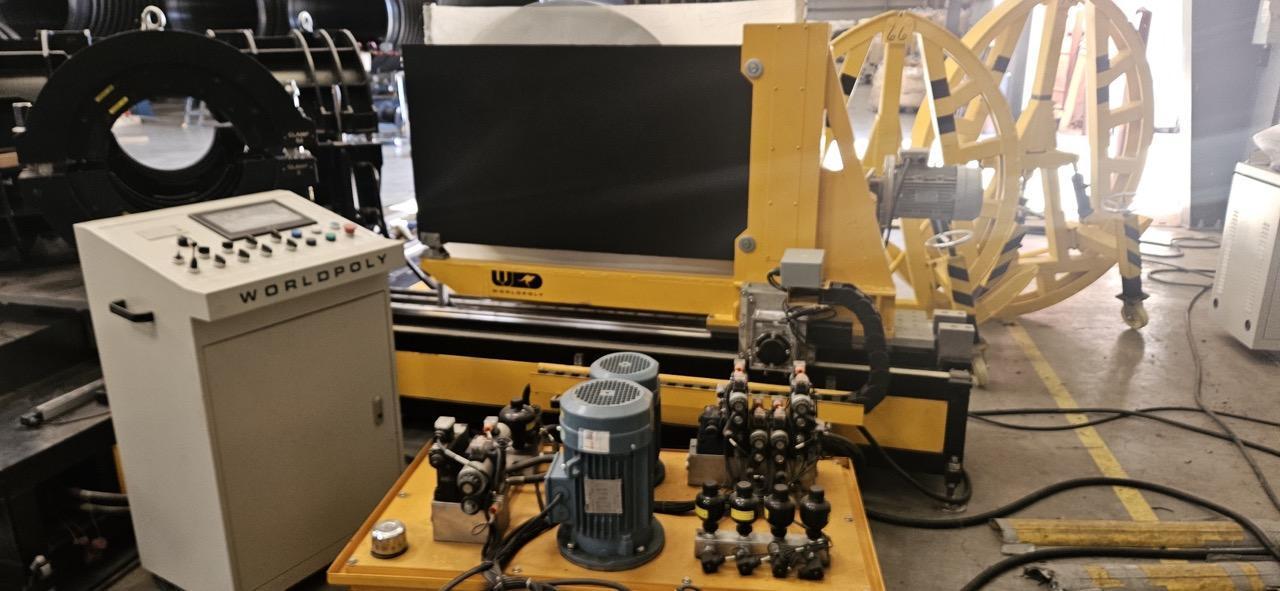

Worldpoly WH630 CNC Butt Welder, 2021 – 12″-24″ Capacity

Materials for Welding: Polyethylene (PE) Max Elbow Outside Diameter: 24.8″ (SDR11) Max Tee Outside Diameter: 24.8″ (SDR11) Max Cross Outside Diameter: 24.8″ (SDR11) Ambient Temperature: 23 °F – 113 °F Hydraulic Oil (Kinematic Viscosity @ 104 °F): 40–50 mm²/s (approx. 185–232 SUS) Power Supply: ~400 V ±10% Frequency: 50 Hz Total Current: 49.6 A Total Power: 30.2 kW (≈ 40.5 HP) Heating Plate: 24.2 kW (≈ 32.4 HP) Planing Tool Motor: 4 kW (≈ 5.4 HP) Hydraulic Unit Motor A: 3 kW (≈ 4 HP) Hydraulic Unit Motor B: 1.5 kW (≈ 2 HP) Insulating Resistance: >1 MΩ Max Hydraulic Pressure: 12 MPa (≈ 1740 psi) Total Cylinder Section: 19.63 cm² (≈ 3.04″²) Max Heating Plate Temperature: 518 °F Heating Plate Temperature Difference: ±12.6 °F Noise Level: <70 dB Oil Tank Capacity: 8.45 gal Total Weight: 13,961 lb

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
