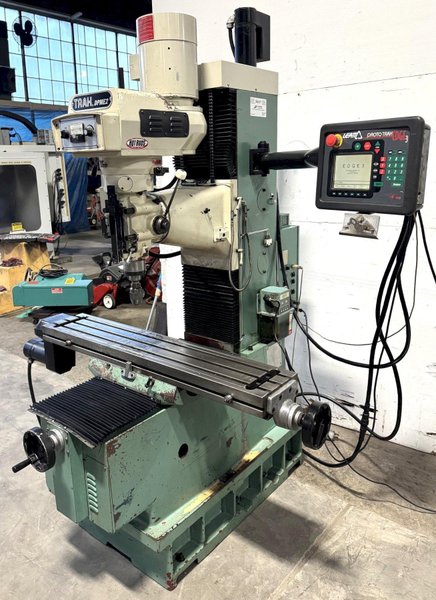

SWI TRAK CNC Vertical Mill DPME2, 3-Axis, Bed Type, Edge 3 Control, 2004

Brand
SWI TRAK
Category
Milling Machines
Type
CNC Mills
Model
TRAK DPME2
Stock #
32189
Year
2004
Condition
Used

Location

Ohio

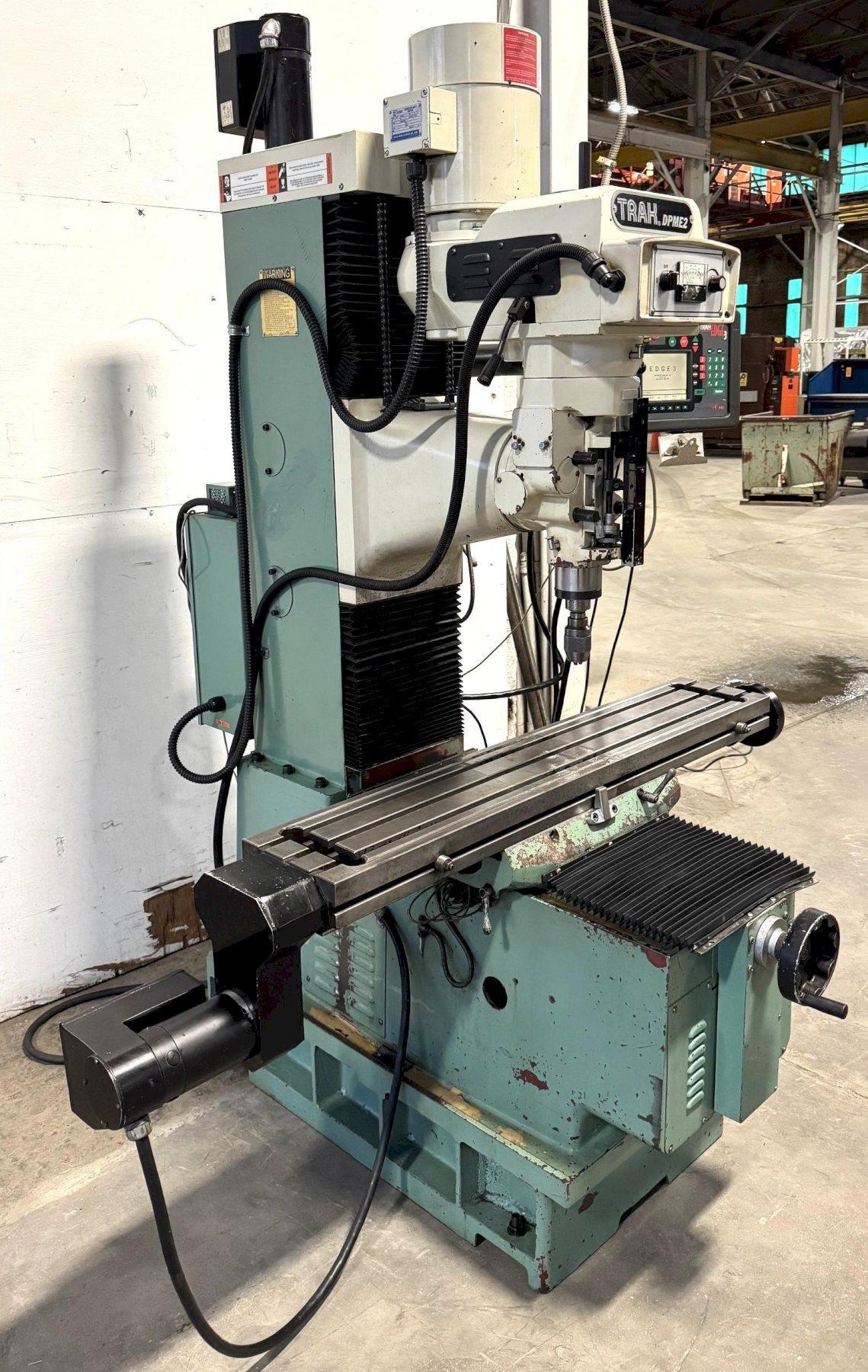

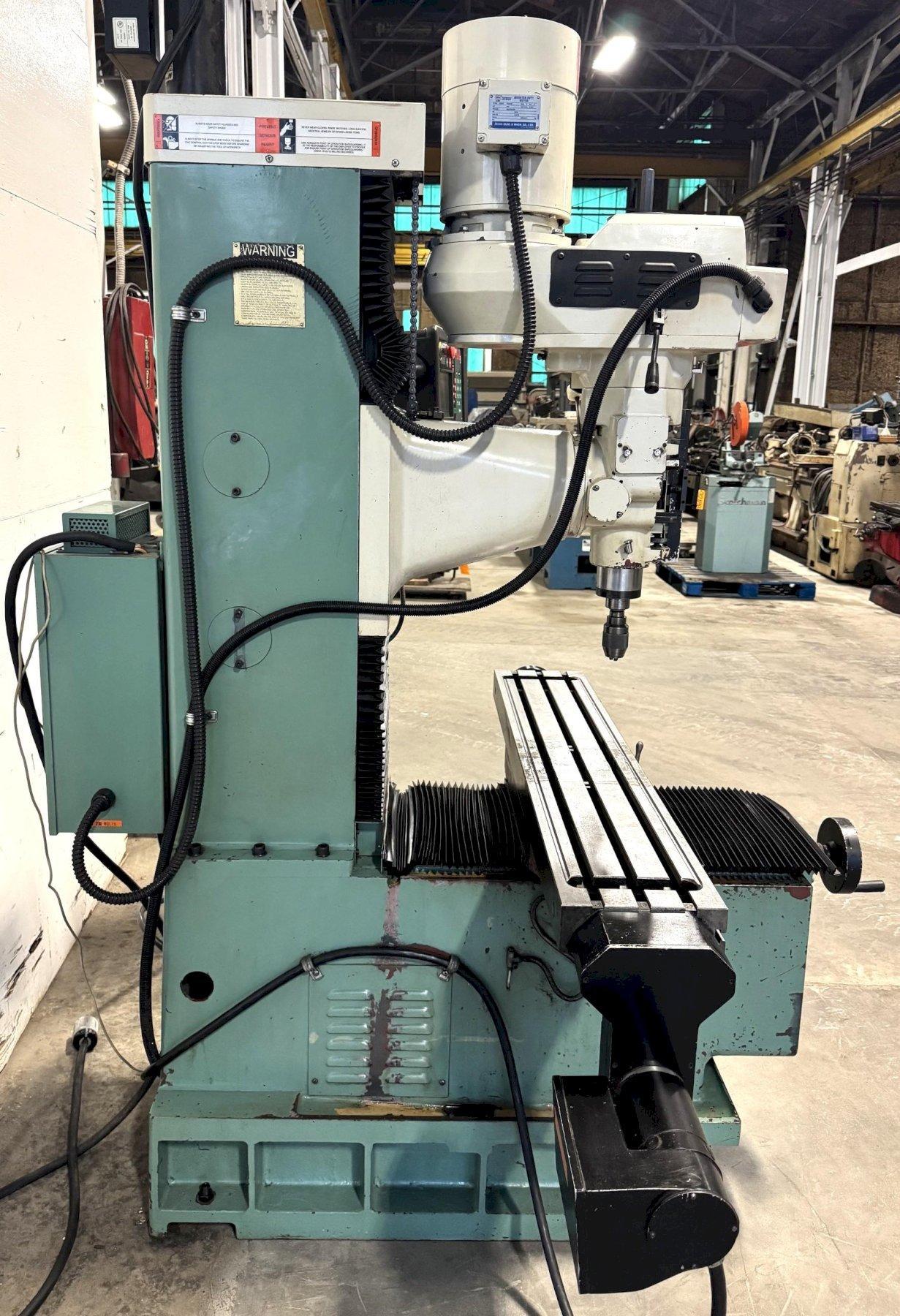

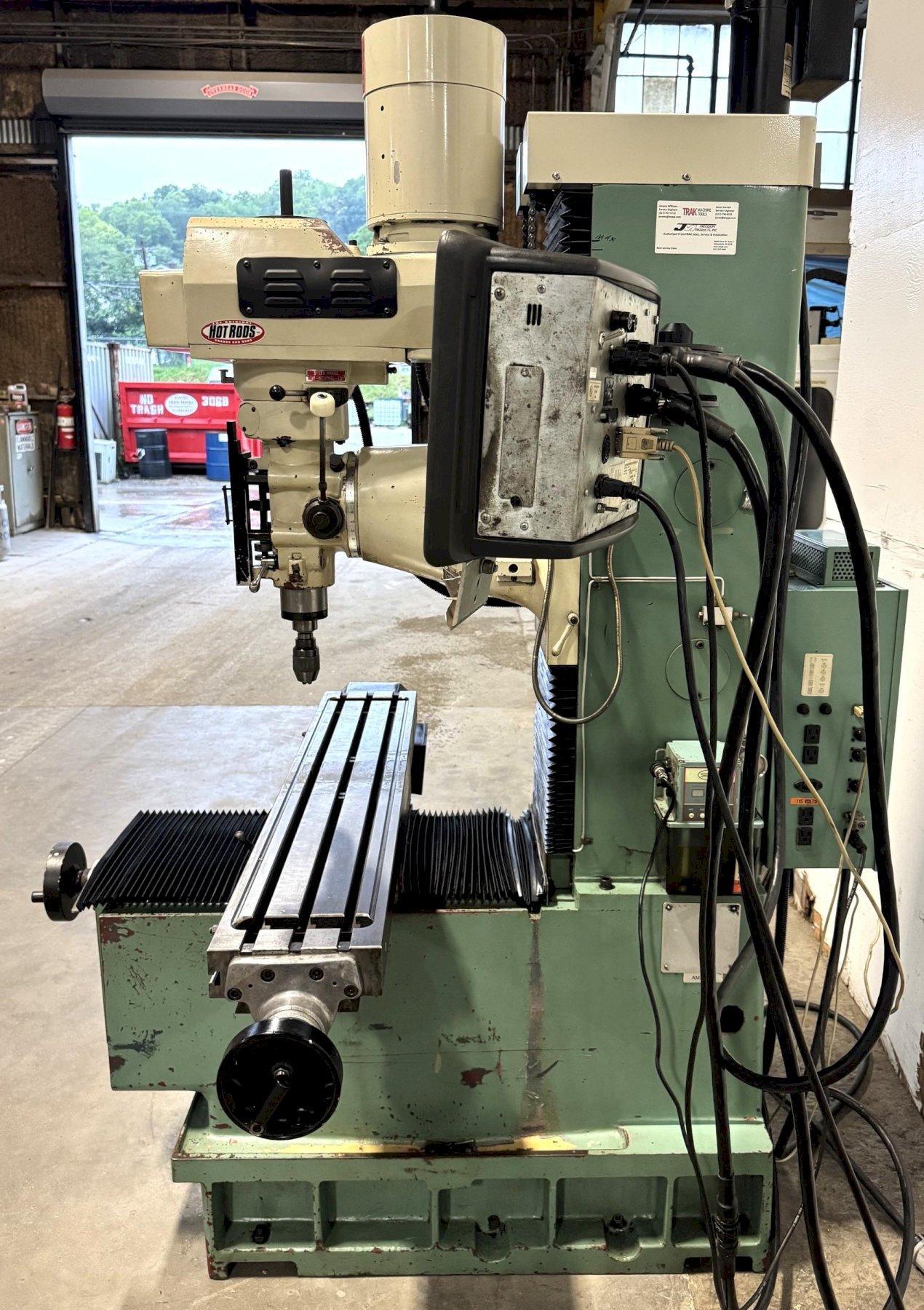

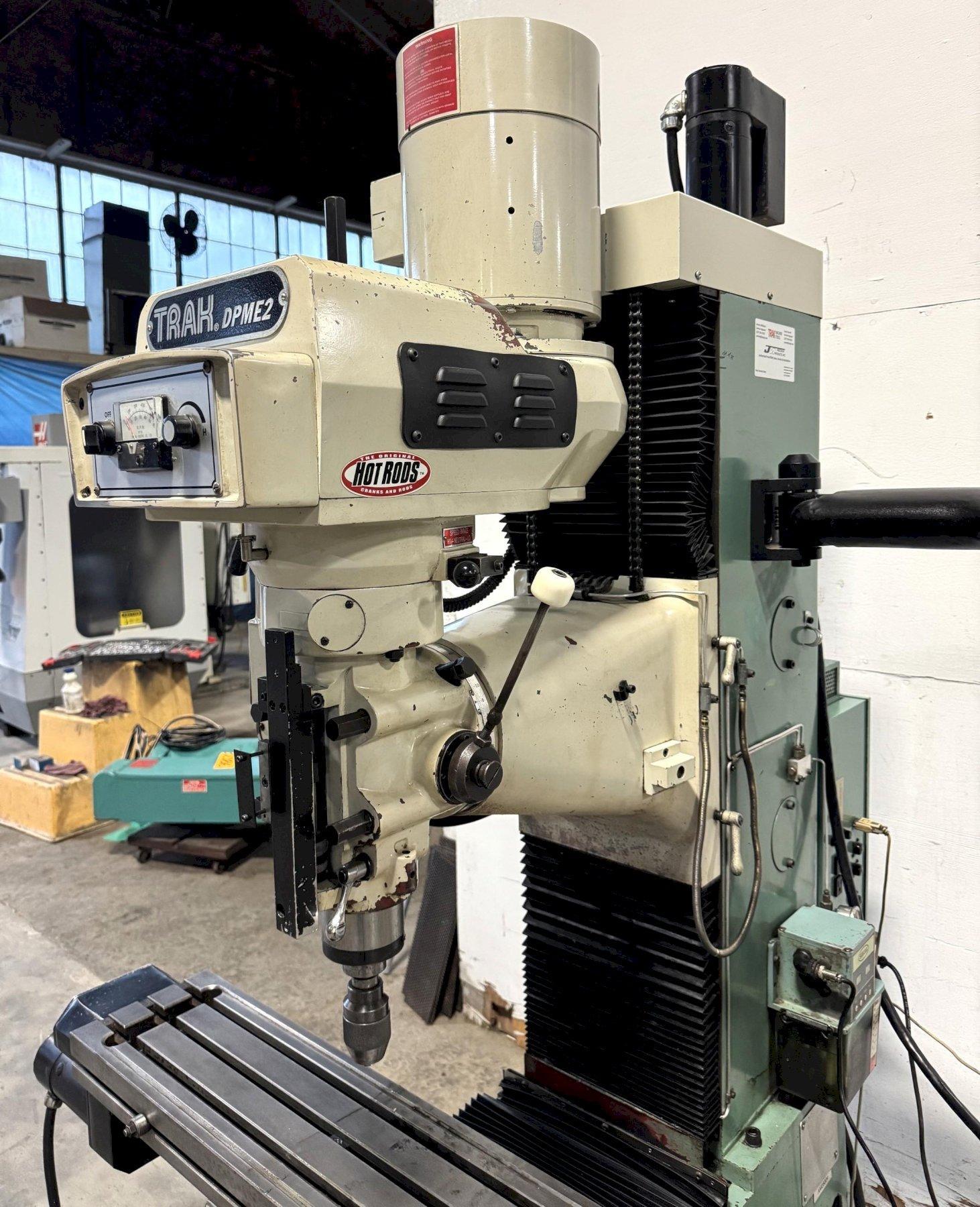

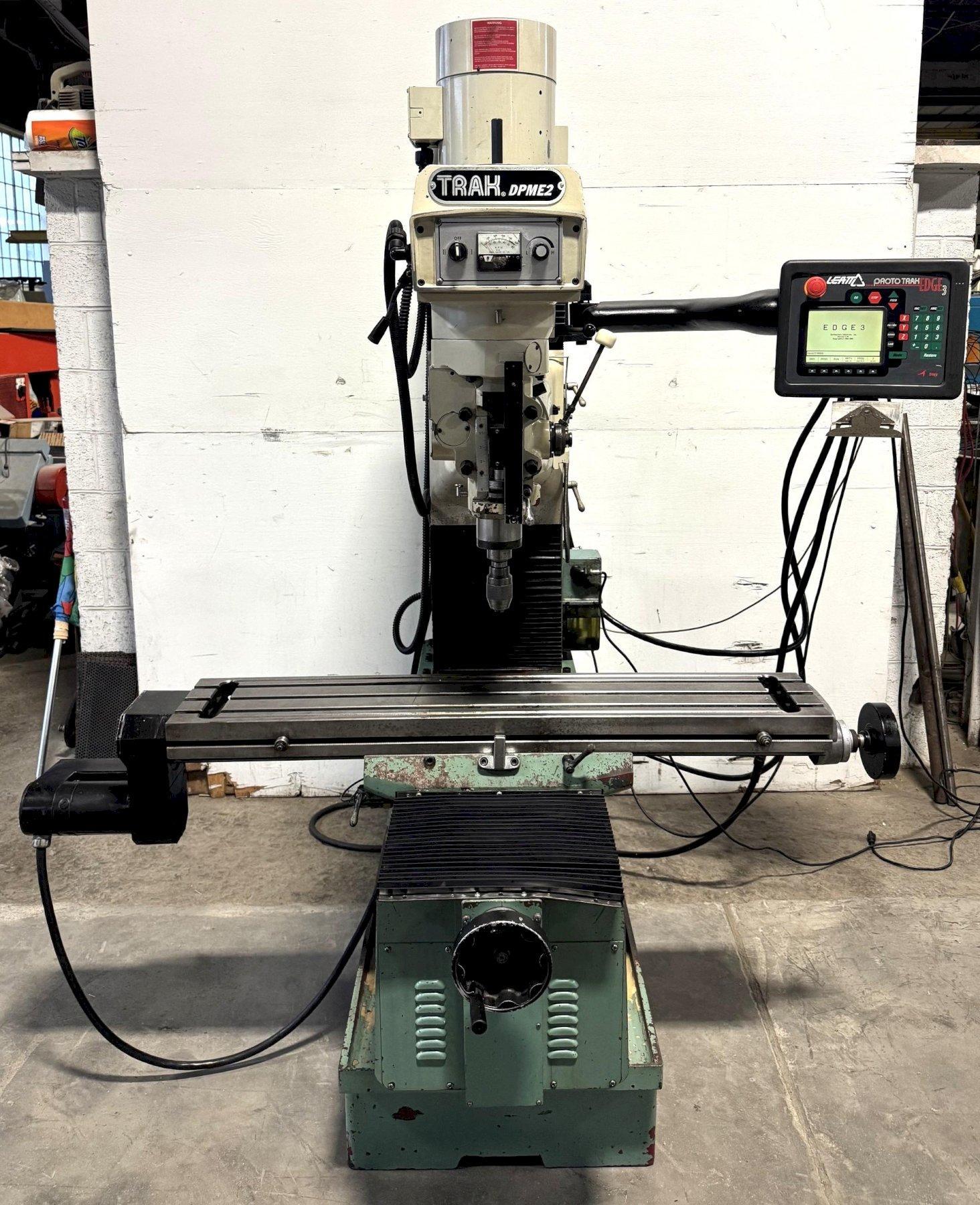

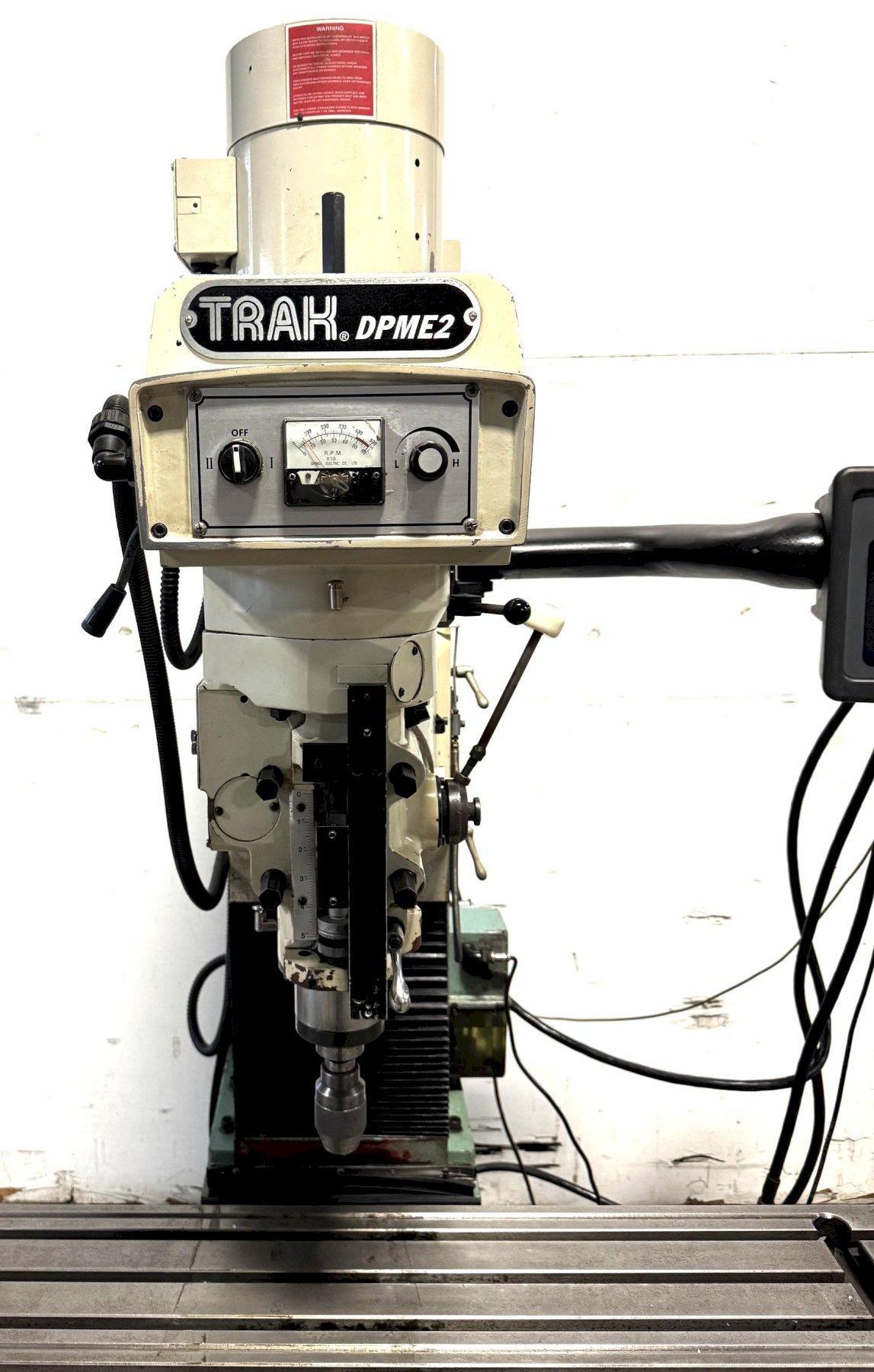

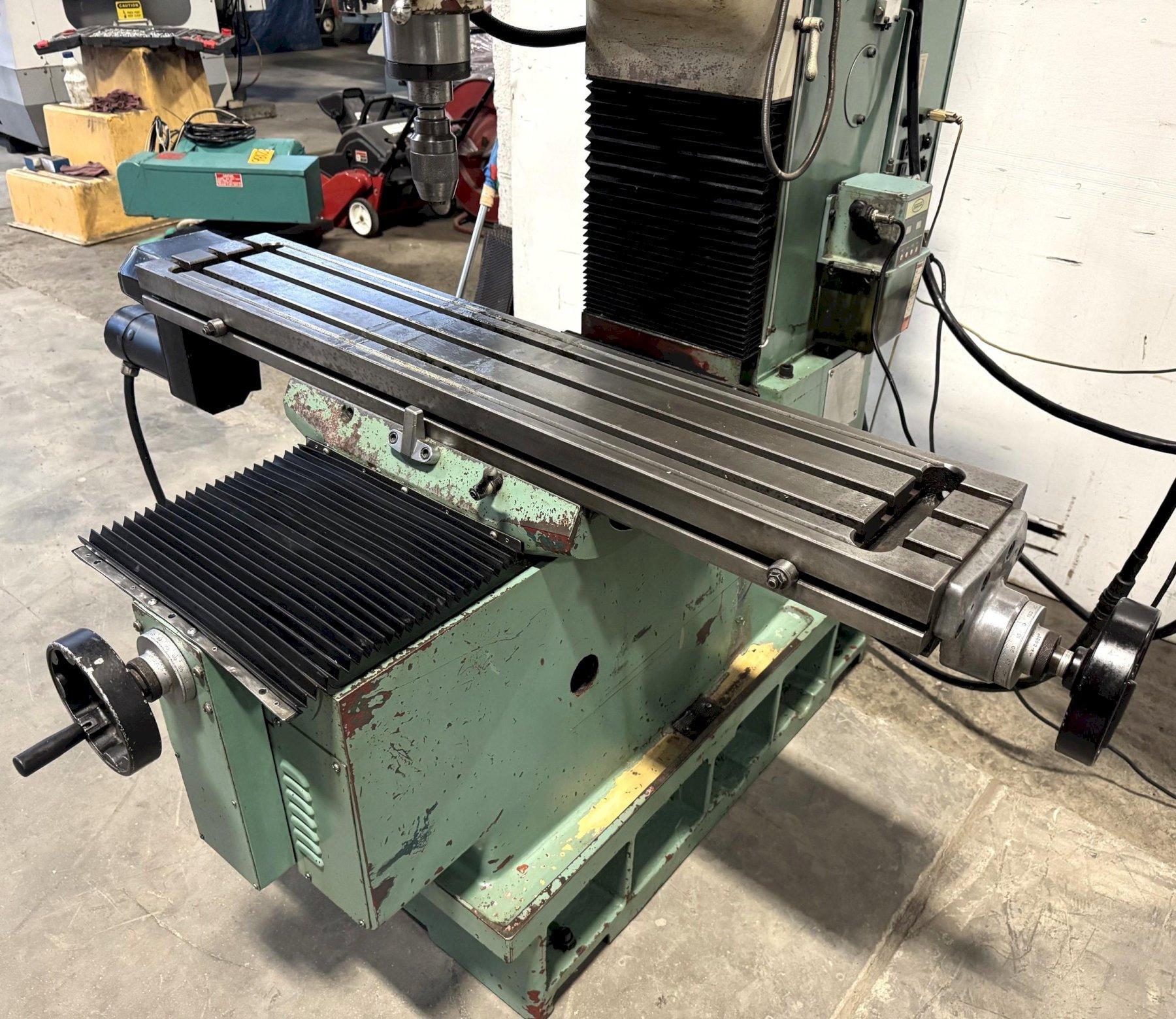

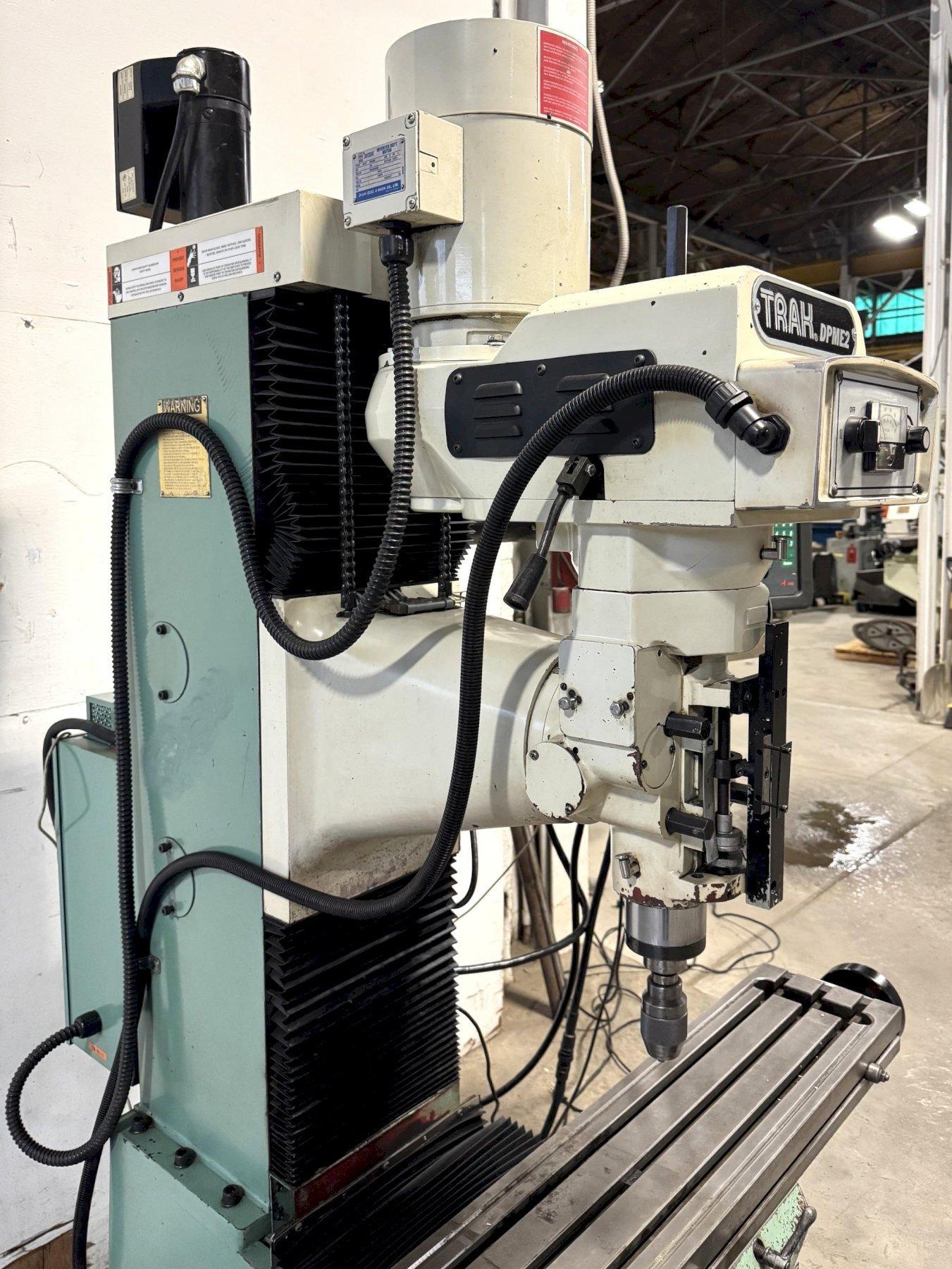

SWI TRAK CNC BED TYPE VERTICAL MILL

MODEL: DPME2
SERIAL NUMBER: 043AY13035

GENERAL SPECIFICATIONS

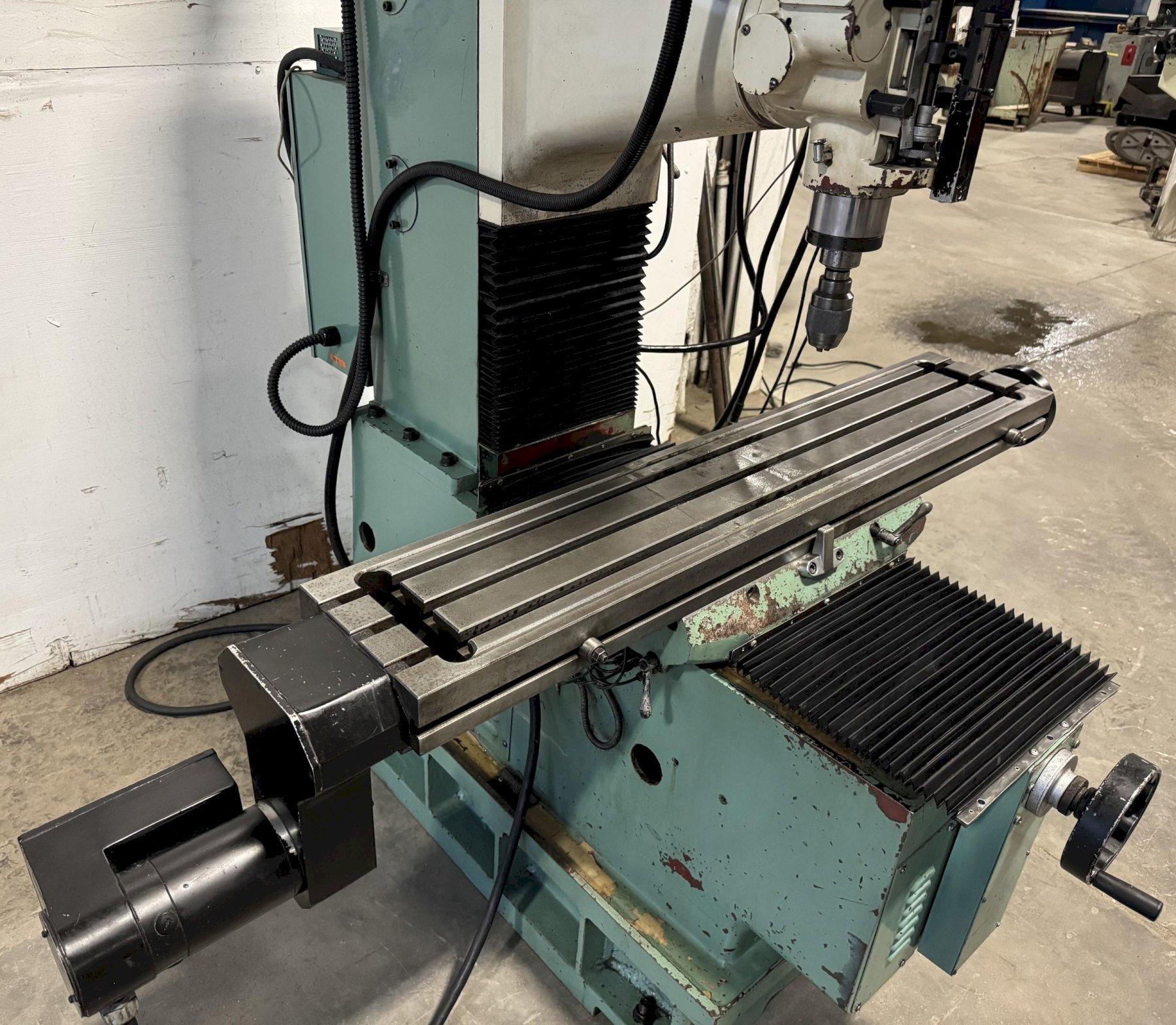

Table Size: 9" x 49"
Table Travel (X): 31"
Saddle Travel (Y): 16"
Vertical Head Travel (Z): 25"
Maximum Quill Travel: 5"
Quill Diameter: 3-3/8"
Spindle Taper: R-8
Maximum Spindle Nose To Table: 27"
Spindle Center To Column Face: 18"
Head Swivel Left and Right: 90 Degrees
Spindle Speed Range: 60 - 5000 RPM
Maximum Weight On Table: 1320 Lbs.

EQUIPPED WITH

3 HP Spindle Motor

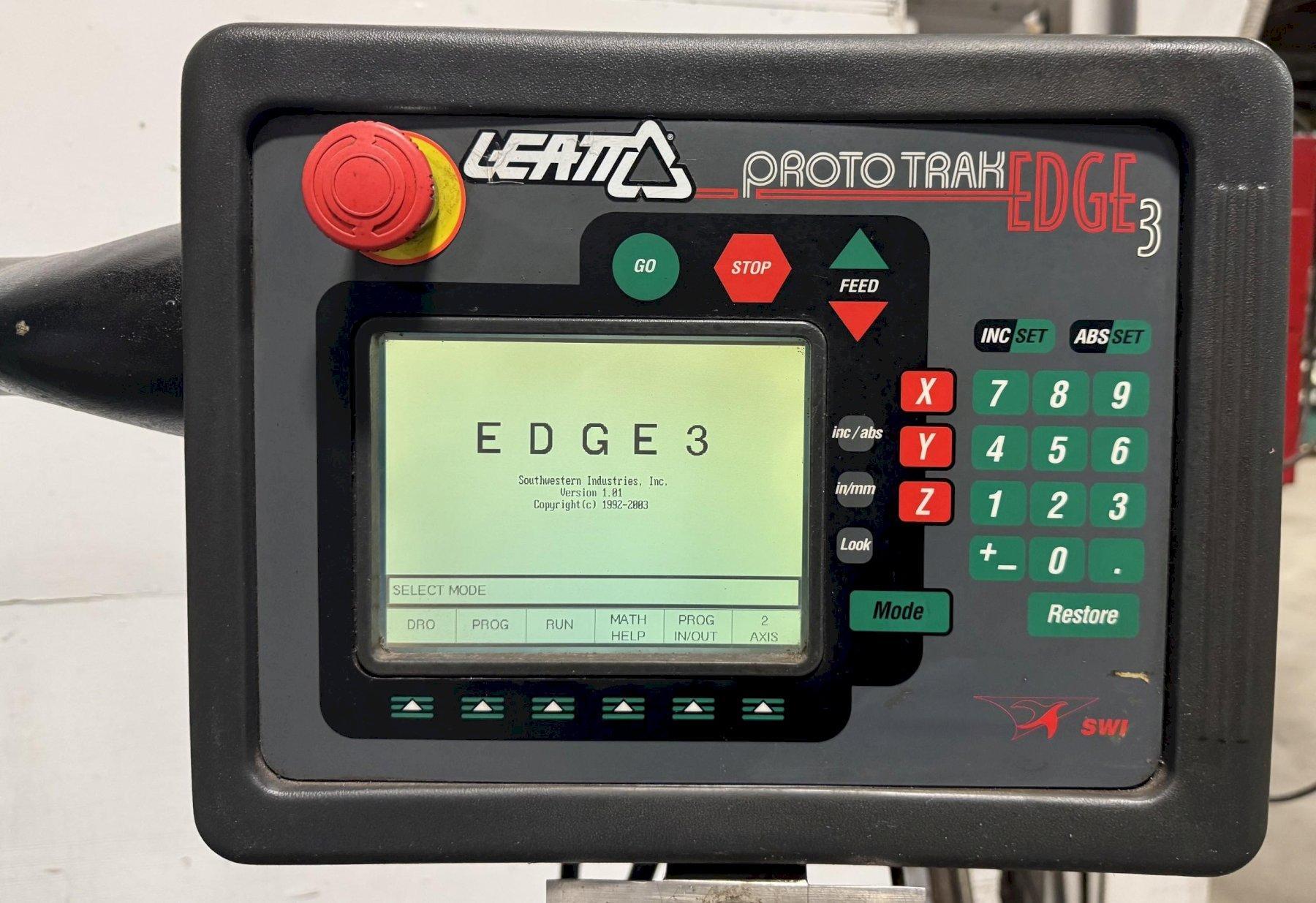

PROTO TRAK Edge 3 Control
Hardened and Ground Square Box Ways
Automatic Lubrication

Approximate Dimensions:
Approximate Weight: 3500 Lbs.

F.O.B. Cincinnati, Ohio

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
