Lathes CNC Three Axis Or More

SPECIFICATIONS:
Turning Diameter, Max 14.9"
Turning Length, Max 13.7"
Distance Between Spindles 39"
Spindle Bore 3.5"
Bar Capacity 2.8"
X-Axis Travel, Turret 1 11"
X-Axis Travel, Turret 2 7.9"
Z-Axis Travel 39"
Headstock Travel 39"
C-Axis Indexing 0.001 Degree
Spindle Nose, Each Spindle A2-8
Spindle Speeds 40-4000 RPM
Spindle Motor 24.8 HP / 20 HP
Tool Positions, Per Turret 12
Rotary Tool Speeds, Max 4000 RPM
Rotary Tool Motor 5 HP / 3.5 HP
Machine Dimensions 166" x 108"
Machine Height 104"
Approx. Weight 28,600 Lbs.



Equipped With:

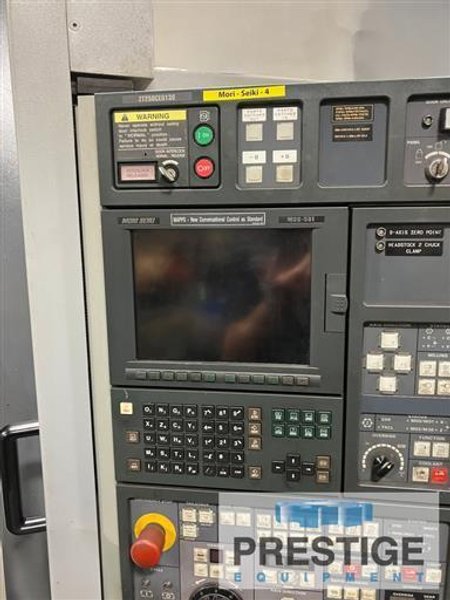

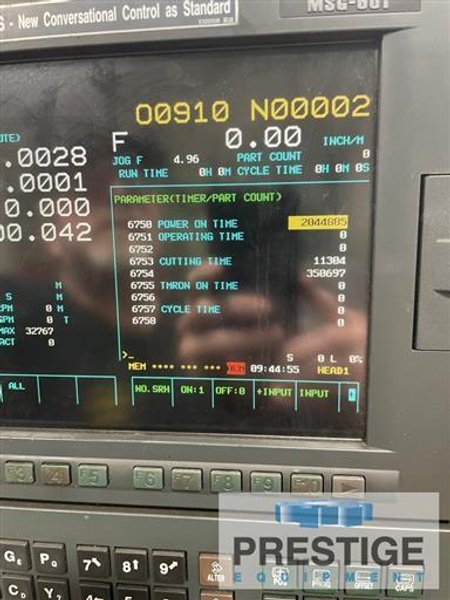

Mori Seiki Fanuc MSG501 CNC Control w/ MAPPS (Conversational)
Full C-Axis Contouring Both Spindles
12-Position Upper & Lower Turrets
10" 3-Jaw Chucks on Main and Opposed Spindle
Parts Catcher
Tool Setter
Chip Conveyor
Coolant Tank & Pump
