Lathes CNC Three Axis Or More
Brand
Category
Type
Model
Multus B-300W
Stock #
44989
Year
2007
Condition
Not specified
Location
Not specified
|
SPECIFICATIONS:

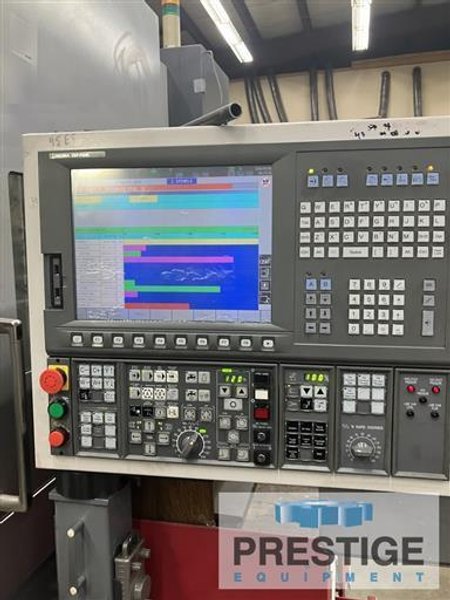

Swing Over Bed 24.80" Maximum Distance Between Spindles 35.43" Main Spindle Hole Diameter 3" Main Spindle Speed Range 38-5,000 RPM Main Spindle Nose A2-6 Sub Spindle Speed Range 38-5,000 RPM Sub Spindle Nose A2-6 X-Axis Travel +22.05" / -.79" Y-Axis Travel +3.15" / -3.15" Z-Axis Travel 36.8" W-Axis Travel 39.37" C-Axis Indexing .001 Degree B-Axis Indexing (-30/+195 Degrees) .001 Degree Milling Spindle Speed 50- 5,000 RPM Milling Spindle Motor 20 HP / 15 HP Main Spindle Drive Motor 48 HP / 30 HP Approximate Machine Weight 22,660 Lbs Electrics 220/480 SPECIFICATIONS: Okuma OSP-P200L CNC Control Main & Sub Spindle 40 Tool Automatic Tool Changer High Pressure Coolant Chip Conveyor Bar Feed |
