HC – FRV3 – EBNER Continuous Annealing Vertical Furnace

DESCRIPTON

YOM: 2002

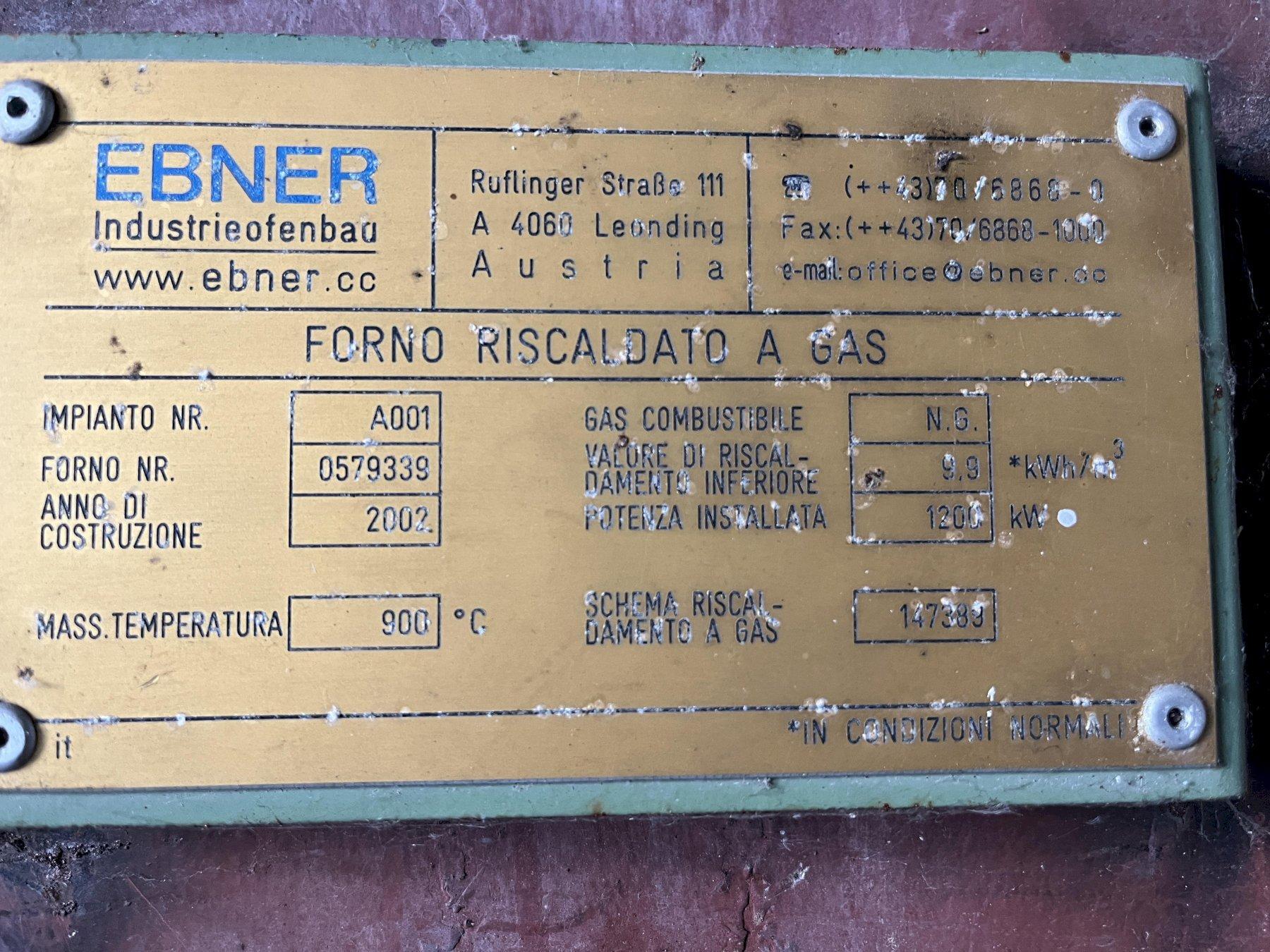

EBNER Vertical Annealing Furnace

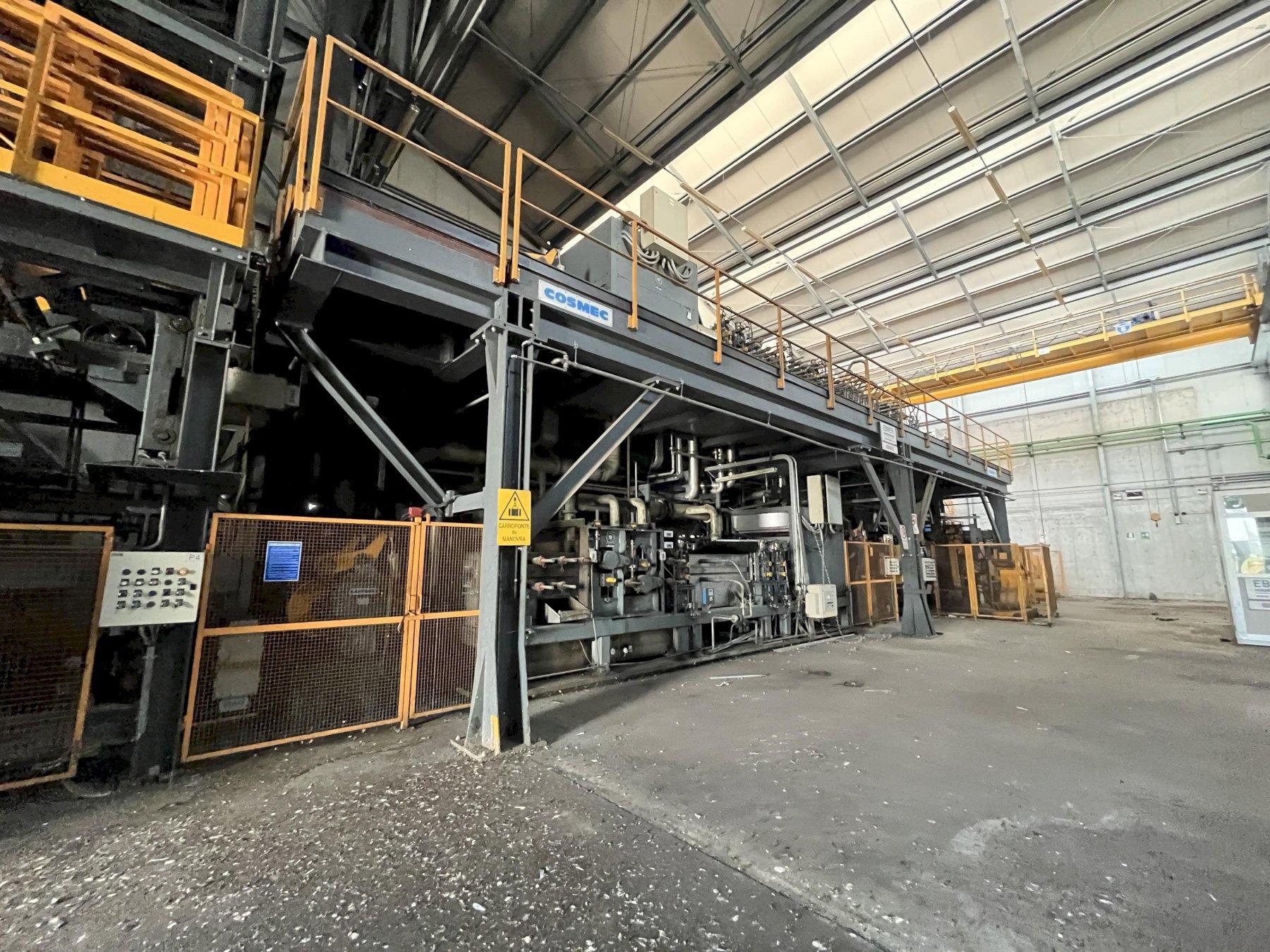

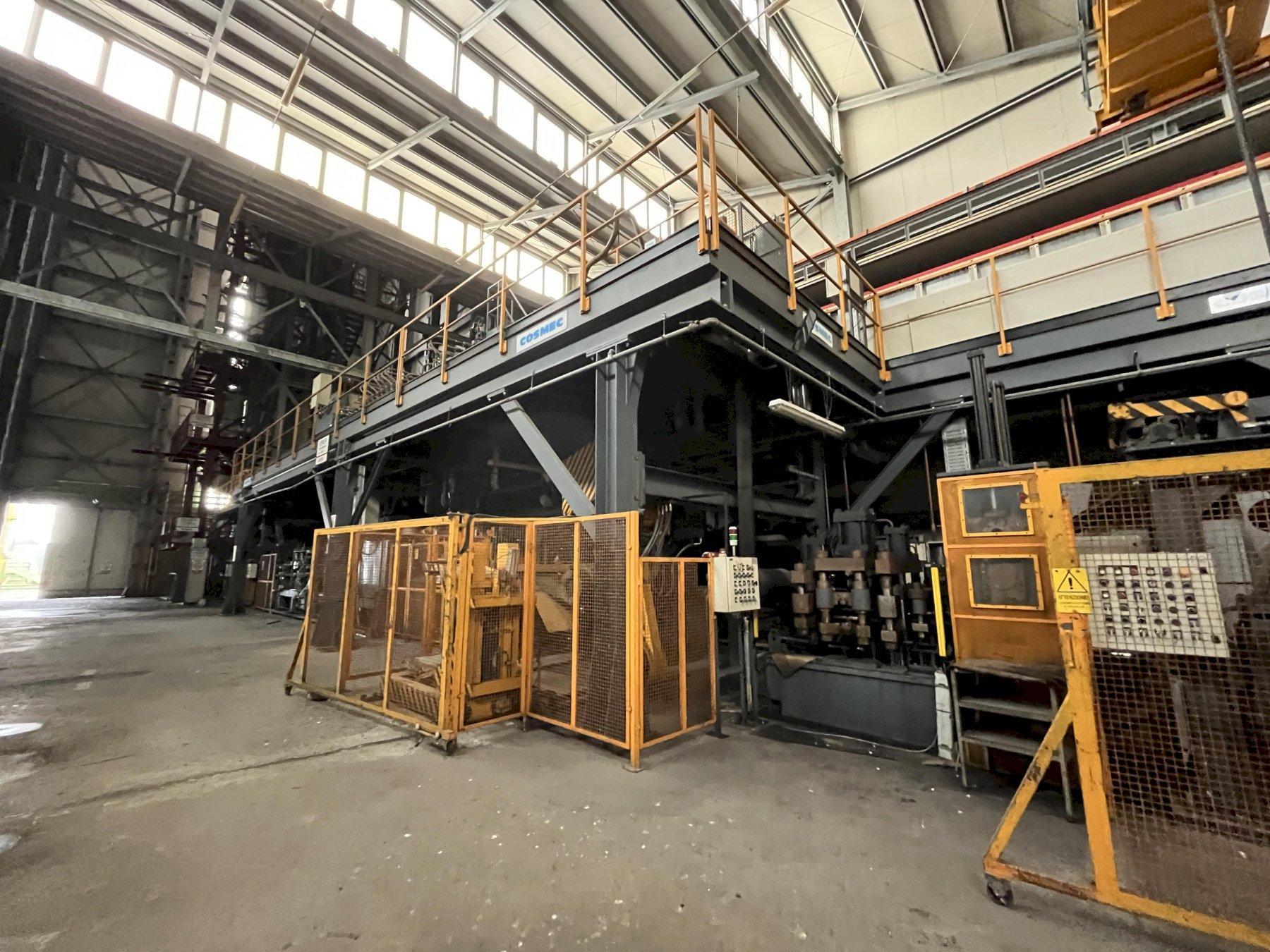

COSMEC Entry & Exit Coil handling equipment and structural

TECHNICAL SPECIFICATIONS:

• Area: 700 m²
• Total Electrical Power: 600 kW
• Gas Power: 2100 kW
• Speed: 120 m/min

• Maximum furnace and strip temperature: 900°C/750°C
• Strip width: 650mm
• Stri[p thickness range: 0.05 – 1.0mm thickness
• Heating and cooling capacity: 1000kW natural gas heating, 32 m3/h @15K delta T cooling
• Heating and cooling zone lengths: heating 10.500mm length, cooling 4.500mm length
• Strip tension: At specific locations: Uncoiler: 7-10 N/mm2, Accumulator: 6 N/mm2. Furnace: Strip weight (+), Recoiler: 20 N/mm2
• Available protective/reducing atmospheres 150m3/h 75%H2 / 25% N2
• Archievible dew point Ebner requires both H2 and N2 supplied with a dew point of -70°C

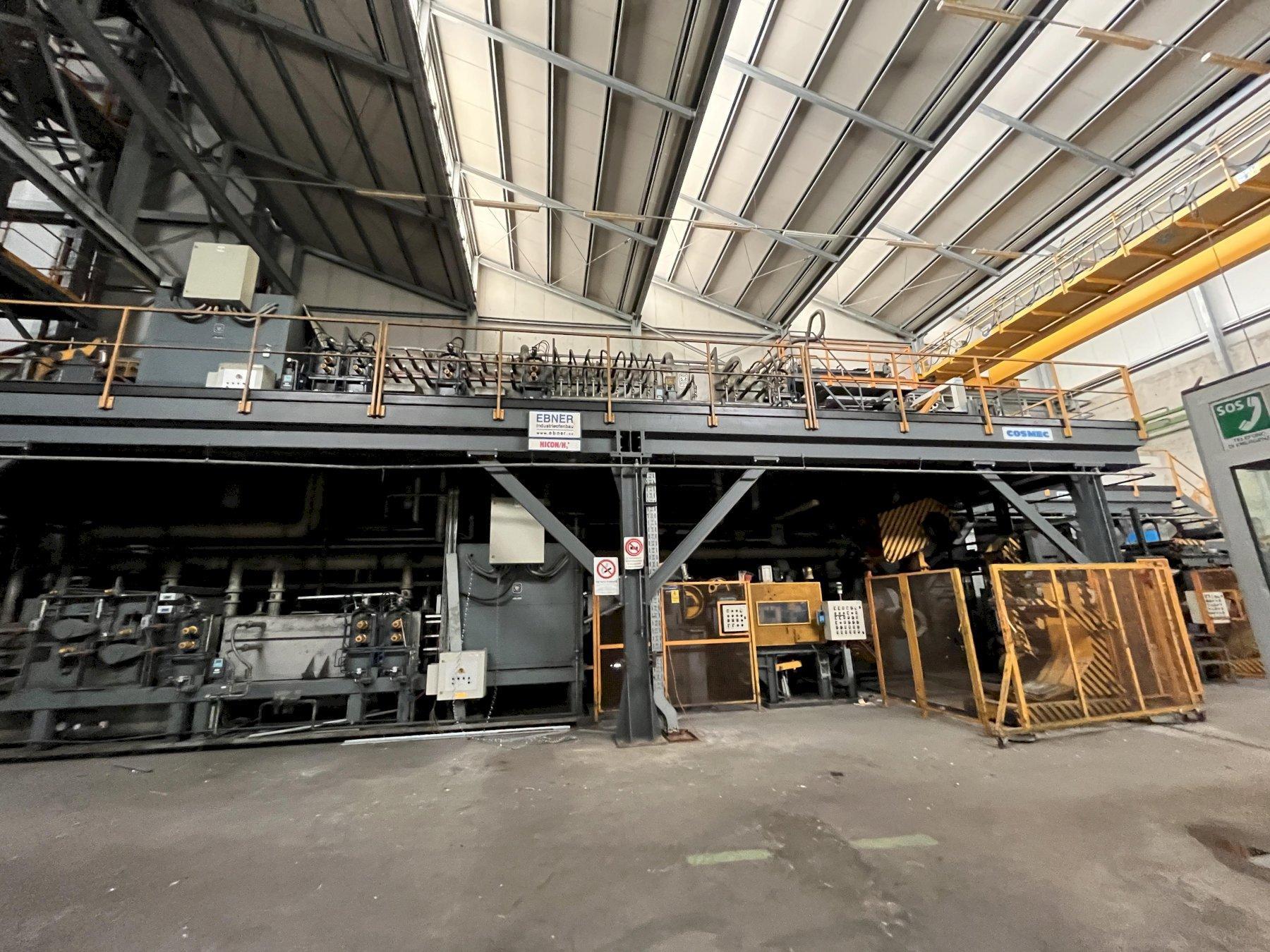

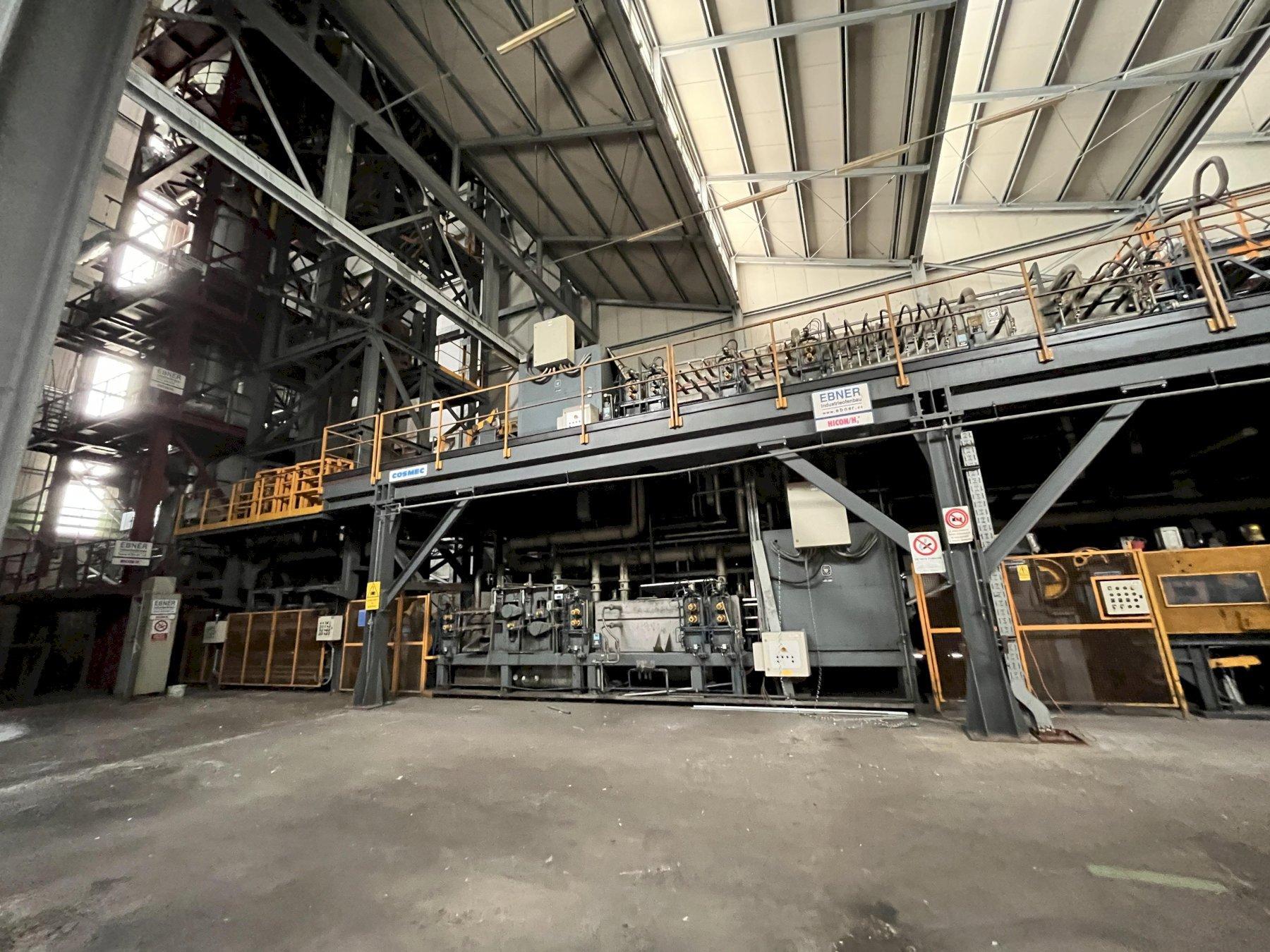

LINE CONFIGURATION

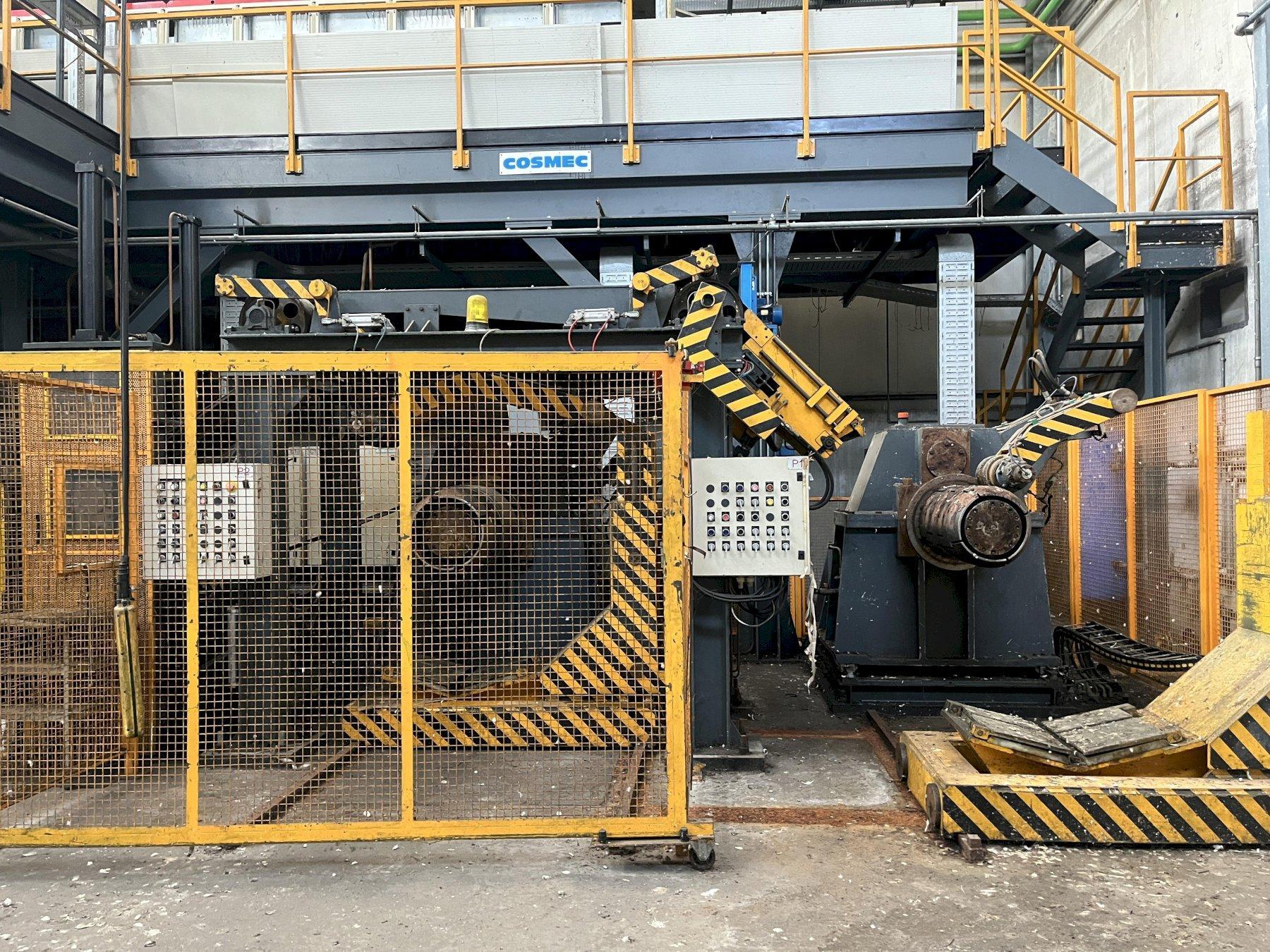

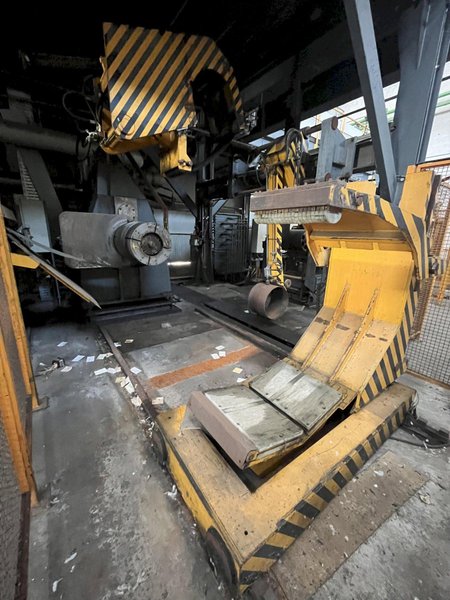

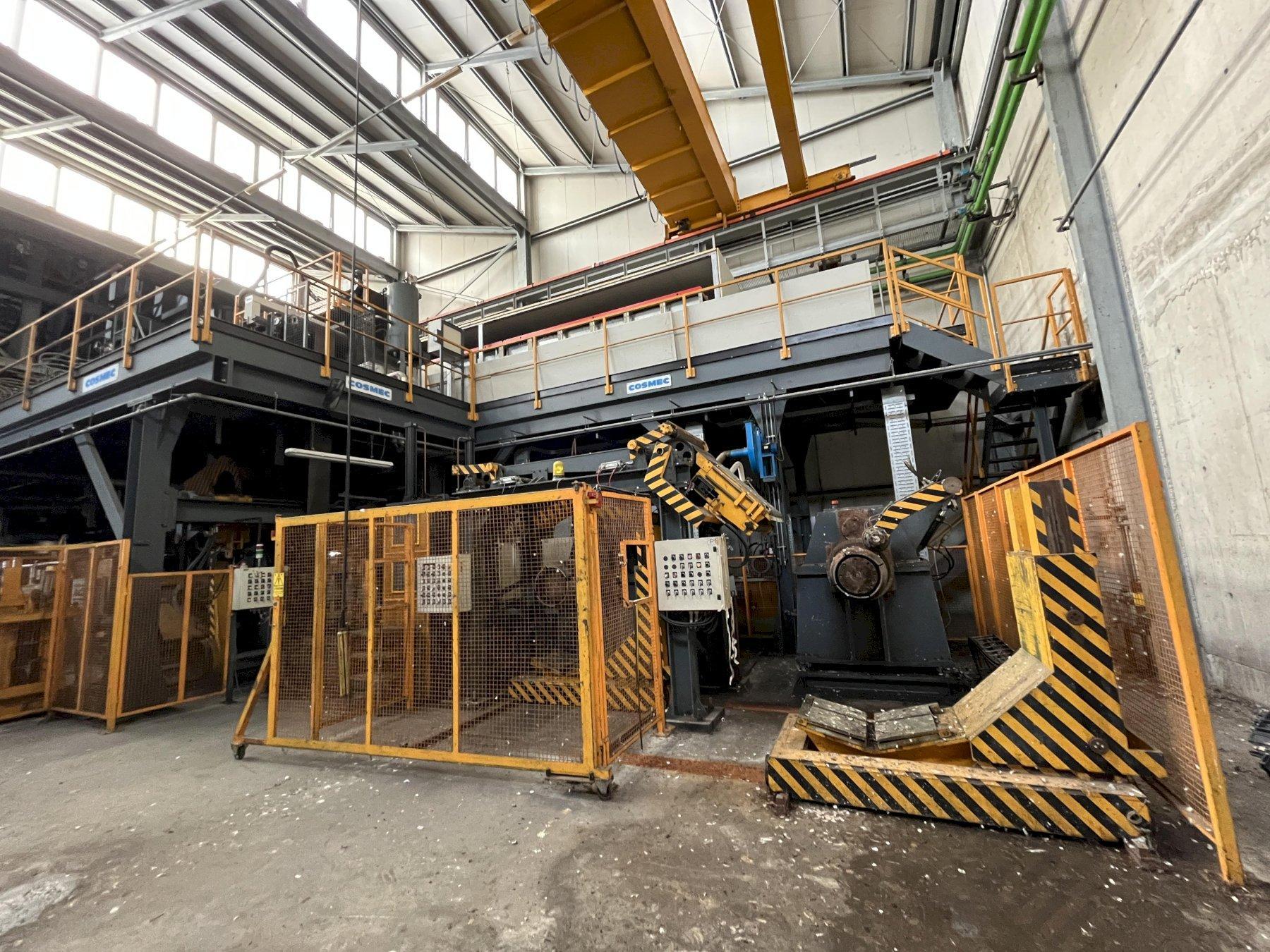

(2) COSMEC COIL CAR, “L” TYPE ABOVE GROUND

(2) COSMEC UNCOILER (2)

Mandrel Type

          Hydraulic Expansion, Snub Rolls

COIL OPENER, PEELING TABLES

Hydraulic operation

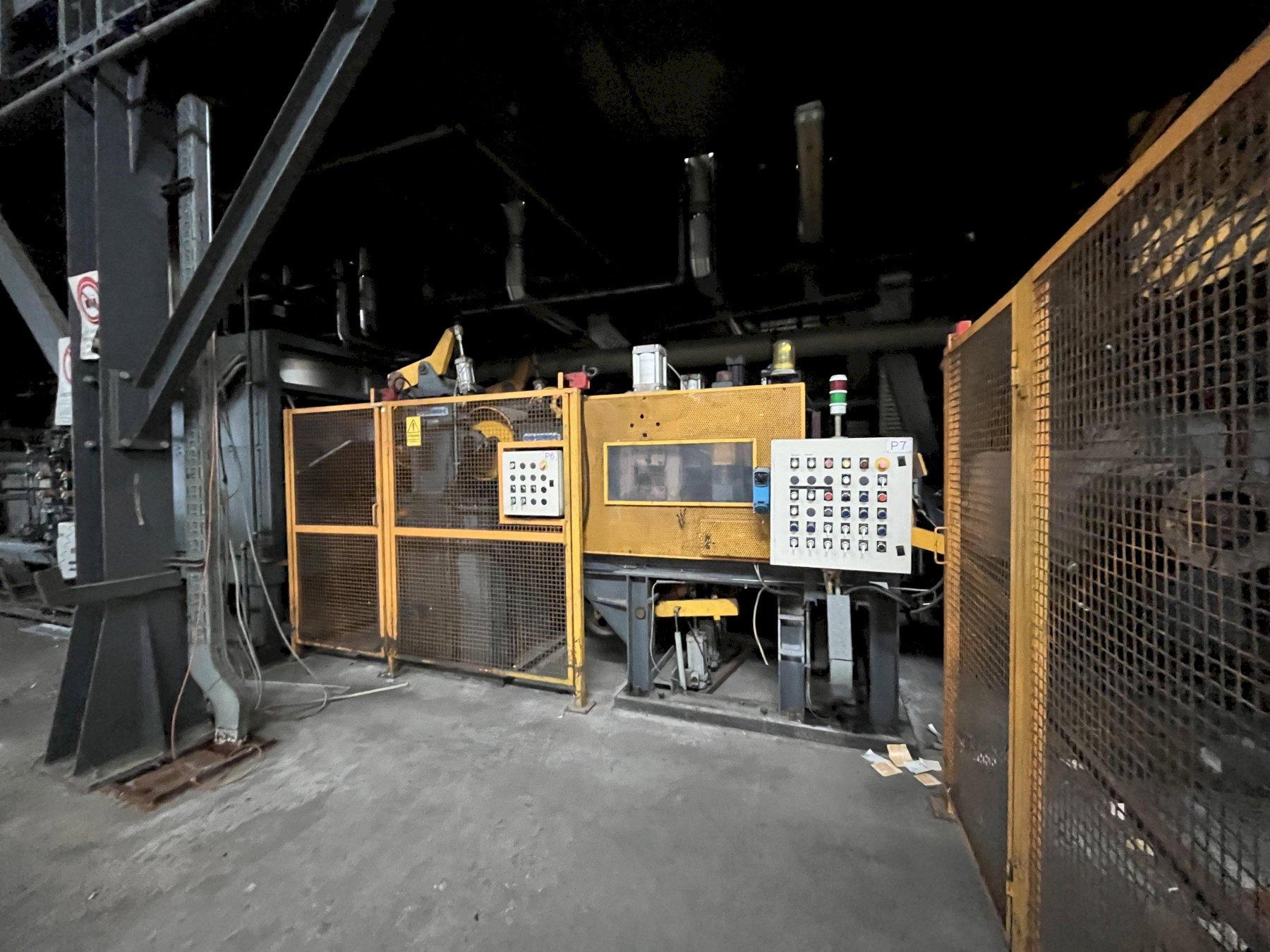

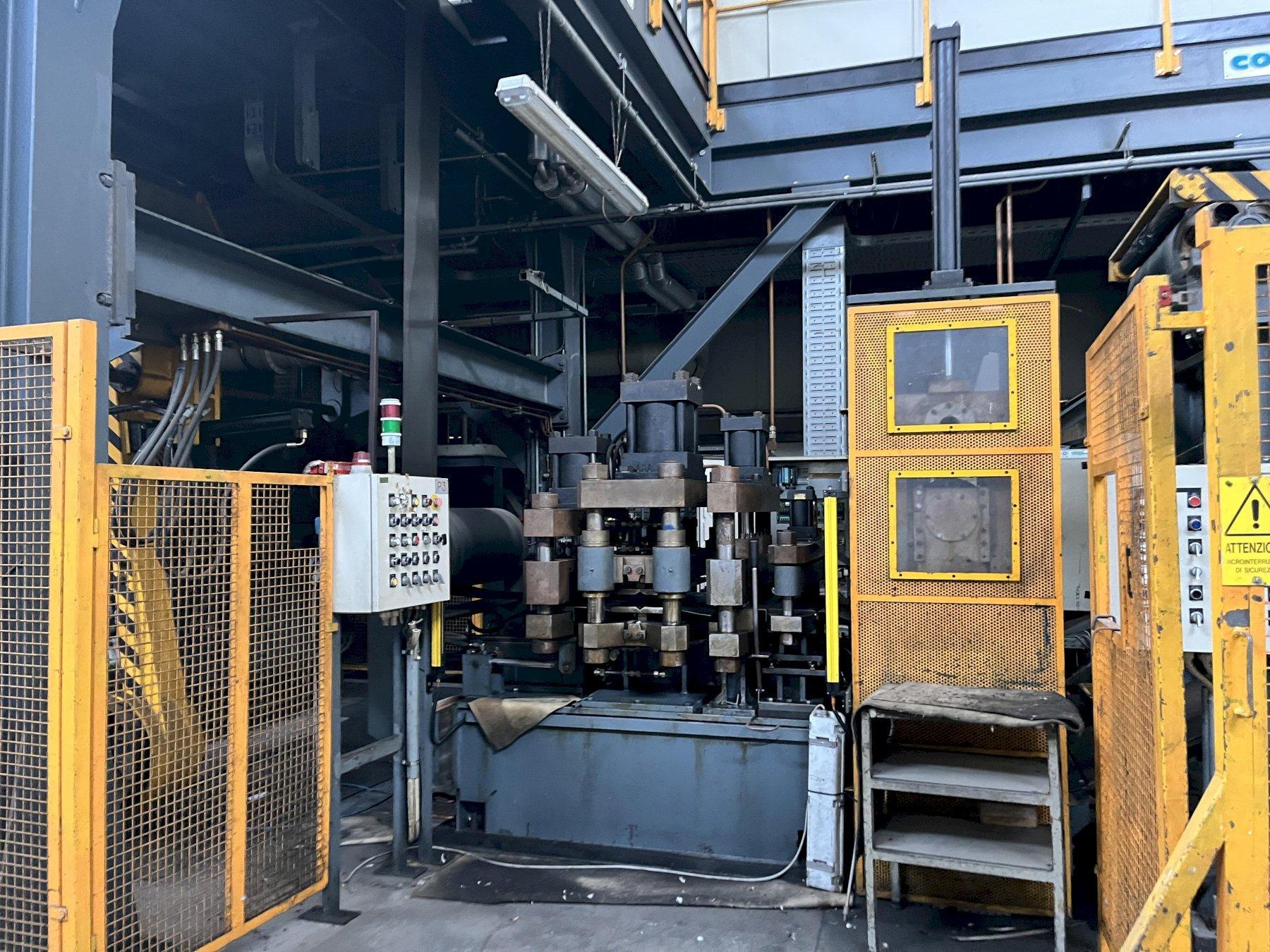

STITCHER,

              Hydraulic Operation

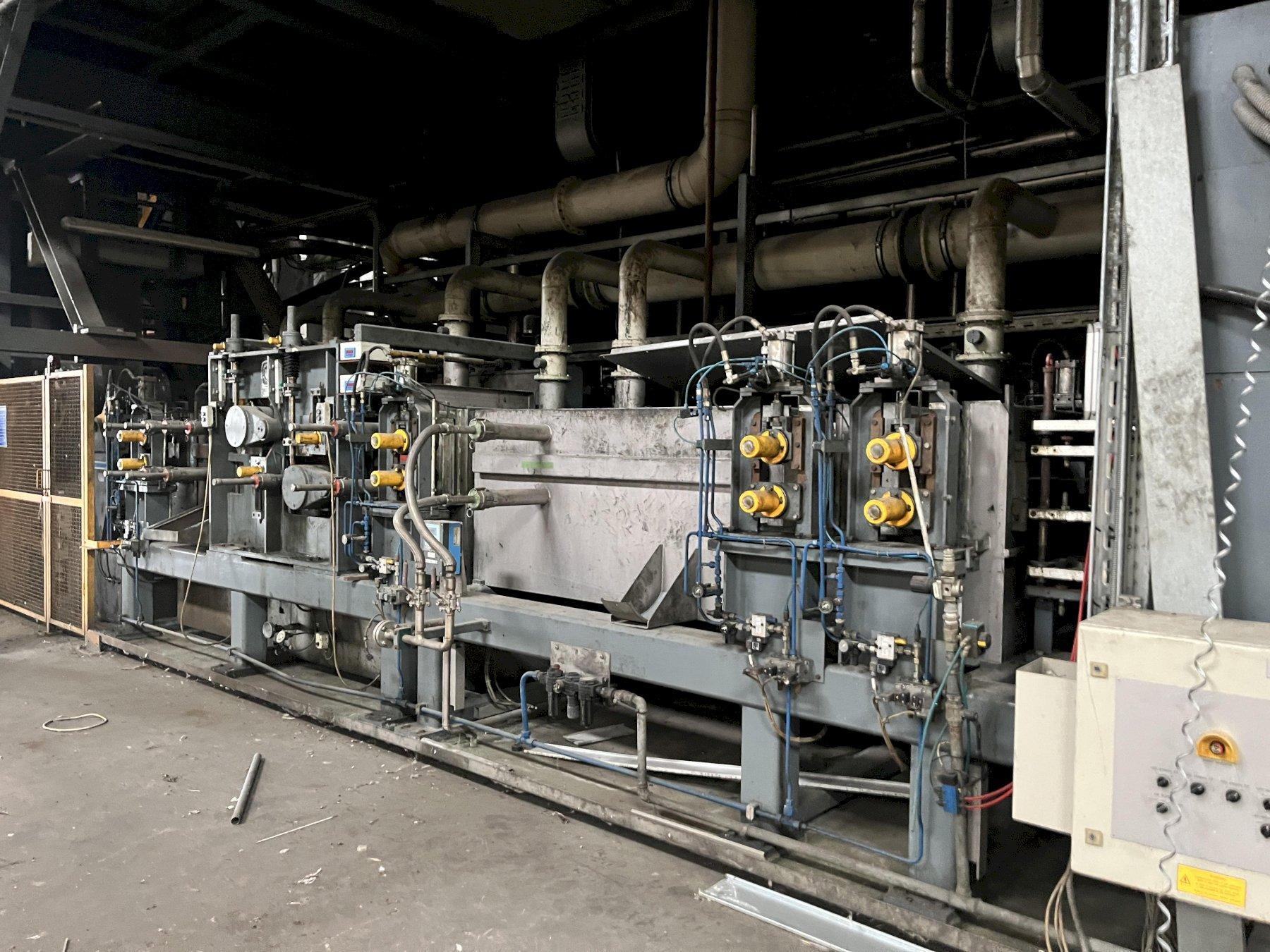

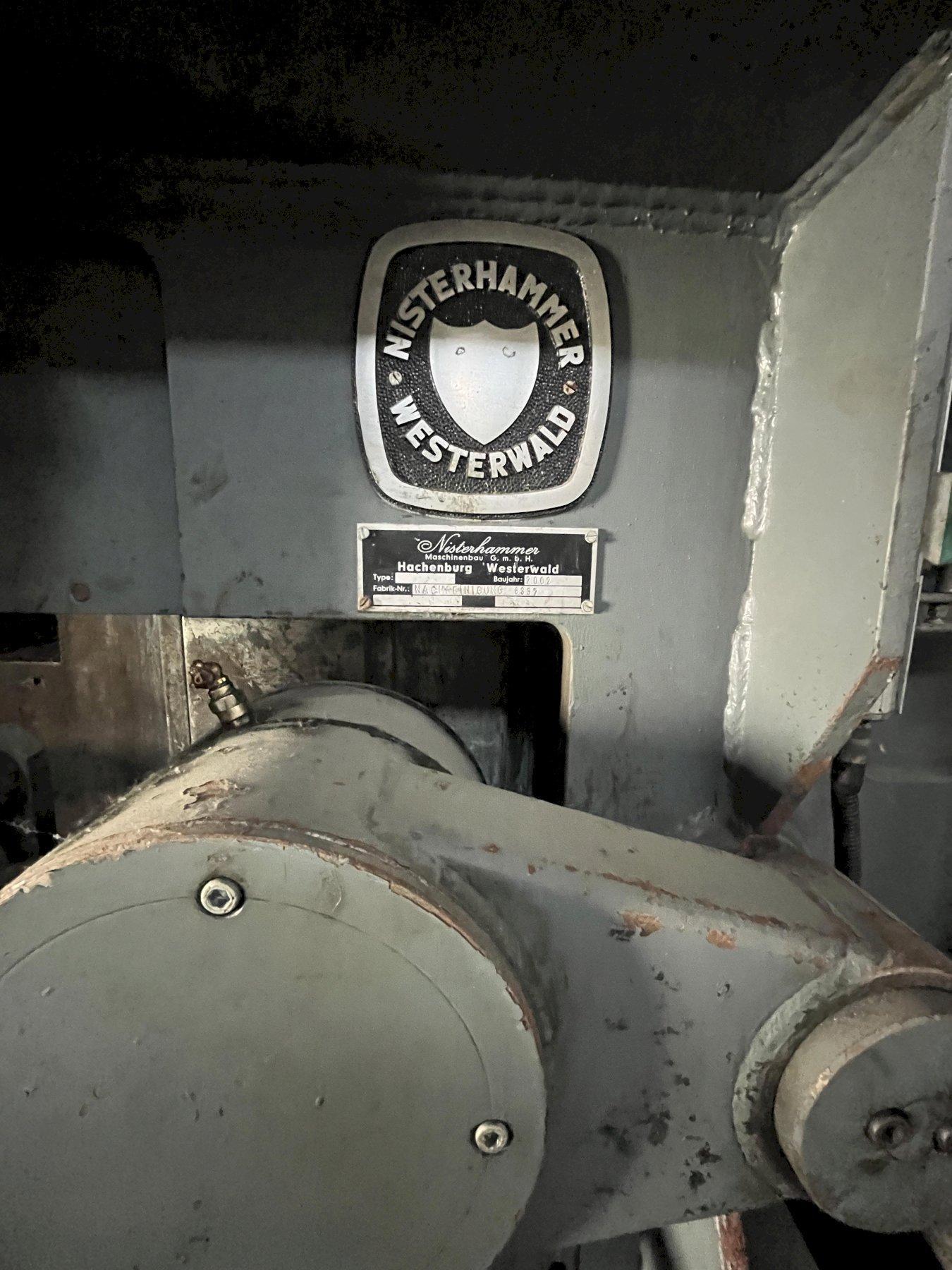

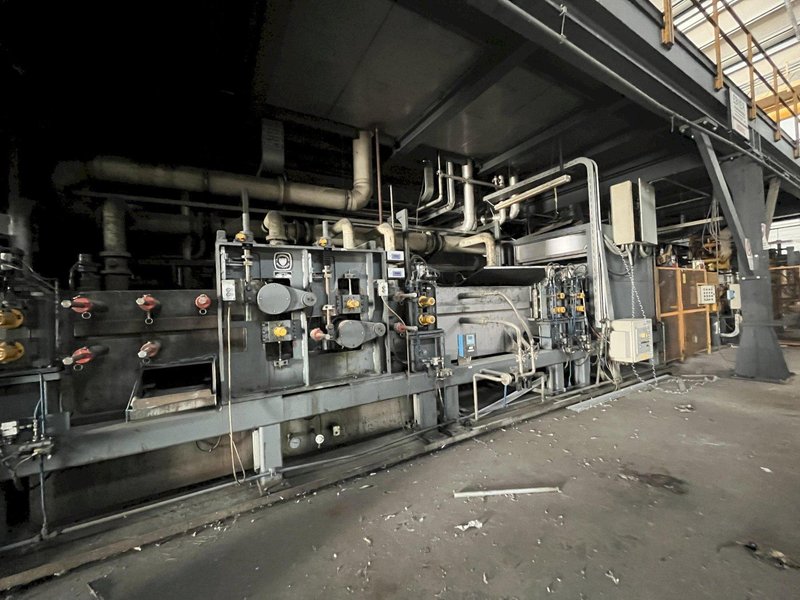

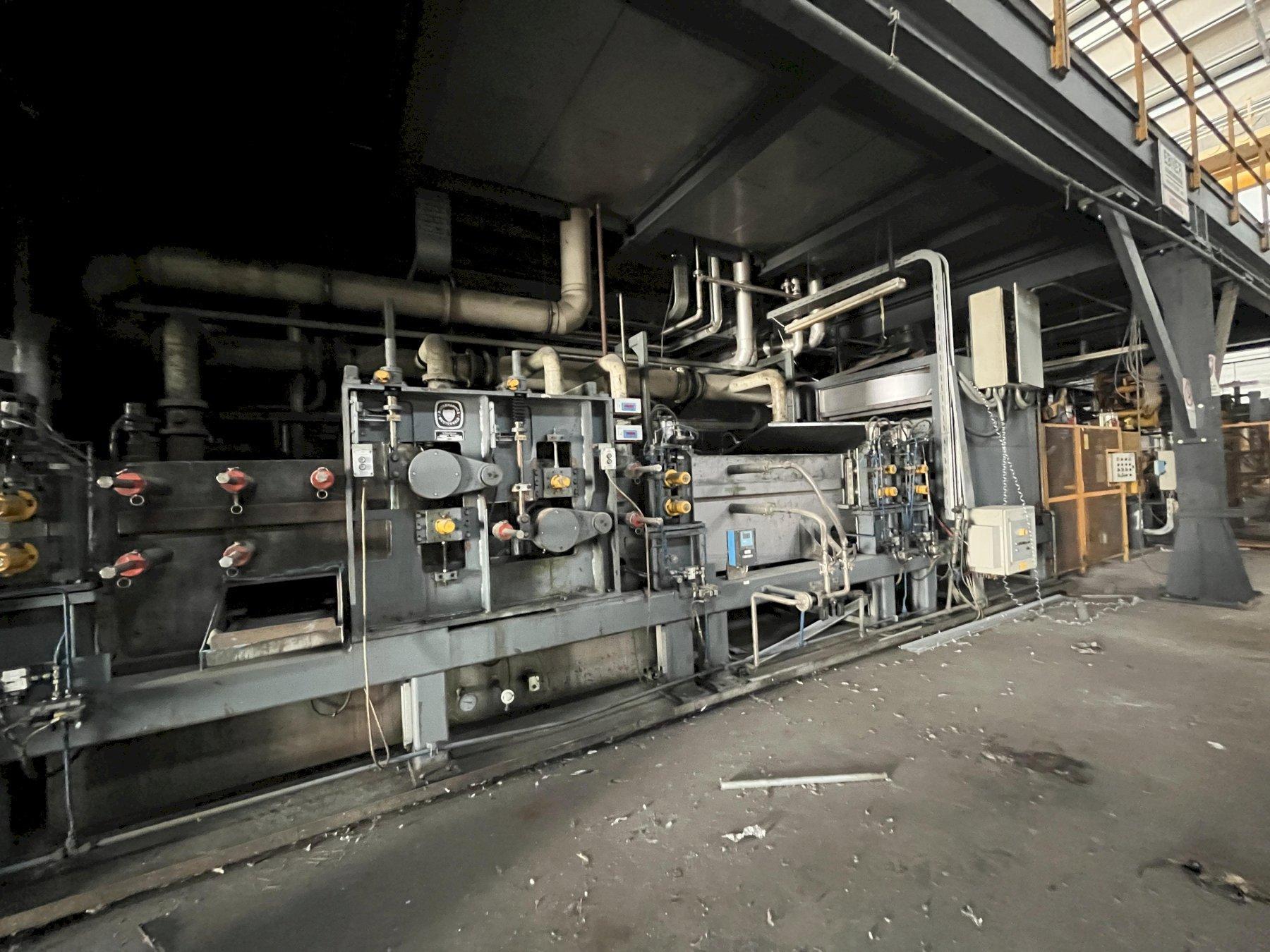

NISTERHAMMER WESTERWALD CLEANING SECTION

Brushing, Washing, Drying

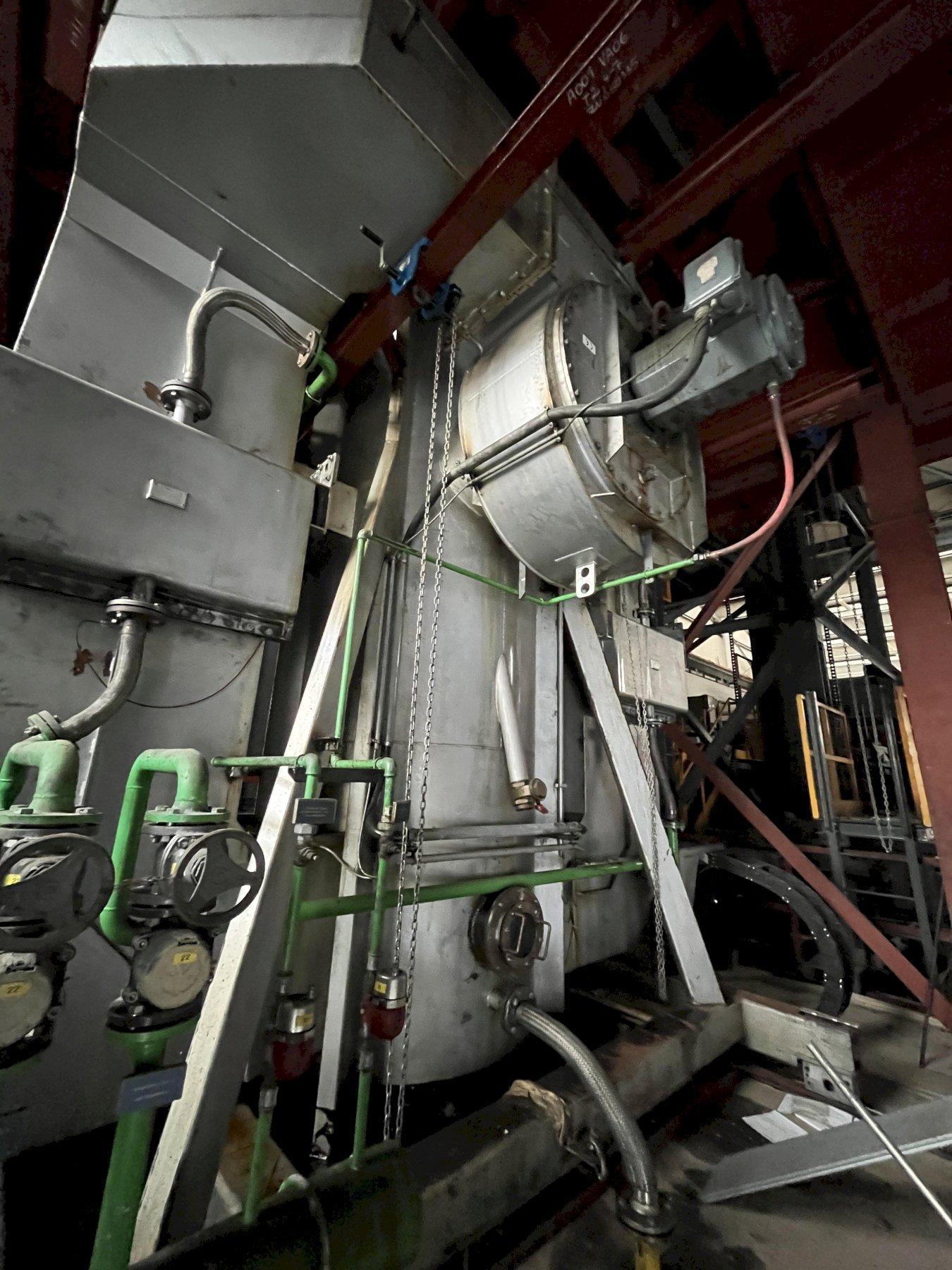

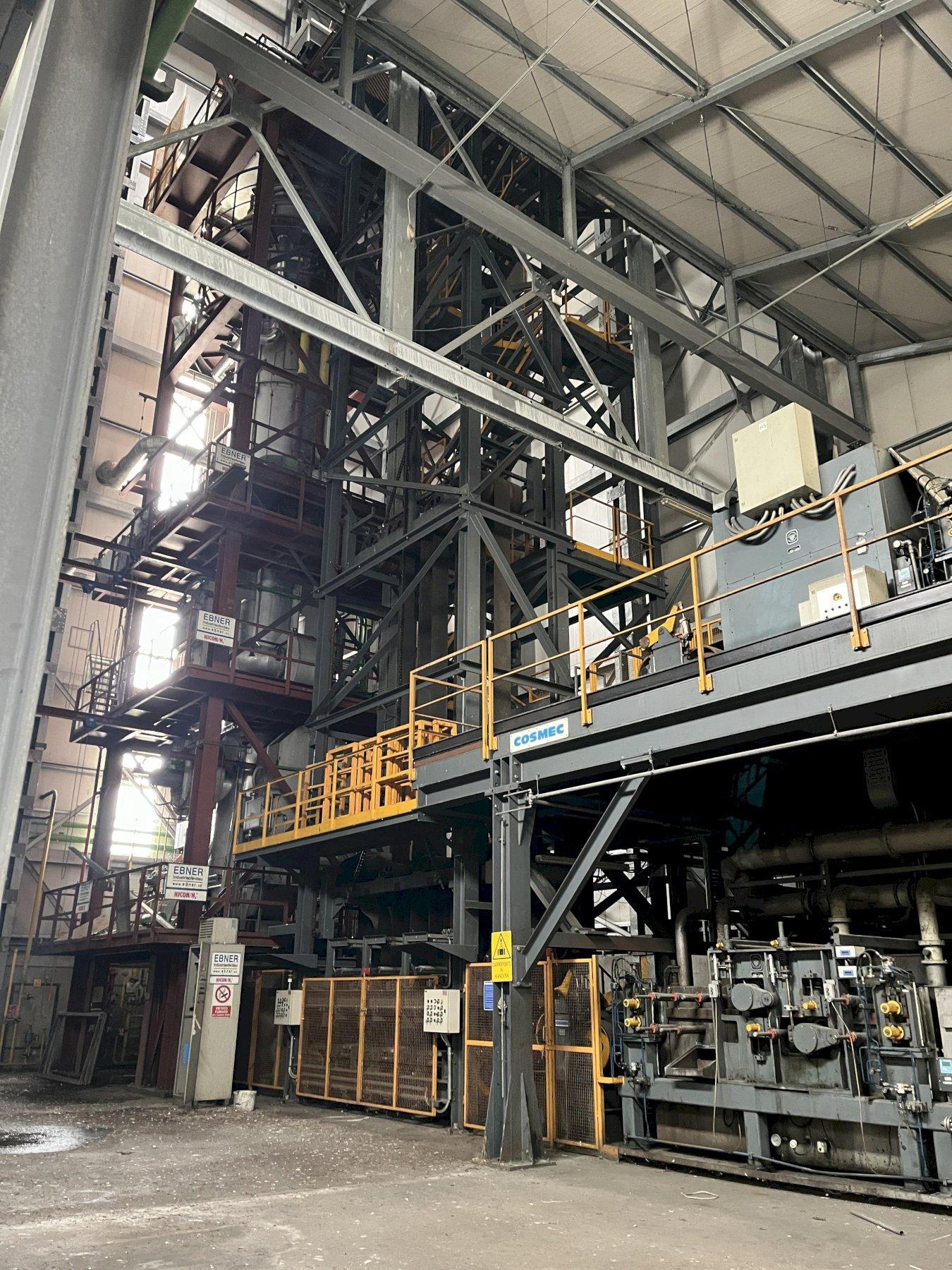

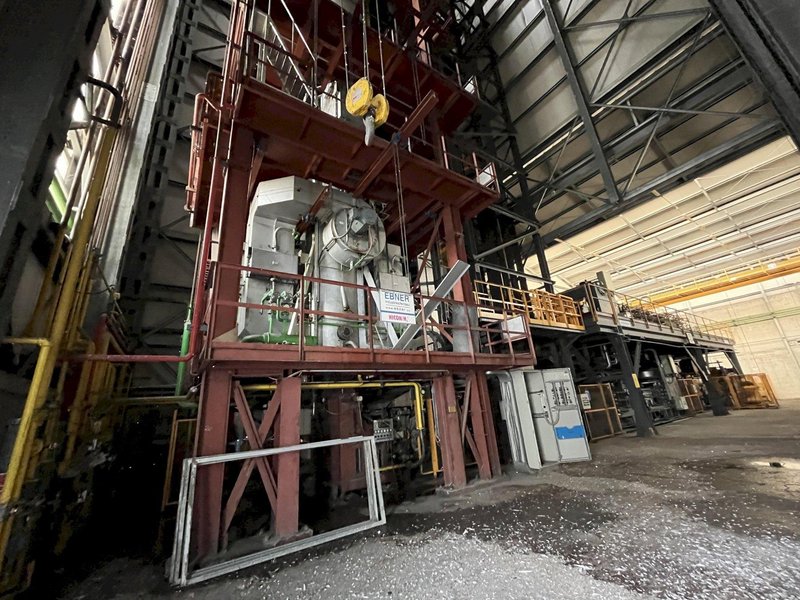

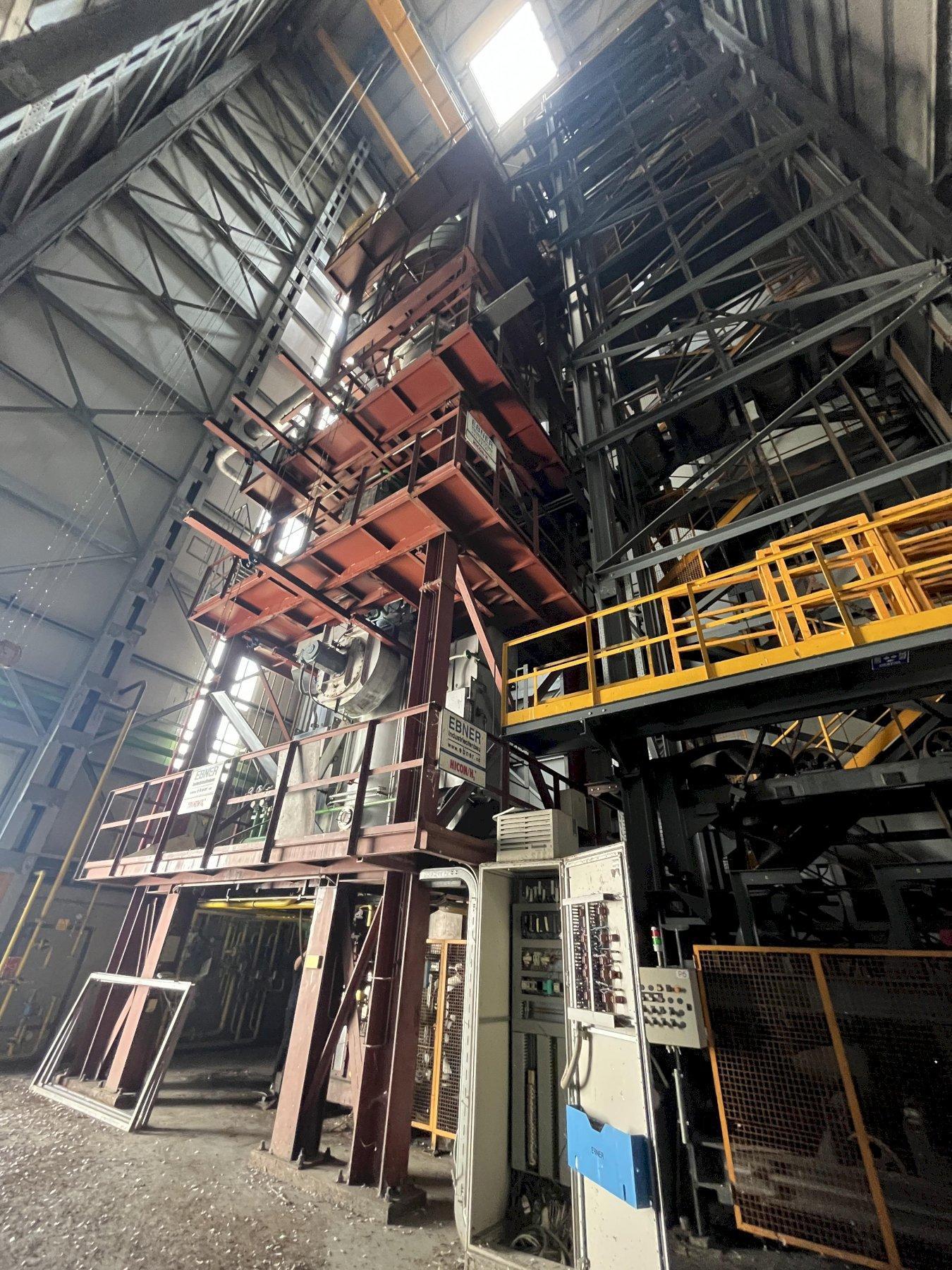

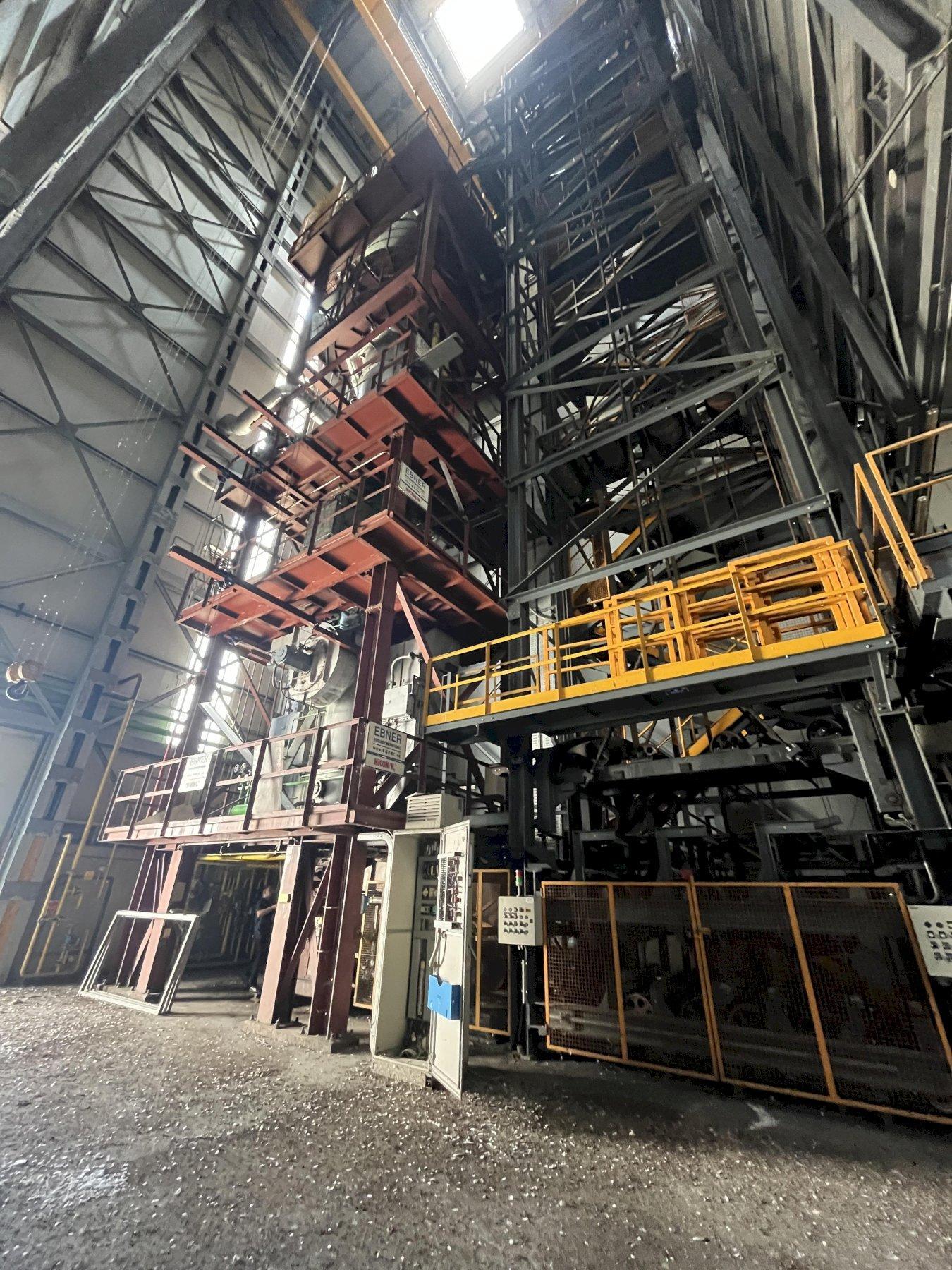

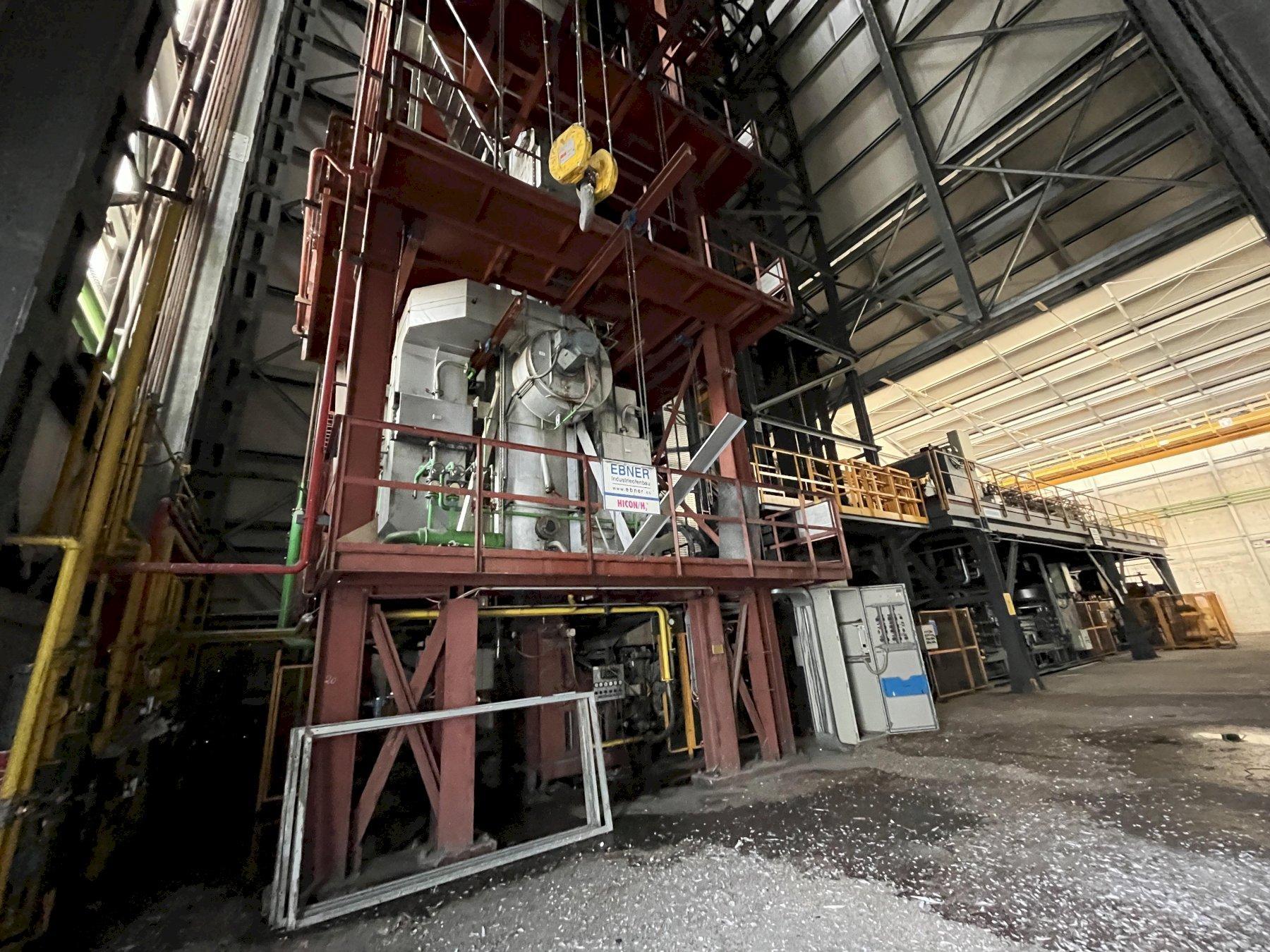

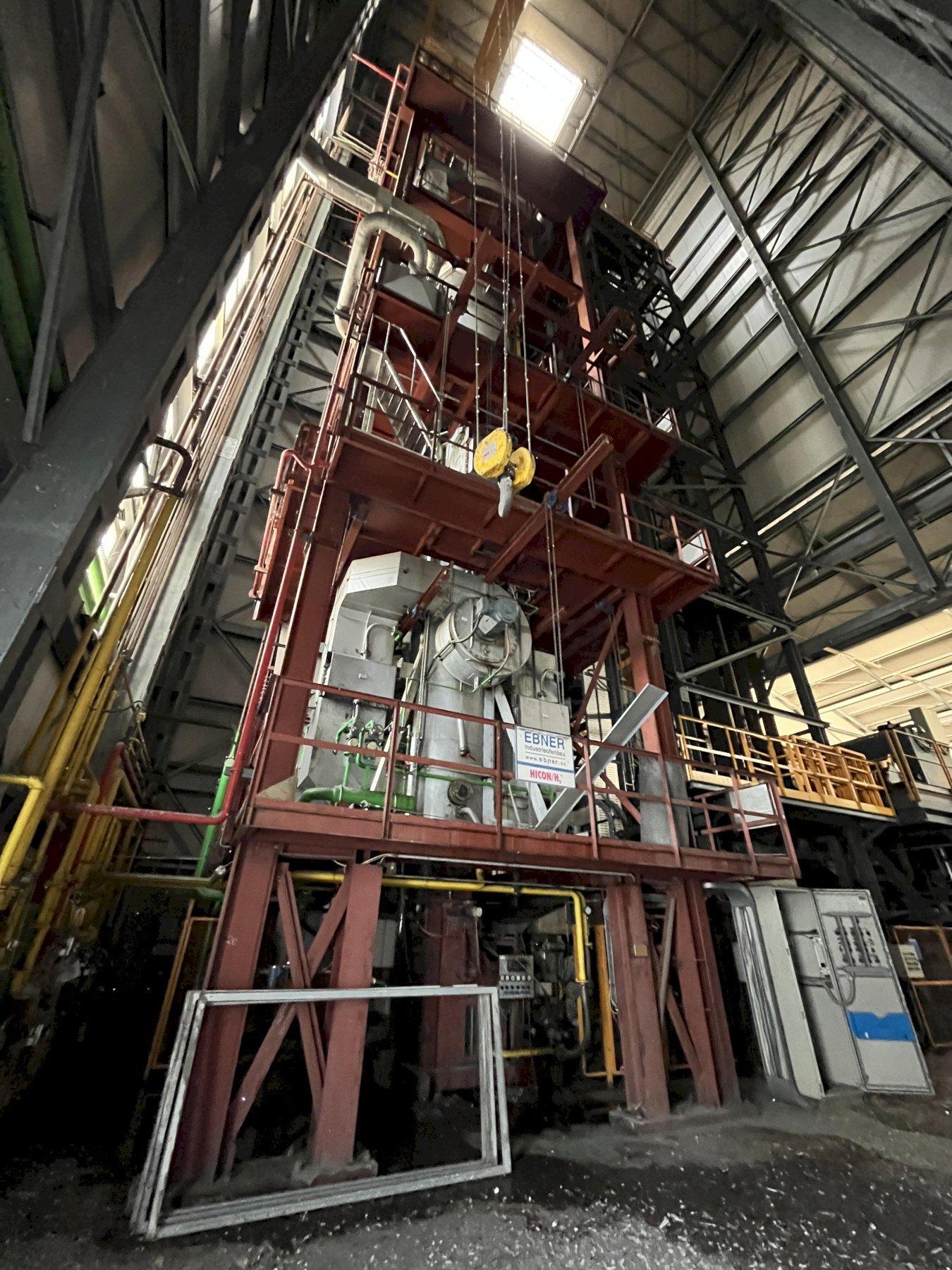

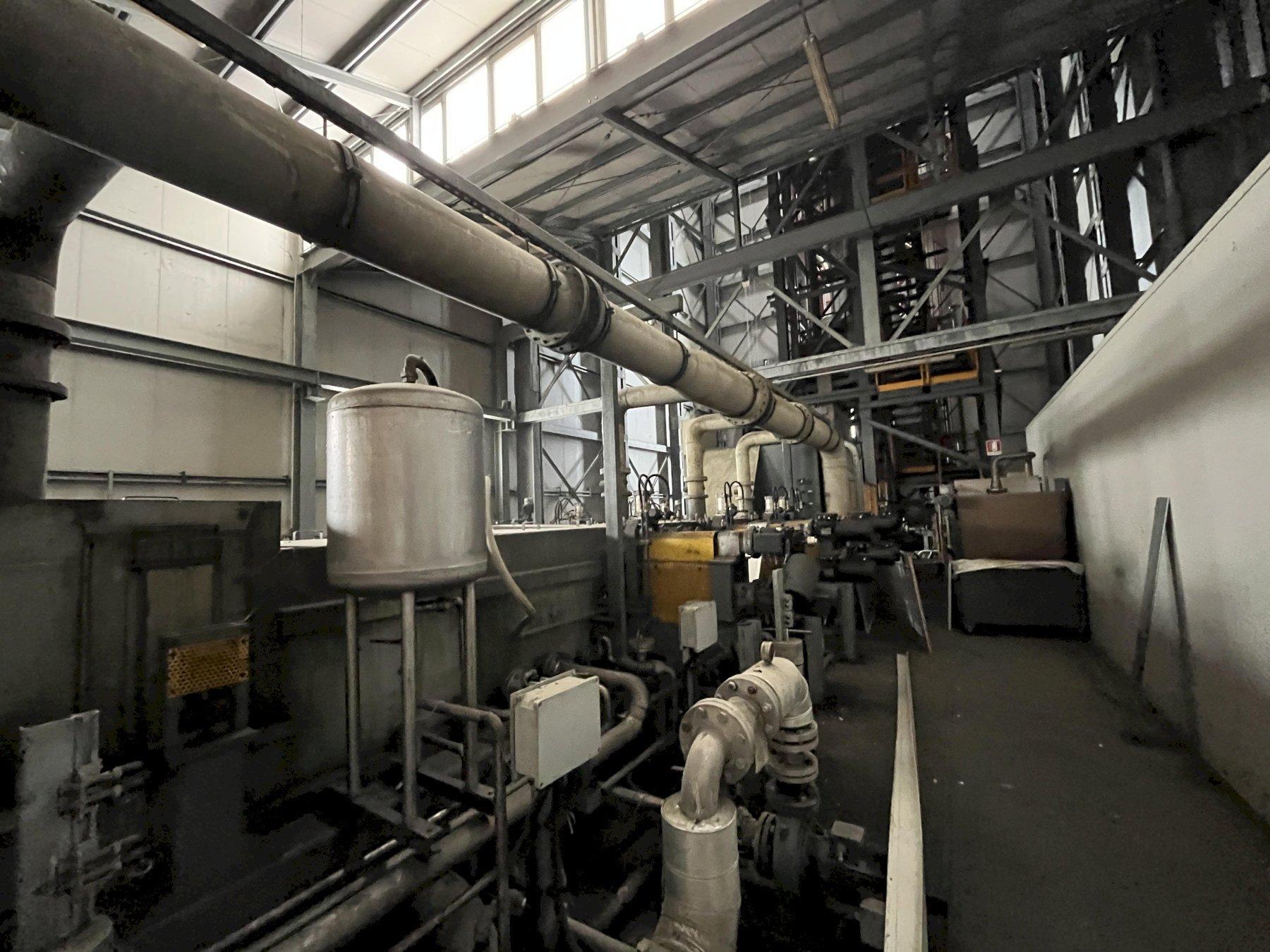

     EBNER VERTICAL ANNEALING FURNACE

     Muffle Type

     Overall height Furnace……….23 Meters

ACCUMLATOR, VERTICAL

     Overall Height Accumulator………..45 Meters

NISTERHAMMER WESTERWALD

     Brushing, Washing, Drying

 (1). COSMEC RECOILER

              Mandrel Diameter…………610(?)

BELT WRAPPER

HYDRAULIC PUSH OFF PLATE

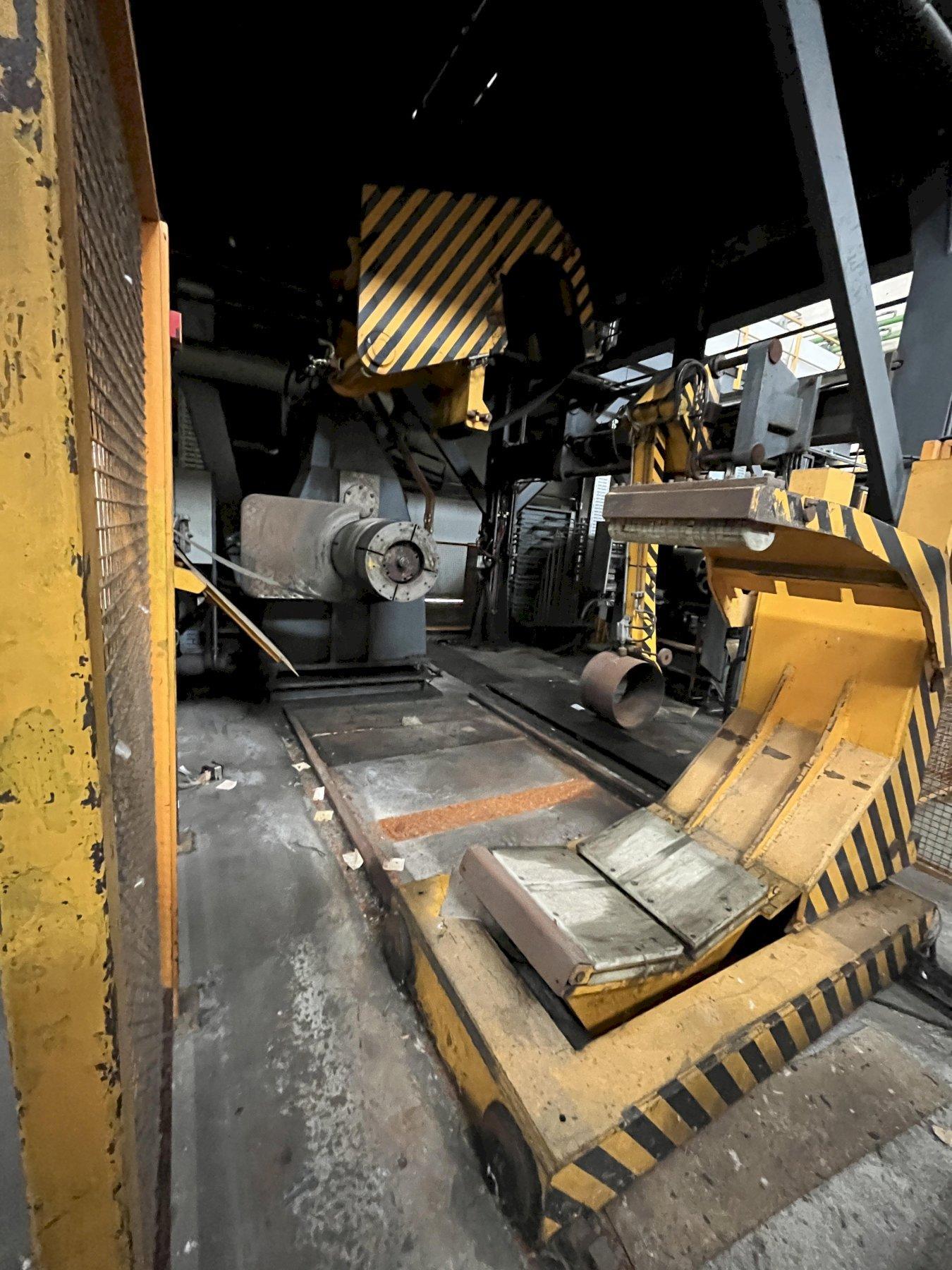

COIL CAR, “L” TYPE ABOVE GROUND WITH Holddown Roll

SPOOL MANIPULATOR,, Rail Mounted

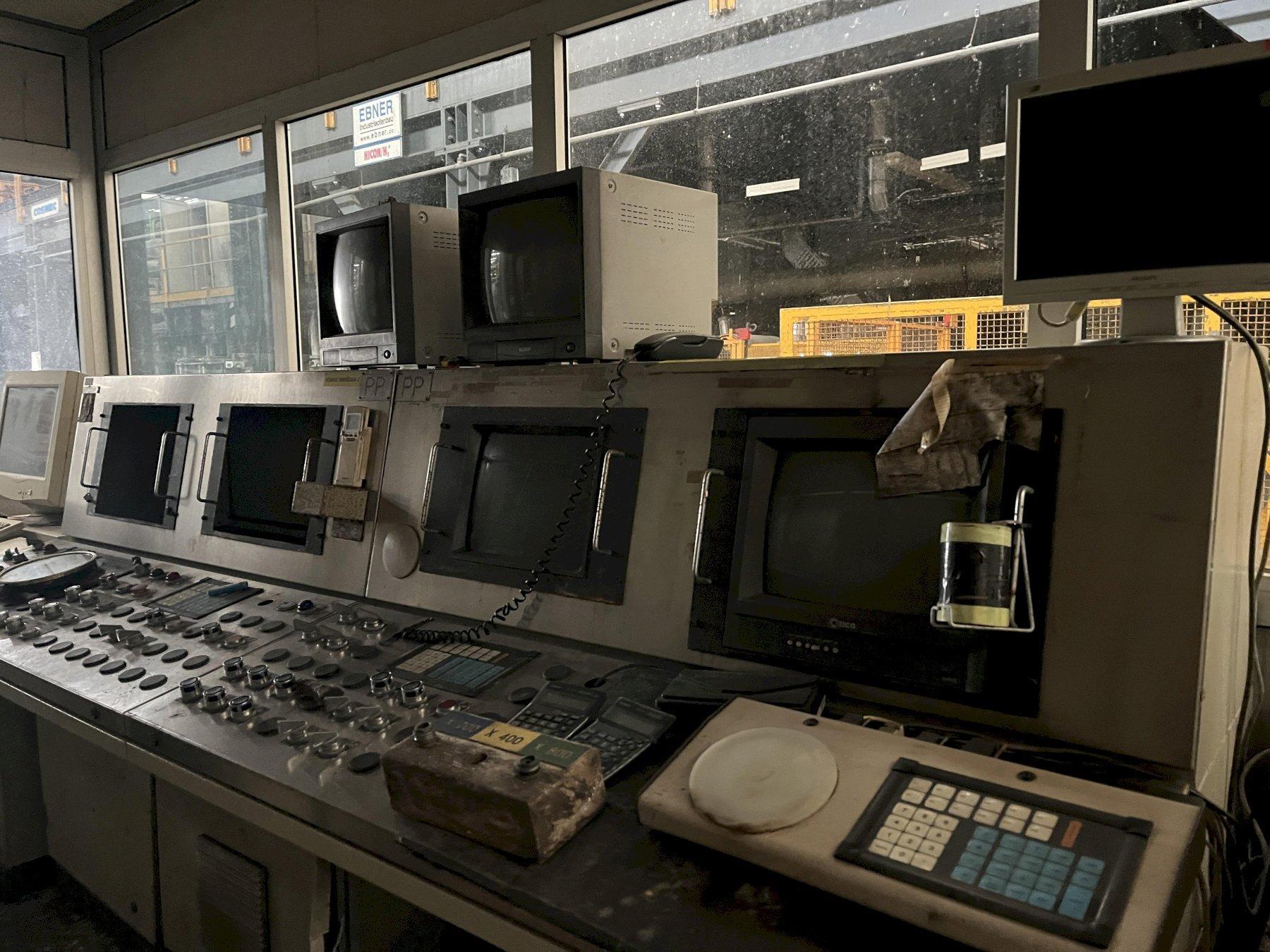

 OPERATOR CONTROL PANEL
