EBNER BELL FURNACE SYSTEM ( 14331)
Brand
Category
Type
Model
BELL FURNACE
Stock #
14331
Year
Not specified
Condition
Not specified
Location
Not specified
|

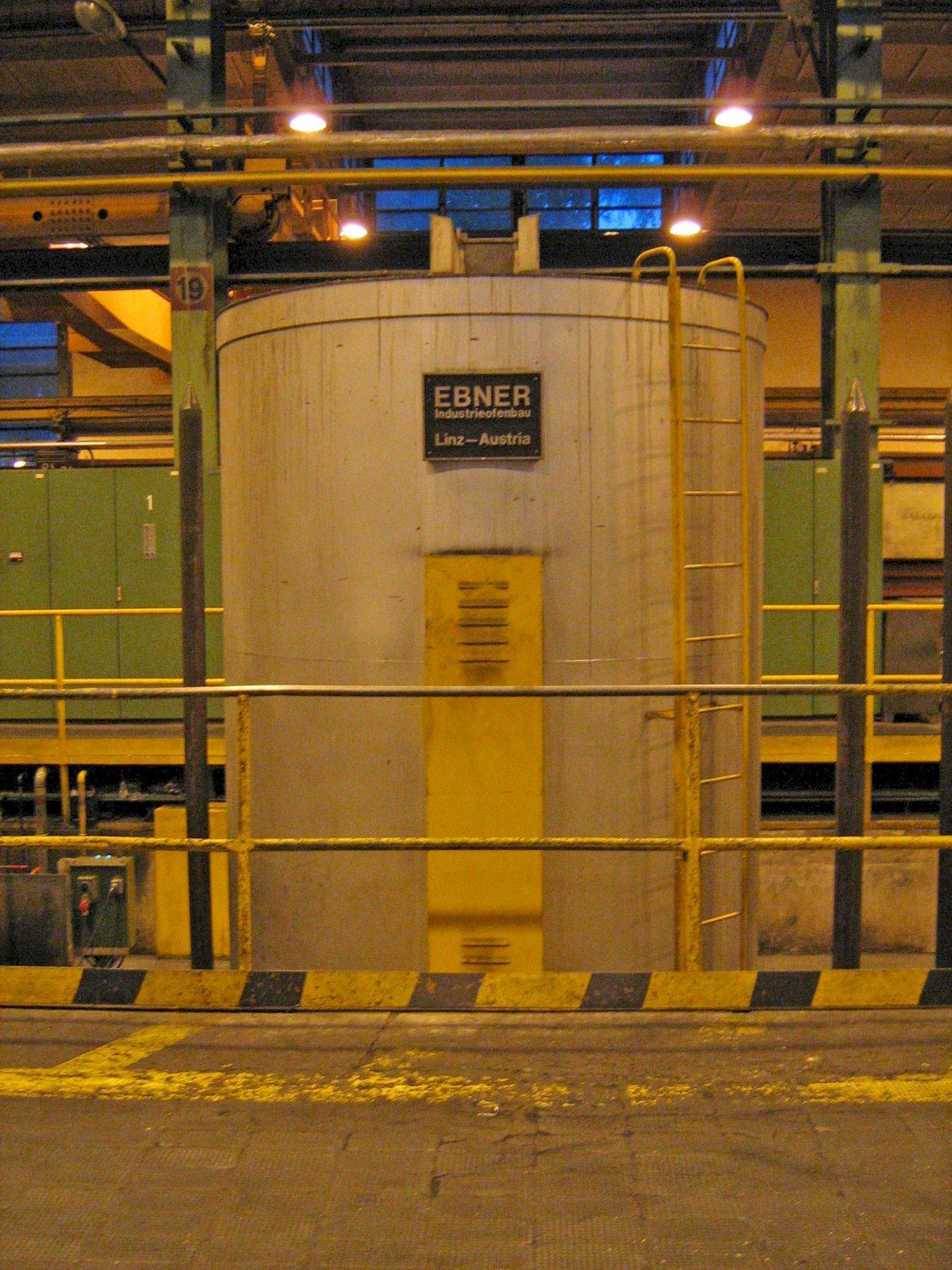

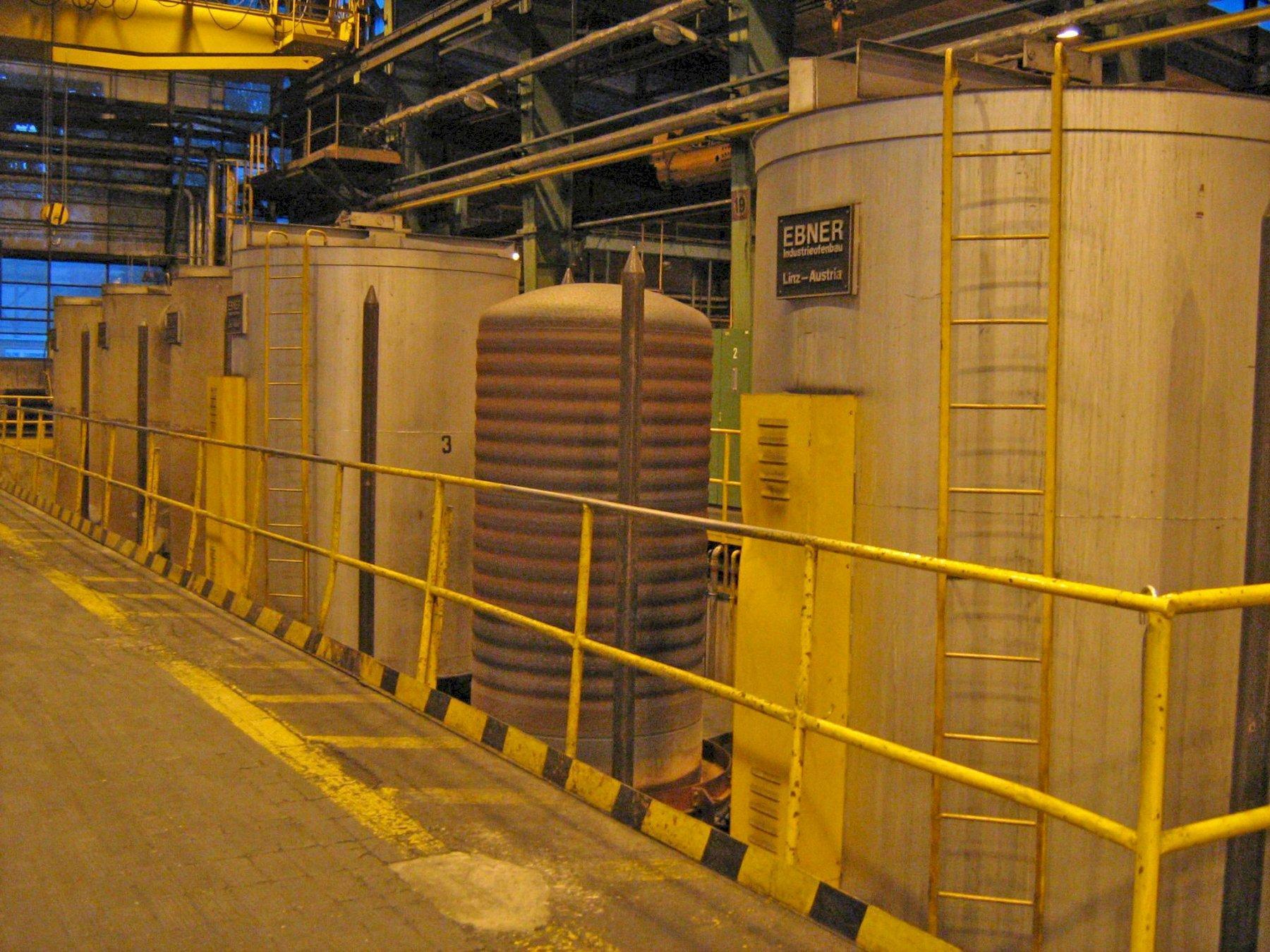

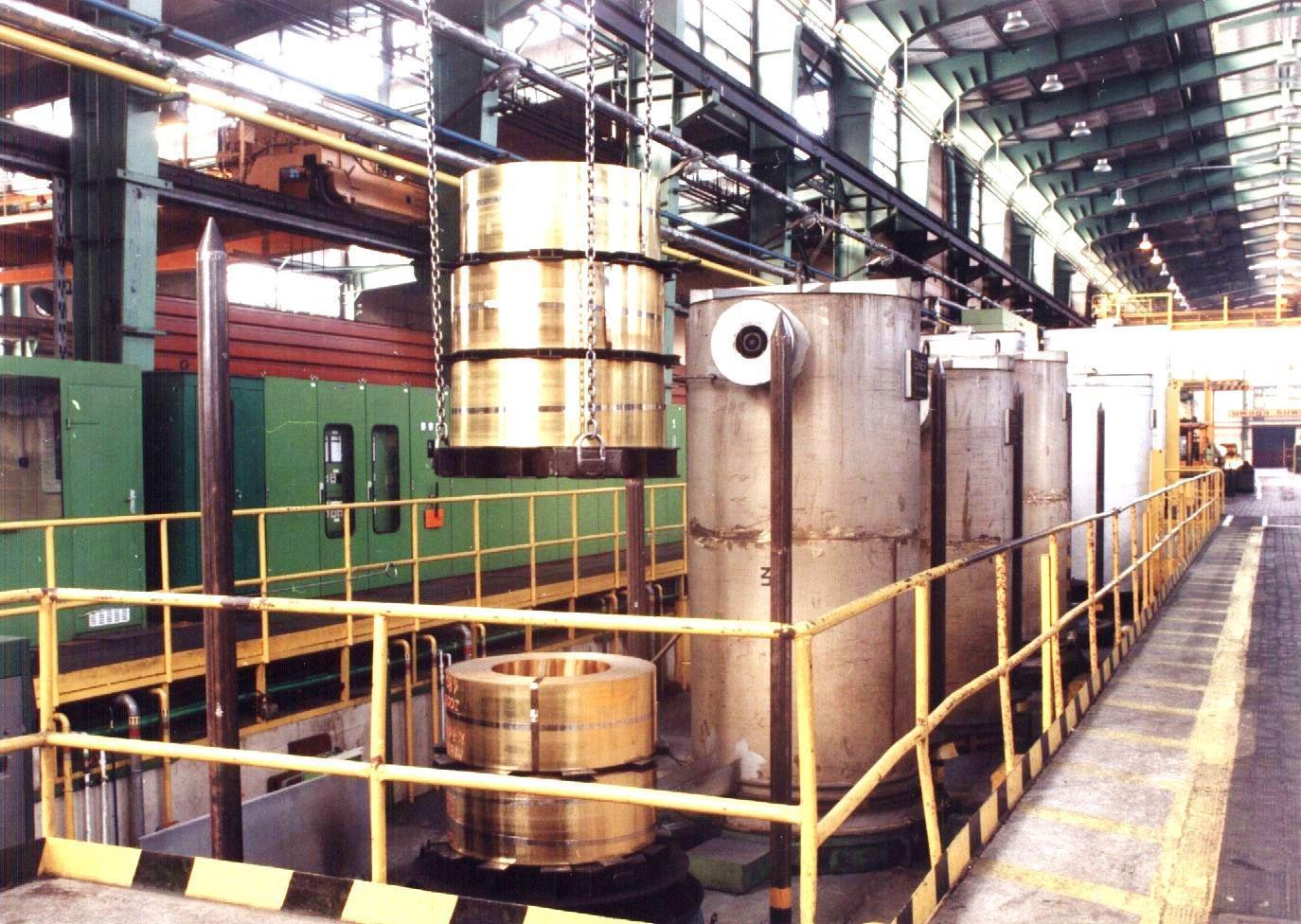

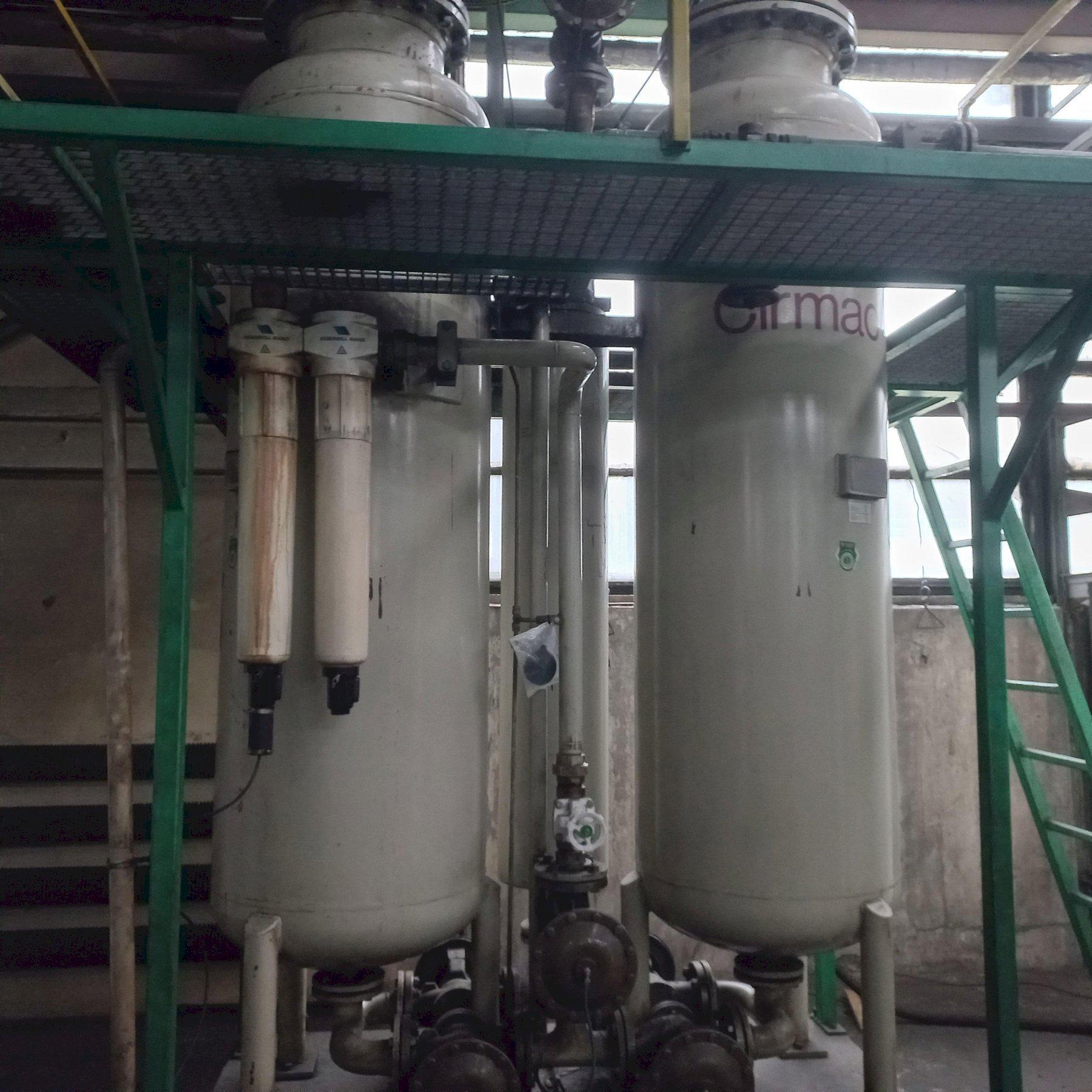

EBNER ANNEALING BELL FURNACE SET UP
Stock # 14331 1.1. Characteristics and technical data 1.1.1. Composition of the furnace assembly electrical switchboard 1 pc. heating caps 3 pcs. furnace core 6 pcs. service station 6 pcs. protective caps 6 pcs. heating cylinders 4 pcs. cooling caps 3 pcs. vacuum pump 1 pc. 1.1.2. Technical data 1.1.2.1. General power consumption 1000 kWh connected voltage 380 V +/-5%; 50 Hz control voltage 220 V +/-5%; 50Hz filtered water consumption 4.5 m3/h industrial cooling water consumption 36 m3/h protective gas 1.5% or 25% H2, the rest N2 safe gas 1.5% H2, the rest N2 1.1.2.2. Heating hood maximum operating temperature 850°C hubcap weight 4.9 t 1.1.2.3. Protective cap cap diameter 1,600 mm cap height 2,500 mm empty volume 4.2 m3 maximum temperature under the hood 750°C maximum permissible overpressure under cap at a maximum operating temperature of 100 mbar maximum permissible vacuum pressure at an ambient temperature of 1 mbar (vacuum) vacuum creation time 8 min time of filling the furnace with gas 6 min (empty furnace) 1.1.2.4. Furnace core with fan maximum load 12 tons (at temperature 700°C) fan speed 750 / 1,500 rpm. 1.1.2.5. Cooling hood with fan and water shower pumping volume 12,000 m3/h engine power 0.75 kW revolutions 1,500 rpm. amount of cooling water 8 m3/h 1.1.2.6. Vacuum pump nominal suction capacity 250 m3/h maximum vacuum 0.5 mbar engine power 5.5 kW engine speed 1,500 rpm. / min. **Temporary Specifications Subject to Revisions** **PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE** **ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION** |
