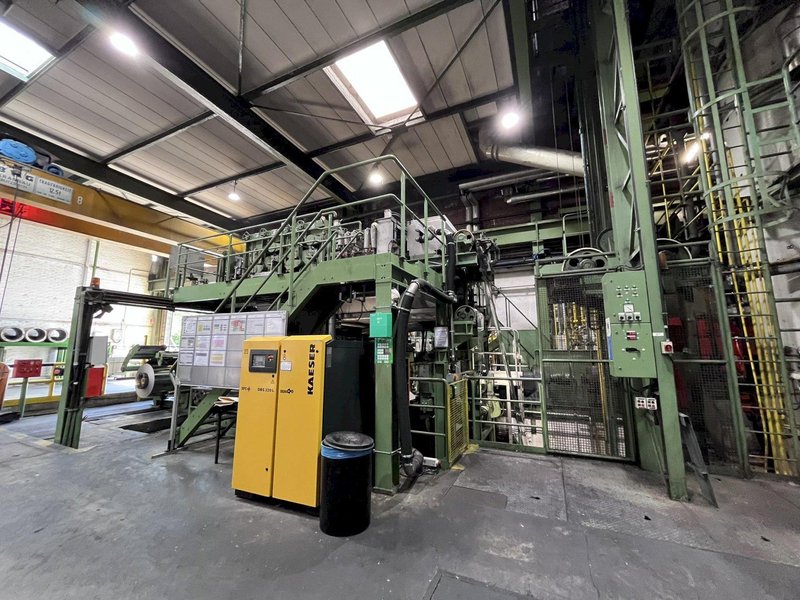

EBNER FURNACE

BAUHAMMER COIL HANDLING EQUIPMENT

MATERIAL WIDTH ……. …………               250mm – 650mm

MATERIAL THICKNESS………….0.15mm – 1.50mm

COIL WEIGHT …………………….10 TON

COIL I.D……………………………. 400/500mm

SPEED………………………………. 0 – 3- M/Min

PRODUCTION……………………. 1.6 Tons / Hr

LINE CONFIGURATION

ENTRY

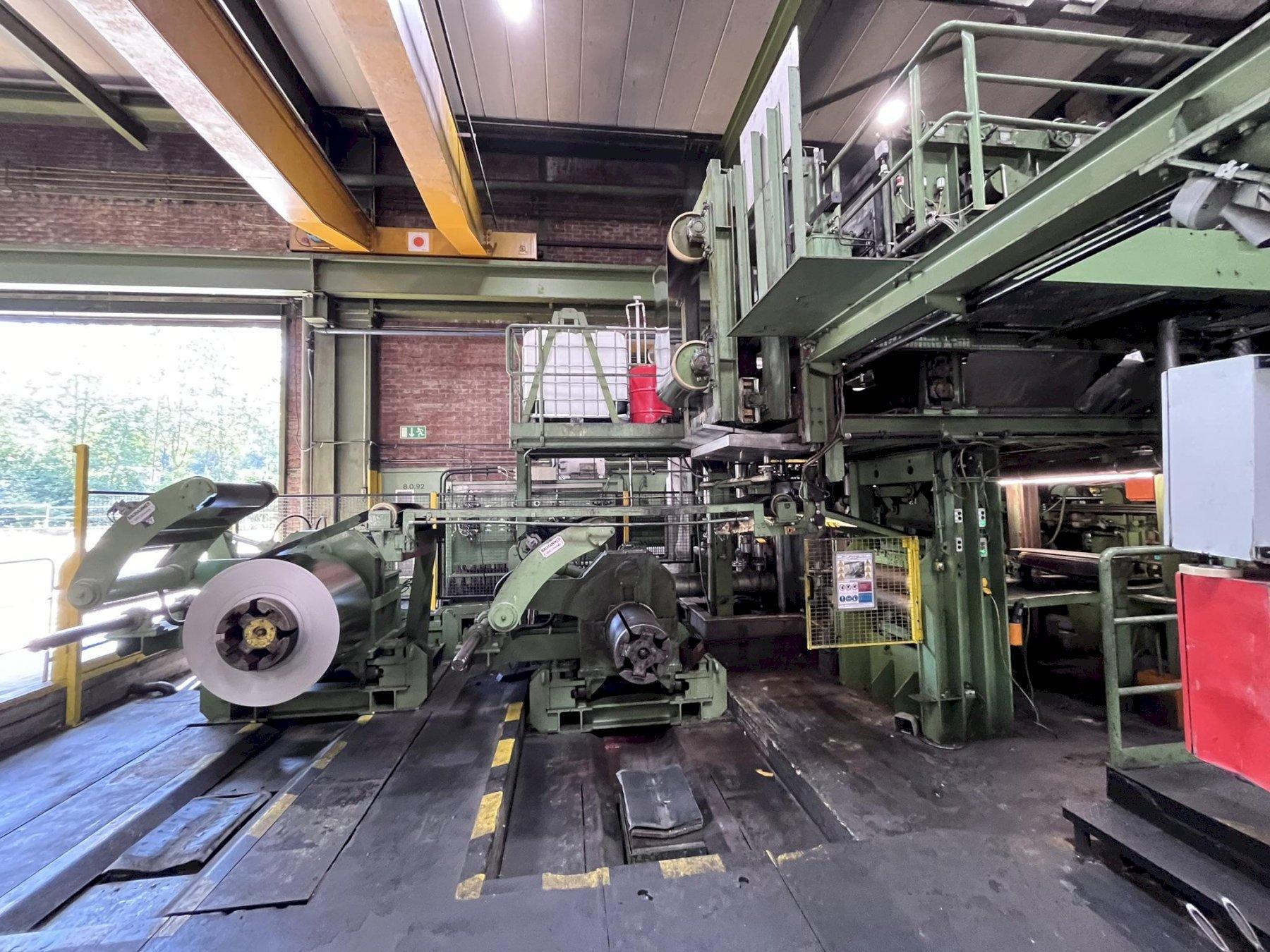

DOUBLE UNCOILER, MANDREL TYPE

MANDREL………………..400/500mm

HYFRAULIC EXPANSION

SNUBBER

COIL CARS

HYDRAULIC CENTERING,

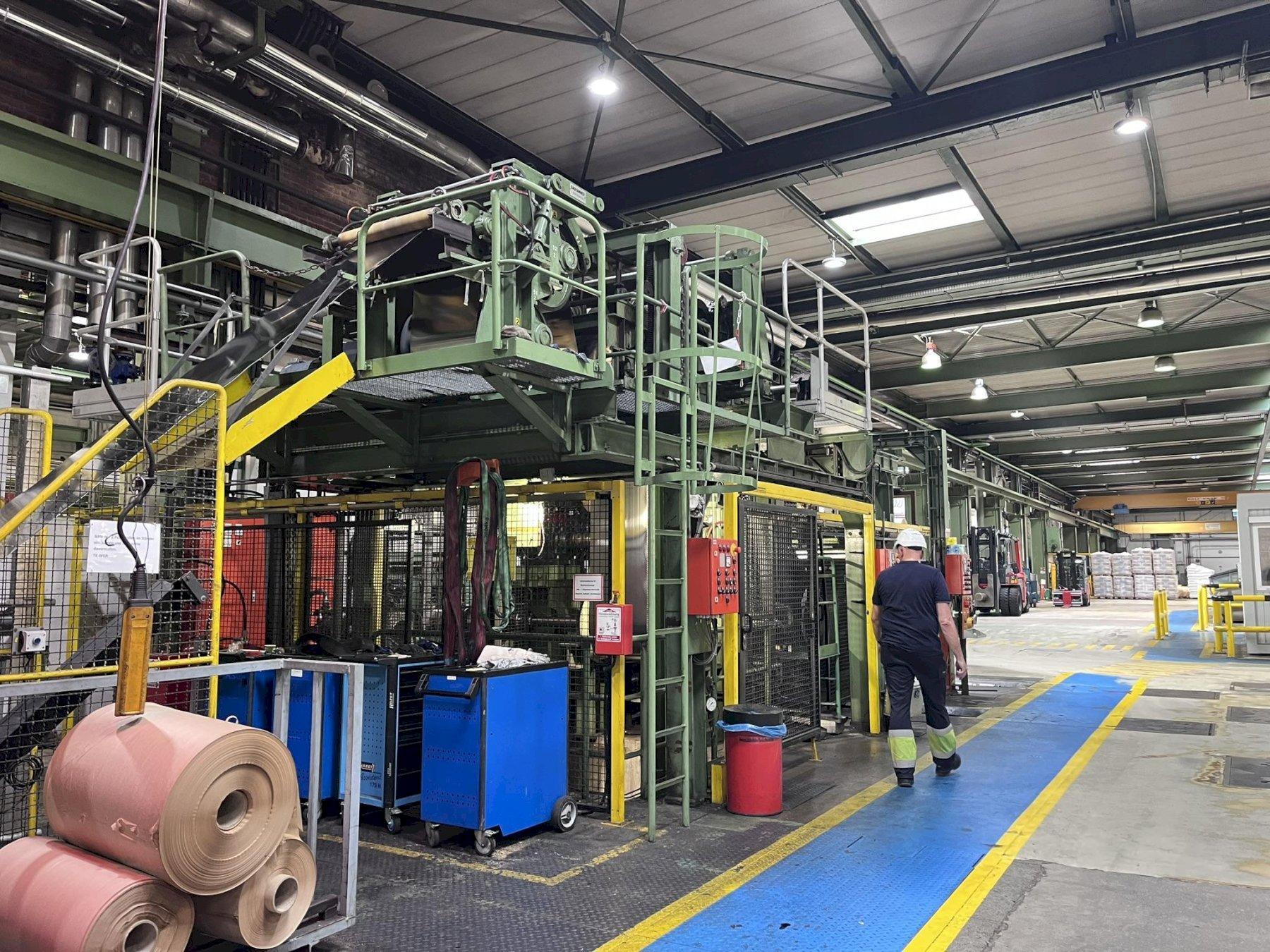

PAPER WINDER

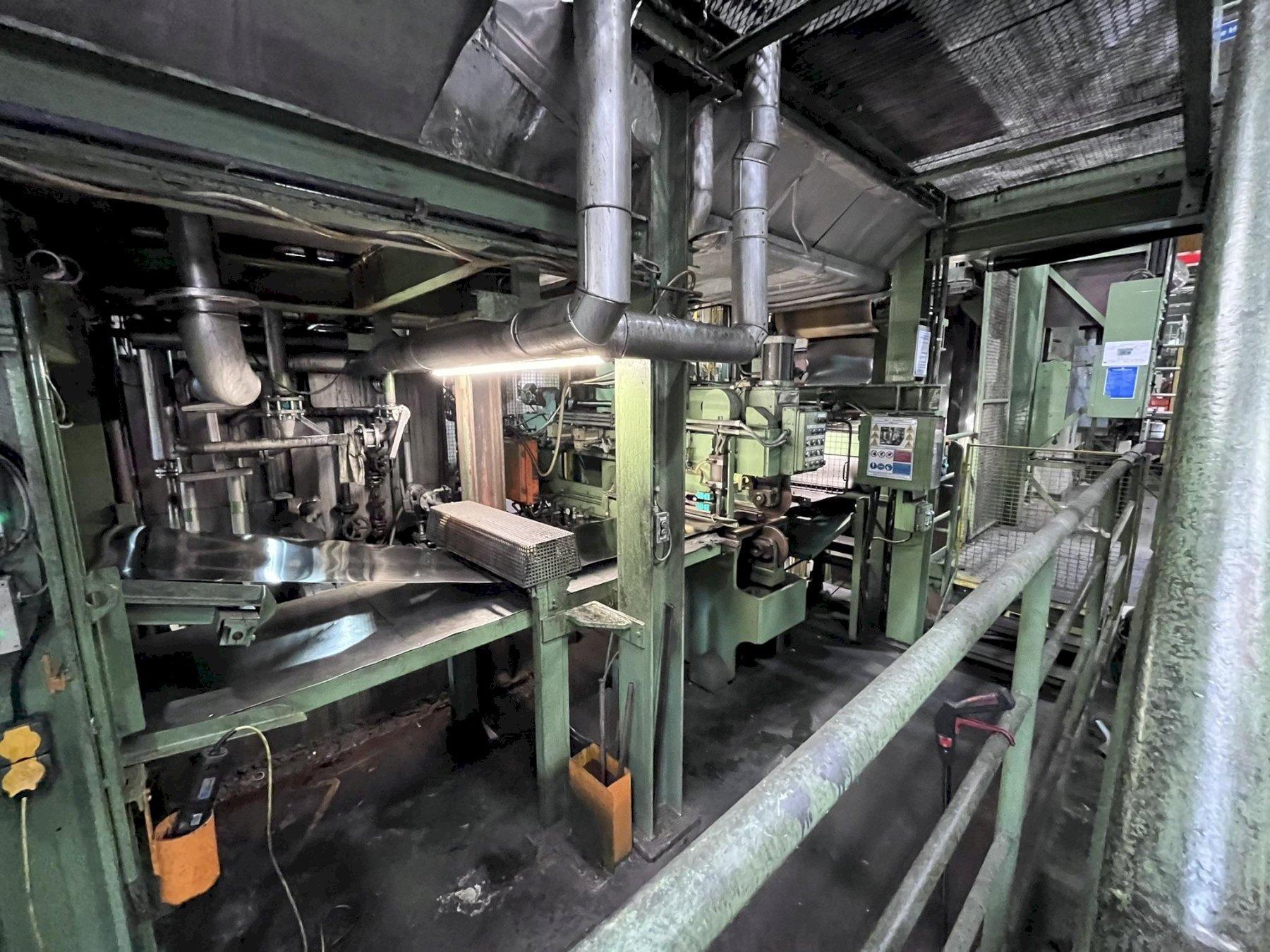

WELDER

PINCH ROLLS

BRUSH (5) & WASH CLEANING

DRYING UNIT

DRIVER/BRIDLE ROLL

VERTICAL ACCUMULATOR

DRIVER/BRIDLE ROLL

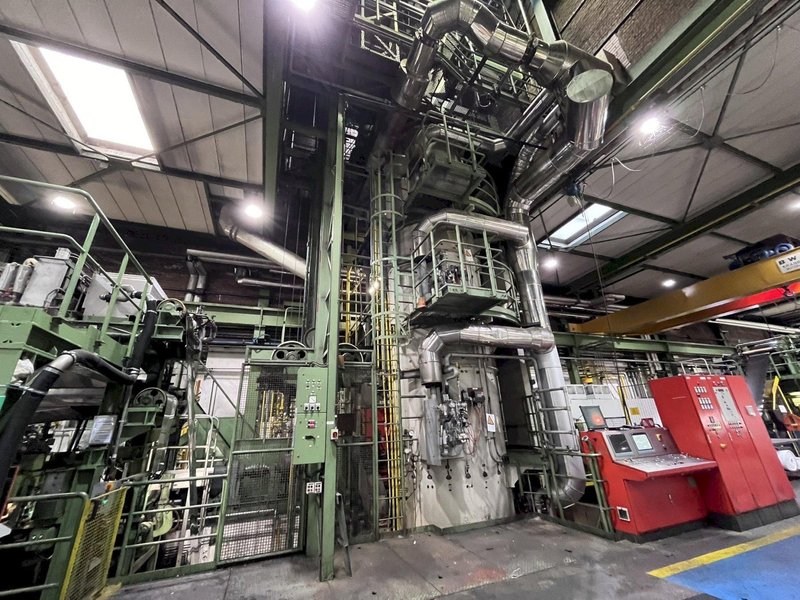

EBNER FURNACE, MUFFLE TYPE

100% HYDROGEN ATMOSFERE

DRIVER/TENSIONER ROLLS

VETICAL ACCULULATOR

BRIDLE ROLLS

CROP SHEAR

CONVEYOR BELTS

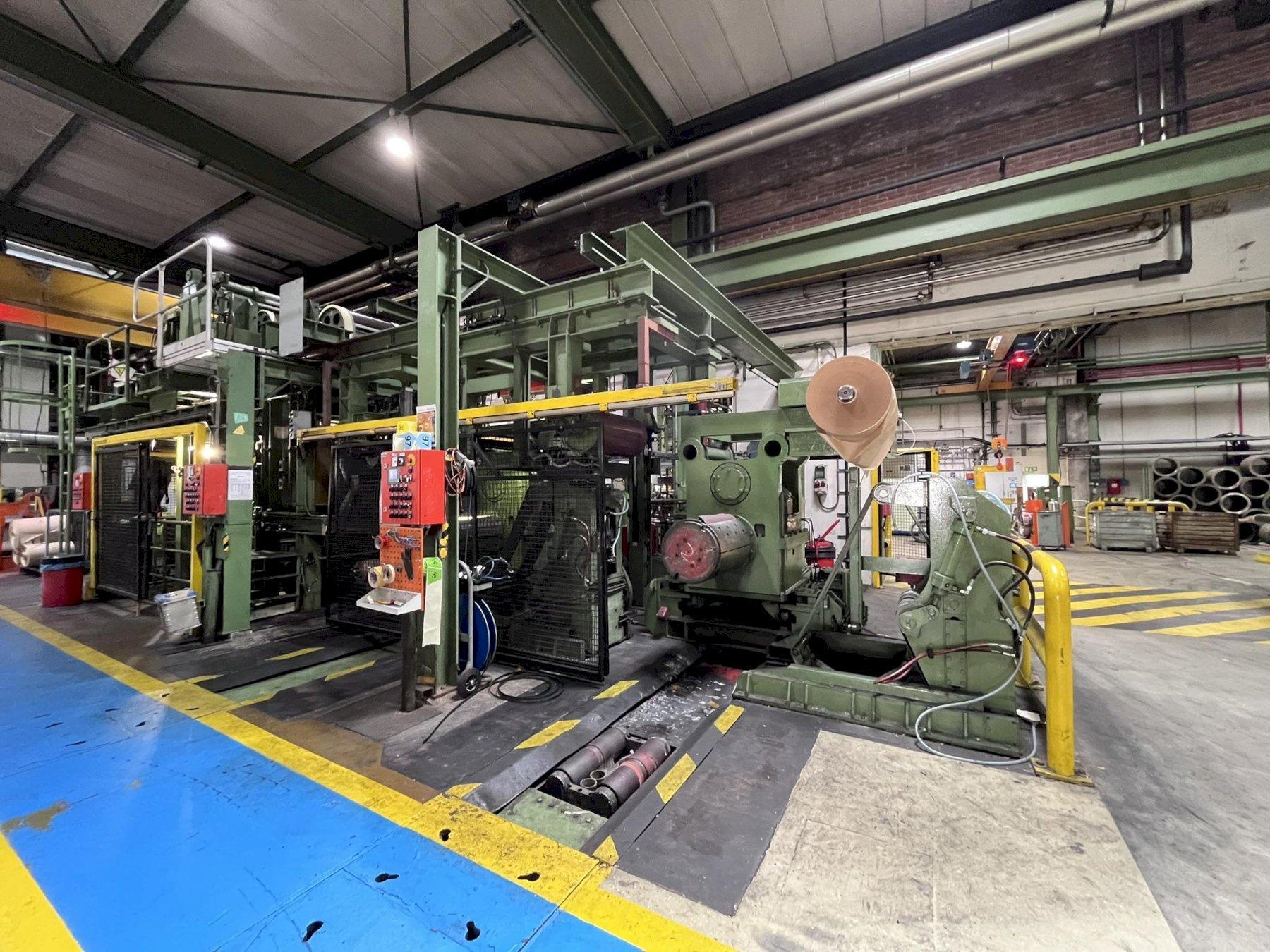

DOUBLE RECOILERS

               COIL ID……….. 500MM

               COIL OD ……… 1300MM

               BELT WRAPPERS

               COIL CARS

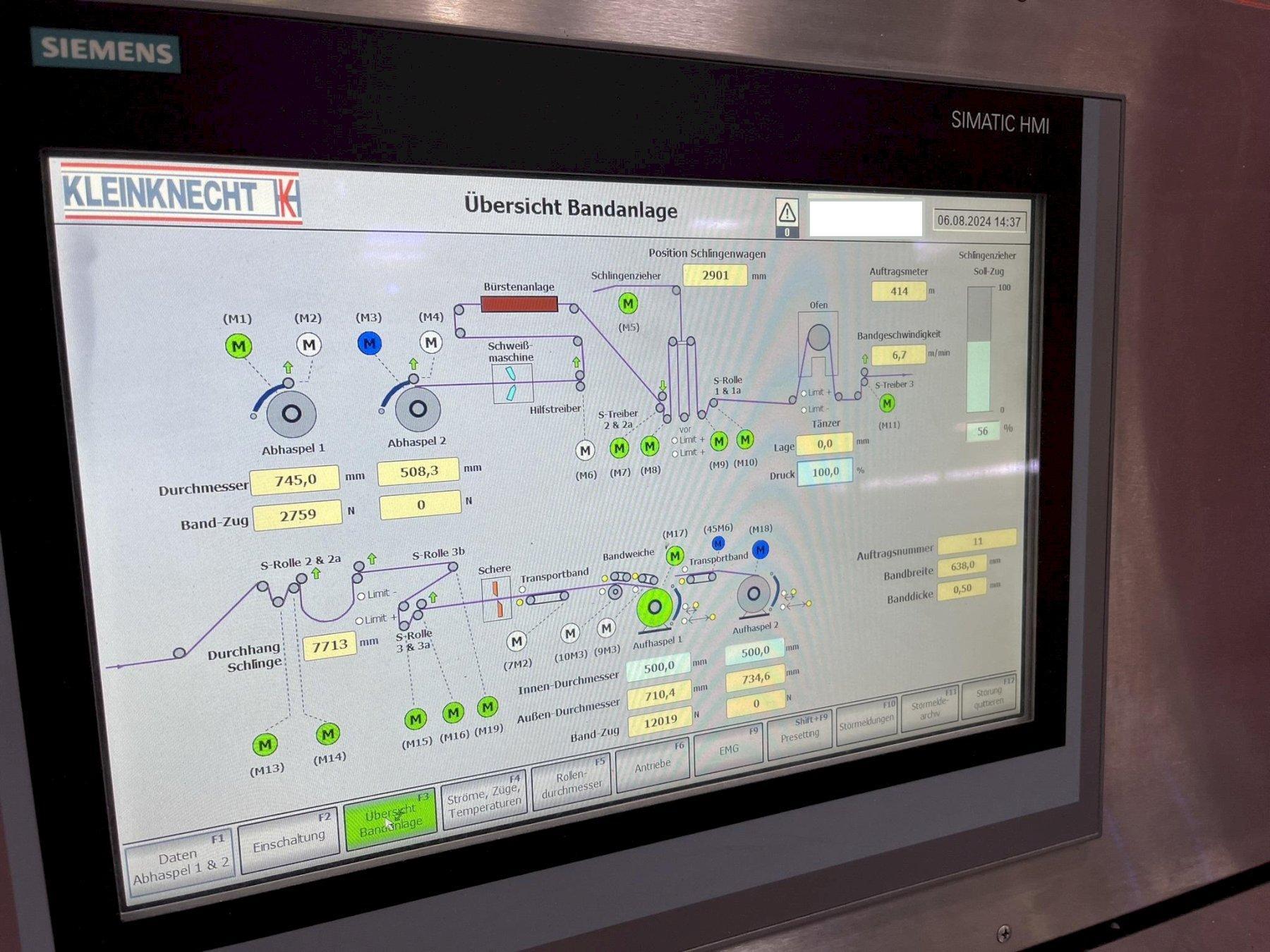

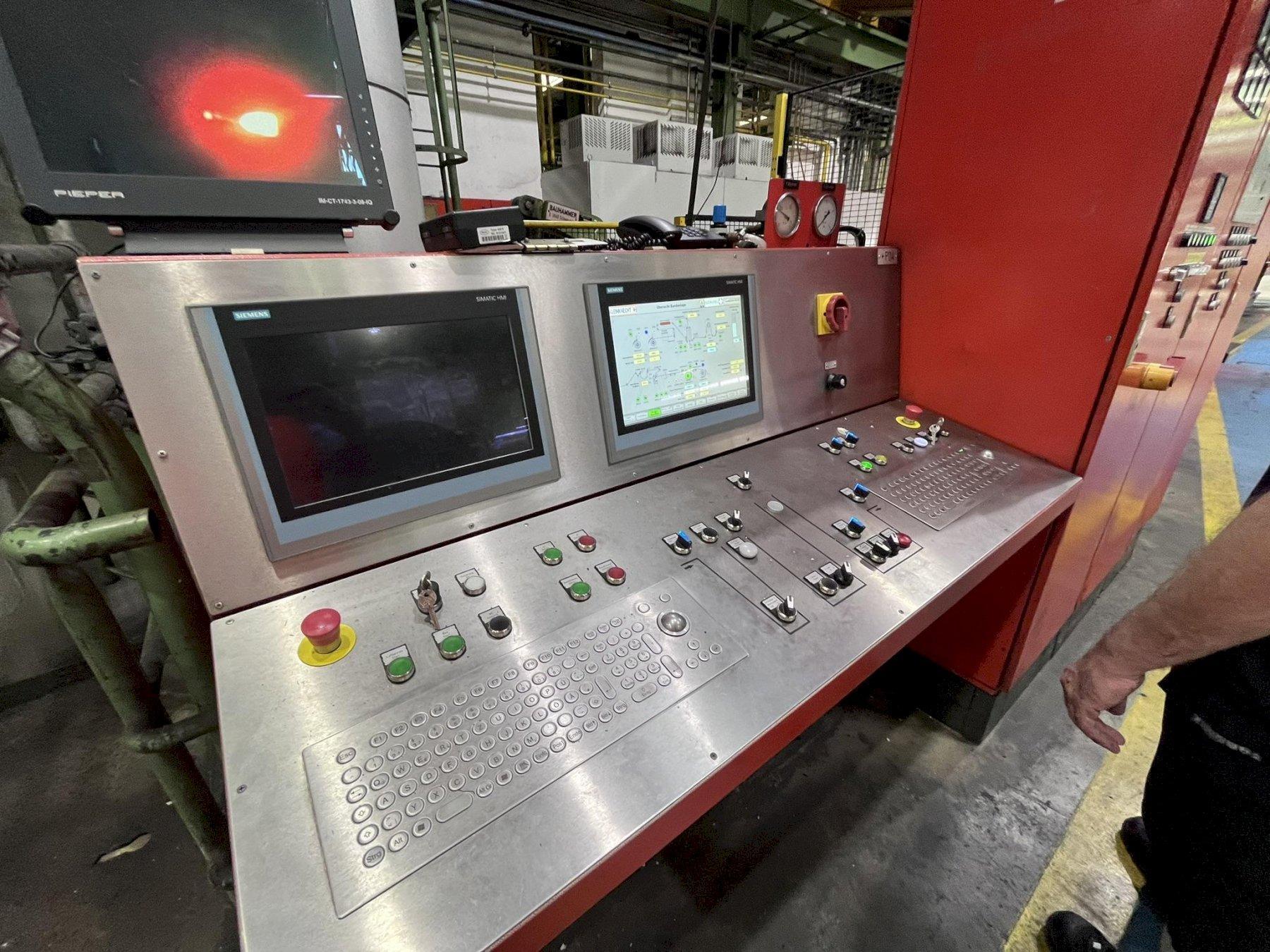

OPERTOR CONTROL PANELS

FLOOR SPACE ………….43.5 M X 8M

INSTALLED, IN PRODUCTION UNTIL DEC, 2024.

(2) ADDITIONAL BRIGHT ANNEALING LINE AVAILABLE
