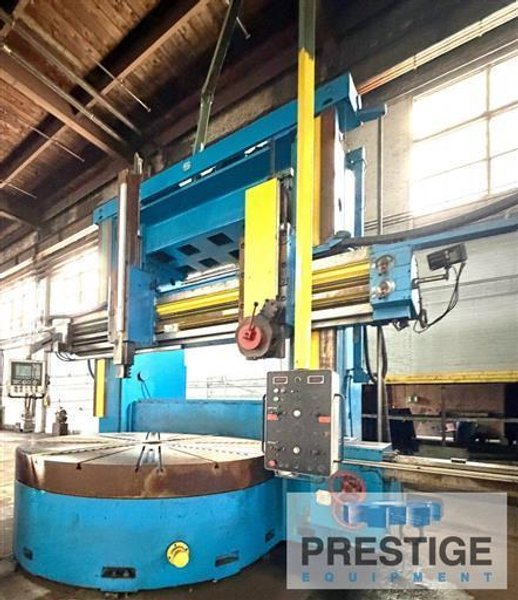

Boring Mills Vertical Manual

SPECIFICATIONS:
Table Diameter 118.11"
Max. Swing Capacity w/ Vertical Head 129"
Maximum Swing with Side Head 124"
Maximum Turning Height on Table 90"
Maximum Work Piece Weight 40,000 Lbs.
Turret Stroke 30"
Turret Swivel 35 degrees

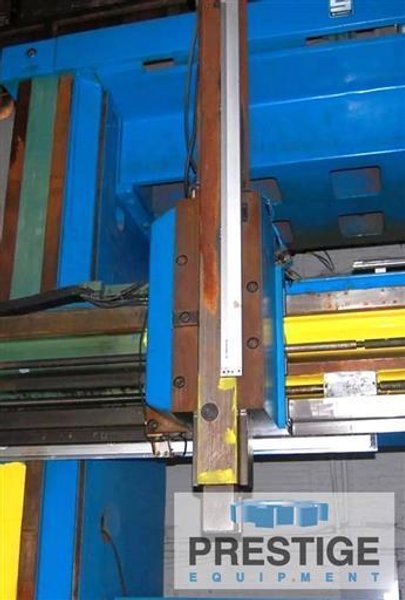

Ram Stroke 47.25"
Table Speeds(Inf Variable) 1-92 RPM
Feeds (16) .002-.200 IPM
Rapid Traverse 118 IPM
Approximate Dimensions 208" x 220"
Overall Height, Max Everything up 273"
Approximate Weight 105,000 Lbs.



Equipped With:

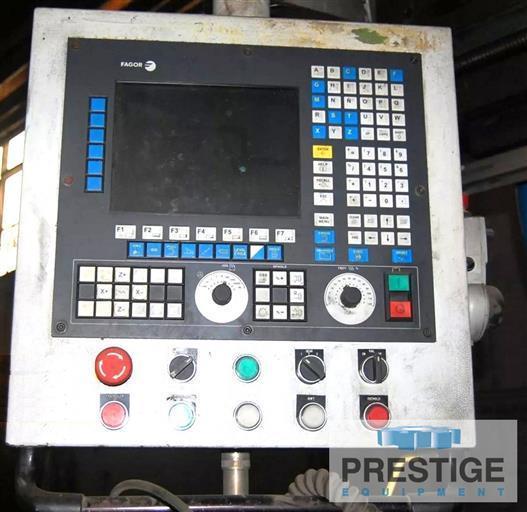

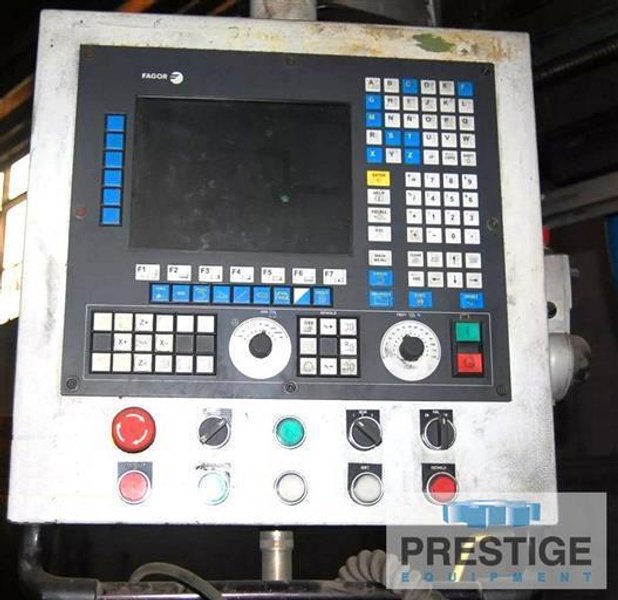

Manual Pendant & Fagor 8055i CNC Controls

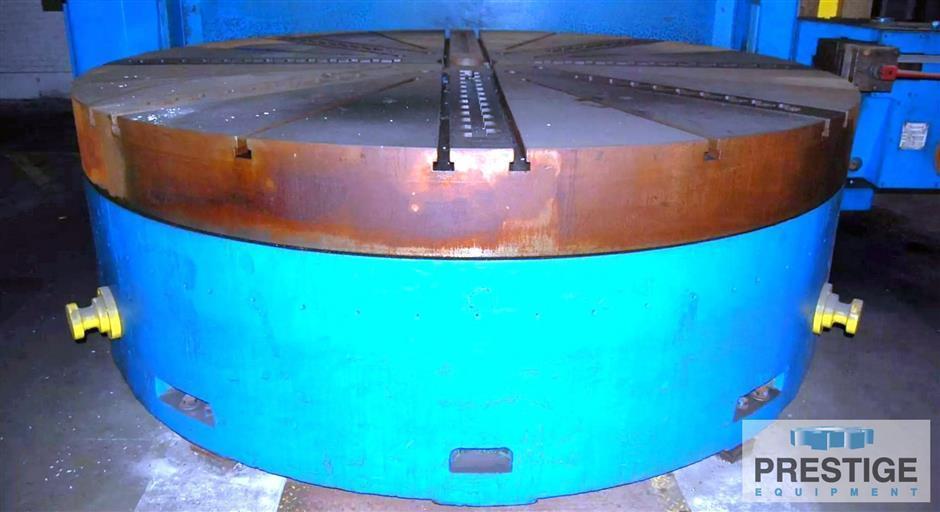

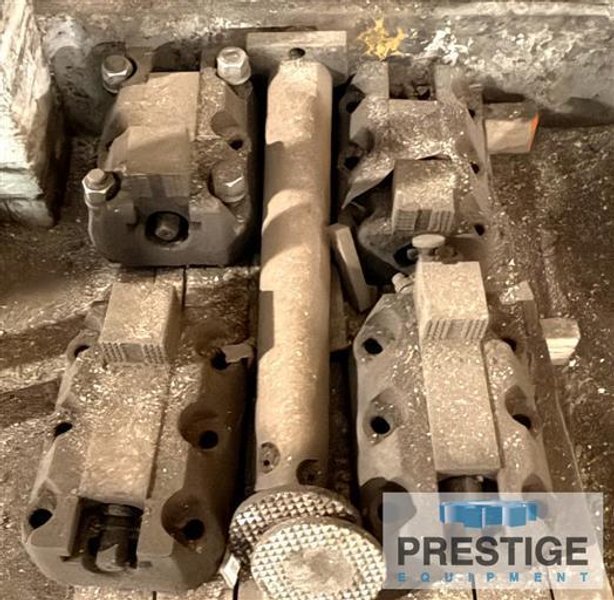

118" Table w/ 4-Top Jaws
Left Hand Ram Head w/ Fagor 8055i CNC Control (Retrofit 2009)

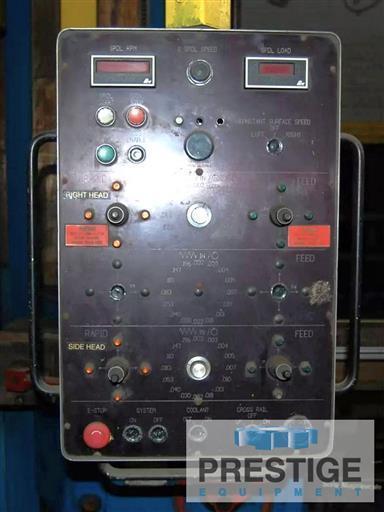

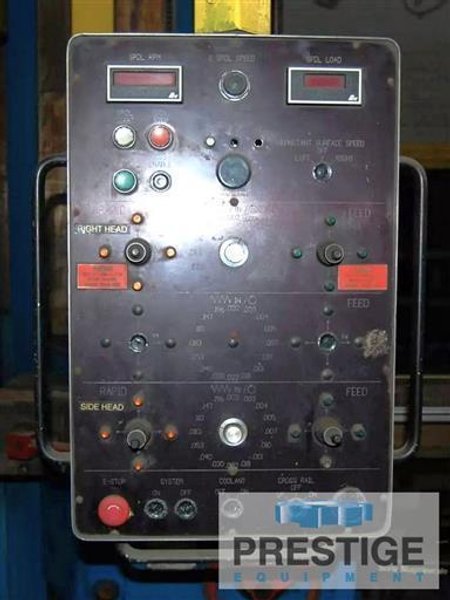

Right Hand Turret w/ Manual Pendant Control
Right Hand Side Head w/ Manual Pendant Control

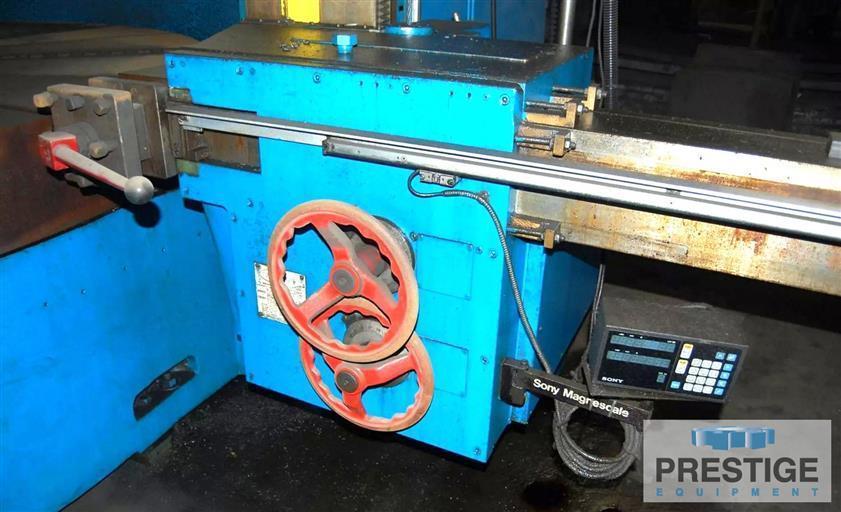

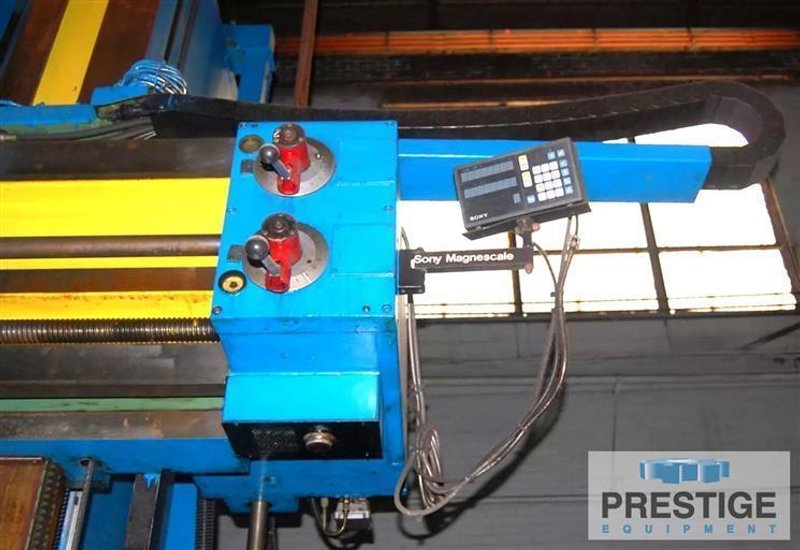

4-Axis Sony Digital Reaouts on Turret & Side Head
Independent Servo Drives on Ram w/ Fagor 8055i CNC Control
Ballscrews on All Axes
Scales on All Axes
118" Table w/ 4-Top Jaws

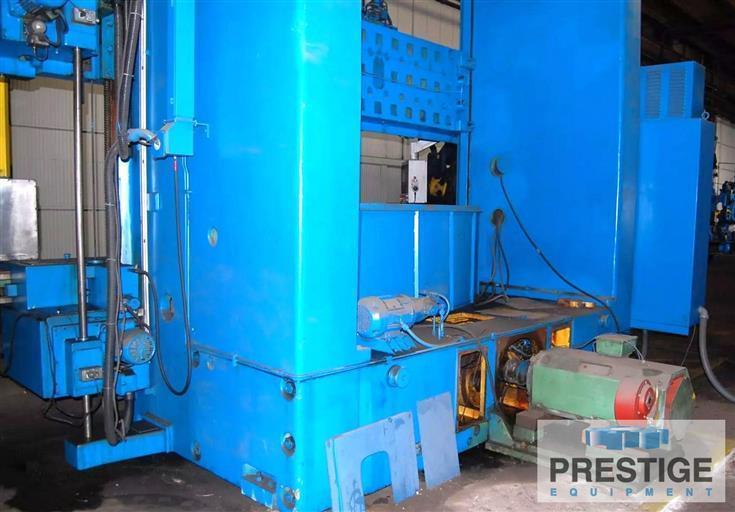

89 HP Table Motor


Note: Right Ram and Side Head Are Manual w/ Pendant Control
Left Ram Head Is CNC w/ Fagor 8055i CNC Control
