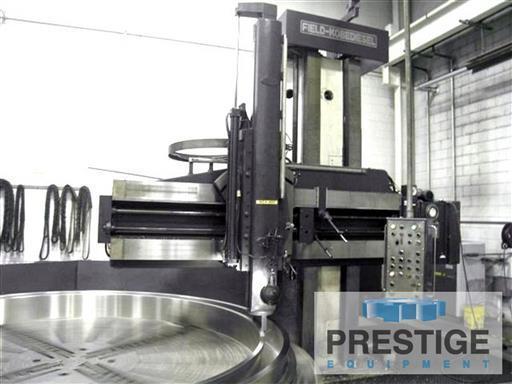

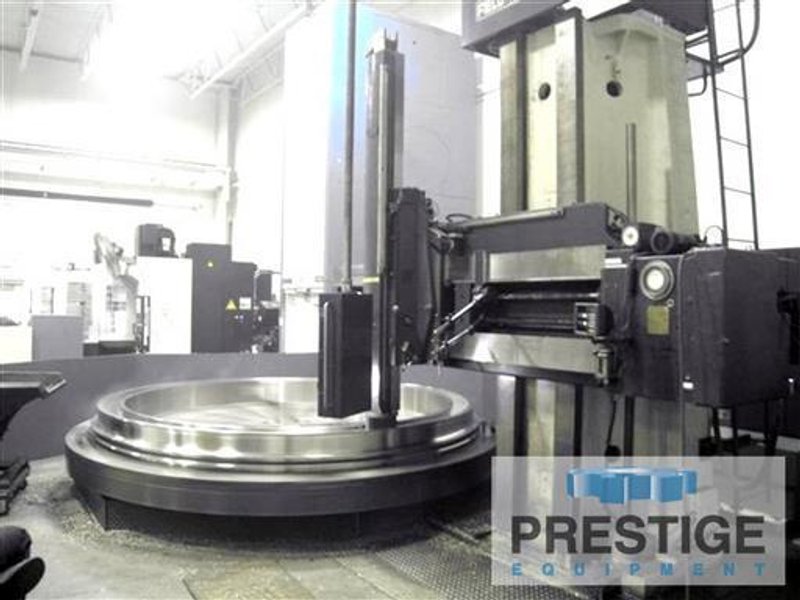

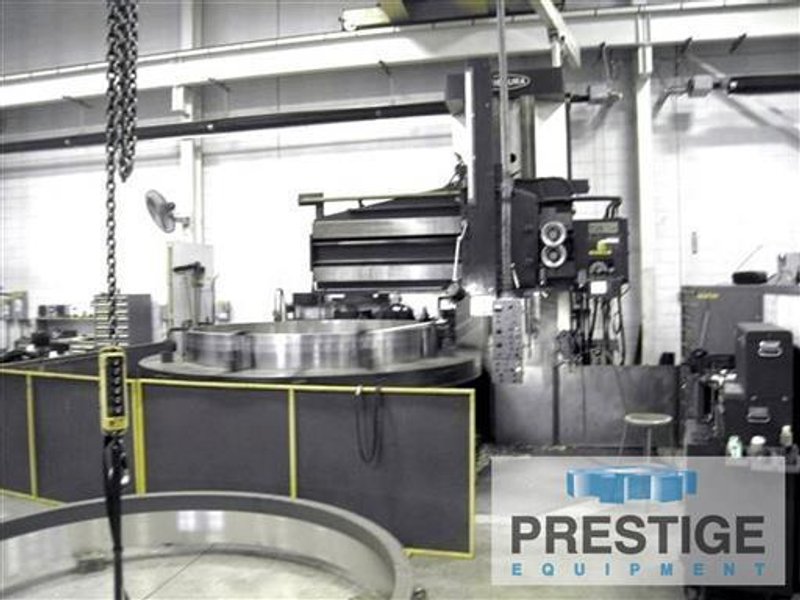

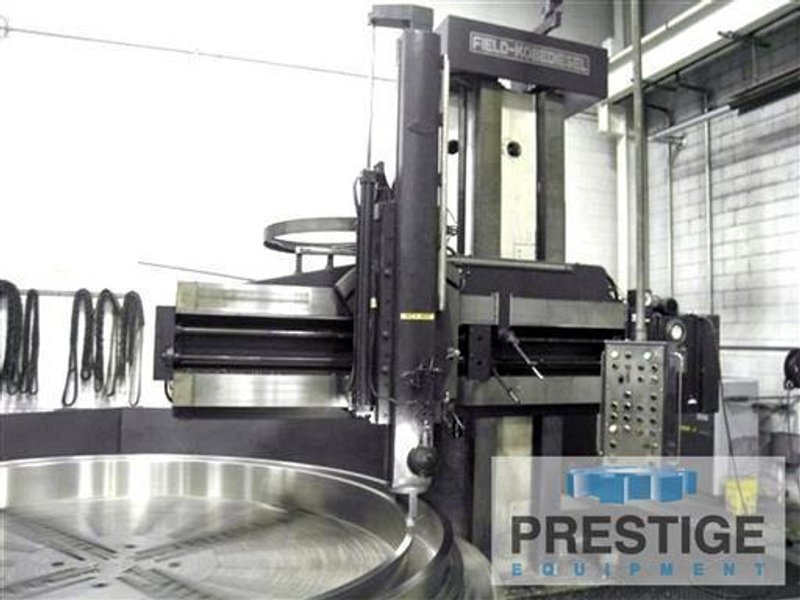

Boring Mills Vertical Manual
Brand
Category
Model
Openside
Stock #
44847
Year
1980
Condition
Not specified
Location
Not specified
|
Specifications:
Table Diameter 86.61" Sub Plate 125.00" Swing 204.72" Height Under Rail 70.87" Saddle Travel, X-Axis .......... 84.00" Ram Stroke, Z-Axis 56.00" Ram Size 9" x 8" Table Speed 1.15 – 100 RPM Table Capacity 40,000 lbs Table Motor 62.00 HP Machine Weight 95000 lbs. Equipped With: Pendant Control Openside Design 86" Table 125" Sub Plate NOTE: All new electrics, servo motors, servo drives, spindle drive and magnetics. Condition: Excellent |
