60" Summit manual VTL, Model 60 VBM, Ram/Turret/Sidehead, 200 Rpm

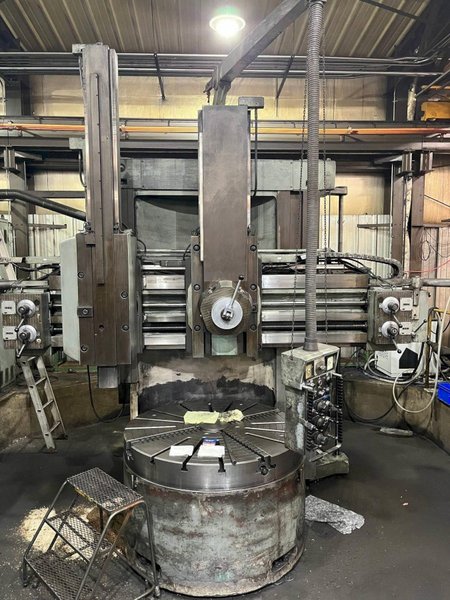

60” Summit Manual Vertical Turret Lathe

Specifications:

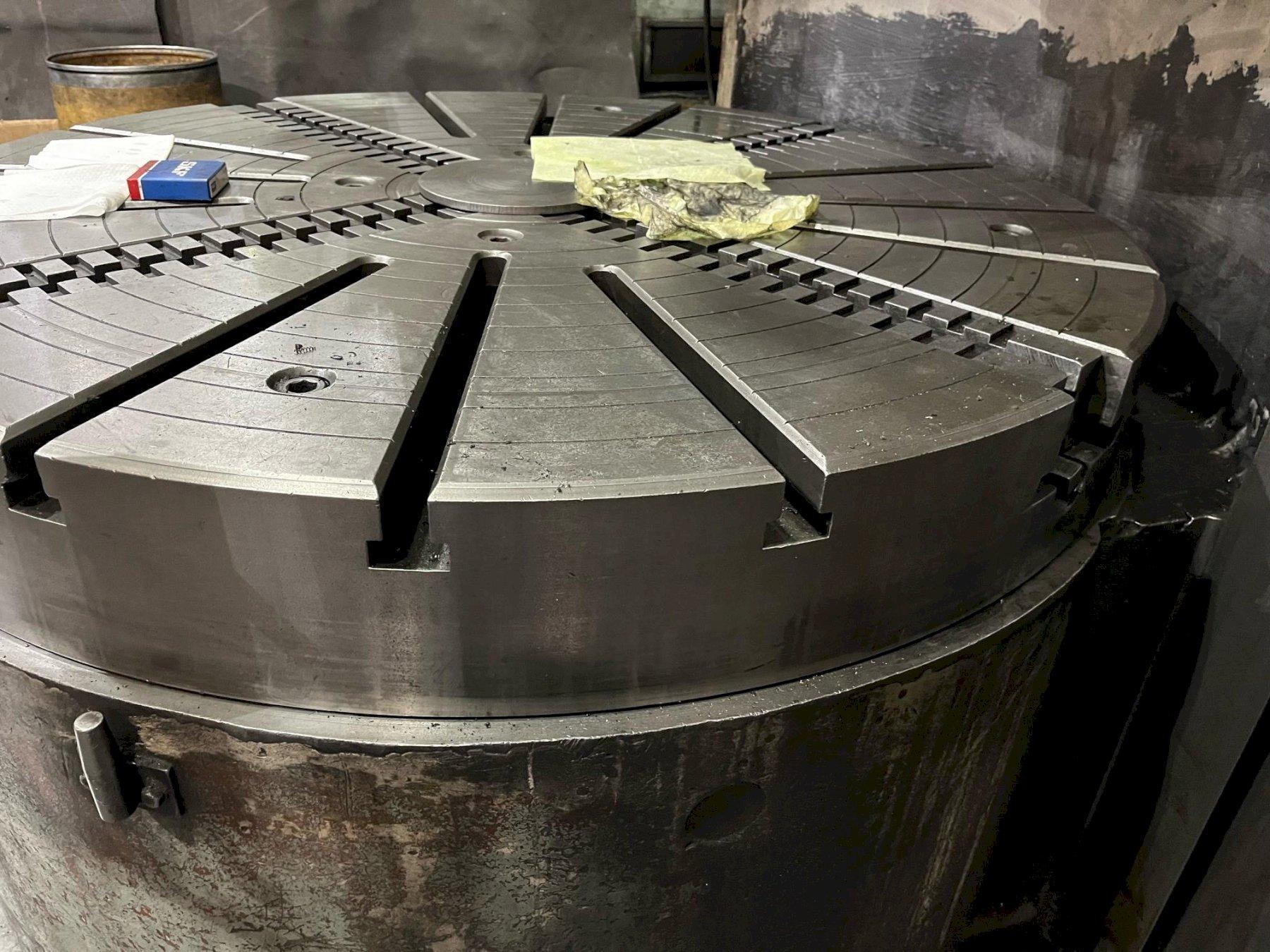

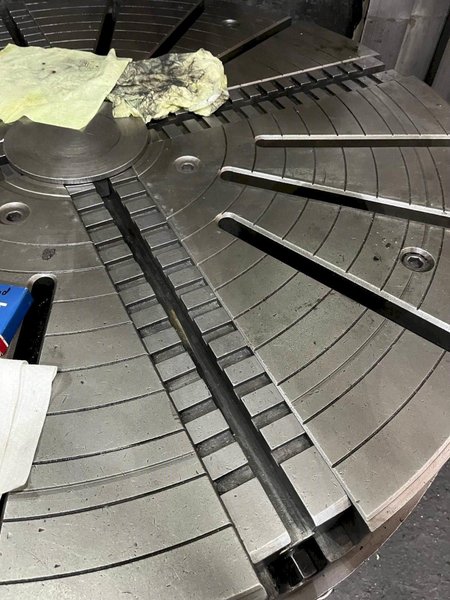

Table Diameter ........................ 57"

Max. Turning Diameter ................. 63"

Max. Height Under Rail ................ 47"

Cross Rail Vertical Travel ............ 31.5"

Ram Stroke ............................ 48"

Turret Stroke ......................... 36"

Table Speeds, Infinitely Variable...... 2-200 RPM

Table Speed, Gear Ranges  ............. 3 infinitely variable
                                         0-22.2/5-66.6/20-200 RPM

Max Weight of Workpiece ............... 17,600 Lbs.

Machine Dimensions, L x D ............. 160" x 180"

Machine Height  ....................... 161"

Machine Weight ........................ 47,500 Lbs.

Equipped With:
4 Jaw Chuck
Inch/Metric Threading
Taper

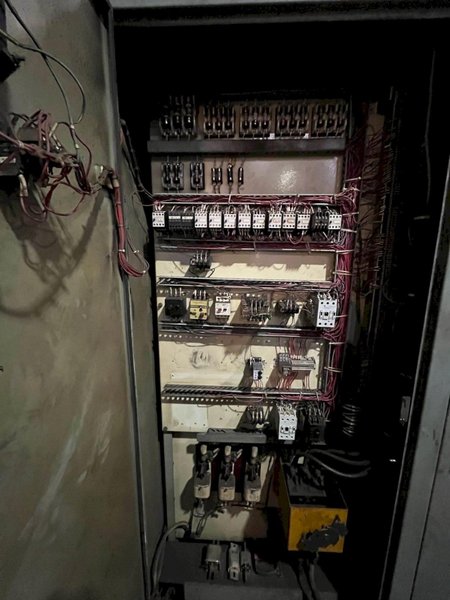

Full Pendant Controls

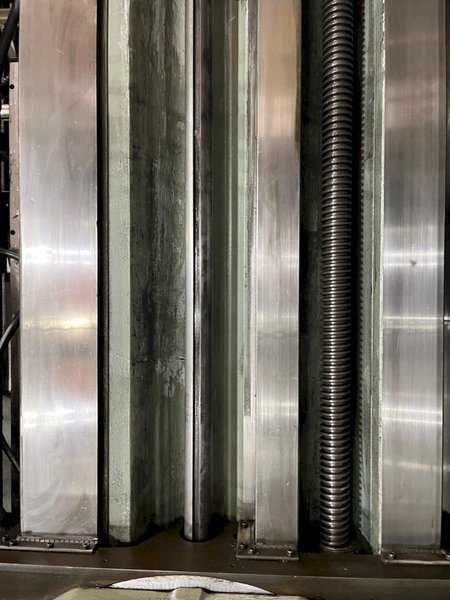

Hardened Ways on Cross Rail

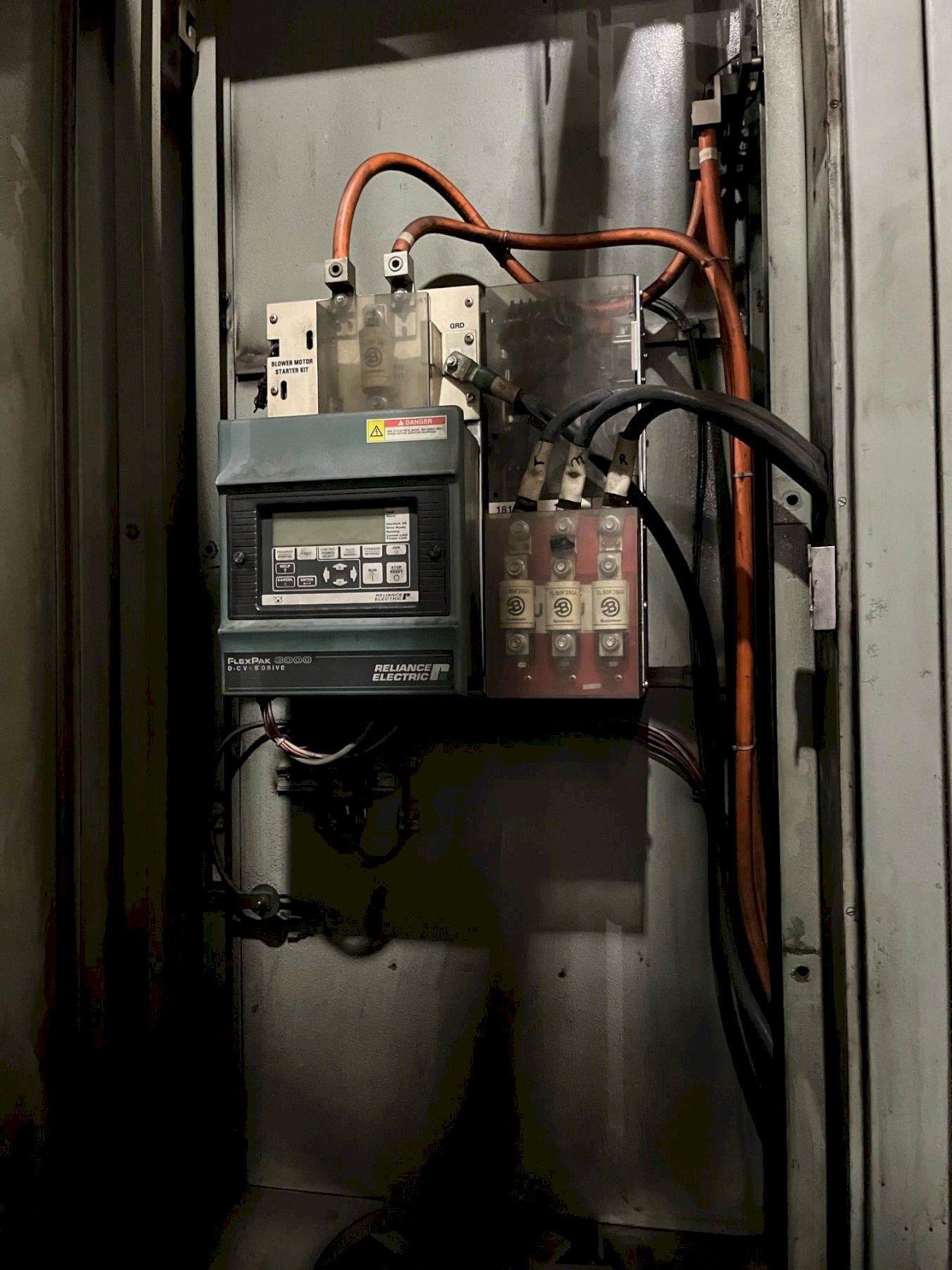

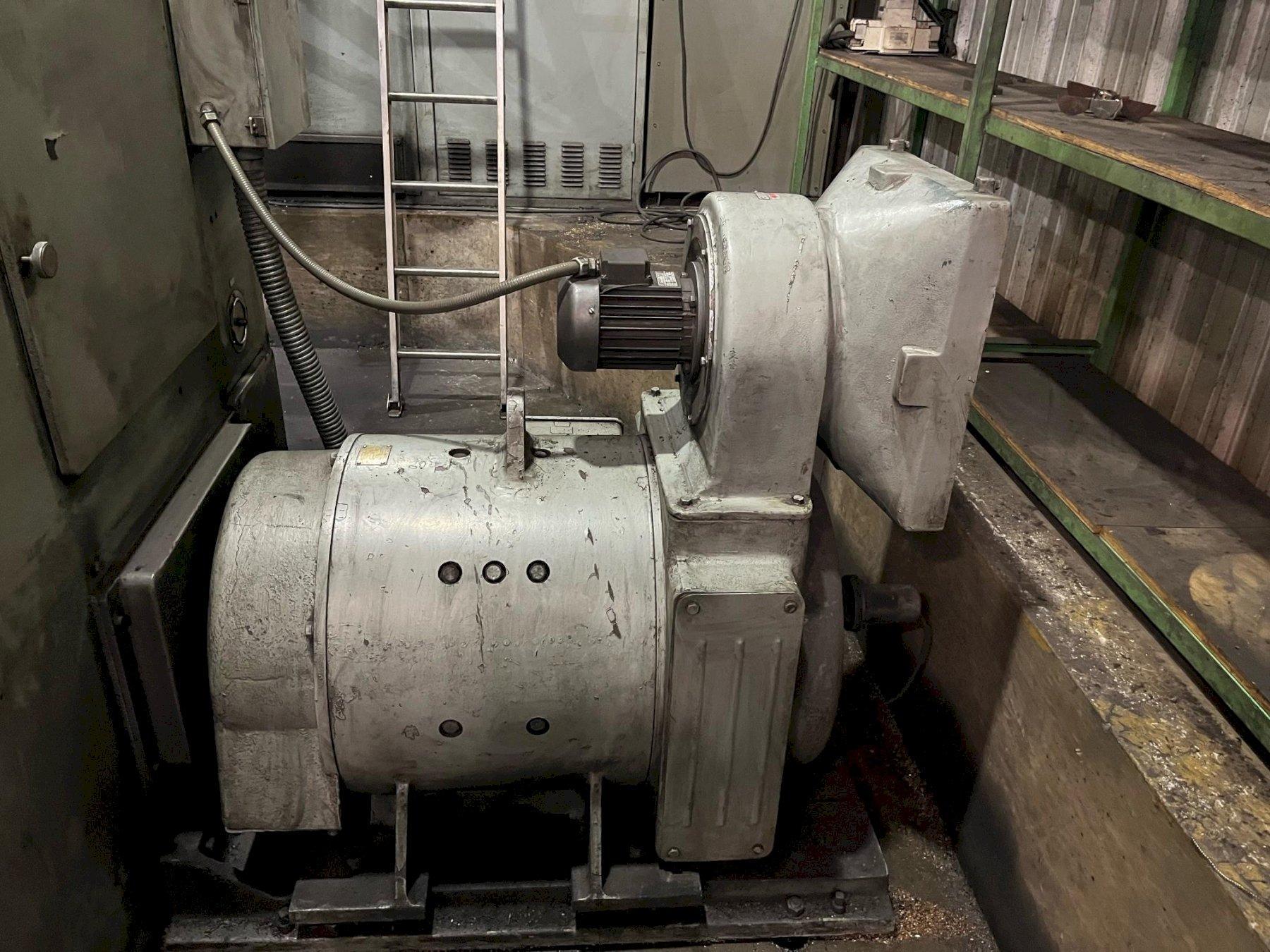

75 HP DC Main Drive Motor

2^nd gear box with clutches

2^nd side head complete
