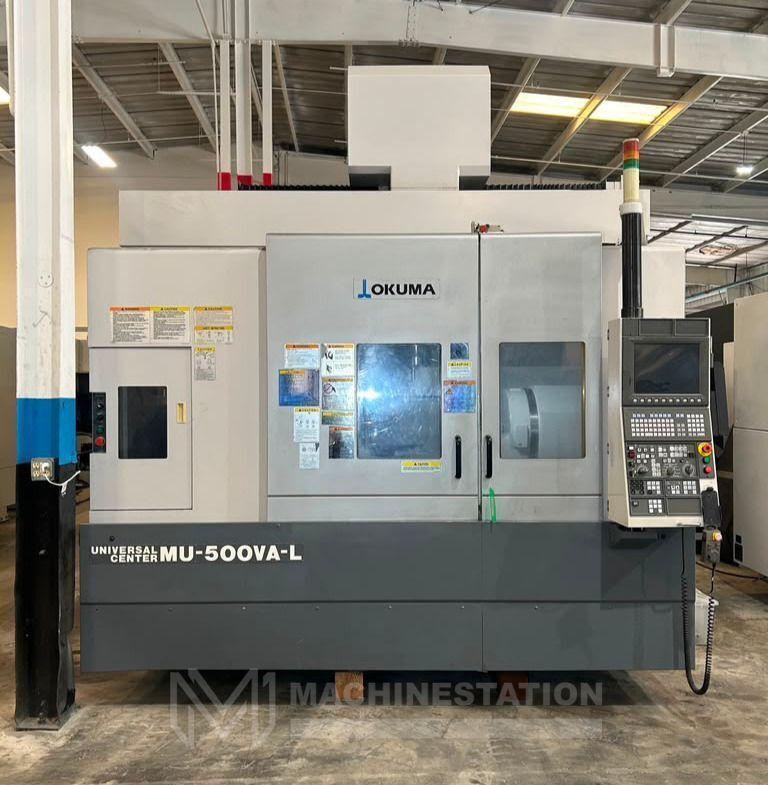

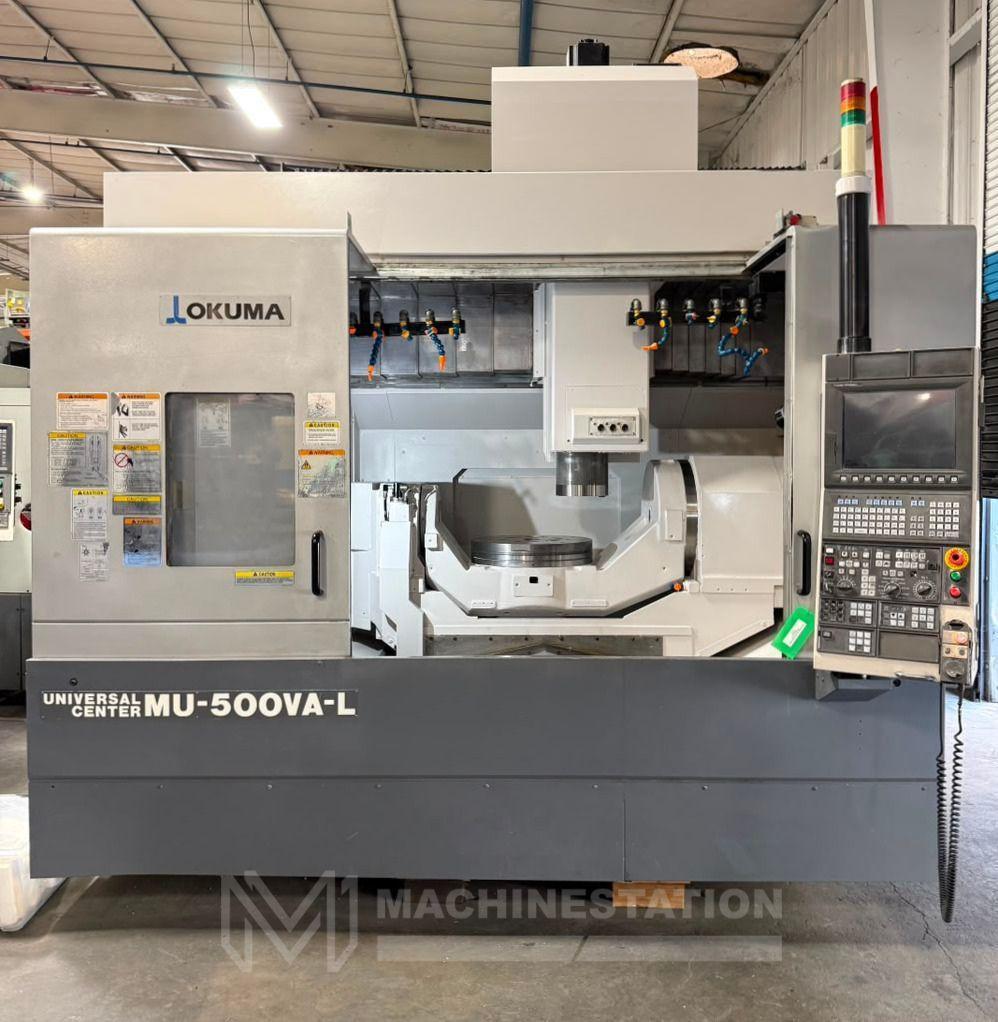

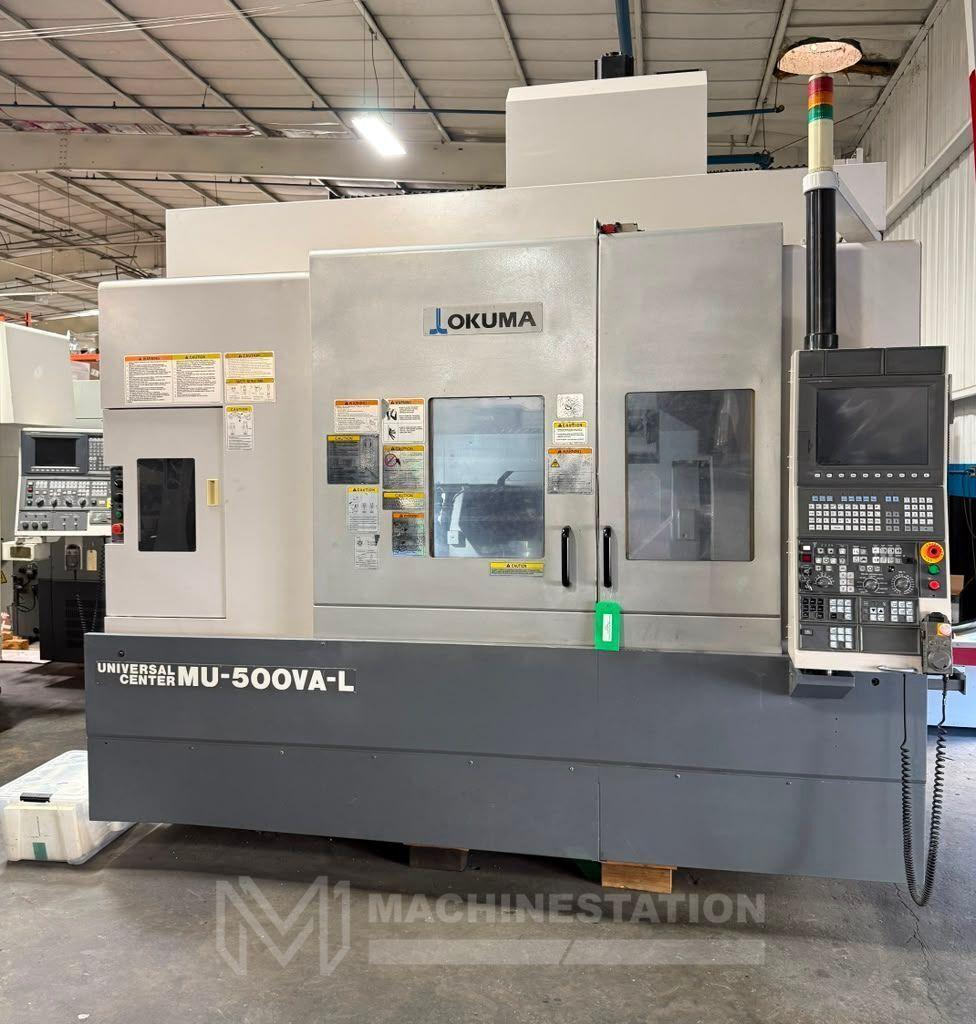

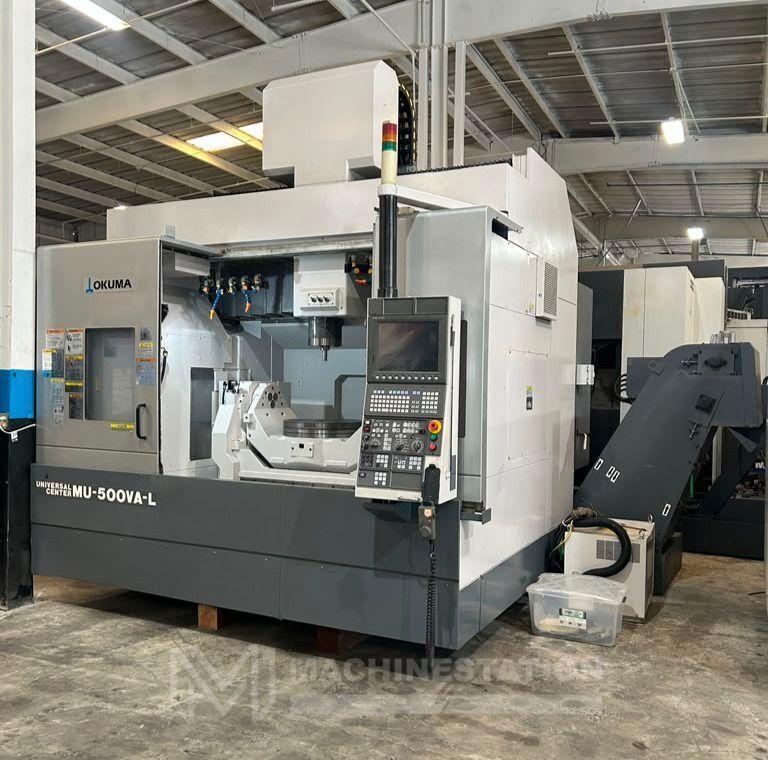

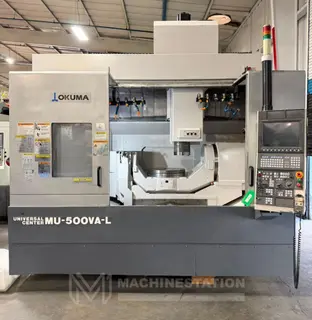

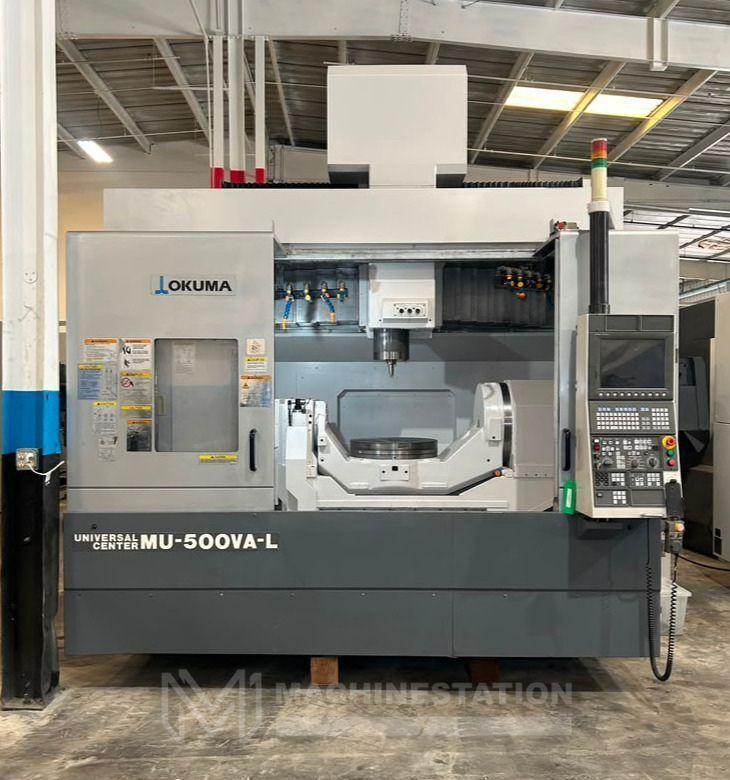

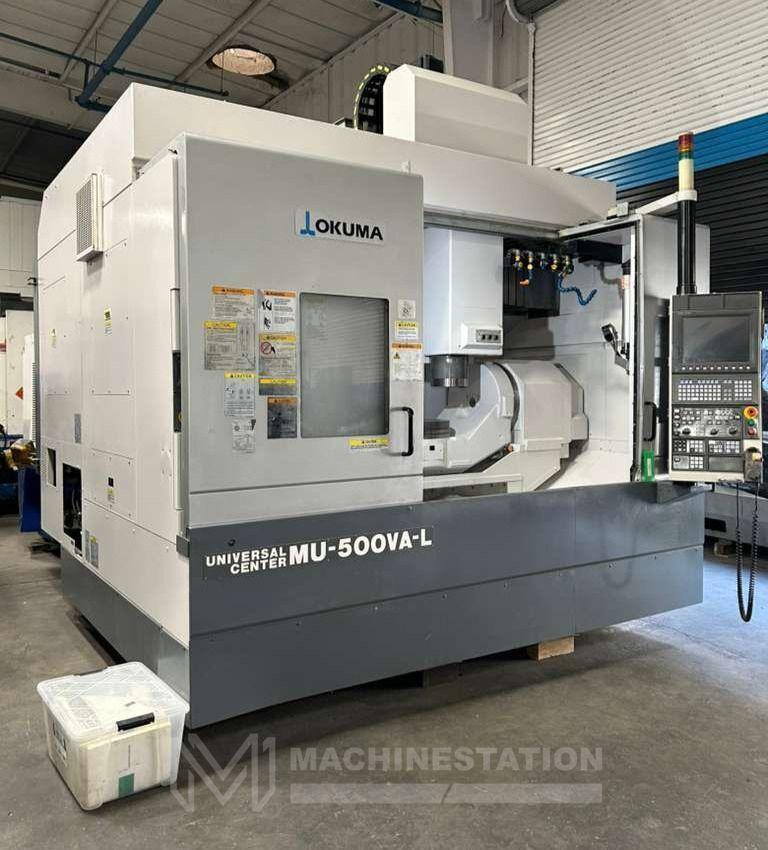

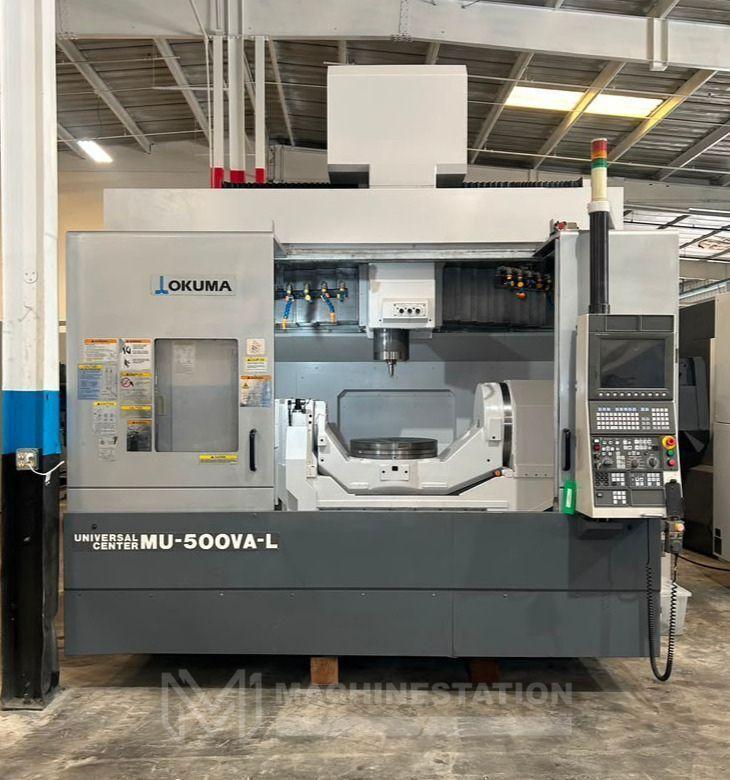

Okuma MU-500VA-L 5-Axis CNC Universal Machining Center – Milling & Turning Capability

Okuma MU-500VA-L 5-Axis CNC Universal Machining Center – Milling & Turning Capability

Name: Okuma MU-500VA-L 5-Axis CNC Universal Machining Center – Milling & Turning Capability
Brand: OKUMA
SKU: 113634
Availability: InStock

Brand

OKUMA

Location

Not specified

Specifications
Files & Videos

*All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Make:	Okuma
Model No.:	MU-500VA-L
Year:	2008

Equipped With:

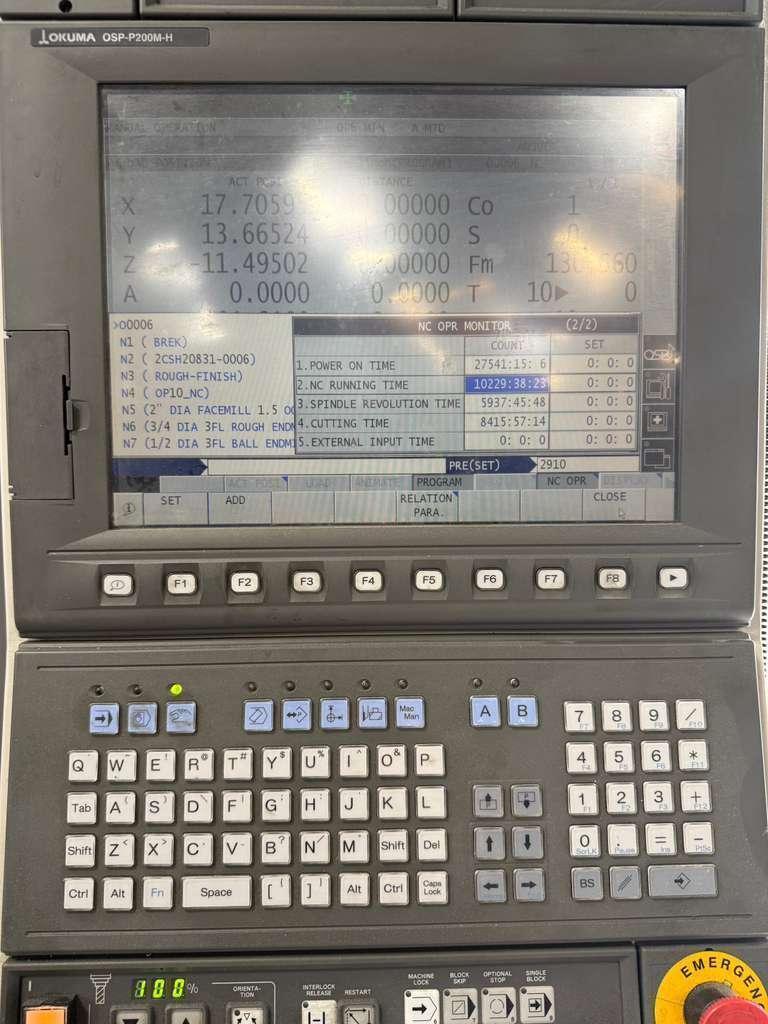

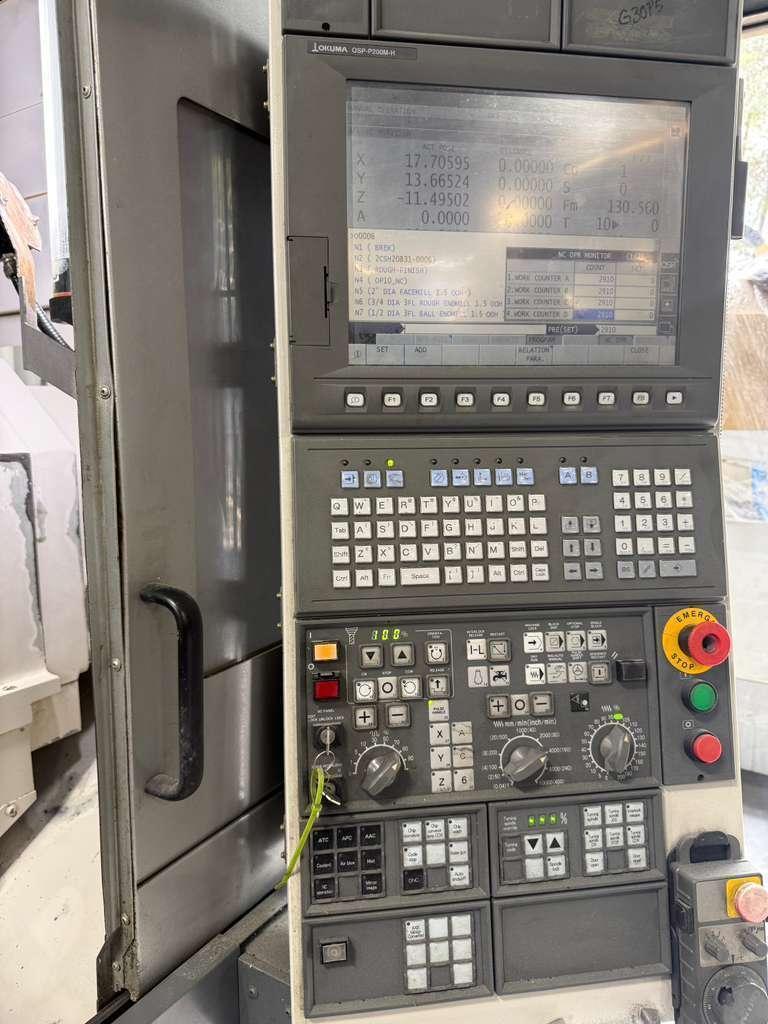

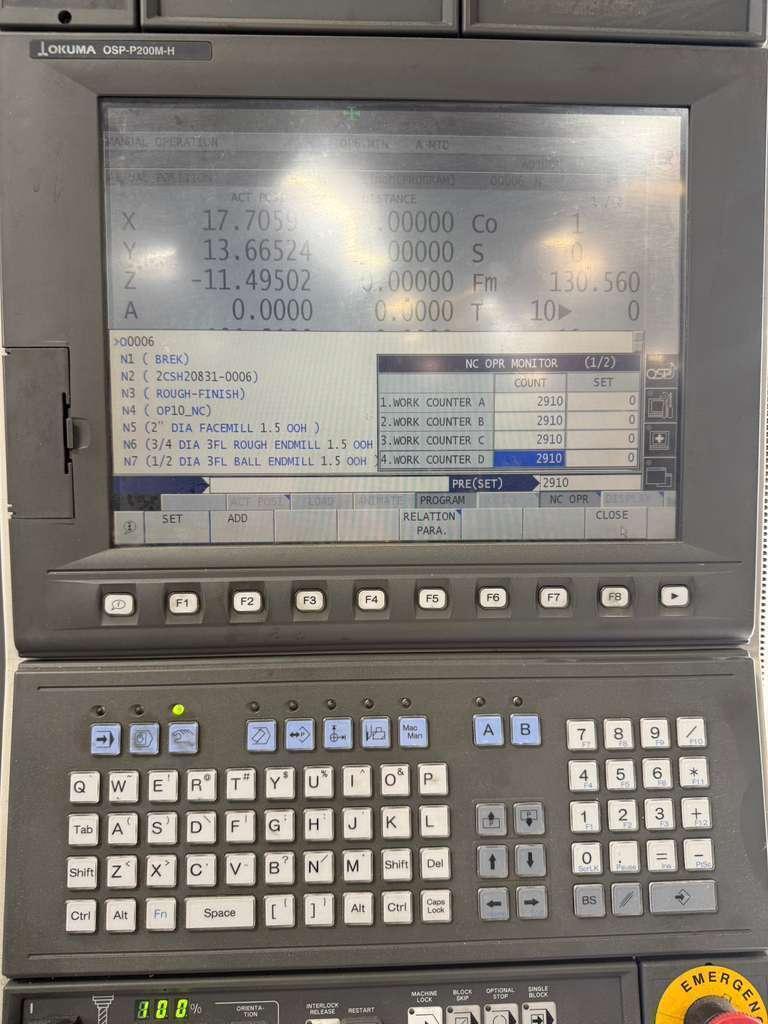

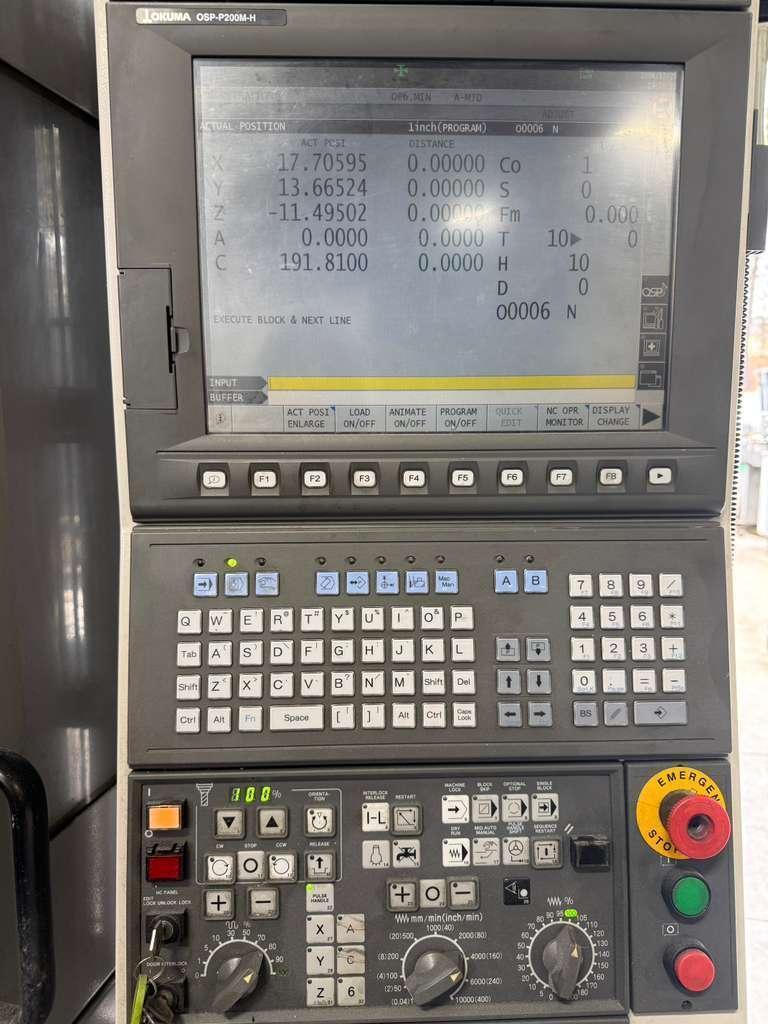

Okuma OSP-P200M-H Series CNC Control
Simultaneous 5 Axis Cutting

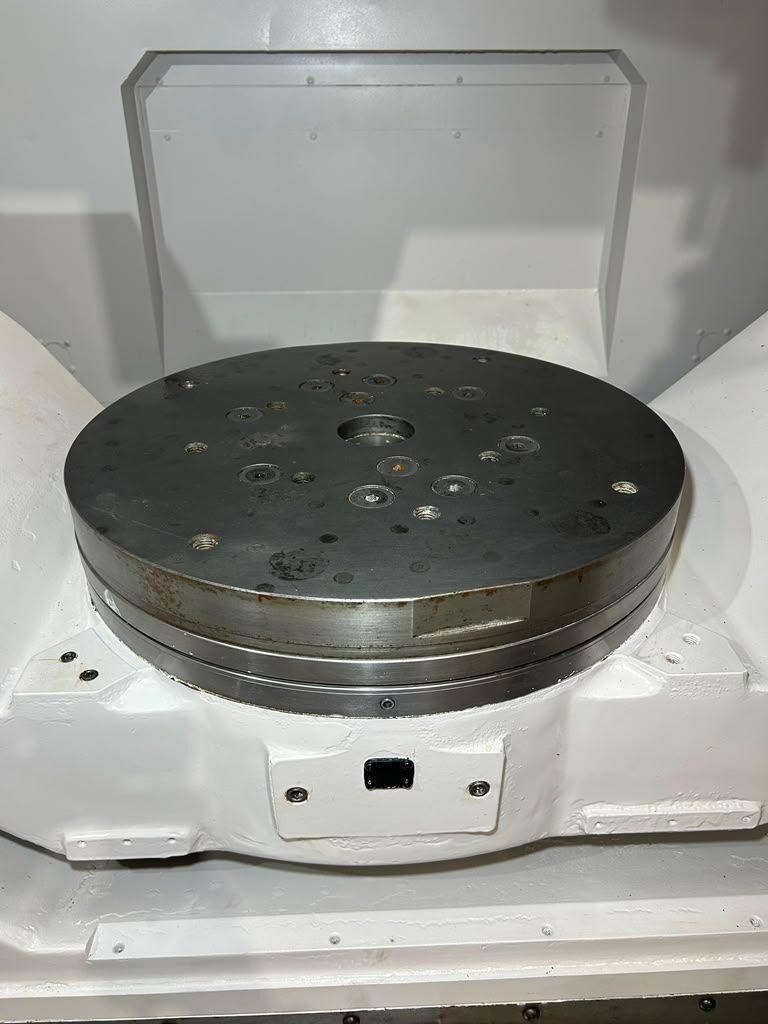

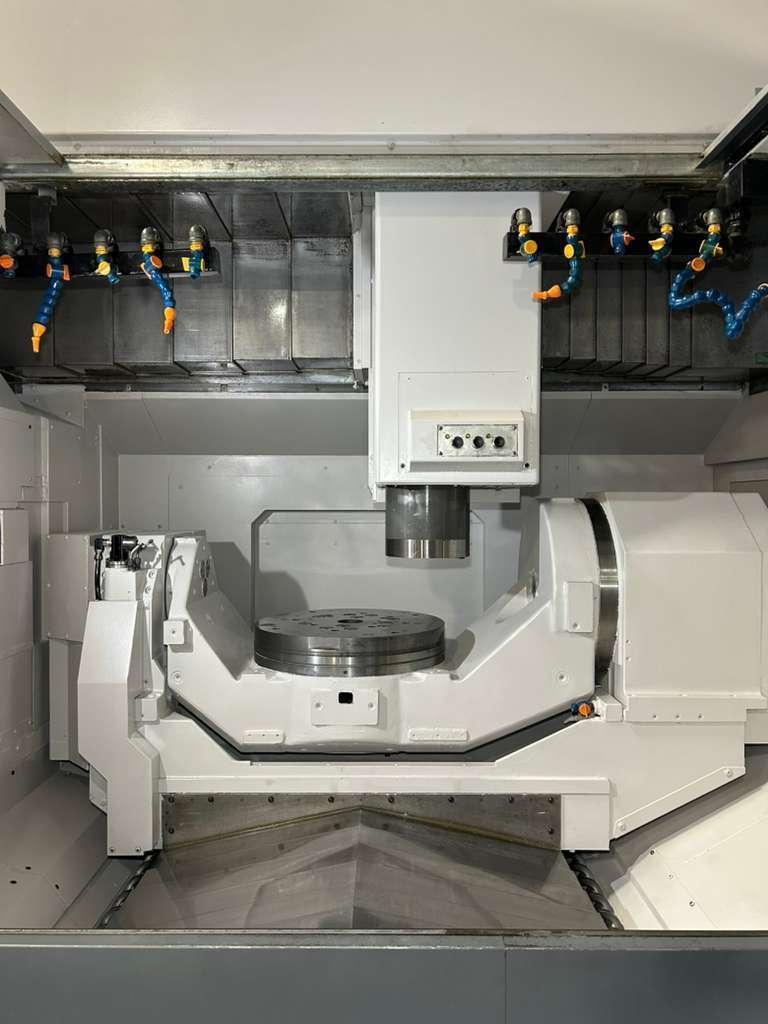

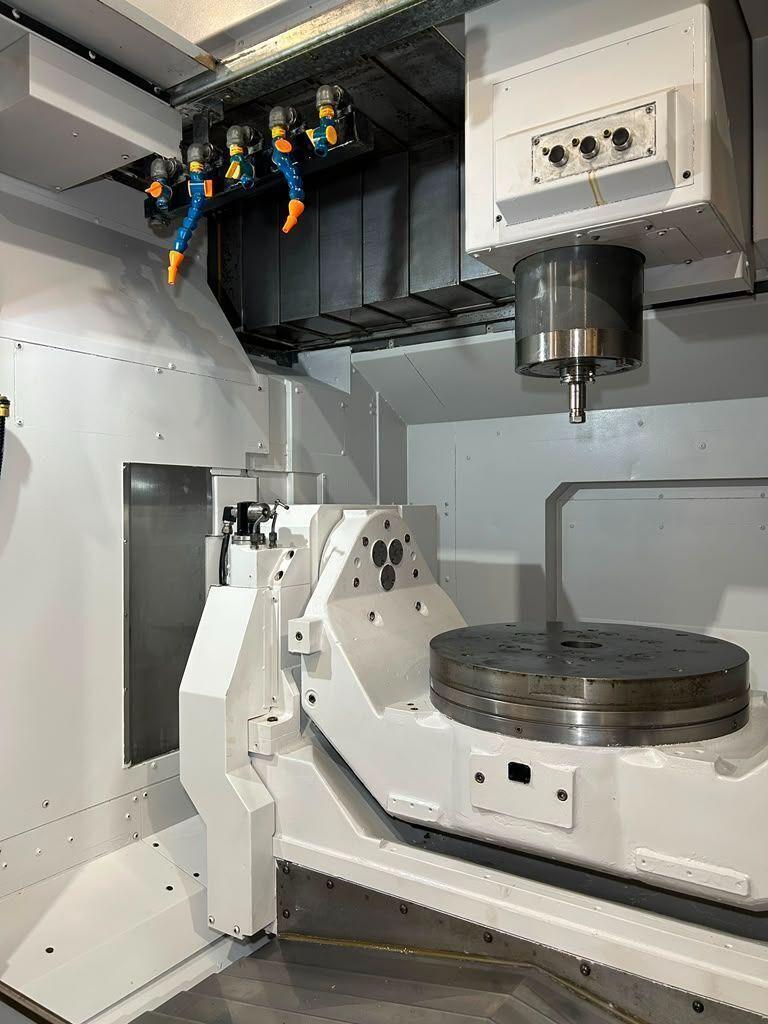

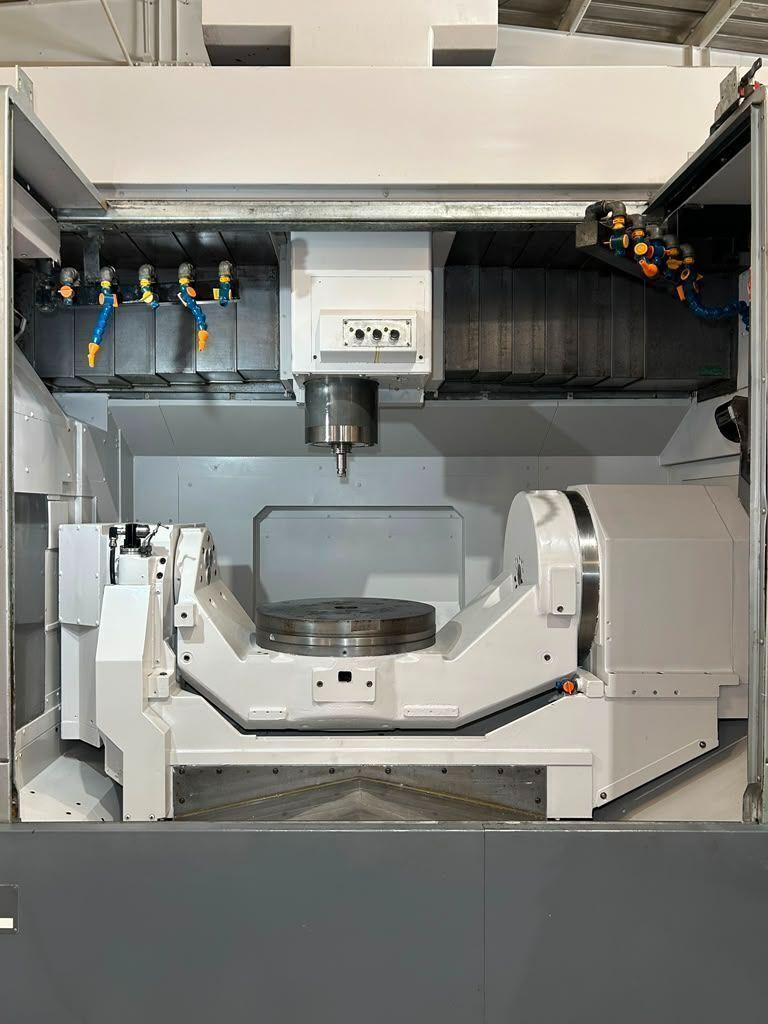

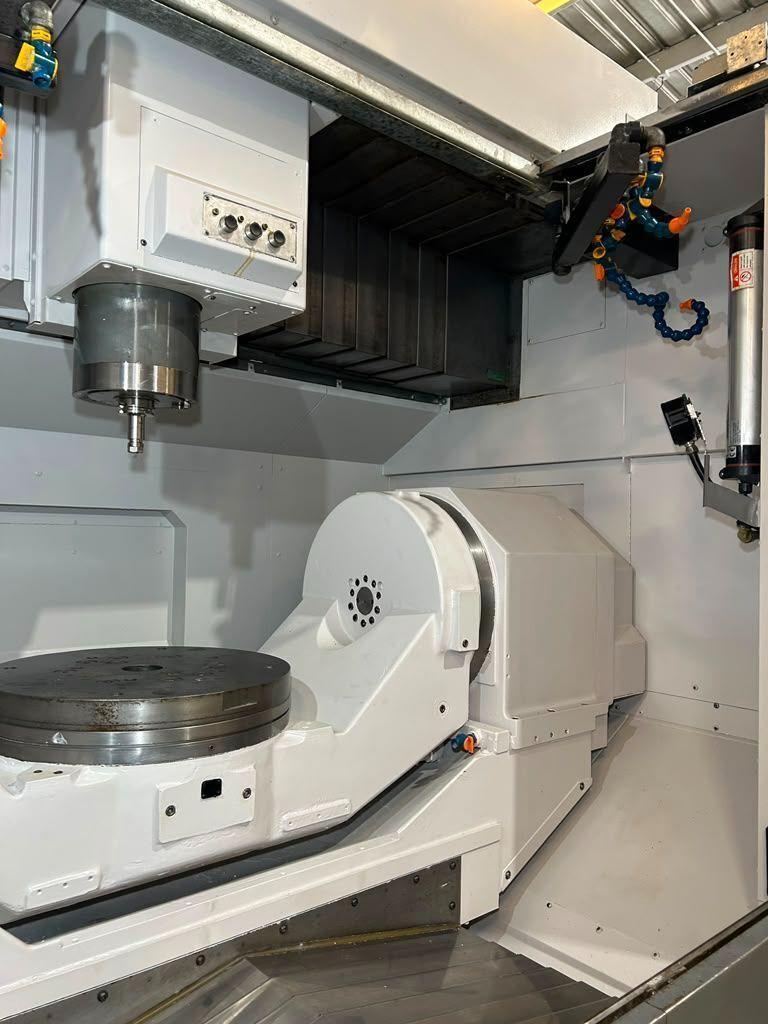

19.69″ Diameter Trunnion Table
15,000 RPM High Speed Spindle
HSK-A63 Spindle Taper
Built-In Turning Function for Complete Mill-Turn Machining at 1,000 RPM Table Speed
32 Station Automatic Tool Changer

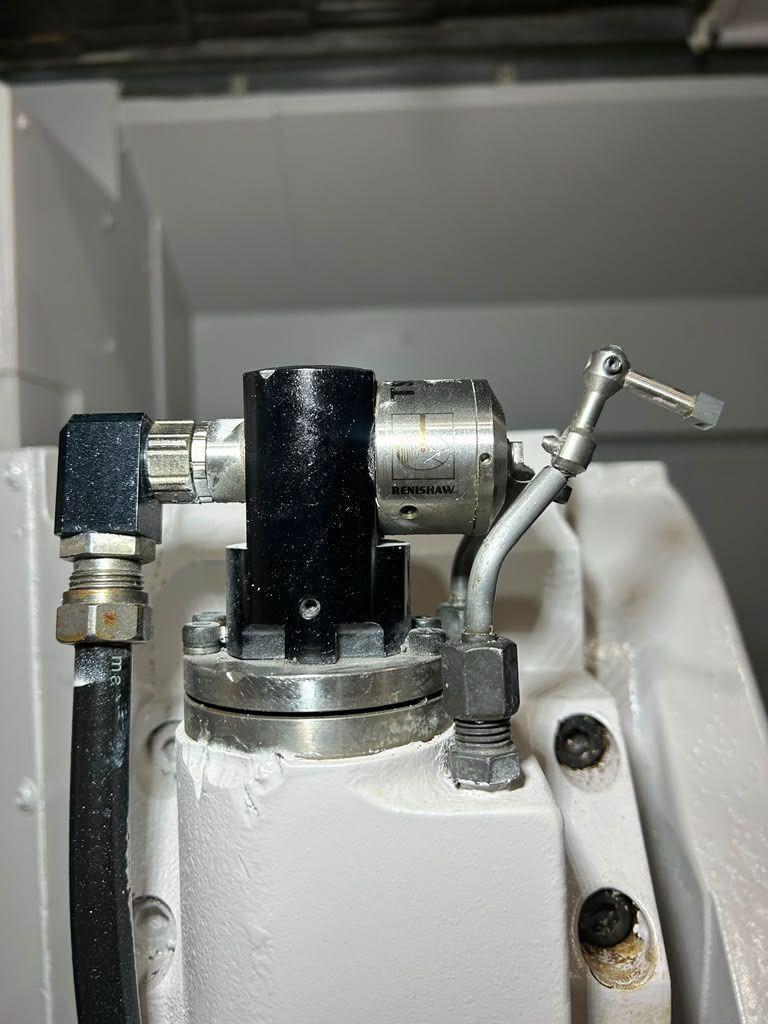

Renishaw Receiver Installed
Tool Presetter
Through Spindle Coolant
MPG Hand Wheel Control
Spindle Chiller Unit
Spindle Orientation
Rigid Tapping
Coolant Tank
Chip Conveyor
Transformer
Levelling Pads
Books & Manuals

Travels:
X Axis: 49.21″
Y Axis: 25.98″
Z Axis: 21.26″
B Axis: +20˚ / -110˚ Table Tilt
C Axis: 360° Table Rotate
Min. Increment: 0.001°

Table:
Table Diameter: 19.69″
Max Workpiece Size: ø27.56″ × H19.69″
Max Weight On Table: 1,100 lbs
Turning Spindle Speed: 1,000 RPM

Spindle:
Taper Size: HSK-A63
Speed Range: 15,000 RPM
Spindle Power: 30 HP

Feed Rates:
Rapid X, Y, Z Axis: 1,969 IPM
Cutting Feed Rate: 1,969 IPM

Tool Changer:
Capacity: 32 Tools
Taper: HSK-A63
Max Tool Size: 3.54″ x 15.75″
Max Tool Weight: 18 lbs

General:
Air Required: 80 PSI, 4 SCFM
Power: 41.9 kVA / 220/480V / 3-Phase
Overall Dimensions: 157″ x 108″ x 135″ High Approx.
Weight: 33,880 lbs Approx.
