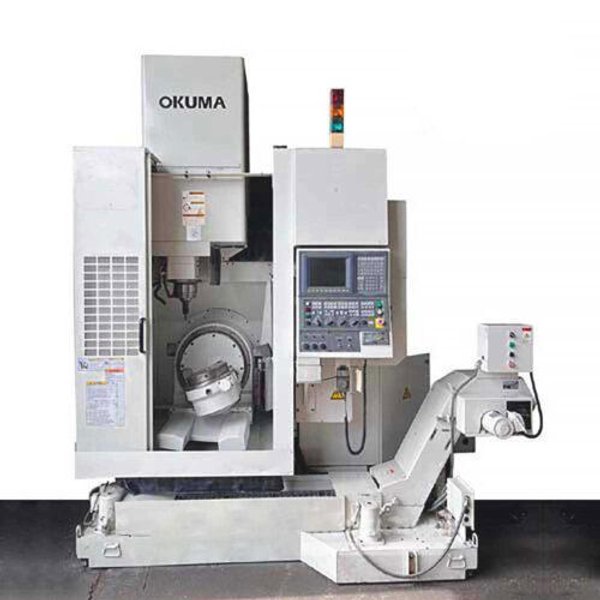

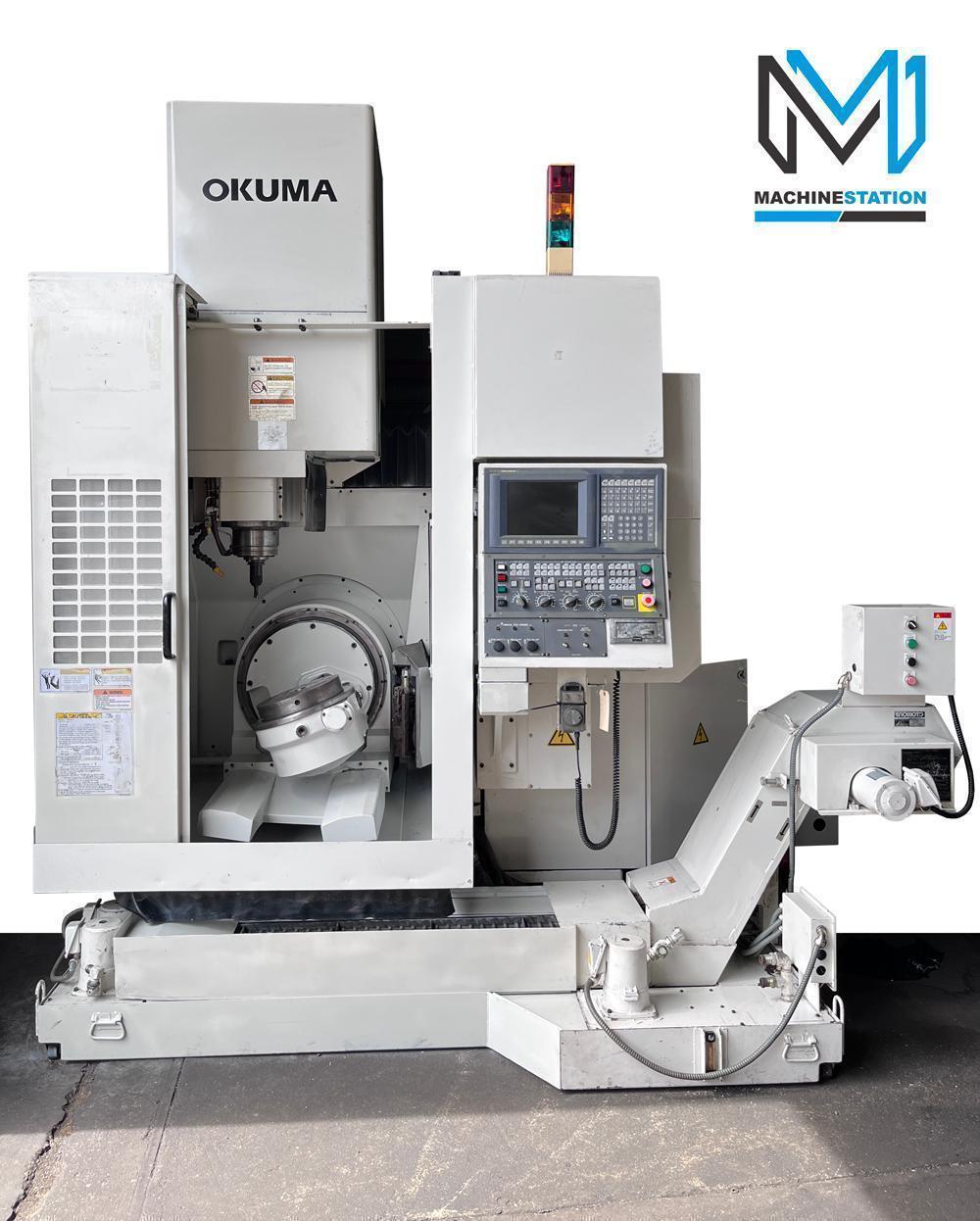

Okuma VH-40 CNC 5 Axis Mill Vertical Machining Center

Brand
OKUMA
Category
Machining Centers
Type
Machining Centers, Horizontal, (5-Axis or More)
Model
OKUMA VH-40
Stock #
112335
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:OKUMA
Model:VH40
Year:2000
Condition:Used – Good

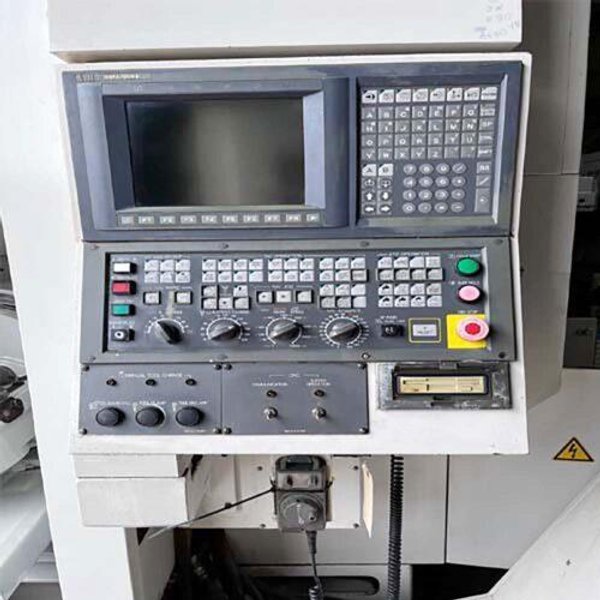

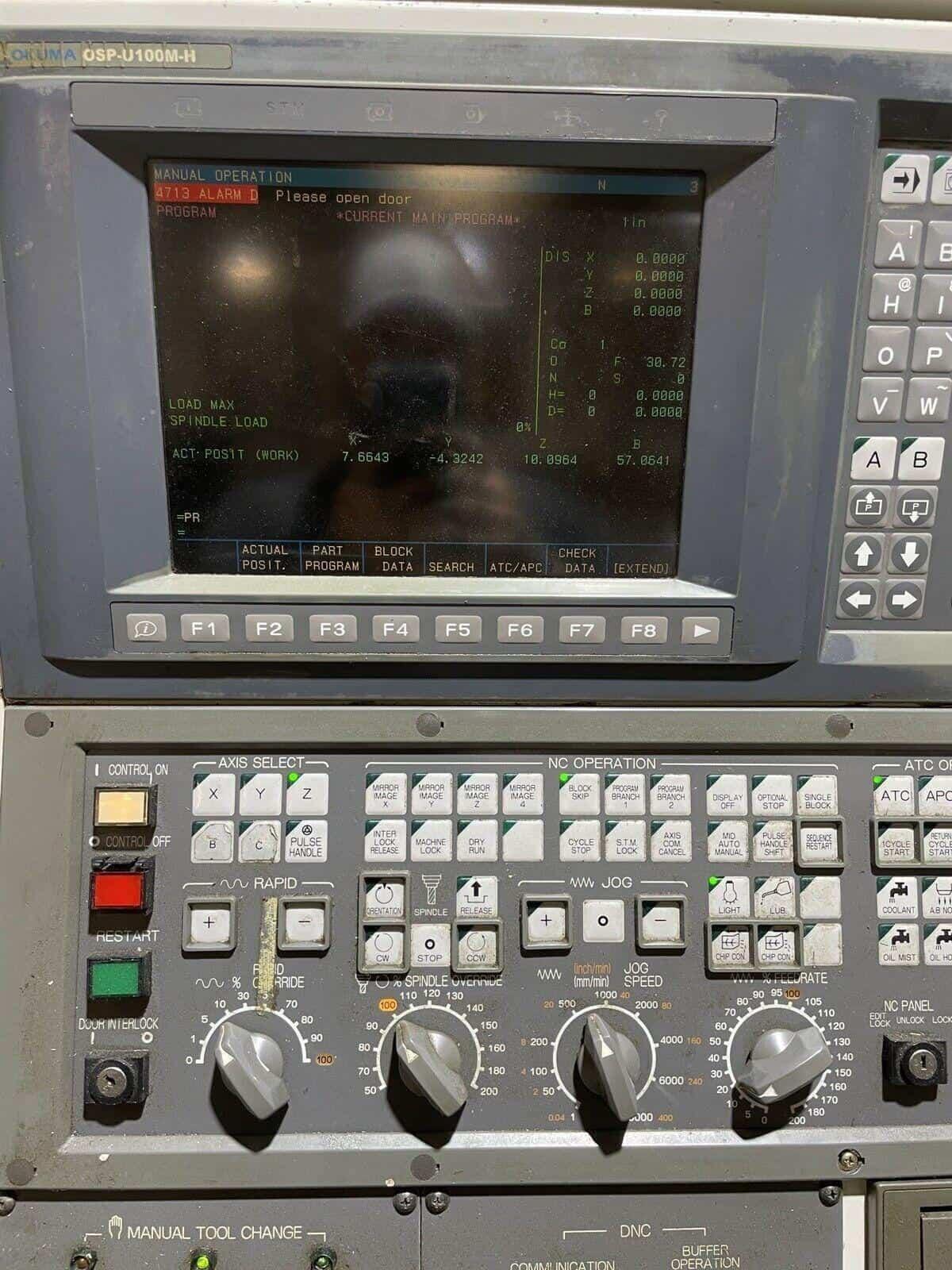

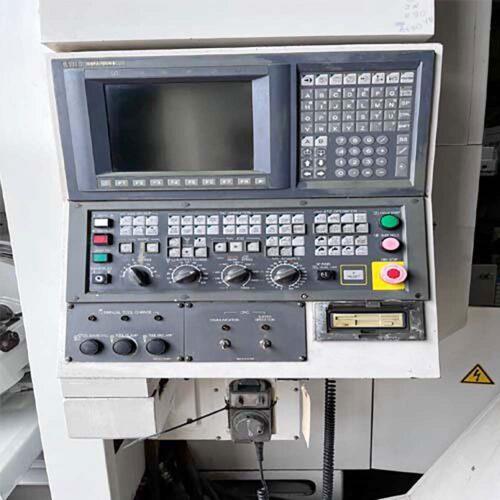

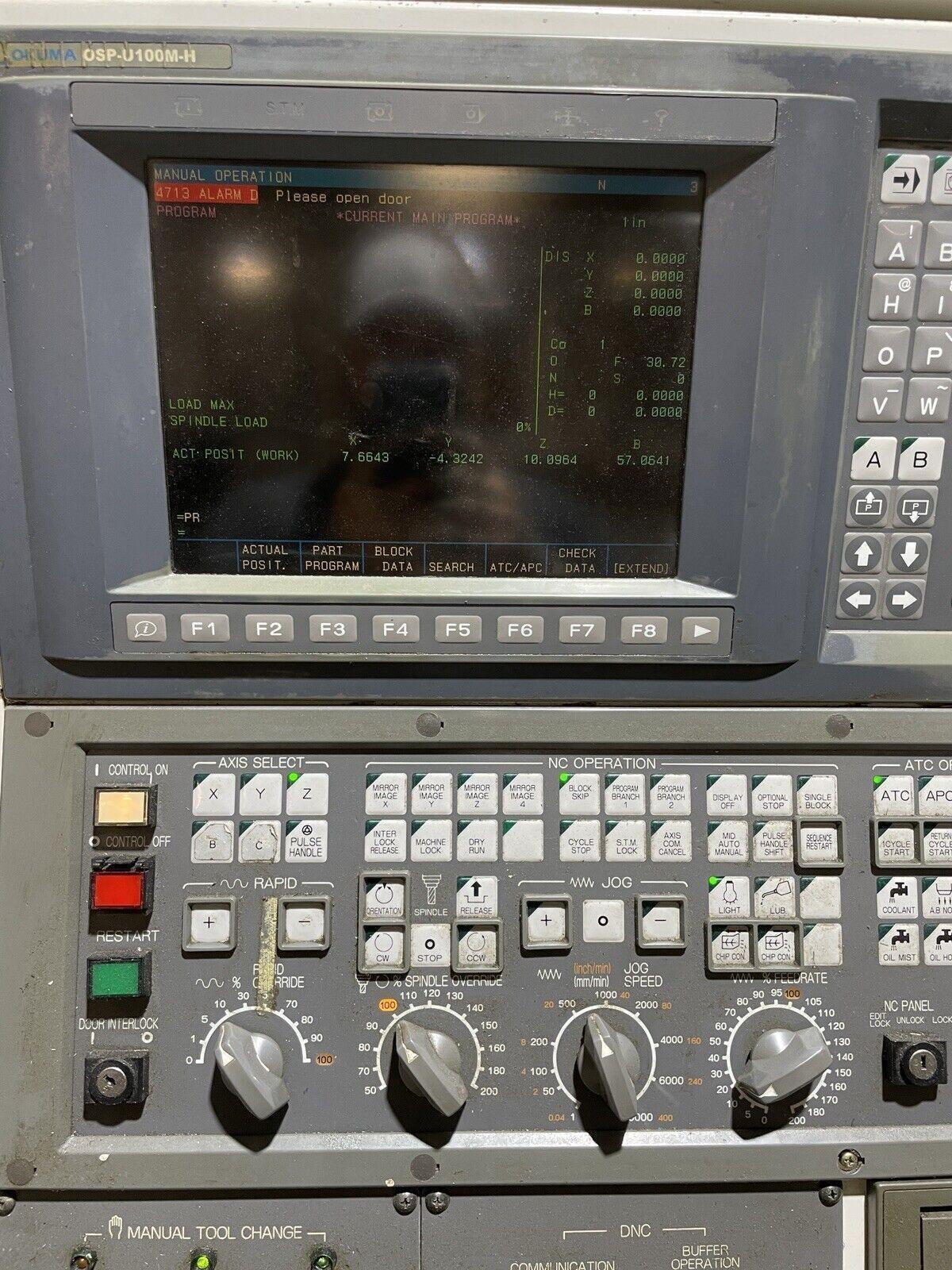

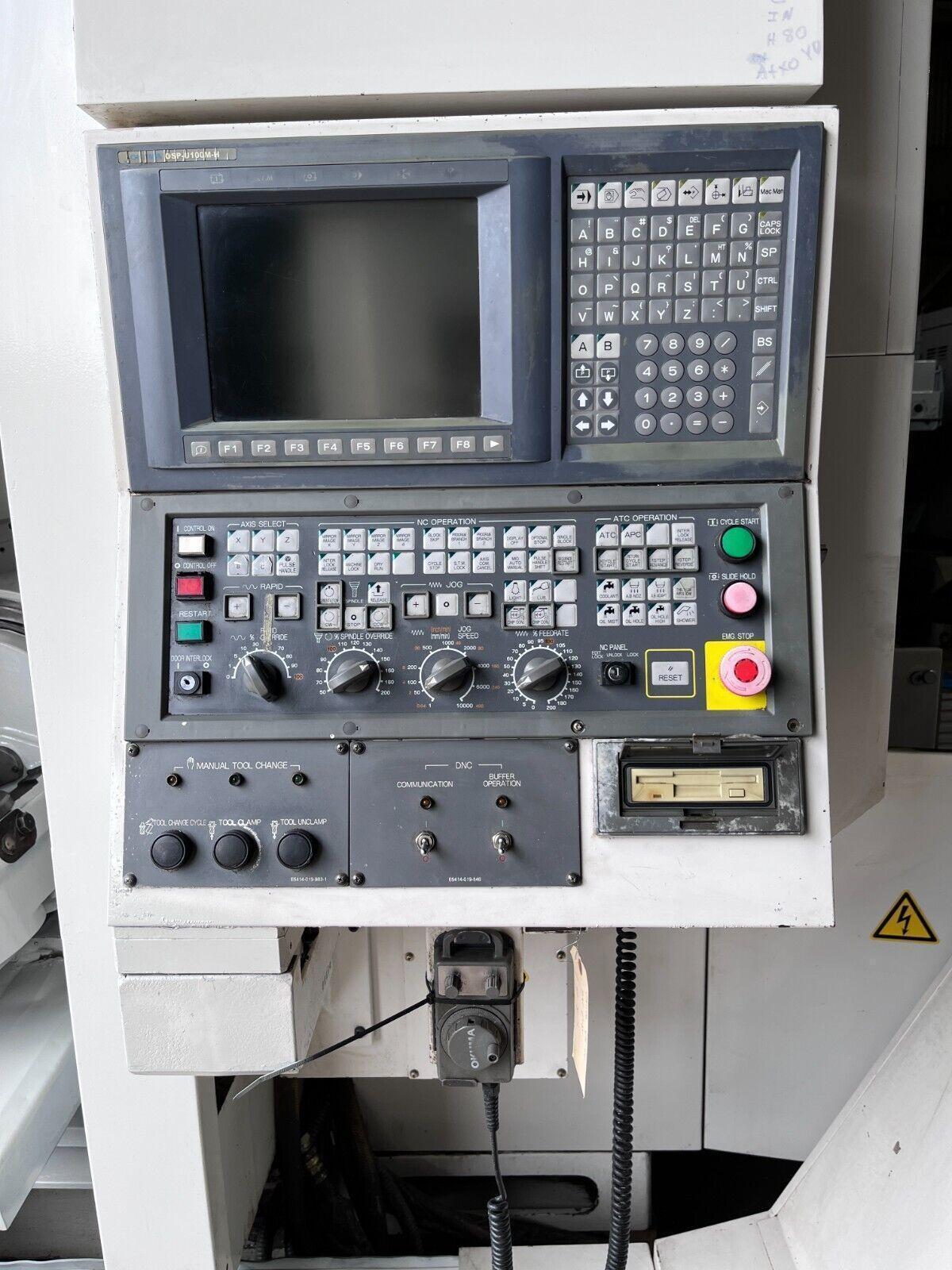

Okuma OSP-U100M-H Series CNC Control
Simultaneous 5 Axis Cutting

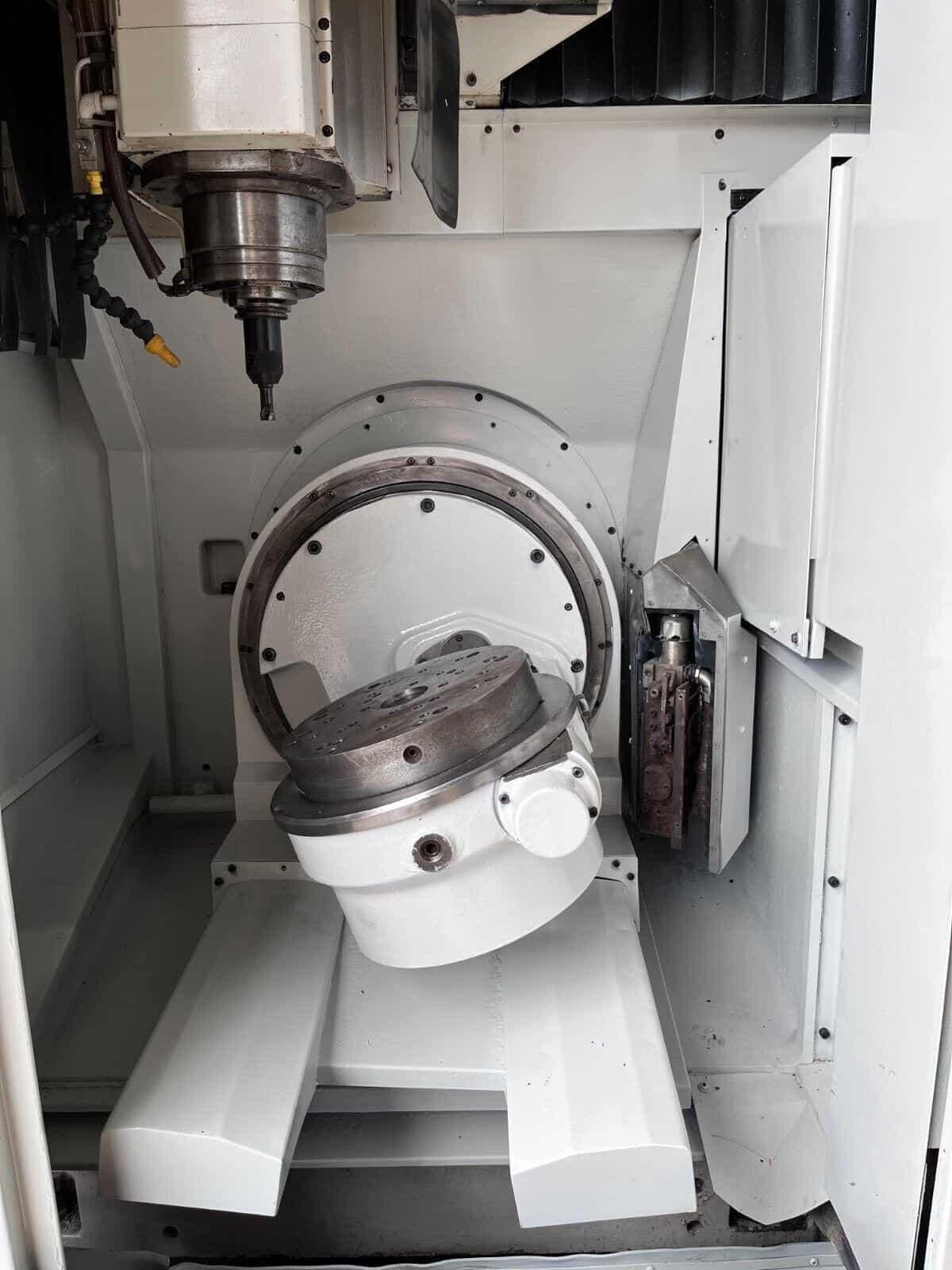

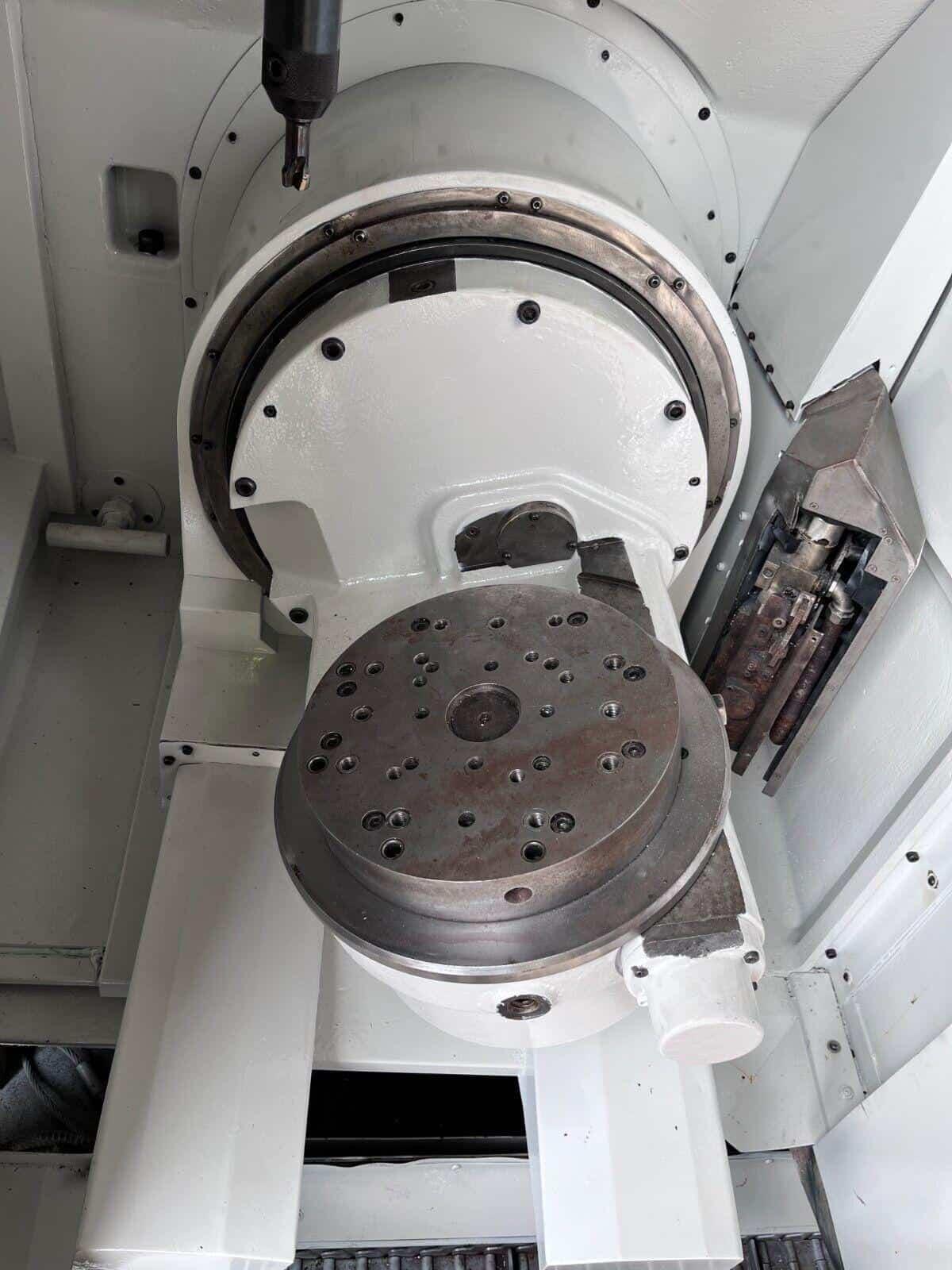

NC Programmable Swiveling Trunnion Table 12” Diameter
8000 RPM High Precision Spindle
24 Station Automatic Tool Changer
Hand Wheel MPG Control
Spindle Orientation
Helical Interpolation
Rigid Tapping
Absolute Incremental Programming
Fast Rapid Traverse Rate
Coolant Tank
Chip Conveyor

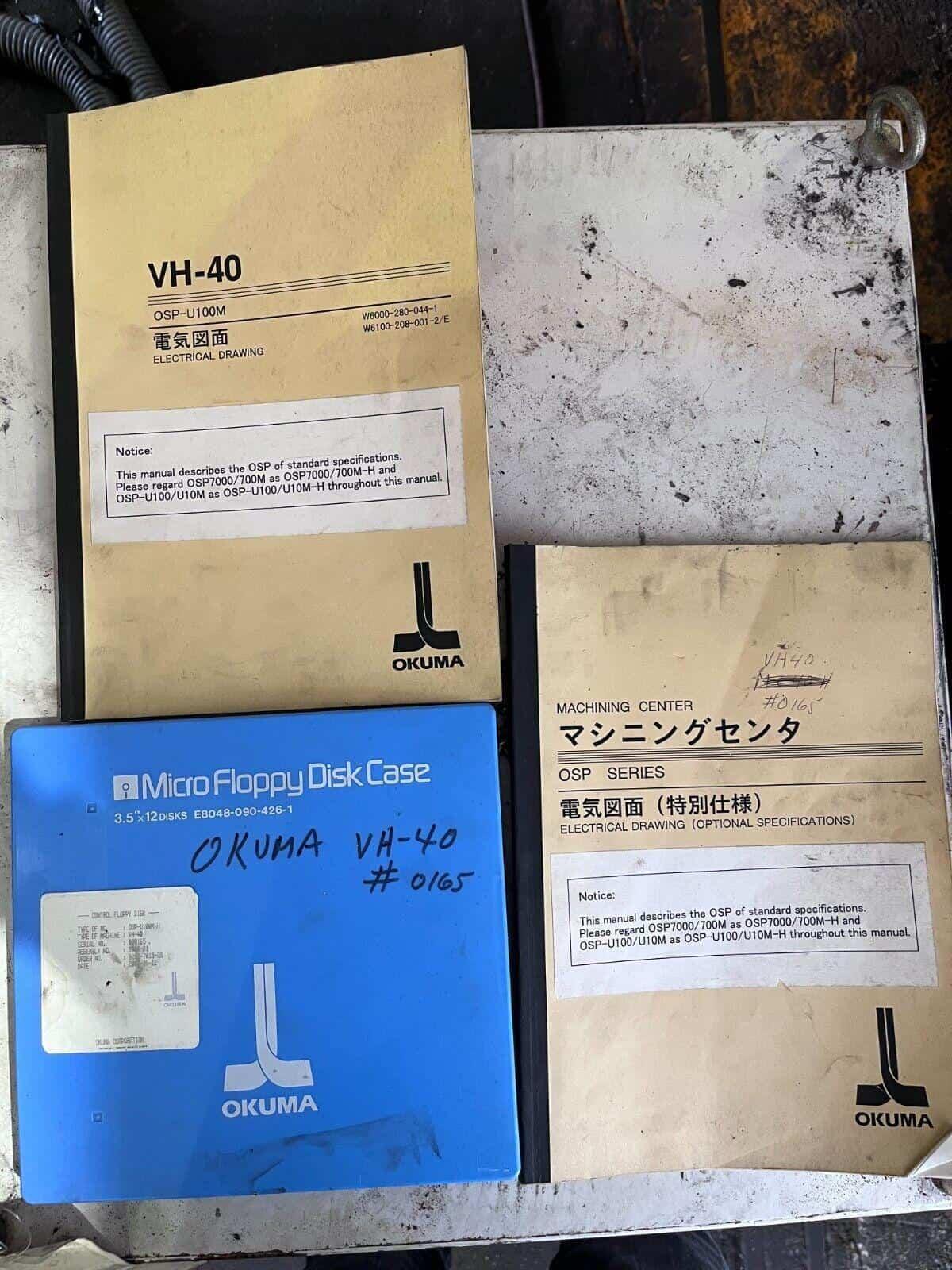

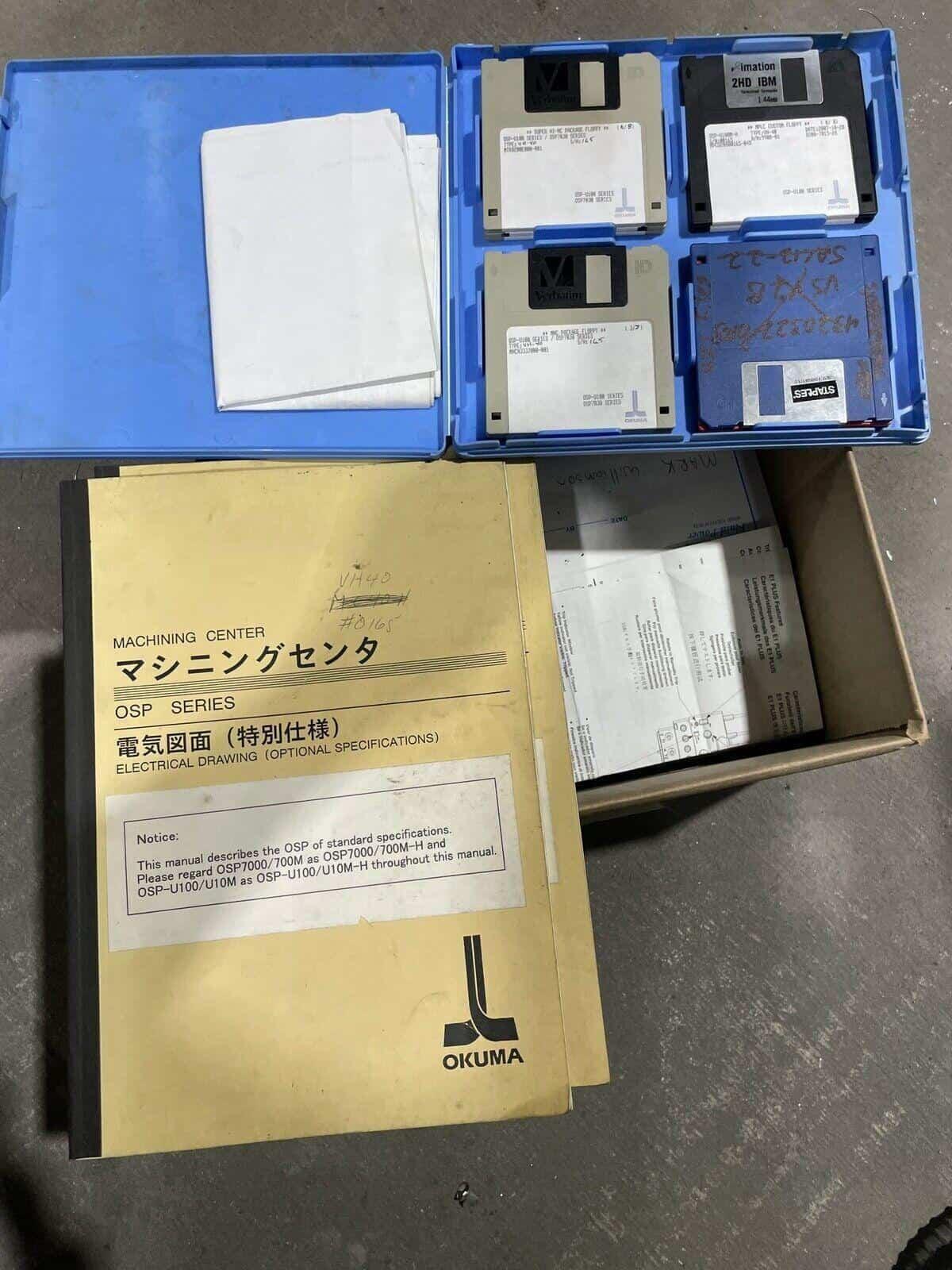

Books & Manuals
Travels:
X Axis: 22.05″
Y Axis: 17.72″
Z Axis: 17.72″
B Axis: 180° (+90˚/ -90˚) (Table Tilt)
C Axis: 360° (Table Rotate)
Min. Increment: 0.001°
Table:
Table Diameter: 12″
Max Weight on Table: 551 lbs

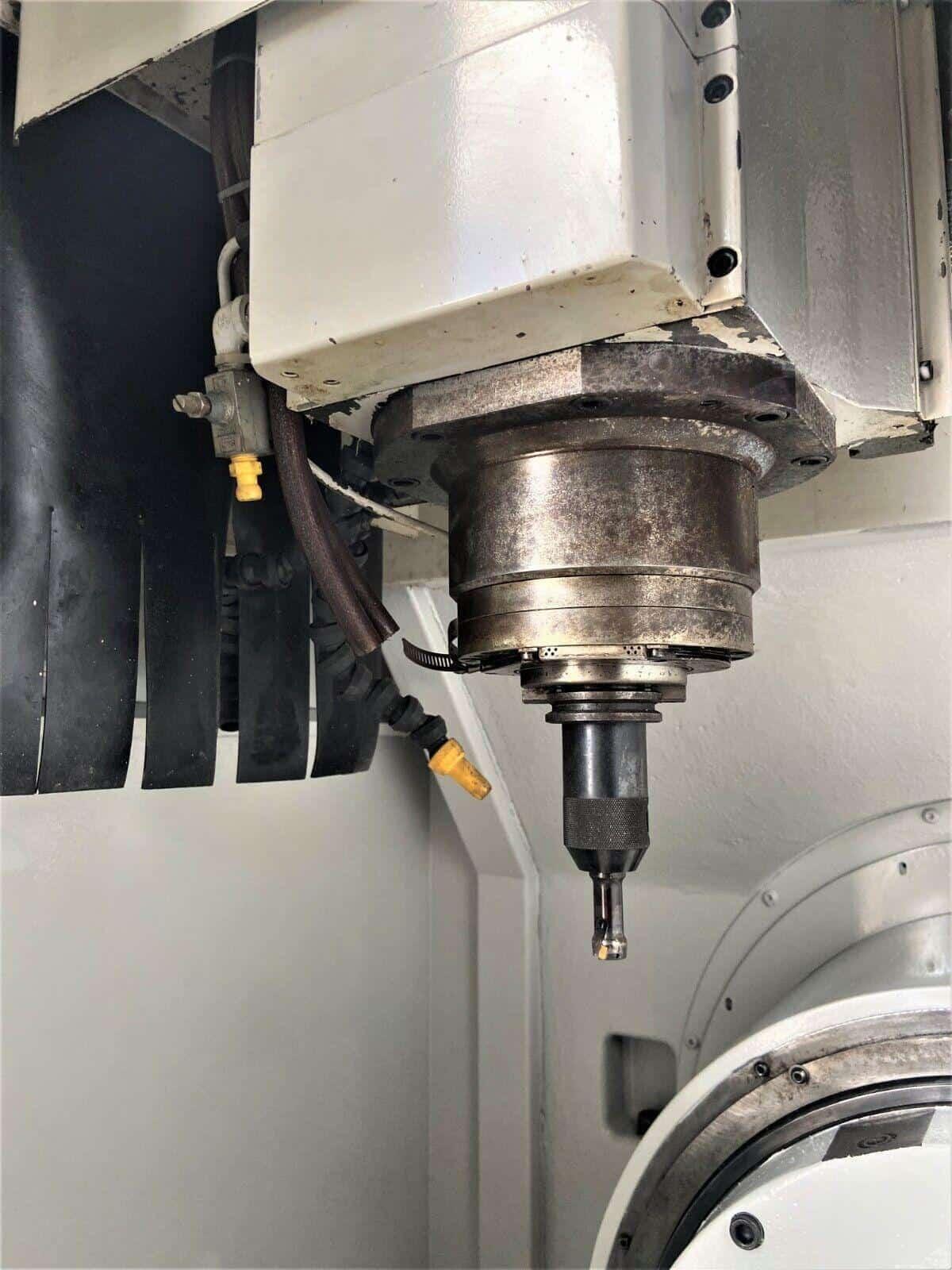

Spindle:
Taper Size: CAT-40
Speed Range: 8000 RPM
Spindle Power: 15 HP
Feed rates:
Rapid X Y Z Axis: 1181 IPM
Rapid B: 33.3 RPM
Rapid C: 33.3 RPM
Cutting Feed rate: 394 IPM
Tool changer:
Capacity: 24 Tools
Taper: CAT-40
Max Tool Size: 4.92” x 12”
Max Tool Weight: 17.63 lbs.
Tool Change Time: 5.5 Second
General:
Air Required: 80 psi 4 scfm

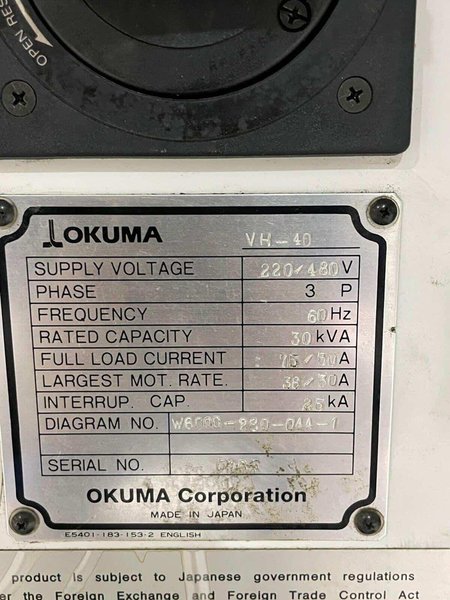

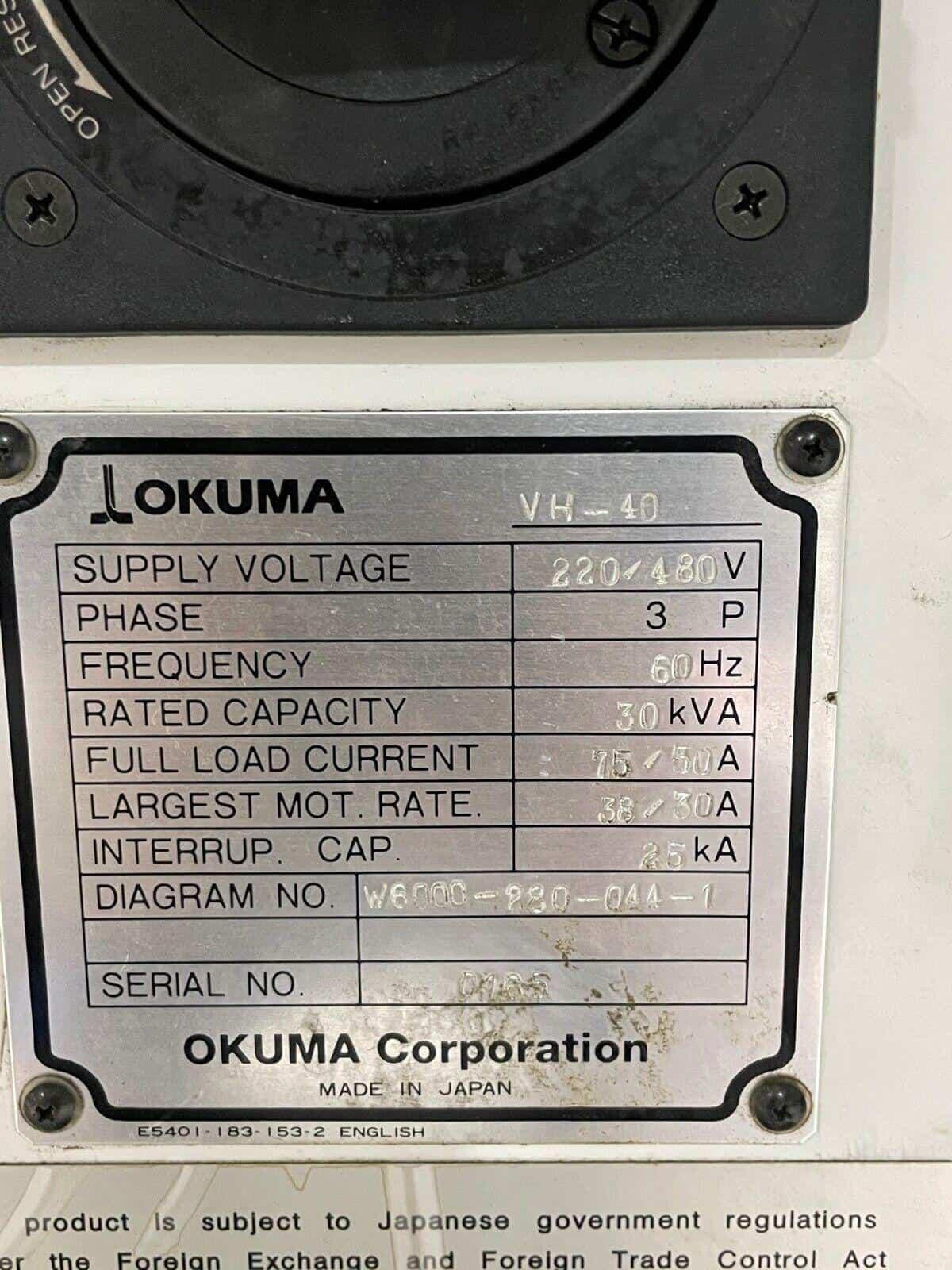

Power: 30kva / 220-480v / 3-Phase
Overall Dimensions: 105” x 80” x 103″ High
Weight: 12125 lbs. Approx.
No files or videos to display
