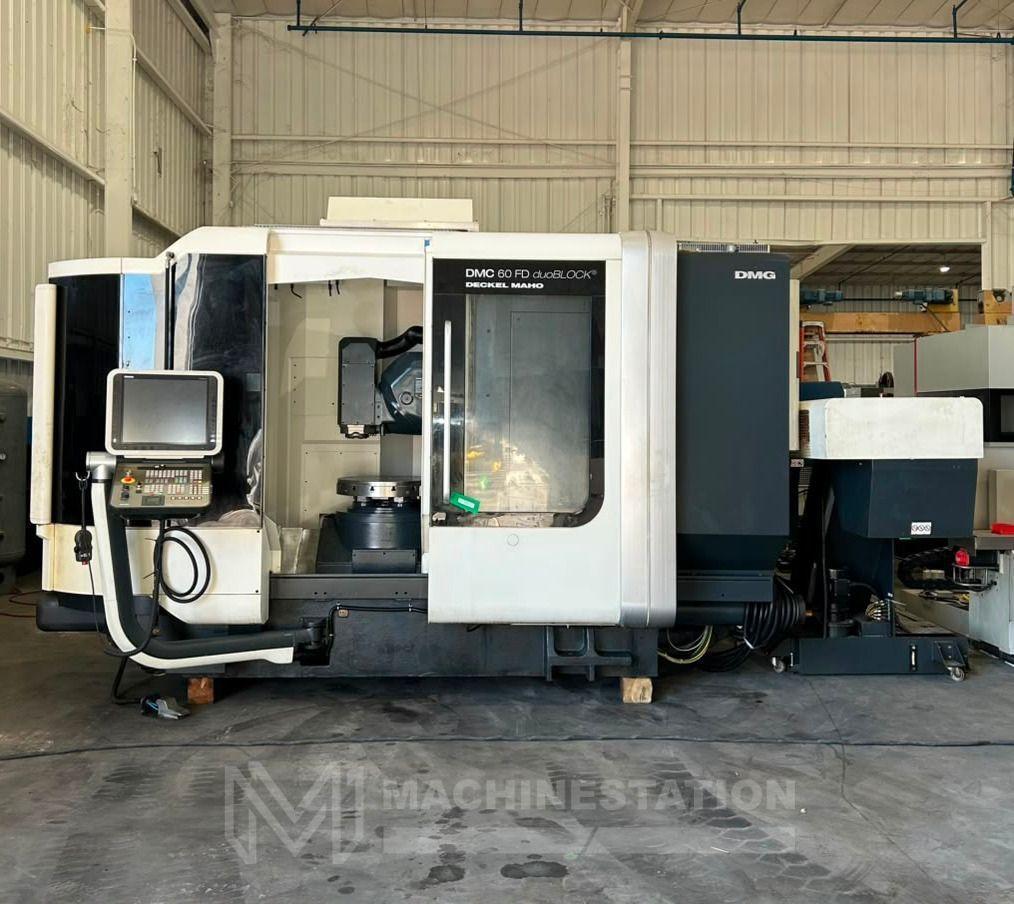

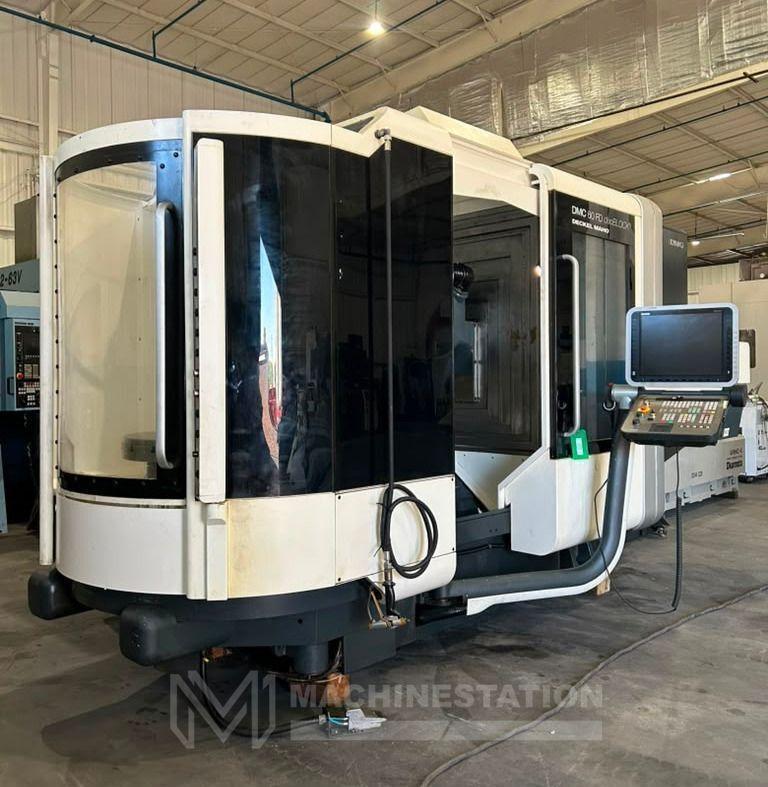

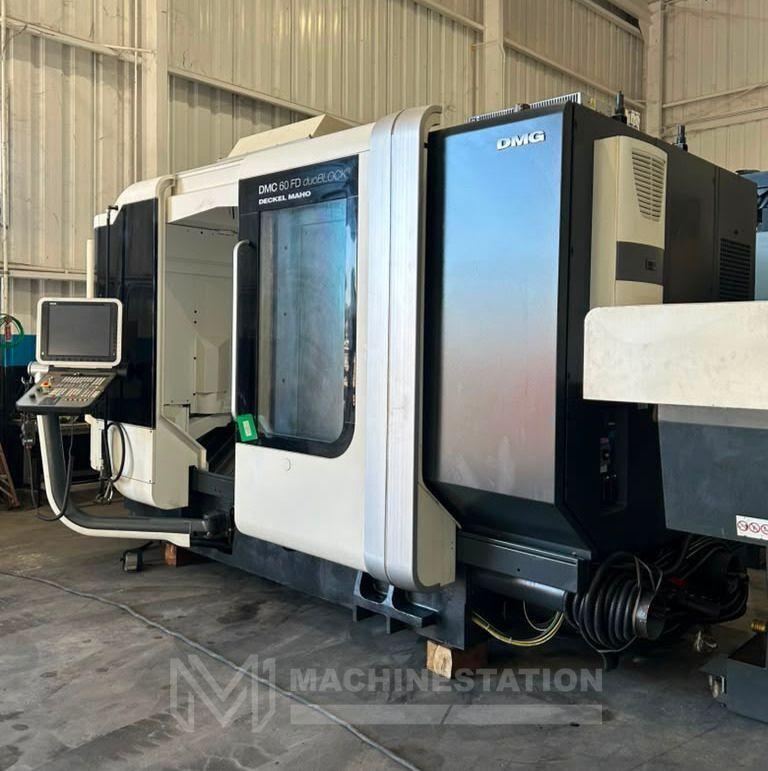

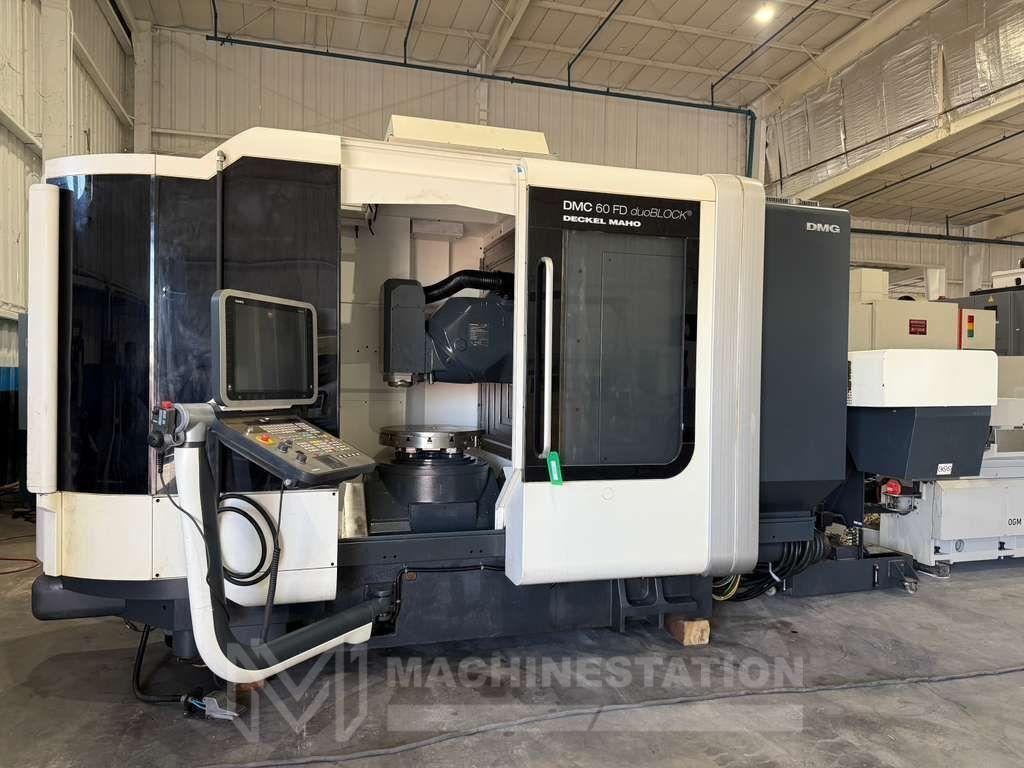

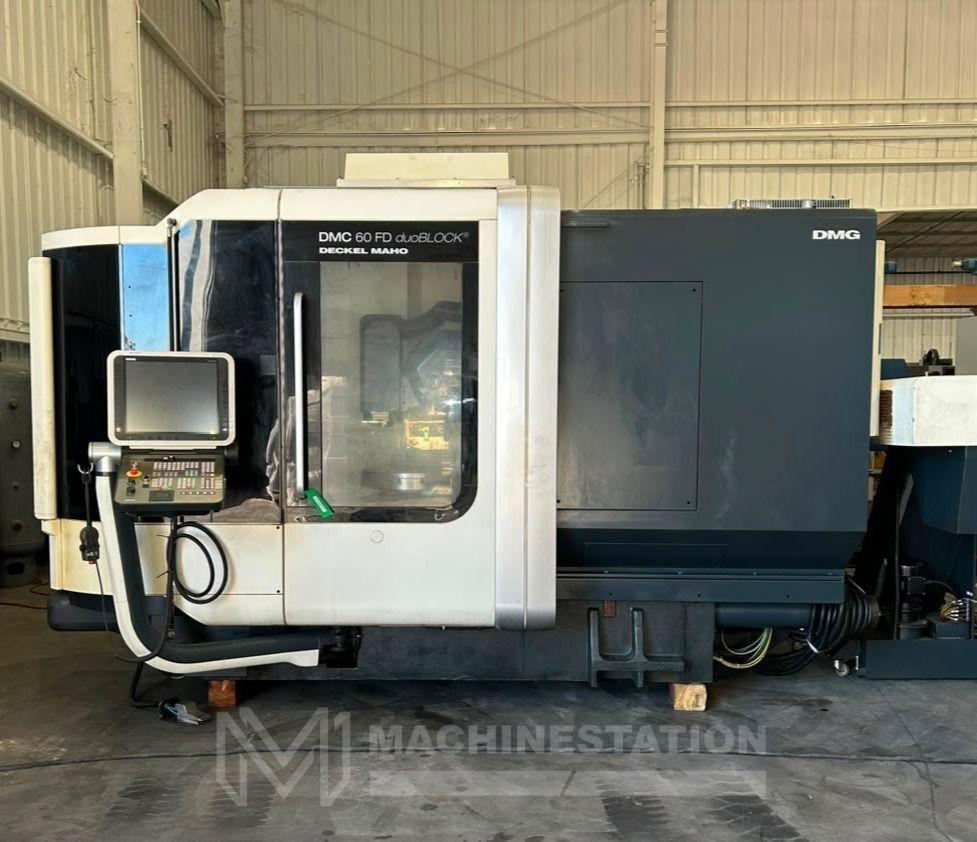

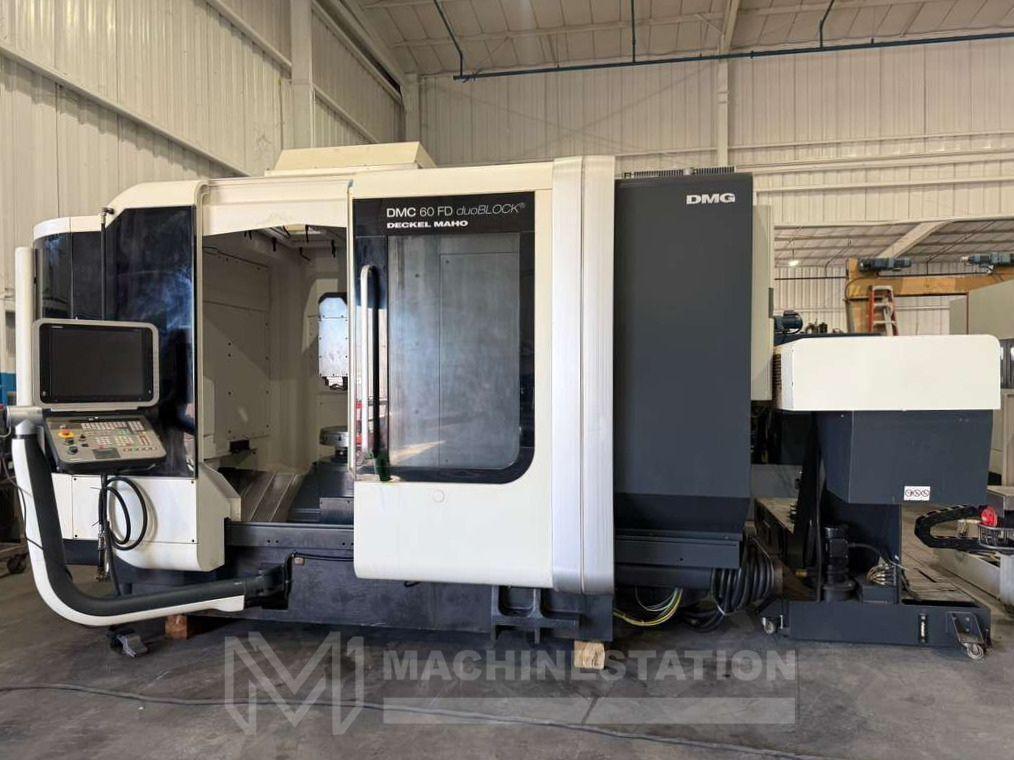

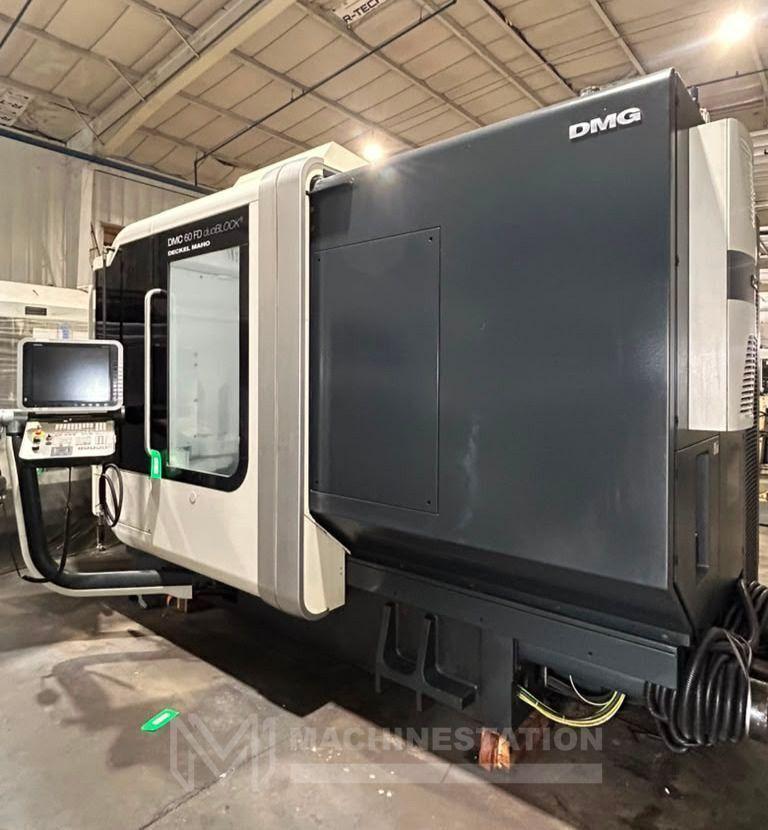

DMG DMC 60 FD duoBLOCK 5 Axis Machining Center – APC, Milling & Turning Capability

Brand
DMG DECKEL
Category
Machining Centers
Type
Horizontal Machining Centers (5-axis Or More)
Model
DMG DMC 60 FD duoBLOCK
Stock #
113597
Year
2011
Condition
Not specified

Location

Not specified

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: DMG
Model No.: DMC 60 FD duoBLOCK
Year of Manufacture: 2011
Equipped With:

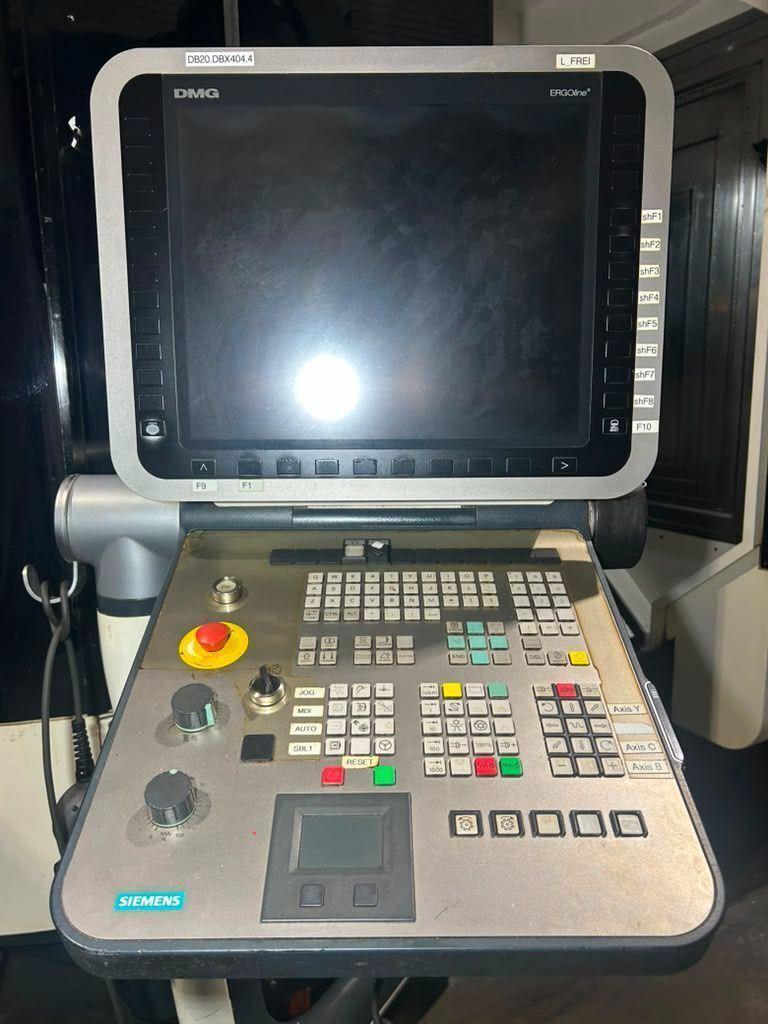

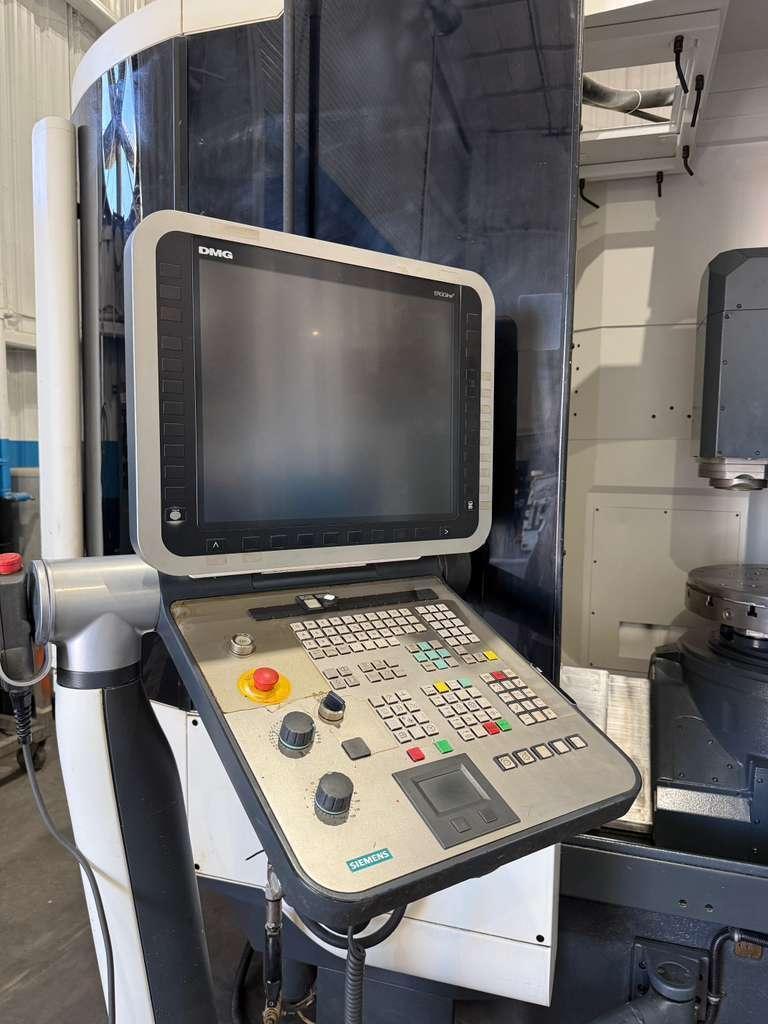

Siemens 840D DMG ERGOline CNC Control
Twin Pallet Automatic Pallet Changer
Full 5-Axis Simultaneous Machining
1200 RPM Turn-mill table (FD)

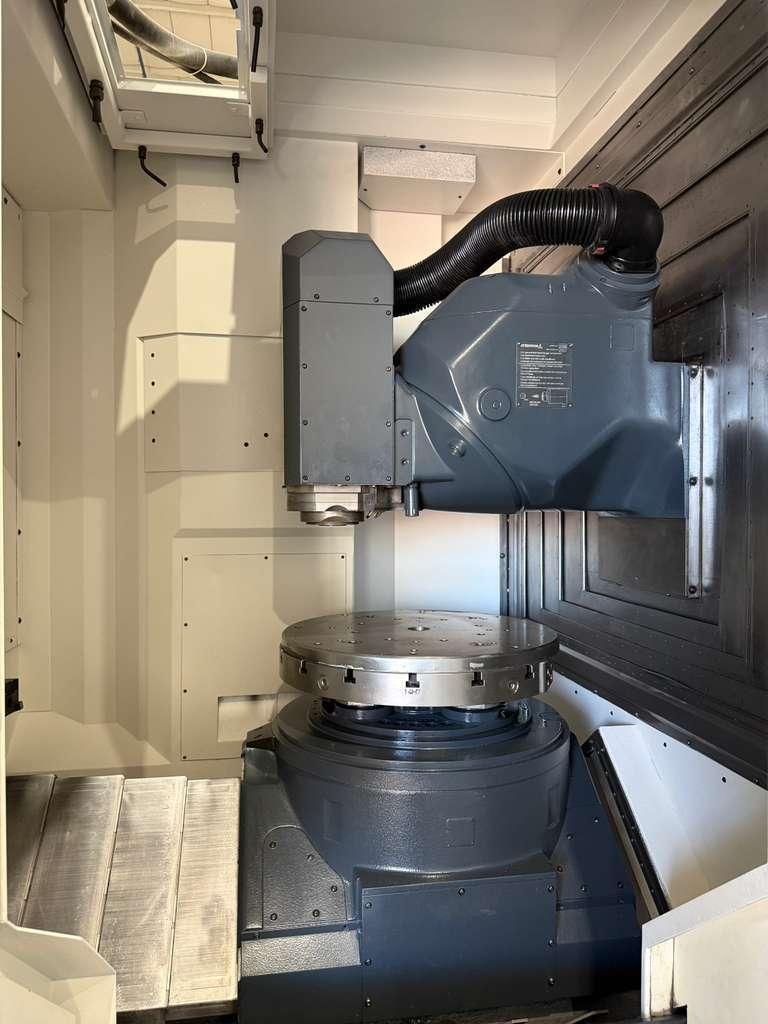

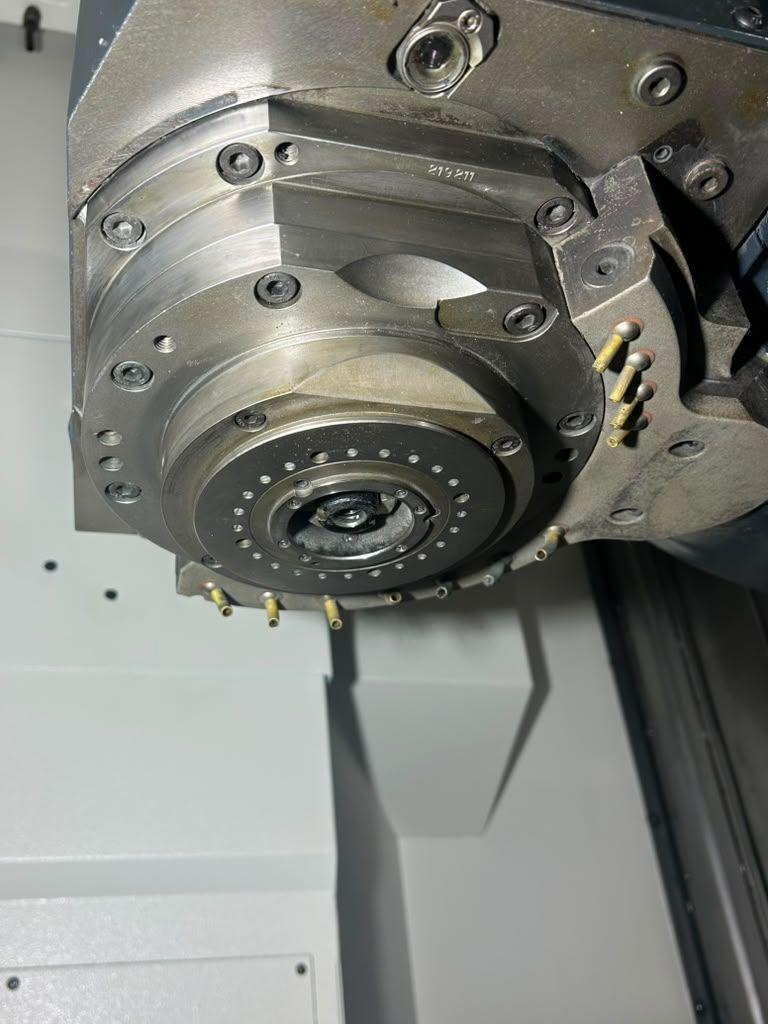

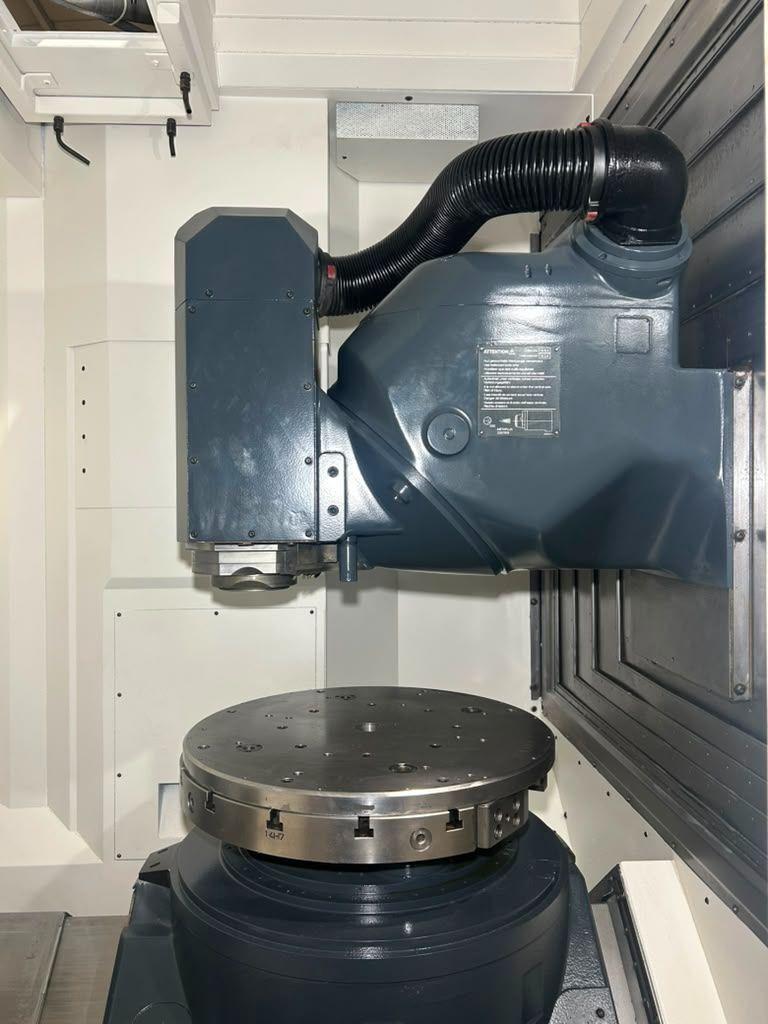

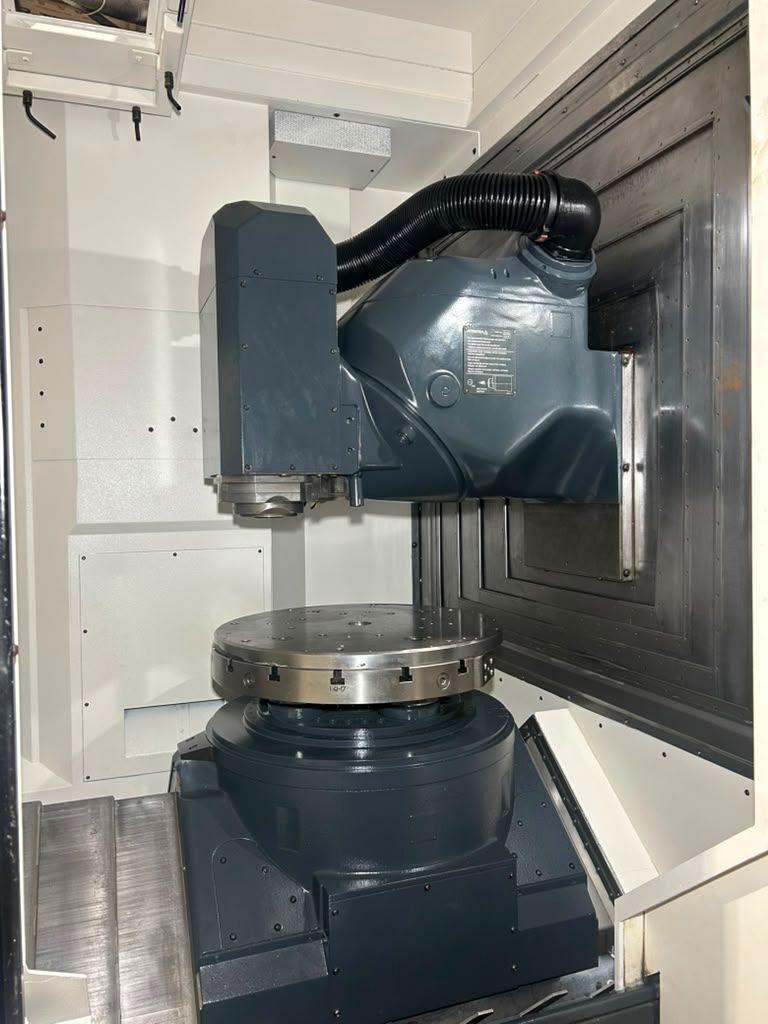

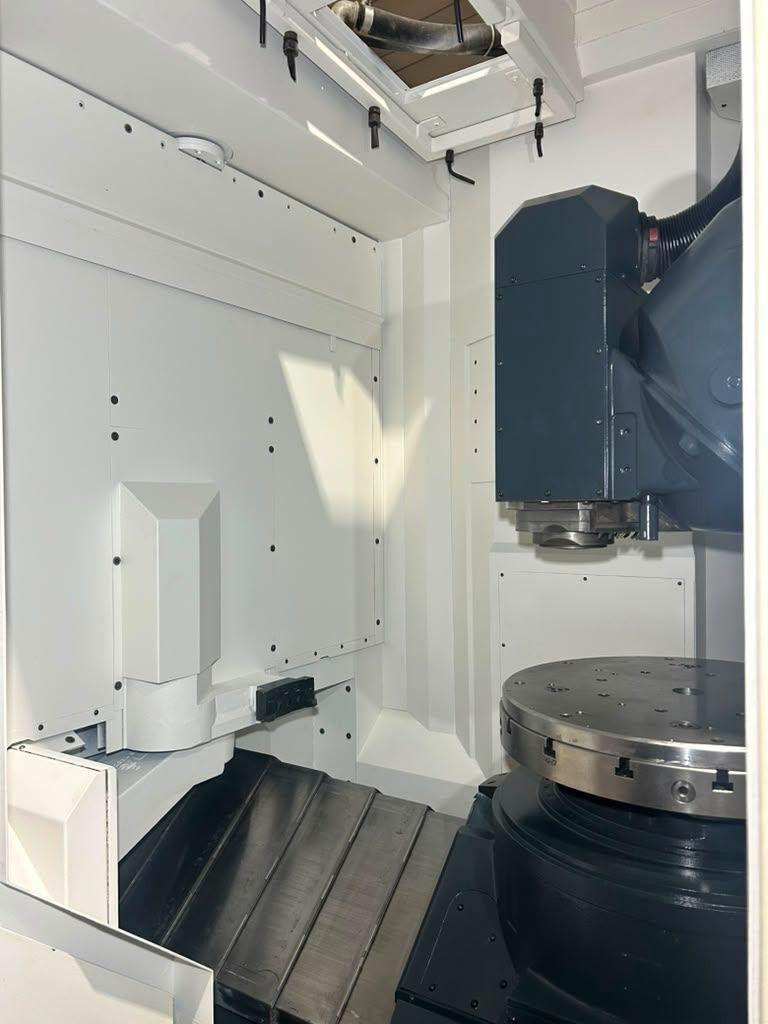

Integrated B-Axis Milling Head
12,000 RPM HSK-A63 Taper Spindle
60 Station Automatic Tool Changer
Through Spindle Coolant
Rigid Tapping
Spindle Orientation
Coolant Tank
Chip Conveyor
Books & Manuals
Levelling Pads
Travels:
X Axis: 23.62″
Y Axis: 27.56″
Z Axis: 23.62″
B Axis: -30° To +180°
C Axis: 360° Continuous

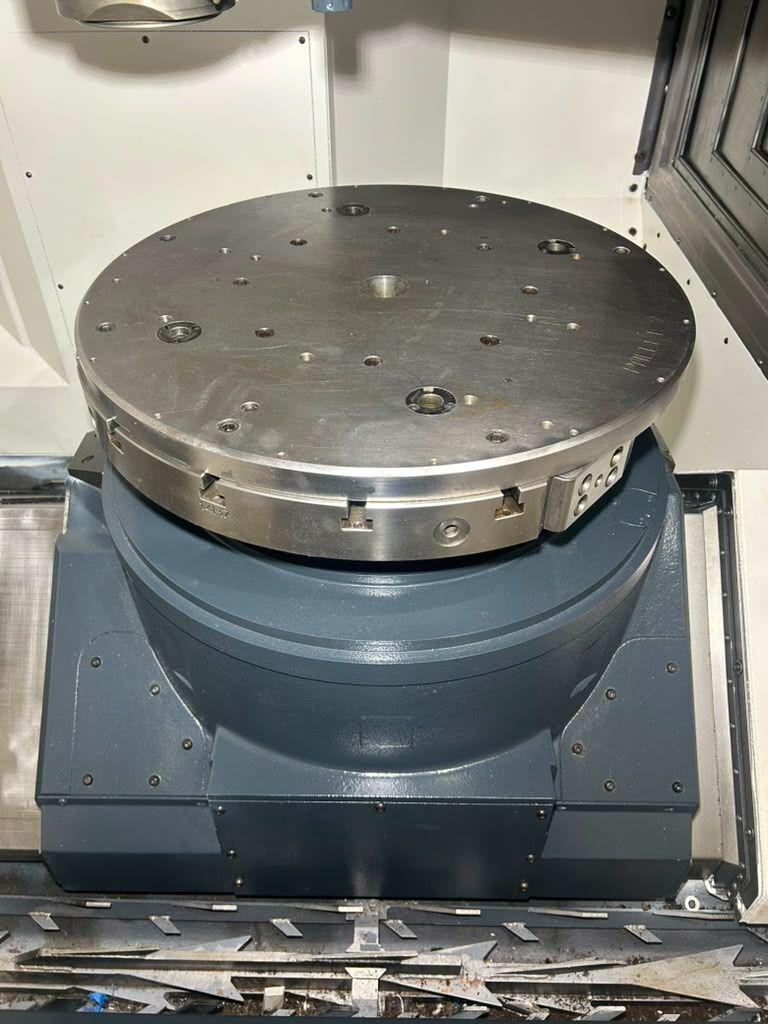

 Table:
Number of Pallets: 2
Table Diameter: 24.80″
Maximum Table Load: 1,102 lbs
Table Speed (Turning Mode): 1,200 RPM
Maximum Workpiece Diameter: 27.56″
Maximum Workpiece Height: 33.46″
Spindle:
Taper Size: HSK-A63
Maximum Speed: 12,000 RPM
Power: 46 HP
Feed Rates:
Rapid Traverse X, Y & Z: 2,362 IPM
Cutting Feed Rate: 2,362 IPM
B-Axis Rapid Traverse: 30 RPM
C-Axis Rapid Traverse: 30 RPM
Tool Changer:
Capacity: 60 Station
Taper: HSK-A63
Maximum Tool Diameter: 4.72″
Maximum Tool Length: 17.71″
Maximum Tool Weight: 33 lbs
General:
Power: 400v / 3-phase / 60 Hz / 83 kva
Machine Overall Dimensions: 198″ x 133″ x 122″ High Approx.
Machine Weight: 22,000 lbs Approx.
