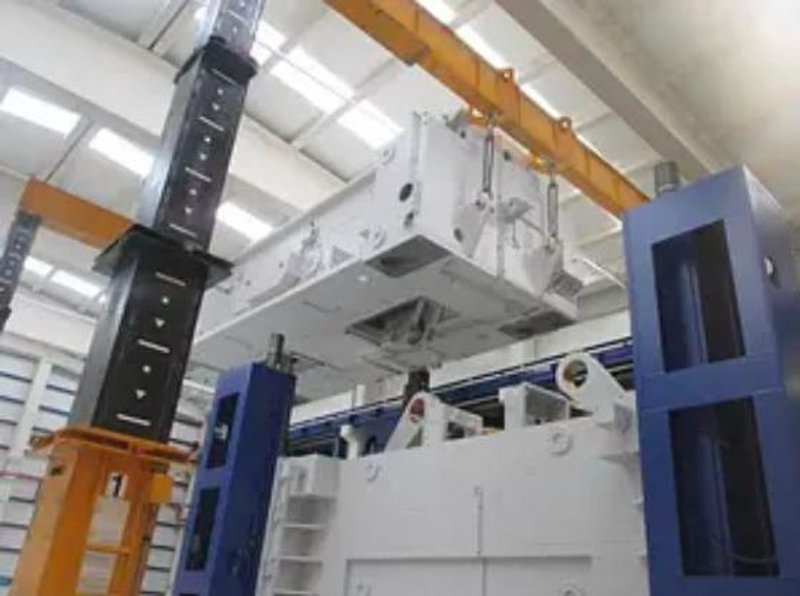

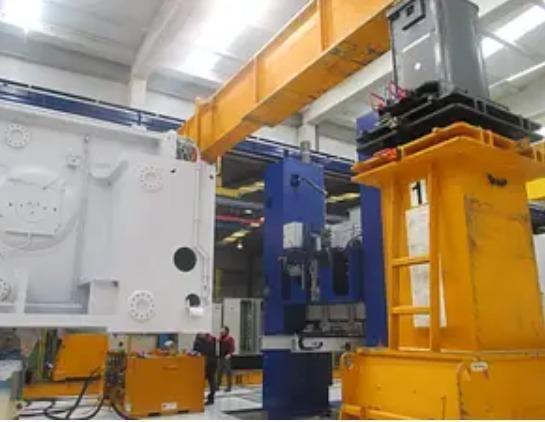

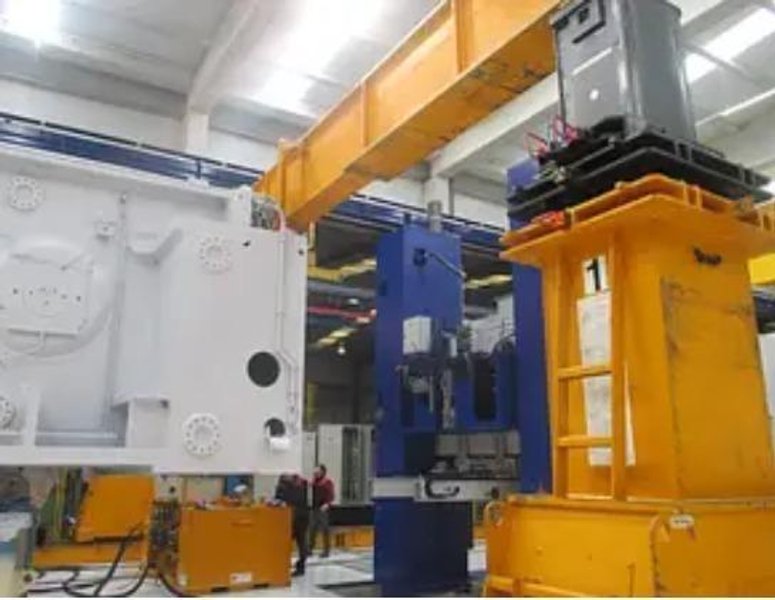

Lift Systems 34PT5400WT Hydraulic Gantry, 2004 – 500 Ton 4‑Point Lifting System, 27.5 ft–35 ft Lift Height

Manufacturer: Lift Systems, Inc. (USA)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Model: 34PT5400WT

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Year of manufacture: 2004

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,System type: Hydraulic Gantry Lifting System

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,—

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Configurations and Lifting Capacity

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,The system can be assembled in different configurations, providing various lifting capacities depending on the setup.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,4-point configuration:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* up to 500 tons with lifting height up to 8.38 m * up to 400 tons with lifting height up to 10.67 m

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,2-point configuration:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* up to 250 tons with lifting height up to 8.38 m * up to 200 tons with lifting height up to 10.67 m

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Capacity varies depending on the number of lifting points and the position of the hydraulic columns.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,—

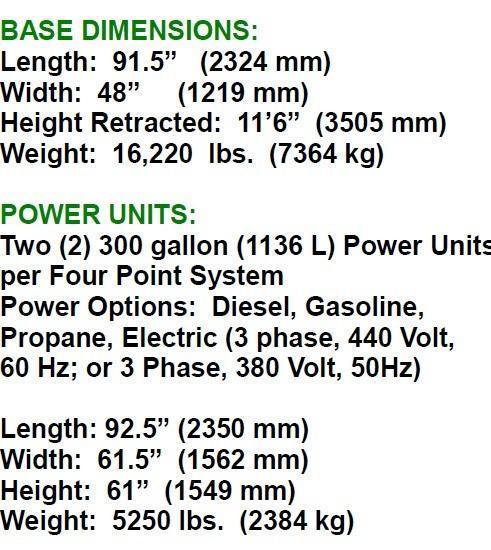

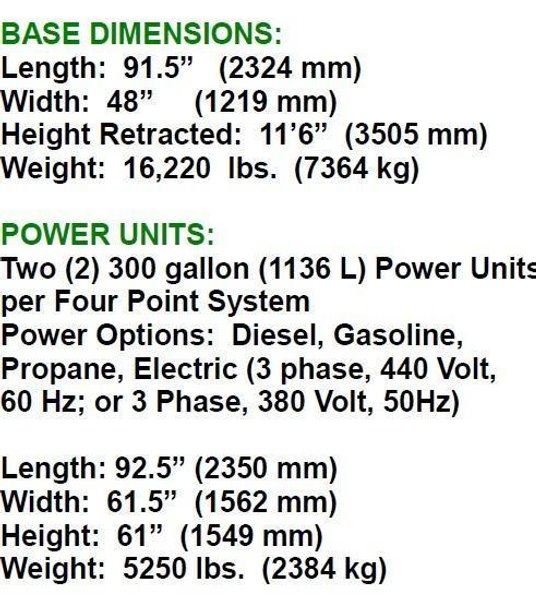

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Dimensions and Modularity

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,The system consists of the following main components:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Columns:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Weight per column: approx. 7.3 tons * Maximum working height: up to approx. 10 m * Transport height: approx. 3.5 m * Each column is equipped with guides for hydraulic jack movement

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Beams and frames: Includes beams of various lengths (e.g. 12 m, 9 m, 6 m, 4 m), allowing flexible gantry assembly for different spans and lifting heights.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Hydraulic jacks: Hydraulic cylinders transmitting lifting force to the load.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,—

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Hydraulic System

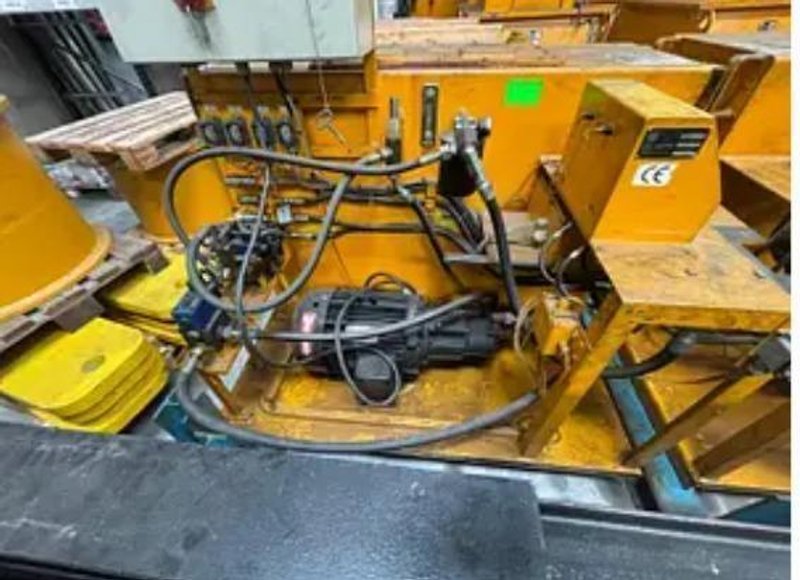

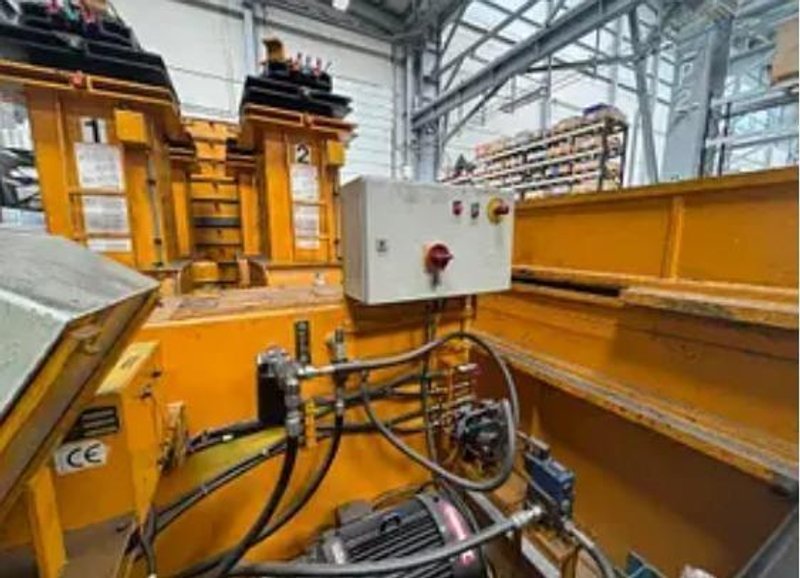

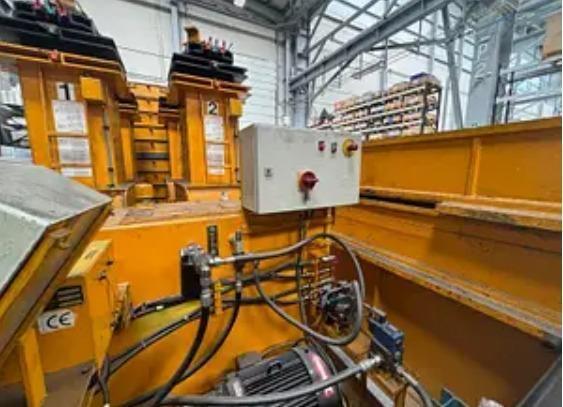

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Power units:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Set of 2 hydraulic power units (typically approx. 1,136 liters each) * Dual-circuit system for synchronized multi-point lifting

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Maximum working pressure: Approx. 2,750 PSI (≈ 190 bar)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Power supply:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Electric drive: 380 V / 50 Hz * Possible adaptation to diesel or gasoline drive
