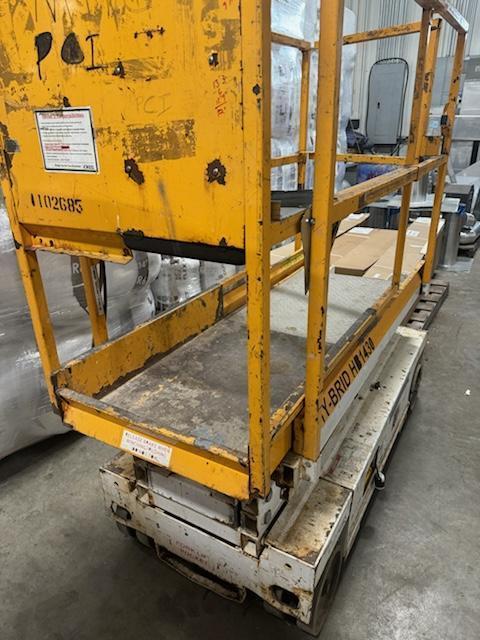

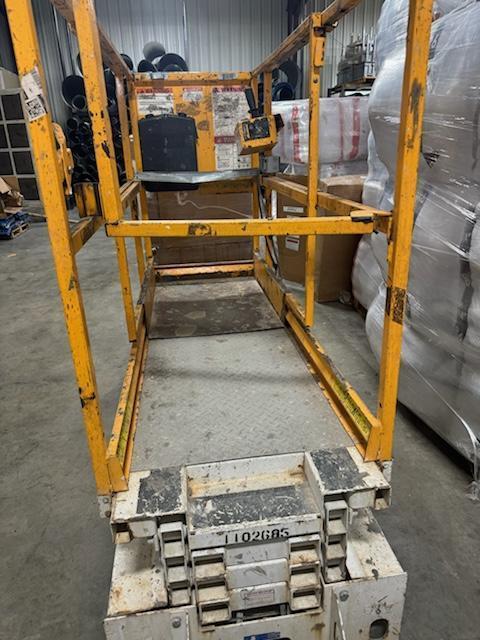

Hybrid Model #HB1430 Aerial Lift, 2009 – Self-Propelled
Brand
Category
Type
Model
#HB1430
Stock #
689814
Year
2009
Condition
Not specified
Location
Not specified
|
Working Height 20 ft
Platform Height Max 14 ft
Platform Height Min 25.3 in
Ground Clearance Raised 0.4 in
Ground Clearance Lowered 3.0 in
Overall Length 69.5 in
Overall Width 30 in
Stowed Height 70 in
Platform Length 60 in
Platform Width 25 in
Platform Extension 30 in
Platform Capacity 670 lb
Rated Occupancy 2 person
Extension Capacity 250 lb
Weight 1645 lb
Gradeability 25%
Inside Turn Radius 21 in
Drive Speed Raised 0.7 mph
Drive Speed Lowered 2.5 mph
Lift Speed Up/Down 15/16 sec
Power Source (2) 12V DC
Tires Front/Rear 10/10 in
All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
