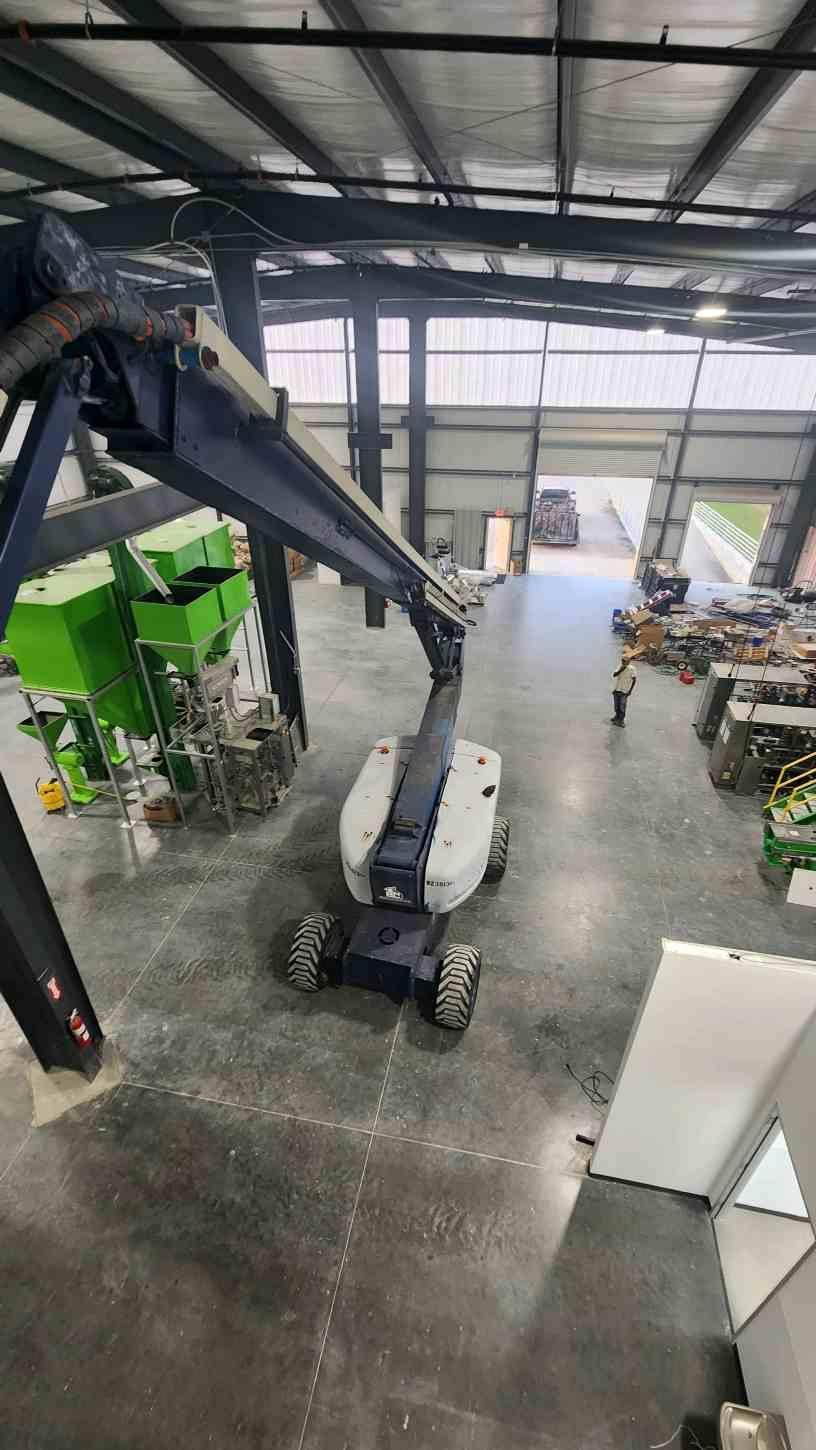

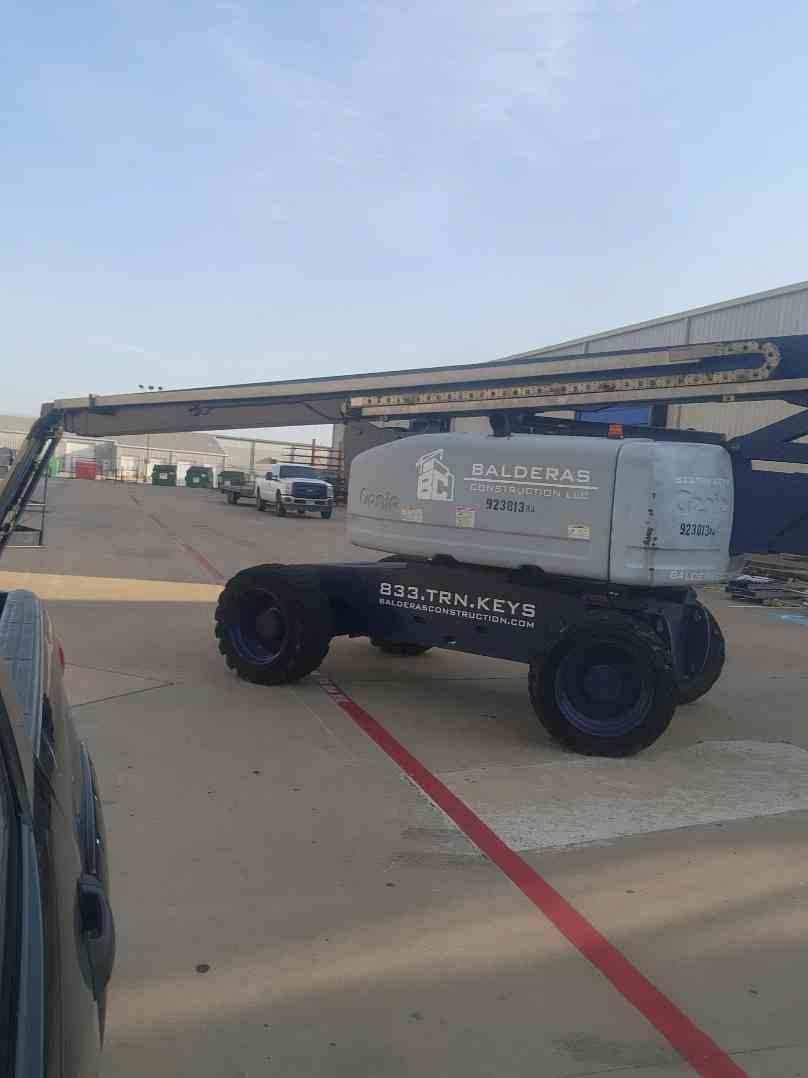

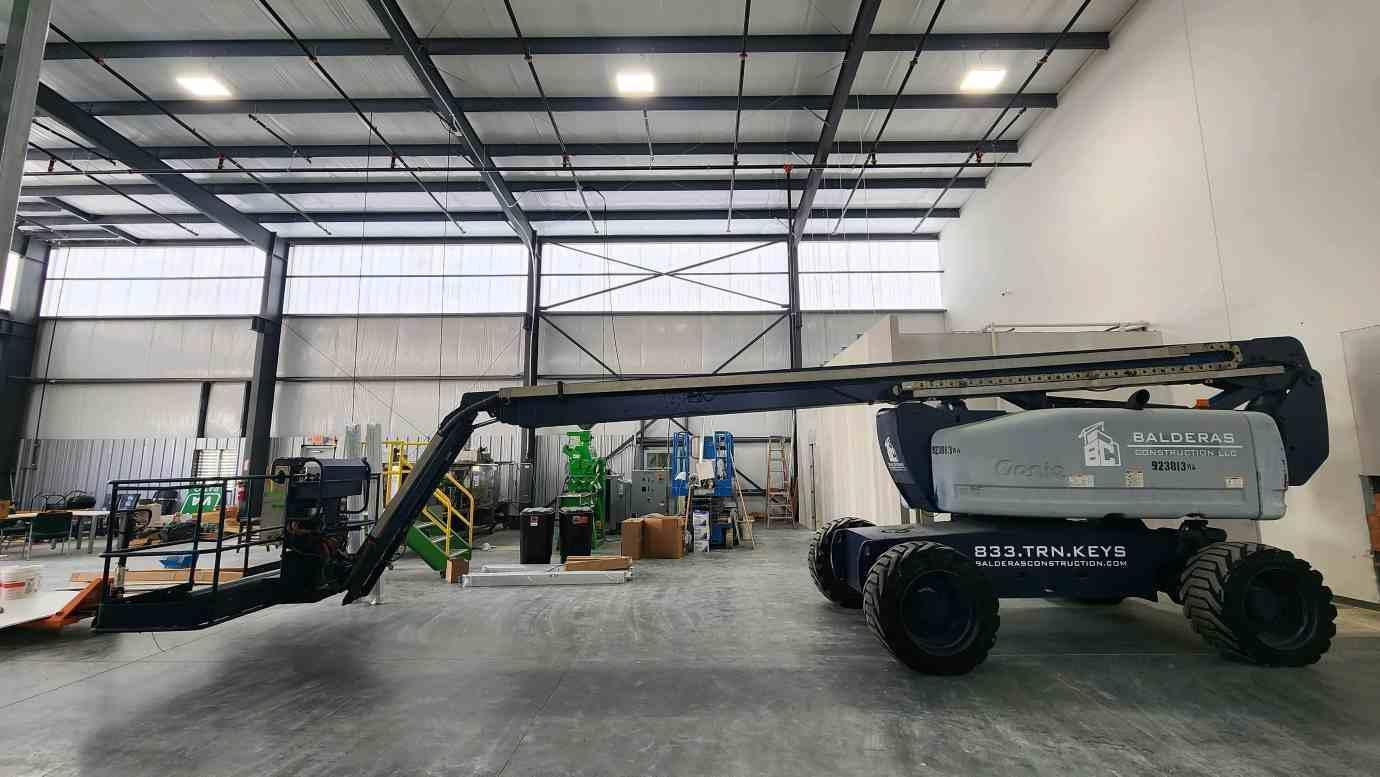

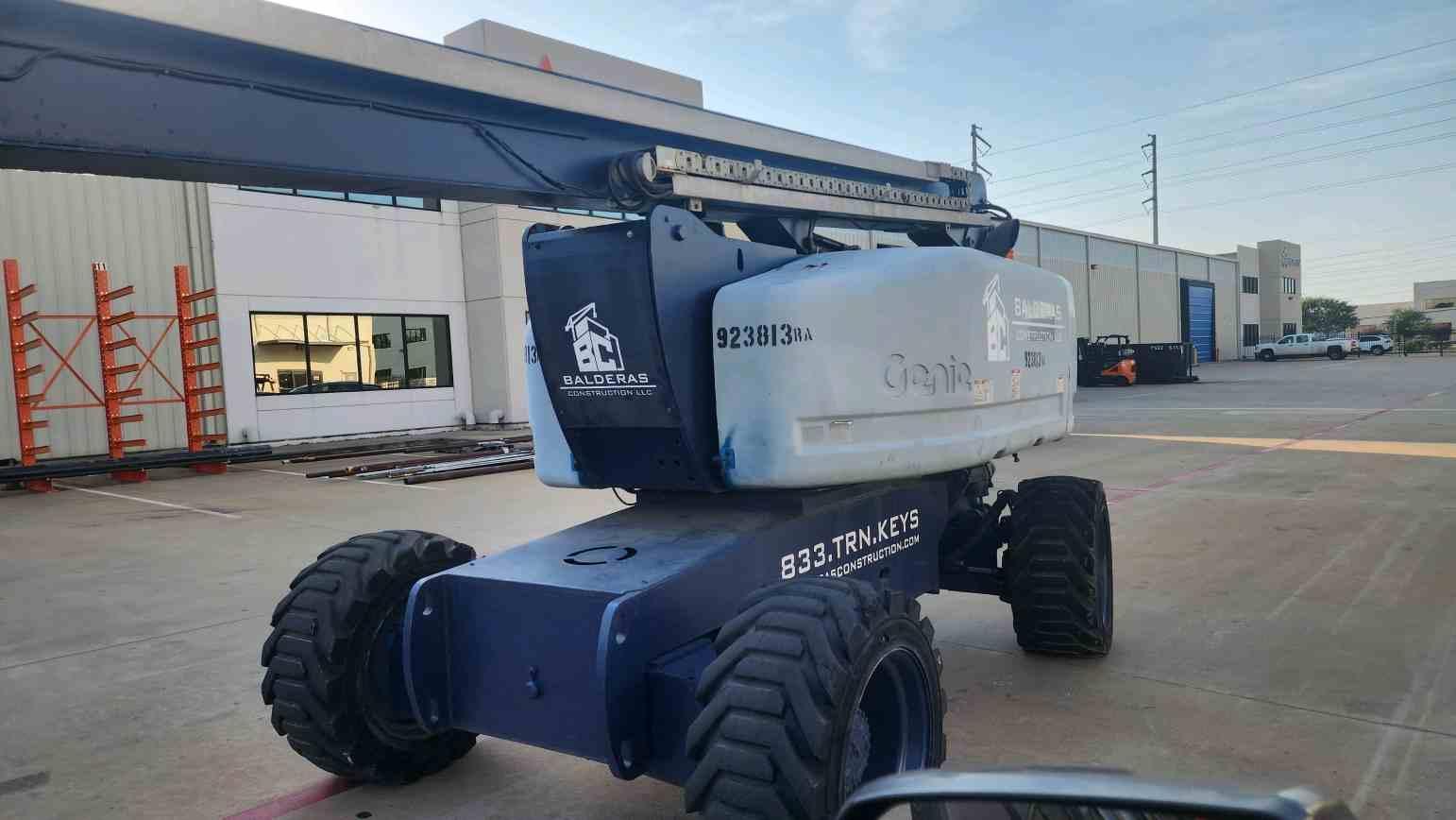

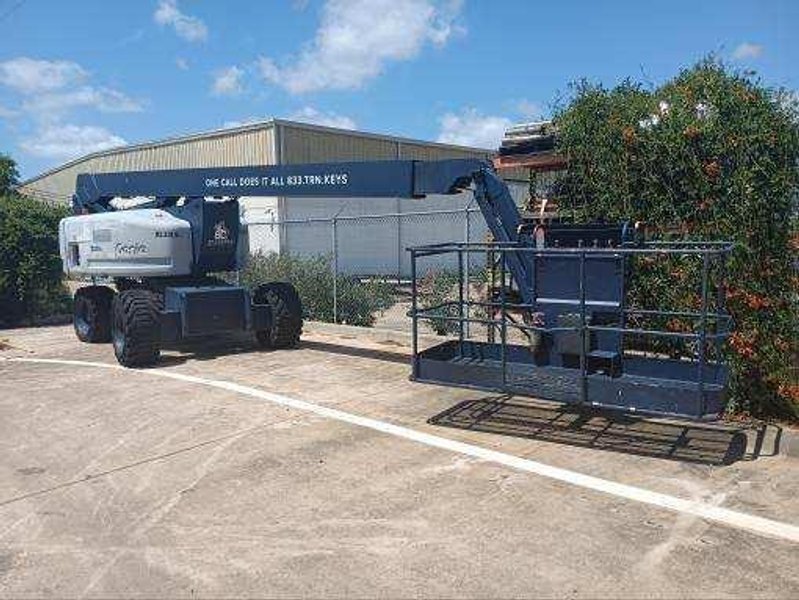

Genie Z80 Articulated Boom Lift, 2012 – Clean, ~2400HRS

Measurements Working Height: 84′ Platform Height: 78′ Horizontal Reach: 60′ Below Ground Reach: 15′ 10″ Up and Over Clearance: 29′ Platform Length: (8’/6′) 3’/2′ 6″ Platform Width: (8’/6′) 8’/6′ Height – Stowed: 9′ 10″ Length – Stowed: 37′ 11.27″ Length – Storage/Transport (Jib Tucked Under): 24′ 10.5″ Length – Transport: 37′ 11.27″ Width: 8′ 2″ Wheelbase: 9′ 4″ Ground Clearance – Center: 12″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Productivity Lift Capacity Max. – Unrestricted: 500 lb Platform Rotation: 160° Jib Length: 6′ Vertical Jib Rotation: 135° Turntable Rotation: 360° Drive Speed – Stowed: 3.0 mph Drive Speed – Raised: 0.68 mph Gradeability – Stowed: 30% Tilt Sensor Activation (Front to Back/Side to Side): 4.5°/4.5° Turning Radius – Inside/Outside: 14′ 6″/24′ 6″

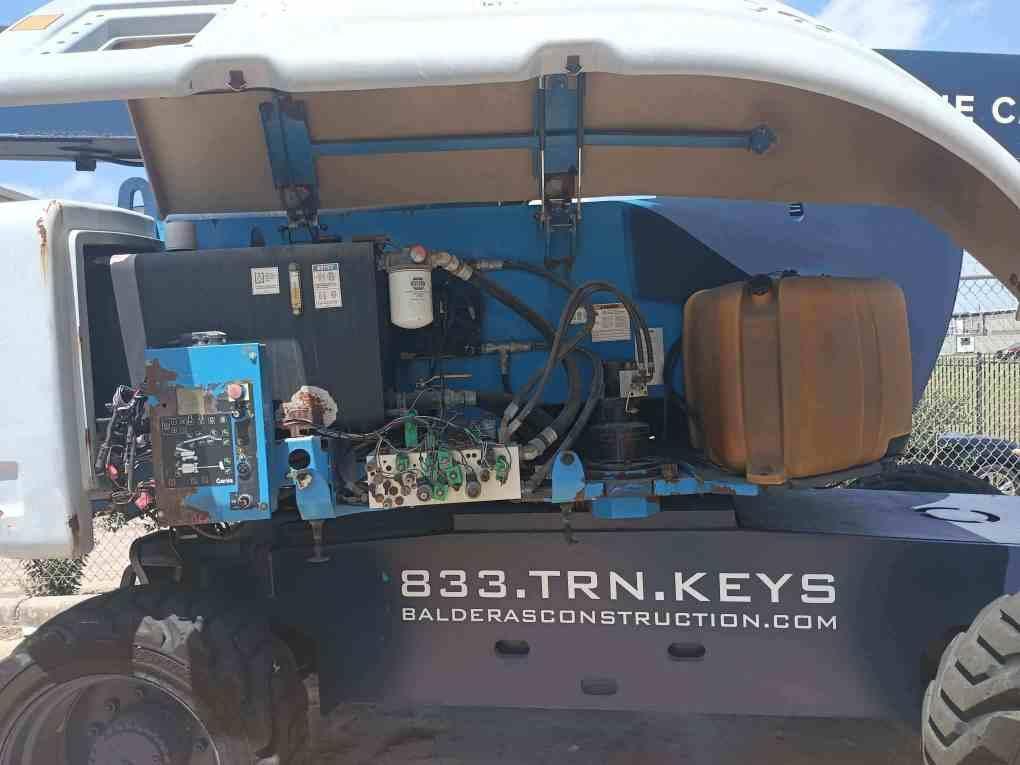

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Power Power: Diesel Auxiliary Power Unit: 12V DC Hydraulic Tank Capacity: 45 gal Fuel Tank Capacity: 35 gal

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Weight and Floor Loading Weight: 38,000 LBS Tire Contact Pressure: 130 PSI Occupied Floor Pressure (Tires): 377 psf

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Sound and Vibration Levels Sound Pressure Level (Ground Workstation): 85 dBA Sound Pressure Level (Platform Workstation): 74 dBA Vibrations: 8′ 2″/s²

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
