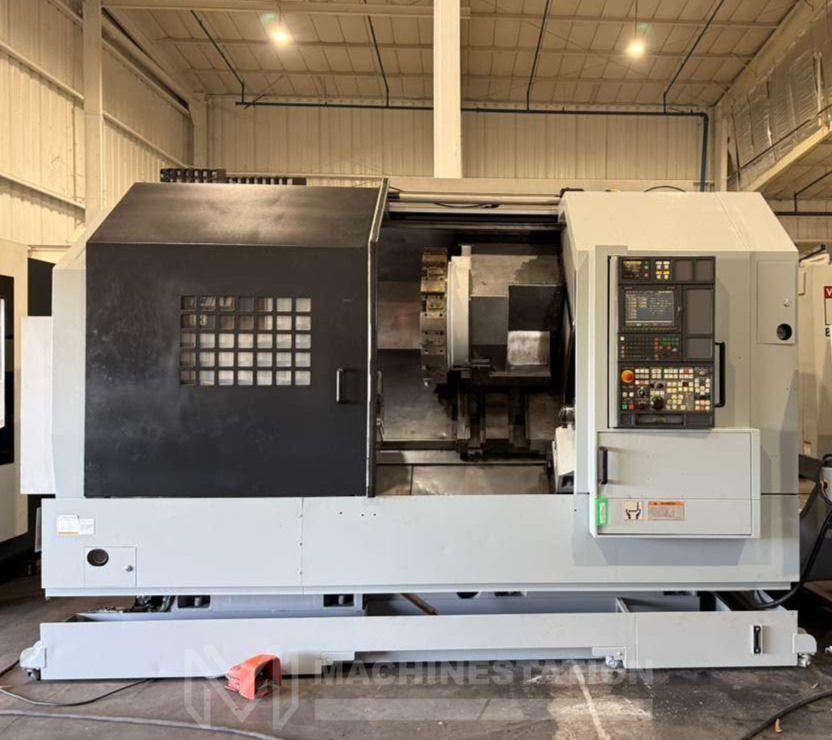

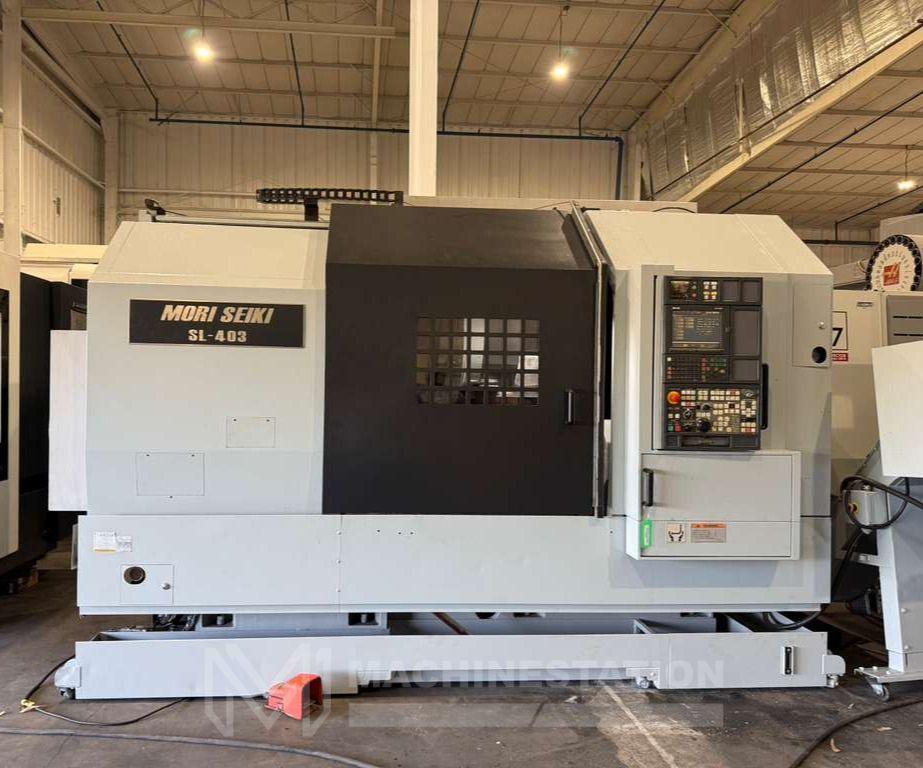

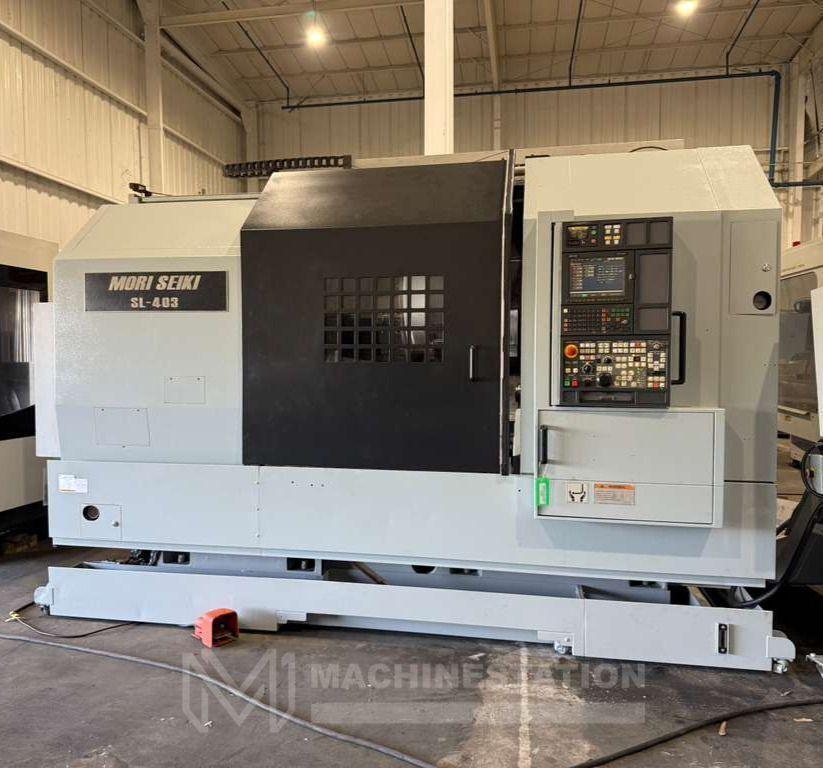

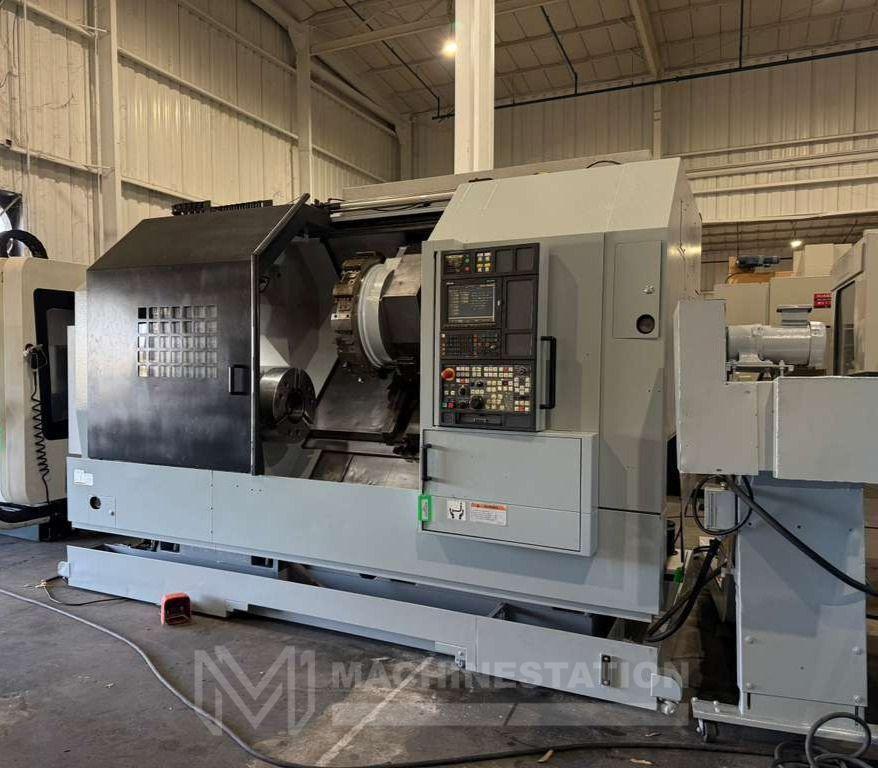

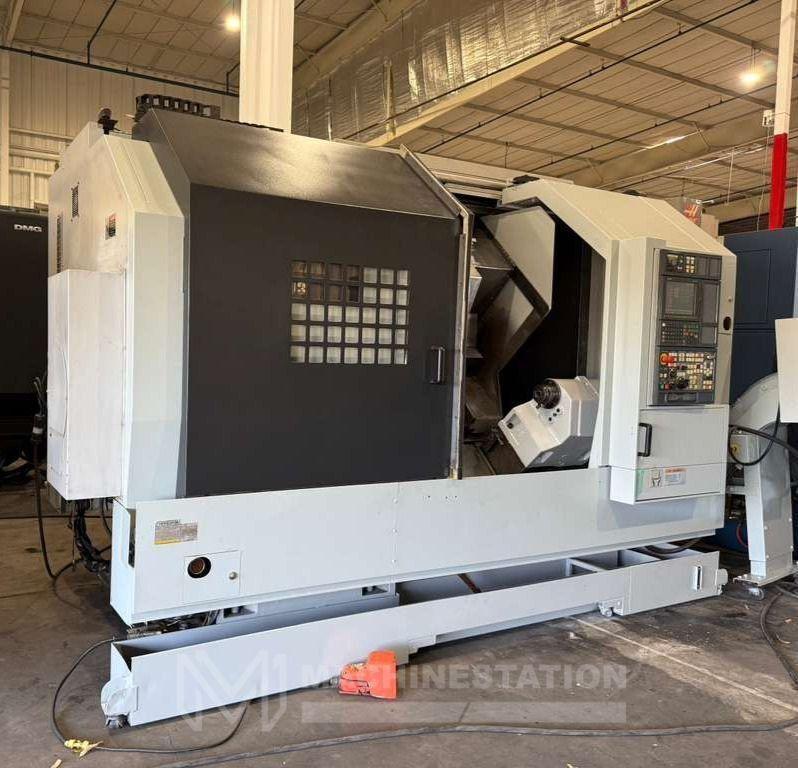

Mori Seiki SL-403B/800 CNC Turning Center – 18″ Chuck Big Bore Lathe

Brand
MORI SEIKI
Category
Lathes & Turning Machines
Type
Turning Centers
Model
Mori Seiki SL-403B/800
Stock #
112992
Year
2006
Condition
Not specified

Location

Not specified

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: Mori Seiki
Model: SL-403B/800
Year: 2006
Equipped With:

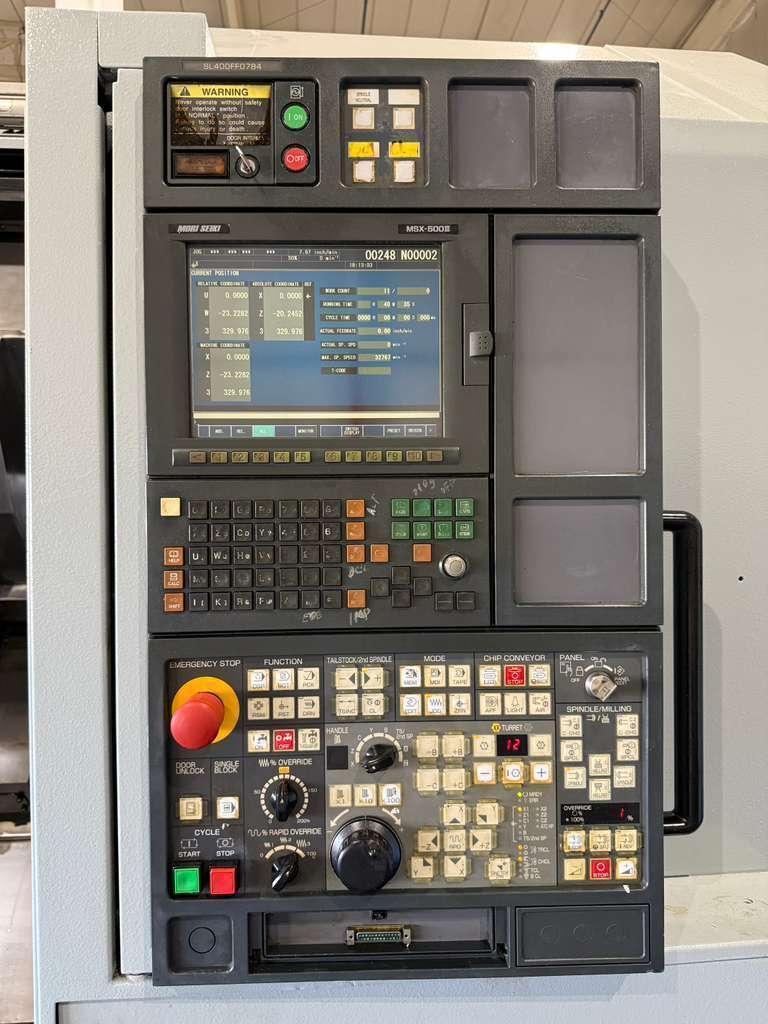

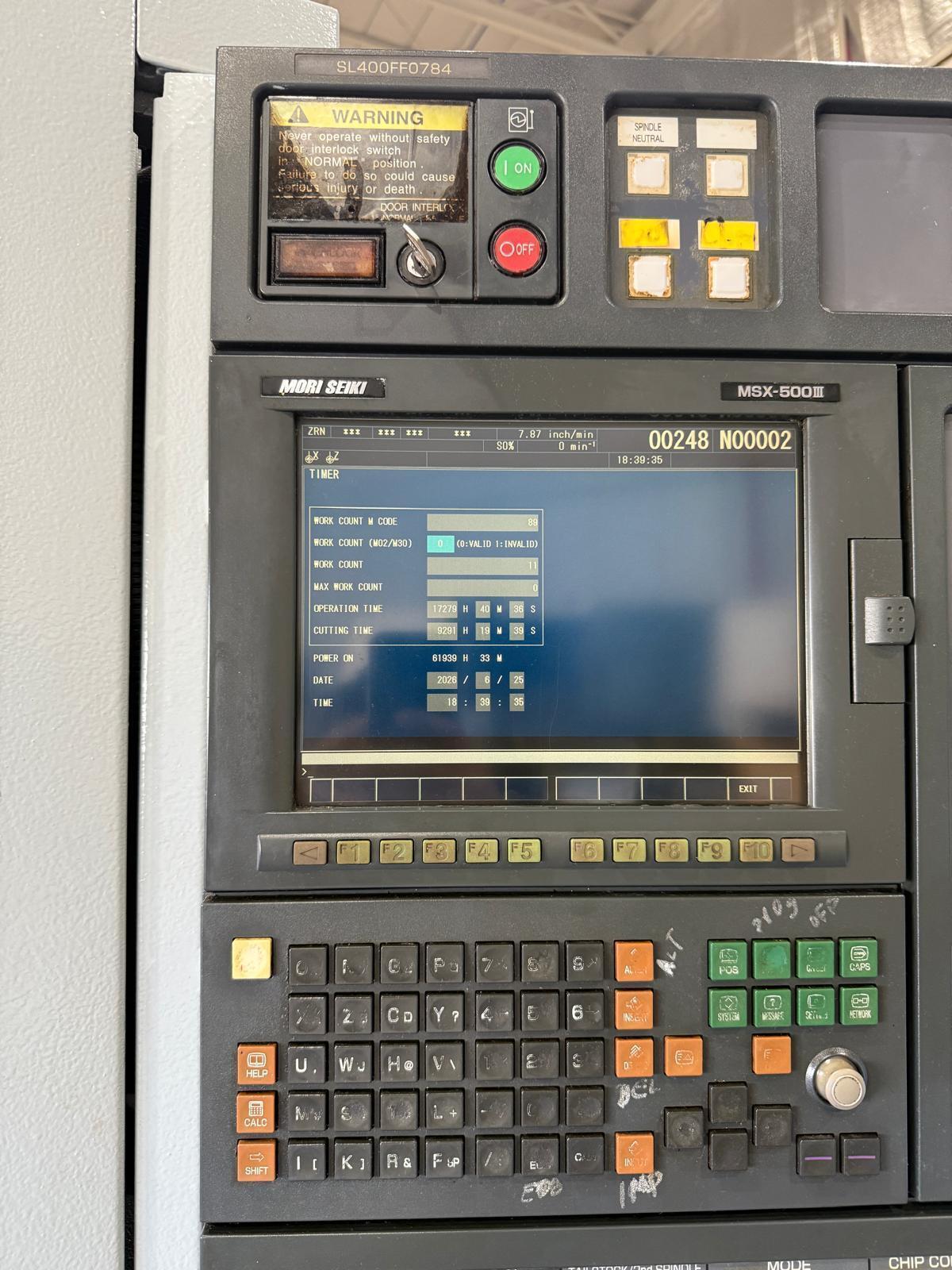

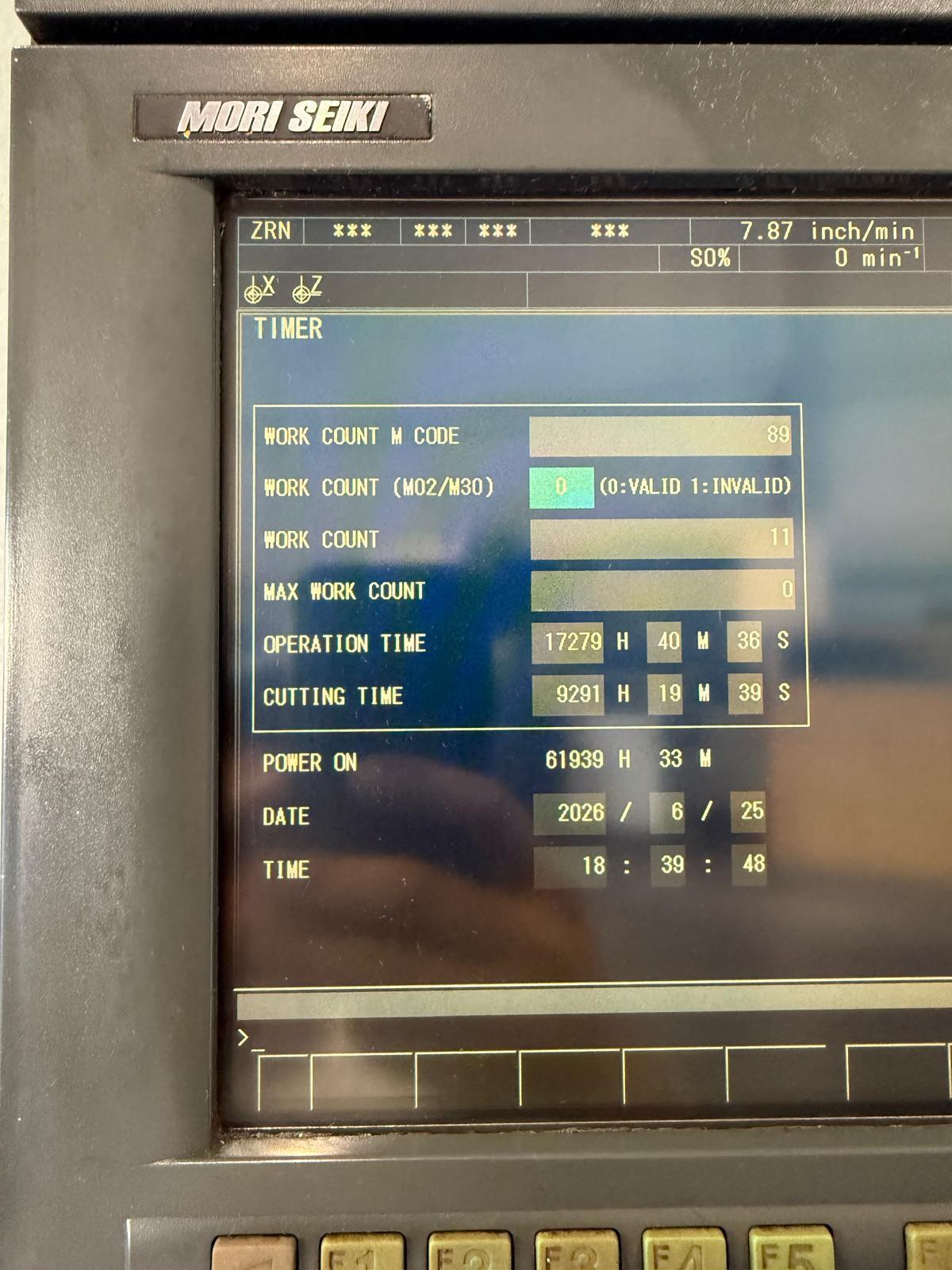

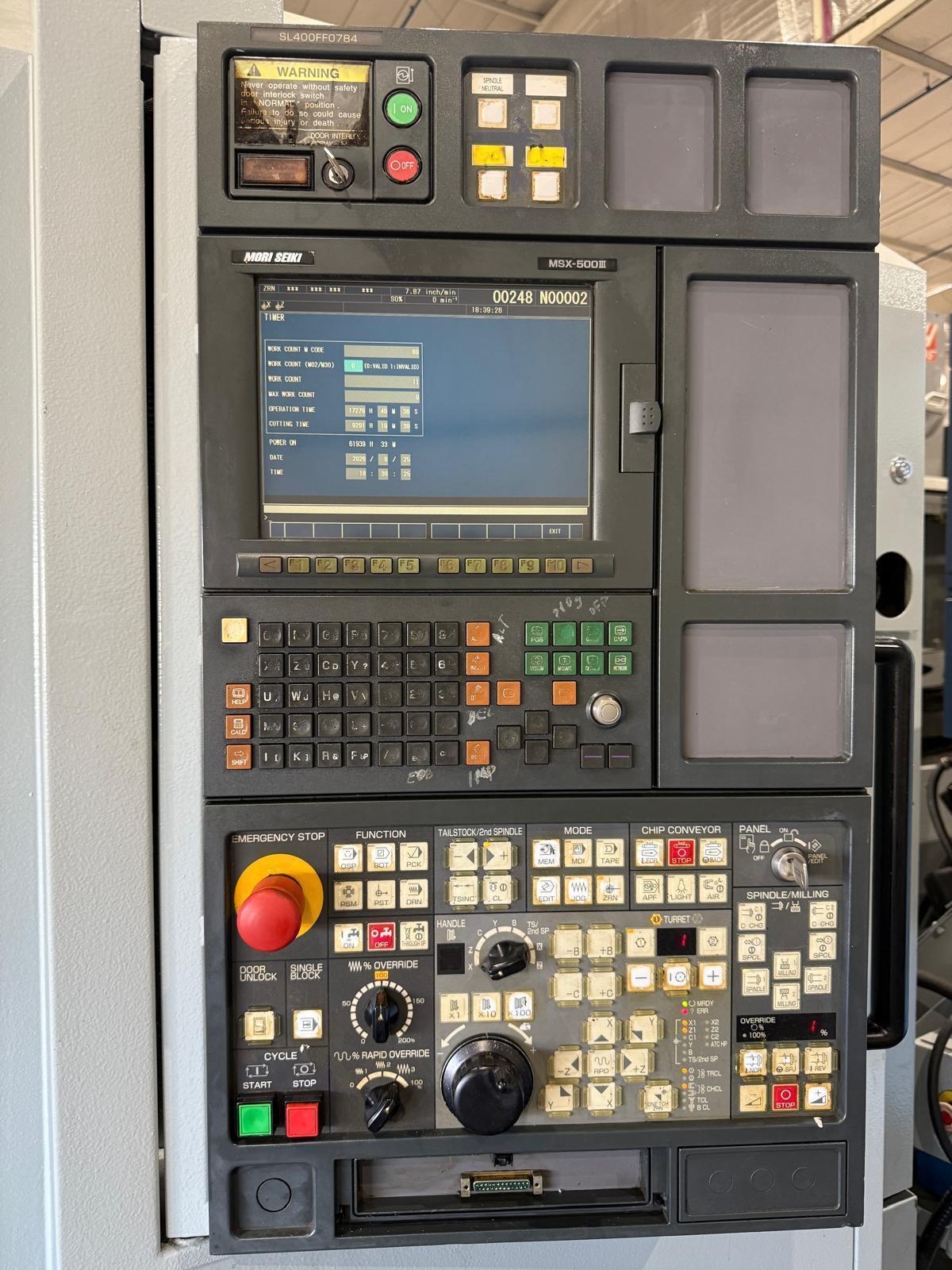

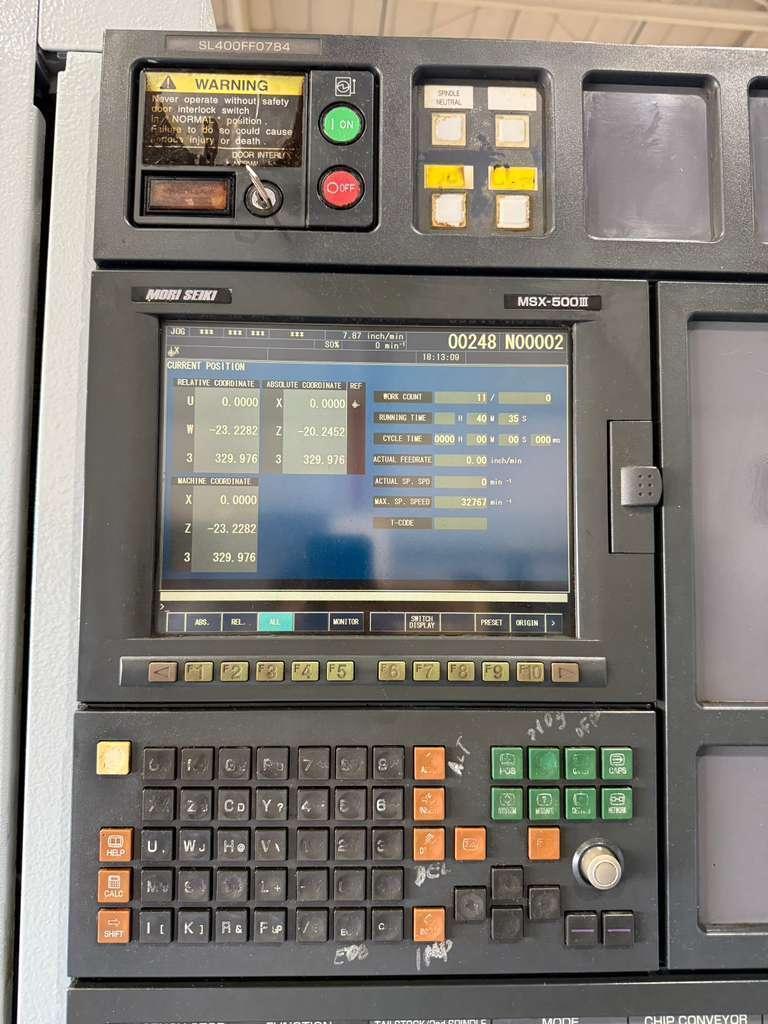

Mori Seiki MSX-500III (Fanuc) CNC Control

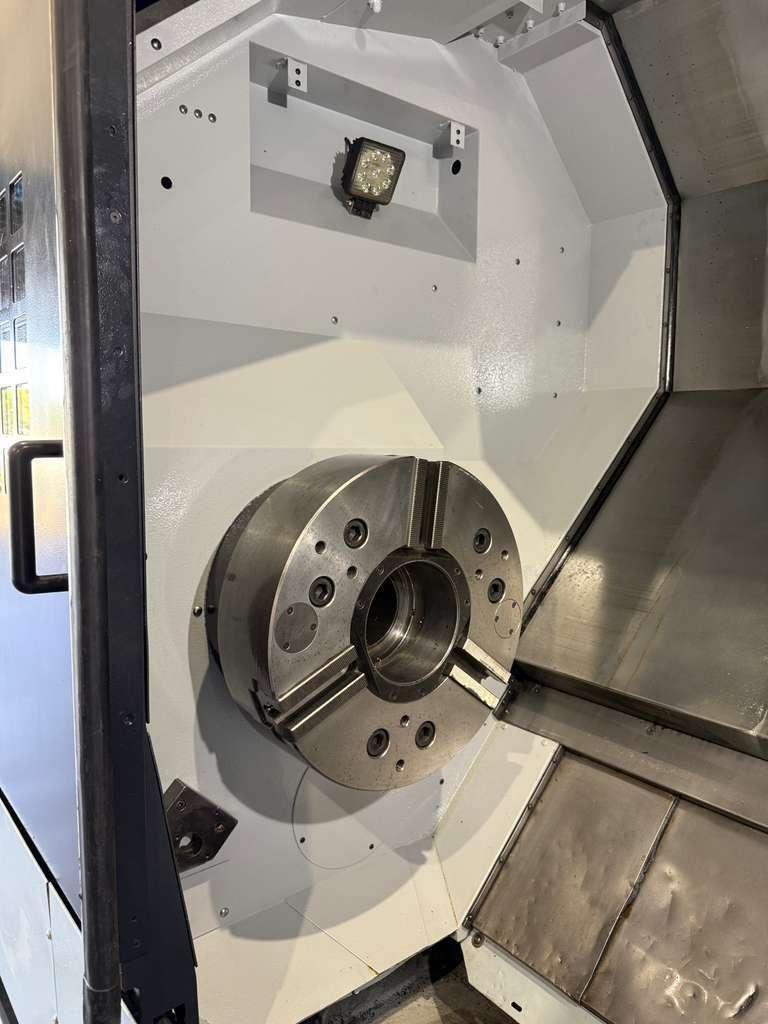

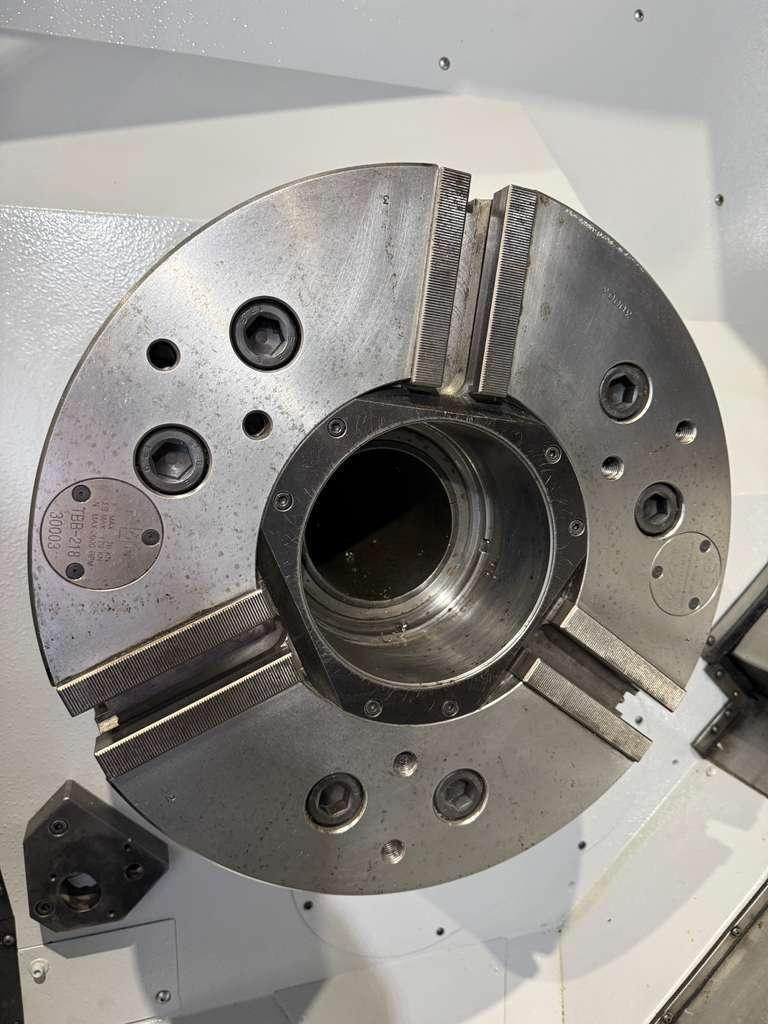

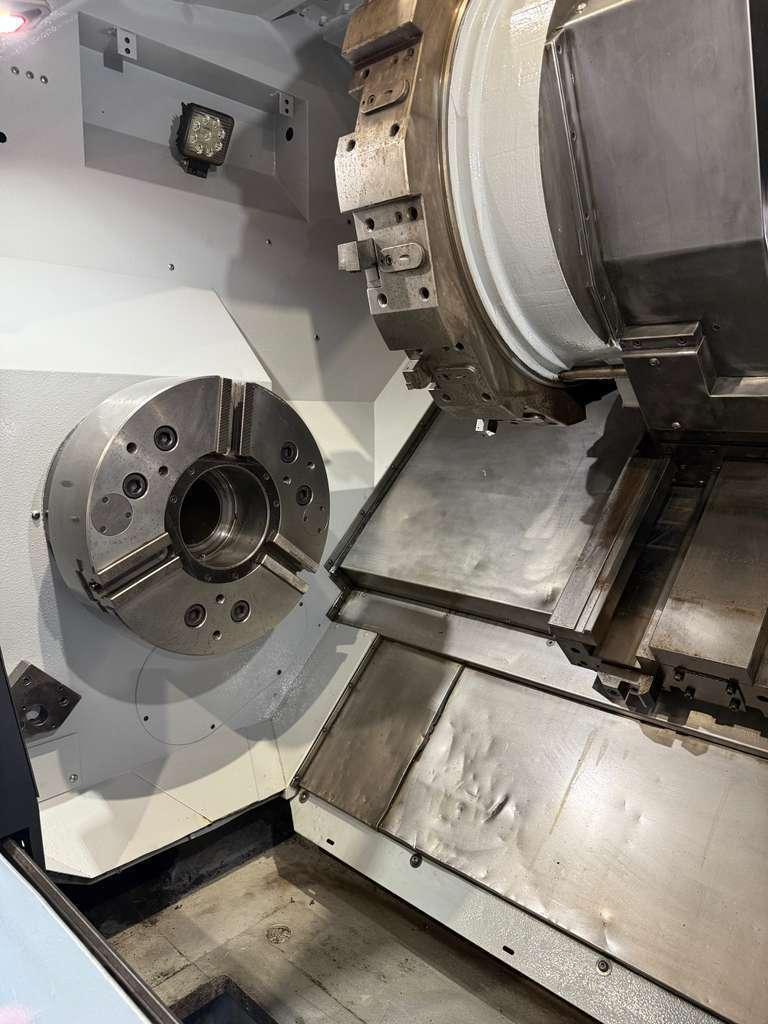

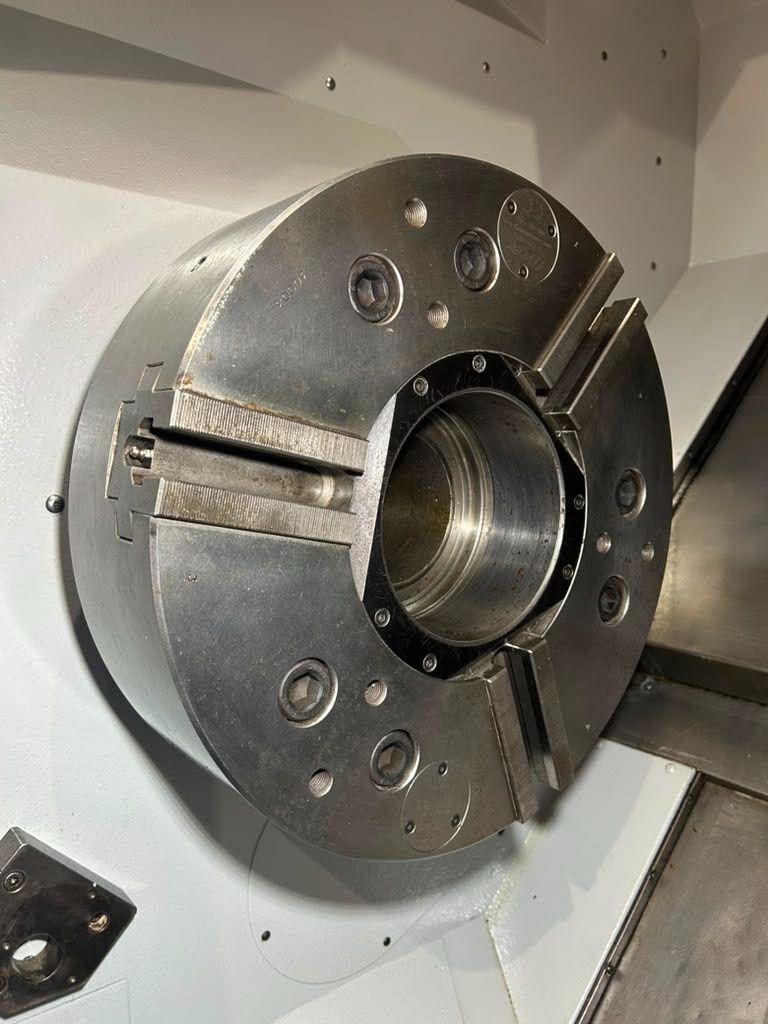

18″ Kitagawa BB218 3-Jaw Hydraulic Chuck with 6.5” Through Hole
A2-11 Spindle Nose, 2400 RPM Spindle

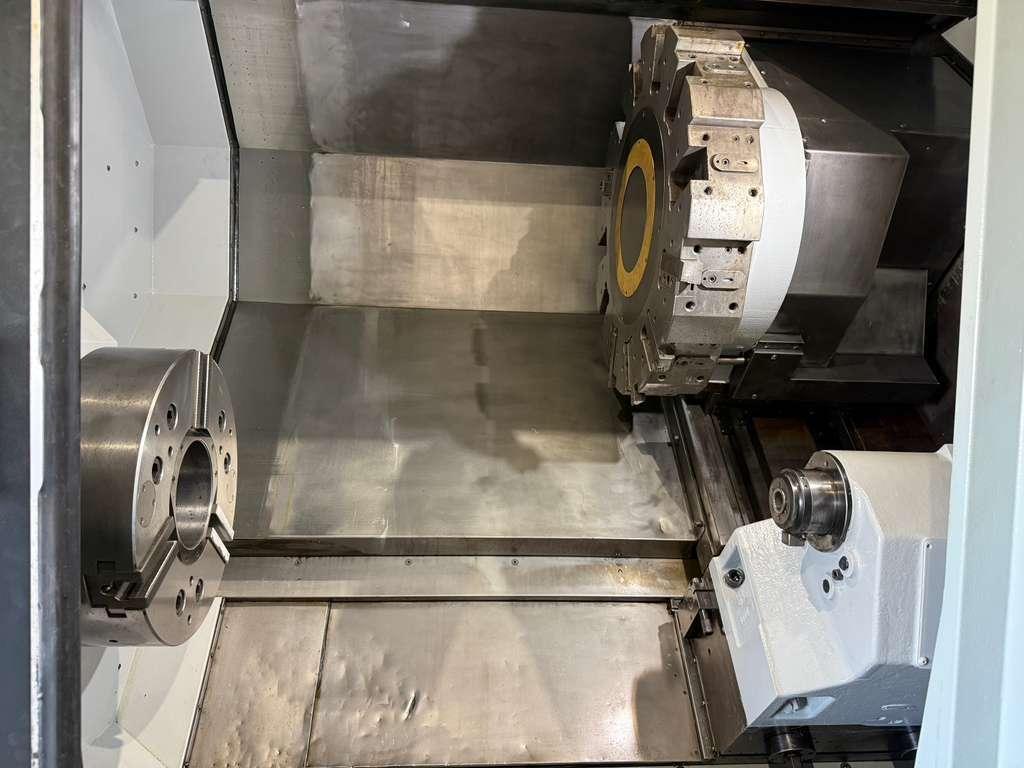

12-Station Automatic Turret
Tailstock
Automatic Lubrication Unit
Coolant Tank
Chip Conveyor
Foot Switch
Levelling Pads
Capacity:
Max Turning Diameter: 24.4″
Max Turning Length: 37.7″
Swing Over Cross Slide: 29.1″
Max Bar Capacity: 4.62″
Travels:
X Axis Travel: 13.6″
Z Axis Travel: 39.2″
Feed Rates:
Rapid Traverse X: 787.4 IPM
Rapid Traverse Z: 944.9 IPM
Spindle:
Spindle Nose: A2-11
Spindle Bore: 5.1″
Spindle Speed: 2400 RPM
Spindle Motor: 40 HP
Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.4 seconds
Turning Tool Size: 1.25″
Boring Tool Diameter: 2.5″
Tailstock:
Tailstock Taper: MT-4
Tailstock Body Travel: 33.5″
General:
Power Source: AC 220v/ Three Phase/ 60 Hz
Power Requirement: 43 kVA
Overall Dimensions: 149″ x 92″ x 96.7″ High Approx.
Machine Weight: 24,200 LBS Approx.
