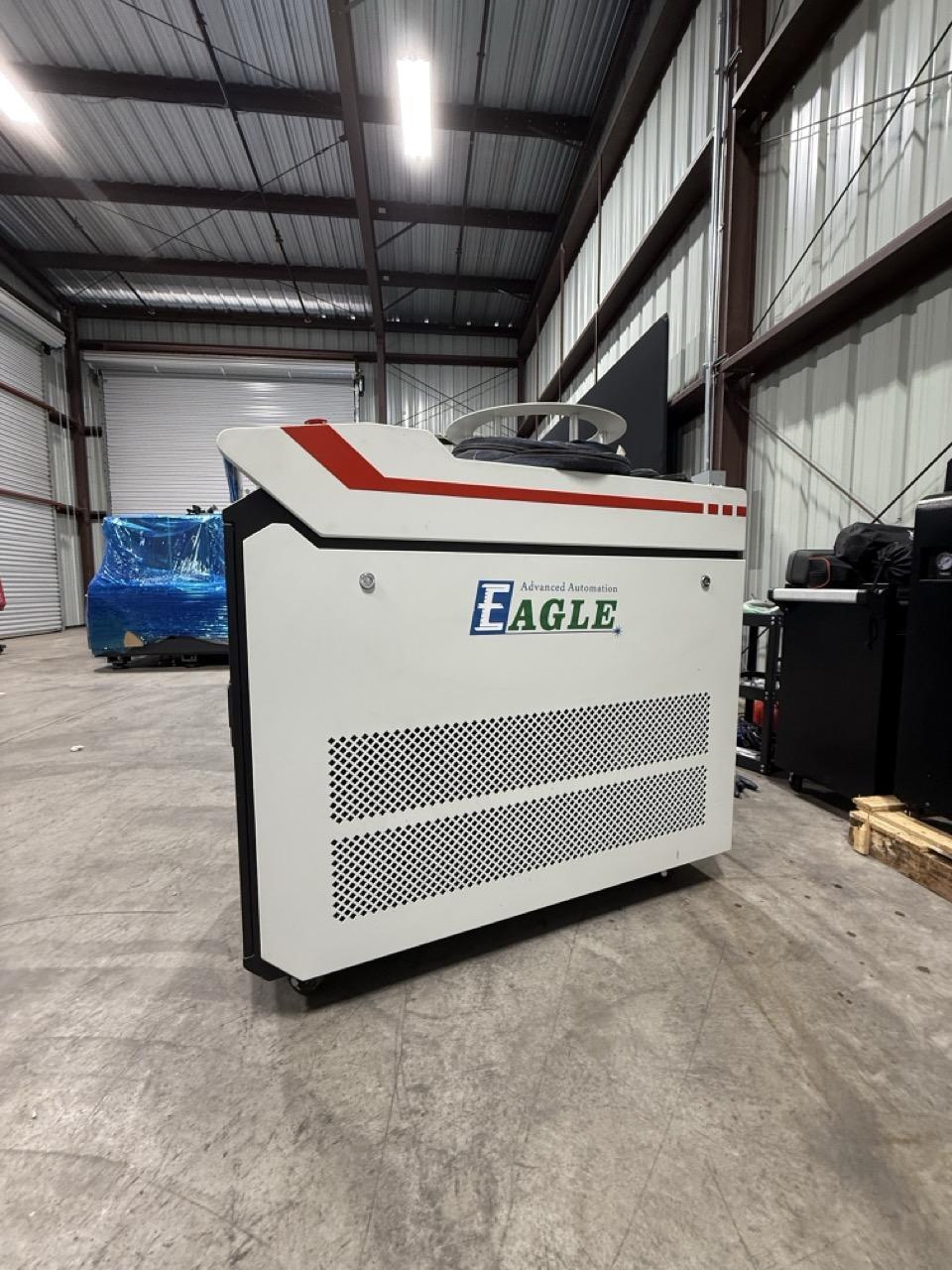

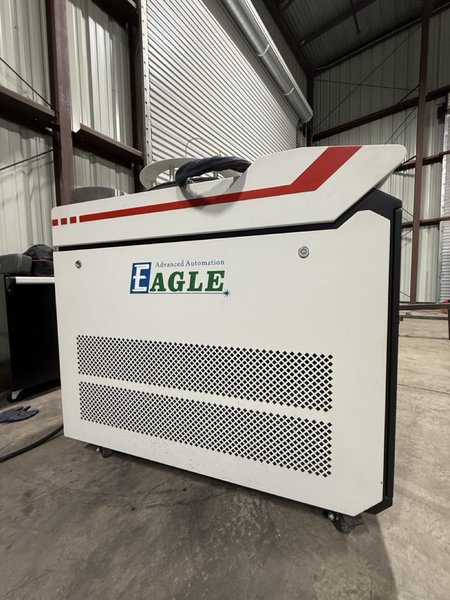

3,000 Watt MaxPhotonics Fiber Laser EF-3000 Hybrid Fiber Laser Welder, 2025
Brand
Category
Type
Model
Ef-3000
Stock #
293765
Year
2025
Condition
Not specified
Location
Not specified
|
Rated Output Power: 3KW
Power Adjustment Range: 10%-100%
Fiber Core Diameter: 50μm
Output Fiber Length: 32′ (10m)
Working Voltage: 220V±10% AC
Maximum Power Consumption: 15kW (20A; based on 480V incoming power)
Welding Depth: 1/16″-1/4″
Welding Seam Maximum Gap: 1/16″
Depth of Melt: 5/32″
Spot Size: 0-3/16″ (0-5mm)
Cooling Water Pressure: 30-45psi (2-3bar)
Laser Cooling Water Temperature: 68°F to 82°F (20°C to 28°C)
QBH Output Head Cooling Water Temperature: 82°F to 86°F (28°C to 30°C)
Operating Ambient Temperature: 50°F to 104°F (10°C to 40°C)
Operating Humidity: 10%-80%
Cooling Method: Water Cooling
Cooling Media: Purified Water / Distilled Water / Glycol Antifreeze
All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
