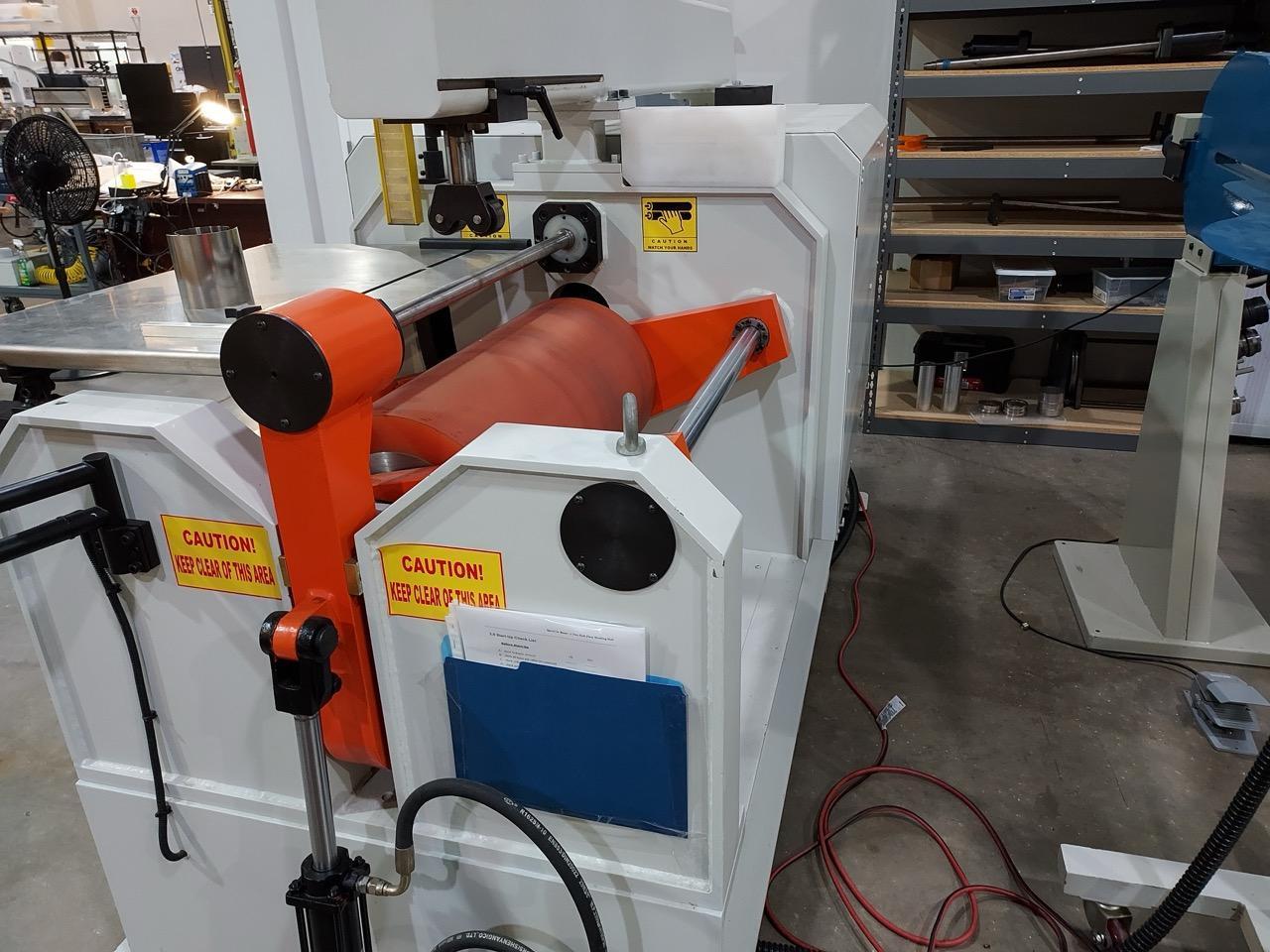

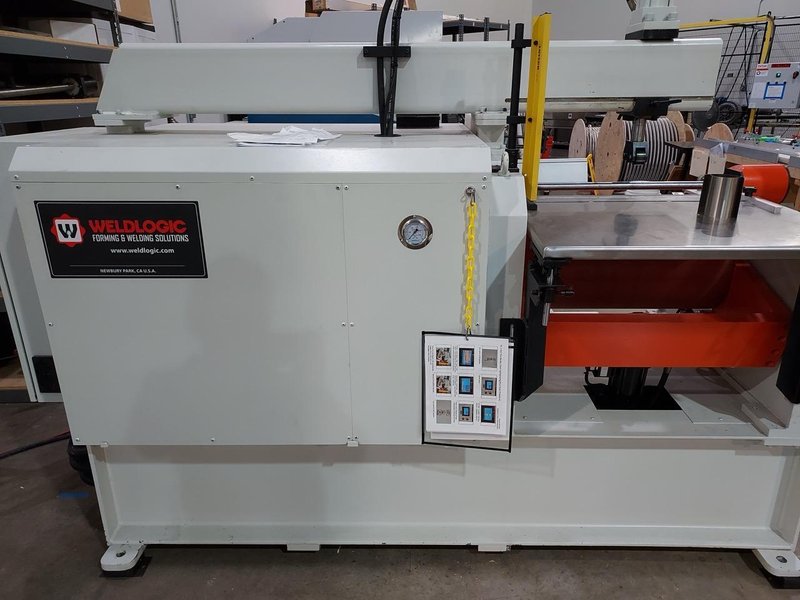

Weldlogic Two Roll Plate Bending Roll Model 2R-2435-20-1.2-10 & UPS-24 Seam Welder, 2018

A1 Machine Capacity: Materials: SS304 Thickness: 0.020″ Diameter: 1.2″-2.2″ Length: <24″(D1.2″/L10″)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,A2 Machine Specifications: Polyurethane Roll Diameter: 12.6″ Roll Face: 26″ Approx. Floor Space: 70″ x 36″ Total Power: 5 hp

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,B1 Standard Features Include: Polyurethane Roll Driven by Hydraulic Motor Gearbox Operator Control Panel E-Stop, Fwd, Rev, Form Roll Up/Form Roll Down Drop Arm Open and Close Spherical Roller Bearings Electrical Disconnect with Lockout Welded Steel Construction Forged 1040/1045 Solid Steel Rolls Precision Polyurethane Forming Roll Positioning by Hydraulic Cylinder with Cable Encoder

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,B2 Optional Equipment Included Automatic Part Cycle System via PLC (100 part program storage included) Quick Change Forming Mandrels w/ Bearing Cartridge X6 Overhead Mandrel Support System on Beam Adjustable Manual In-Feed Table One Side Light

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
