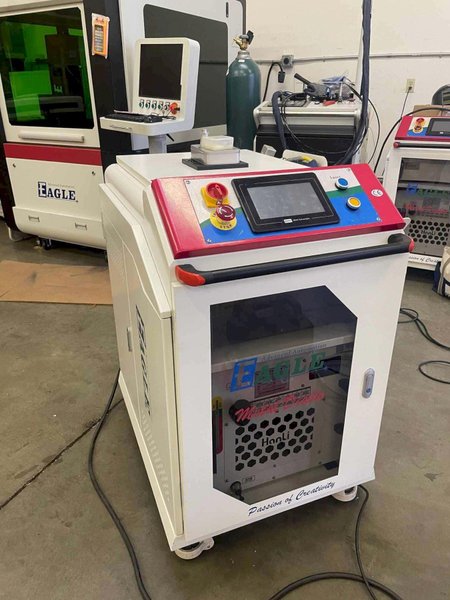

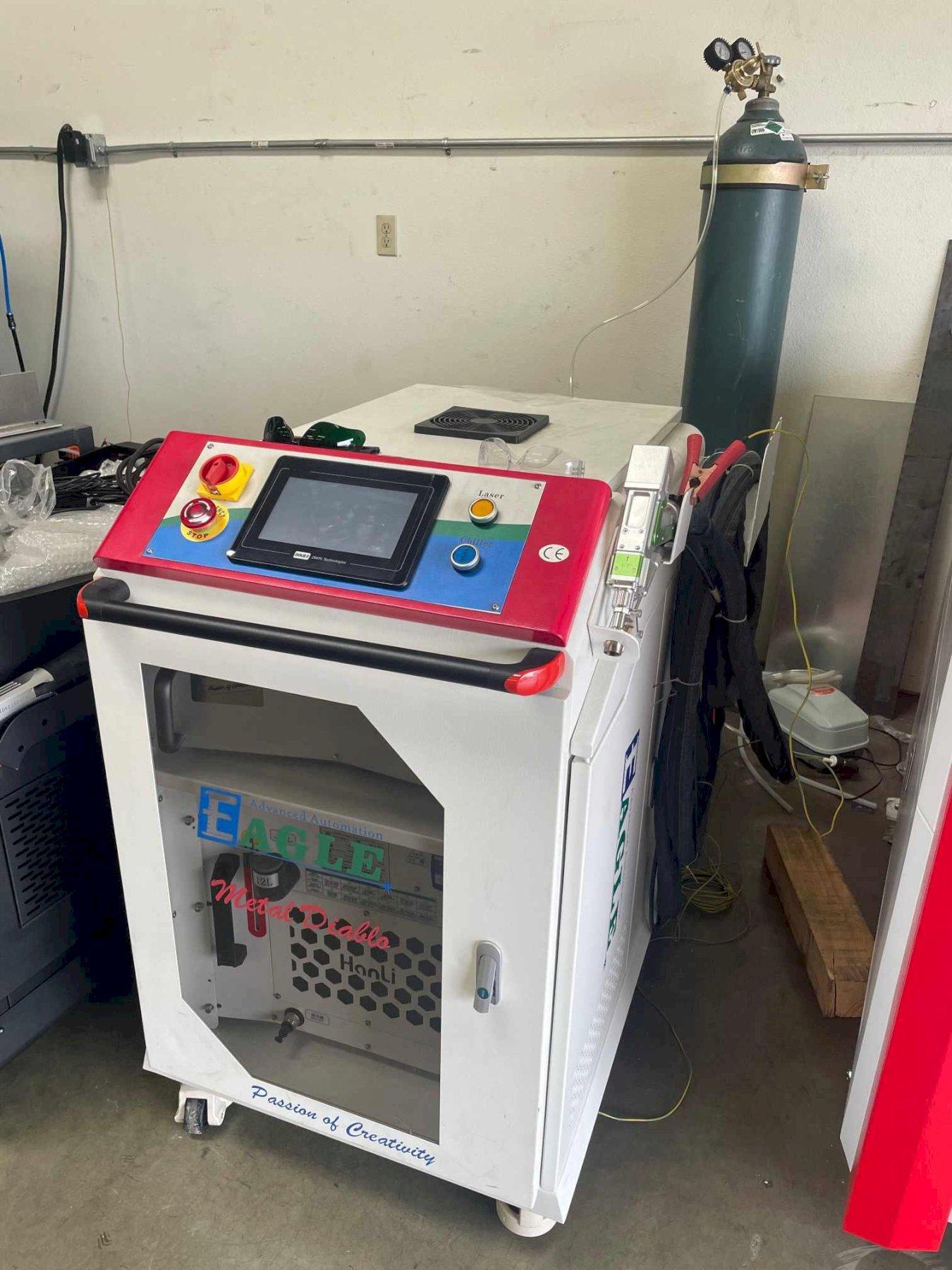

1500 Watt Eagle EF Hybrid laser Welder, 2025

Output Power: 1500W Power Requirement: 220V Maximum Power Consumption: 6KW Power Adjustment Range: 5%-100% Fiber Core Diameter: 20um/30um/50um Output Fiber Length: 394“ Laser Welding Depth: 1mm-3mm Laser Cooling Water Temperature: +20℃ to+28℃ (+68℉ to +82℉) QBH Output Head Cooling Water Temperature: +28℃ to+30℃ (+82℉ to+86℉) Welding Seam Requirement: ≤1.2mm Depth of Melt: 4.0mm Spot Range: 0-5mm Pulse Frequency: 10-5000Hz Cooling Water Pressure: 2-3bar Working Ambient Temperature: +50℉ to+104℉ Working Environment Humidity: 10%-80% Machine Dimension: 35.79”x 23.98”x 39.96” Machine Weight: 441lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With Laser source Auto wire feeder Built-in Water Chiller Intelligent singe pendulum handheld welding head Full set of nozzles Control panel and control system Protective gloves

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
