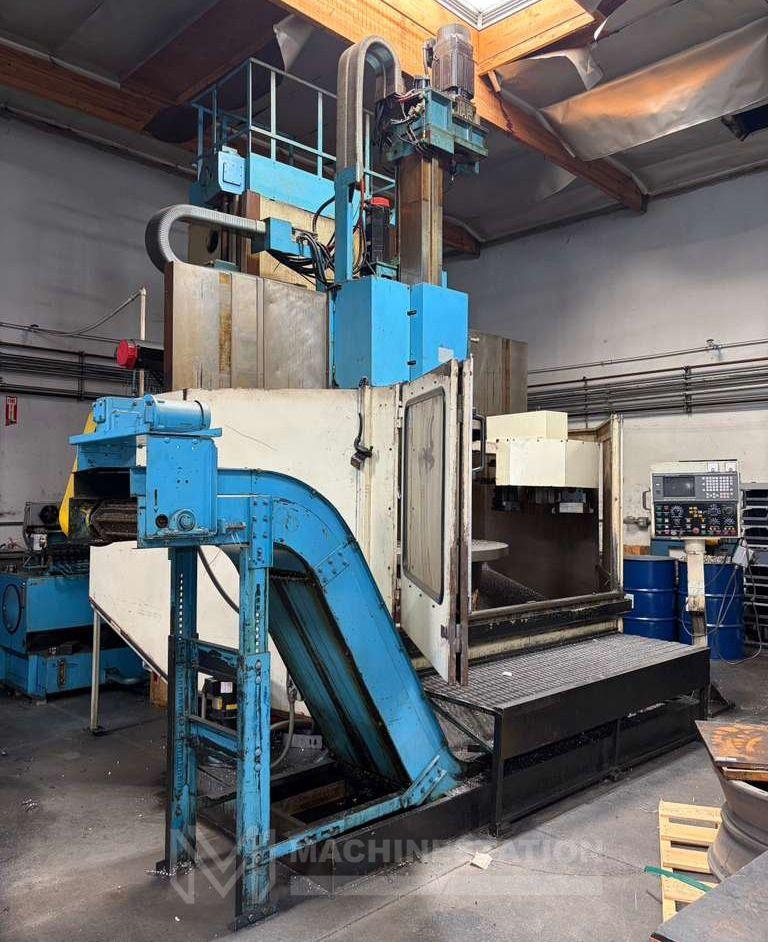

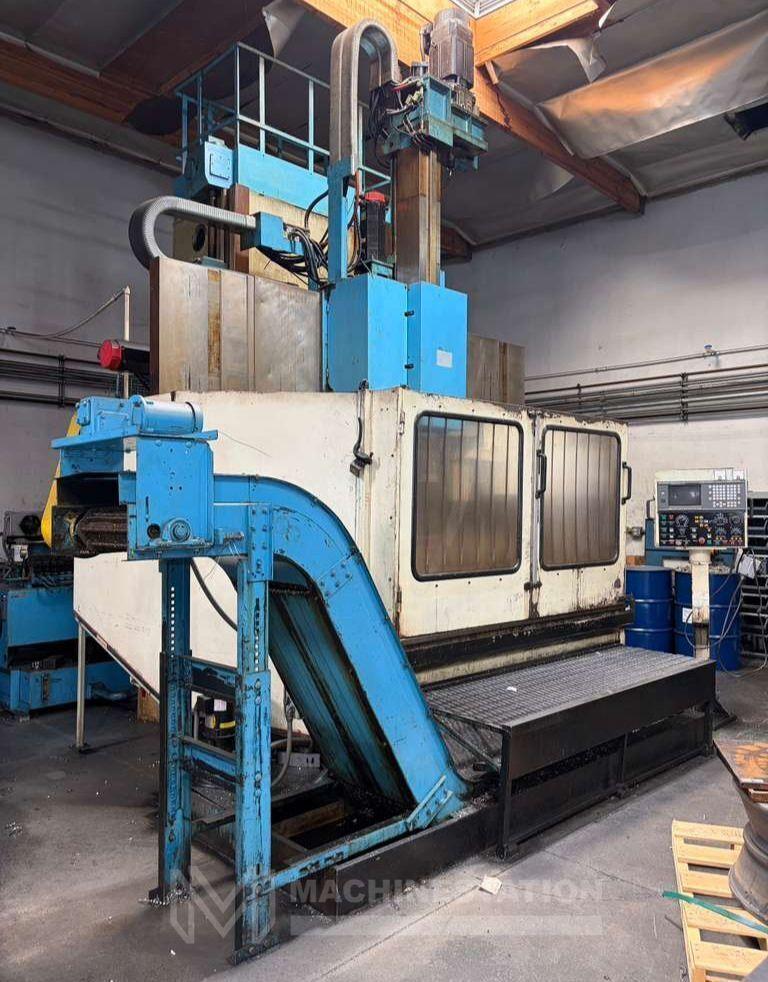

Olympia V60 LS CNC Vertical Turning Center – Live Tool C Axis VTL

Olympia V60 LS CNC Vertical Turning Center – Live Tool C Axis VTL

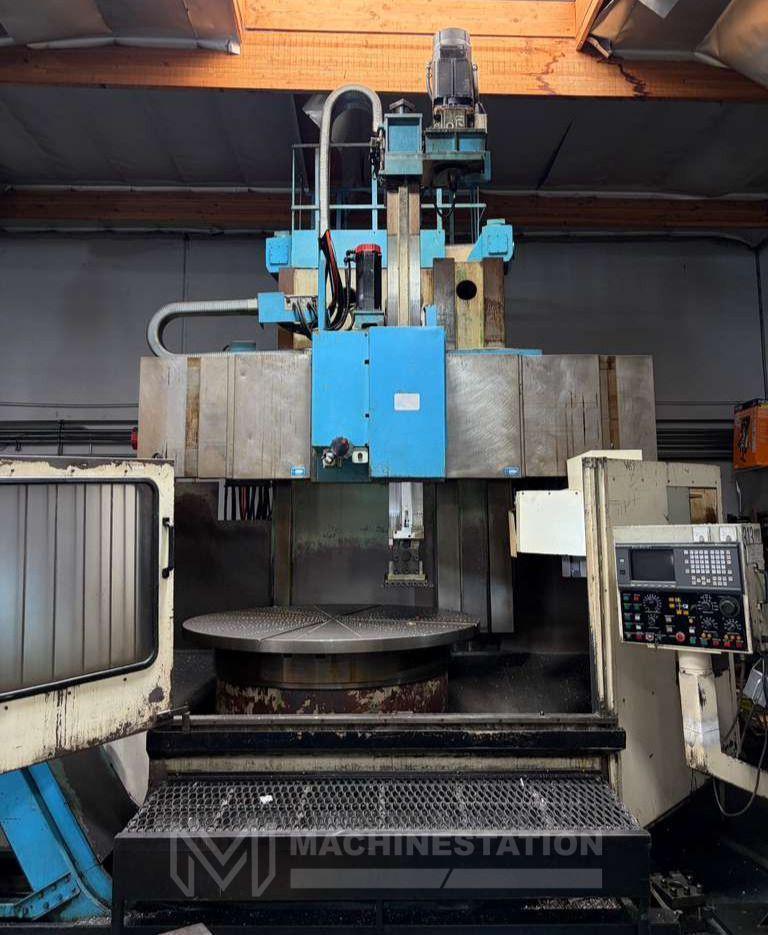

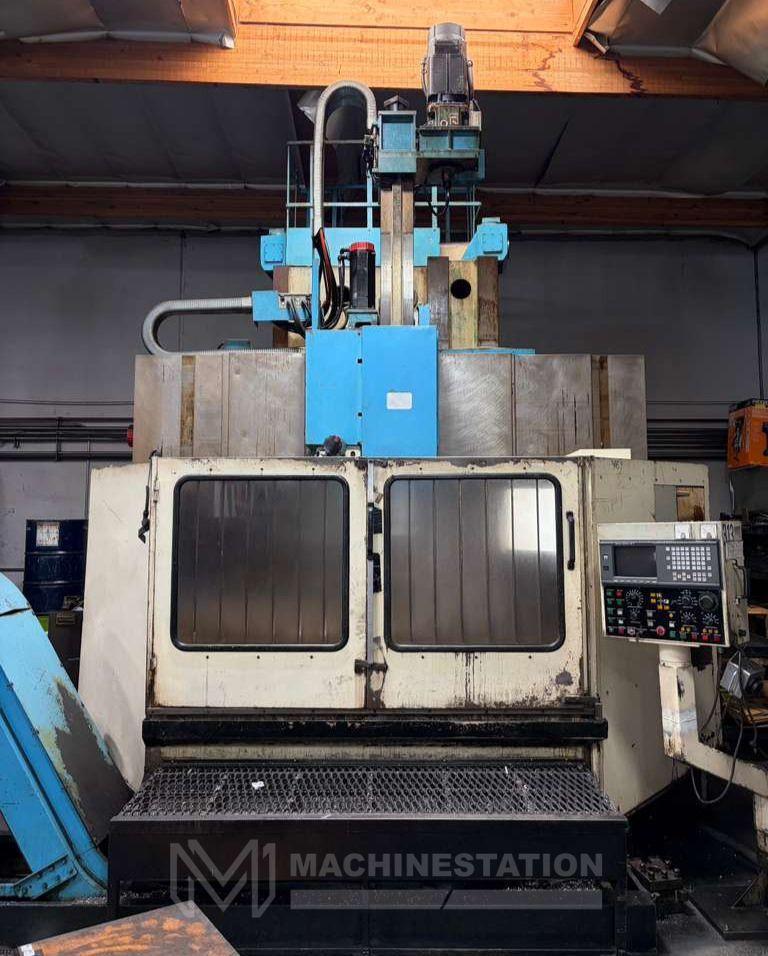

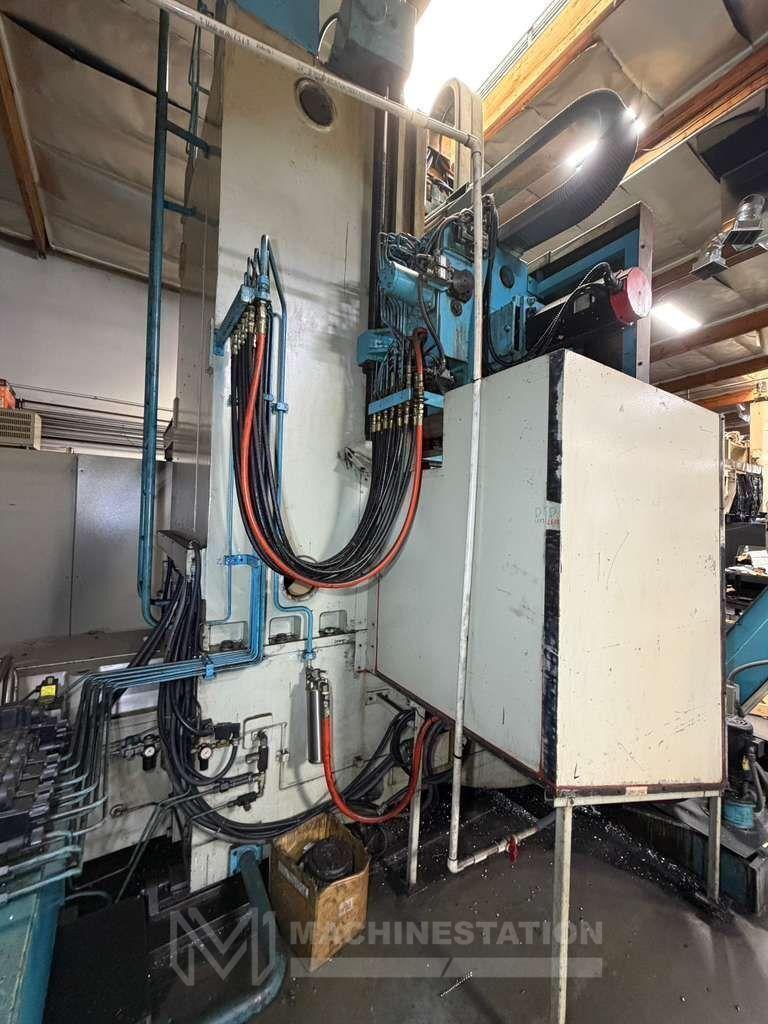

Name: Olympia V60 LS CNC Vertical Turning Center – Live Tool C Axis VTL
Brand: OLYMPIA
SKU: 115143
Availability: InStock

Brand

OLYMPIA

Location

Not specified

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Olympia
Model:	V60 LS

Equipped With:

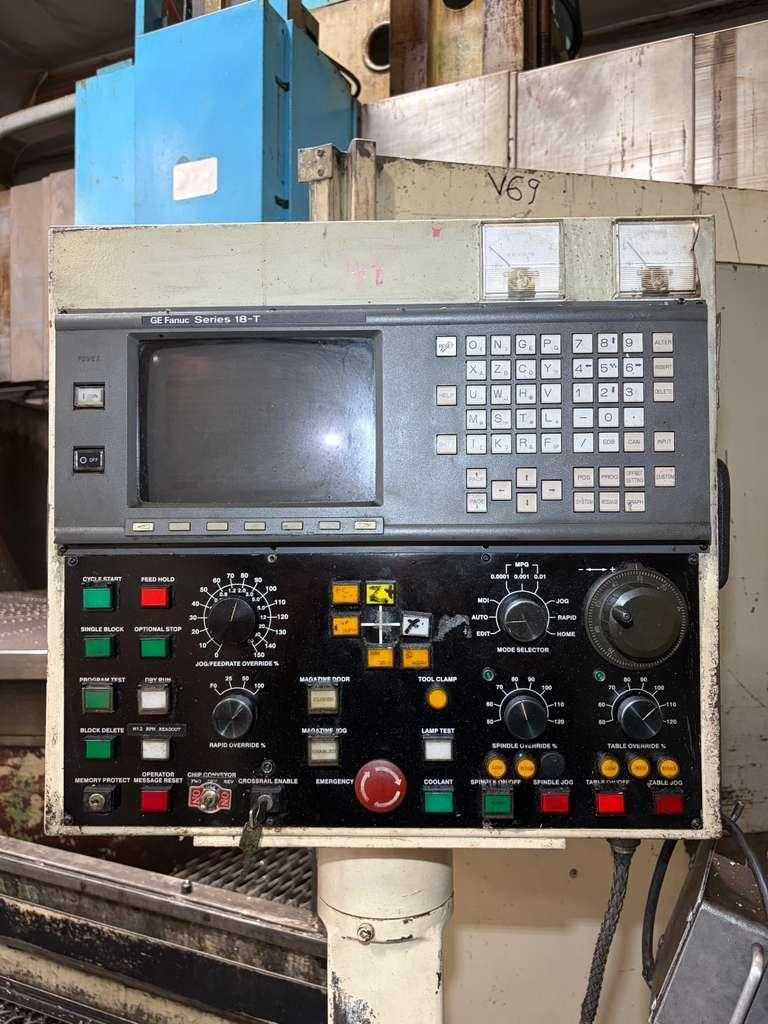

Fanuc 18T CNC Control
60 inch 4-Jaw Chuck
72 inch Faceplate Mounted on Chuck

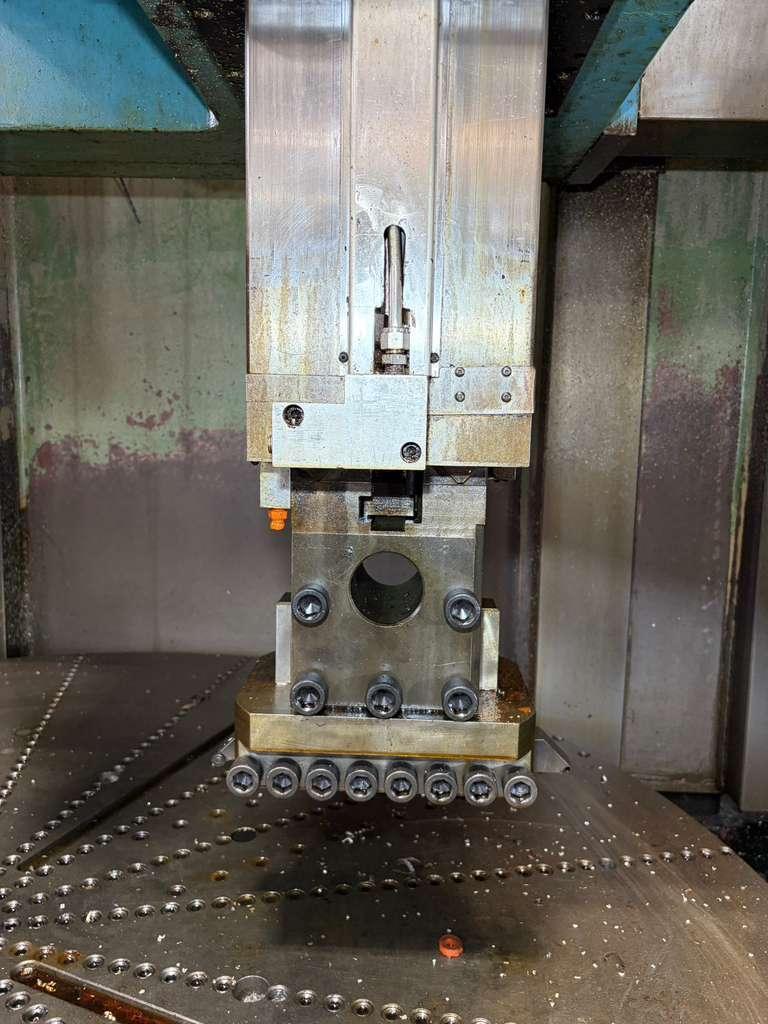

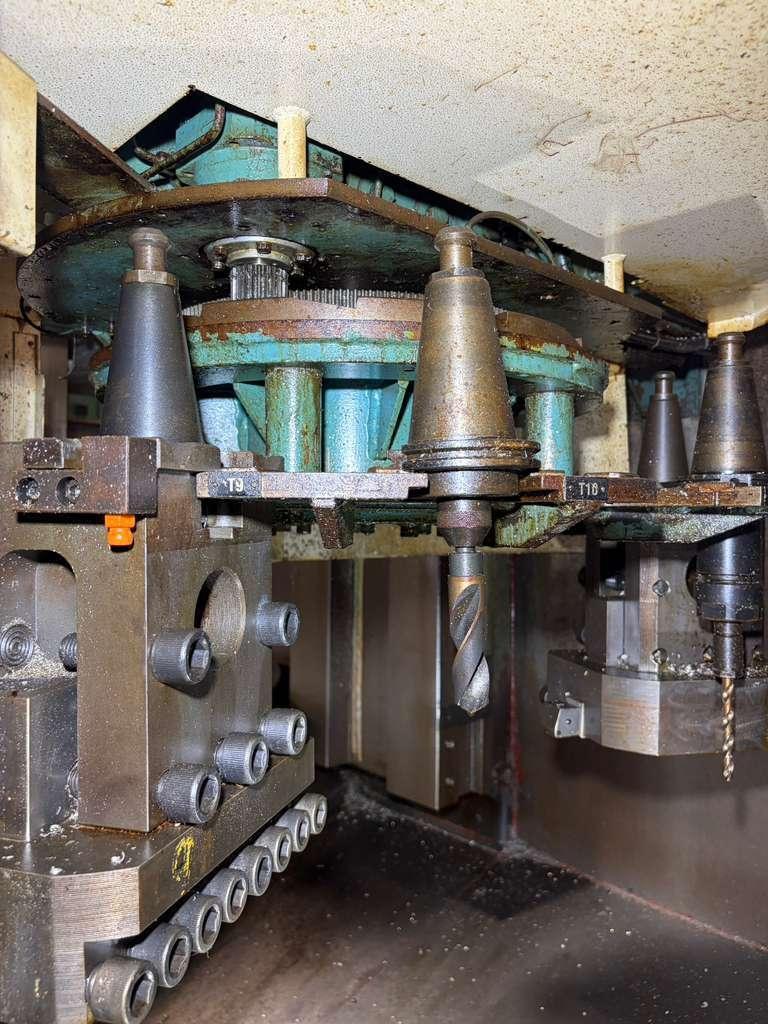

12-Station Automatic Tool Changer (6+6 Live Tool)
C Axis Live Tool
CAT-50 Taper Milling Spindle
Heavy Table Load Capacities
Coolant Tank

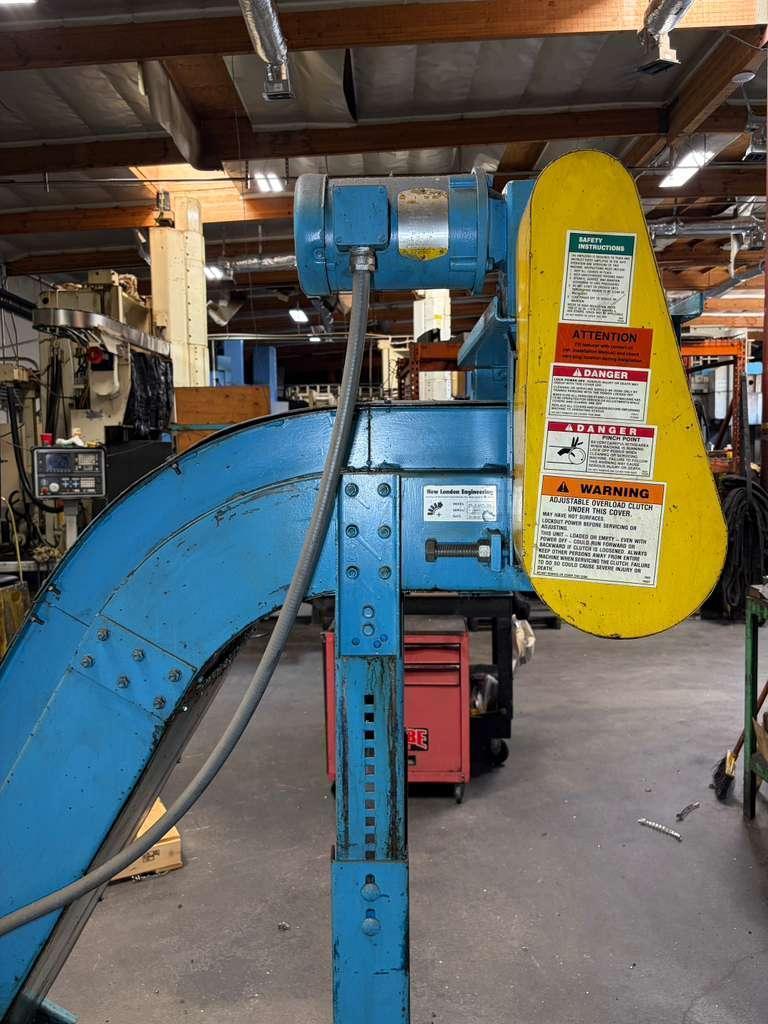

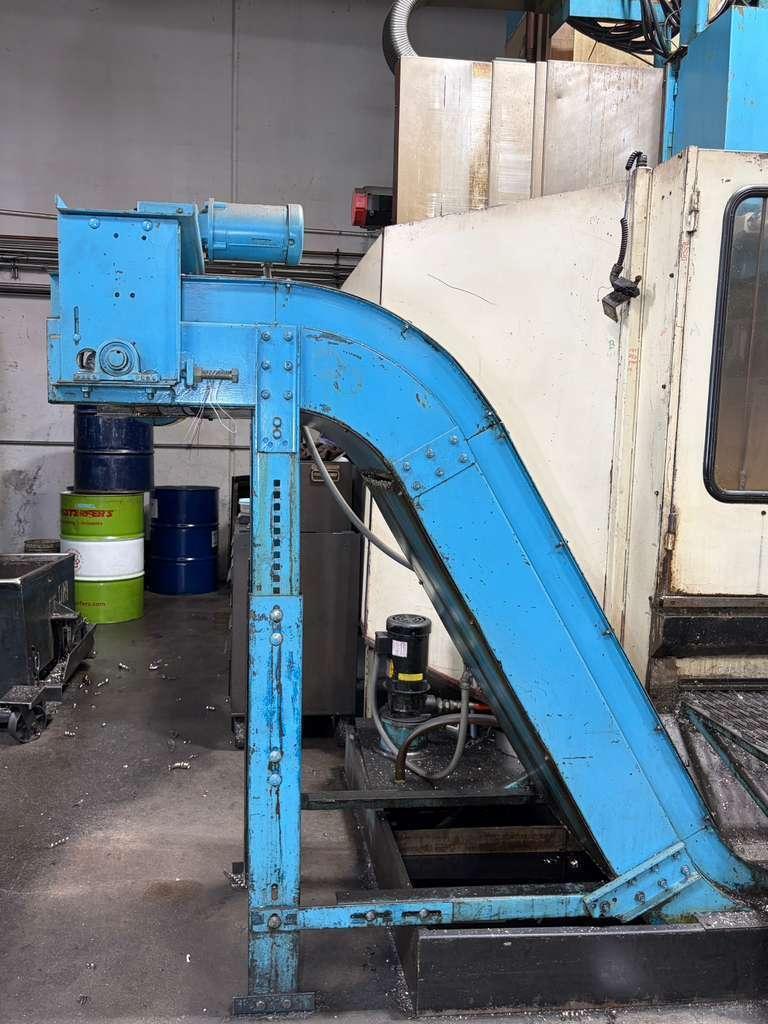

Chip Conveyor

Table / Worpiece:

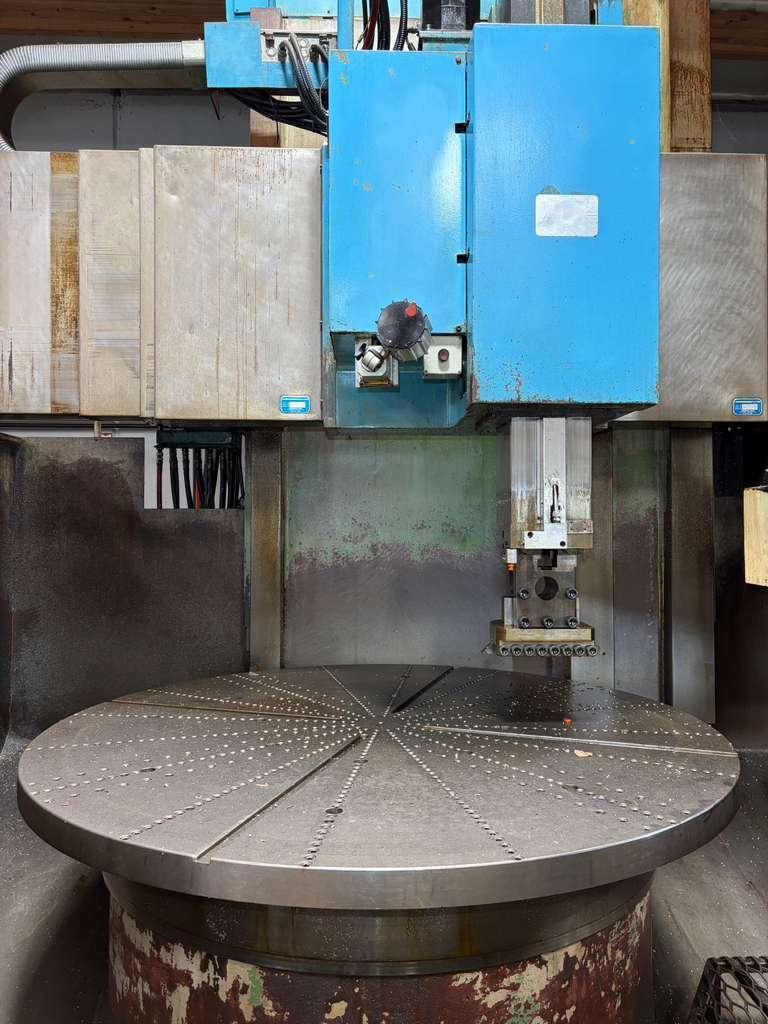

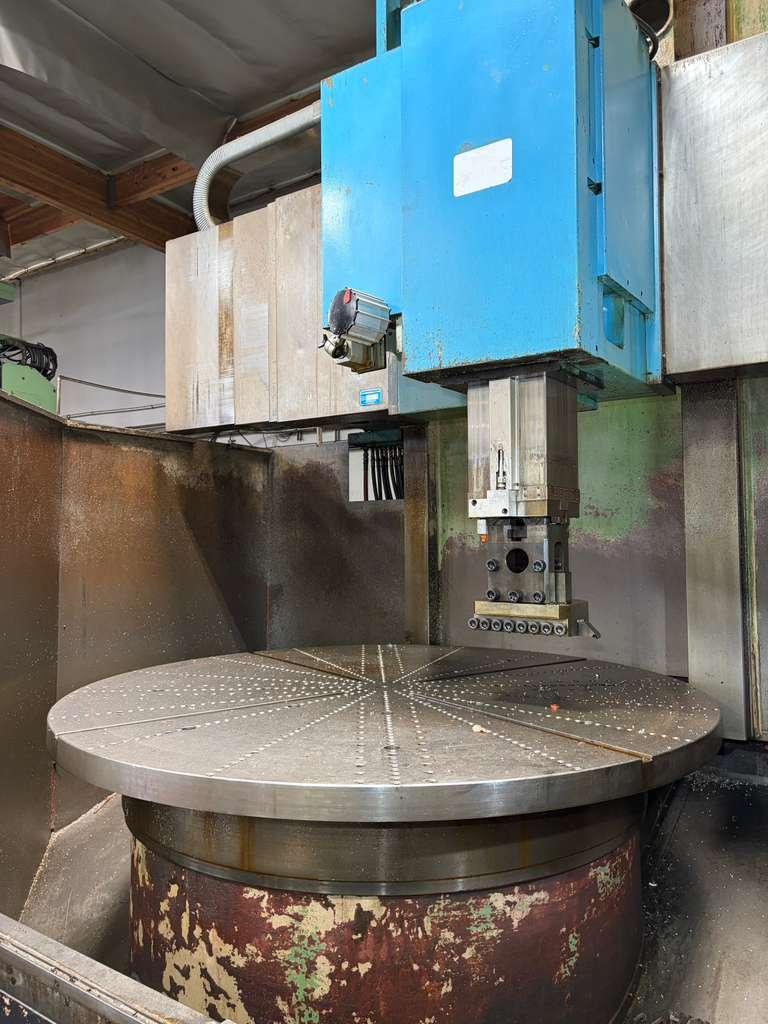

Table Diameter: 60 inch
Maximum Turning Diameter/ Swing: 80 inch
Maximum Workpiece Height Under Rail: 62 inch
Maximum Workpiece Height Under Tool: 50 inch
Maximum Workpiece Weight: 65,000 lbs

Spindle / Table:
Main Spindle Motor: 80 HP
Maximum Table Speed: 450 RPM
Drive Type: Heavy-Duty Gear Driven Table

Travels:
X-Axis Head Travel: – 47.2 inch / +57.1 inch
Z-Axis Ram Travel: 39.4 inch
Vertical Travel of Cross Rail: 39.4 inch
C-Axis Rotation: 360000 Positions
Rapid Feedrates: 394 IPM
