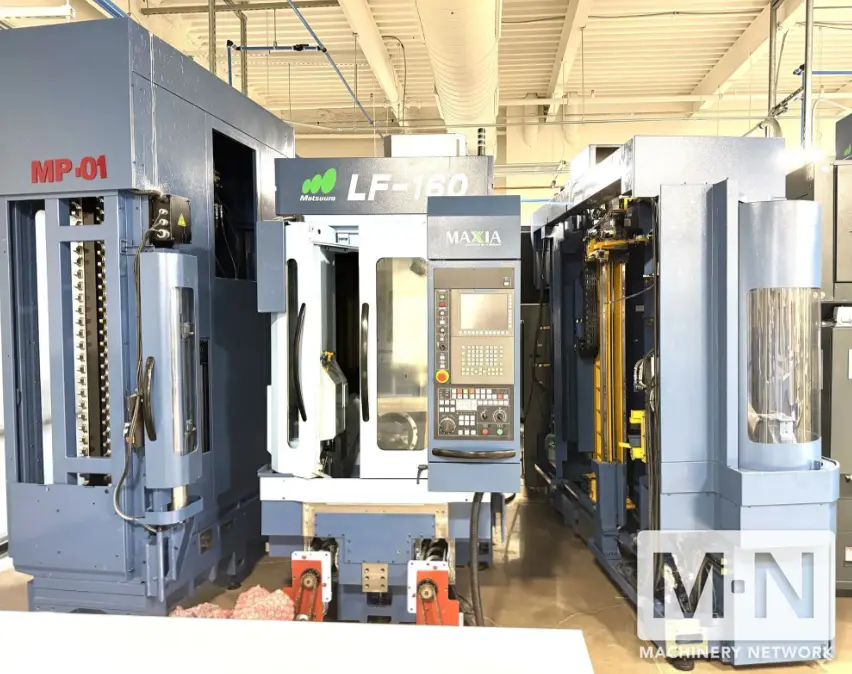

Matsuura LF-160 CNC Vertical Machining Center, 2019

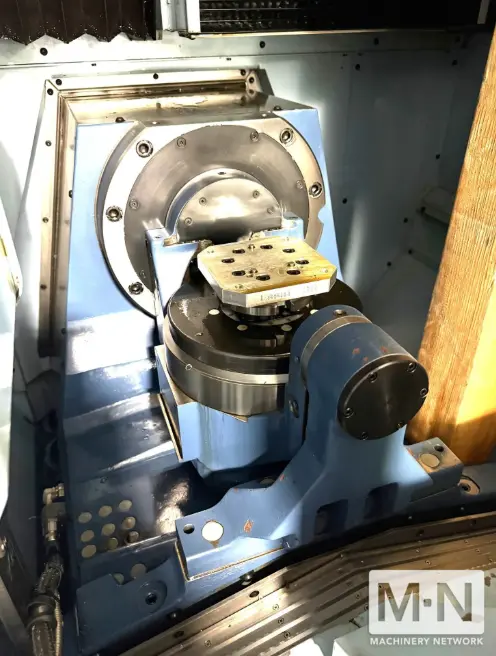

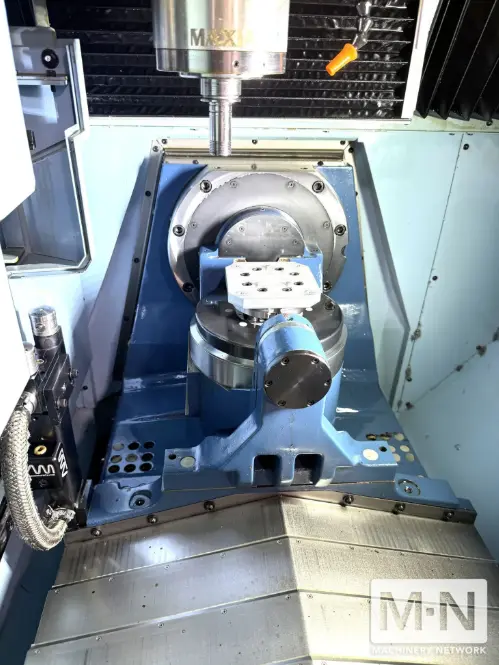

Matsuura LF-160, Linear Motor 5-Axis Vertical Machining Center
Special Machine Configuration as Follows:

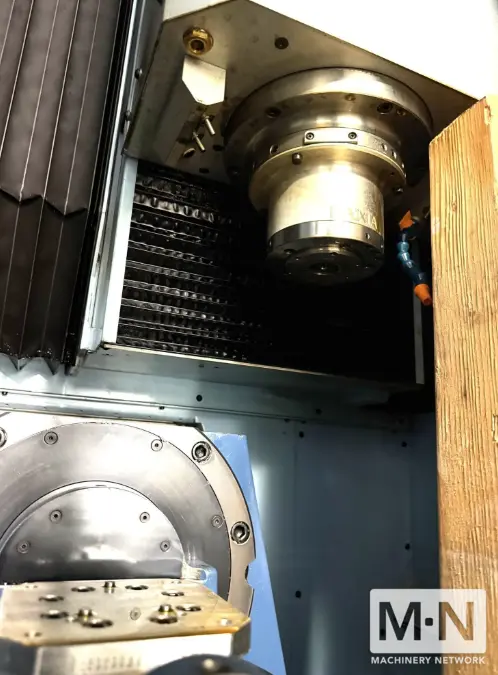

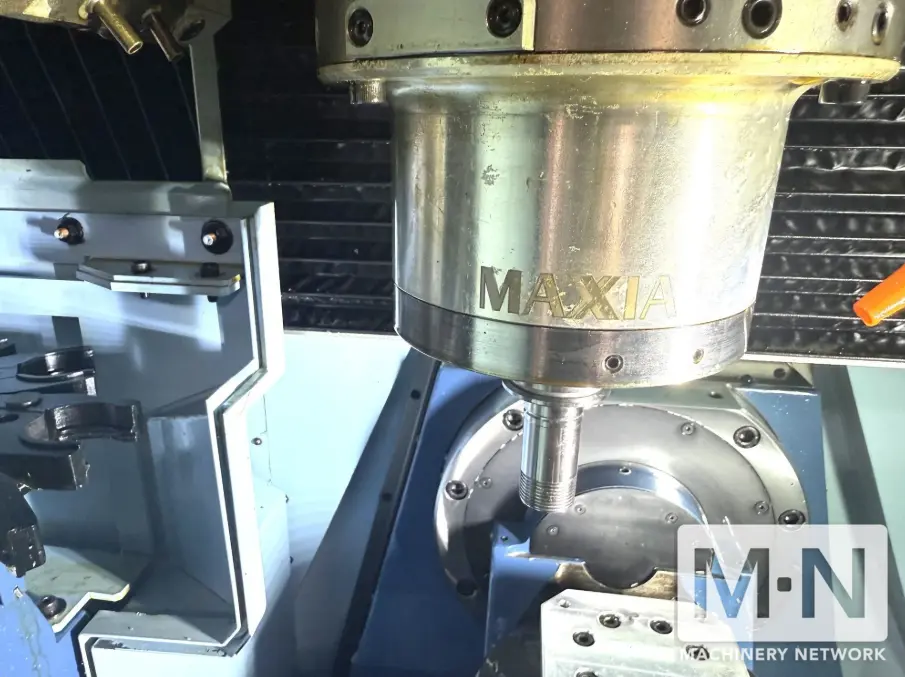

46,000 RPM #30 HSK-40E Spindle (Oil/Air Lubrication)
Scale Feedback (X,Y,Z) I Heidenhain Scale
CAMplete True Path

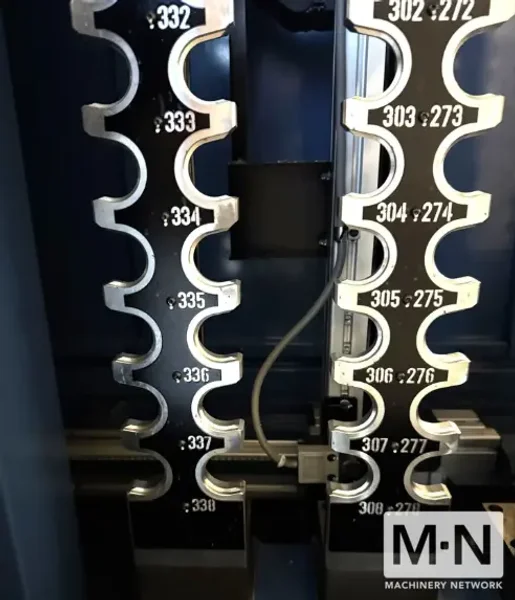

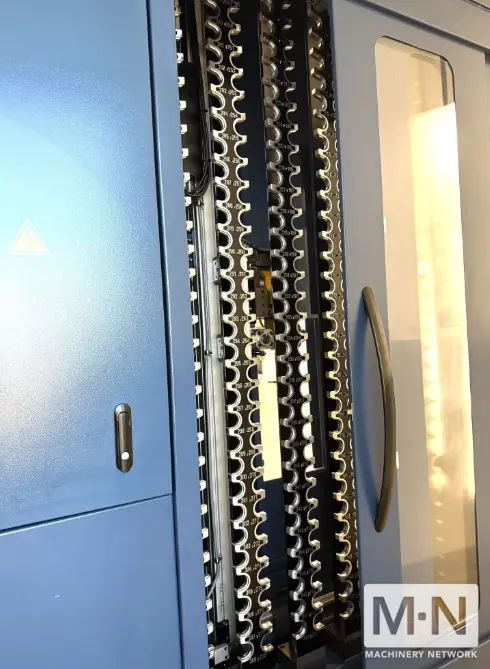

320 Tool Magazine, 320 Magazine Base
Input Command: IN/ Pallets: MM

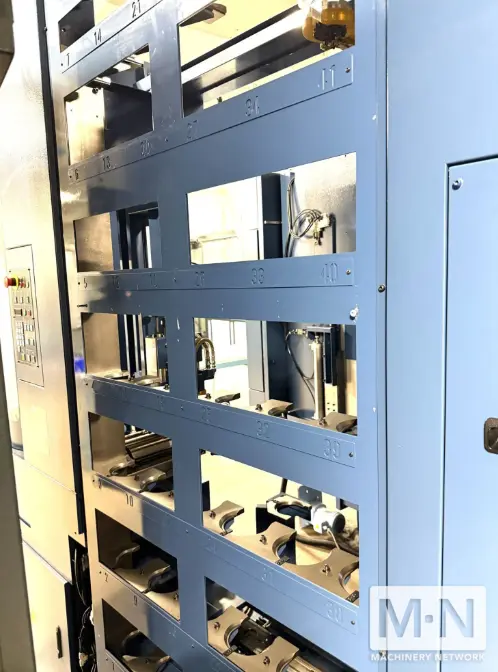

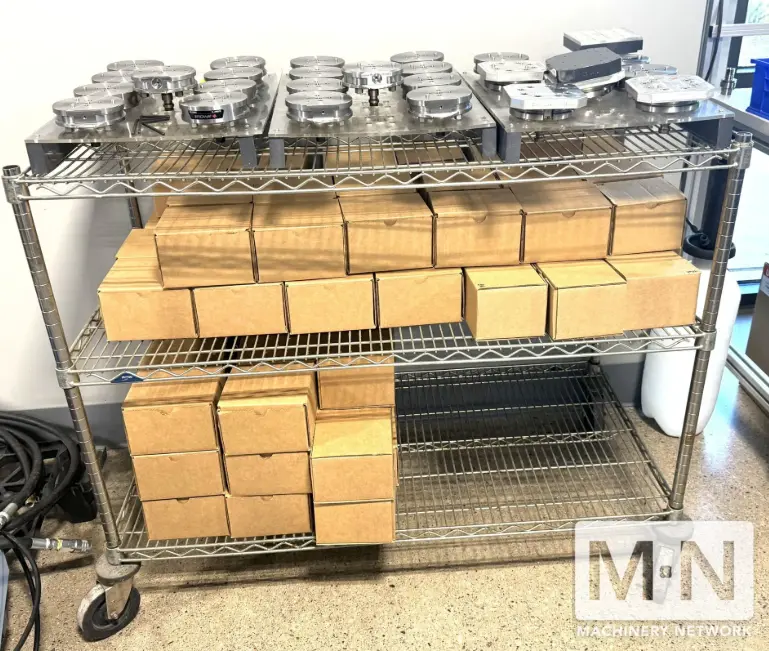

42 Linear Pallet System
Renishaw OMP400 (In-Process Measurment Probe)

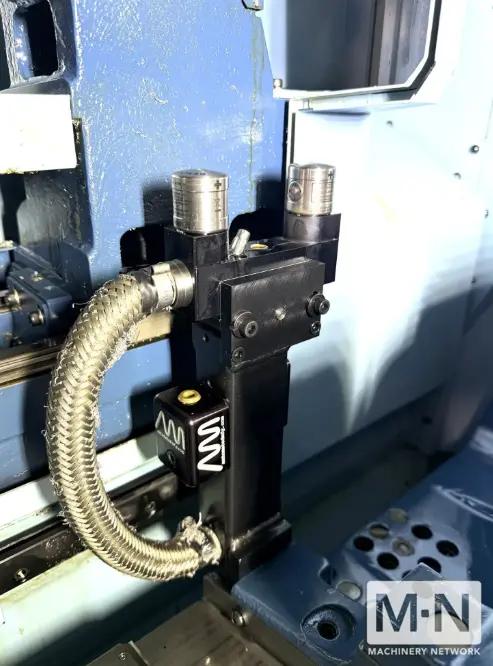

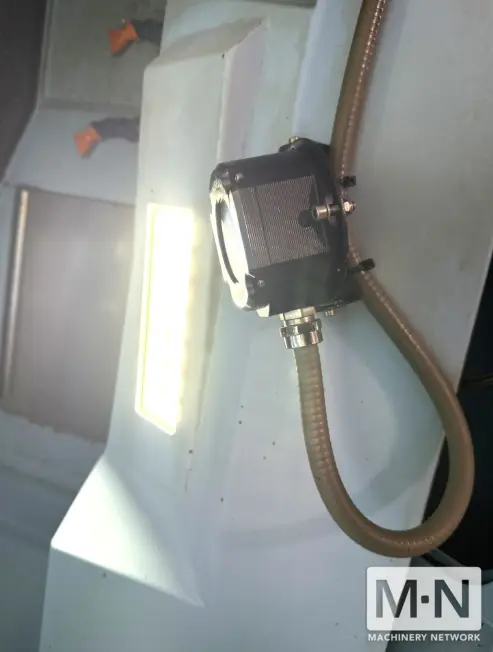

BLUM LASER CONTROL NANO NT
Spiral Augars
Air Blow For Chip Swarf Removal
Vacuum Type Coolant Thru PREP
8 Sets Of Extra M Functions
Weekly Timer
3 Color Patrol Light (Red, Yellow, Green)
Tool Pre-Check Function

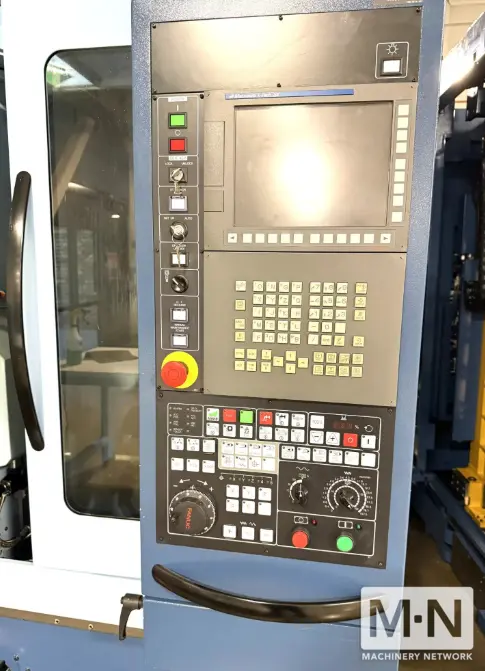

High-Speed/High-Precision & 5-Axis Package (G-Tech 30i /3li): IZ-2/150NF, Lookahead Block Expansion to 6000pcs, Nano Smoothing, Nano Smoothing 2, Optimum Torque Acceleration/Deceleration, Data Server with Ethernet, Tool Center Point Control, Titled Working Plane Command, 3-Dimensional Cutter Compensation, Work Setting Error Compensation, Inverse Time Feed (093), Tool posture control
MMU Value Package: Tool Offset Pairs 999-pairs, Addition of Work piece Coordinate System 300-pairs, Optional Block Skip 9, Program Restart, Coordinate System Rotation, Tool Life Management, Part Program Storage Size 8Mbyte, High-Speed Skip, Common Variable Expansion (#100-#199/#500-#999)

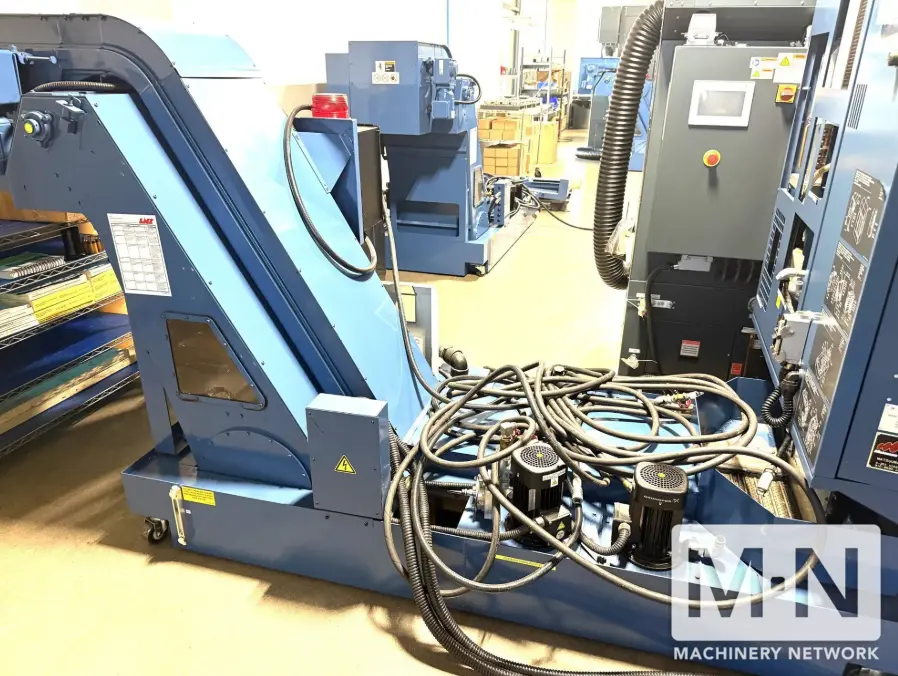

MICROFINE 3 Conveyor Type with Rear, Center Discharge. Perforated Belt Type. Includes tank and variable speed control. (65839117)

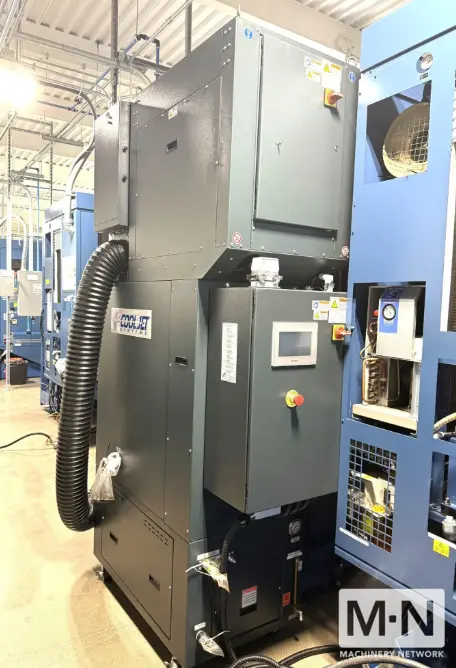

ATS U7036VCM Stackable High Pressure System with: Cooljet 70-36V CTS w/1000 PSI Collant Thru Spindle Coolant Chiller 24,ooo BTU
MistBuster Mist Collector (50-850 CFM)
APPROX 5000 HOURS CURRENTLY DISMANTLED AND READY FOR SHIPMENT
