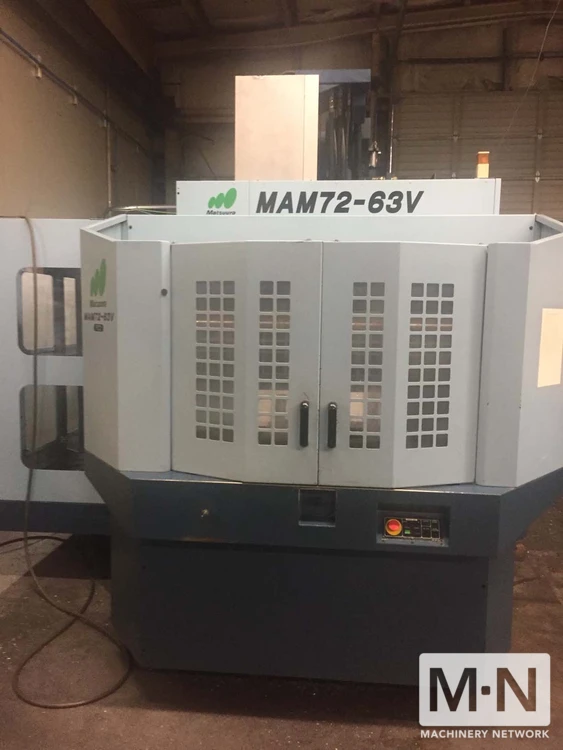

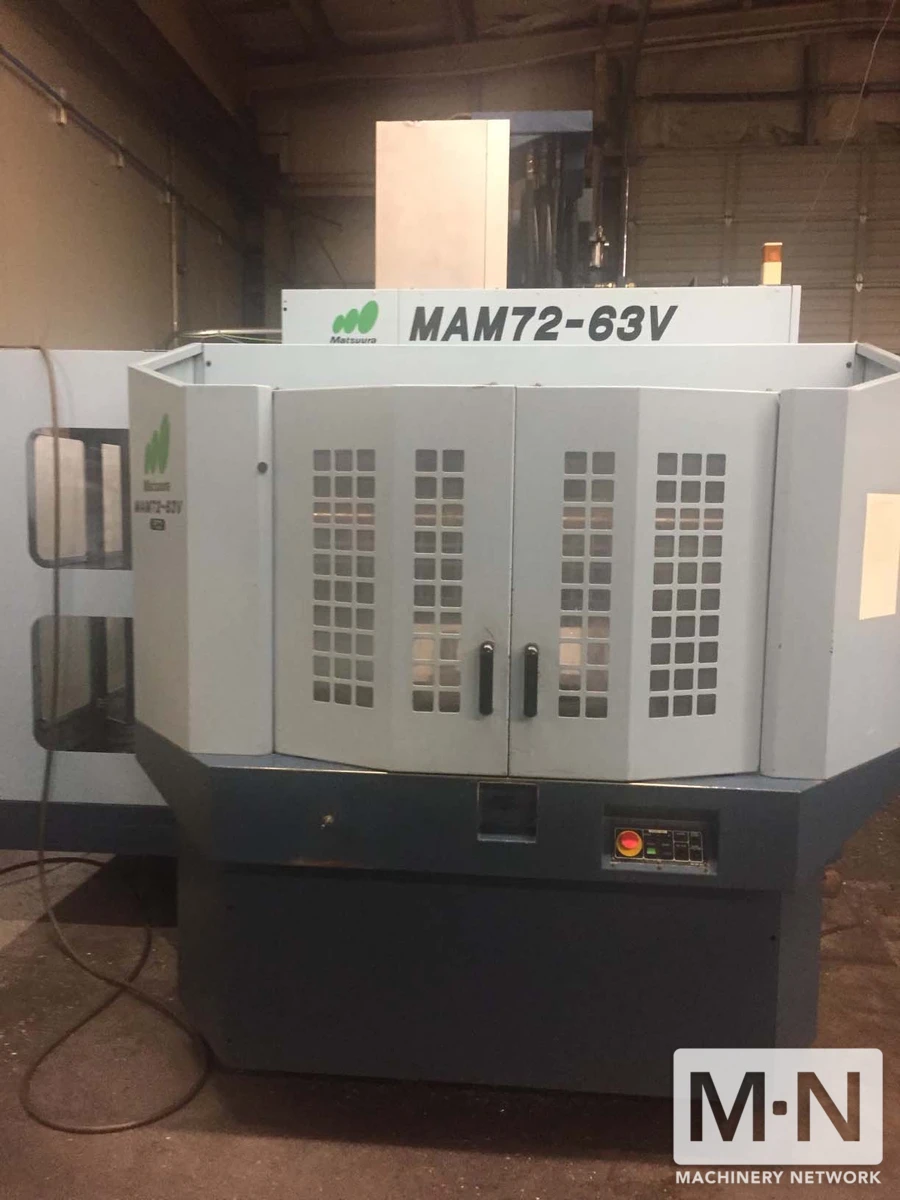

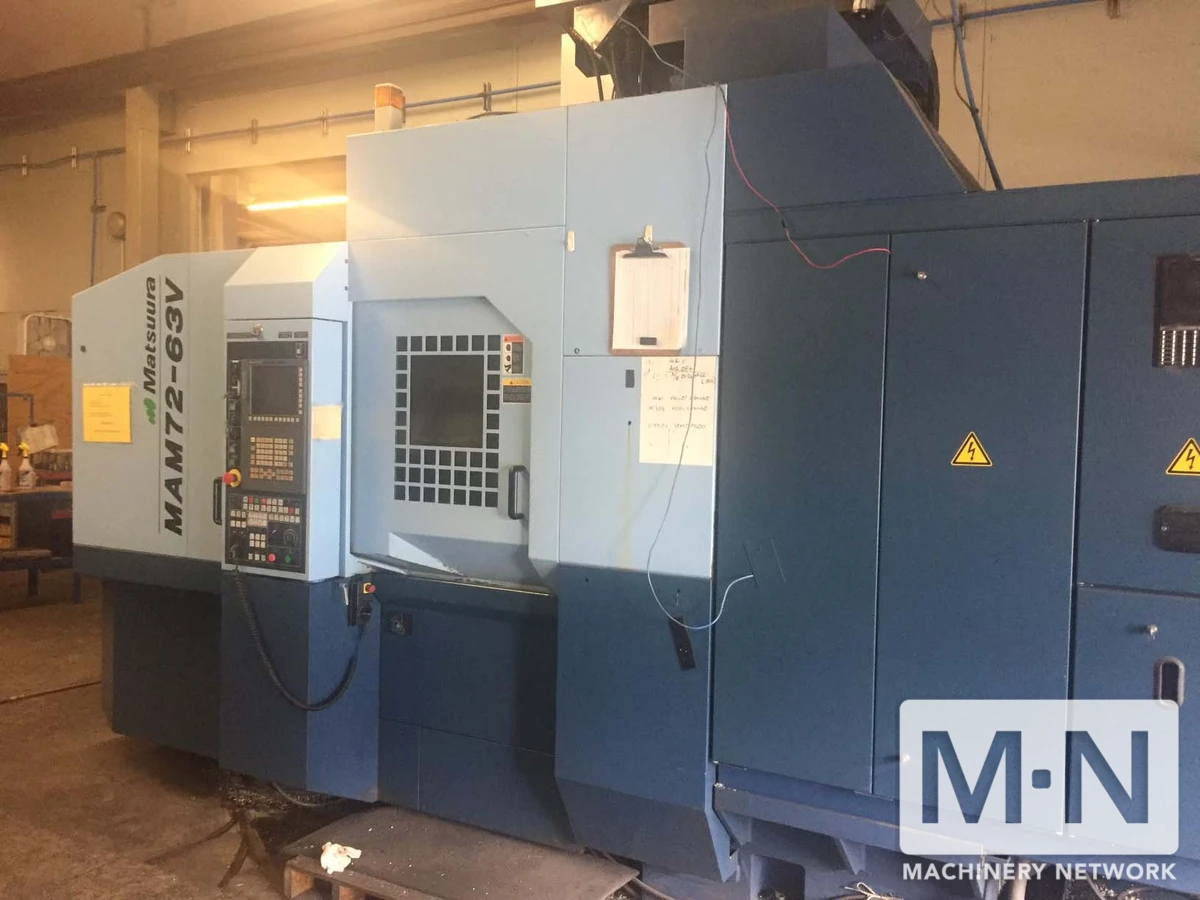

Matsuura MAM72-63V 5-Axis CNC Vertical Machining Center w/ APC

Brand
MATSUURA
Category
Machining Centers
Type
Vertical Machining Centers
Model
MAM72-63V
Stock #
40472
Year
2007
Condition
Not specified

Location

Not specified

Overview

Type:
Vertical Machining Centers
Manufacturer:
MATSUURA
Model:
MAM72-63V
Year:
2007
Stock #:
40472
Status:
For Sale

Description

FANUC 30i control, 30"X 33"Y 26"Z travels, CAT40, 12k rpm spindle, twin pallet with 2 extra pallets, LOADED Laser tool setter, 120 tools (wine rack is expandable to 240), thru tool coolant rigid tapping, tool radius comp for 5-axis machining, tolerance control, MAYFRAN conveyor

X Axis Travel29.92"759.97 mm
Y Axis Travel33.26"844.8 mm
Z Axis Travel25.98"659.89 mm
Spindle Speed12,000 RPM12,000 RPM
ATC Capacity120120
Spindle TaperCat 40Cat 40
# Axis55
Table dimensions19.68" x 19.68"19.68" x 19.68"

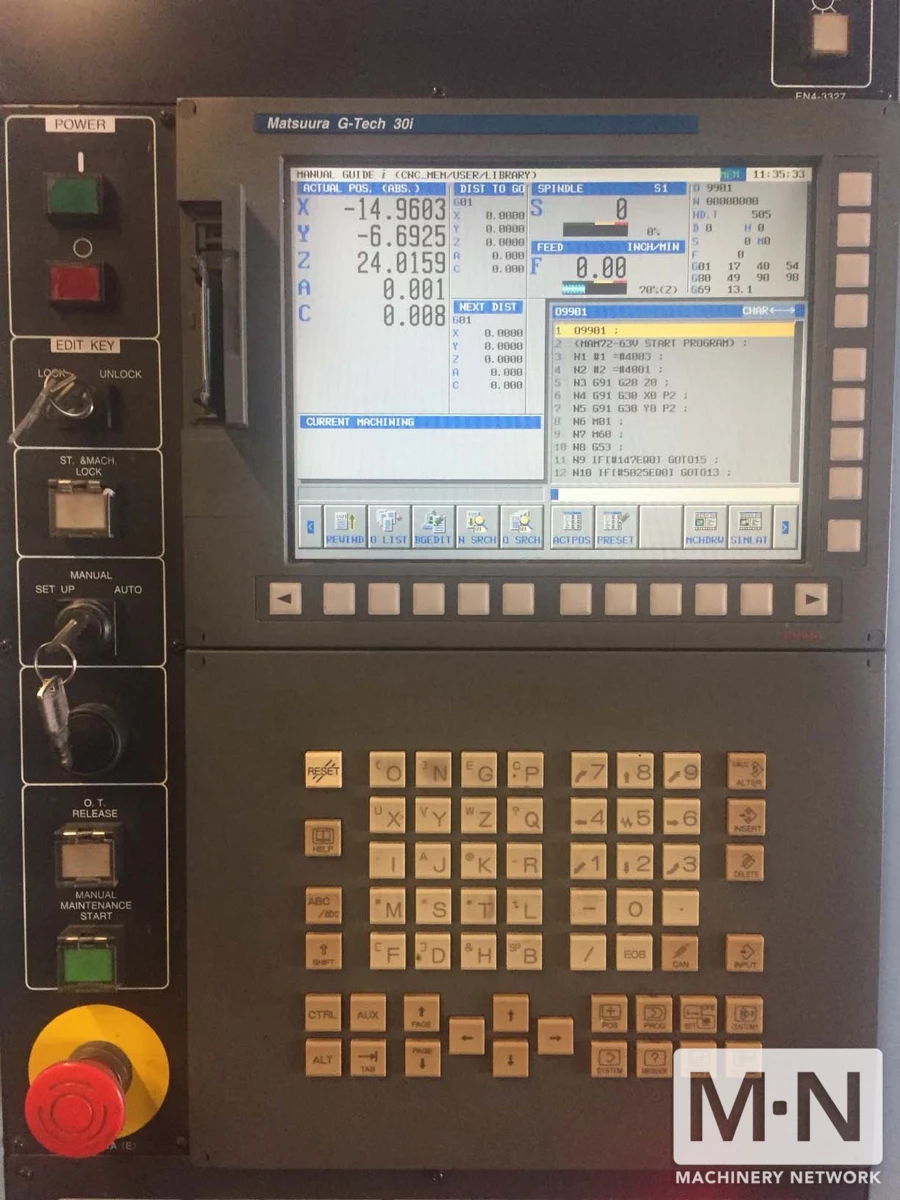

ControlCNC (Fanuc 30i Control)CNC (Fanuc 30i Control)

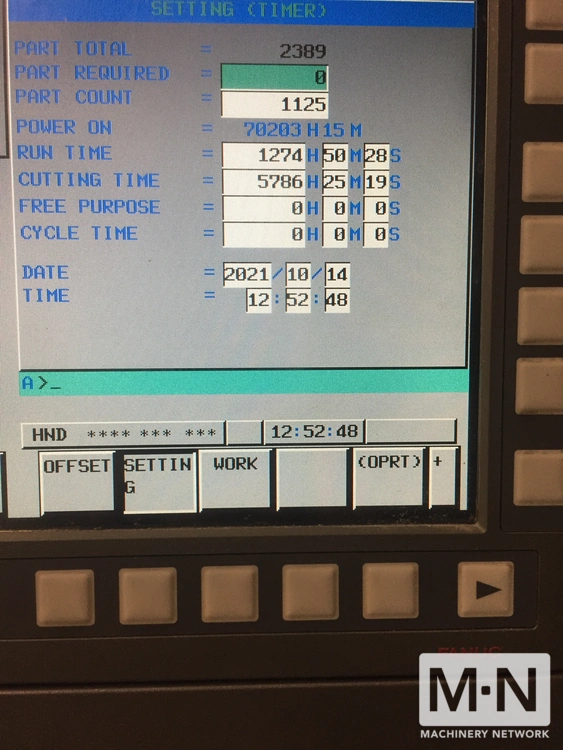

FANUC 30i control
12,000 rpm spindle

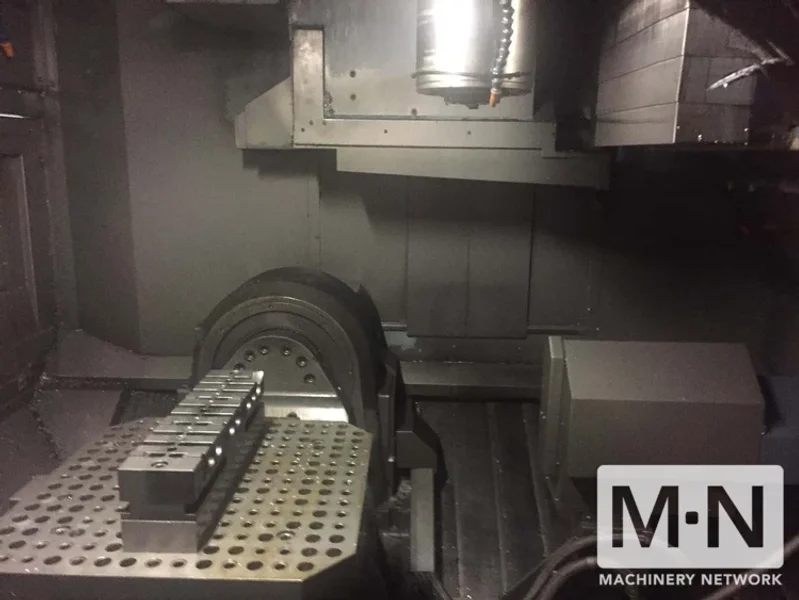

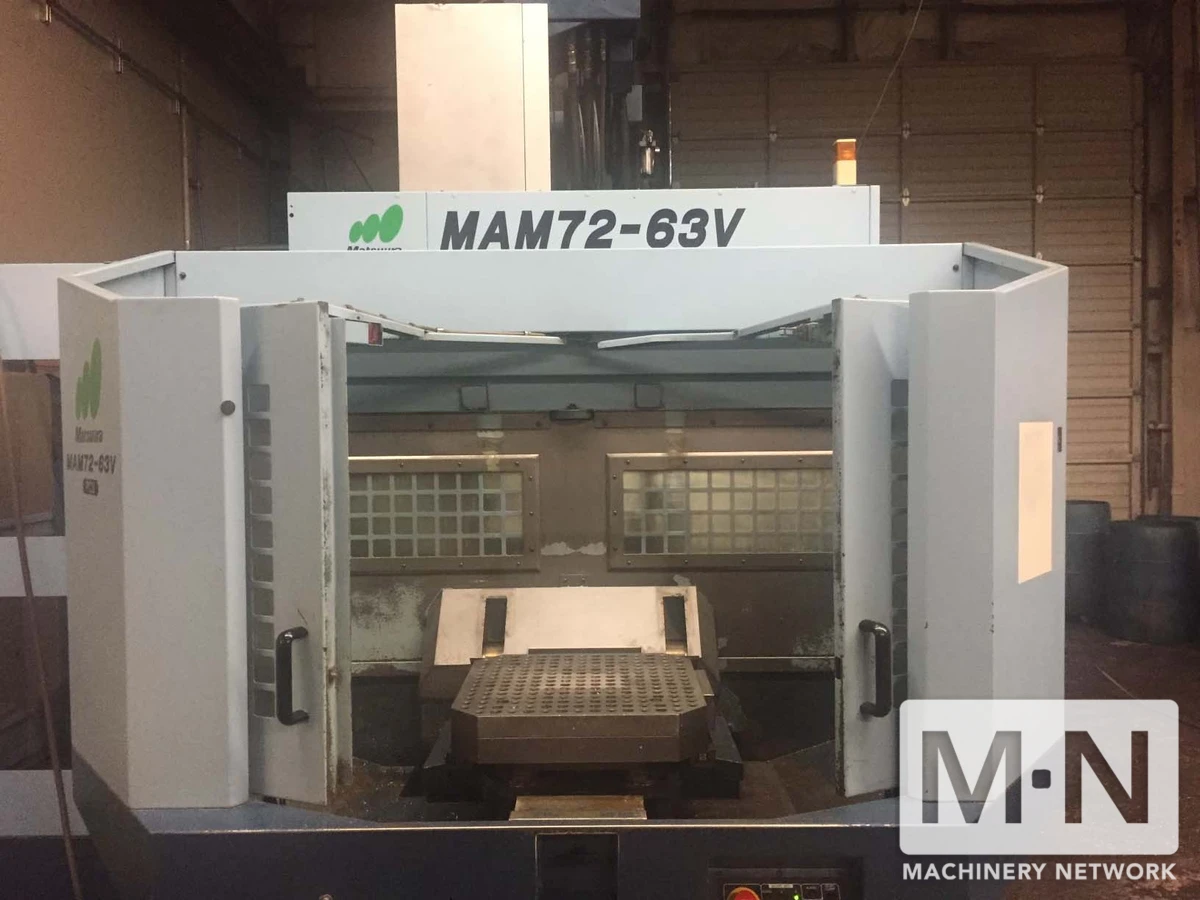

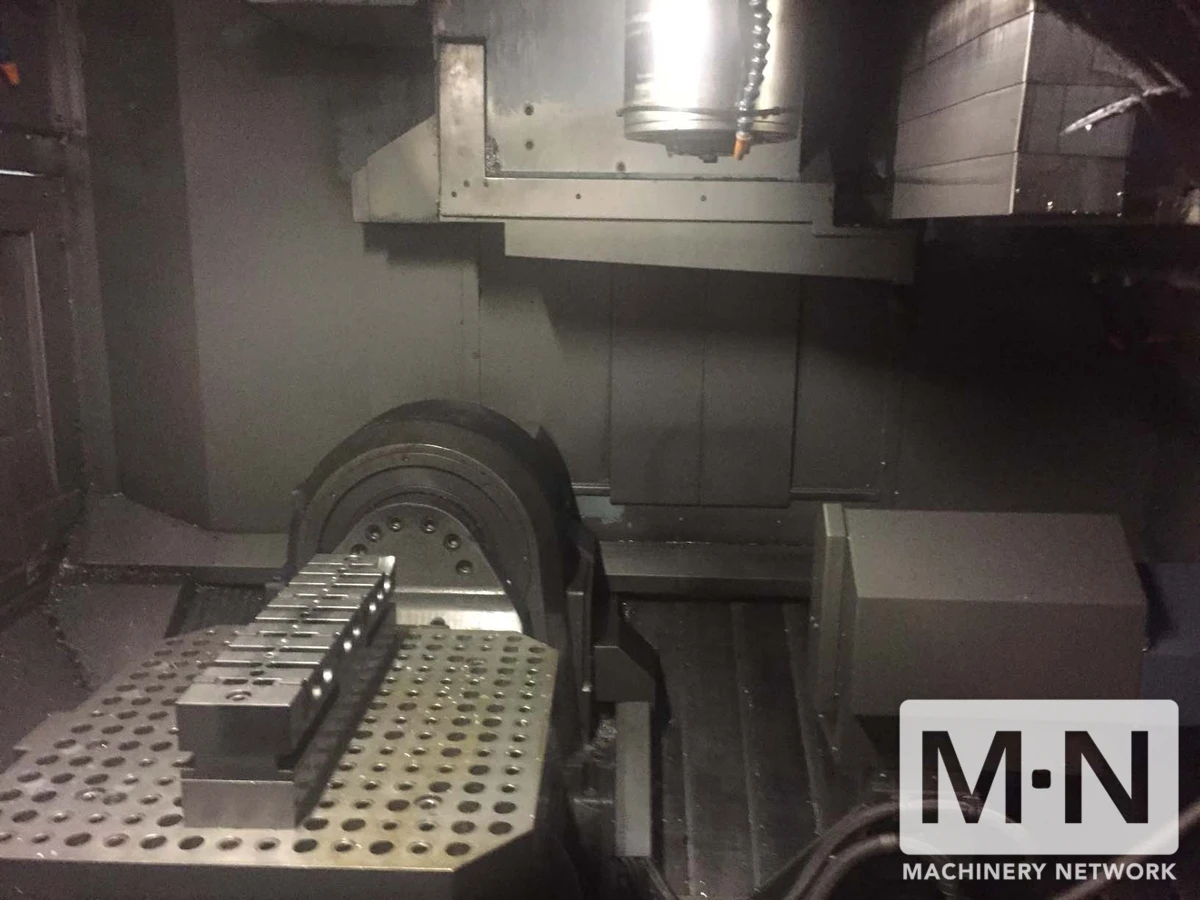

Twin pallet with 2 extra pallets (4 total pallets)
LOADED Laser tool setter
Thru tool coolant Rigid tapping
300 work offsets
1000 Tool offsets
2mb Data Server on board
Tool radius comp for 5-axis machining
Tolerance control
Tool life management
Auto tool measurement

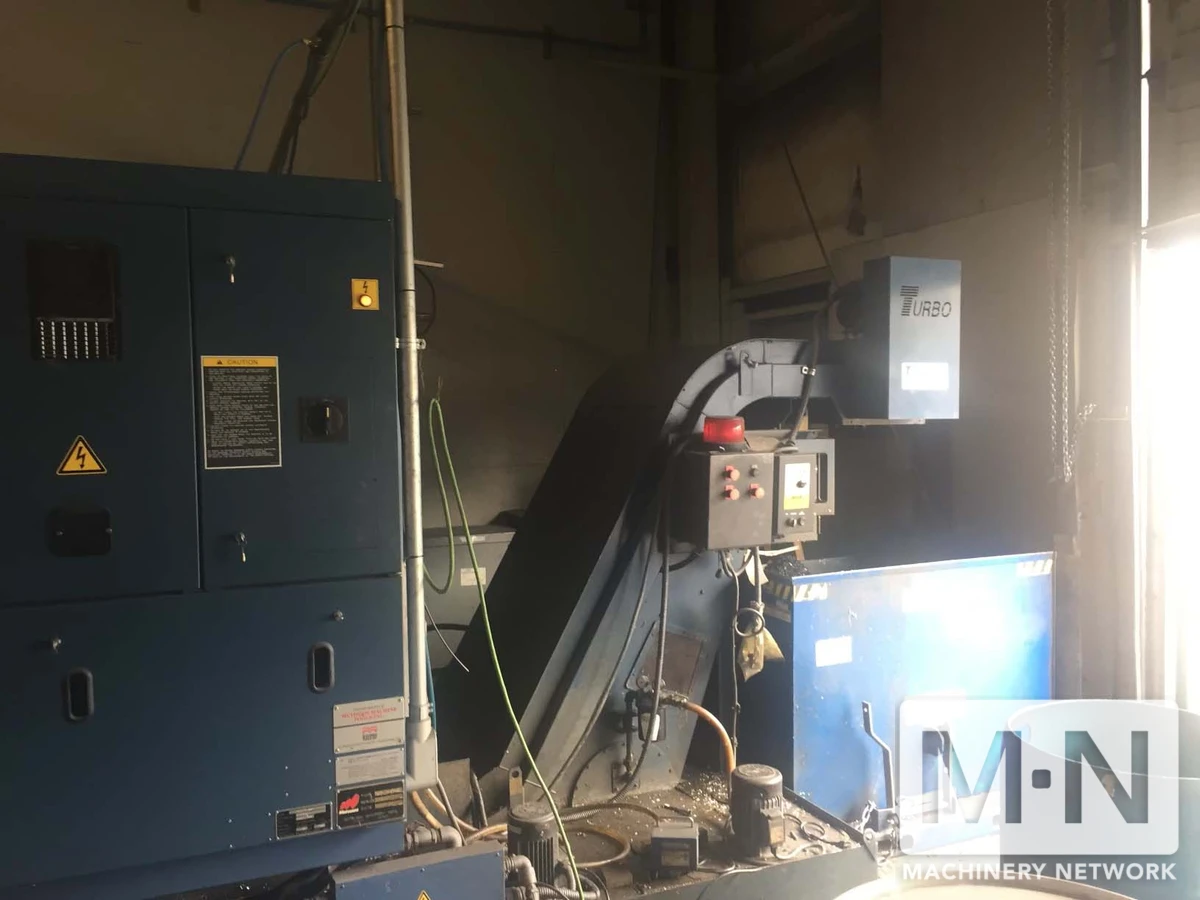

MAYFRAN conveyor for aluminum (backflush fine swarf removal)
