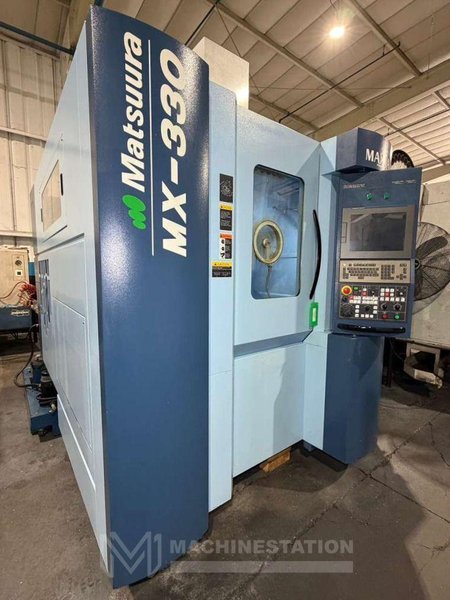

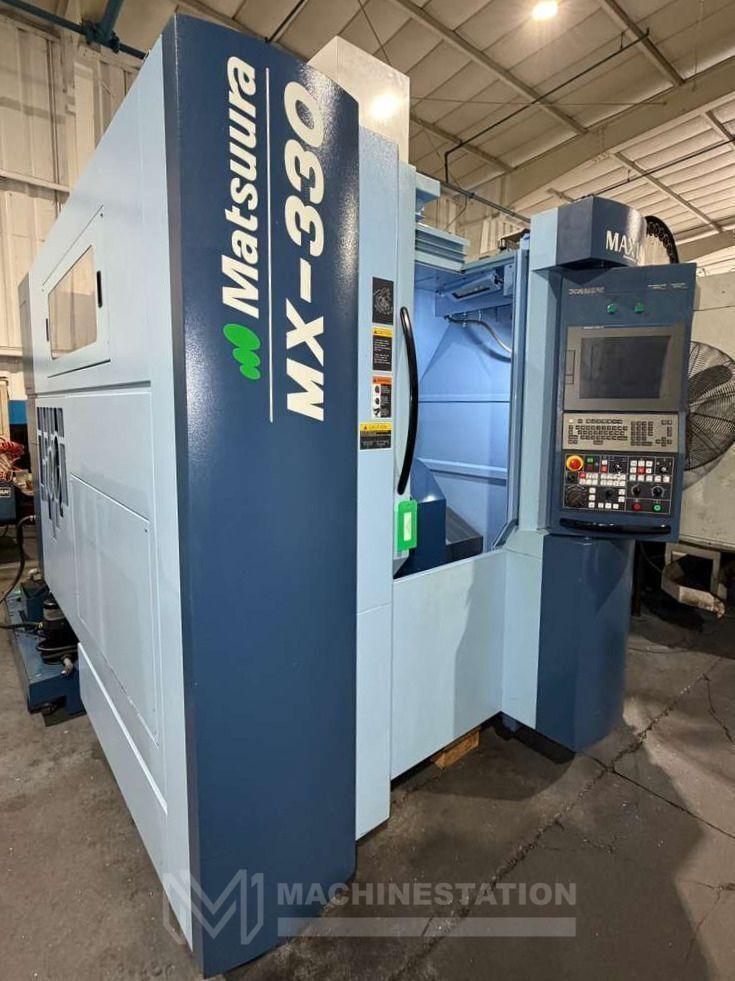

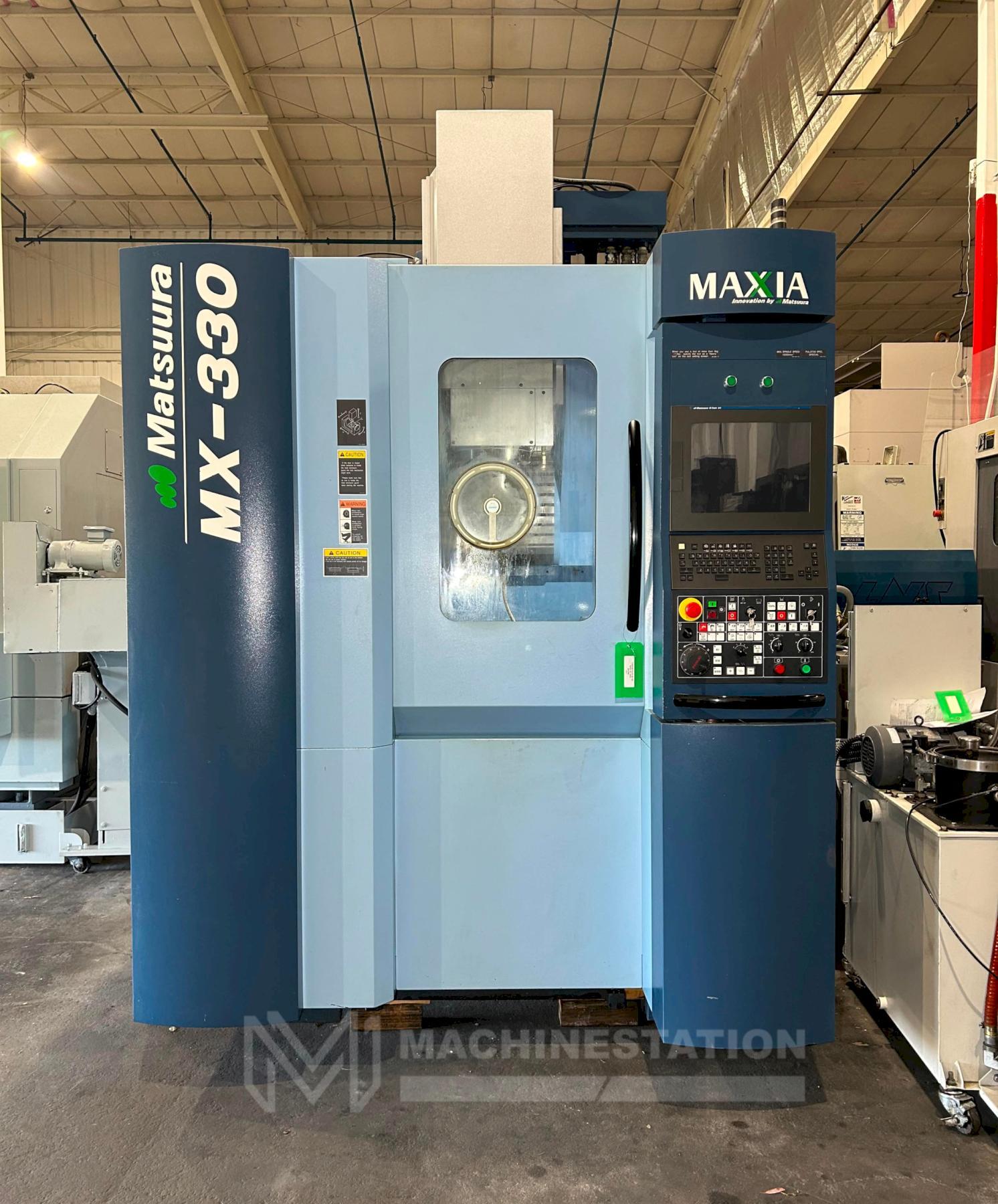

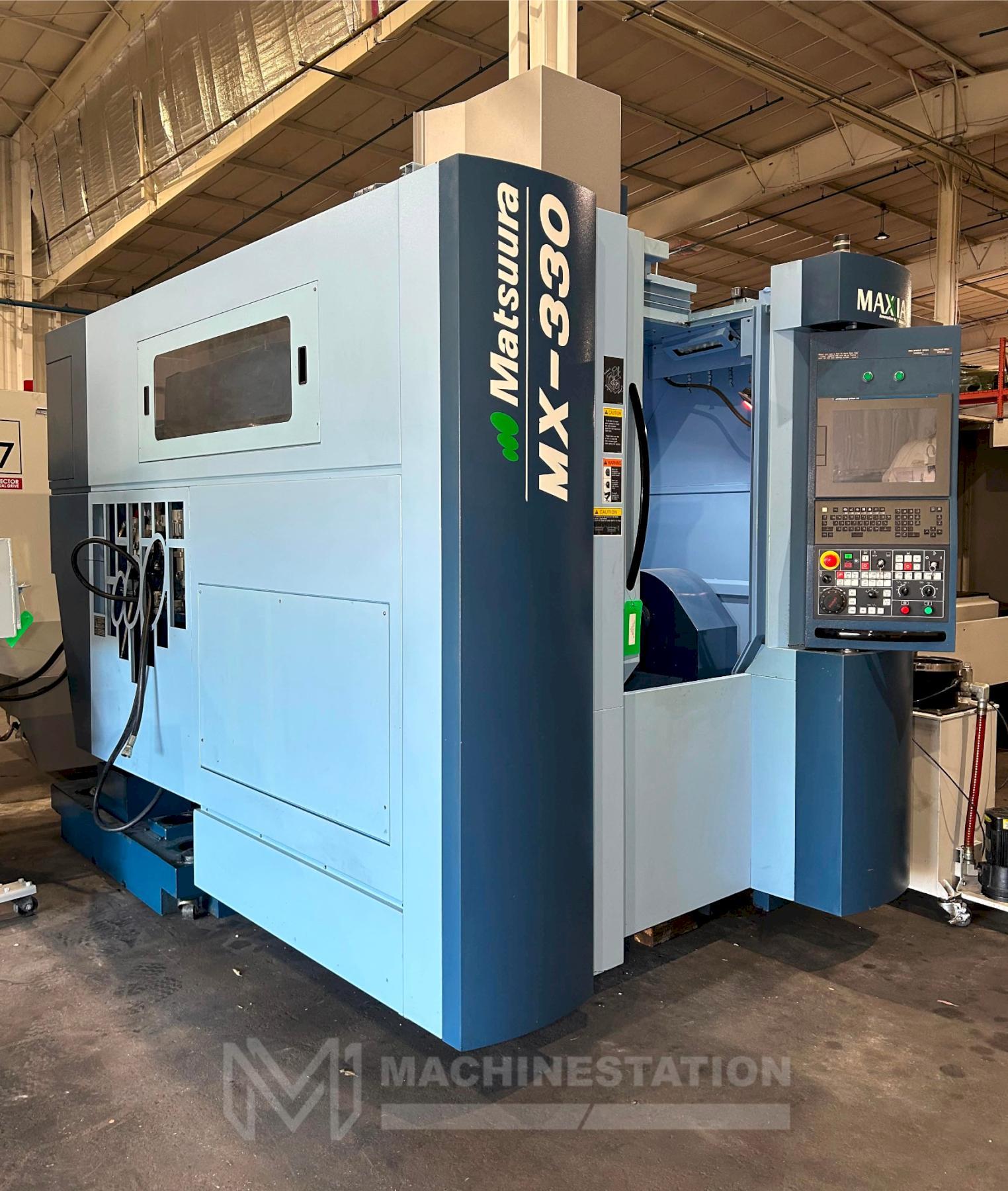

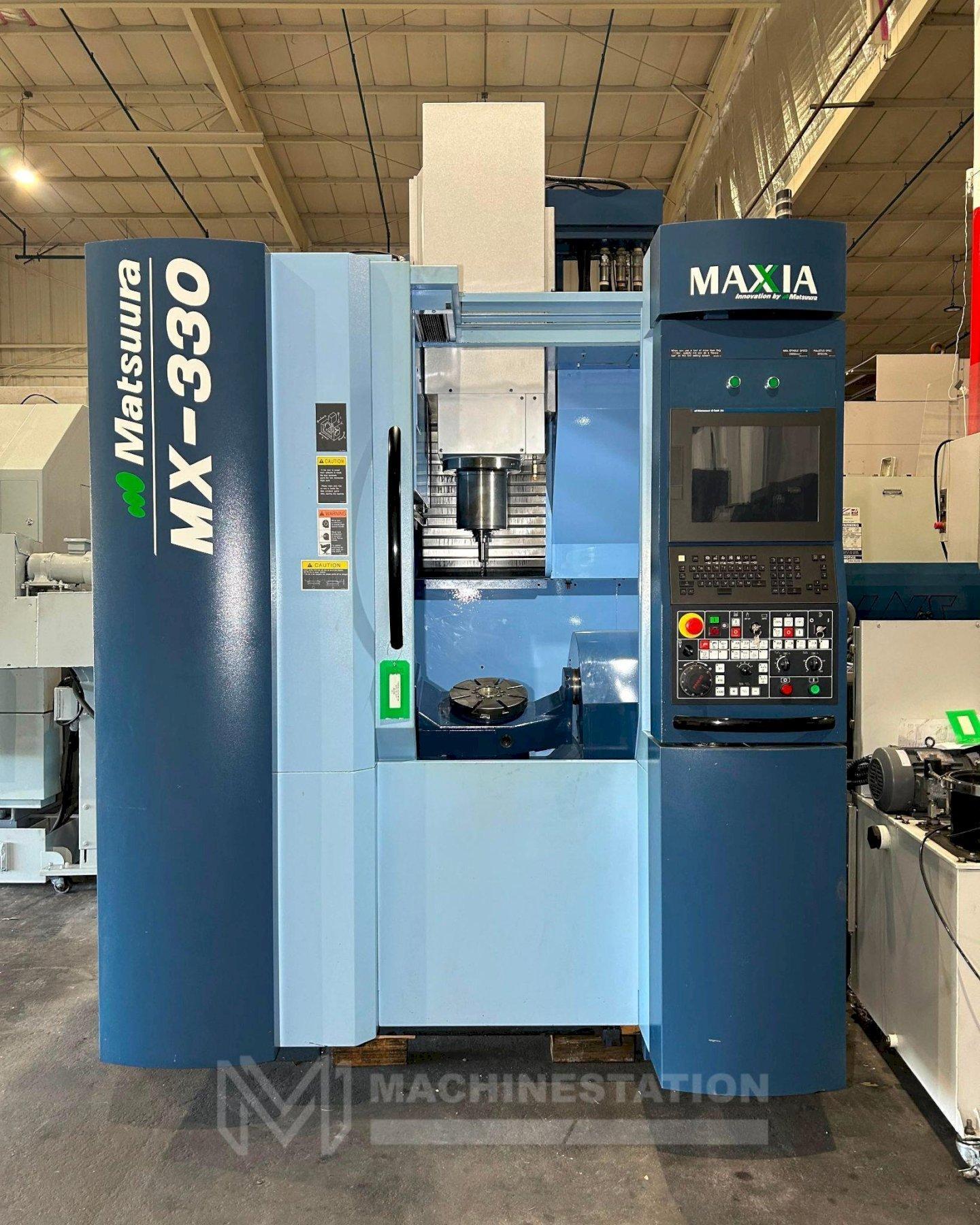

Matsuura MX-330 5-Axis CNC Vertical Machining Center – 15,000 RPM Mill

Matsuura MX-330 5-Axis CNC Vertical Machining Center – 15,000 RPM Mill

Name: Matsuura MX-330 5-Axis CNC Vertical Machining Center – 15,000 RPM Mill
Brand: MATSUURA
SKU: 113609
Availability: InStock

Brand

MATSUURA

Location

Not specified

Specifications
Files & Videos

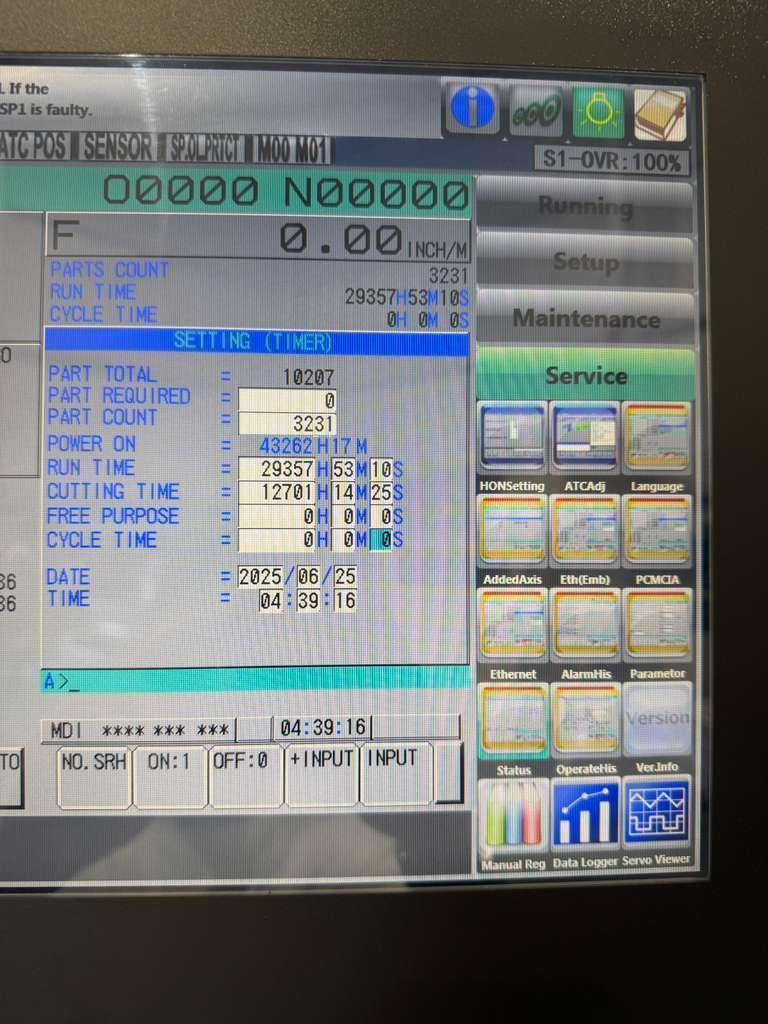

*All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice. Equipment is sold AS-IS, WHERE-IS. All sales are final.*

SKU:	113609
Make:	Matsuura
Model No.:	MX-330
Year of Manufacture:	2016

Equipped With:

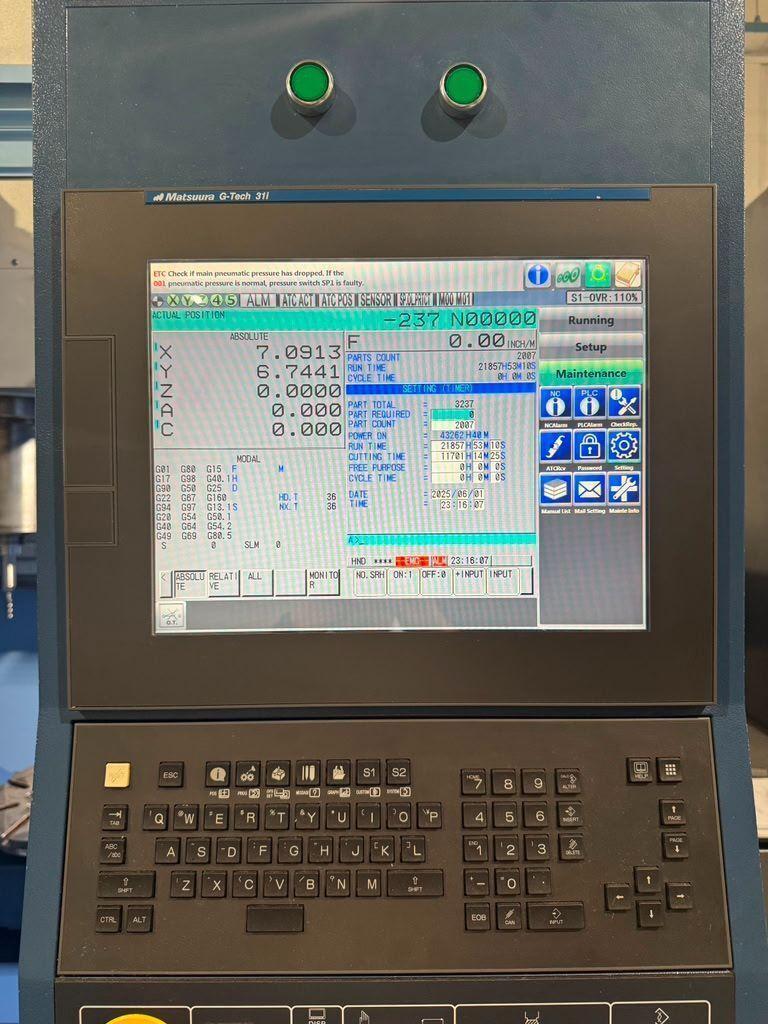

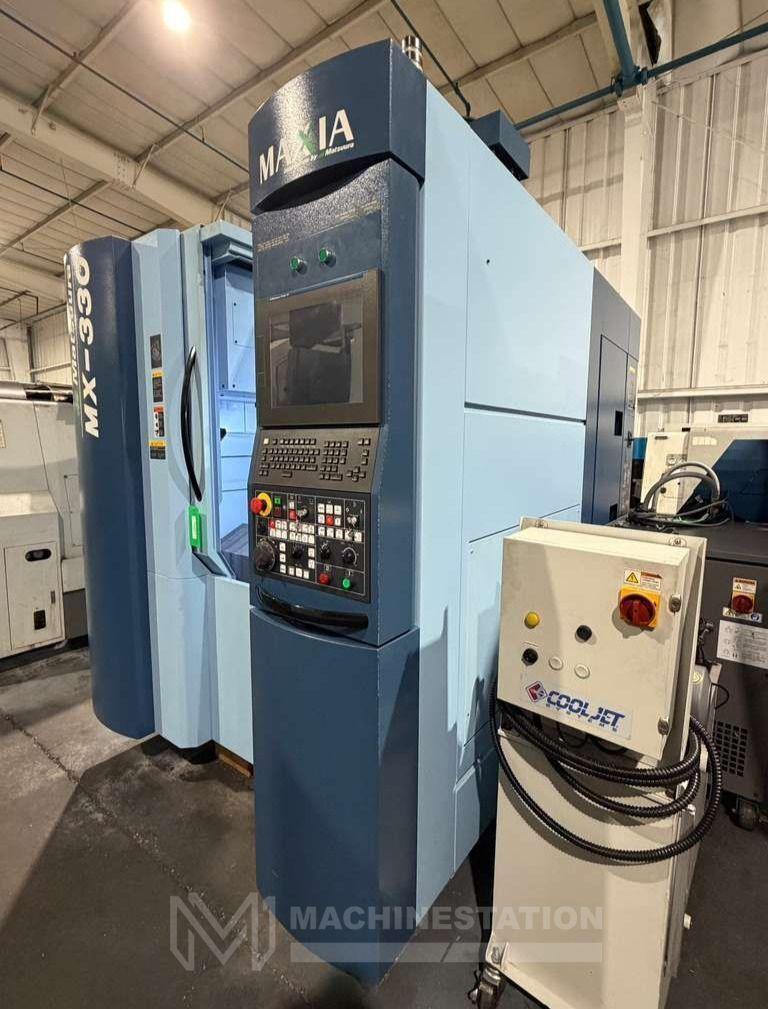

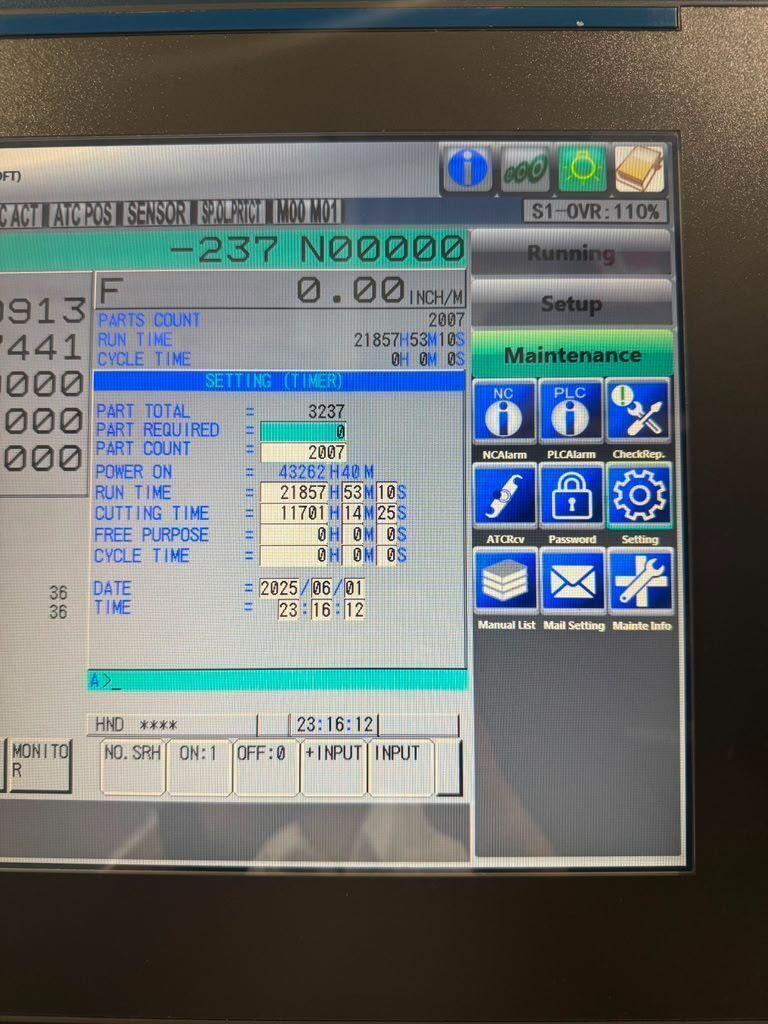

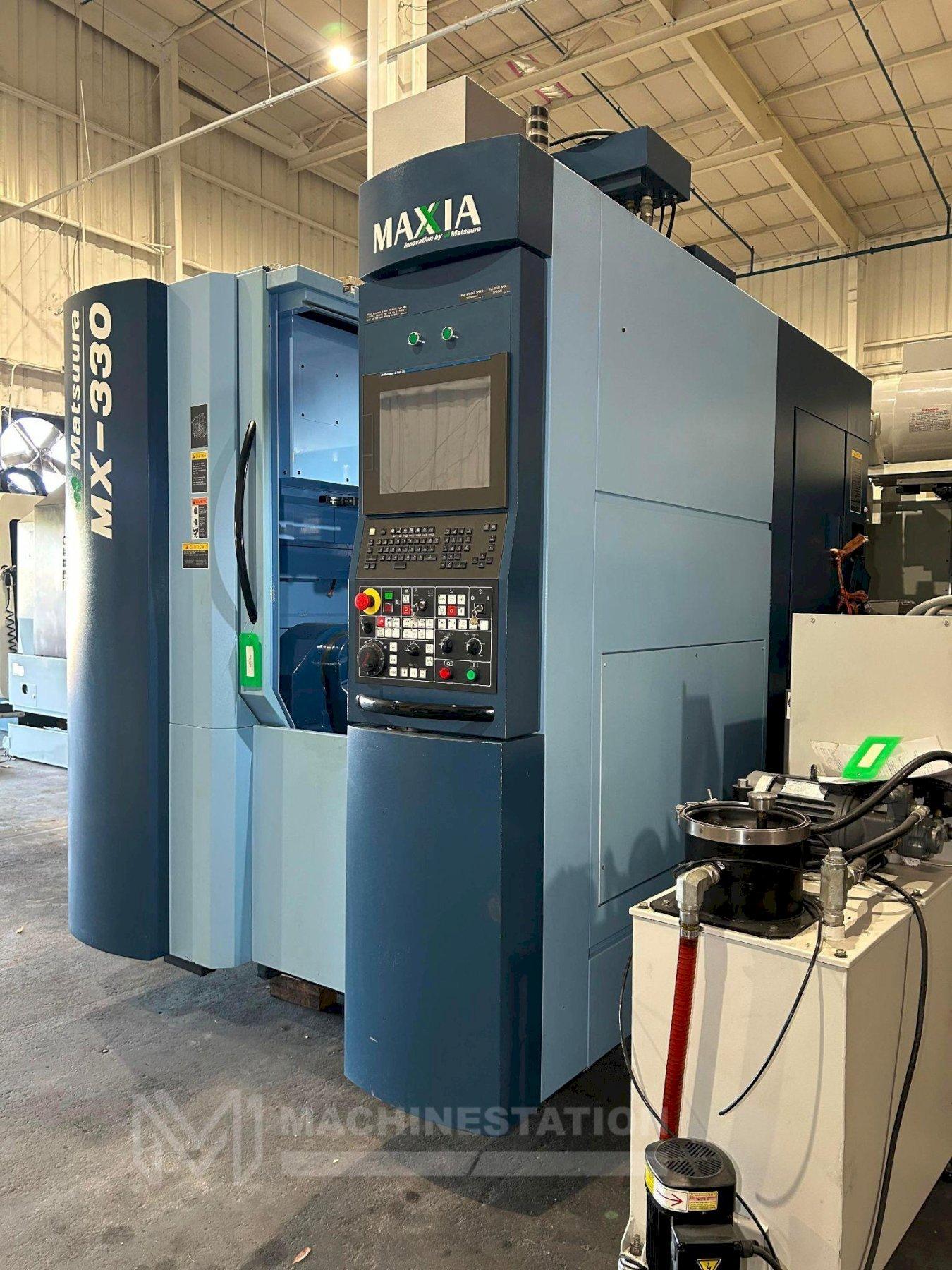

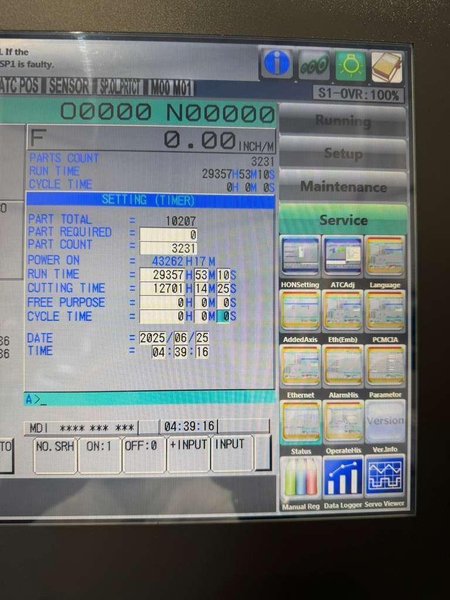

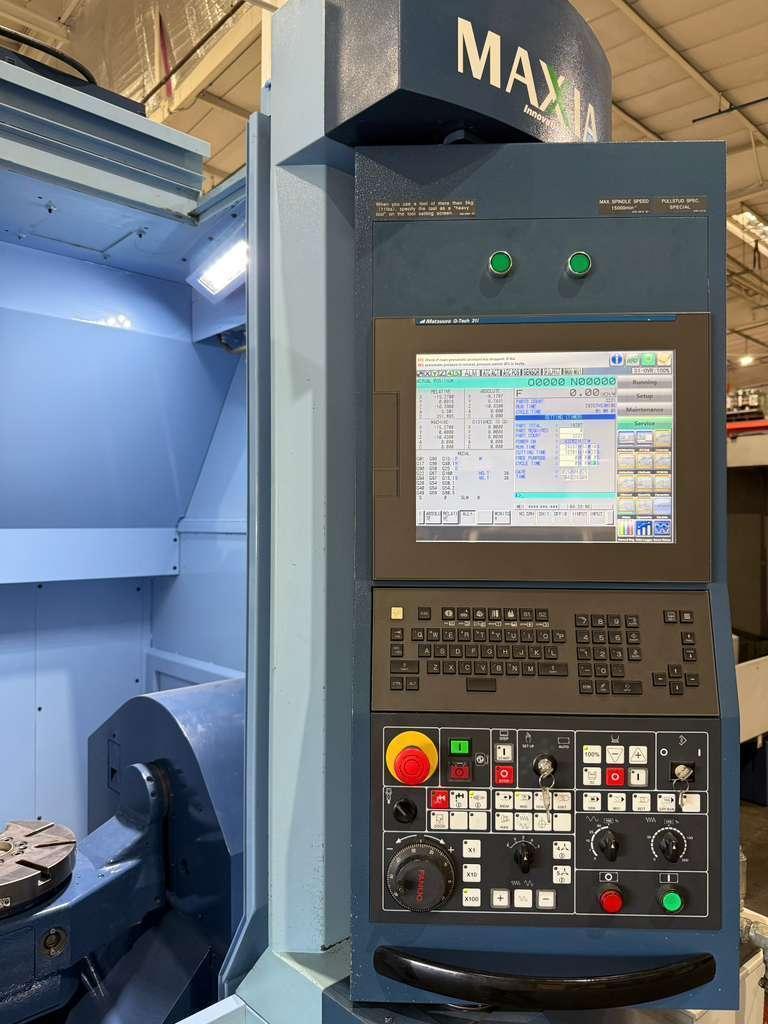

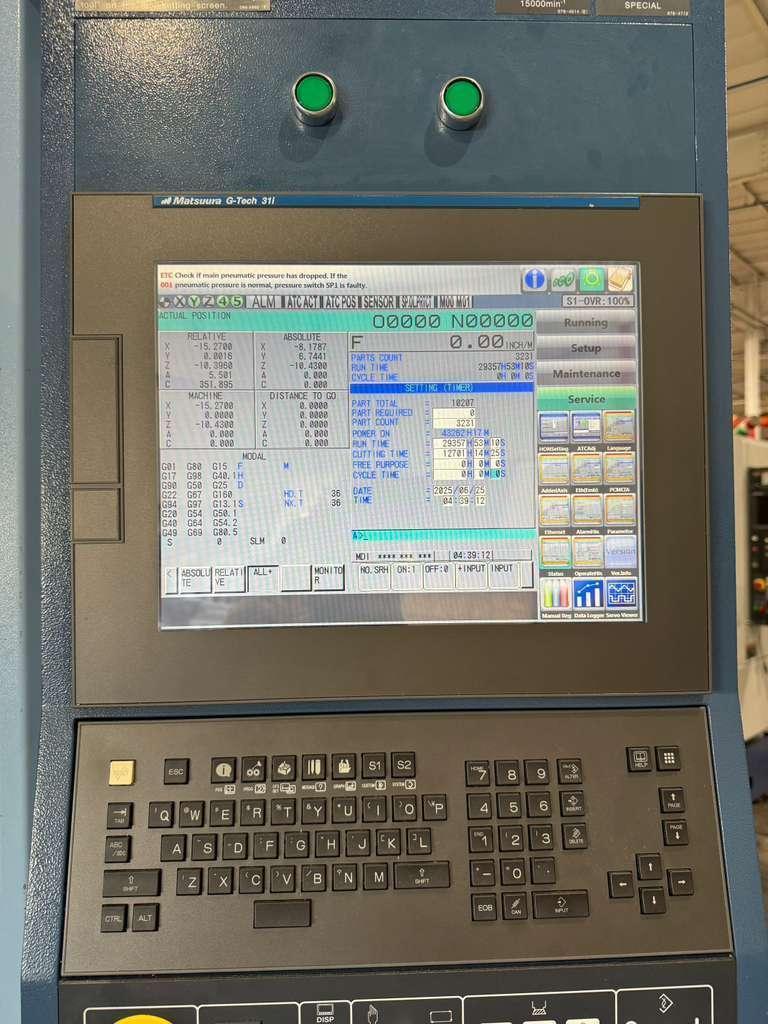

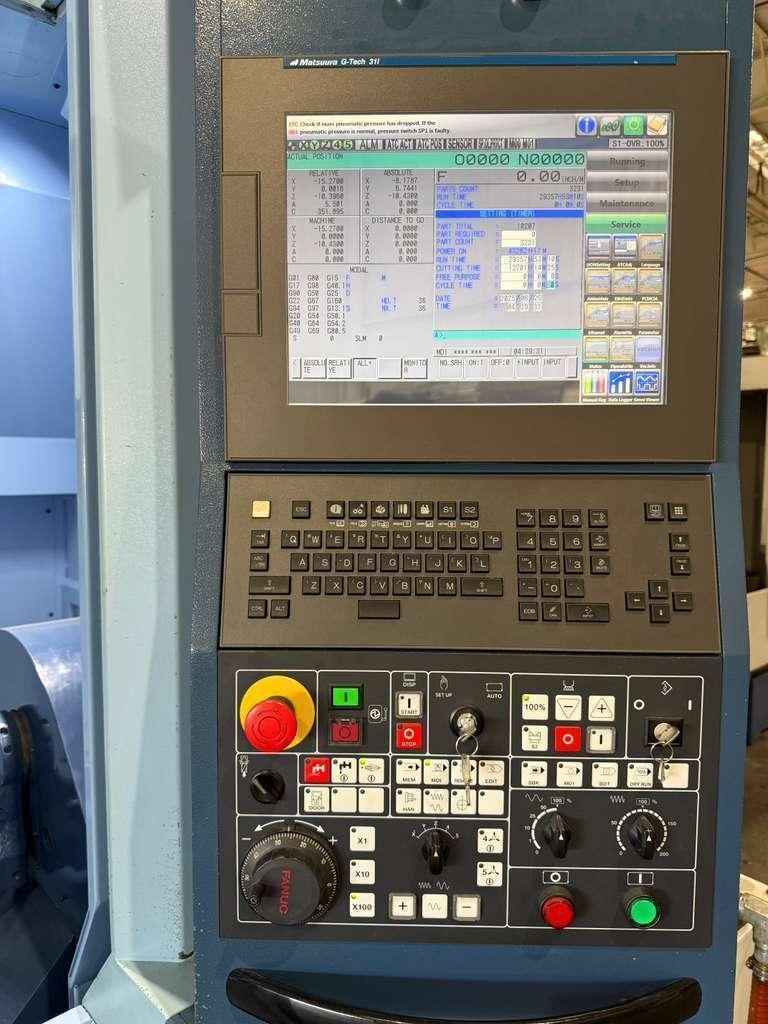

Matsuura G-Tech 31i (Fanuc) Touch Screen CNC Control
5-Axis Simultaneous Machining
9.84″ Diameter Rotary Table

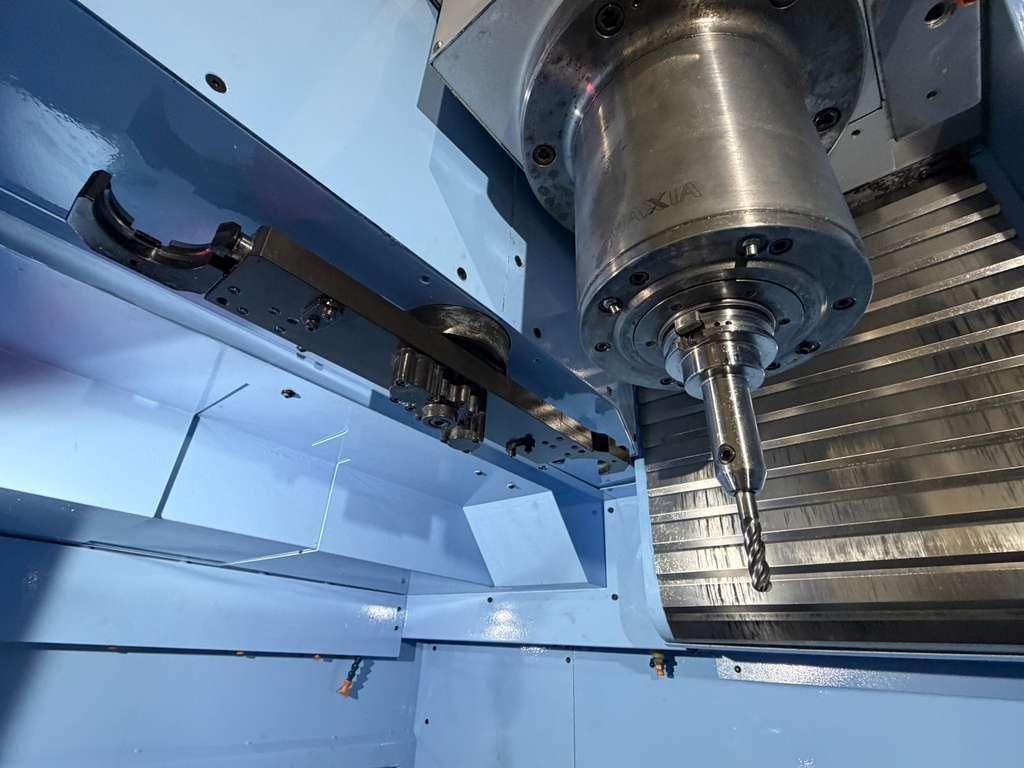

15,000 RPM High Speed Spindle

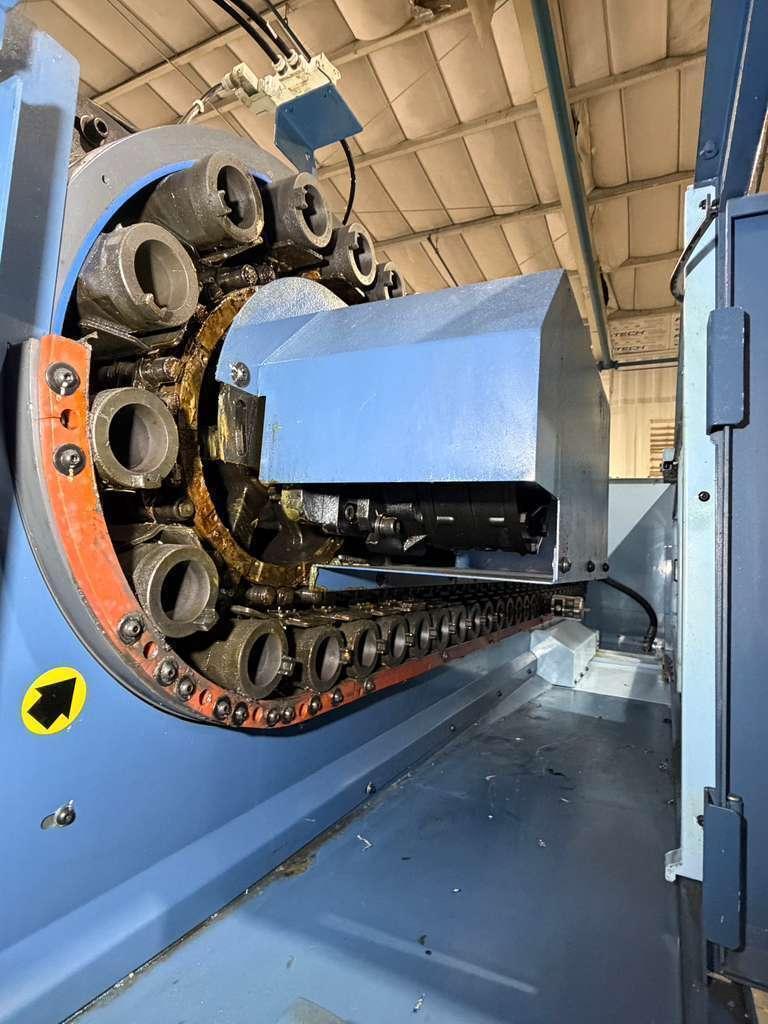

60 Station Automatic Tool Changer

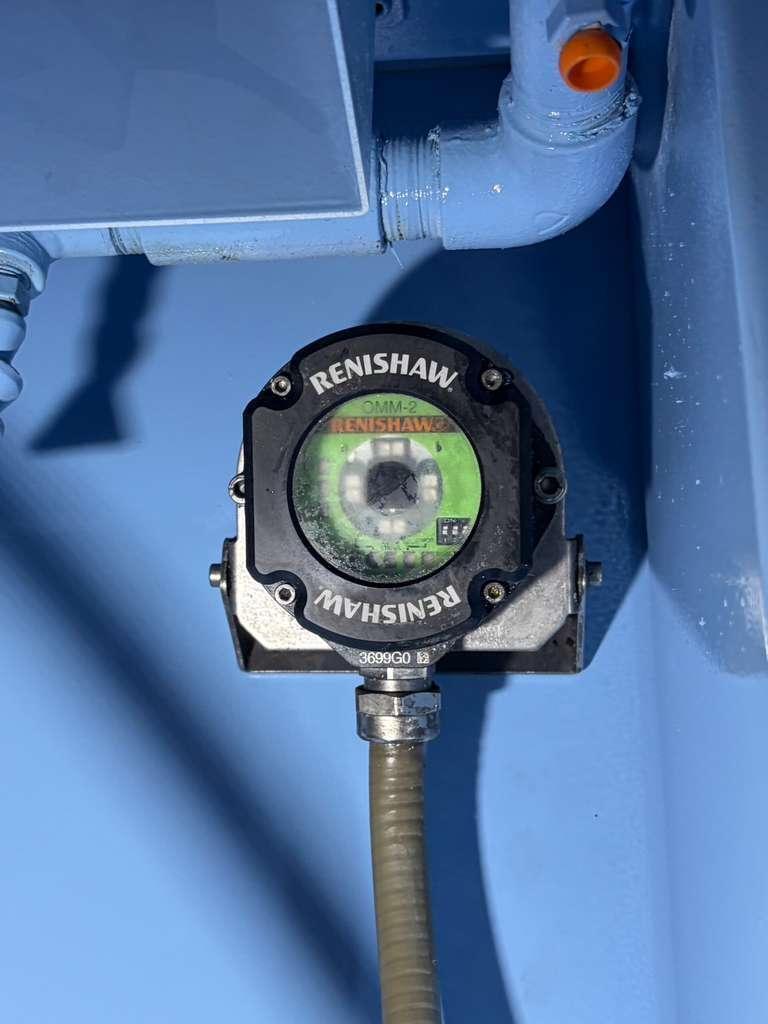

Renishaw Receiver Installed

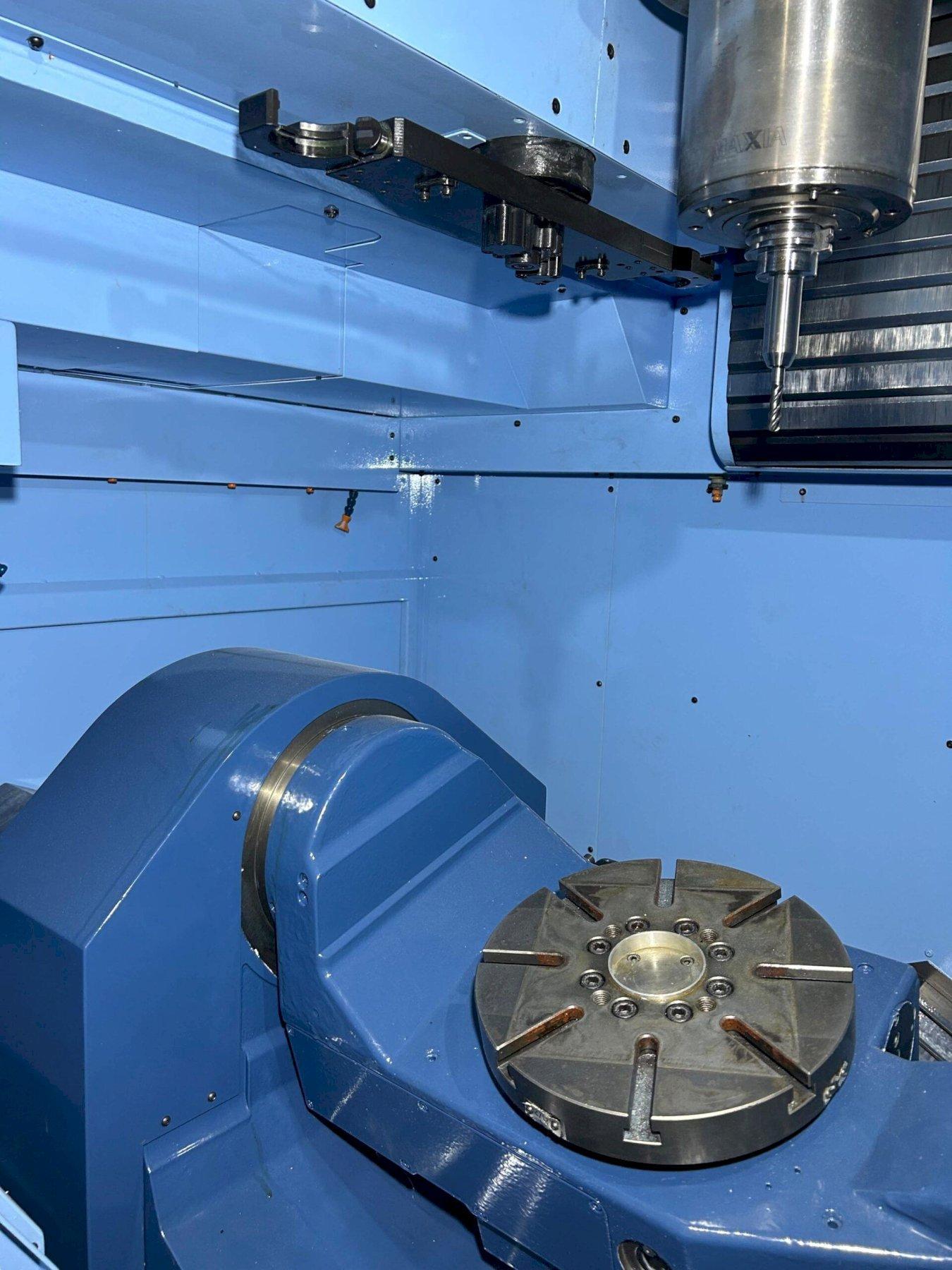

Renishaw Tool Probe
Through Spindle Coolant
Cool Jet Coolant Unit
Rigid Tapping
Spindle Orientation
Coolant Tank

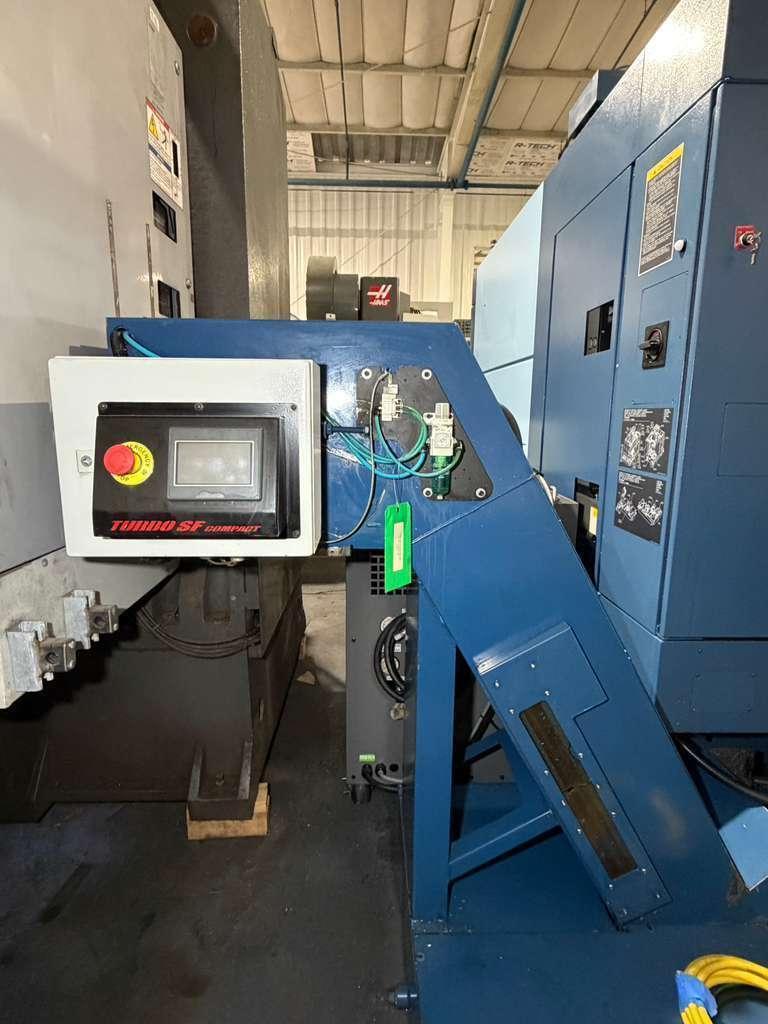

LNS Chip Conveyor

Travels:
X Axis: 17.13″
Y Axis: 18.31″
Z Axis: 22.05″
A Axis: -125° to +10°
C Axis: 360° Continuous

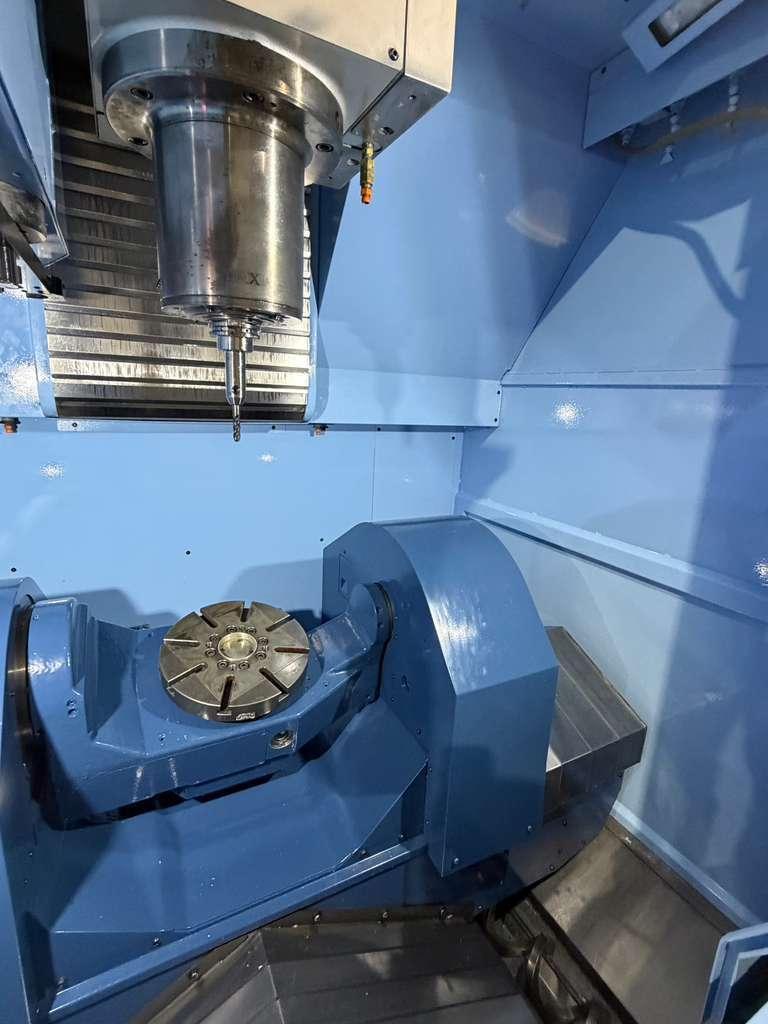

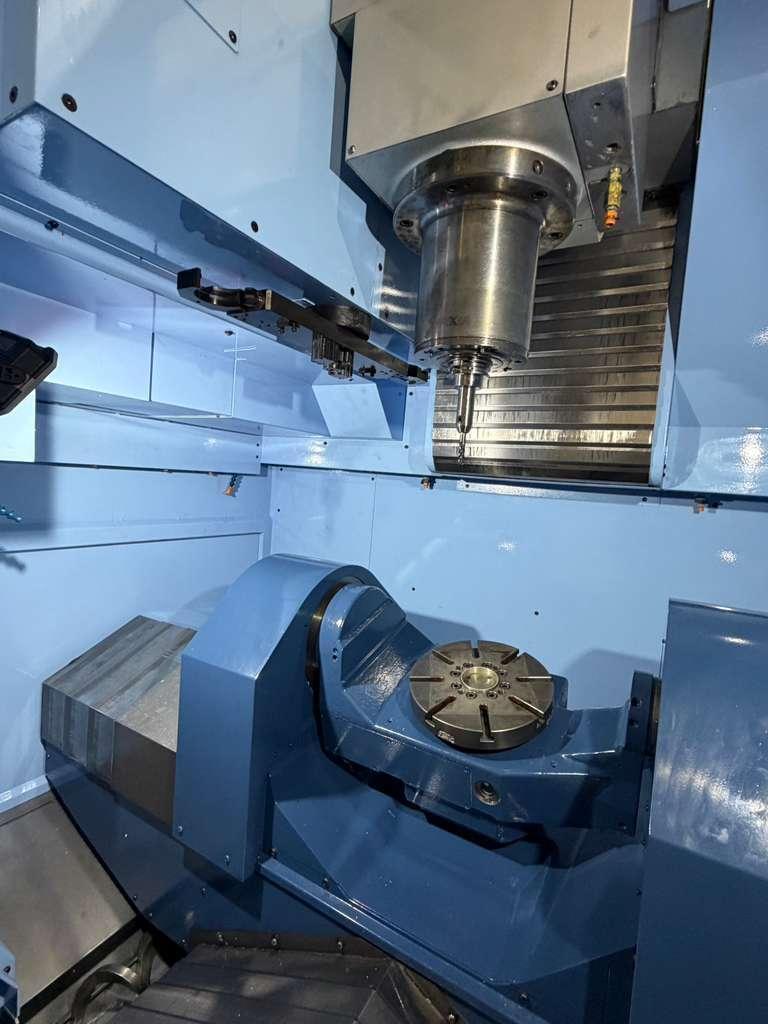

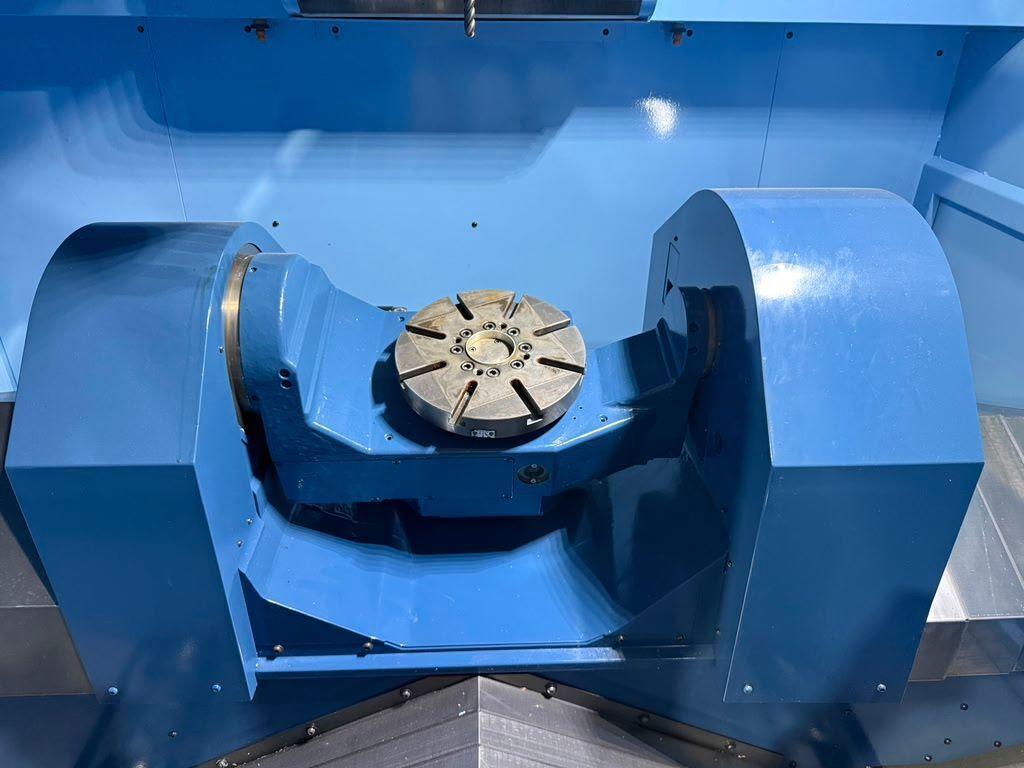

Trunnion Table:

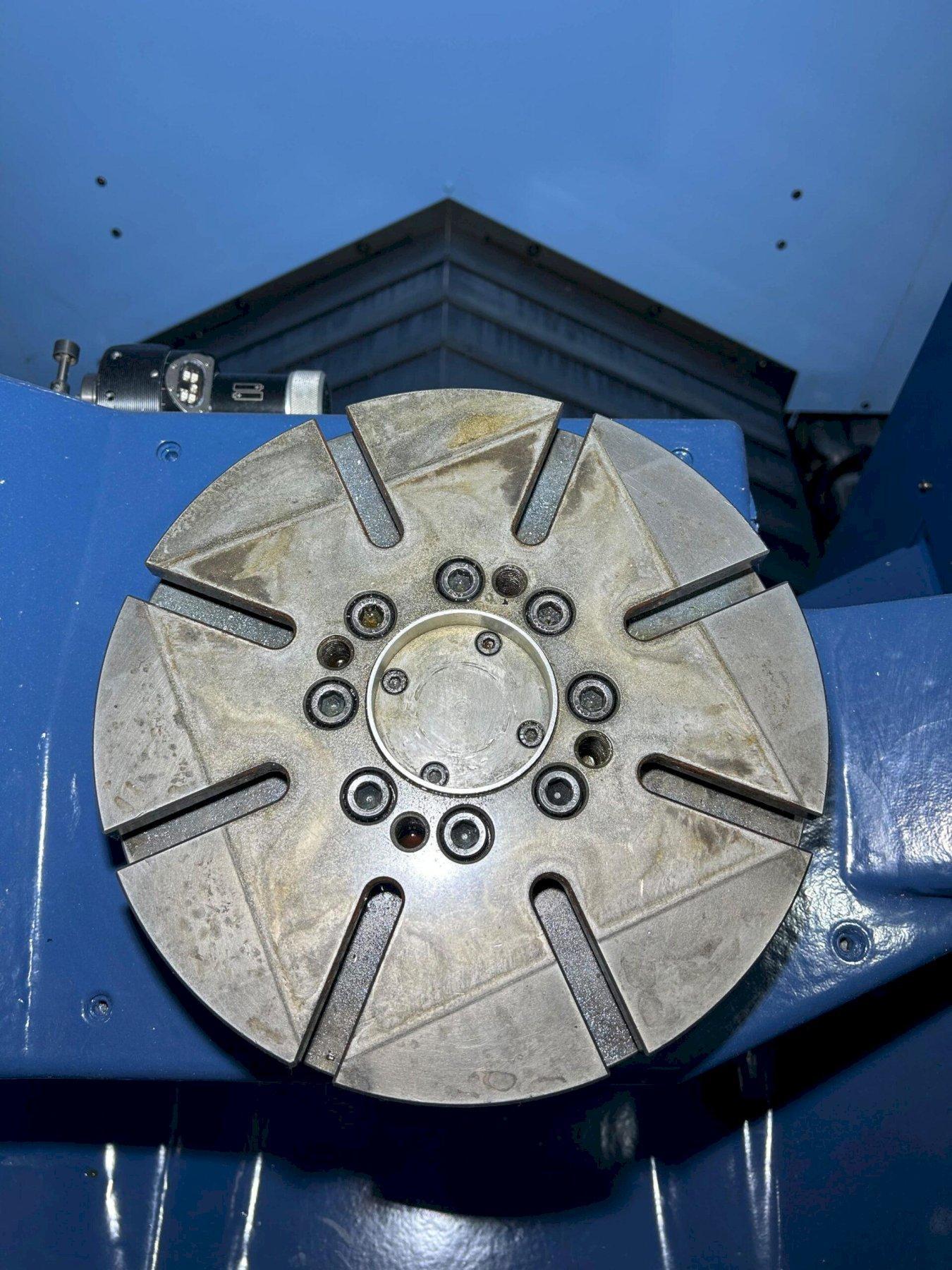

Table Diameter: 9.84″
Max Workpiece Diameter: 12.99″
Max Workpiece Height: 12.59″
Max Weight on Table: 176 lbs

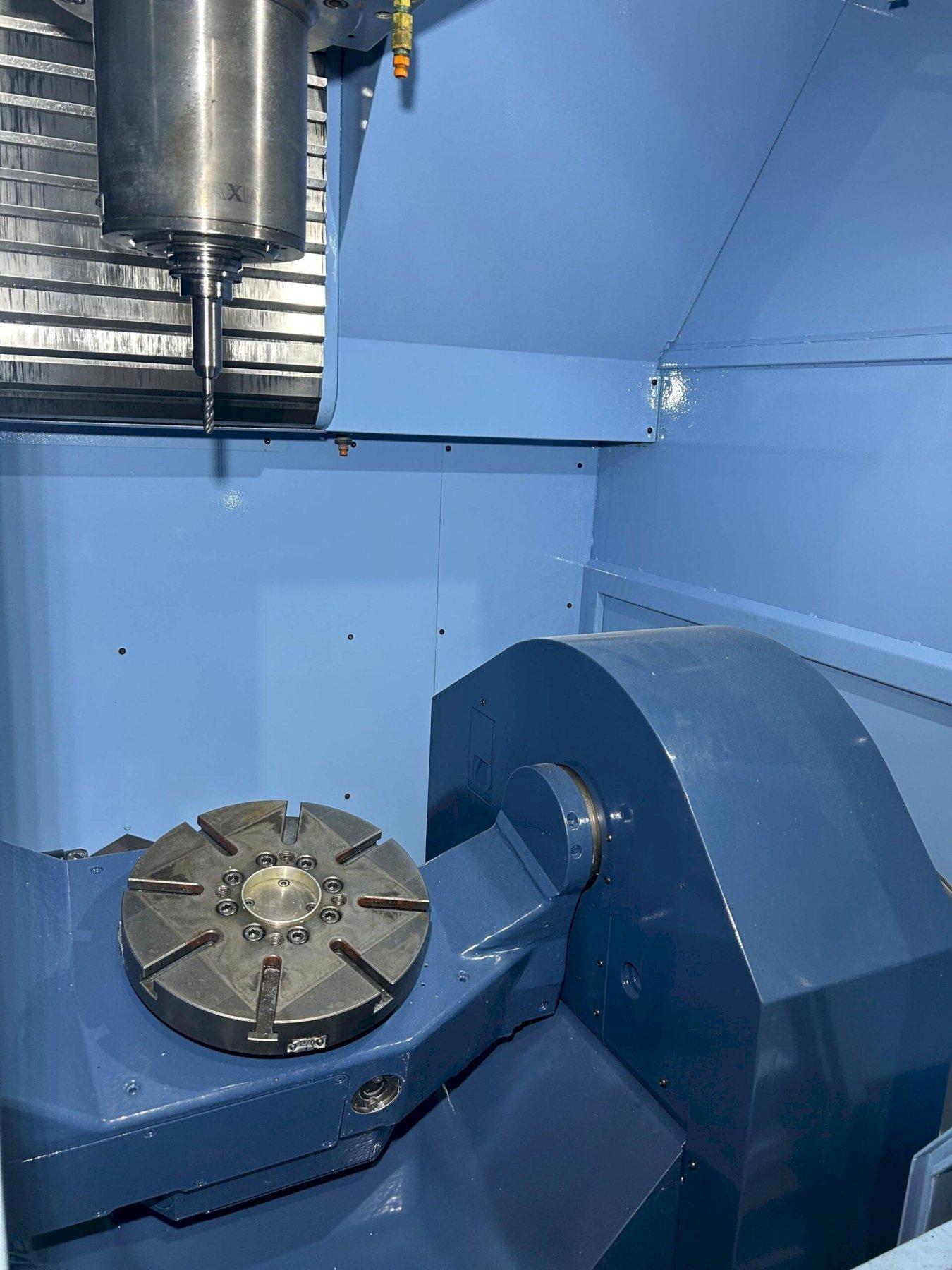

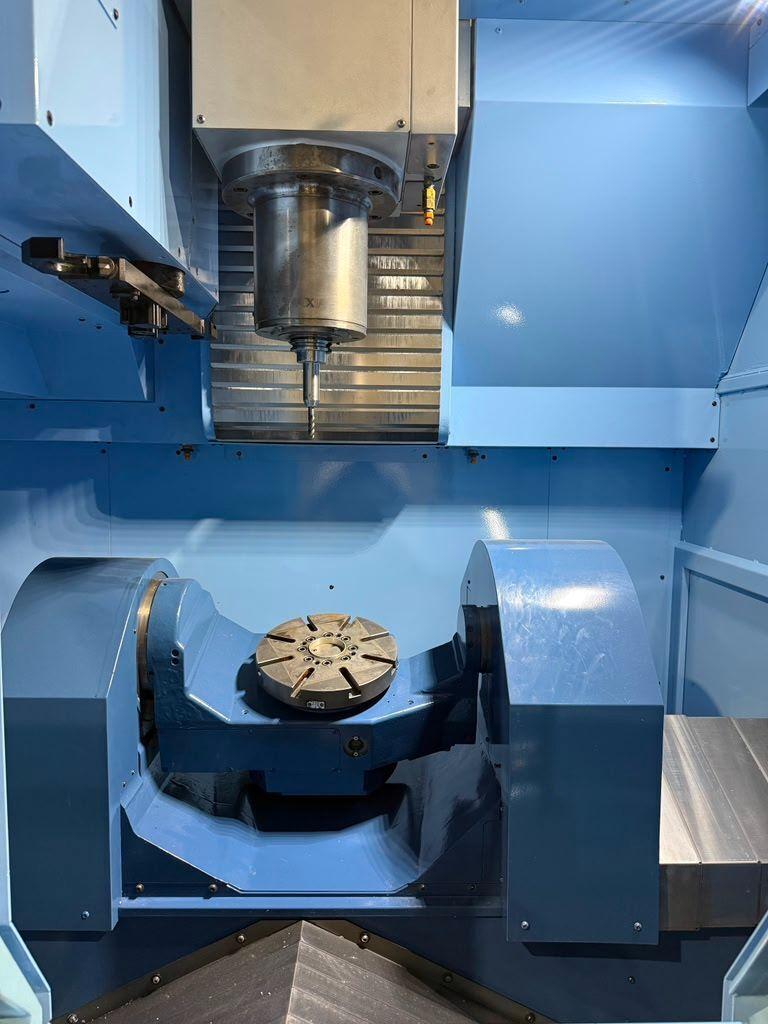

Spindle:
Taper Size: CAT-40
Spindle Speed: 15,000 RPM
Spindle Power: 25 HP

Feed Rates:
Rapid Traverse Rate X, Y & Z Axis: 1,574 IPM
Cutting Feed Rate X, Y & Z Axis: 1,574 IPM
Rapid Traverse Rate A / C: 17 / 33 RPM

Tool Changer:
Capacity: 60 Tools
Taper: CAT-40
Max Tool Diameter: 3.14″
Max Tool Diameter (Without Adjacent Tools): 5.90″
Max Tool Length: 11.81″
Max Tool Weight: 22 lbs
