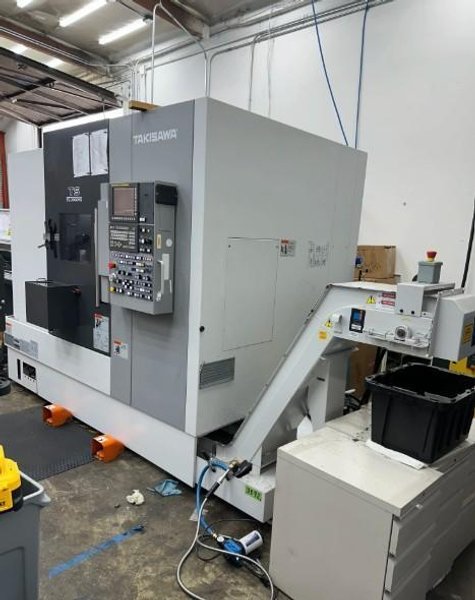

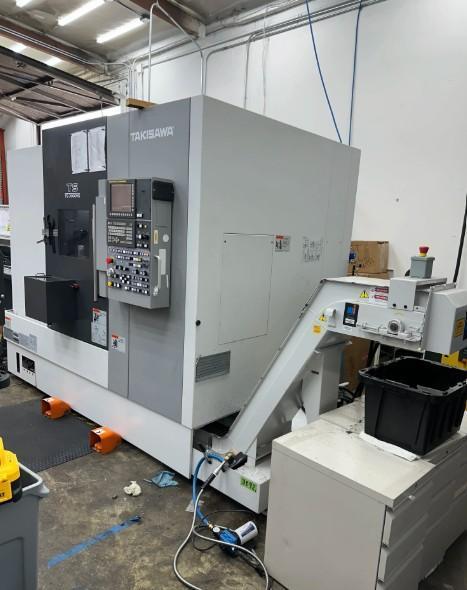

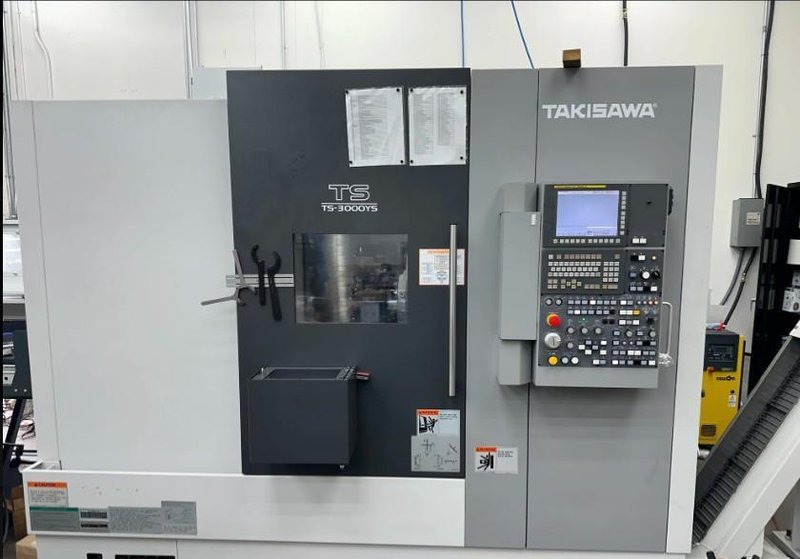

Used 2022 Takisawa TS-3000YS CNC Lathe For Sale

Name: Used 2022 Takisawa TS-3000YS CNC Lathe For Sale
Brand: TAKISAWA
SKU: MD48741
Availability: InStock

Brand

TAKISAWA

California

CNC Control	yes

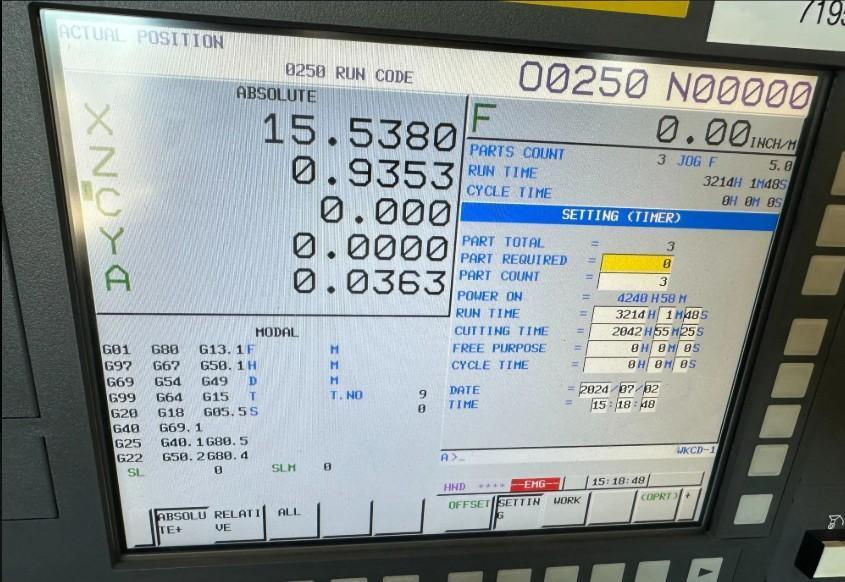

Type Of CNC Control	Fanuc 32i-Model B
# Axis	6
Swing	23.62 inches
Turning Diameter	14.57 inches
Center Distance	21.65 inches
Bar Capacity	2.64 inches
X Axis Travel	10.51 inches
Y Axis Travel	-1.97" to +2.76"
Z Axis Travel	24.8 inches
B Axis Travel (Sub Spindle)	26.18 inches
C Axis Index	0.001°
Spindle Nose	A2-6
Spindle Speed	5,000 rpm
Main Motor	20 hp
Tailstock	no
Y Axis	yes
Live Tooling	yes
Live Tooling Speed	6,000 rpm
Live Tooling Motor	10 hp
Sub Spindle	yes

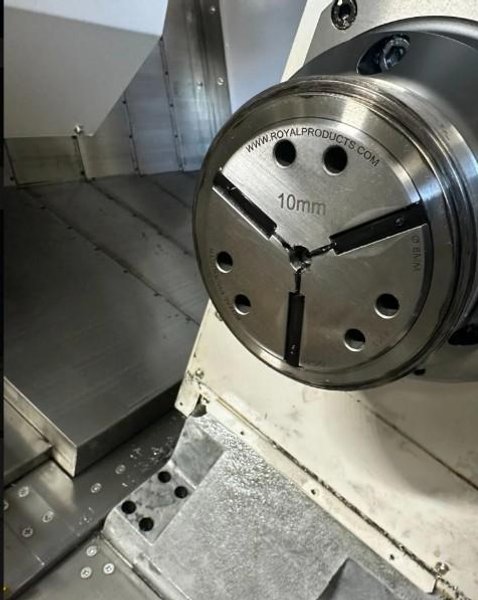

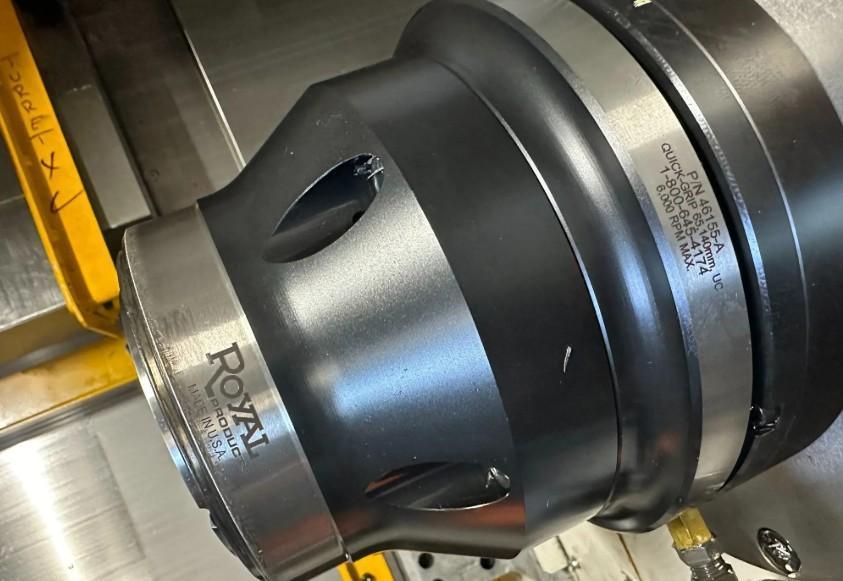

Sub Spindle Chuck	Royal Collet Chuck
Sub Spindle Bar Capacity	2.09 inches
Sub Spindle Speed	6,000 rpm
Sub Spindle Motor (HP)	15 hp

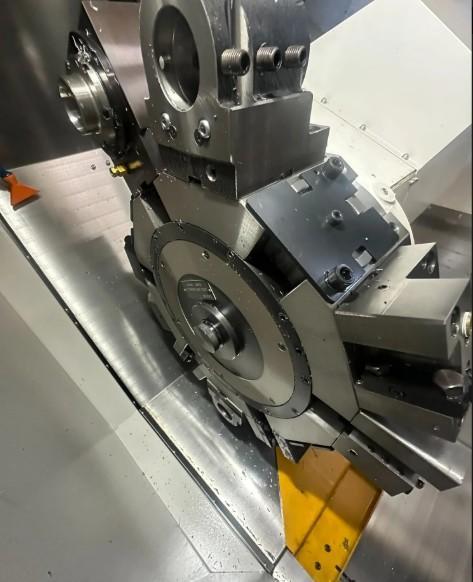

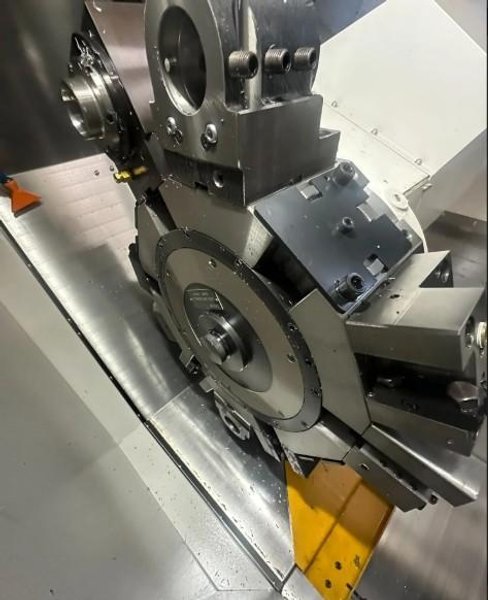

Turret Capacity	12
Machine Dimensions	111" x 85" x 91"
Machine Weight	14000 pounds

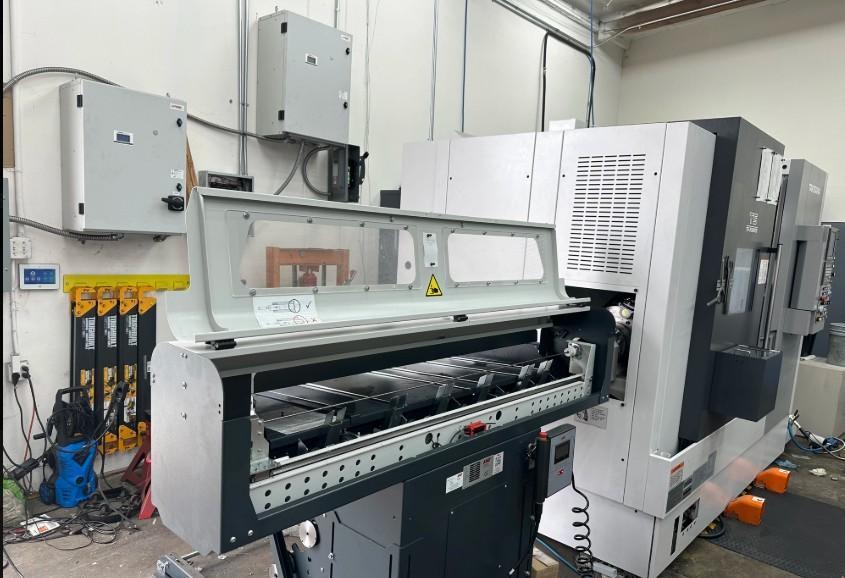

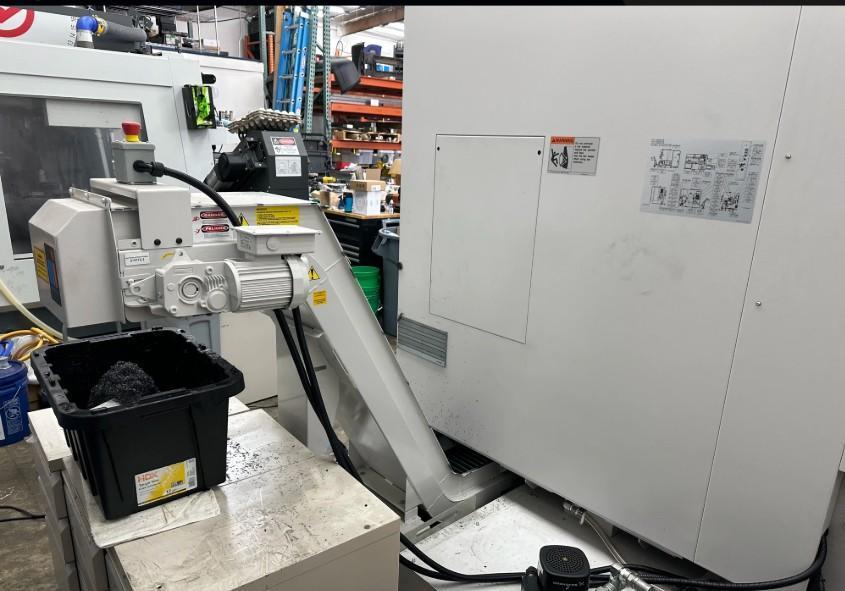

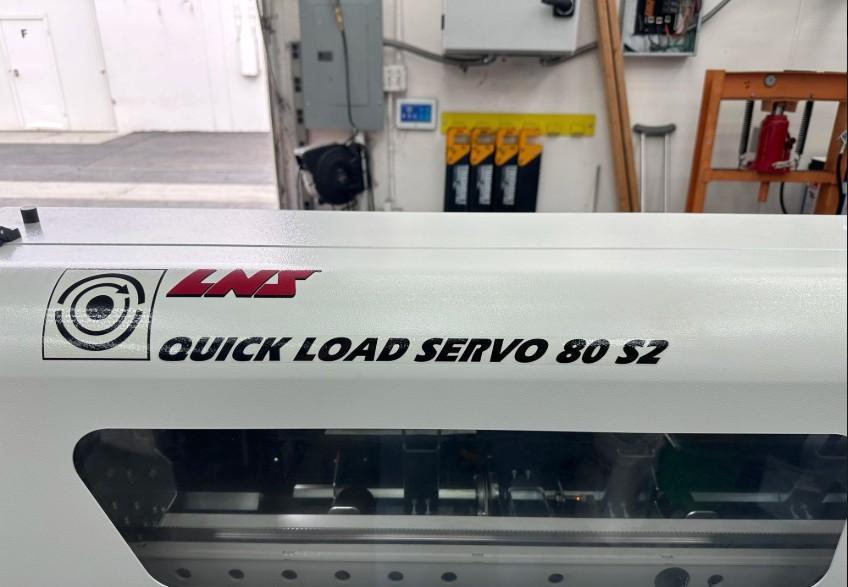

- Fanuc 32i-Model B CNC Control - Chip Conveyor - Parts Catcher - LNS Quick Load Servo 80 S2 Bar Feeder - Renishaw Tool Presetter - Live Tooling - Y Axis - Sub Spindle - Royal Collet Chucks
