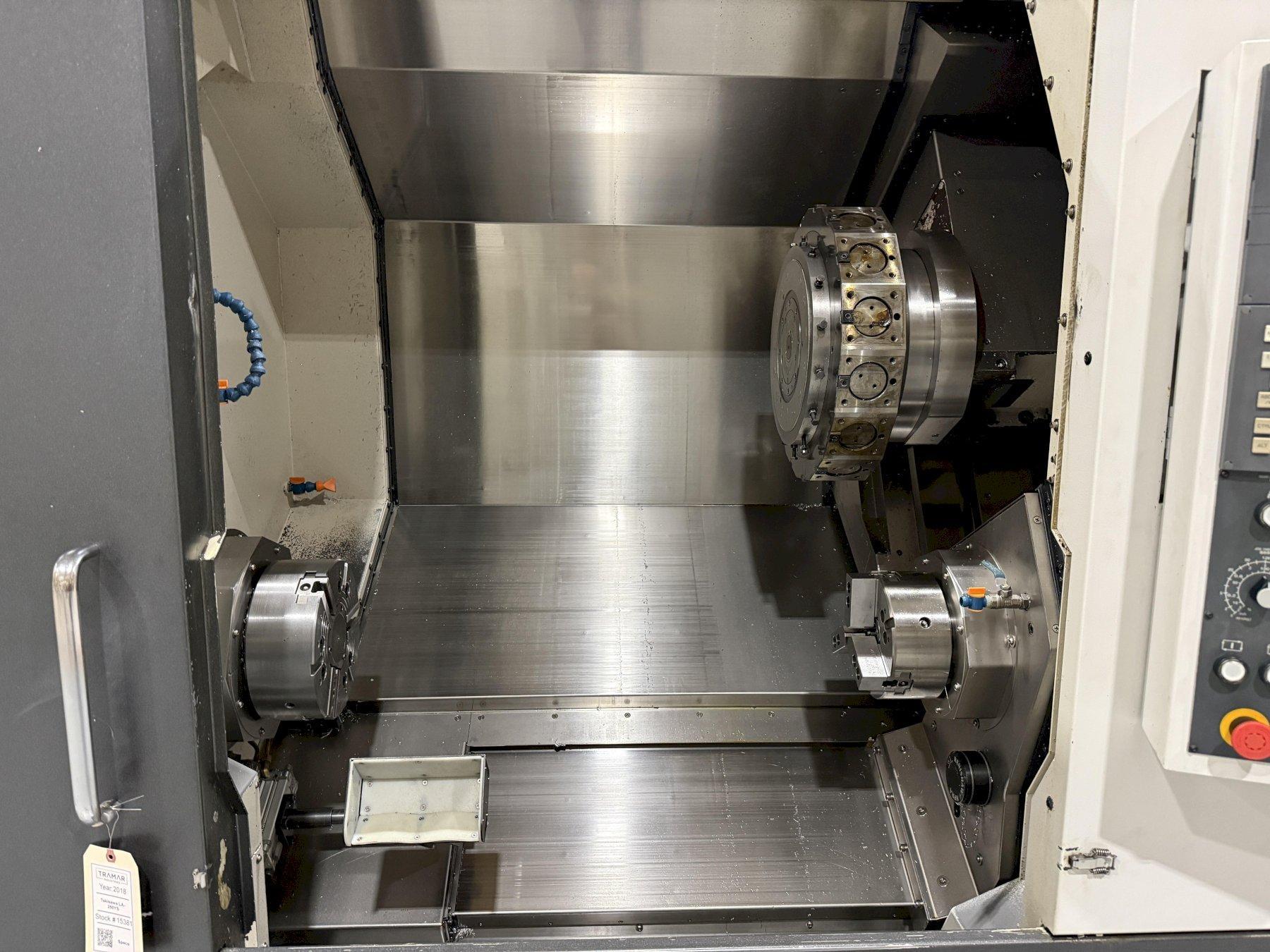

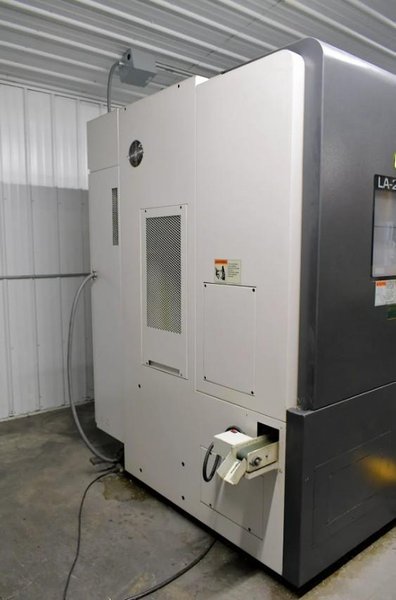

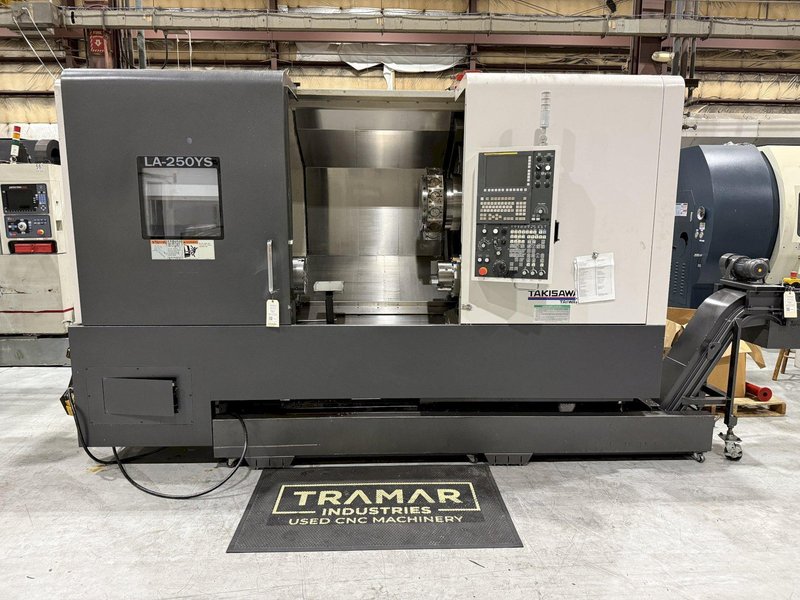

Used 2018 Takisawa LA-250YS CNC Lathe For Sale
Brand
Category
Model
LA-250YS
Stock #
15381
Year
2018
Condition
Used
Location
Michigan
| CNC Control | yes |

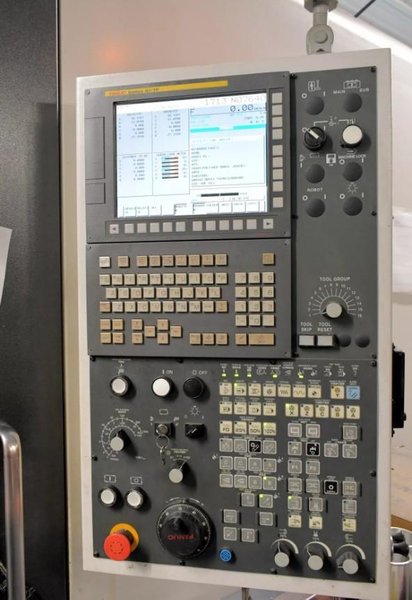

| Type Of CNC Control | Fanuc 0i-TF |
| # Axis | 6 |
| Swing | 23.6 inches |
| Turning Diameter | 14.6 inches |
| Center Distance | 43.11 inches |

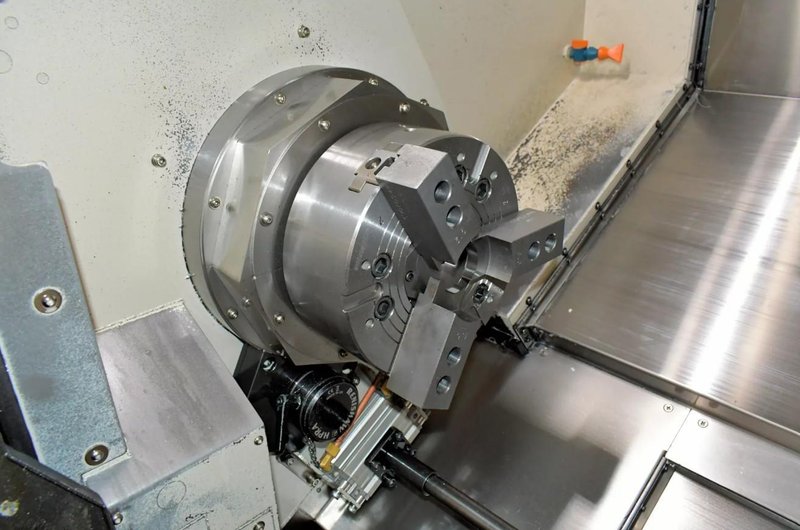

| Chuck Size | 10 inches |
| Bar Capacity | 3.05 inches |
| X Axis Travel | 10.6 inches |
| Y Axis Travel | 3.92 inches |
| Z Axis Travel | 31.49 inches |
| B Axis Travel (Sub Spindle) | 28.93 inches |
| C1/C2 Axis Index | 0.001° |
| Rapid Traverse (X/Y/Z) | 787/393/797 ipm |
| Spindle Nose | A2-8 |
| Spindle Speed | 3,500 rpm |
| Main Motor | 30 hp |
| Tailstock | no |
| Y Axis | yes |
| Live Tooling | yes |
| Live Tooling Speed | 5,000 rpm |
| Live Tooling Motor | 5 hp |
| Sub Spindle | yes |

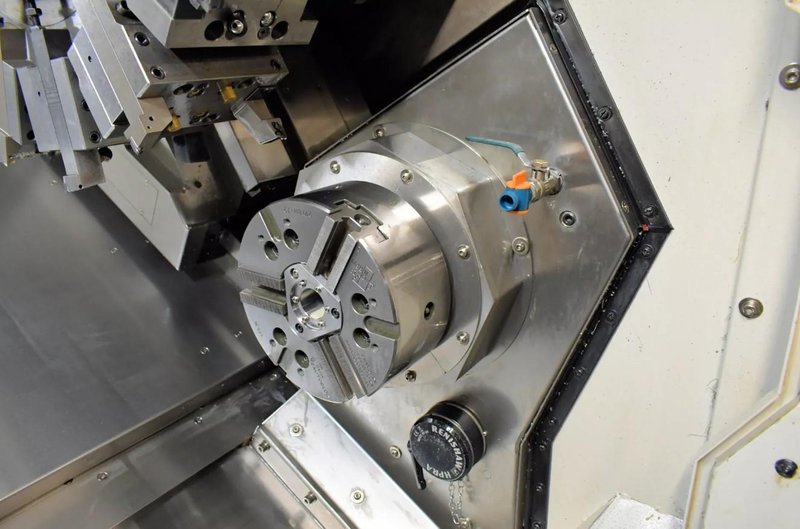

| Sub Spindle Chuck | 8 inches |
| Sub Spindle Bar Capacity | 2 inches |
| Sub Spindle Nose | A2-6 |
| Sub Spindle Speed | 3,500 rpm |
| Sub Spindle Motor (HP) | 15 hp |

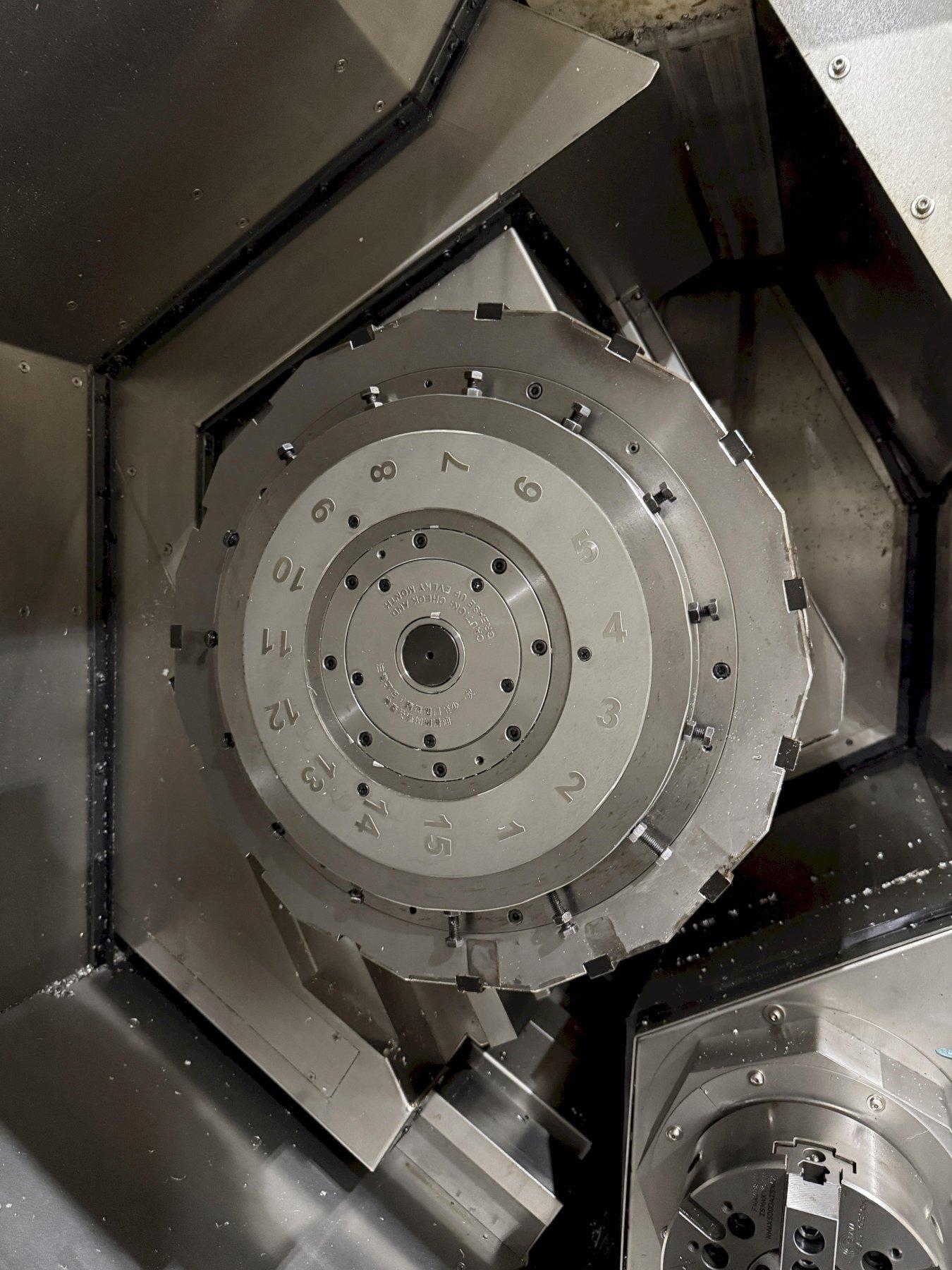

| Turret Capacity | 15 Stations |
| Machine Dimensions | 149" x 73" x 98" |
| Machine Weight | 17800 pounds |
|
- Fanuc 0i-TF CNC Control

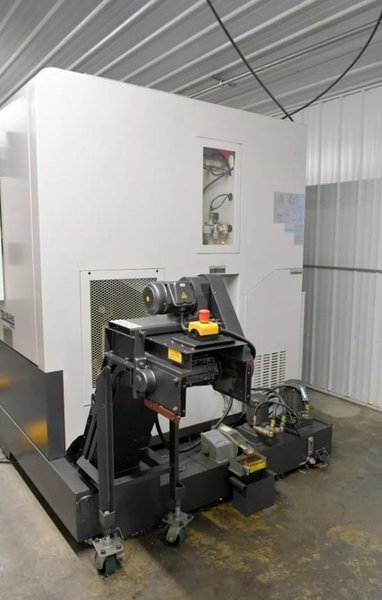

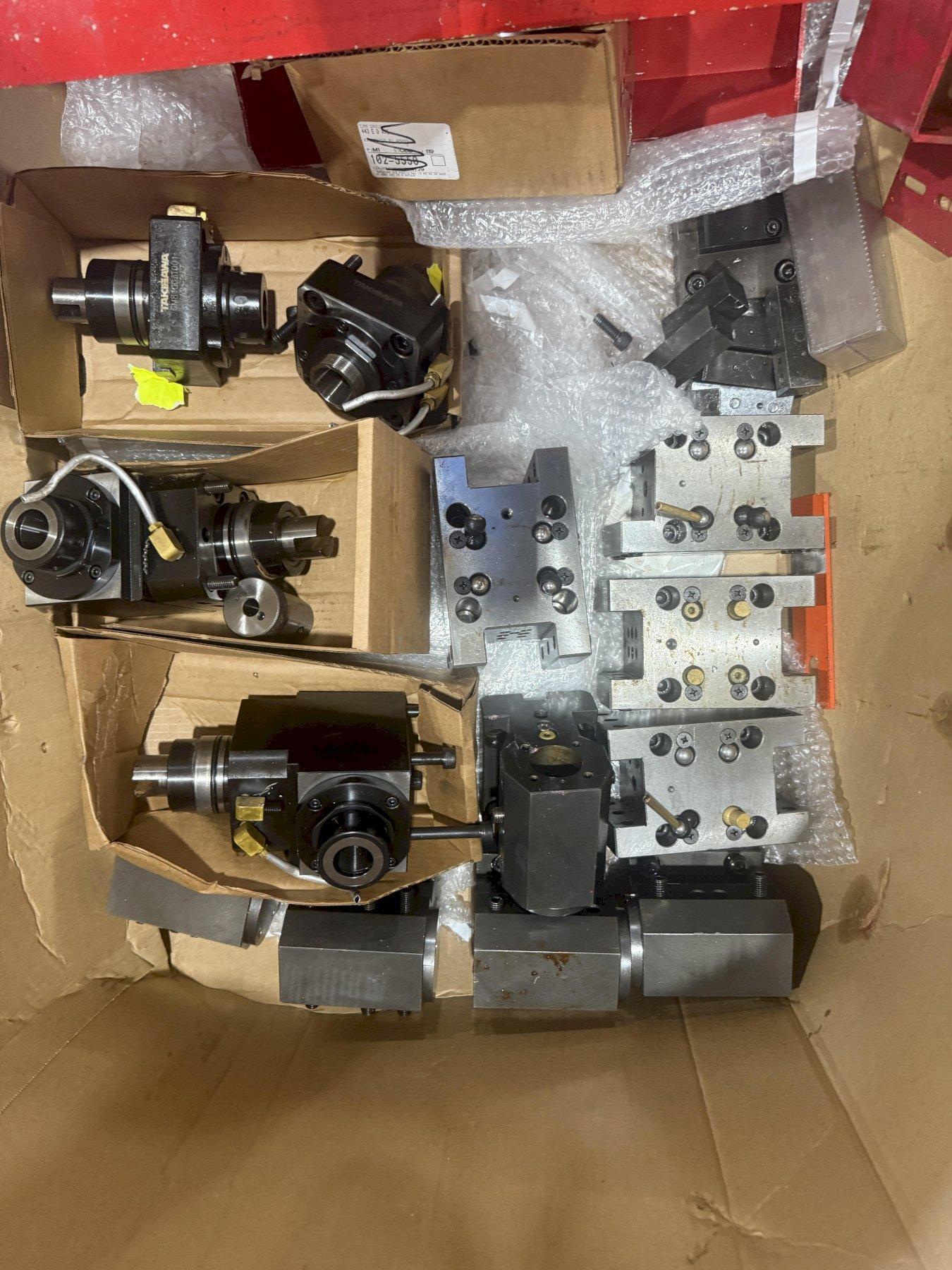

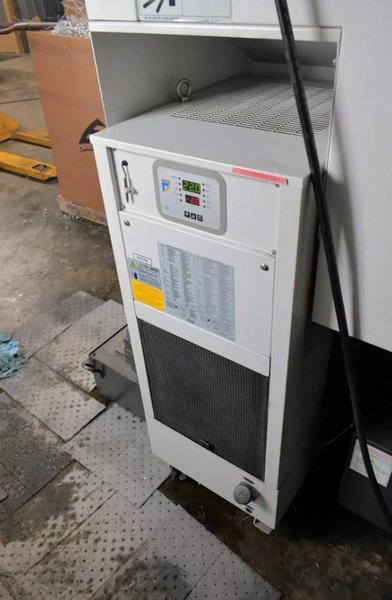

- Chip Conveyor - Coolant Tank & Pump - Parts Conveyor - Live Tooling - Y Axis - Sub Spindle - Tool Presetter - Spindle Chiller - Manual Guide i (Conversational Programming) - Misc. Static Tooling Available - (2) Straight Live Tool Holders - (2) Right Angled Live Tool Holders - Heavy Duty Box Way Machine |
|
