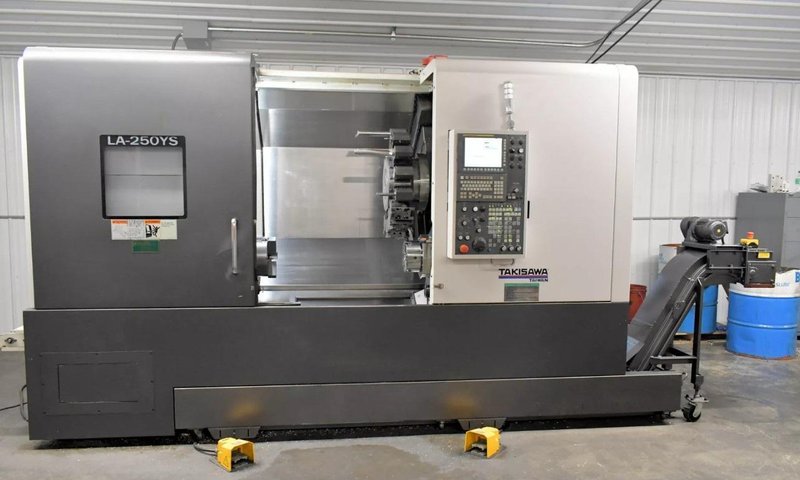

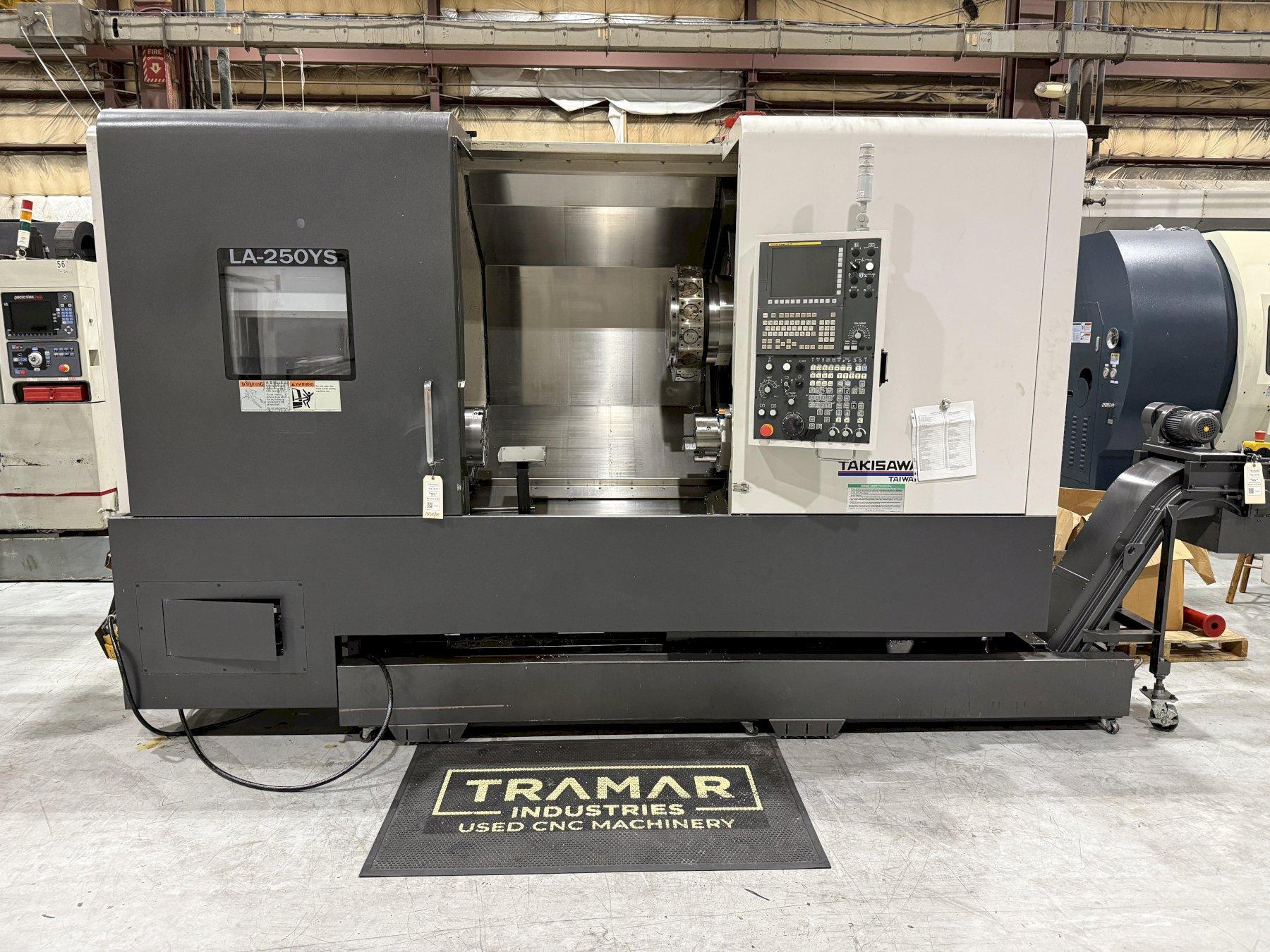

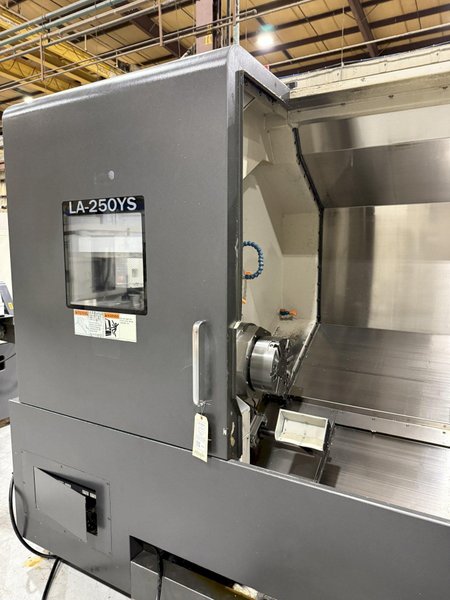

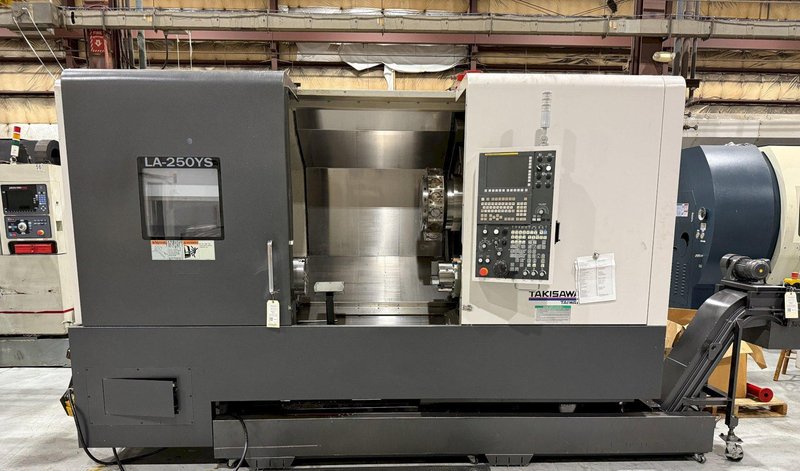

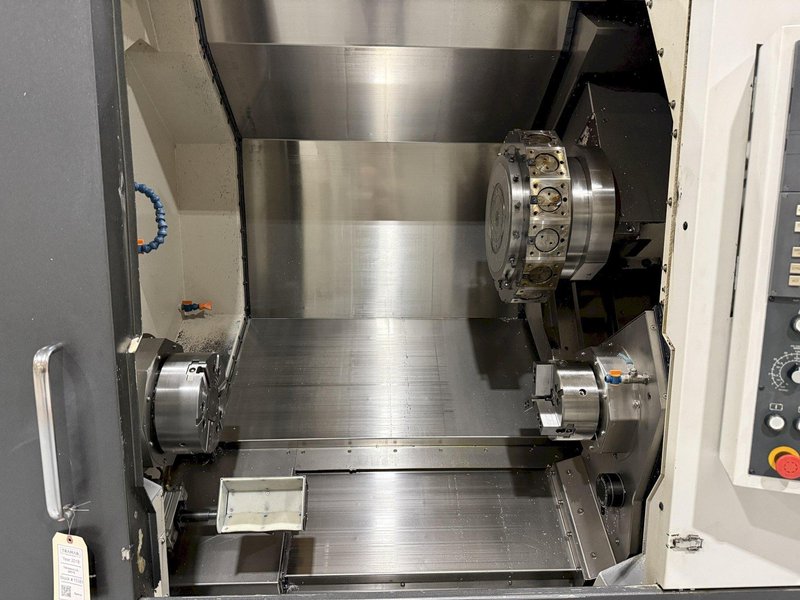

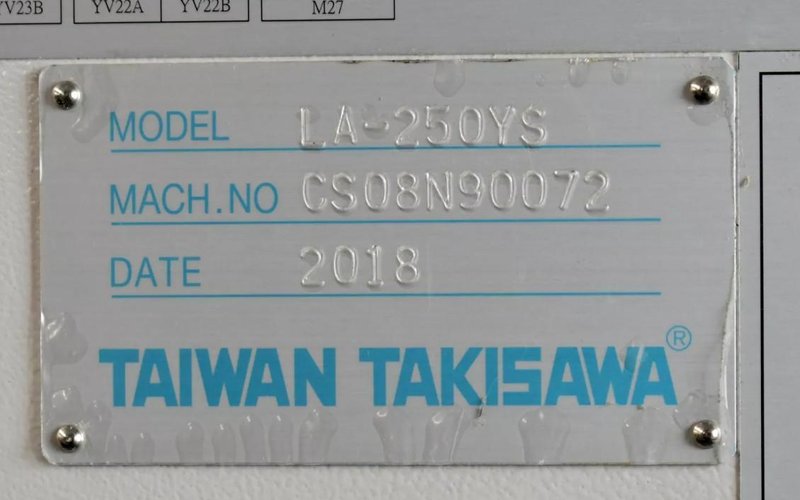

2018 Takisawa LA-250YS CNC Lathe

Name: 2018 Takisawa LA-250YS CNC Lathe
Brand: TAKISAWA
SKU: 64111
Availability: InStock

Brand

TAKISAWA

Michigan

CNC Control

yes

SPECIFICATIONS

Spec	Inch	Metric
CNC Control	yes

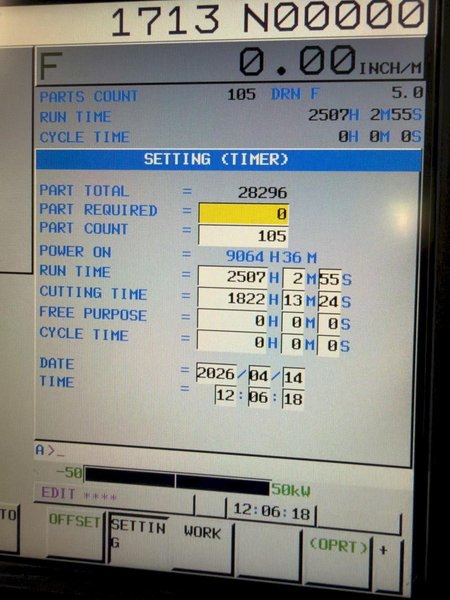

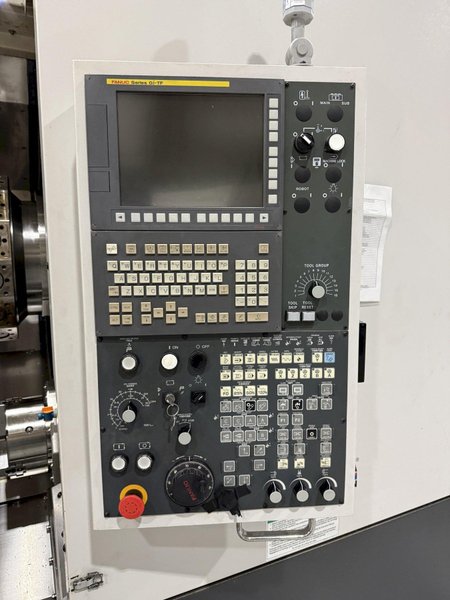

Type of CNC Control	Fanuc 0i-TF
# Axis	6	6
Swing	23.6 in	599.44 mm
Turning Diameter	14.6 in	370.84 mm
Center Distance	43.11 in	1,094.99 mm

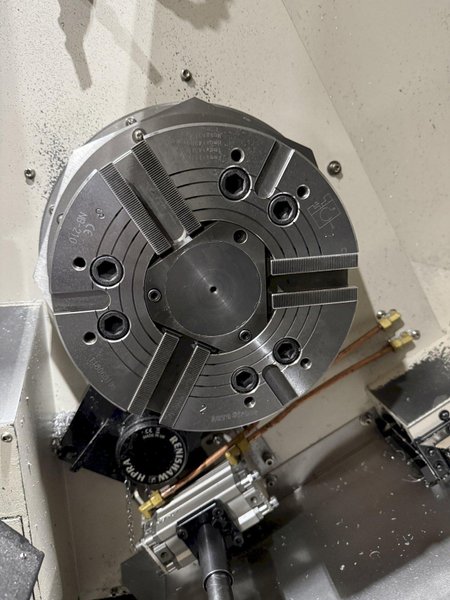

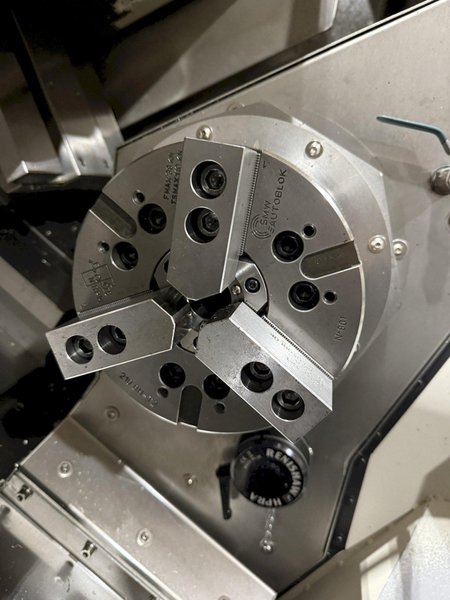

Chuck Size	10 in	254.00 mm

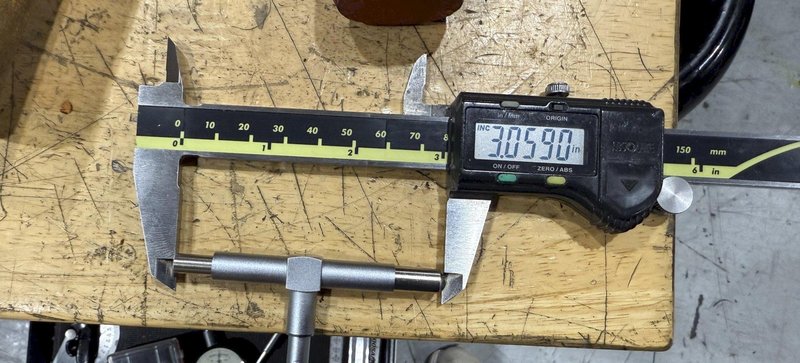

Bar Capacity	3.05 in	77.47 mm
X Axis Travel	10.6 in	269.24 mm
Y Axis Travel	3.92 in	99.57 mm
Z Axis Travel	31.49 in	799.85 mm
B Axis Travel (Sub Spindle)	28.93 in	734.82 mm
C1/C2 Axis Index	0.001°
Rapid Traverse (X/Y/Z)	787/393/797 ipm
Spindle Nose	A2-8
Spindle Speed	3,500 rpm
Main Motor	30 hp
Tailstock	no
Y Axis	yes
Live Tooling	yes
Live Tooling Speed	5,000 rpm
Live Tooling Motor	5 hp

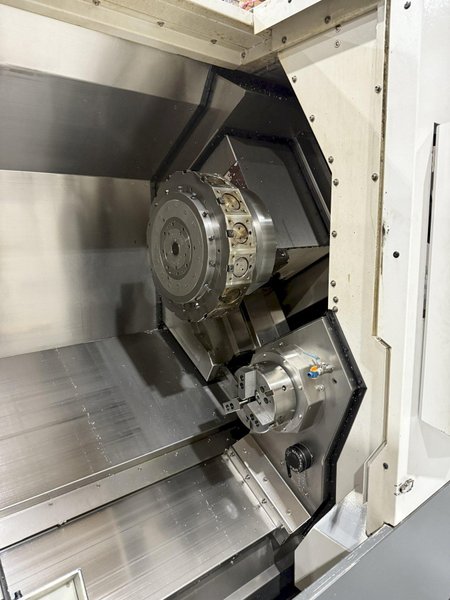

Sub Spindle	yes
Sub Spindle Chuck	8 in	203.20 mm
Sub Spindle Bar Capacity	2 in	50.80 mm
Sub Spindle Nose	A2-6
Sub Spindle Speed	3,500 rpm
Sub Spindle Motor (HP)	15 hp

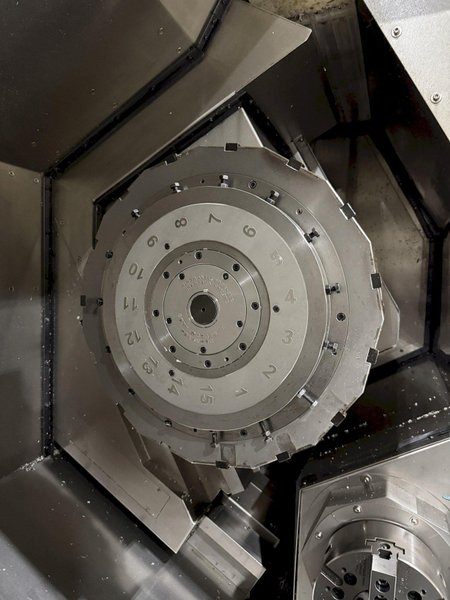

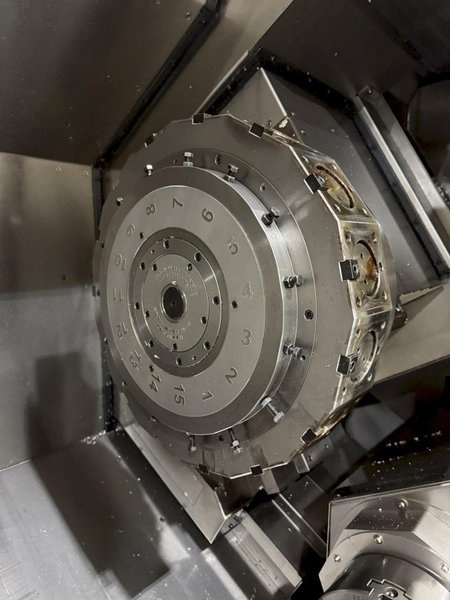

Turret Capacity	15 Stations
Machine Dimensions	149" x 73" x 98"
Machine Weight	17800 lb	8,073.94 kg

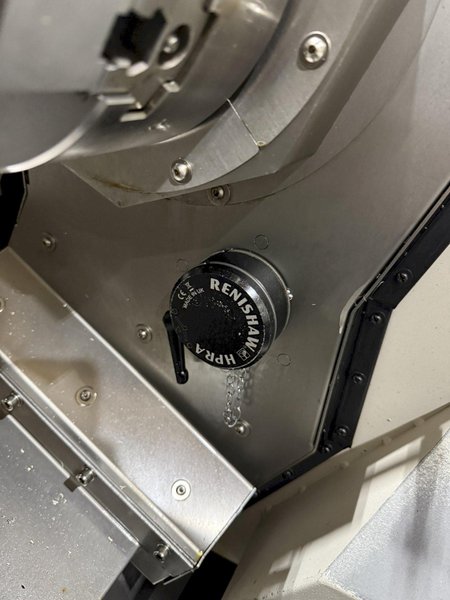

EQUIPPED WITH - Fanuc 0i-TF CNC Control - Chip Conveyor - Coolant Tank & Pump - Parts Conveyor - Live Tooling - Y Axis - Sub Spindle - Tool Presetter - Spindle Chiller - Manual Guide i (Conversational Programming) - Misc. Static Tooling Available - (2) Straight Live Tool Holders - (2) Right Angled Live Tool Holders - Heavy Duty Box Way Machine
