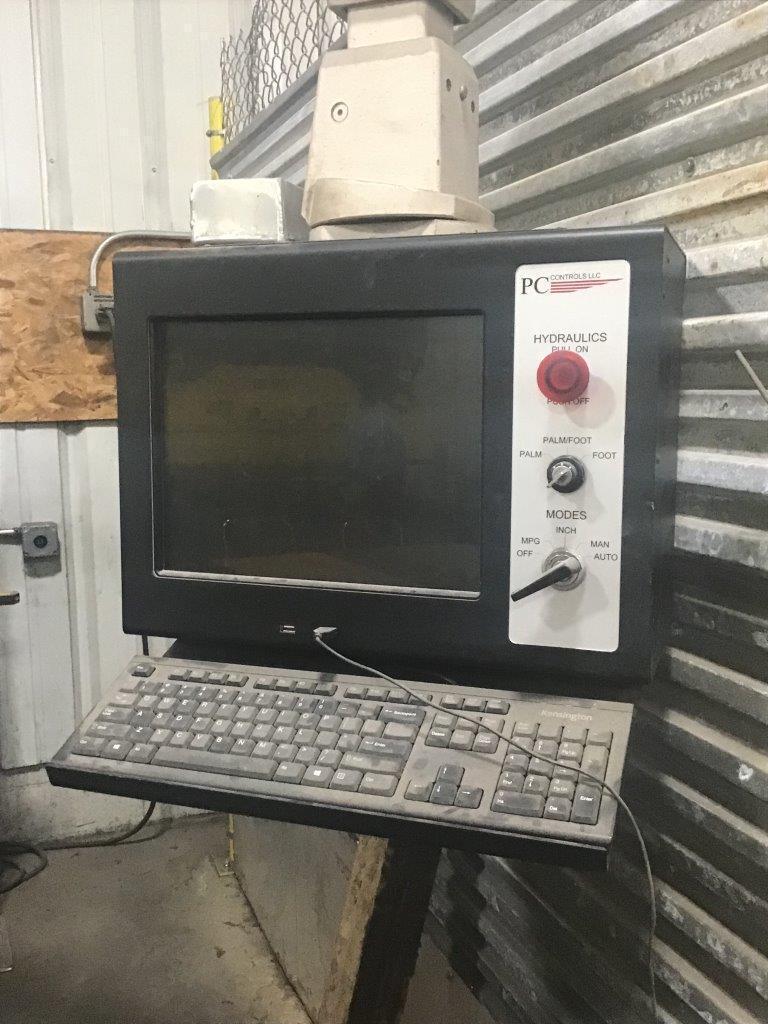

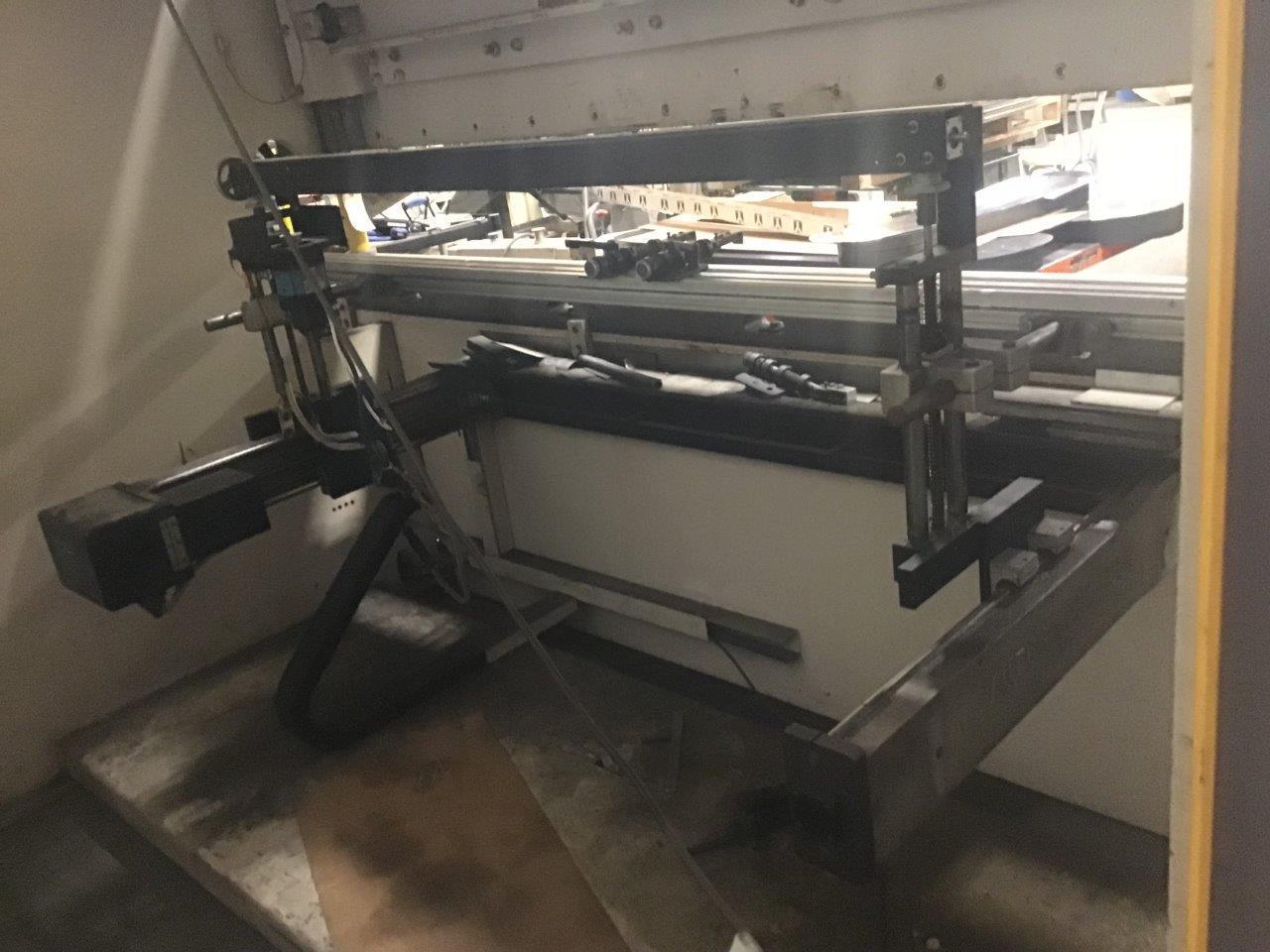

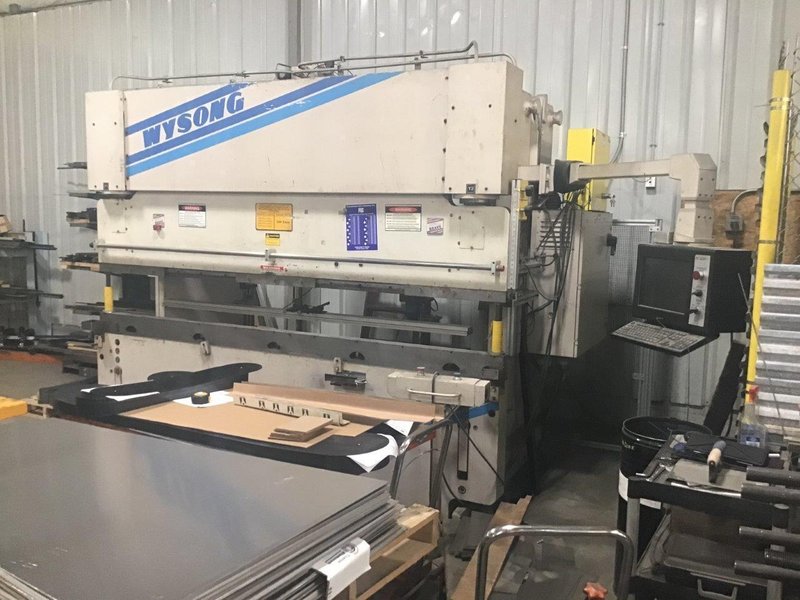

100 Ton X 10’ Press Brake with PC Controls, 38” CNC Backgauge (Installed in 2019), Lower Die Rail, Pedestal Stand w/ Dual Palm Buttons and Emergency Stop.

GENERAL SPECIFICATIONS
Tonnage:                        100 Tons
Bending Length:                    120”
Distance Between Housings:            102”
Rated Capacity @ 10’:                10 GA
@ 8’ 7”:                    3/16”
@ 5’:                        ¼”
Open Height:                        17”
Shut Height:                        9”
Stroke Length:                    8”
Throat Depth:                    7”
Approach Speed:                    375” / Min
Press Speed:                        40” / Min
Return Speed:                    400” / Min
Max. Ram Tilt:                    .625”
Overall Length:                    127”
Overall Width:                    56.5”
Overall Height:                    106.5”
Motor:                            25 HP
Oil Reservoir Capacity:                40 Gallons
Estimated Shipping Weight:            17,500 Lbs


INCLUDES: PC Controls, 38” CNC Backgauge (Installed in 2019), Lower Die Rail, Pedestal Stand w/ Dual Palm Buttons and Emergency Stop.

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
