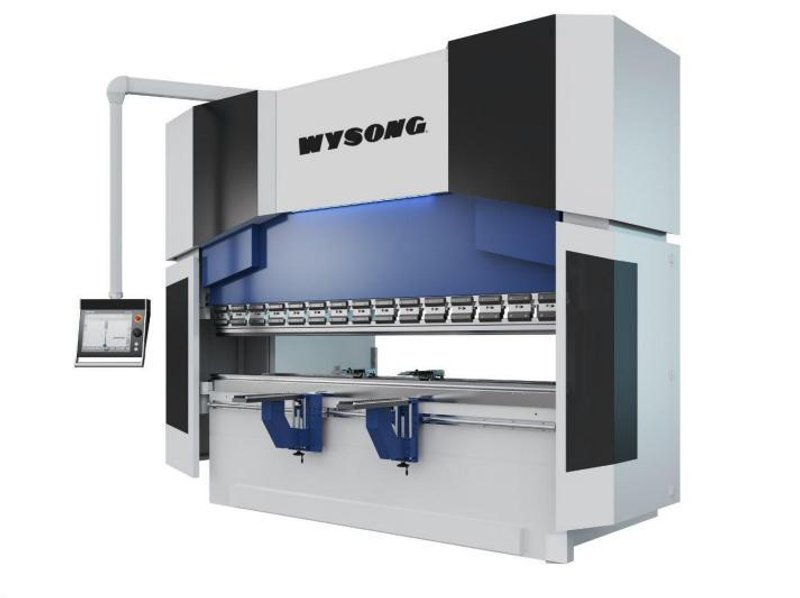

350 Tons X 145’ Hydraulic Press Brake with Delem DA-53TX Touchscreen Control, 2 - Axis Backgauge (X, R), Wila CNC Crowning Wide Bottom Table with NA Die Slot and Oil Cooler.

GENERAL SPECIFICATIONS
Tonnage:                        350 Tons
Bending Length:                    145”
Distance Between Columns:            126”
Stroke:                        10”
Daylight:                        19”
Throat:                        16”
Approach Speed:                    354 IPM
Return Speed:                    283 IPM
Bending Speed:                    39 IPM
Table Height:                        38”
Machine Length:                    183”
Machine Depth:                    8”
Machine Height:                    121”
Oil Tank Capacity:                    77 Gallons
Main Motor:                        30 HP


INCLUDES: Delem DA-53TX Touchscreen Control, 2 - Axis Backgauge (X, R), Wila CNC Crowning Wide Bottom Table with NA Die Slot and Oil Cooler.

***All Price, Location and Specifications Subject to Change without Notice***
