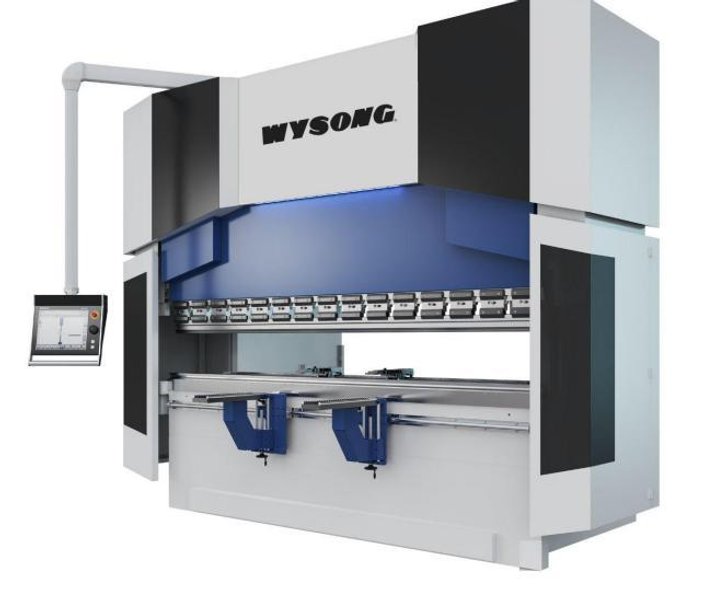

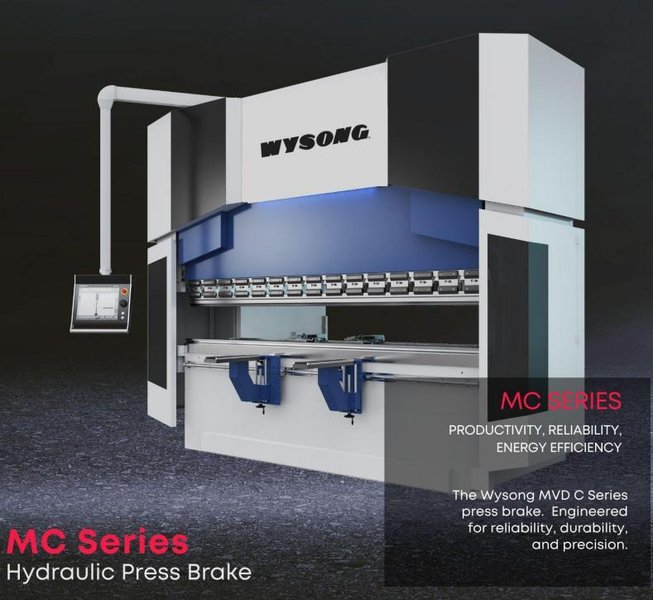

450 Ton X 169” Hydraulic Press Brake with Delem DA-66S Touchscreen Control, Foot Pedal with E-Stop, 4 - Axis Backgauge (X, R, Z1, Z2), Wila CNC Crowning, Wide Bottom Table with NA Die Slot,  AKAS V Laser Safety, Rear Light Curtains and Delem Profile TL Offline Software.

GENERAL SPECIFICATIONS
Tonnage:                        450Tons
Bending Length:                    169”
Distance Between Columns:            150”
Stroke:                        12”
Daylight:                        21”
Throat:                        16”
Approach Speed:                    236 IPM
Return Speed:                    189 IPM
Bending Speed:                    39 IPM
Table Height:                        39”
Machine Length:                    207”
Machine Depth:                    106”
Machine Height:                    134”
Oil Tank Capacity:                    106 Gallons
Machine Weight:                    49,604 Lbs
Main Motor:                        40 HP


INCLUDES: Delem DA-66S Touchscreen Control, Foot Pedal with E-Stop, 4 - Axis Backgauge (X, R, Z1, Z2), Wila CNC Crowning, Wide Bottom Table with NA Die Slot,  AKAS V Laser Safety, Rear Light Curtains and Delem Profile TL Offline Software.

***All Price, Location and Specifications Subject to Change without Notice***
