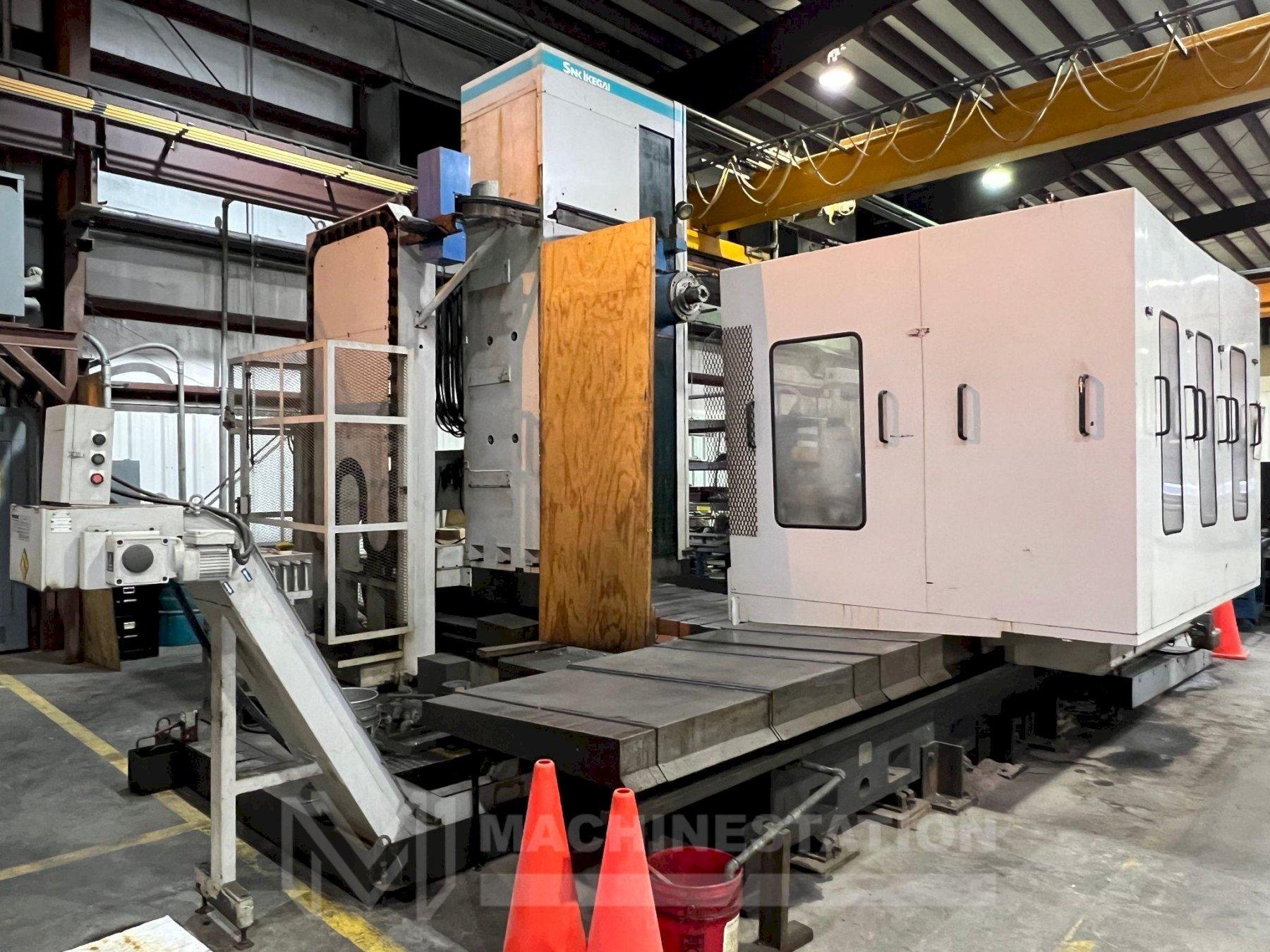

SNK Ikegai NB130PE3.5 CNC Table Type Horizontal Boring Mill

SNK Ikegai NB130PE3.5 CNC Table Type Horizontal Boring Mill

Name: SNK Ikegai NB130PE3.5 CNC Table Type Horizontal Boring Mill
Brand: Unknown
SKU: 115142
Availability: InStock

Brand

Not specified

Location

California

Specifications
Files & Videos

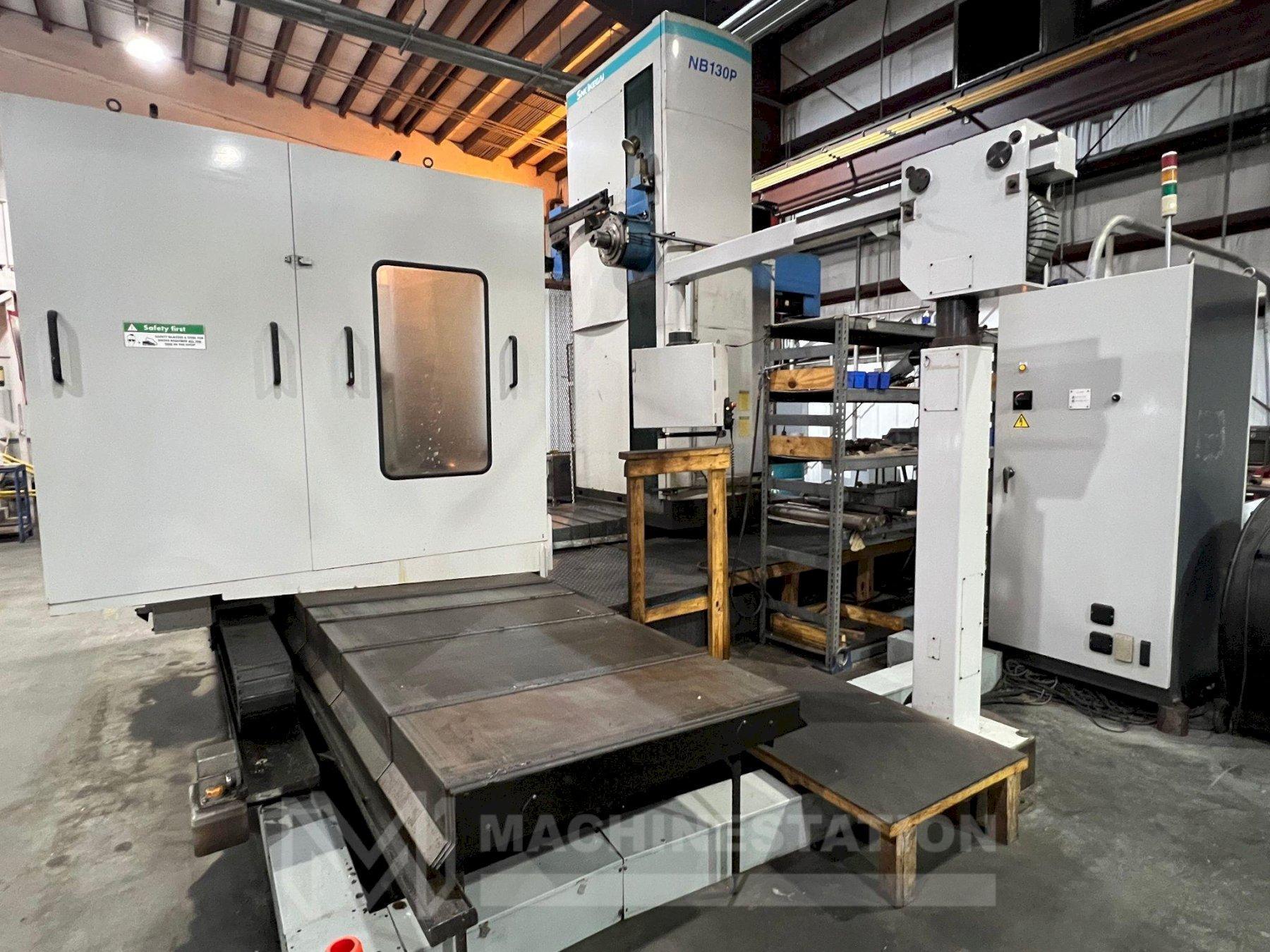

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	SNK Ikegai
Model No.:	NB130PE3.5
Year of Manufacture:	2007
Condition:	Used – Good

Features:

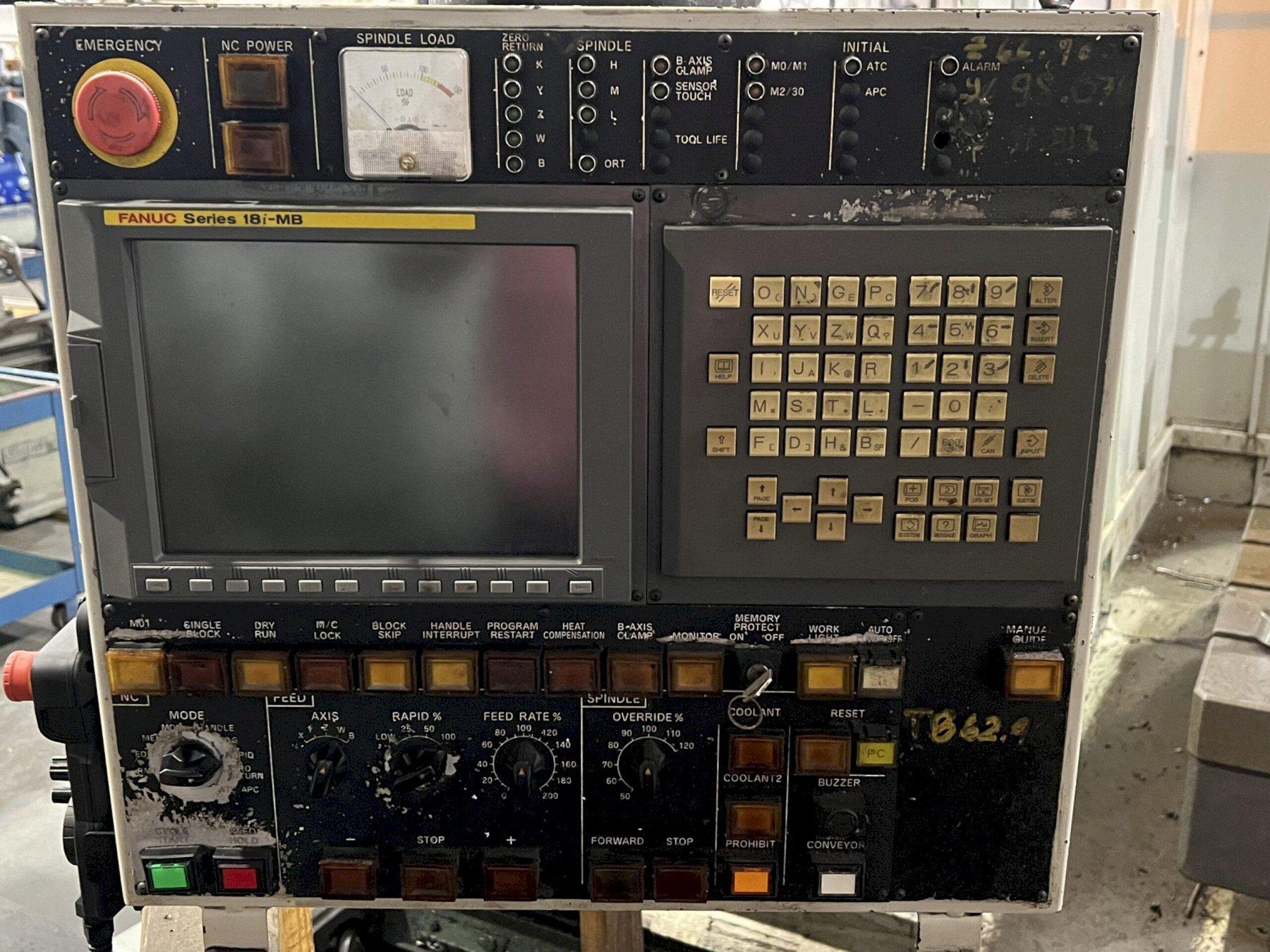

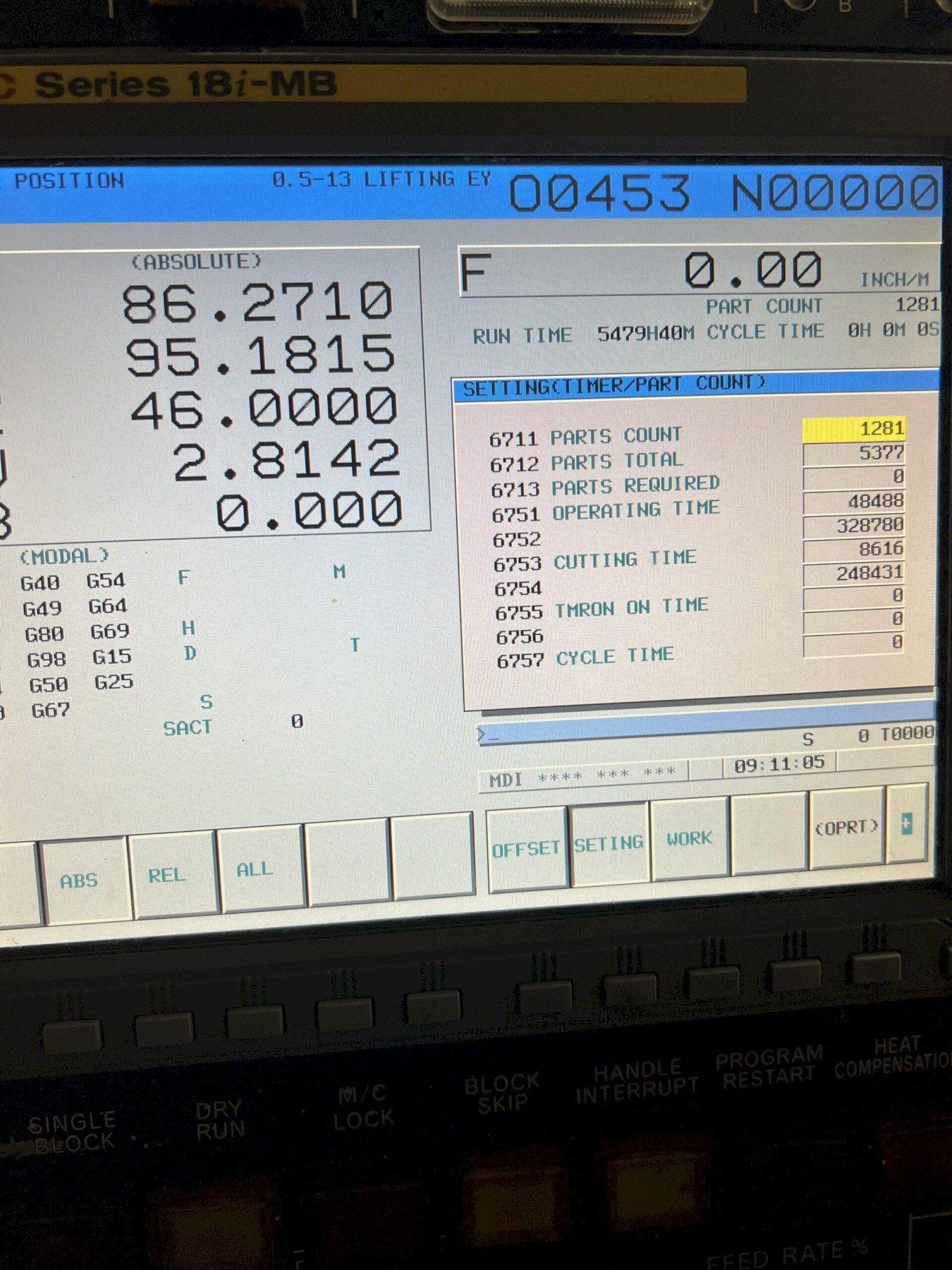

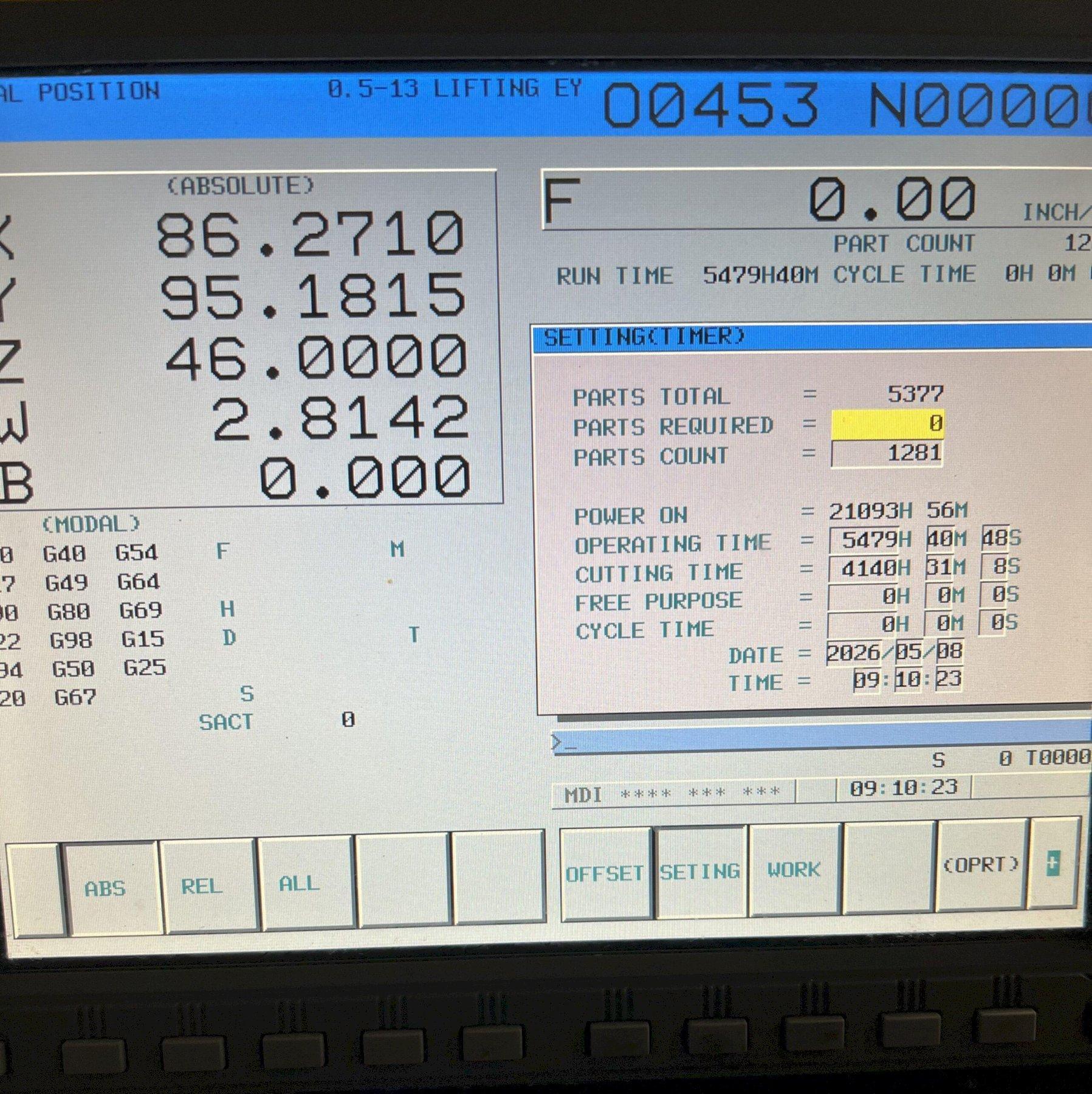

Fanuc 18i-MB Series CNC Control
5.118″ Spindle Diameter
Full 4th Axis CNC Rotary Table
Heavy Table Load Capacities
60 Station Automatic Tool Changer

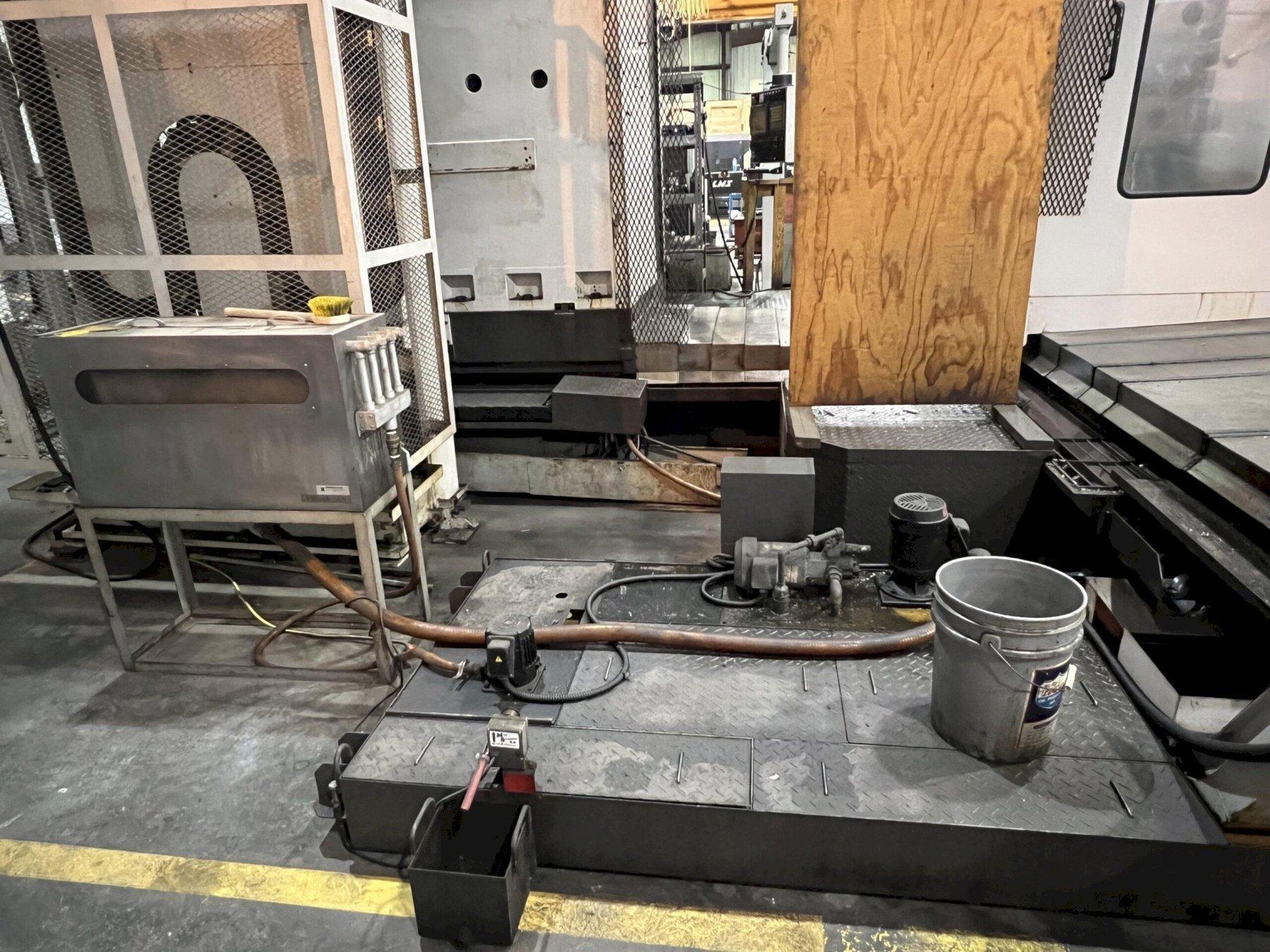

Coolant Tank

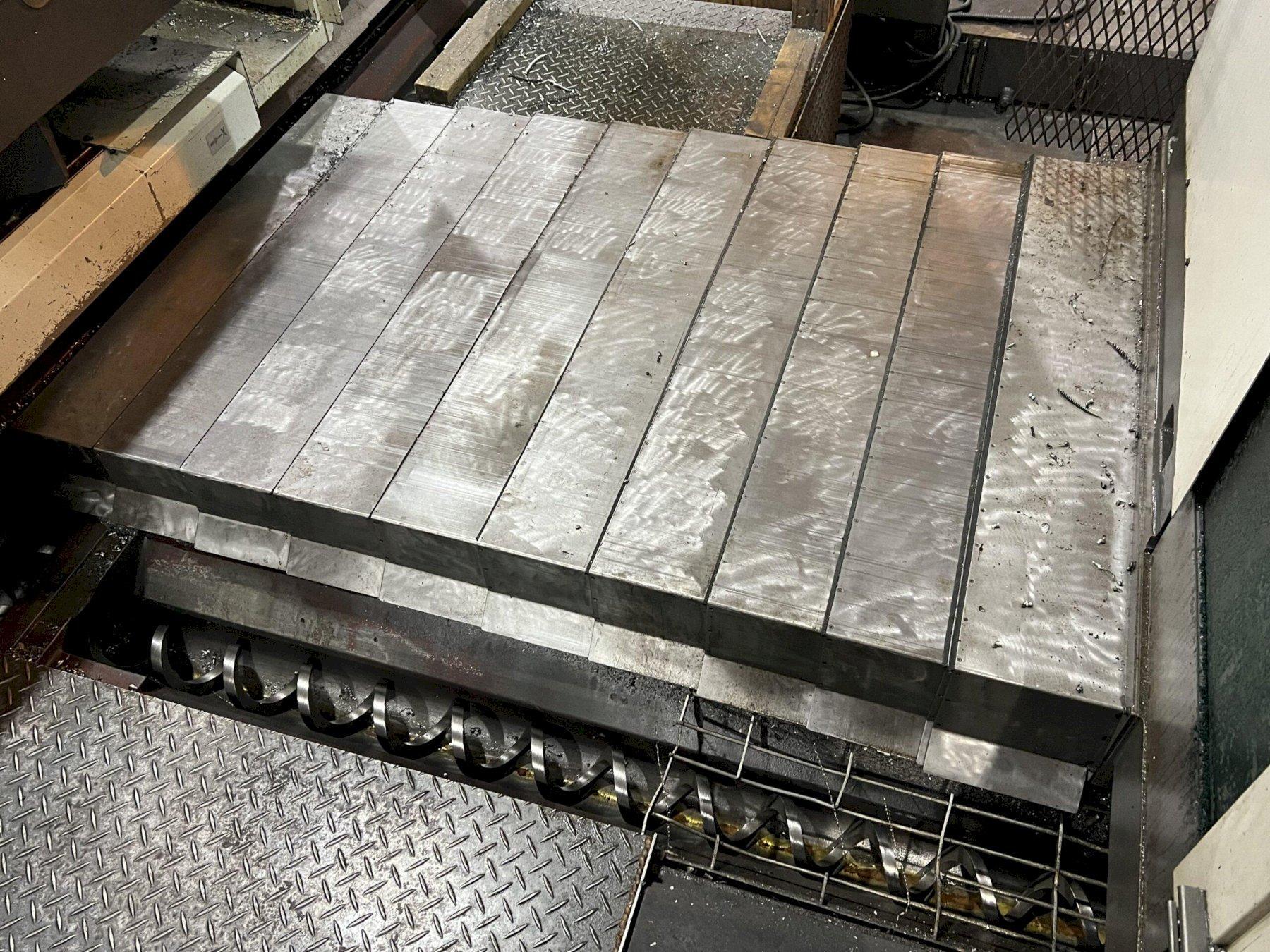

Chip Conveyor

Travels:
Table Longitudinal Travel (X Axis): 137.80″
Headstock Vertical Travel (Y Axis): 98.43″
Column Cross Travel (Z Axis): 62.99″
Spindle Quill Travel (W Axis): 27.56″

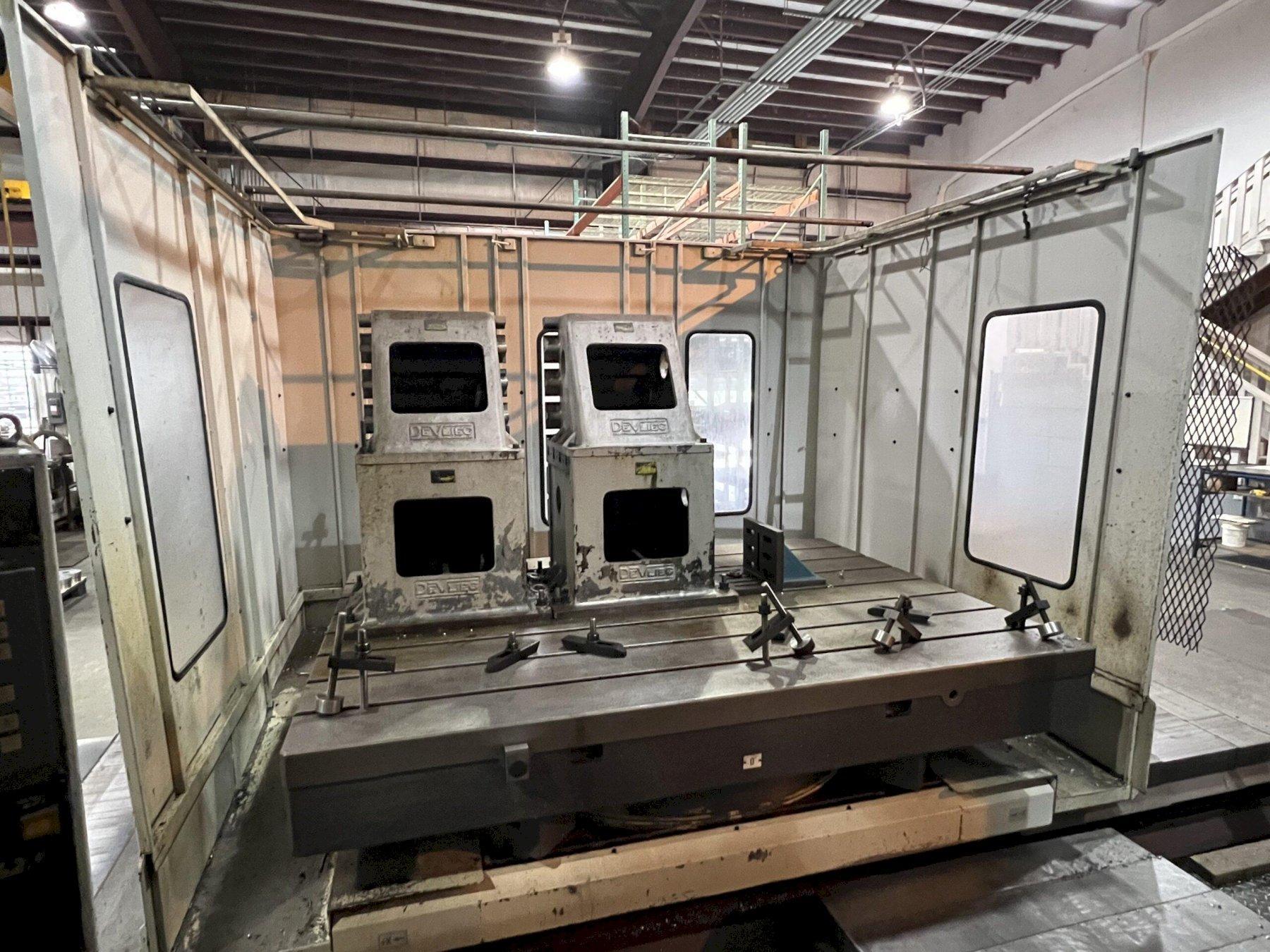

Rotary Table:
Length: 86.61″
Width: 62.99″
Maximum Table Load Capacity: 22,046 lbs
Table Indexing Increment: 0.001° / 90° pin

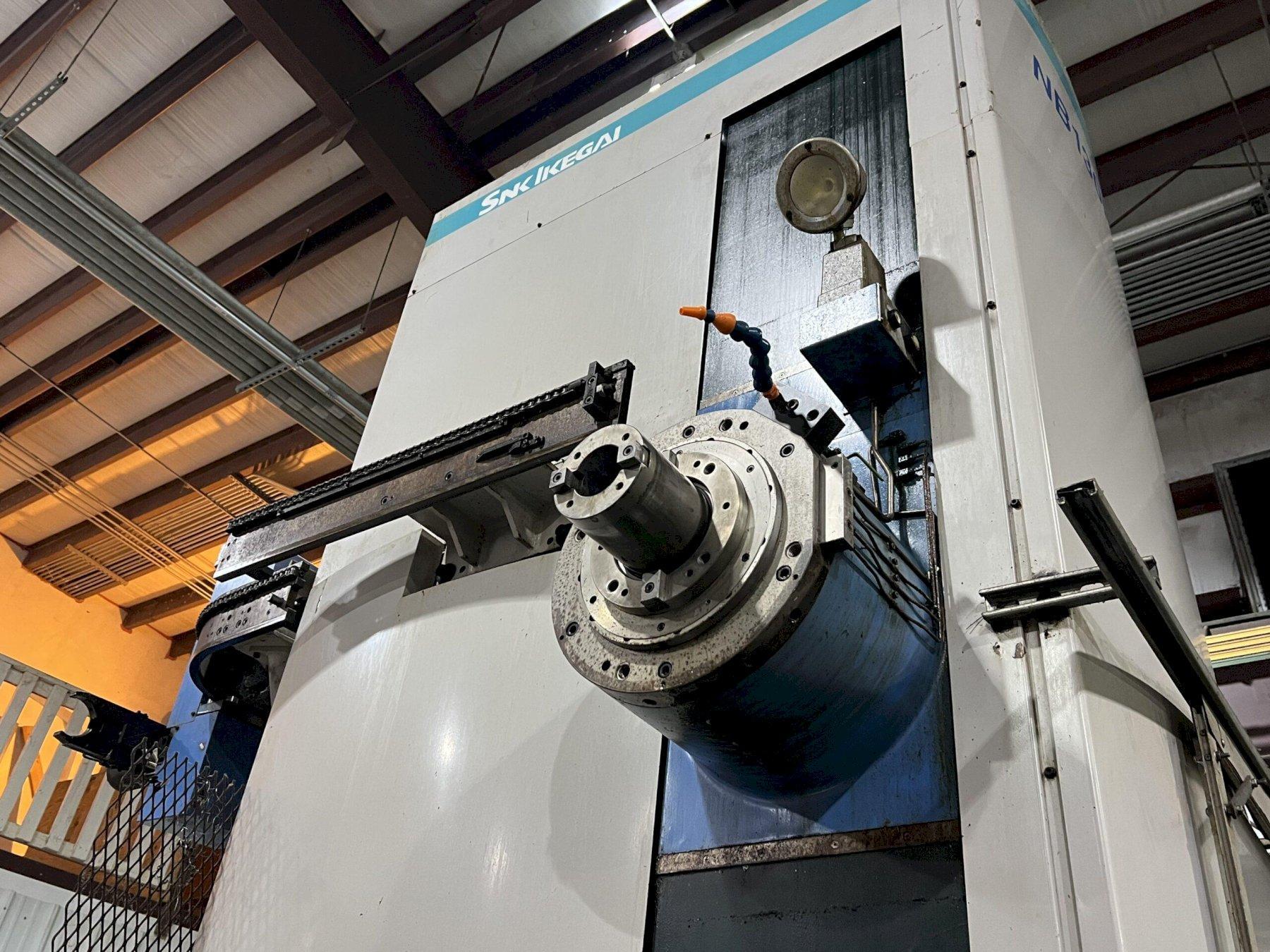

Spindle:
Spindle Diameter: 5.118″
Spindle Speed Range: 5 – 2,500 RPM
Spindle Taper: 50
Maximum Torque: 2,372 ft-lbs Approx.
Power: 30 / 35 HP

Feed Rates:
Rapid Traverse X Axis: 315 IPM
Rapid Traverse Y Axis: 394 IPM
Rapid Traverse Z Axis: 394 IPM
Rapid Traverse W Axis: 236 IPM
Cutting Feed Rate: 197 IPM

Tool Changer:
Capacity: 60 Tools
Taper: 50
Maximum Tool Diameter: 5.51″
Maximum Tool Length: 15.75″
Maximum Tool Weight: 55 lbs
Tool Selection: Random Bi-Directional
