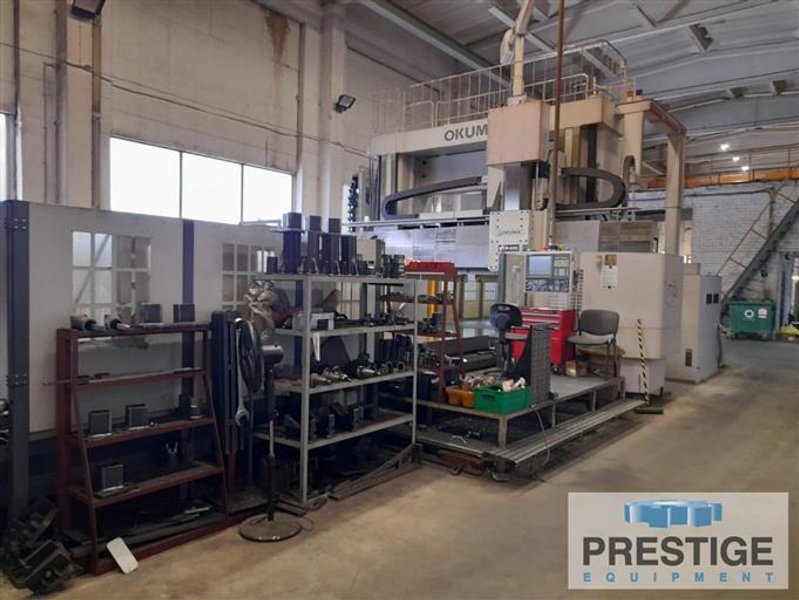

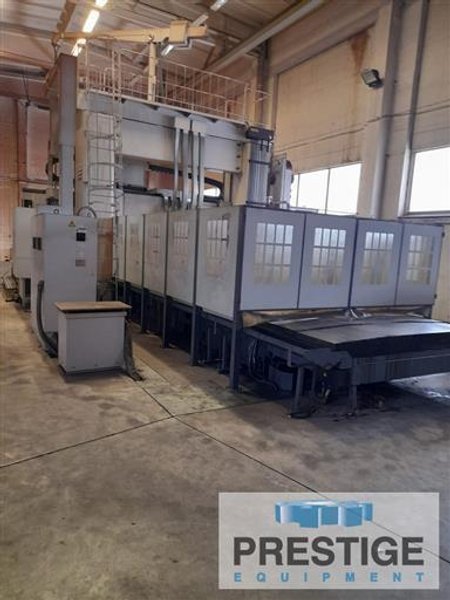

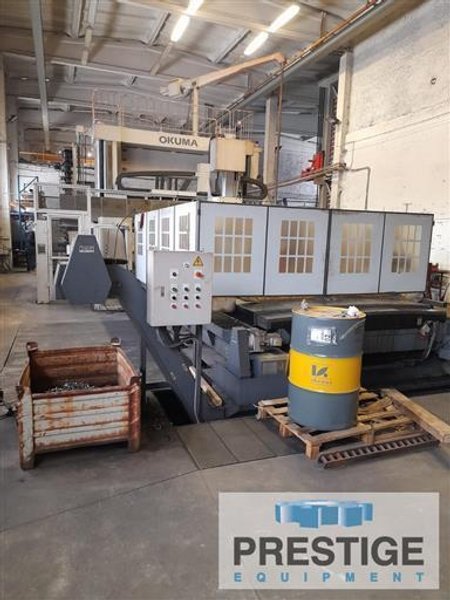

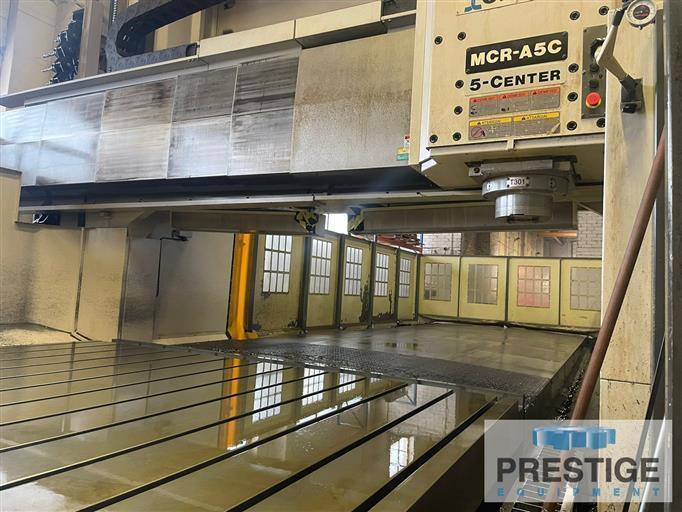

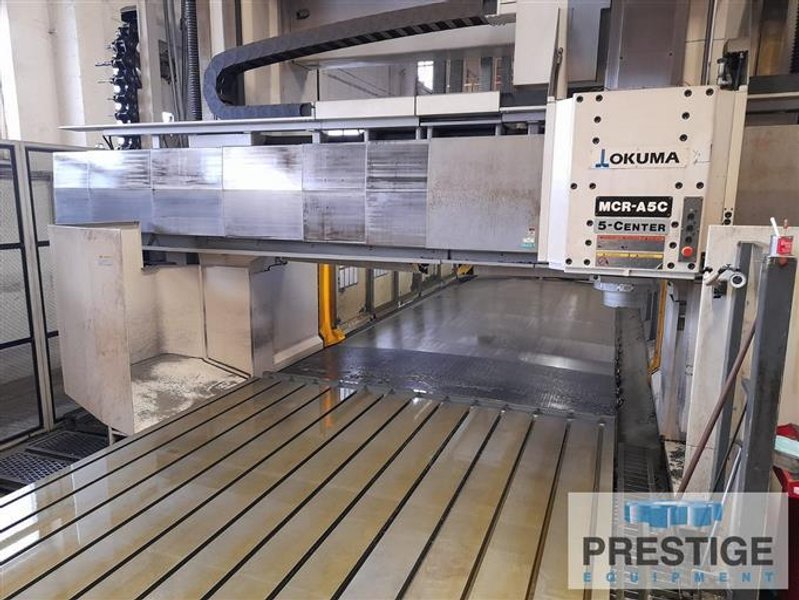

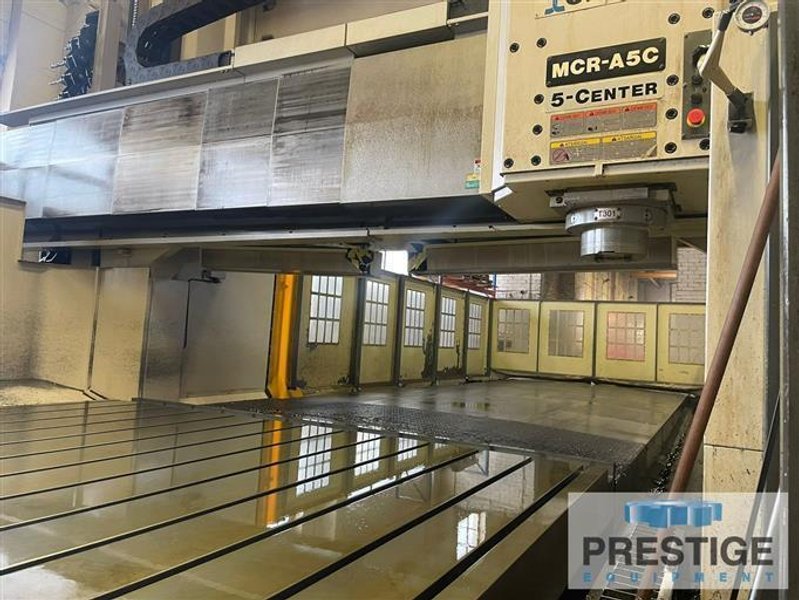

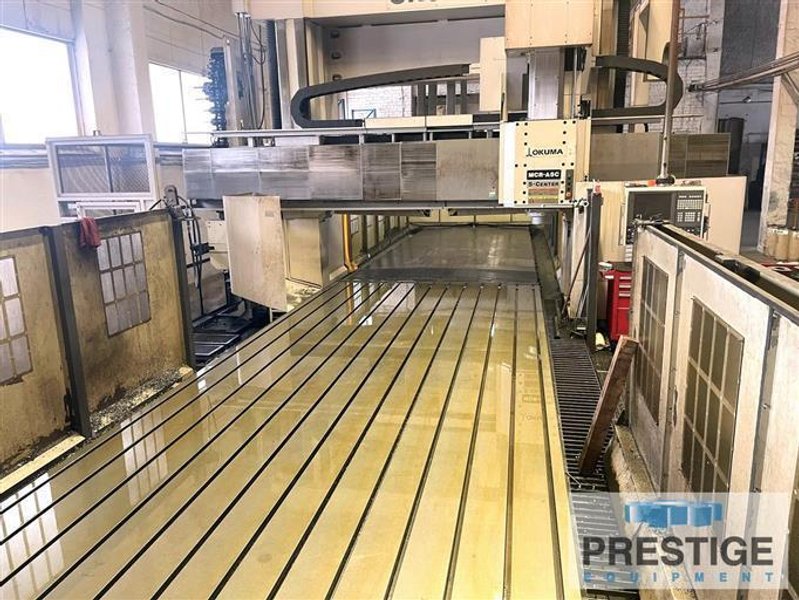

Machining Centers Vertical Bridge Type CNC

CAPACITY:
X-Axis Travel, Table 255.90"
Y-Axis Travel, Spindle Head 137.79"
Z-Axis Travel, Ram 25.59"
W-Axis Travel, Cross Rail 51.18"
Width Between Columns 120"

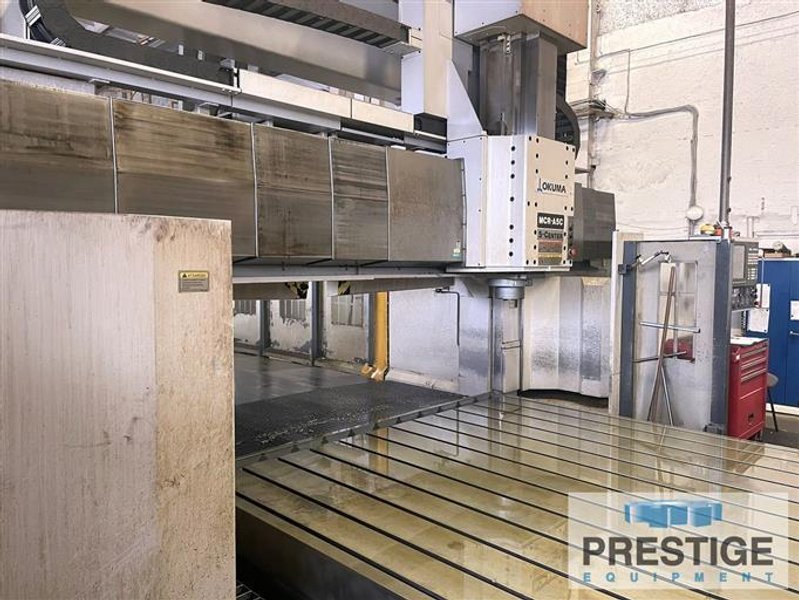

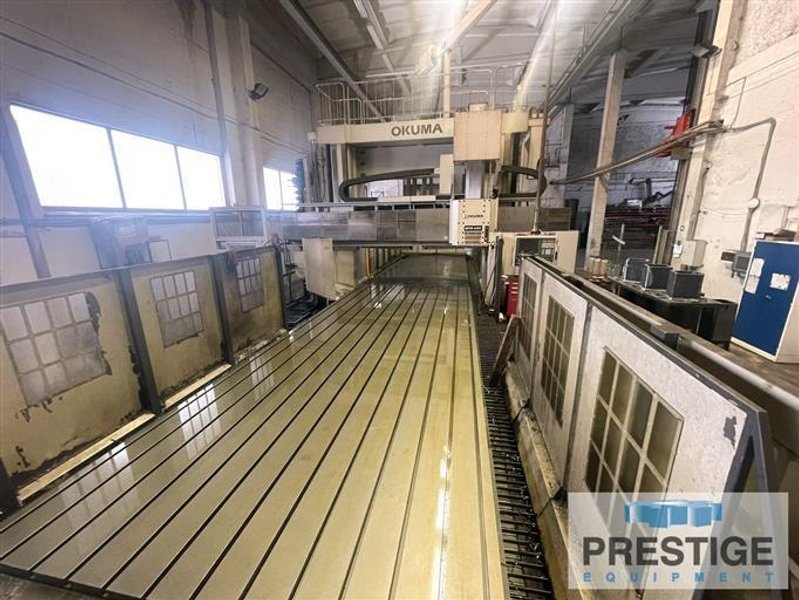

Table Size 98.42" x 259.84"
Table Load Capacity 66,000 Lbs.
Spindle Speeds (Variable) 30-4000 RPM
Spindle Taper BT #50
Cutting Feedrate, X,Y,Z................ 0.0393-393.70 IPM 0.0393-393.70 IPM
Rapid Traverse, X Axis 787.40 IPM
Rapid Traverse, Z Axis 393.7 IPM
Approximate Weight 129,800 Lbs.



Equipped With:

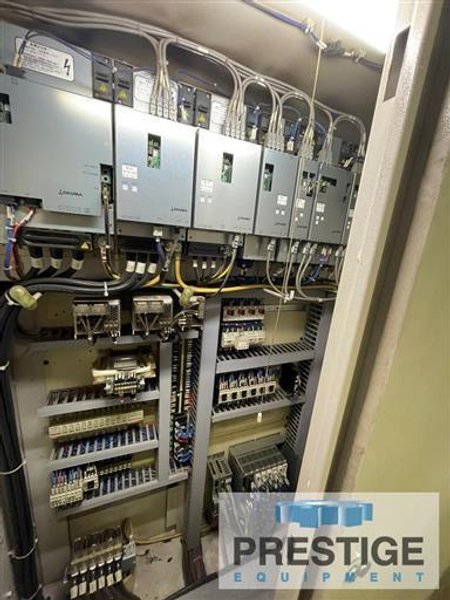

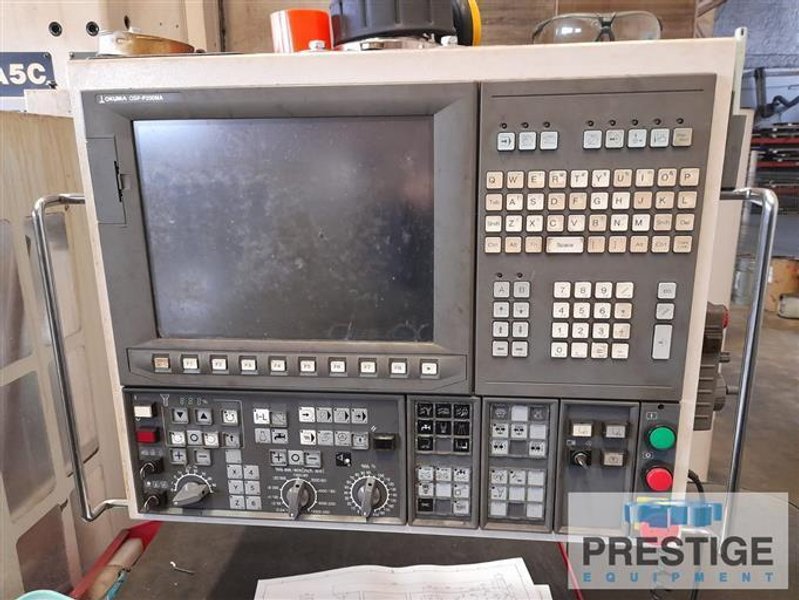

Okuma OSP-P200MA CNC Control

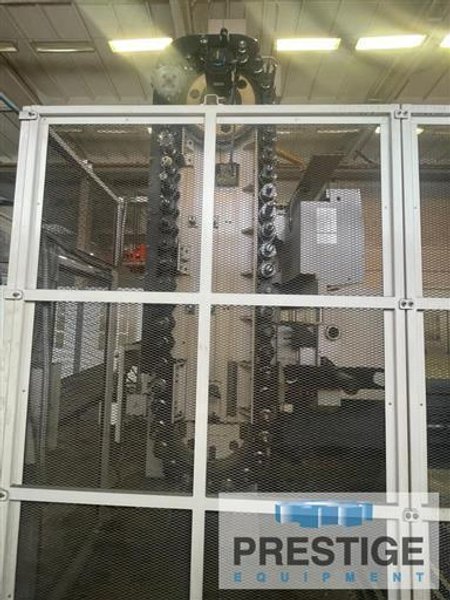

50 Station Automatic Tool Changer

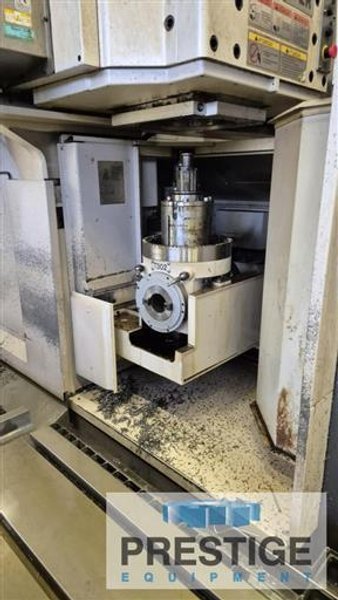

Right Angle Head
Automatic Attachment Changer


HOURS: 5,700 Cutting Hours


NOTE: Inspect In Plant Under Power
