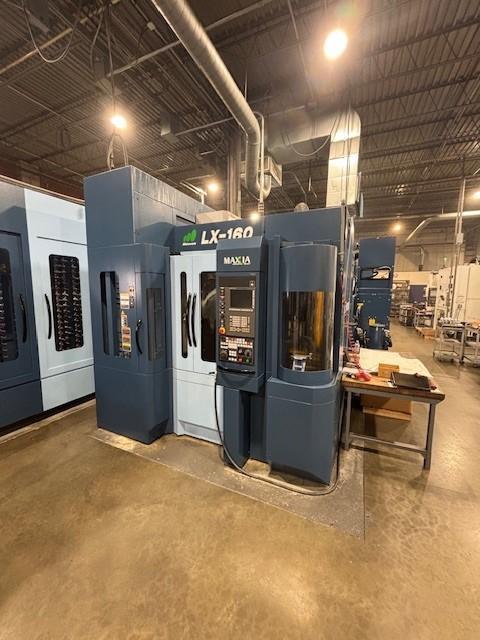

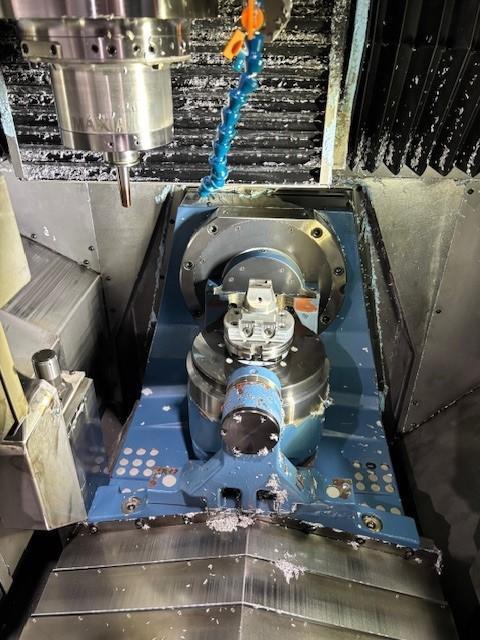

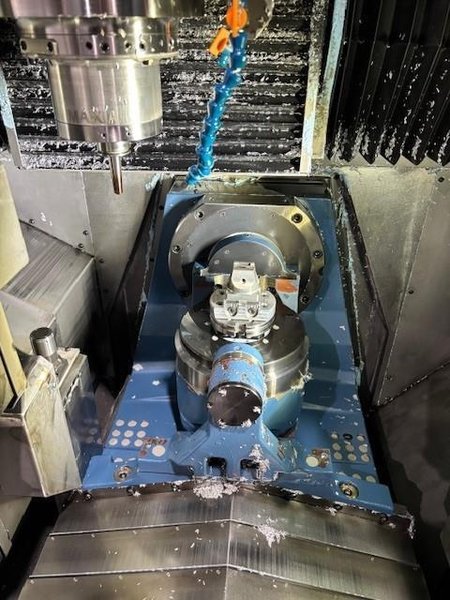

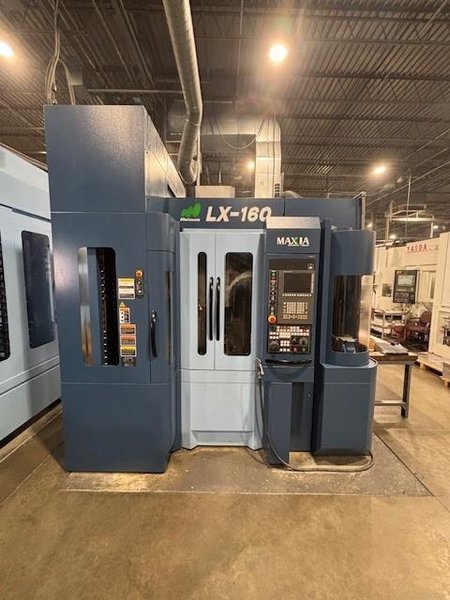

Matsuura LX160 5-Axis CNC VMC, 2014 – 42 Pallet Changer, Chip Conveyor, Renishaw Probe
Brand
Category
Model
LX160
Stock #
683723
Year
2014
Condition
Not specified
Location
Not specified
|
Travels
X-Axis: 19.68″
Y-Axis: 9.84″
Z-Axis: 11.81″
Rapid Traverse (X/Y/Z): 3,543 IPM

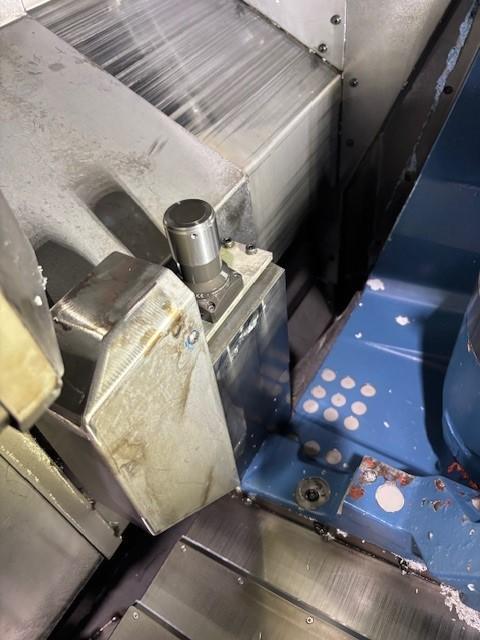

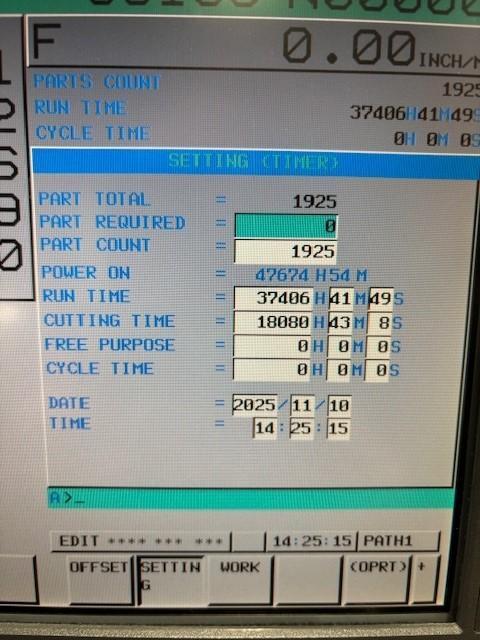

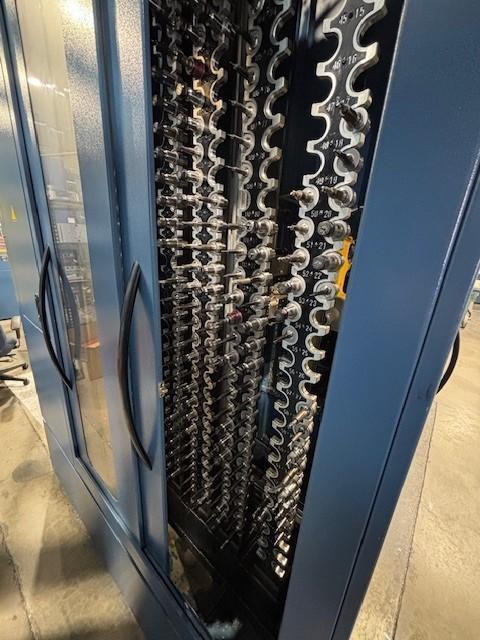

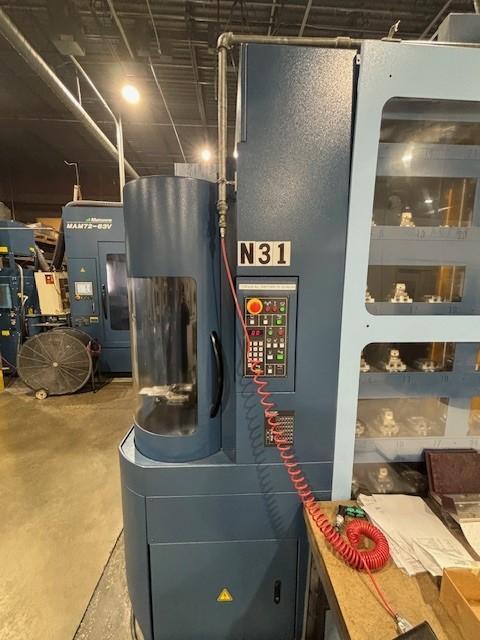

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Spindle Taper: HSK 40 Spindle Speed: 46,000 RPM Spindle Power: 20 HP All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Table Size: 6.29″ Diameter Max Workpiece Load: 45lbs Pallet System: 42 Pallets Tool Capacity: 338 ATC All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Fanuc 30iB CNC Control 42 Pallet Changer (Linear Pallet System) 338 Tool Changer Spiral Chip Conveyor Air Blow for Chip Swarf Removal Vacuum Type Coolant Thru A In Process Measure (Renishaw OMP400) Laser BT Detection (Blum Laser Control Nano NT) 8 Sets of Extra M Function Weekly Timer 3 Color Patrol Light Tool Precheck Function High Speed/High Precision & 5-Axis Function MMU Value Package CAMPath True Path Software All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
