2010 MATSUURA MAM72-63V PC6 | Machining Centers, Vertical, (5-Axis or More)

2010 MATSUURA MAM72-63V PC6 | Machining Centers, Vertical, (5-Axis or More)

Name: Used FEILI MAM72-63V PC6 For Sale 33341
Brand: FEILI
SKU: 33341

Brand

FEILI

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

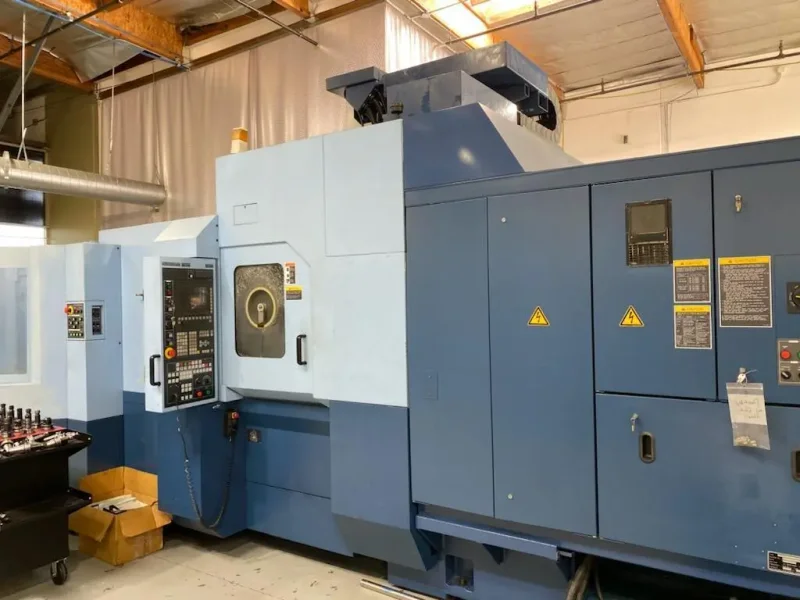

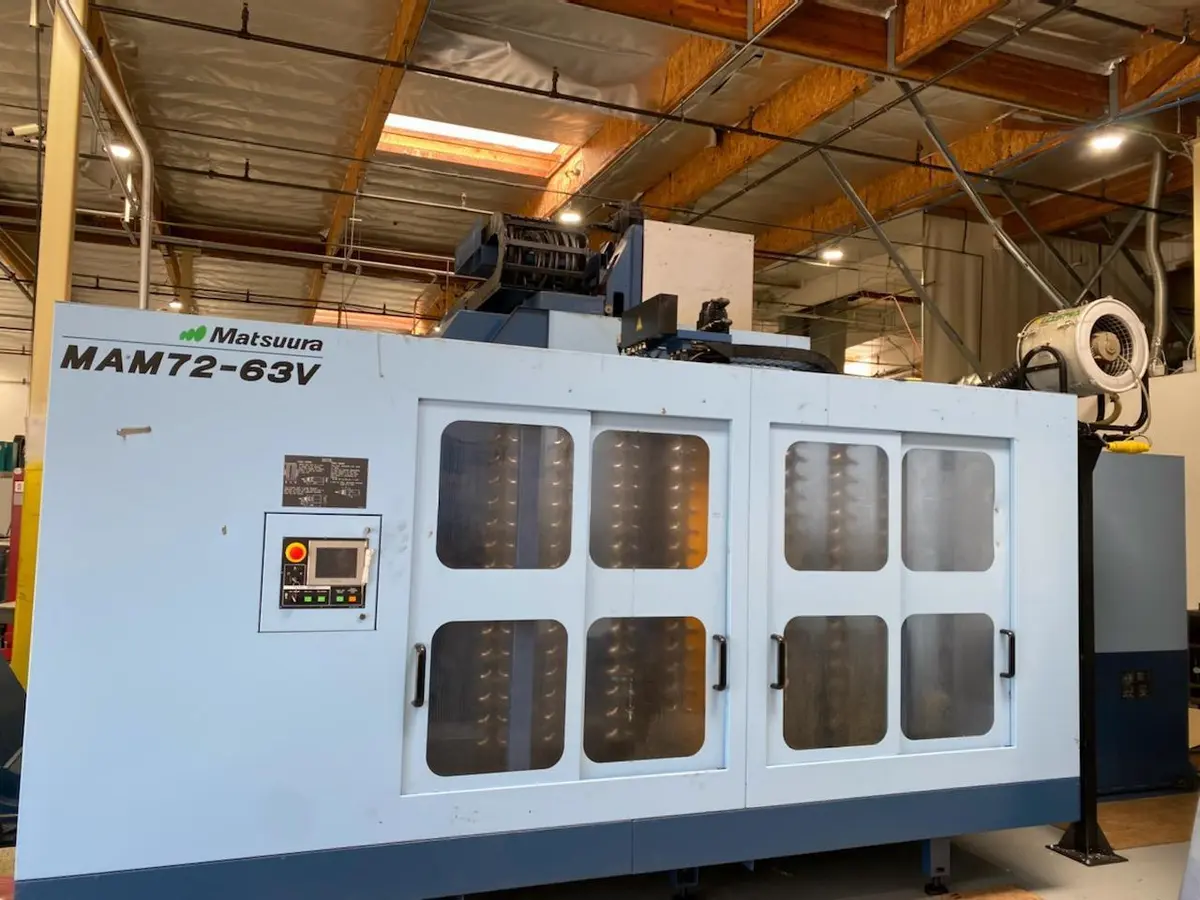

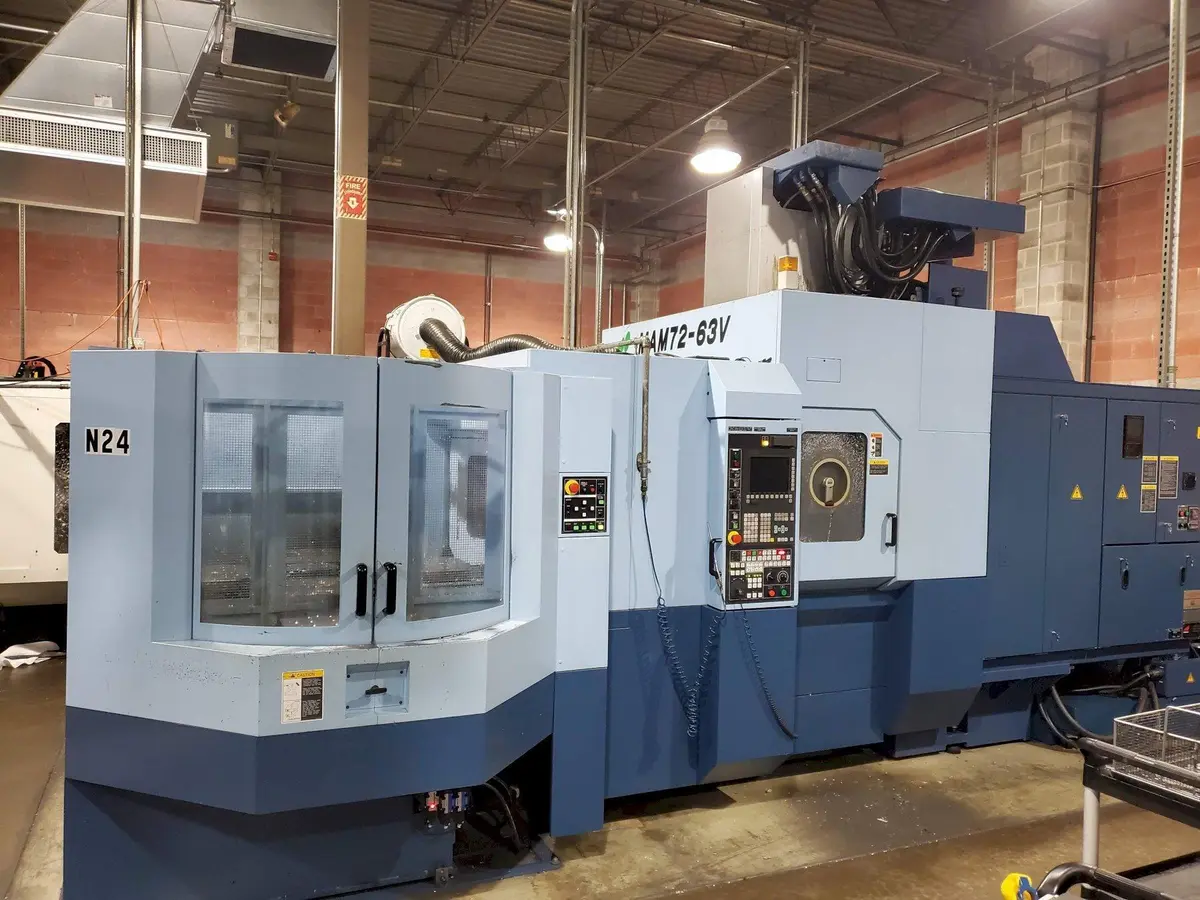

Matsuura MAM72-63V PC6 5-Axis Vertical Machining Center

Specifications

Matsuura MAM72-63V PC6 5-Axis Vertical Machining Center
Installed 2010

View Inspection Videos Here!

Specifications:
Travels:
X-Axis:                                29.92”
Y-Axis:                                33.26”
Z-Axis:                                25.98”
A-Axis:                                110 ~ + 30°
C-Axis:                                360°

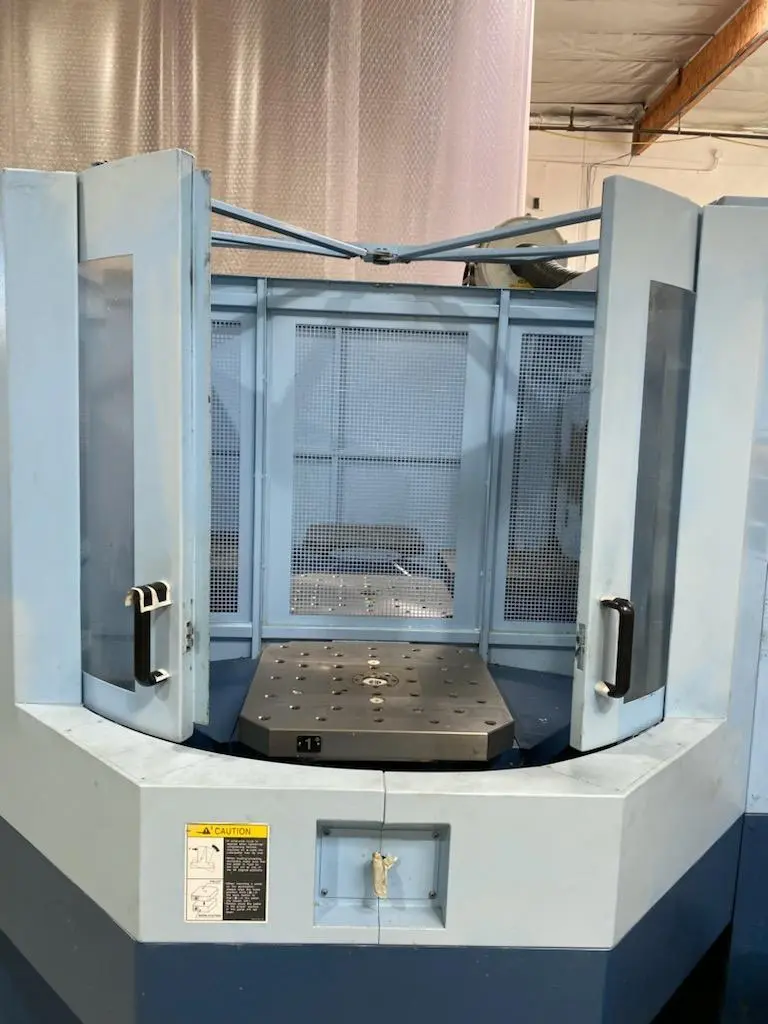

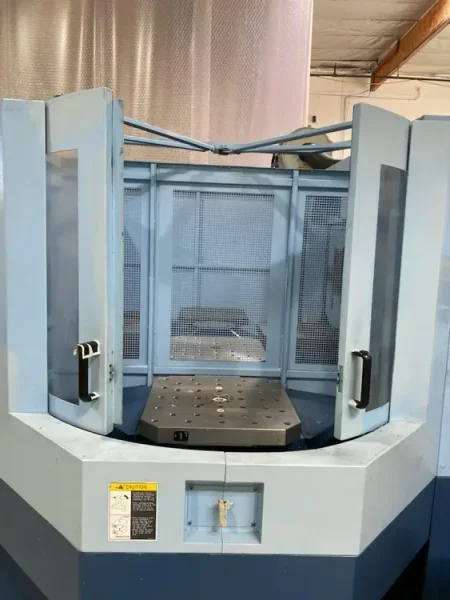

Pallet Changer:                6 Pallets
Spindle Speed:                 20,000 RPM
Spindle Motor:                 25 HP
Tool Changer:                   240 Tools
Max Work Size:                24.8” Dia x 17.7” Height
Max Weight:                     770 Lbs

Equipped With:
Siemens 840 DI Control
CAMplete Software Dongle
3D Collision Check Software
6-Pallet Changer
Microfine Chip Conveyor
Coolant Thru Spindle with High Pressure Pump
240 Tool ATC

Additional Options:
Thermal Displacement Compensation
NC-4 Laser Probe
4th & 5th Axis Scales
Matsuura 5th Axis Table
Coordinate System Rotation
Work Coordinates (93 Sets)
Work Light
Coolant Tank
Broken Tool Detection
MP700 Probe with Probe Kit
