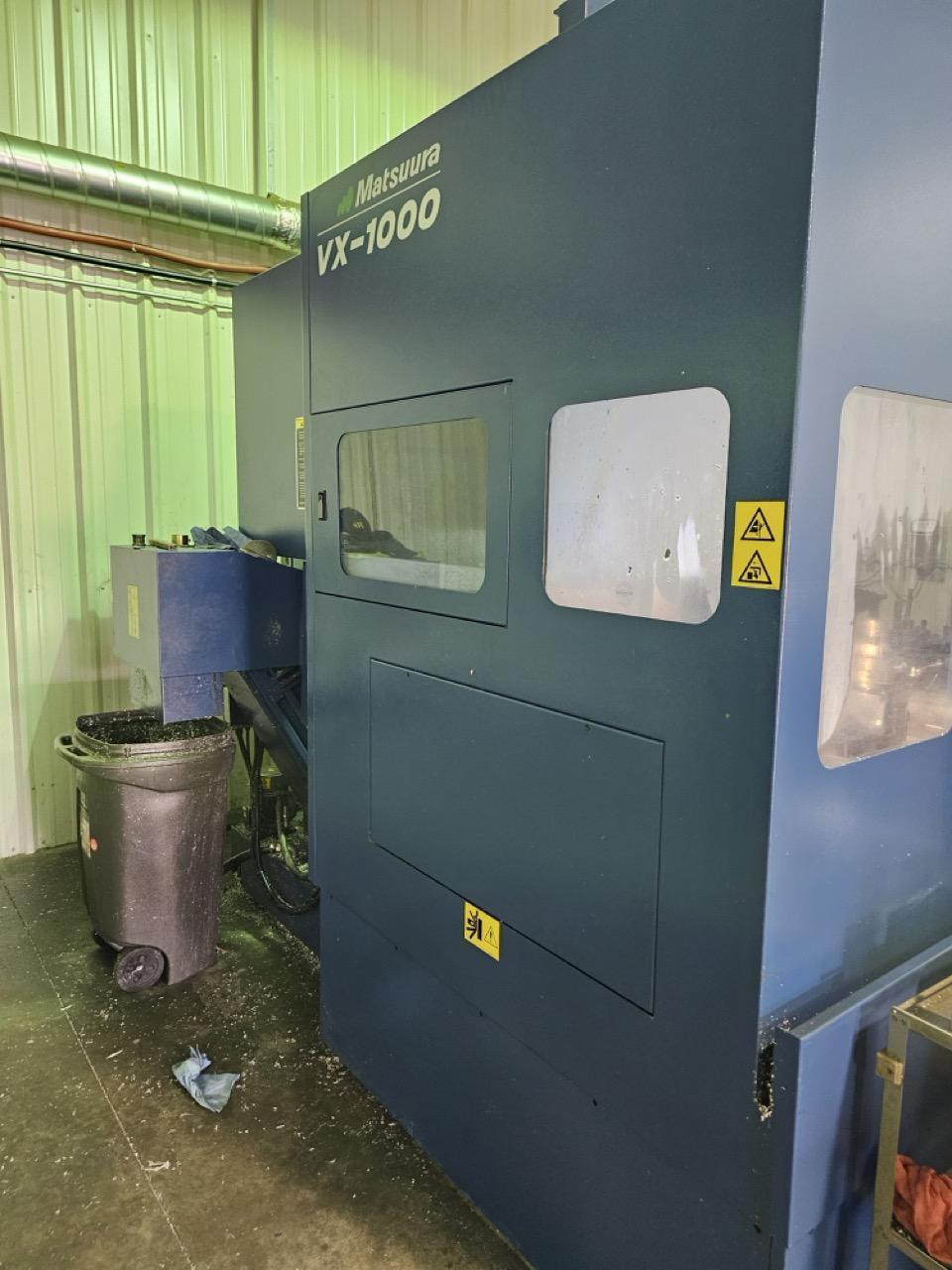

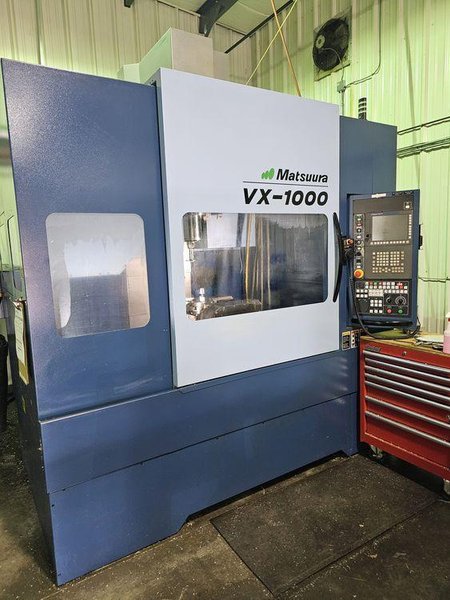

Matsuura VX-1000 VMC, 2017 – Coolant Through Spindle, 4th & 5th Axis Rotary Table
Brand
Category
Model
VX-1000
Stock #
895779
Year
2017
Condition
Not specified
Location
Not specified
|
Table Size: 47.24″ x 23.62″
X-Axis: 40.1″
Y-Axis: 24″
Z-Axis: 24″
Spindle Taper: BT 40
Spindle Speed: 15,000 RPM
Tool Change: 30
Rapid Traverse X/Y/Z: 1574/`574/1181 IPM
Table Weight Capacity: 3300 lbs
Approx. Weight: 20,000 lbs

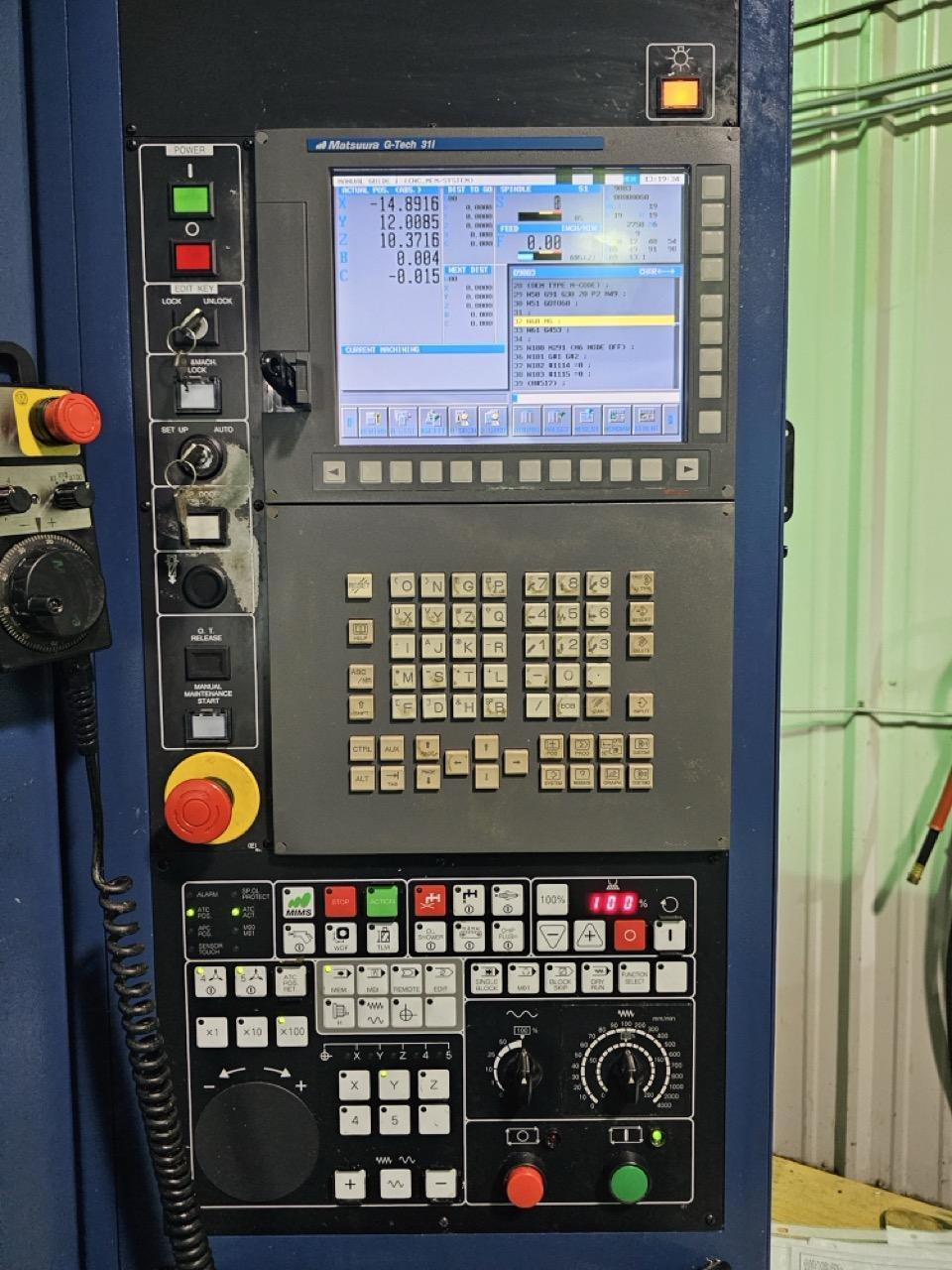

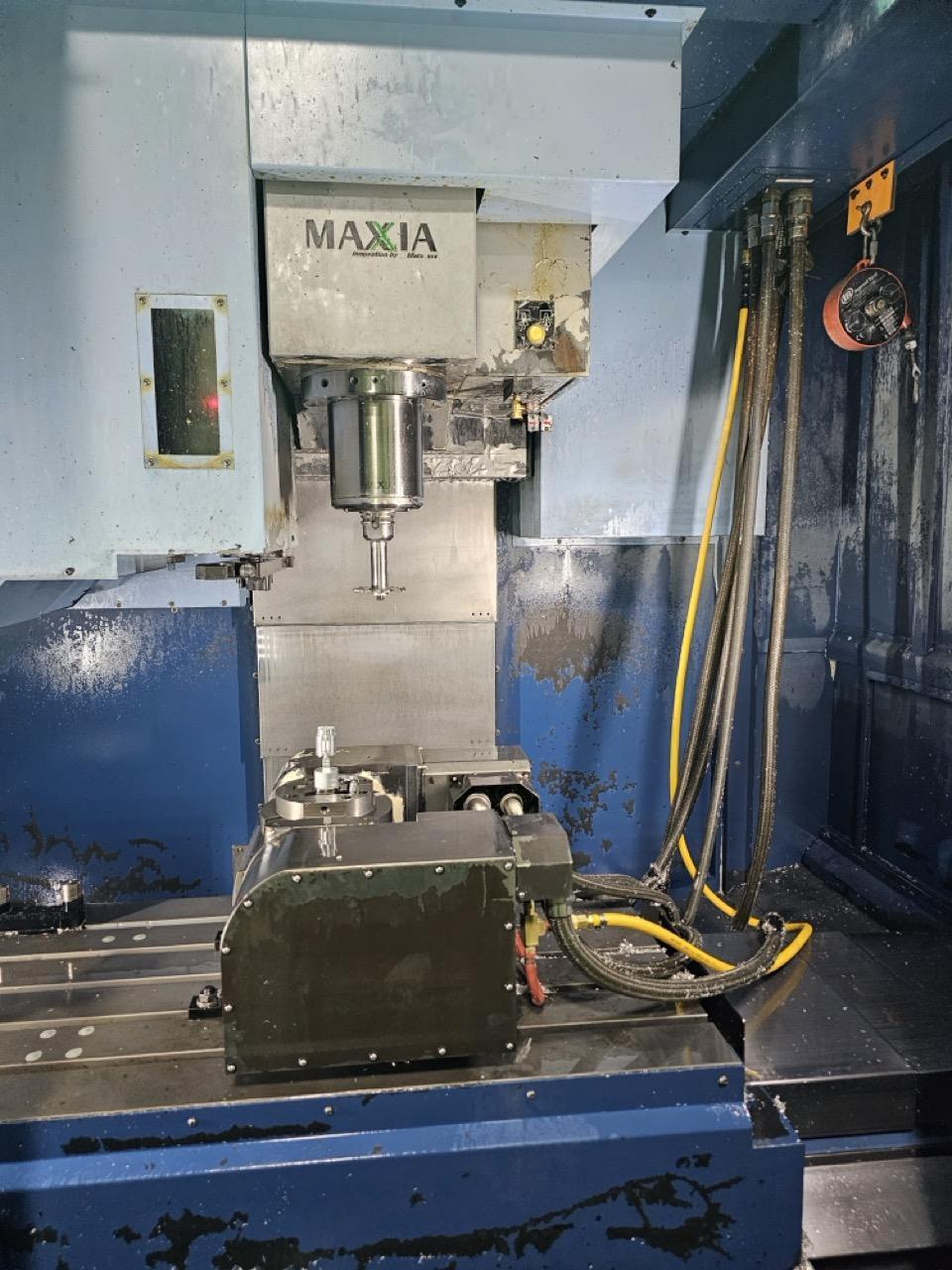

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Fanuc G-Tech 31i Control Coolant Through Spindle 300 PSI Coolant Filtration System Renishaw Laser Tool Measurement 4th and 5th Axis Rotary Table All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
