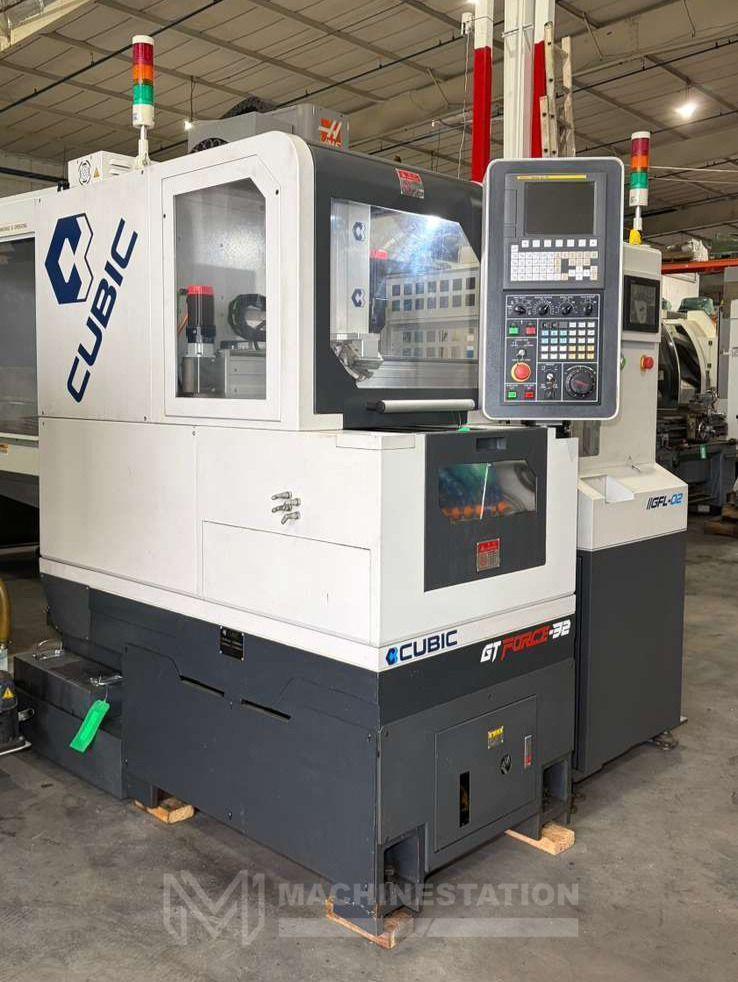

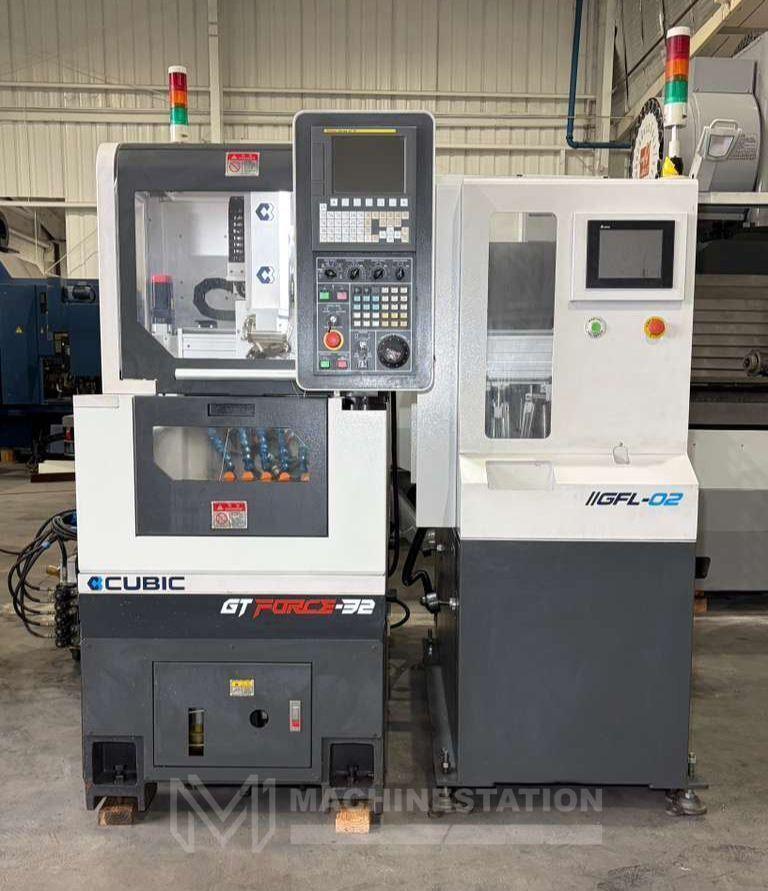

Cubic GT Force-32 Gang Tool CNC Lathe – 2019 Integrated Gantry Auto Loader

Cubic GT Force-32 Gang Tool CNC Lathe – 2019 Integrated Gantry Auto Loader

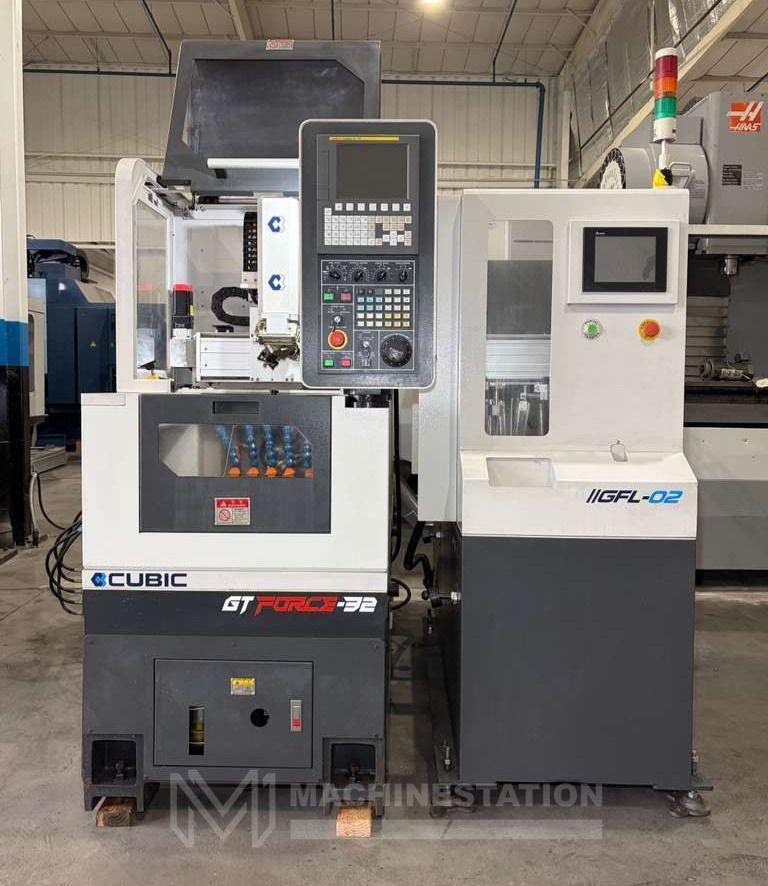

Name: Cubic GT Force-32 Gang Tool CNC Lathe – 2019 Integrated Gantry Auto Loader
Brand: Unknown
SKU: 113617
Availability: InStock

Brand

Not specified

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:	Cubic
Model:	GT Force-32
Year:	2019
Condition:	Used – Excellent

Equipped With:

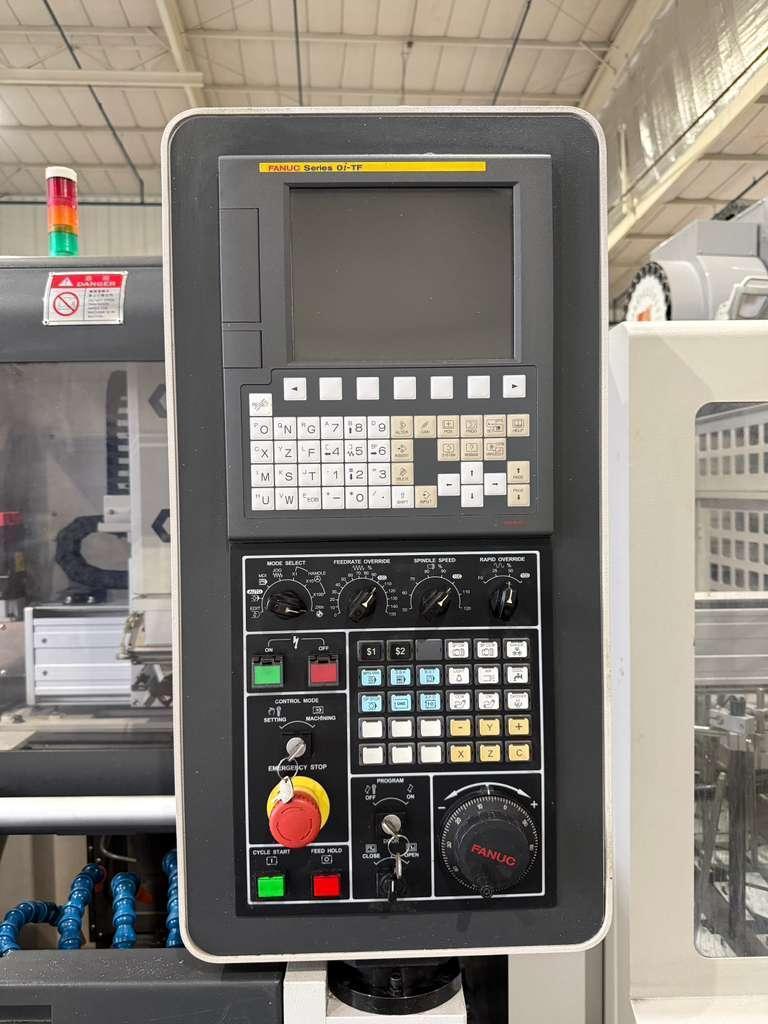

Fanuc Oi-TF series CNC Control
Collet Chuck

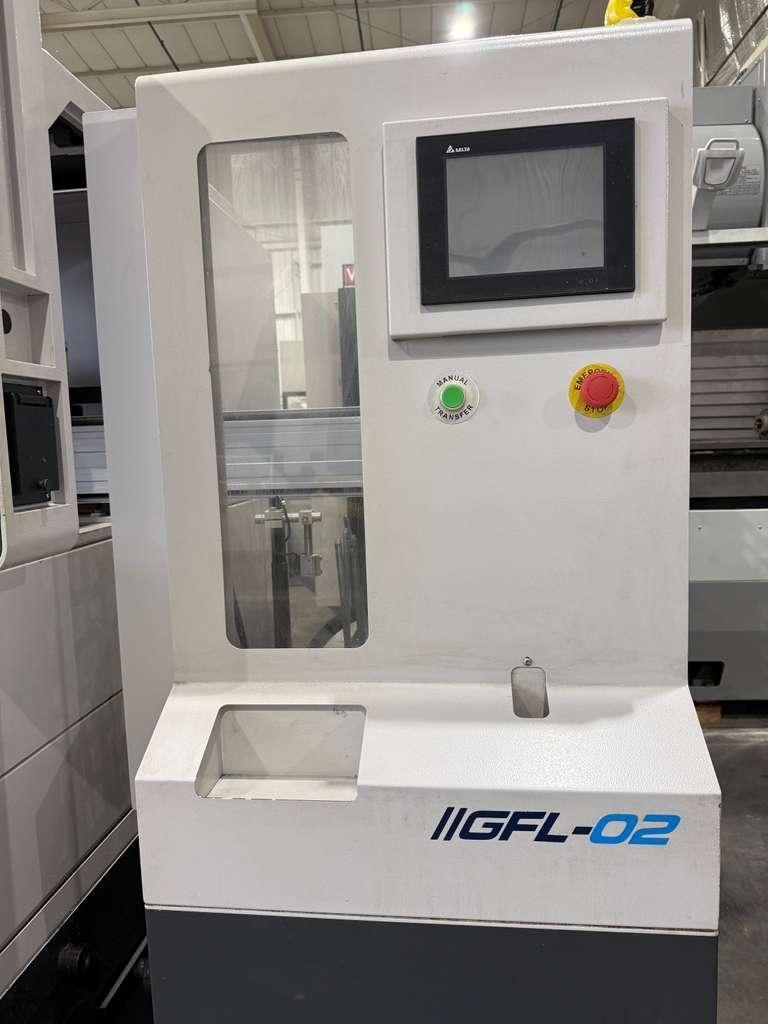

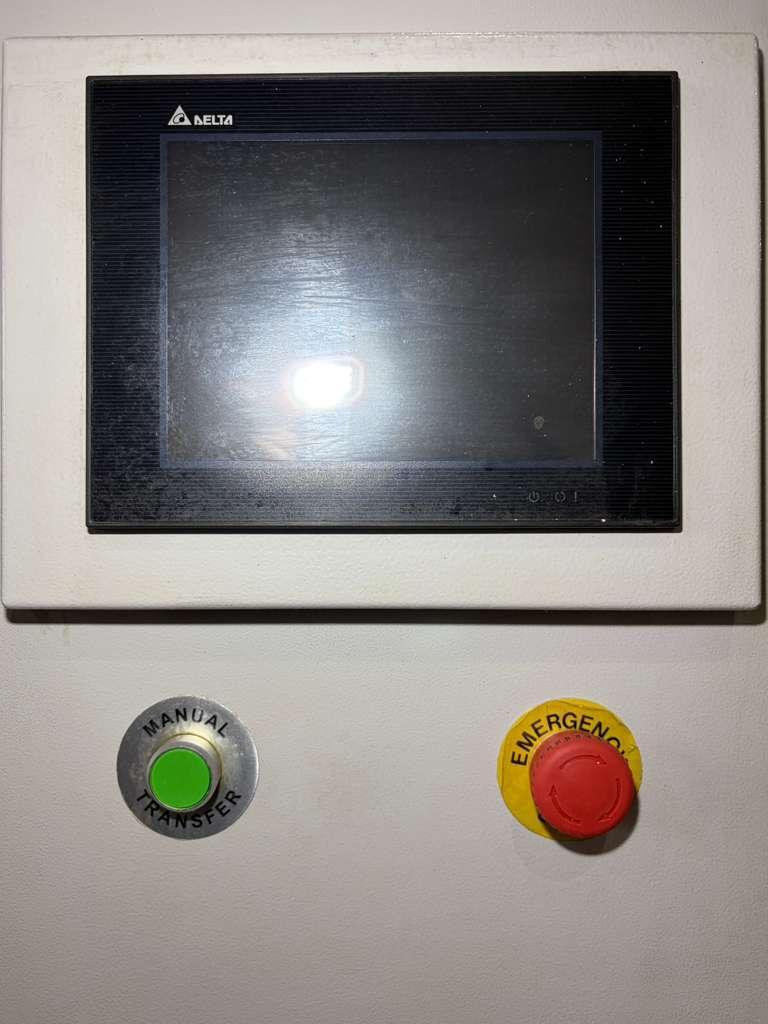

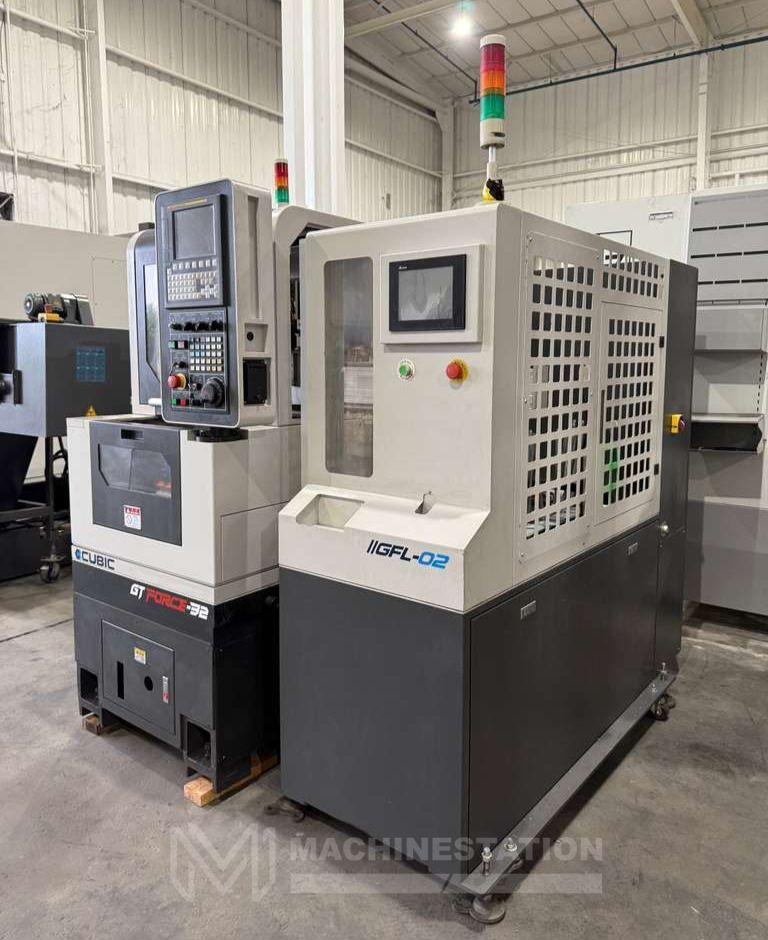

Auto Parts Loading System

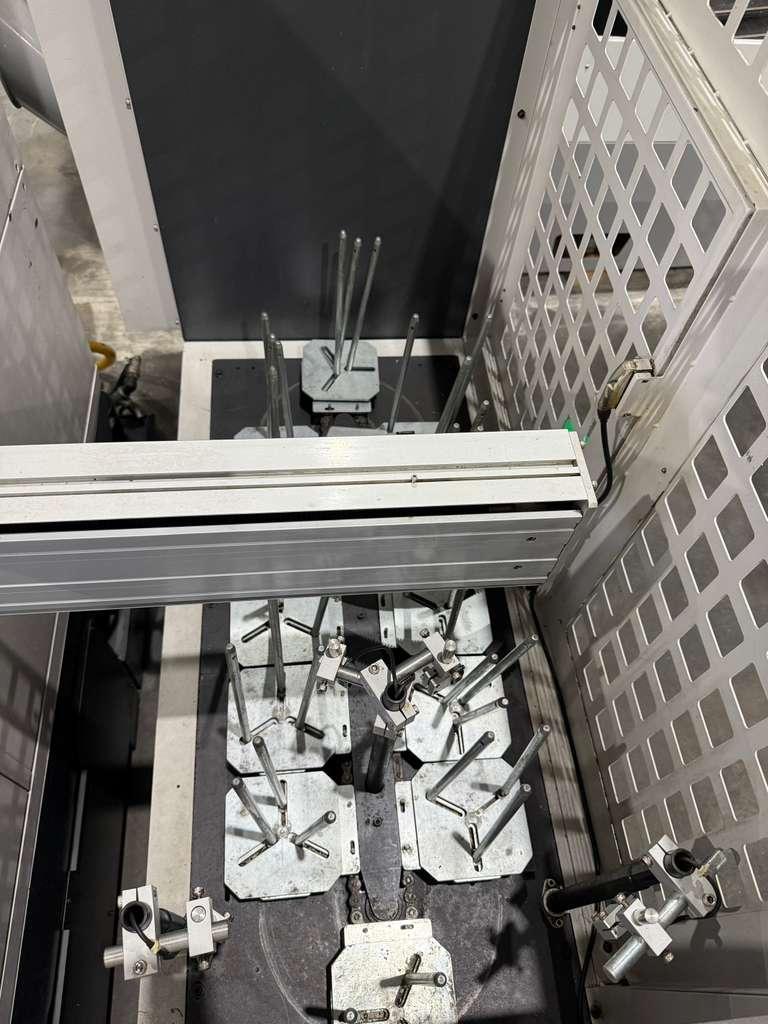

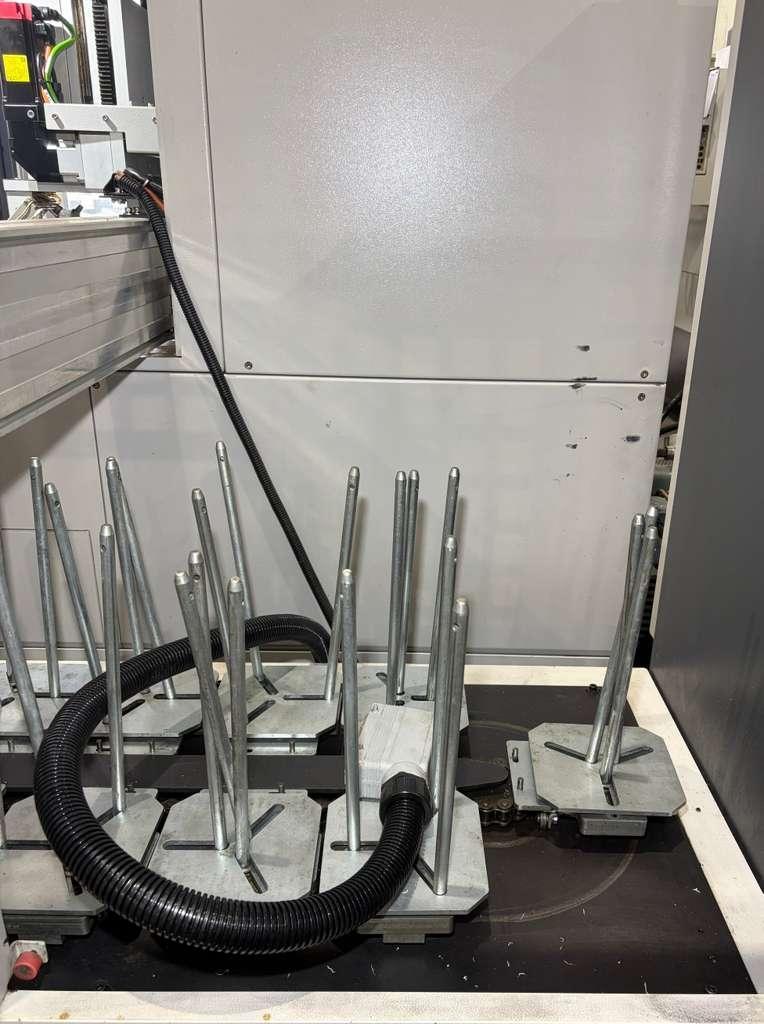

12 Station Rotary Stacker

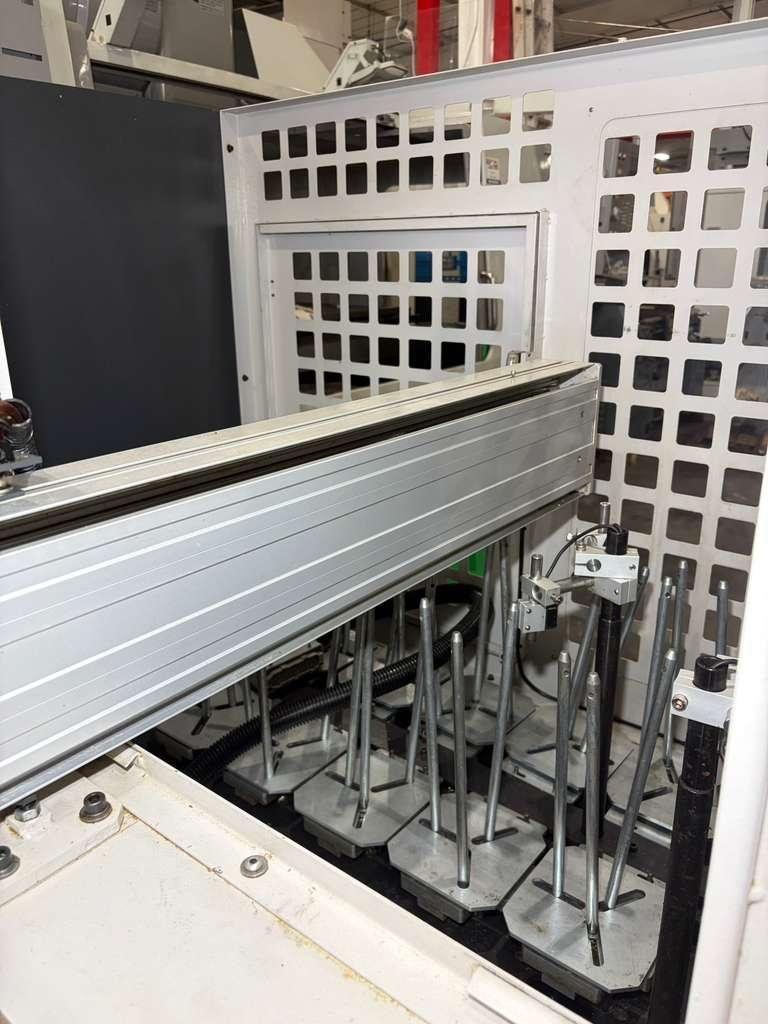

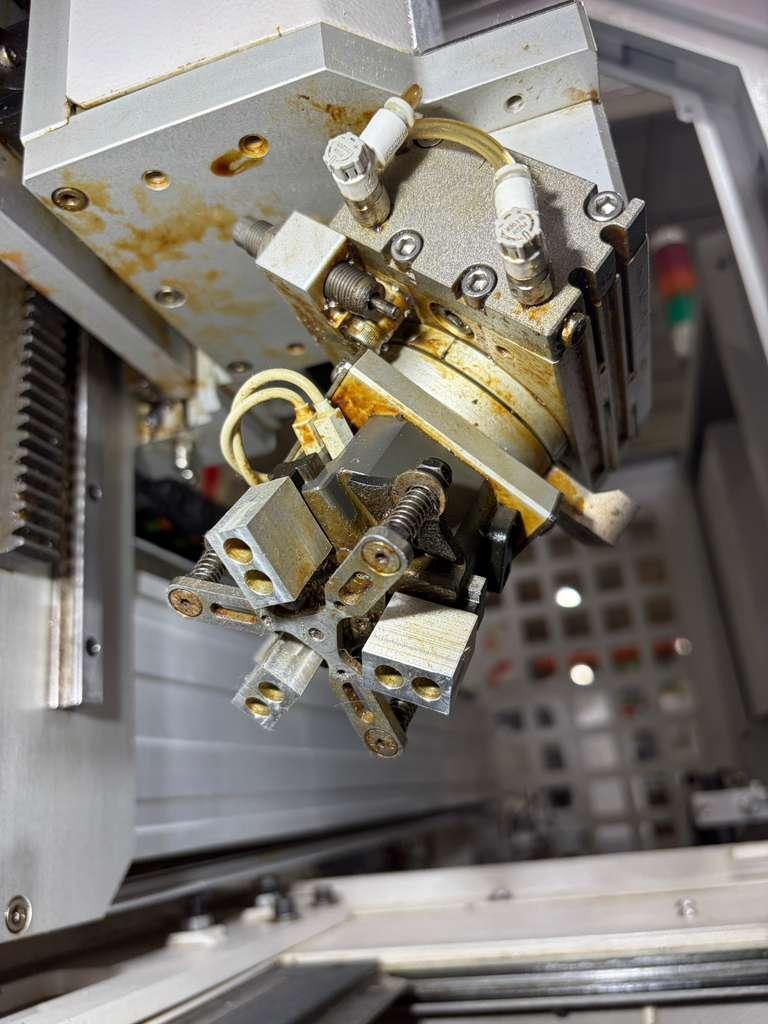

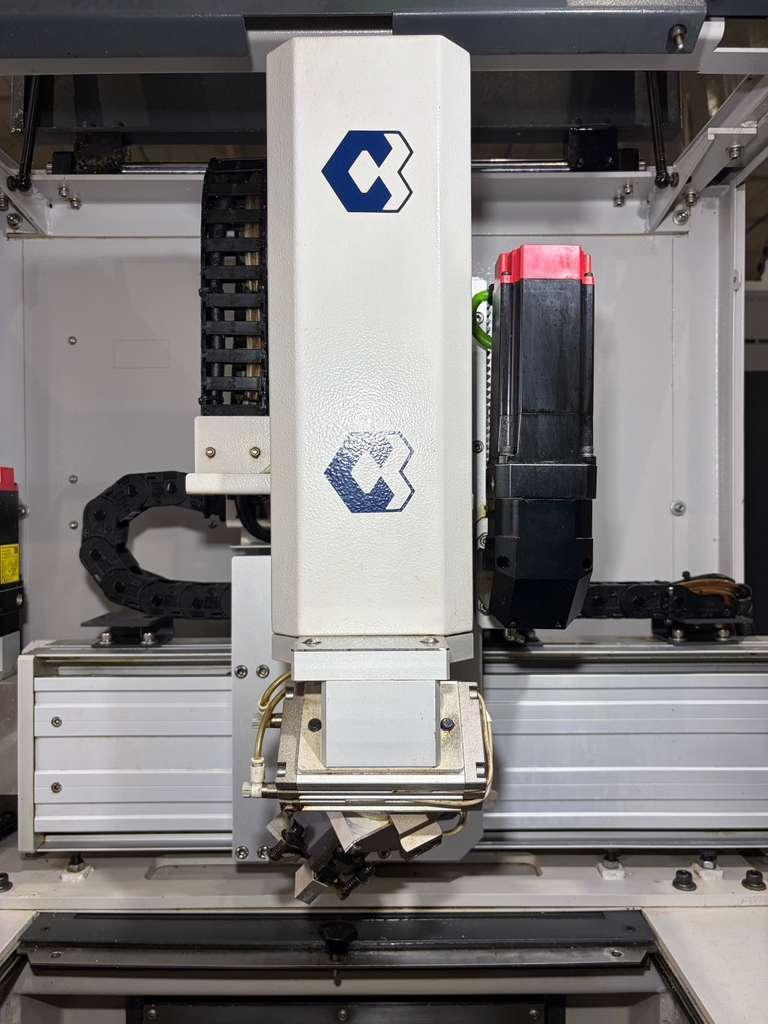

Integrated Gantry Robot

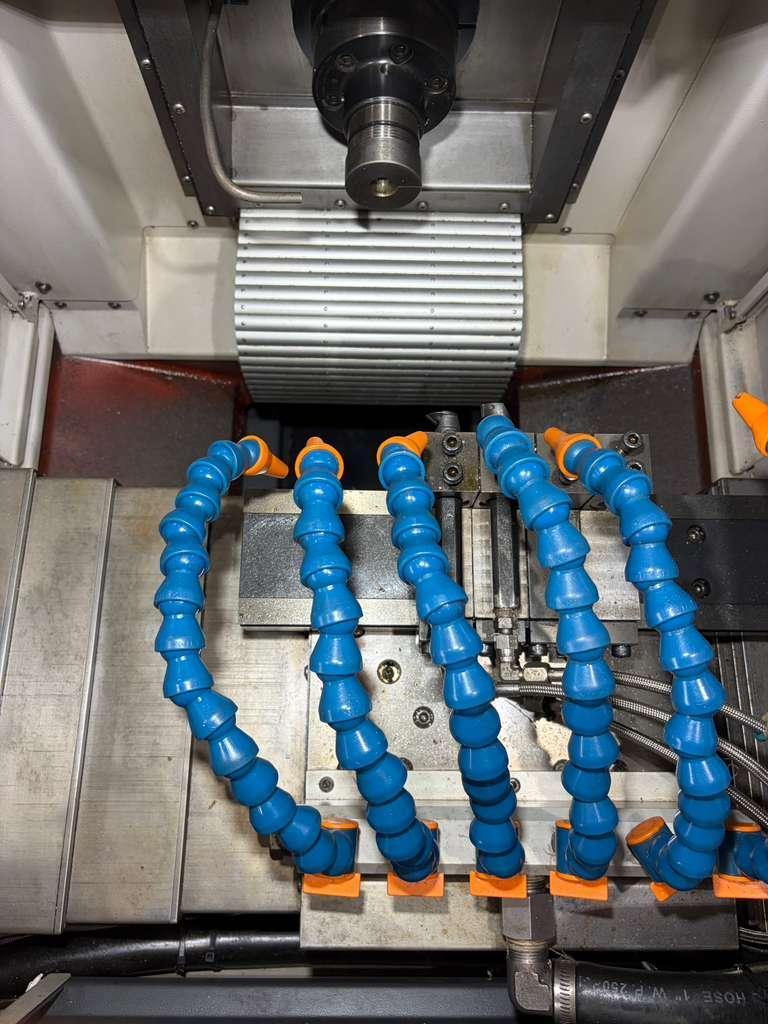

6-Gang Tool Setup
Auto Door
Coolant System
Chip Pan

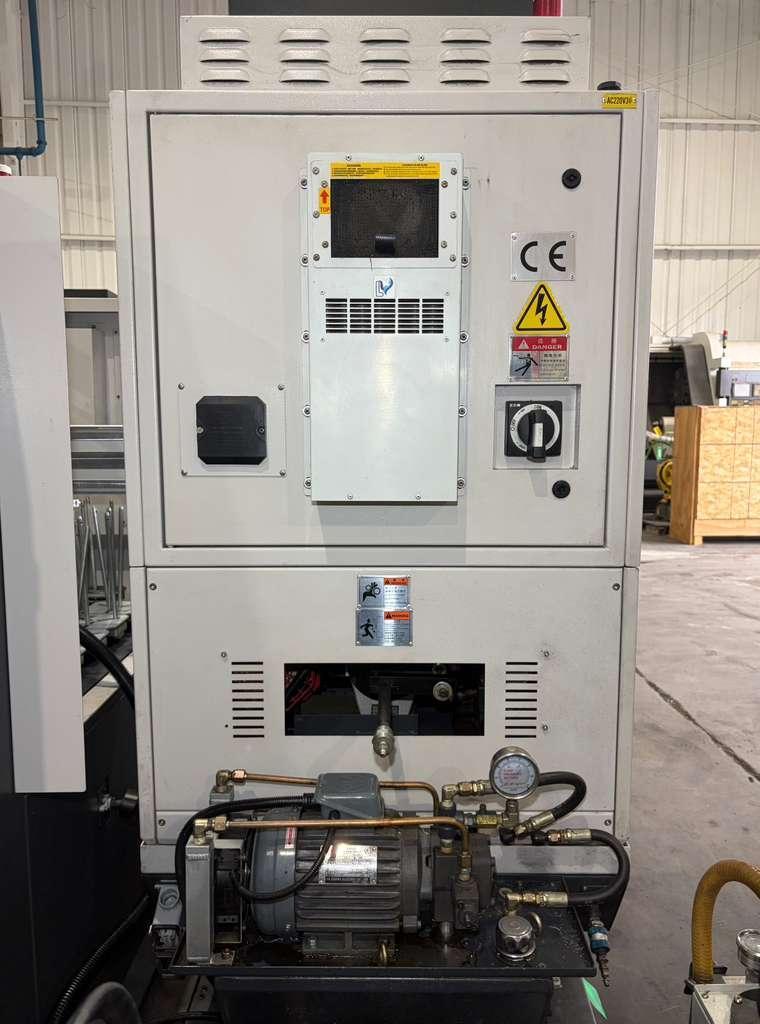

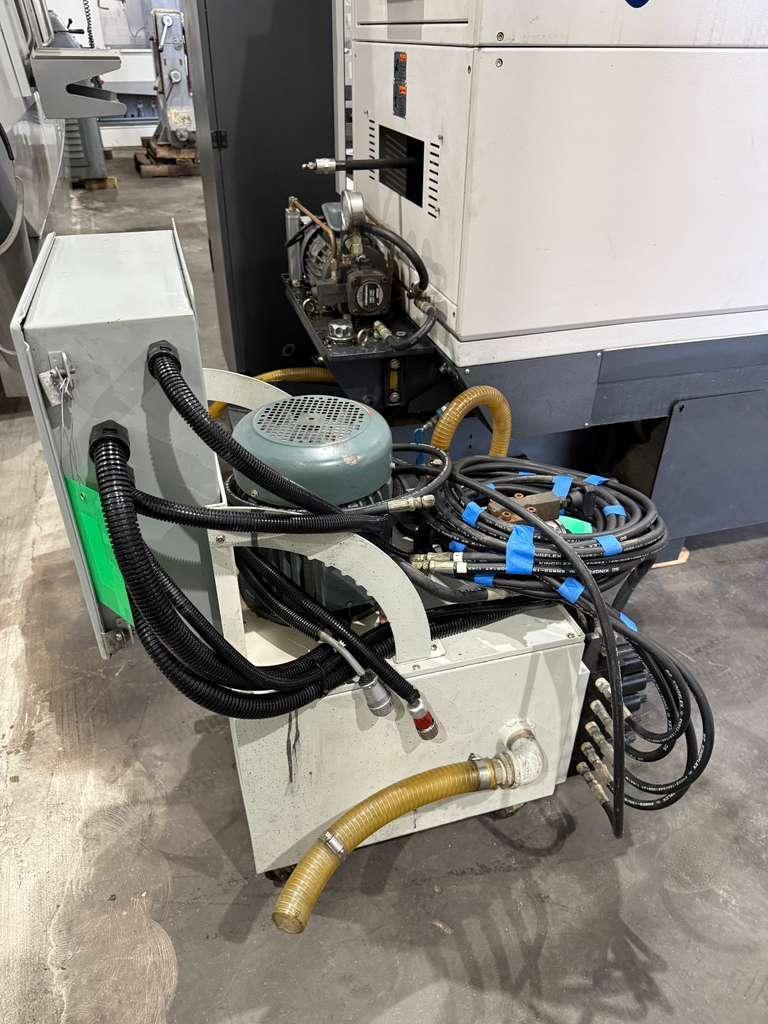

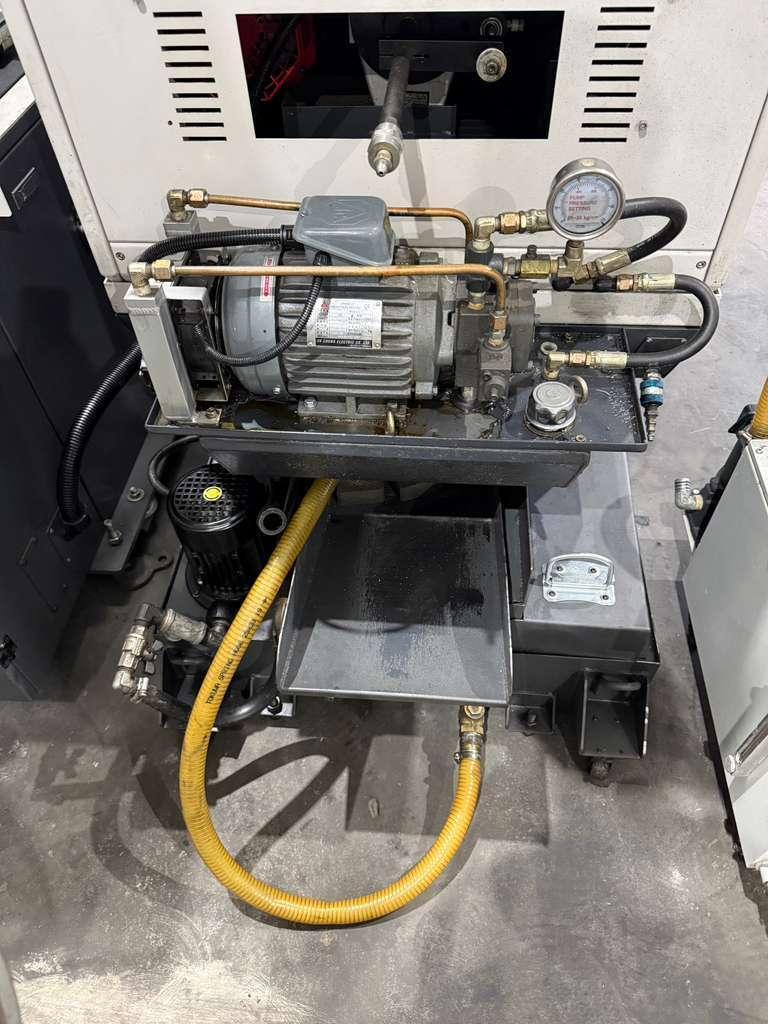

Hydrualic Unit

Capacity:
Max Turning Diameter: 1-3/16″ (30 mm)
Max Turning Length: 2.36″ (60 mm)
Max Spindle Bore: 1.77″ (45 mm)

Travels:
X Axis Travel: 8.27″ (210 mm)
Z Axis Travel: 7.87″ (210 mm)
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 787 IPM

Spindle:
Spindle Bore: 1.77″ (45 mm)
Spindle Speed: 6,000 RPM
Spindle Motor: 7.5 HP

Gang-Tool:
Number of Tools: 6 ( 2 OD and 4 ID )
Turning Tool: 0.63″ (16 mm)
Drill Shank: 3/4″ (20 mm)

General:
Power: 220v / 3-Phase
Overall Dimensions: 31.5″ x 66″ x 71″ High Approx.
Weight: 3792 lbs. Approx.
