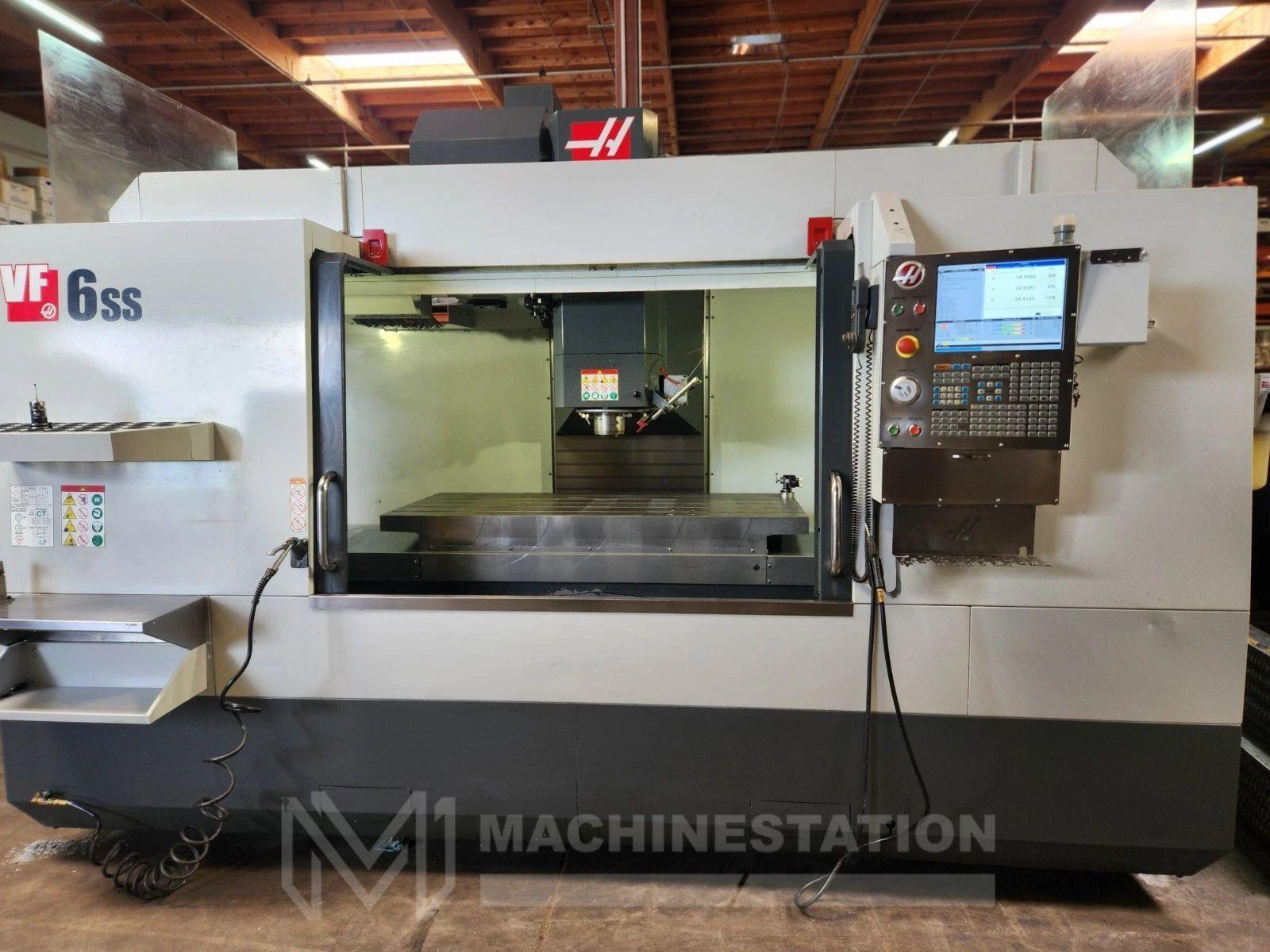

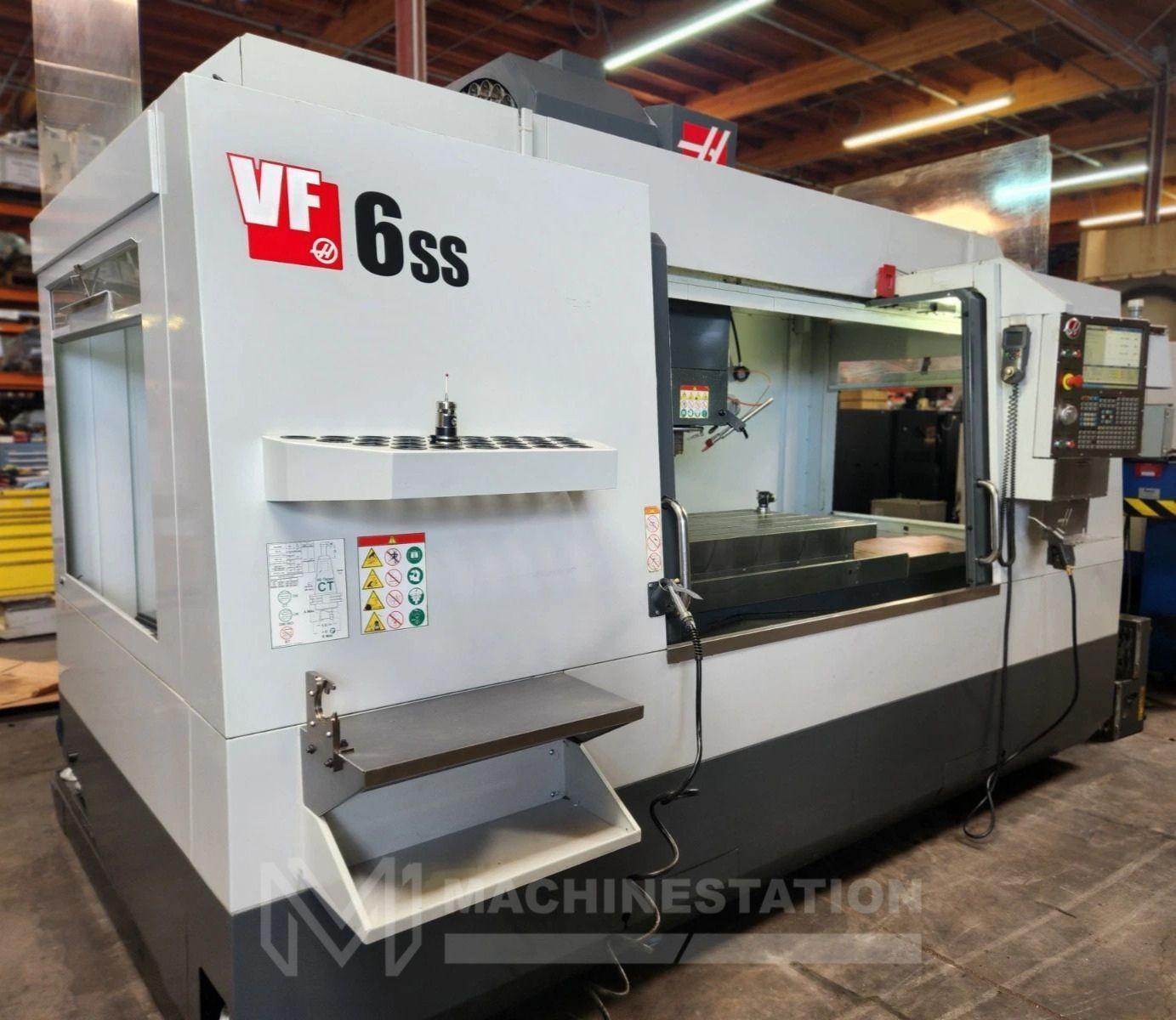

Haas VF-6SS CNC Vertical Machining Center – 2017 12,000 RPM, WIPS, HSM Mill

Haas VF-6SS CNC Vertical Machining Center – 2017 12,000 RPM, WIPS, HSM Mill

Name: Haas VF-6SS CNC Vertical Machining Center – 2017 12,000 RPM, WIPS, HSM Mill
Brand: HAAS
SKU: 115139
Availability: InStock

Brand

HAAS

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:	Haas
Model:	VF-6SS
Year:	2017
Condition:	Used – Good

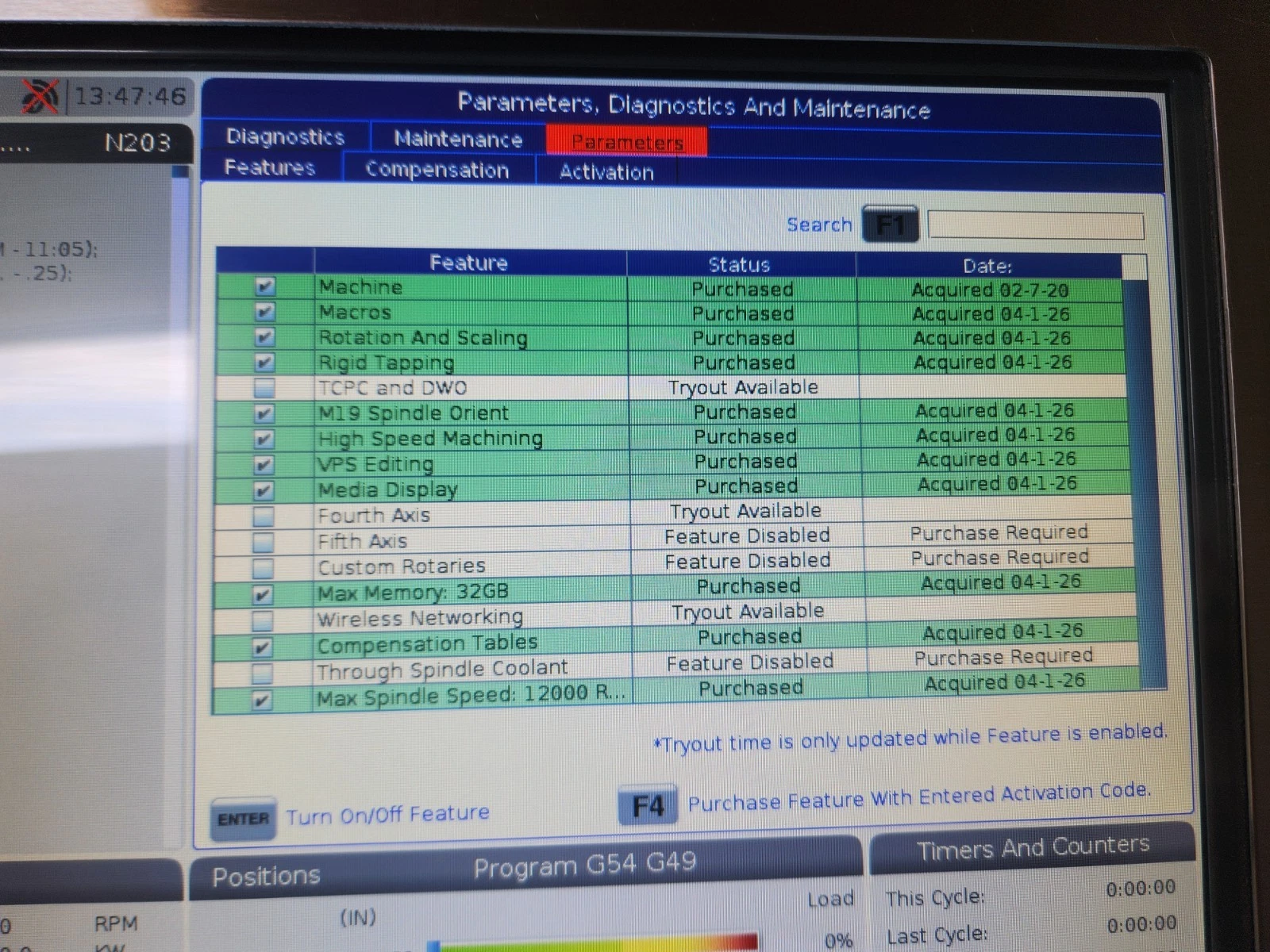

Equipped With:

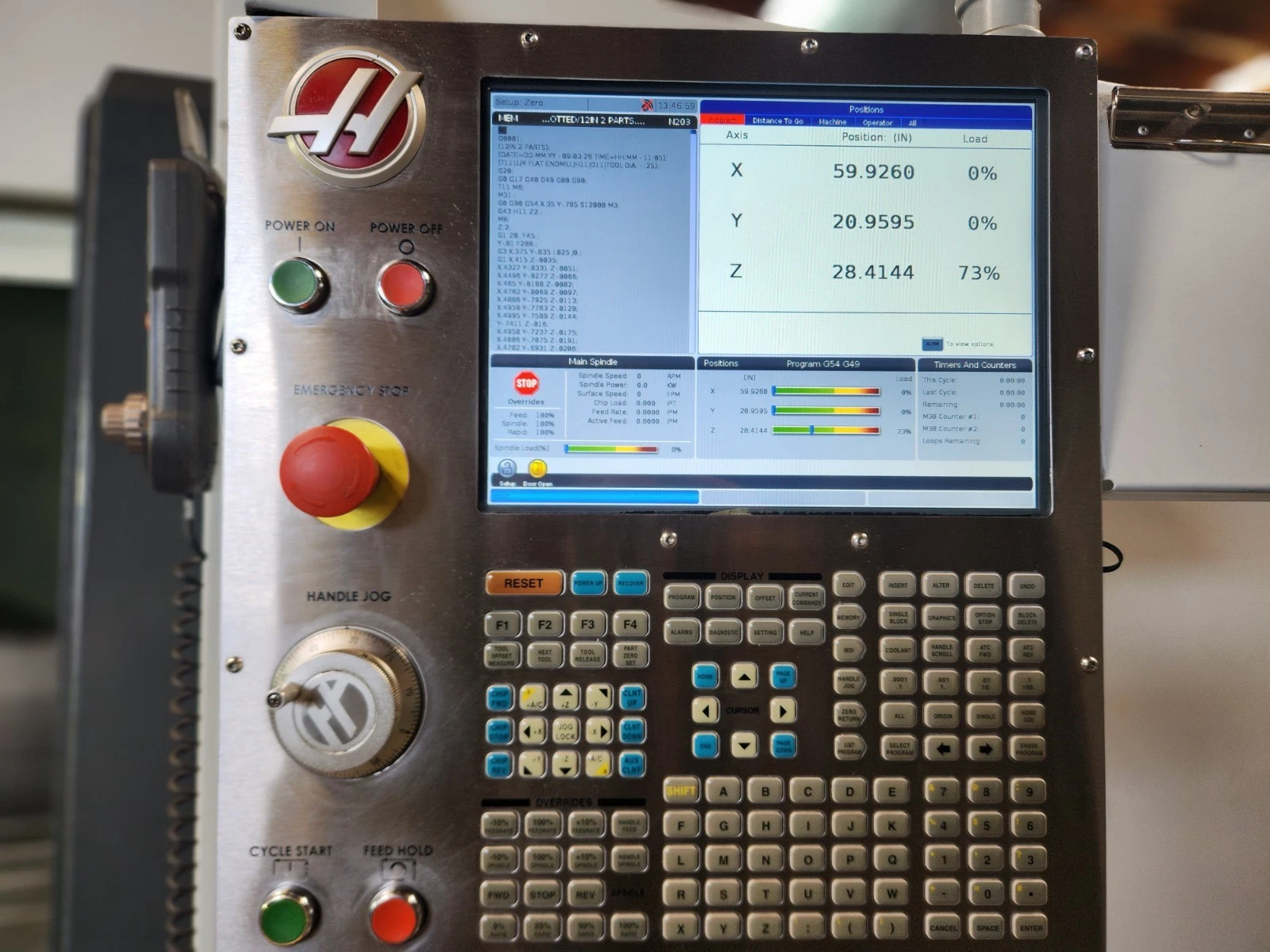

Haas CNC Control
12,000 RPM Inline Direct Drive Spindle
24 Station High Speed Tool Changer
Wireless Intuitive Probing System (Upgraded $6,795 value Included)
Probe Riser Block (Upgraded $595 value Included)
High Speed Machining (Upgraded $3,995 value Included)
Programmable Coolant Nozzle
Rigid Tapping
Spindle Orientation
VPS Editing
Rotation and Scaling
Macros
Media Display
Compensation Tables

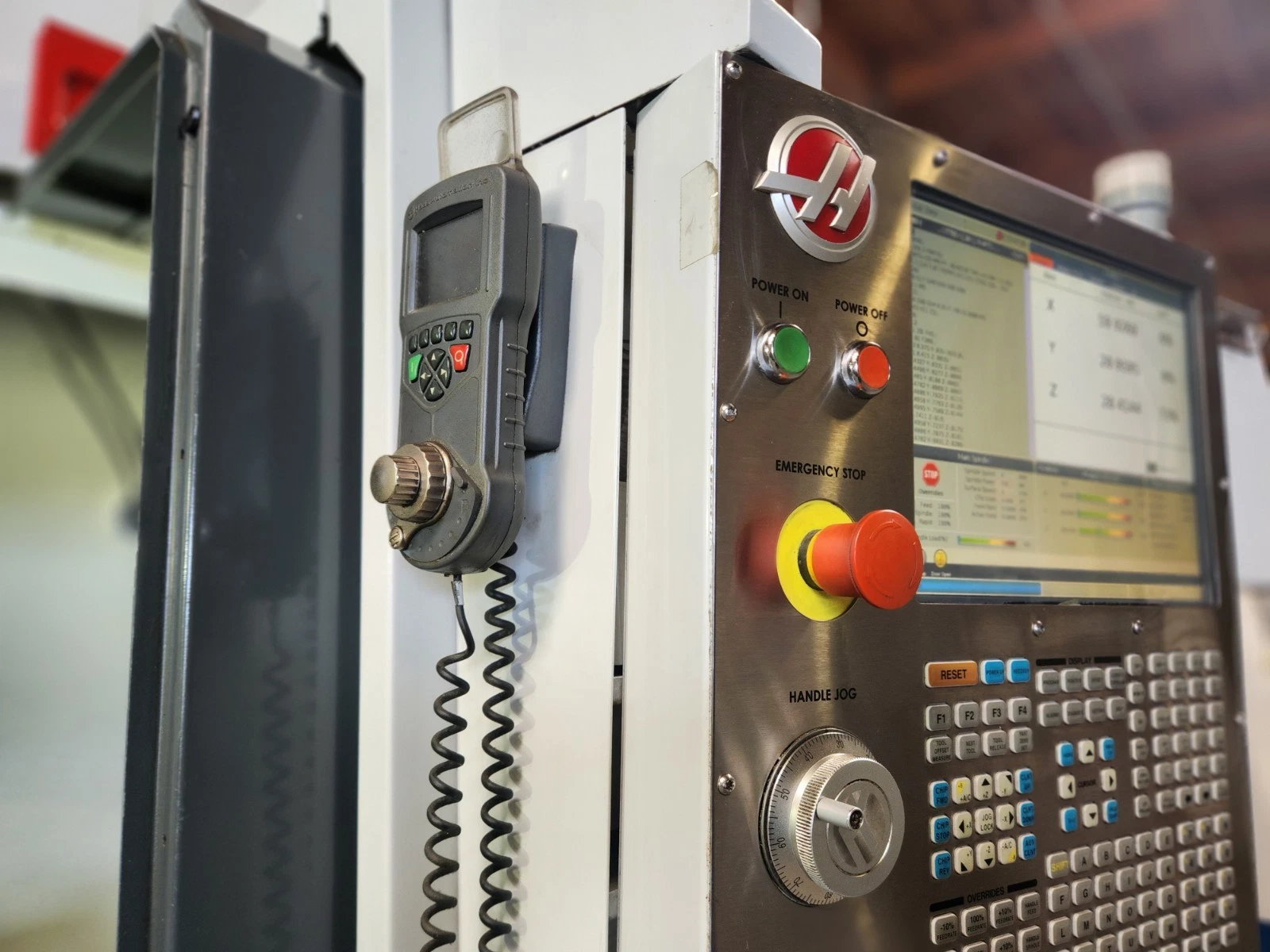

Remote Jog Handle
32GB Max Memory
Coolant System
Chip Auger

Travels:
X-axis: 64″
Y-Axis: 32″
Z-Axis: 30″
Rapid Traverse Rates: 1200 IPM
Cutting Feed Rates: 833 IPM
Spindle Nose To Table (Min.- Max.): 4″ – 34″

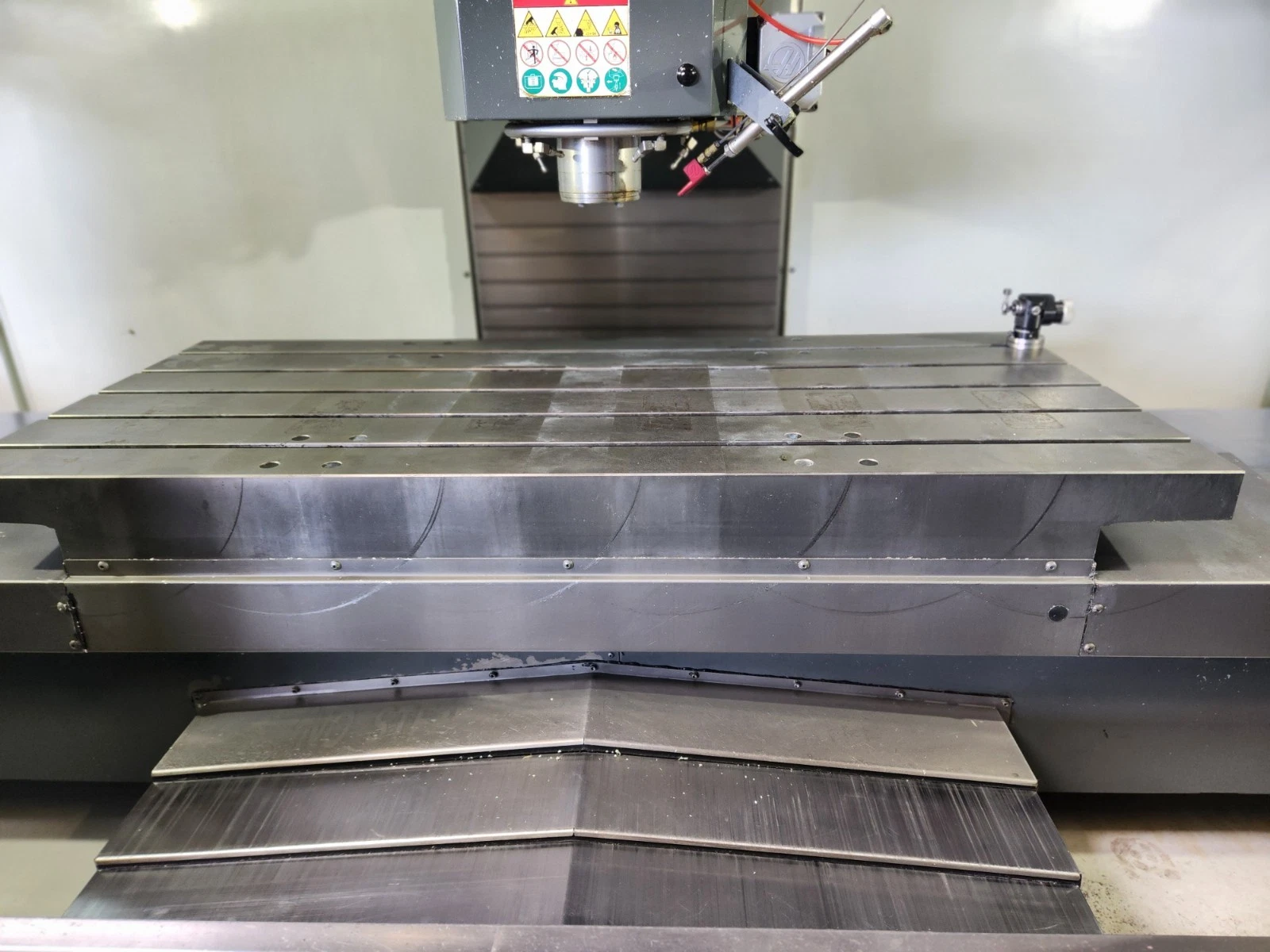

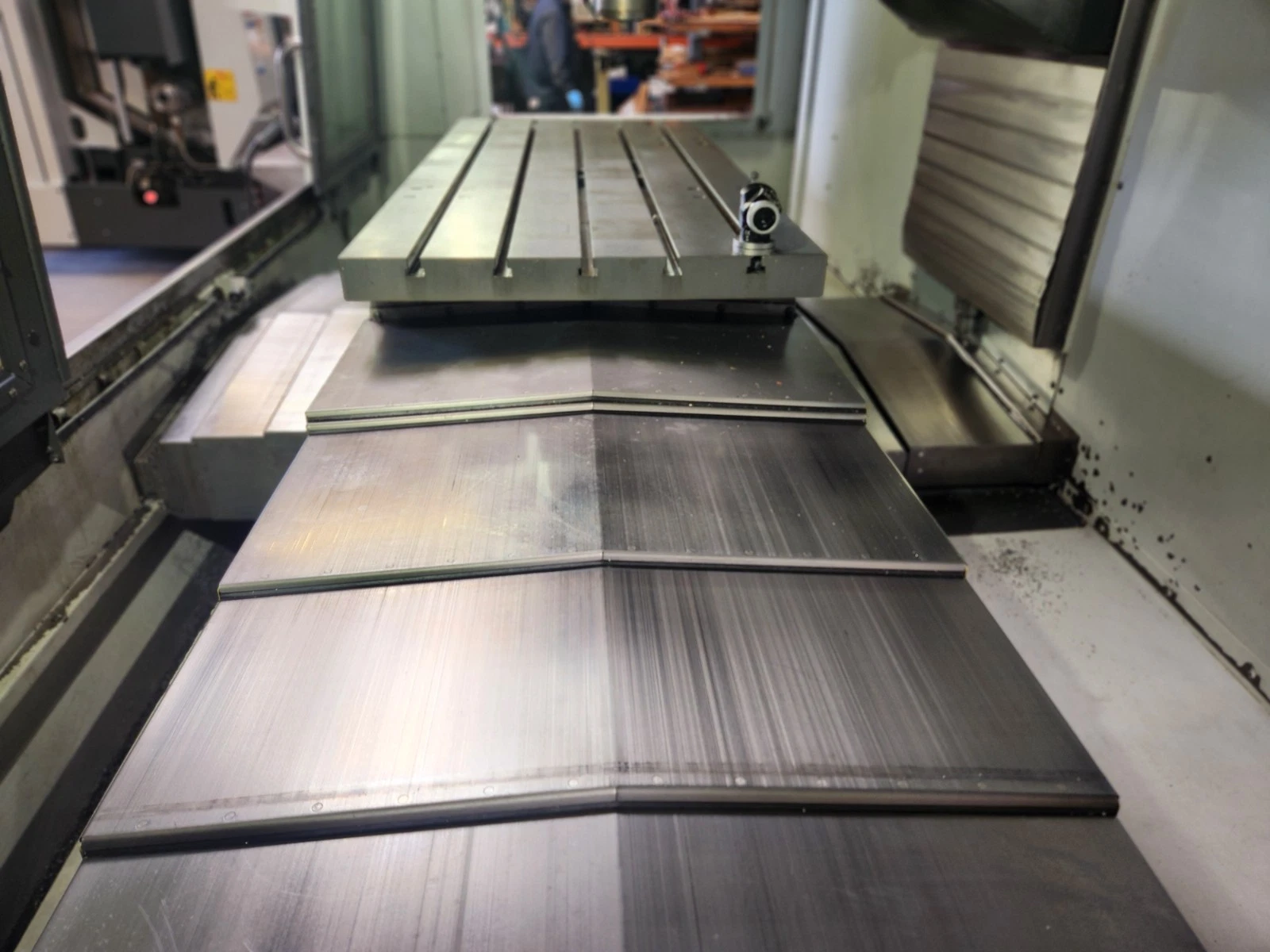

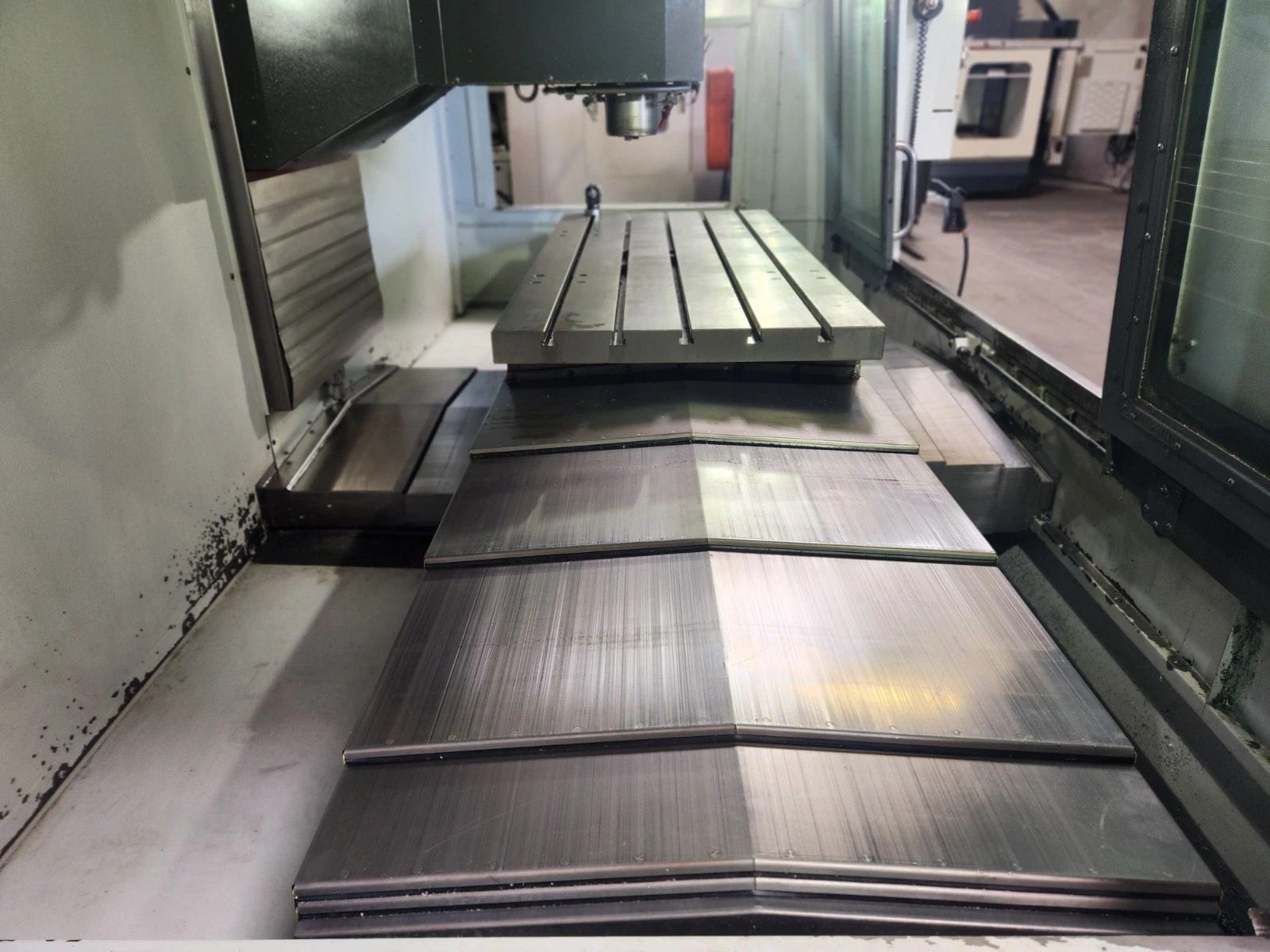

Table:
Length: 64″
Width: 28″
Number Of Std T-slots: 5
T-Slot Width: 5/8″
Max Weight On Table: 2000 Lbs

Spindle:
Taper Size: CAT-40
Speed Range: 12,000 RPM
Spindle Power: 30 HP
Vector Drive Max Torque: 90ft-lb @ 2000 RPM

Automatic Tool Changer:
Capacity: 24 Station Side Mounted
Tool Weight: 12 Lbs
Max Tool Diameter (Full): 2.5″
Max Tool Diameter (adjacent empty): 5″
Max Tool Length: 16″
Tool Changing Time: 3.2 Seconds
