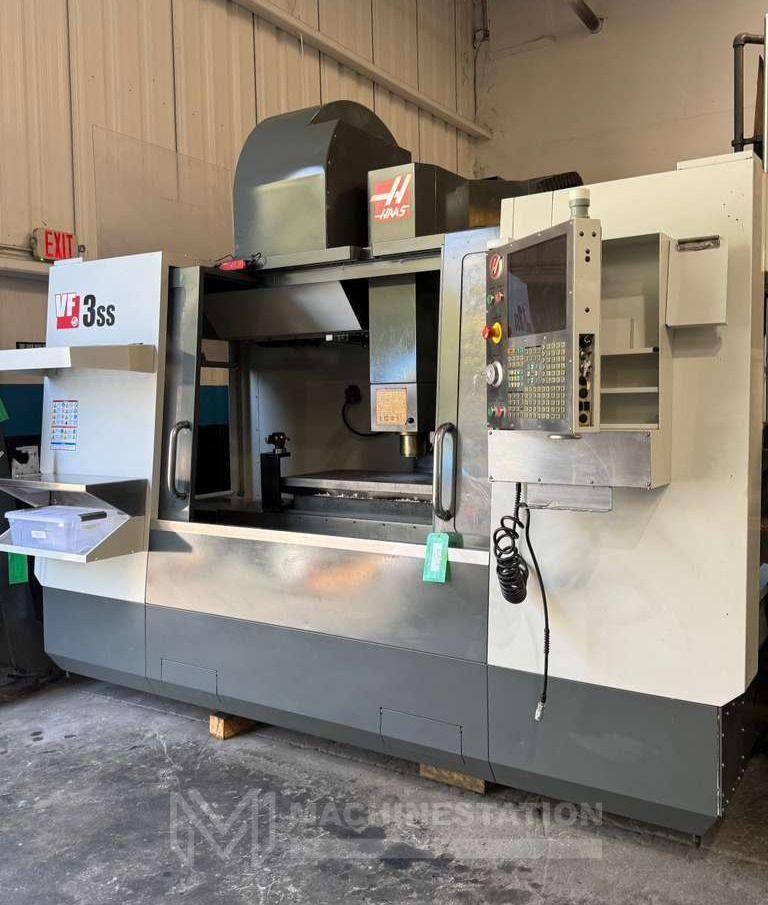

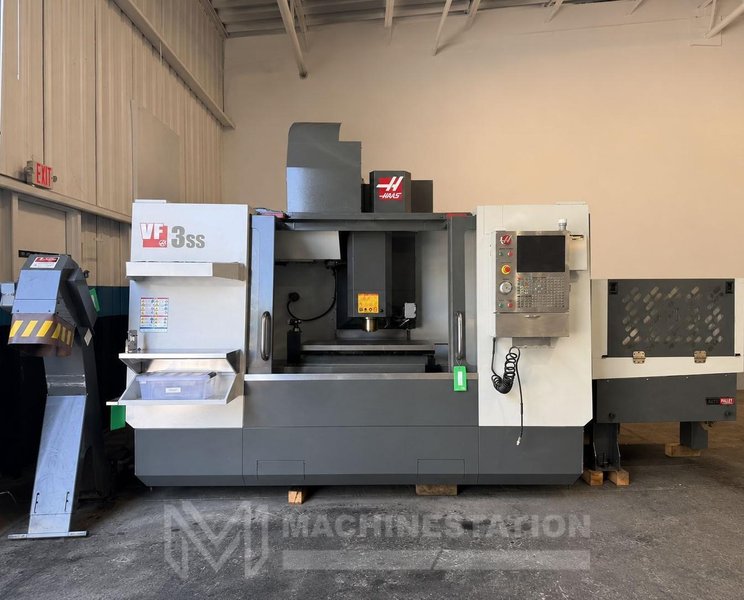

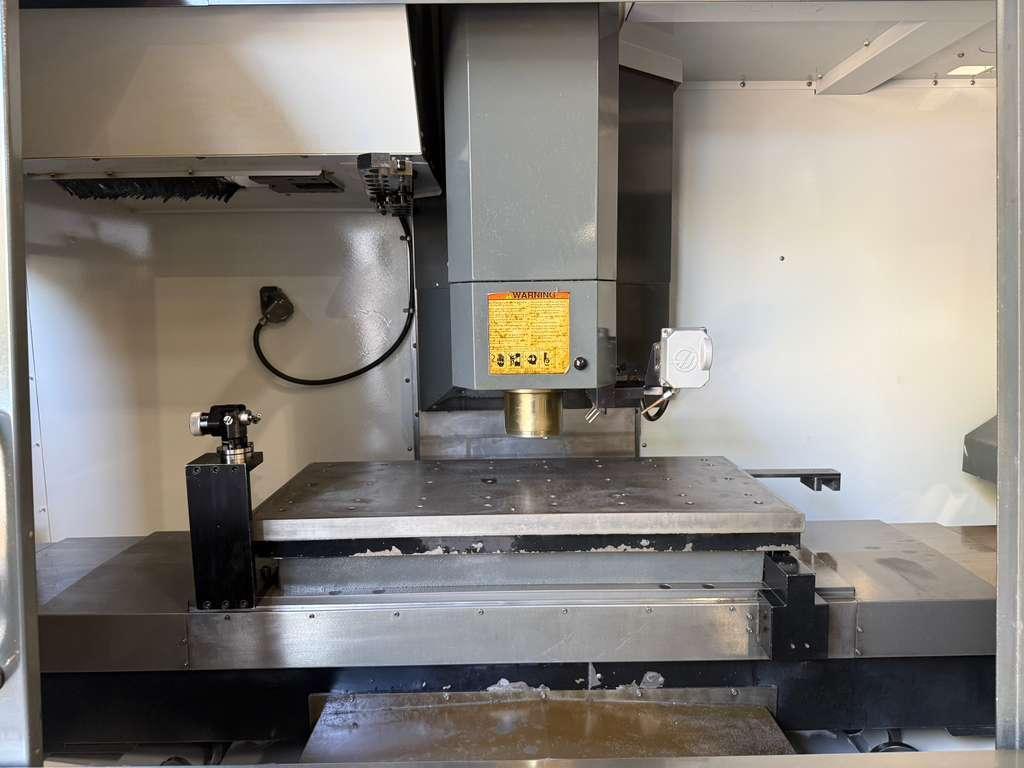

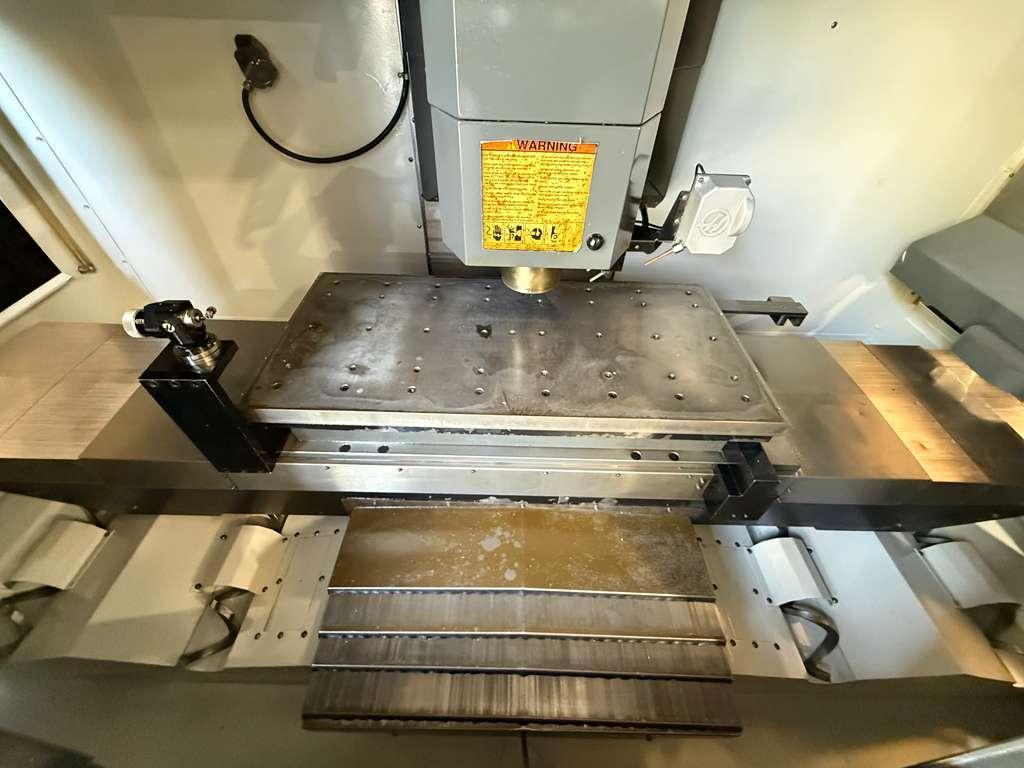

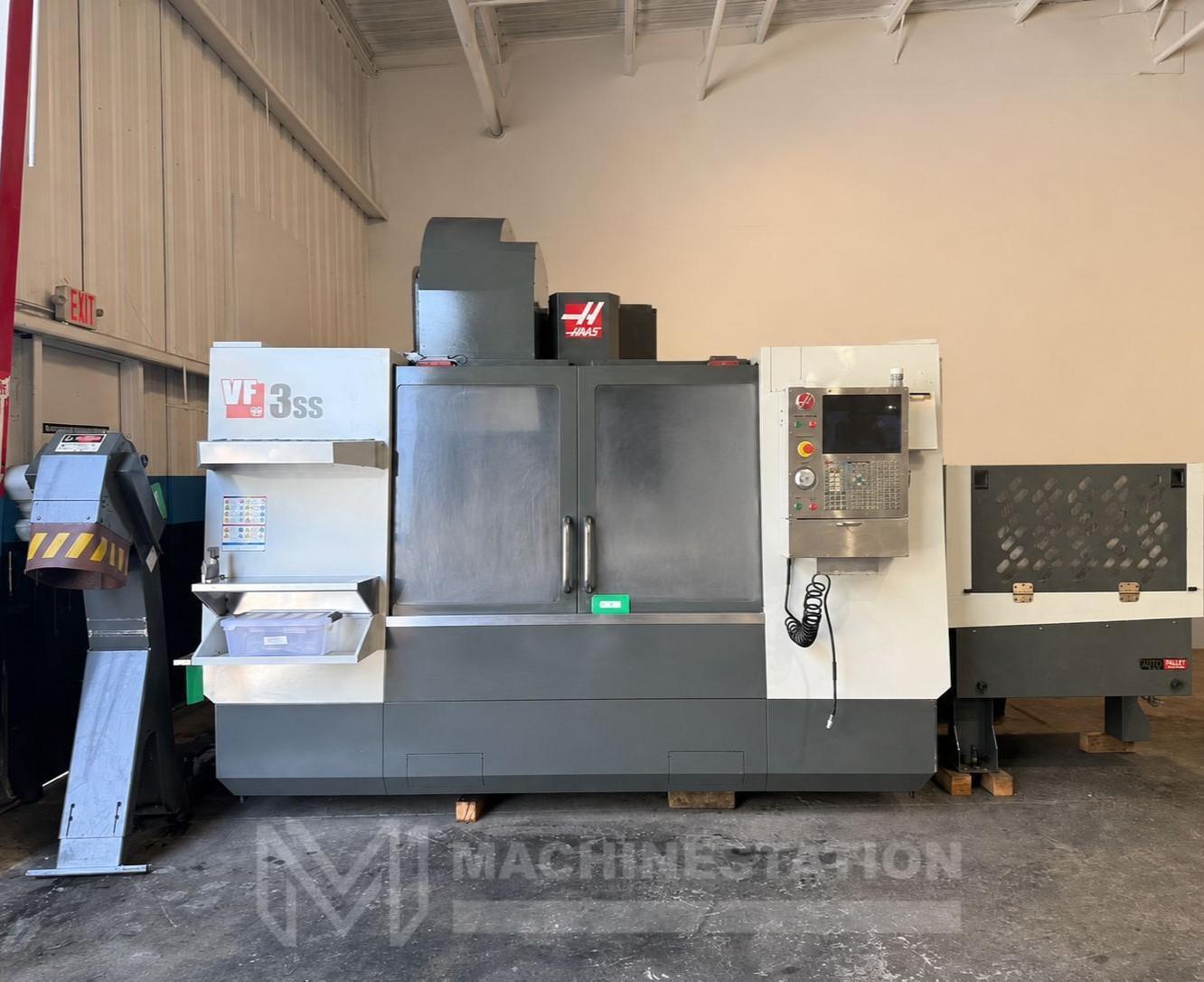

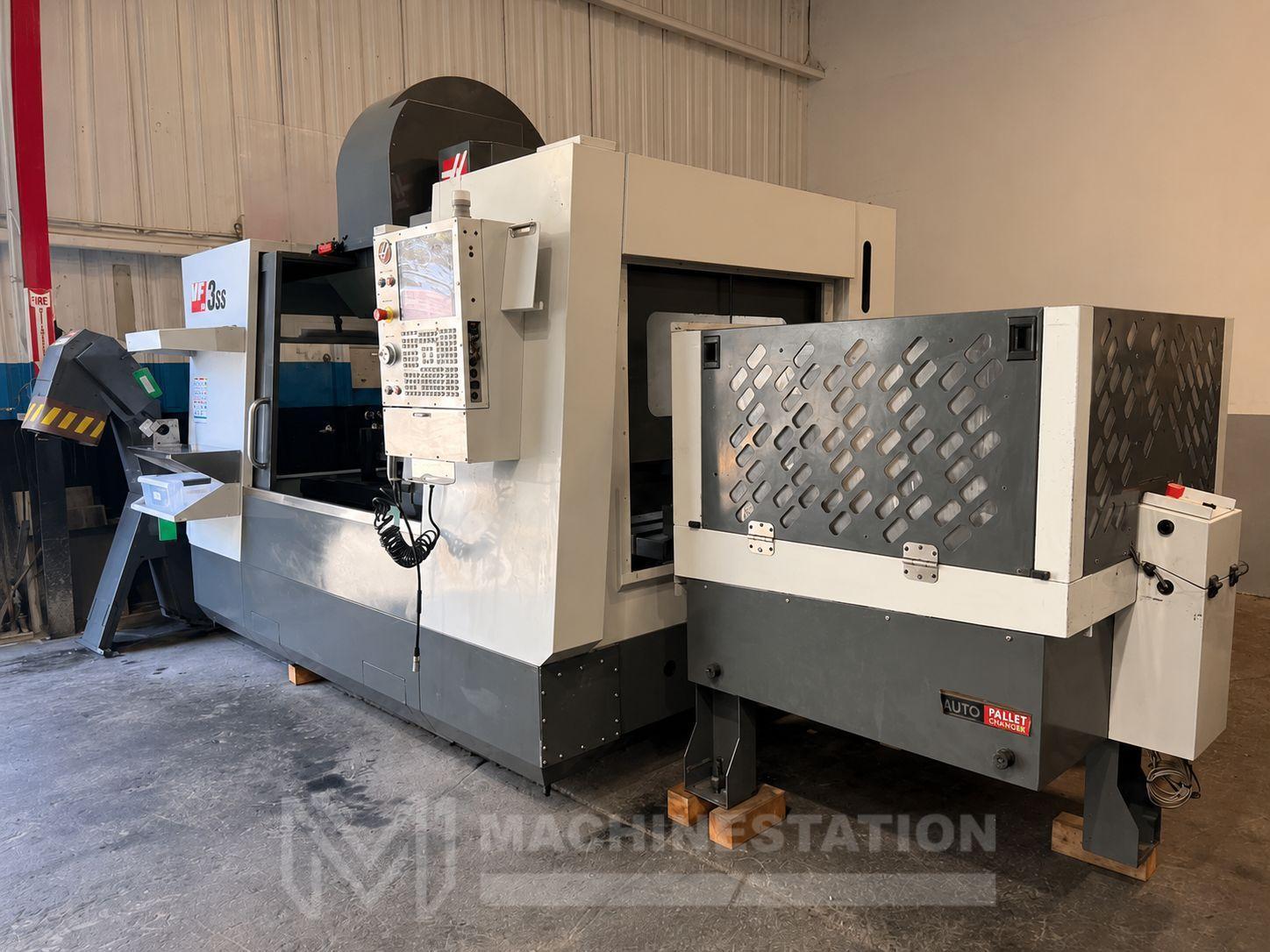

Haas VF-3SS-APC CNC Vertical Machining Center – Pallet Changer Mill

Brand
HAAS
Category
Machining Centers
Type
Vertical Machining Centers
Model
HAAS VF-3SSAPC
Stock #
113622
Year
2013
Condition
Not specified

Location

Not specified
REQUEST FINANCING

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make: HAAS
Model: VF-3SS-APC
Year: 2013
Condition: Used – Good
Key Features:

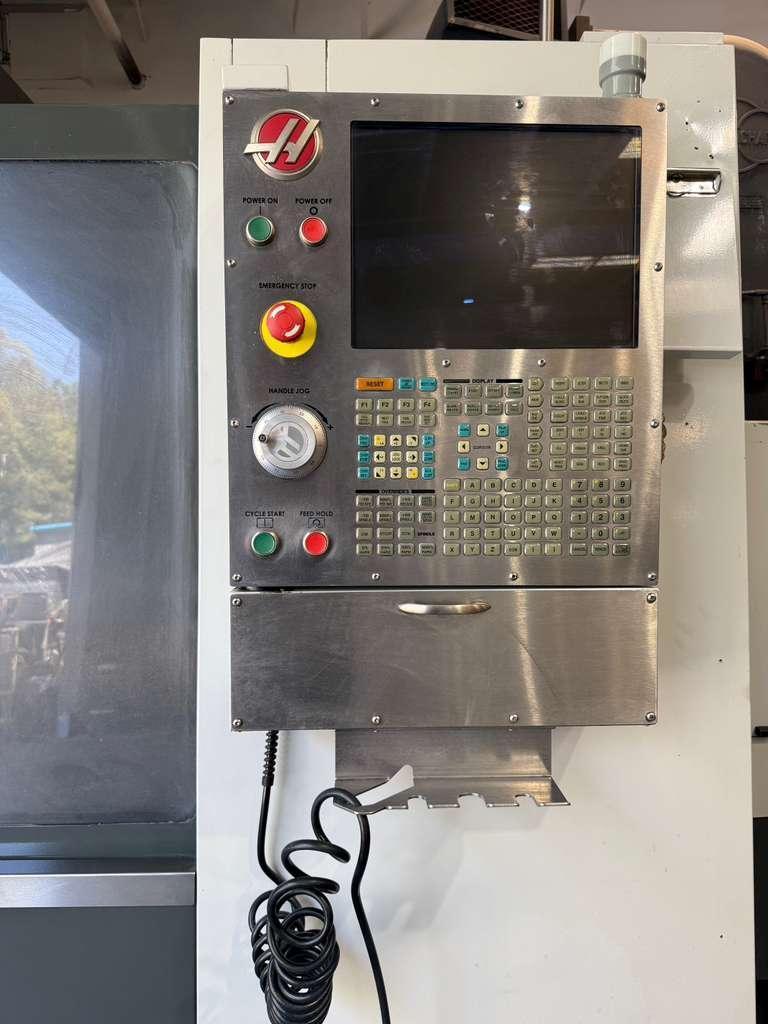

Haas CNC Control

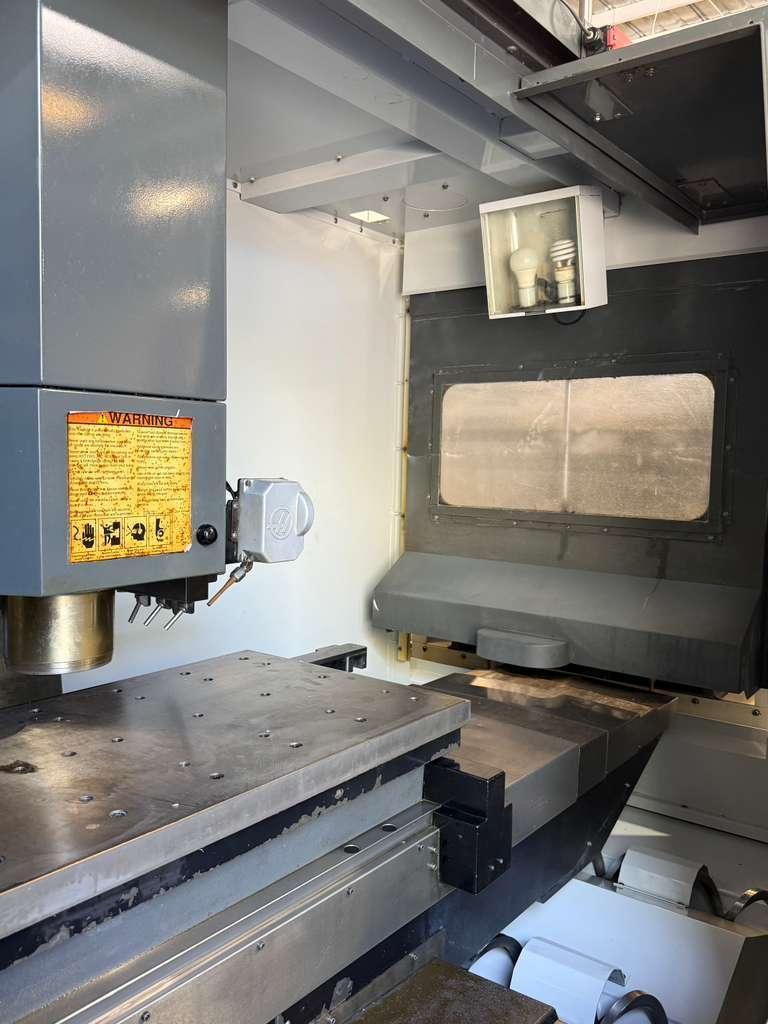

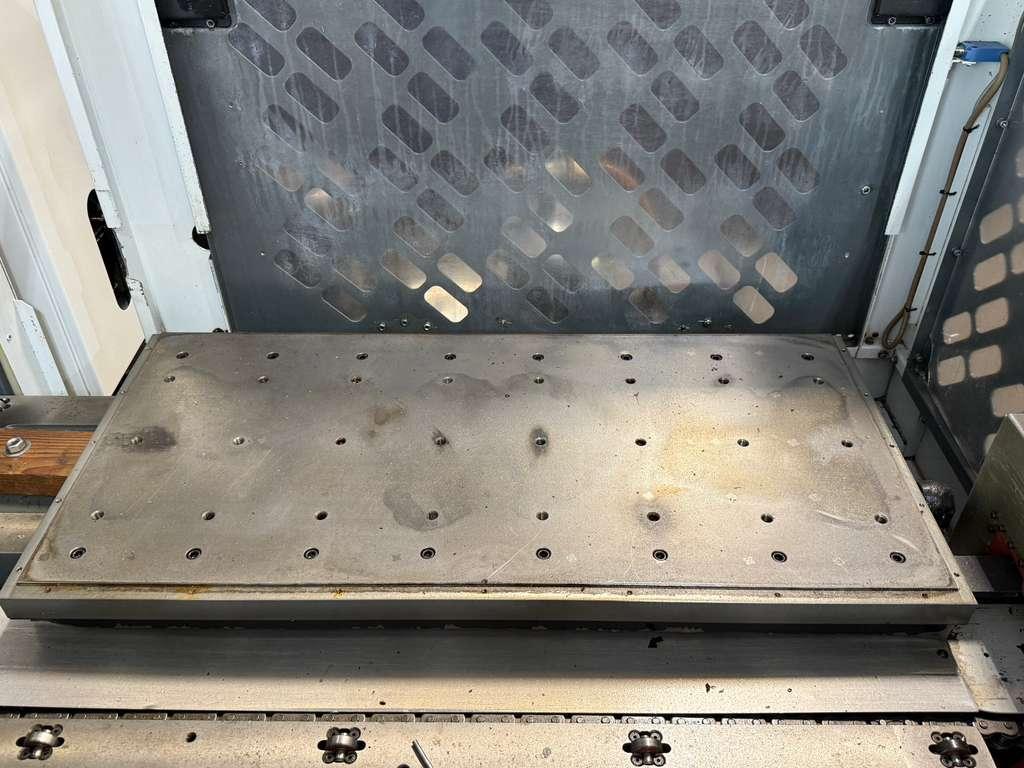

APC – Automatic Pallet Changer (Upgraded $29995 value Included)
12,000 RPM High-Speed Spindle

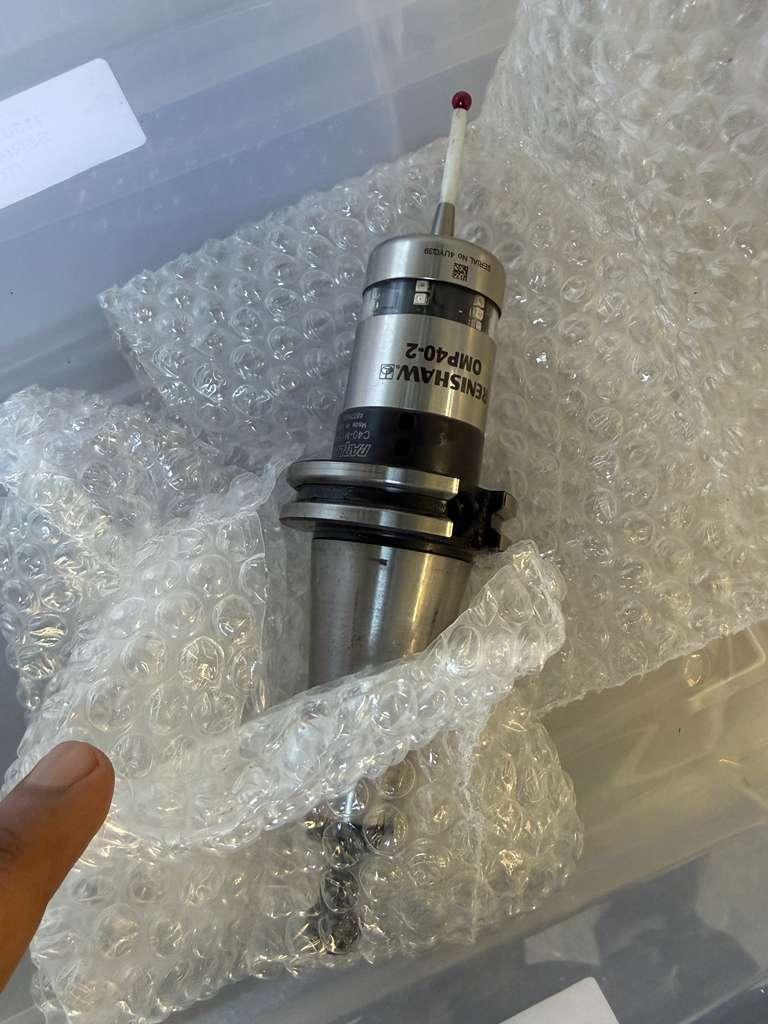

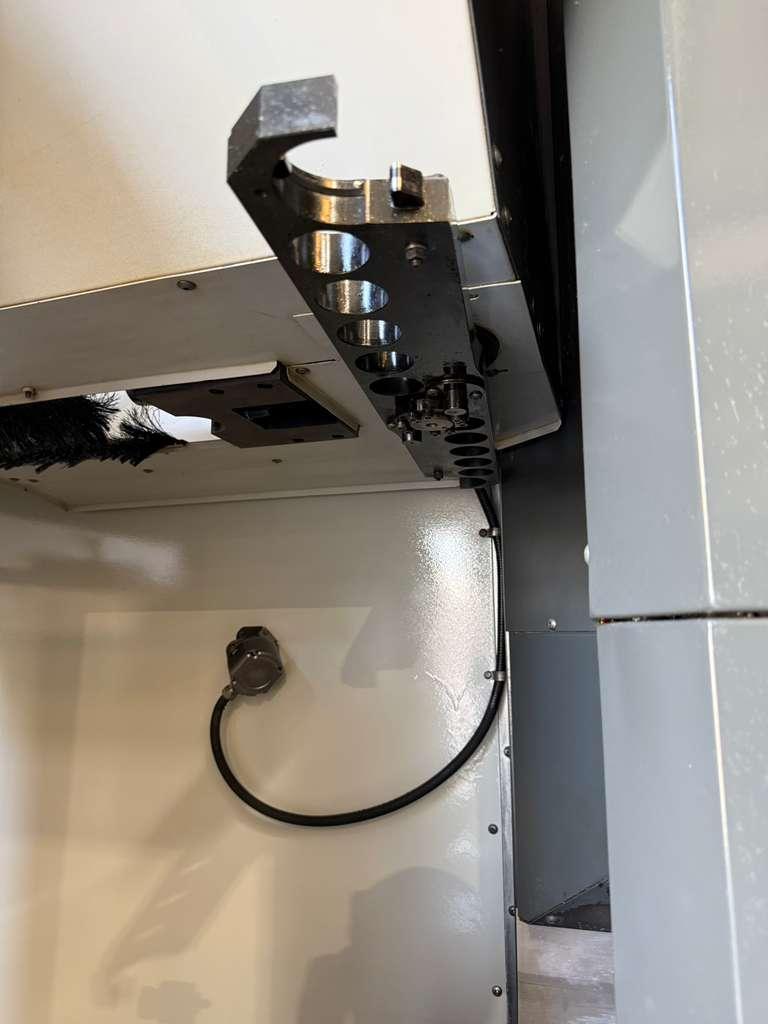

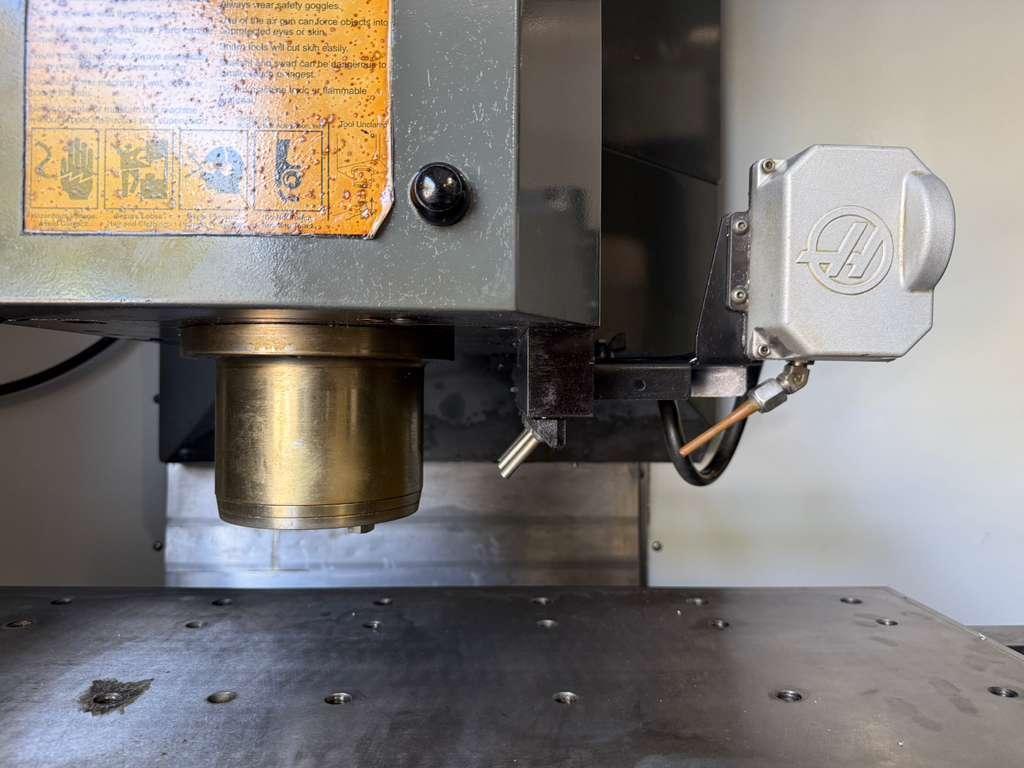

WIPS-R Renishaw Probing System (Upgraded $6795 value Included)

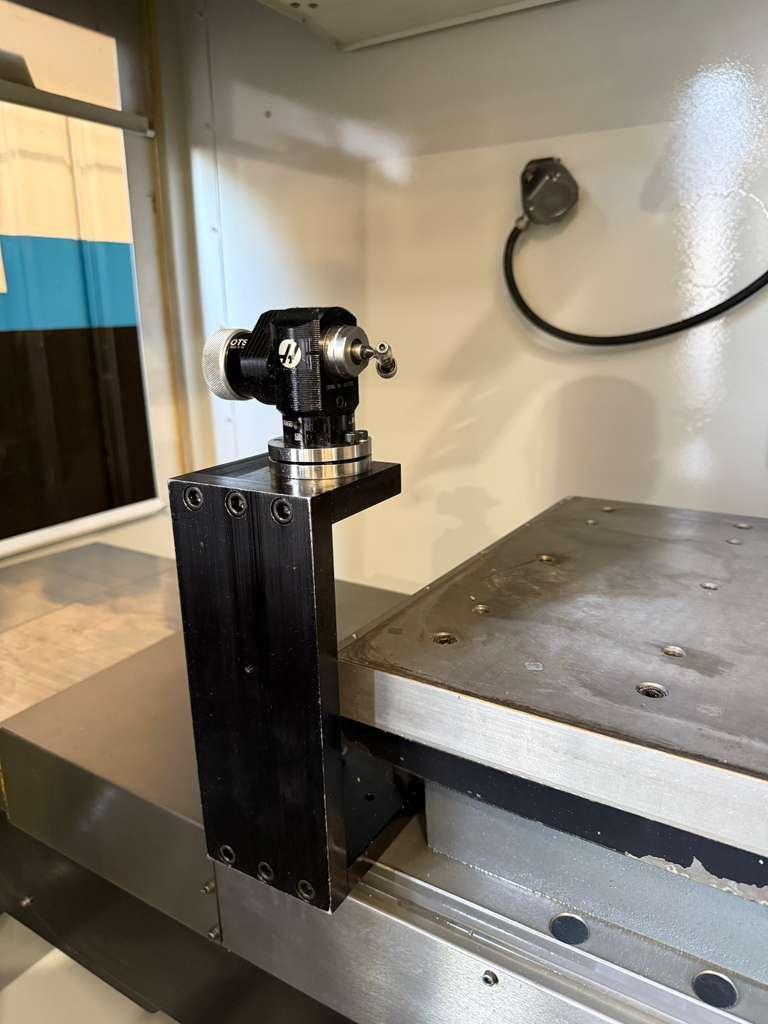

Tool Pre-setter (Upgraded $795 value Included)

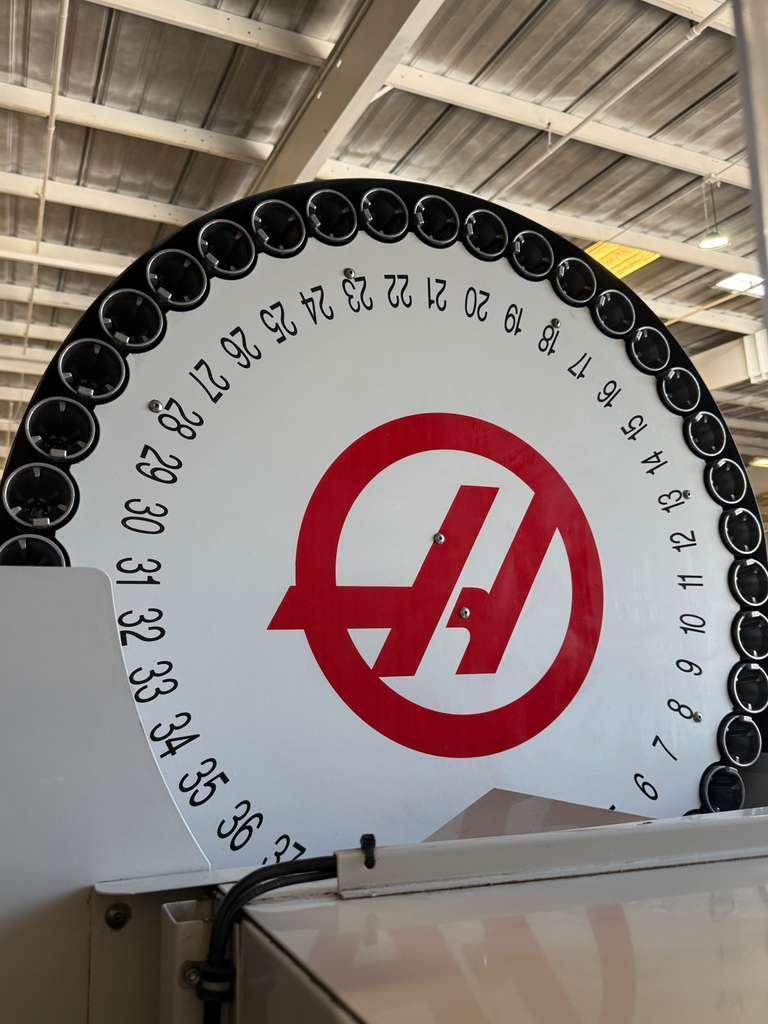

40 Station High-Speed Tool Changer (Upgraded $11295 value Included)
30 HP High Torque Spindle
Through Spindle Coolant – 1000 psi (Upgraded $11695 value Included)
Auxiliary Coolant Filter (Upgraded $3395 value Included)
1400 IPM Fast Rapid Traverse
MPG Control
Rigid Tapping
Spindle Orientation
Programmable Coolant (Upgraded $2595 value Included)
Coolant System

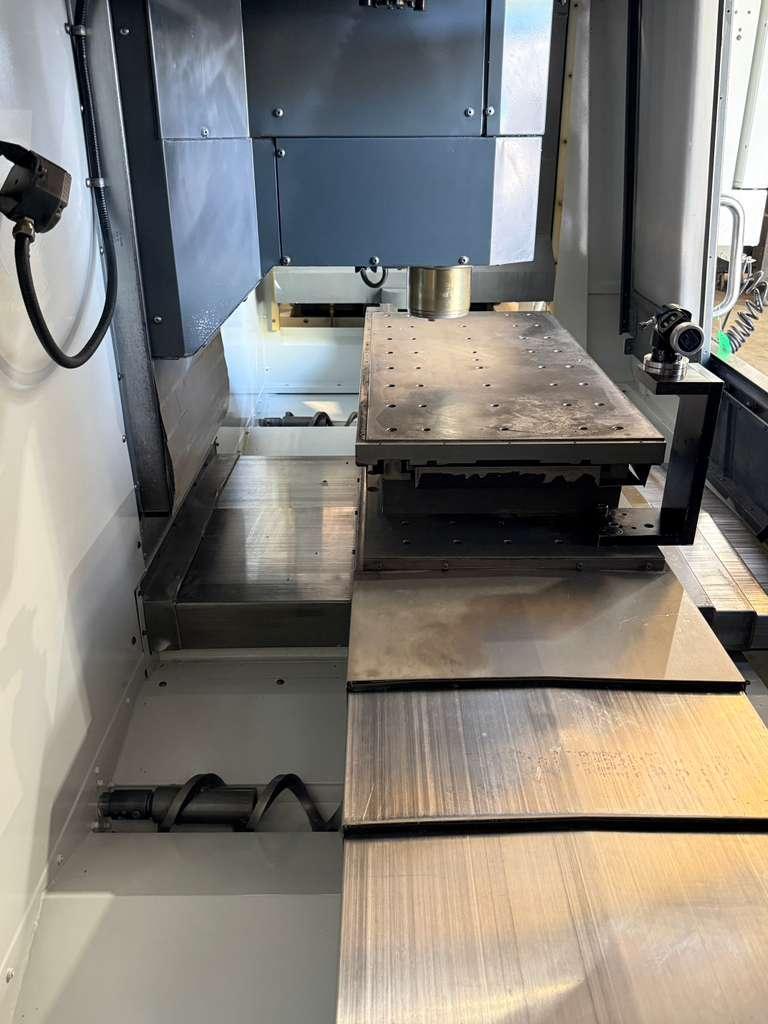

Quad-Auger System with Chip Conveyor (Upgraded $14695 value Included)
Levelling Pads
Travel:
X-Axis: 40″
Y-Axis: 20″
Z-Axis: 25″
Rapid Traverse Rates: 1400 Inch Per Minute
Cutting Feed Rates: 833 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4.2″ – 29.2″
Table:
Length: 48″
Width: 18″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 1750 lbs
Spindle:
Taper Size: CAT-40
Speed Range: 12,000 RPM
Spindle Power: 30 HP
Automatic Tool Changer:
Capacity: 40 Tools
Max Tool Weight: 12 lbs
Max Tool Dia: 2.5″ – 5.0″
Max Tool Length: 13″
Tool Changing Time: 1.80 Seconds
General:
Air Required: 100 psi 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 152″ x 99″ x 106″ High (Without APC)
Weight: 11,720 lbs Approx.
No files or videos to display

Want to request a quote from the owner of this listing?

Similar Listings to - Haas VF-3SS-APC CNC Vertical Machining Center – Pallet Changer Mill
Haas VF-6SS CNC Vertical Machining Center – 2017 12,000 RPM, WIPS, HSM Mill
HAAS

Machining Centers, Vertical

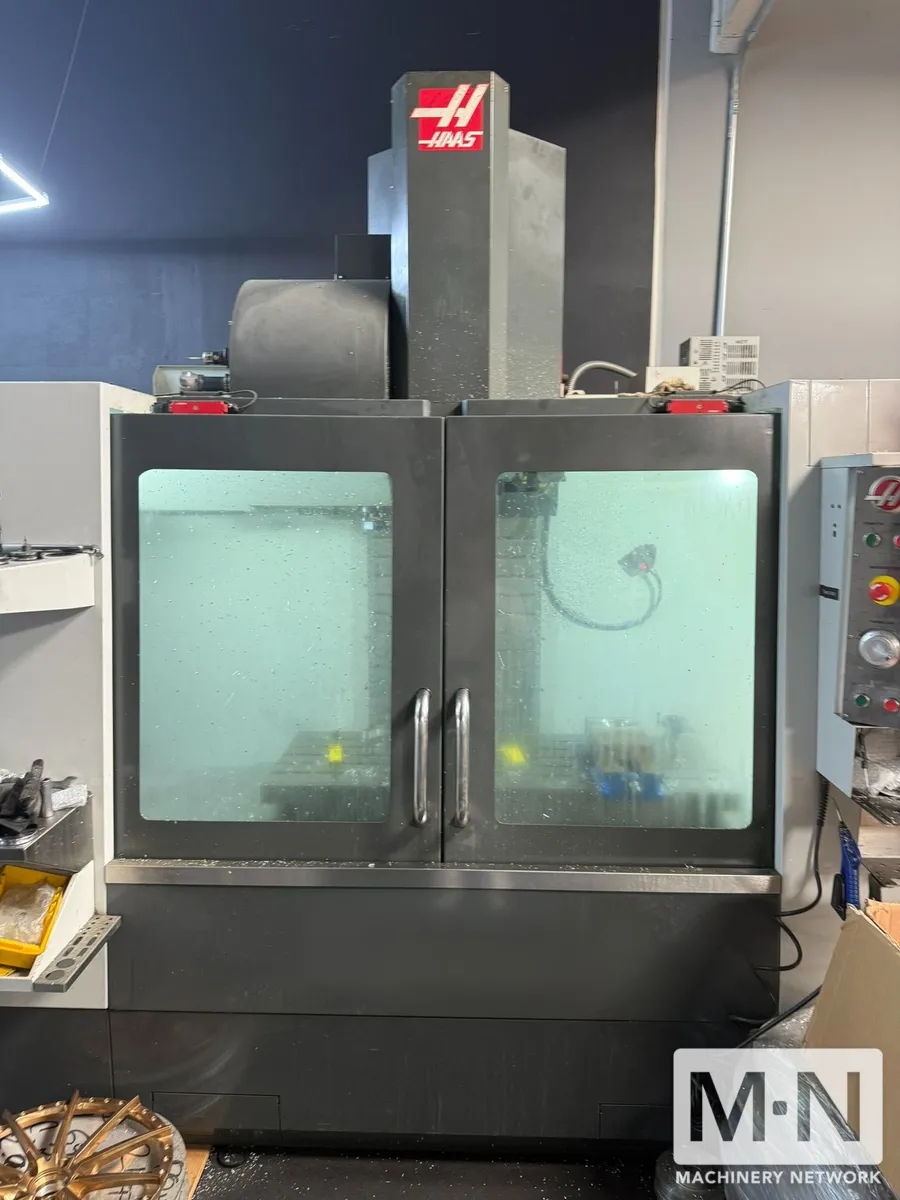

HAAS VF-4SS CNC Vertical Machining Center, 2014
HAAS

Machining Centers, Vertical

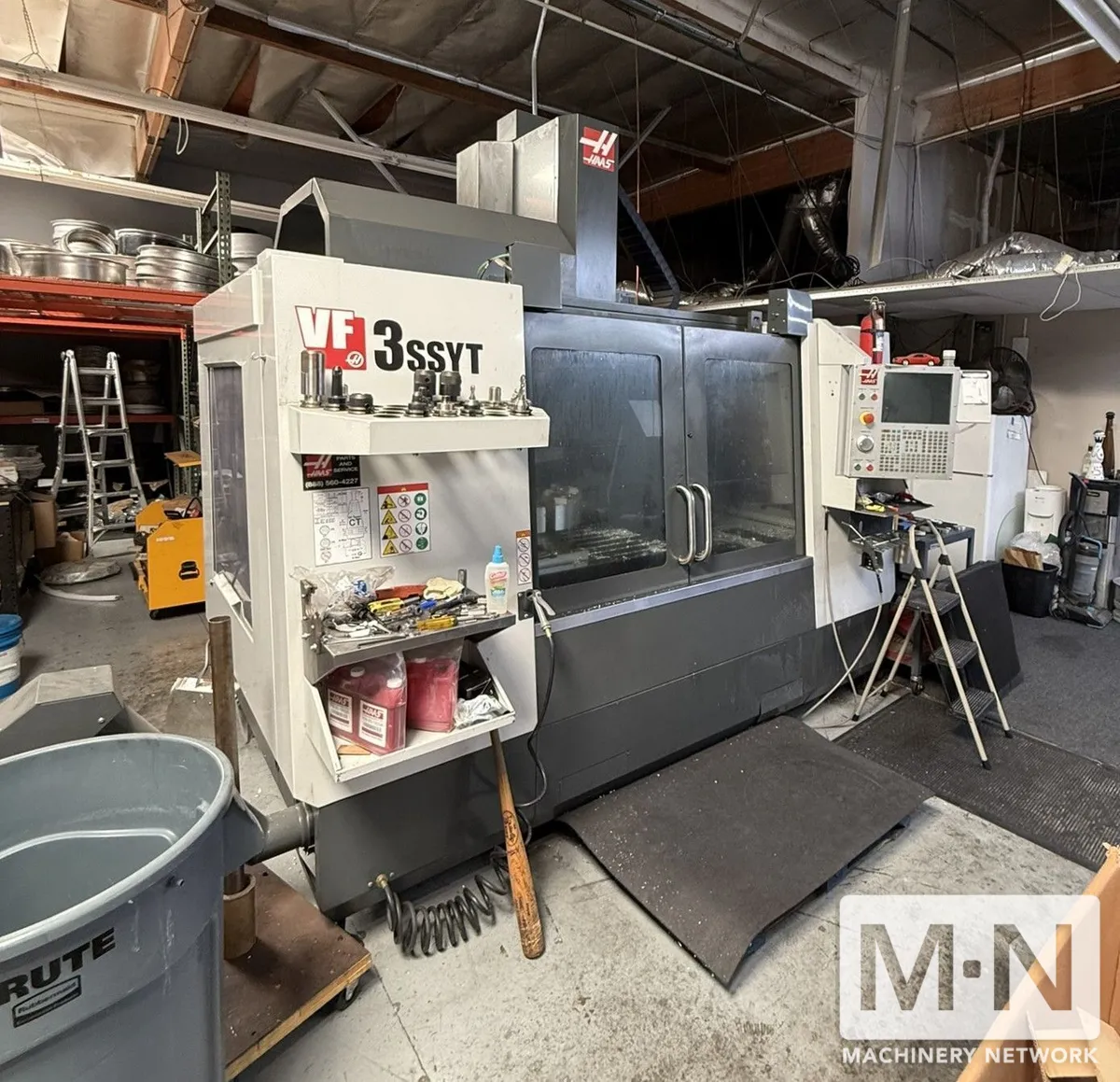

HAAS VF-3SSYT CNC Vertical Machining Center, 2019
