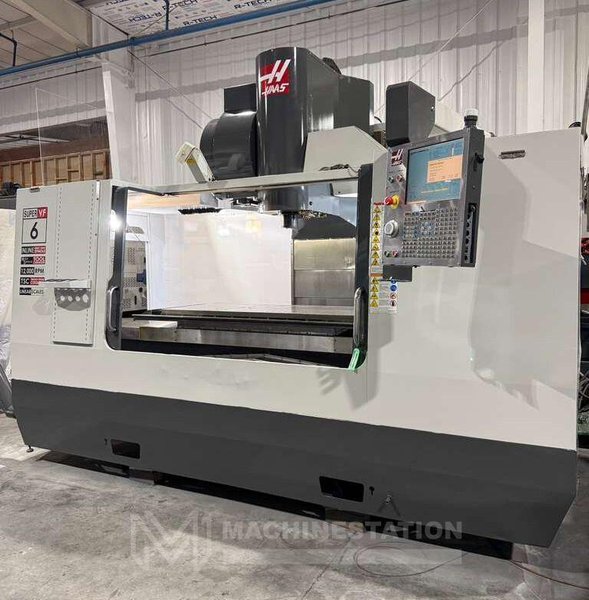

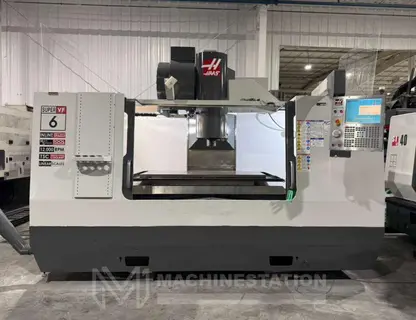

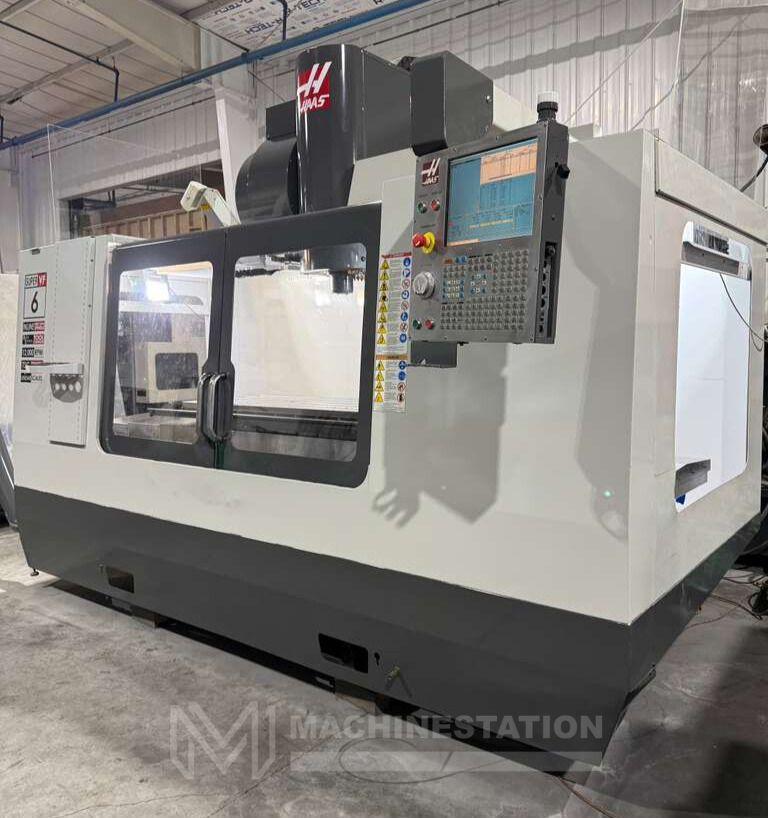

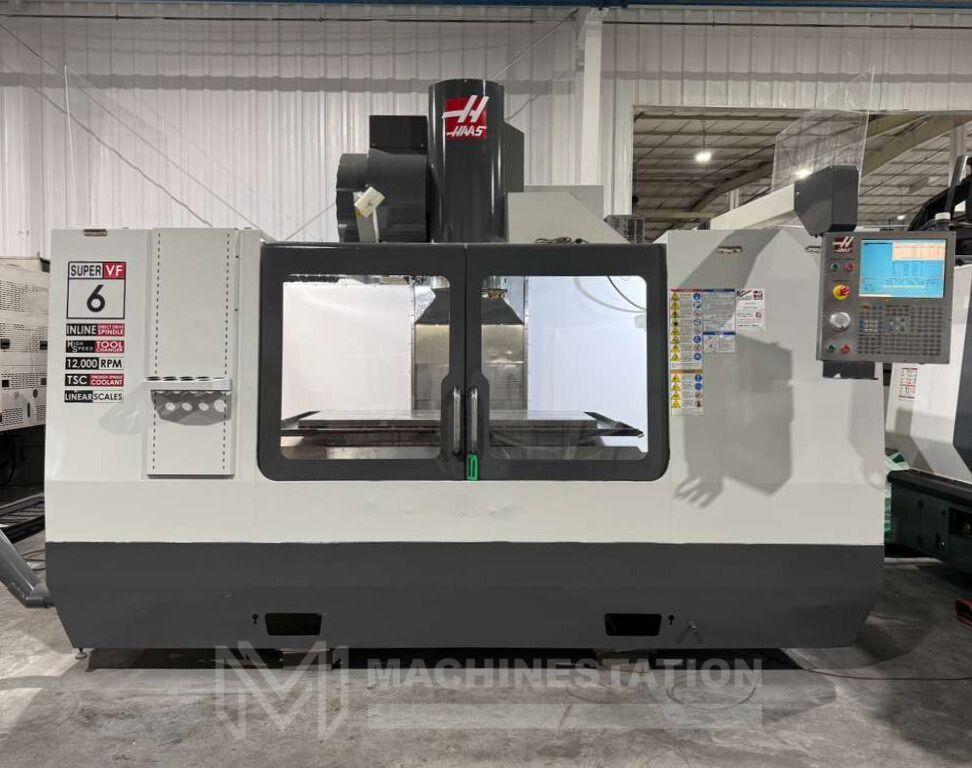

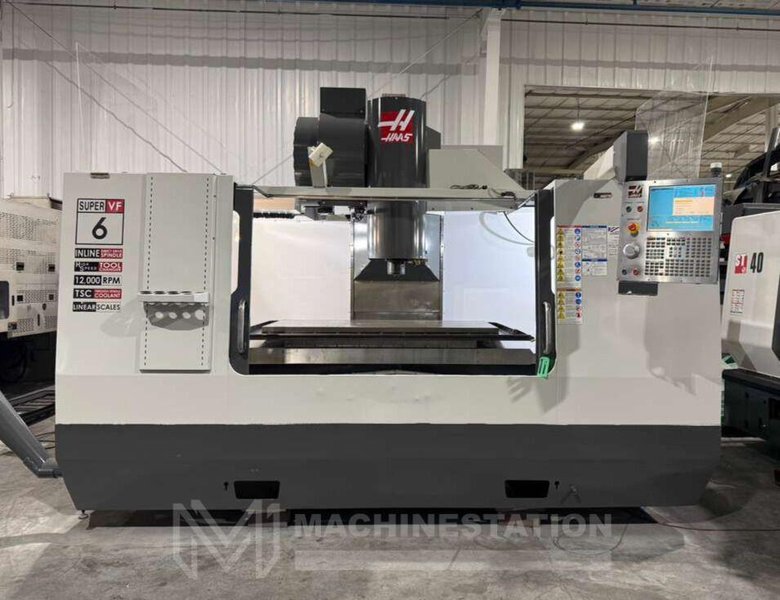

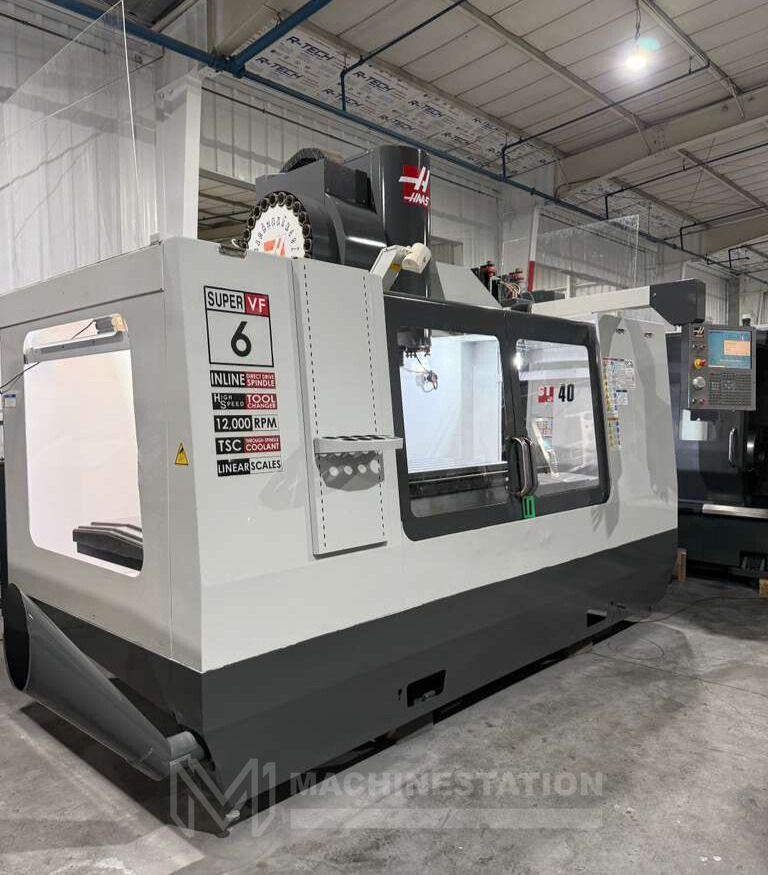

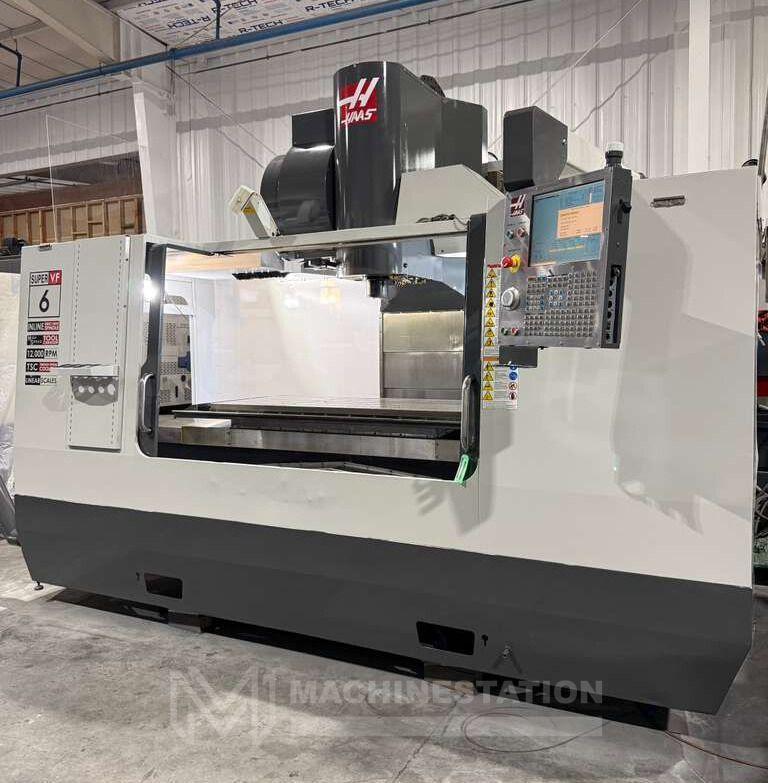

Name: Haas VF-6SS CNC Vertical Machining Center – 4th Axis Ready Mill
Brand: HAAS
SKU: 113538
Availability: PreOrder

Brand

HAAS

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:	Haas
Model:	VF6SS
Year:	2009
Condition:	Used – Good

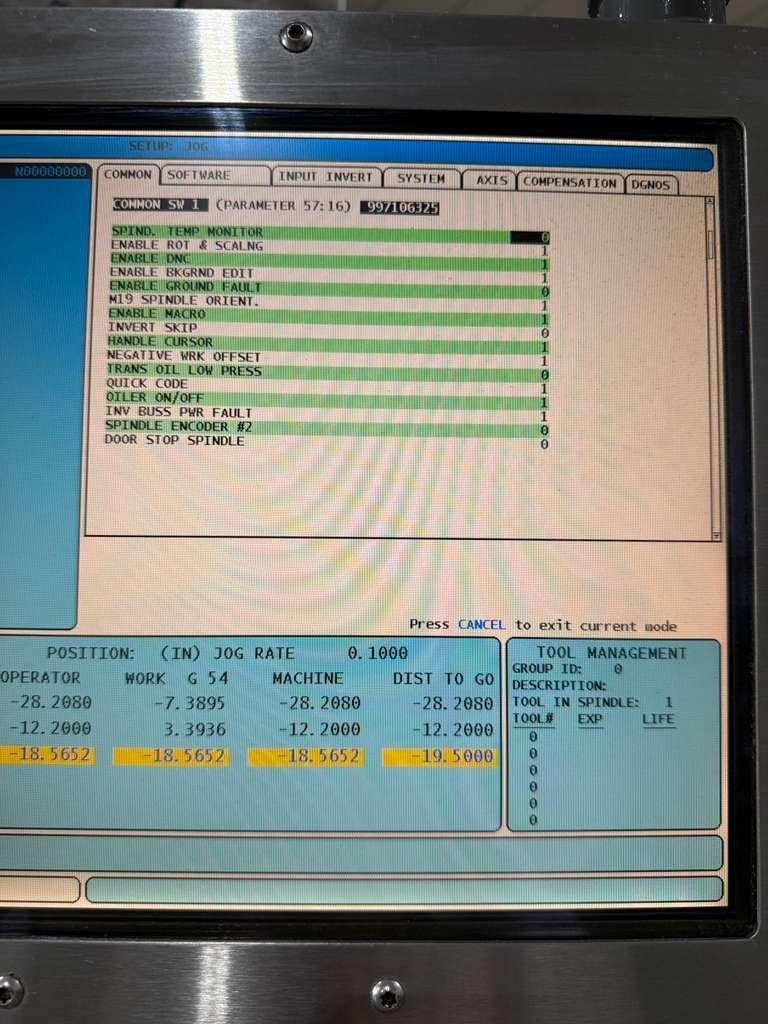

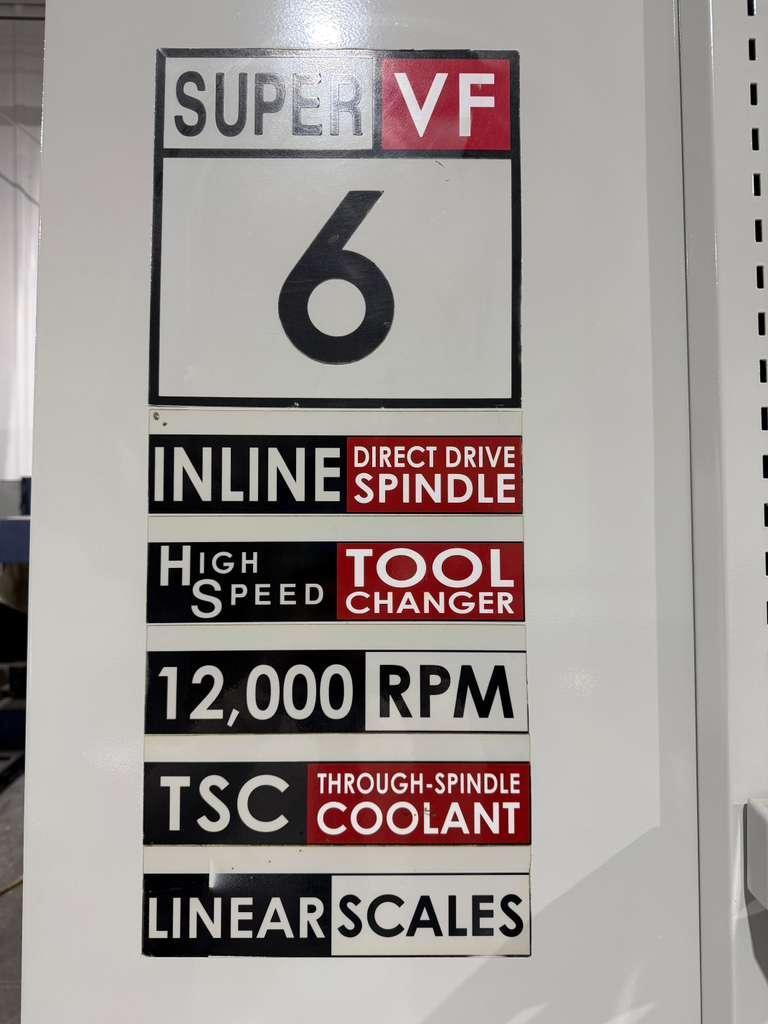

Equipped With:

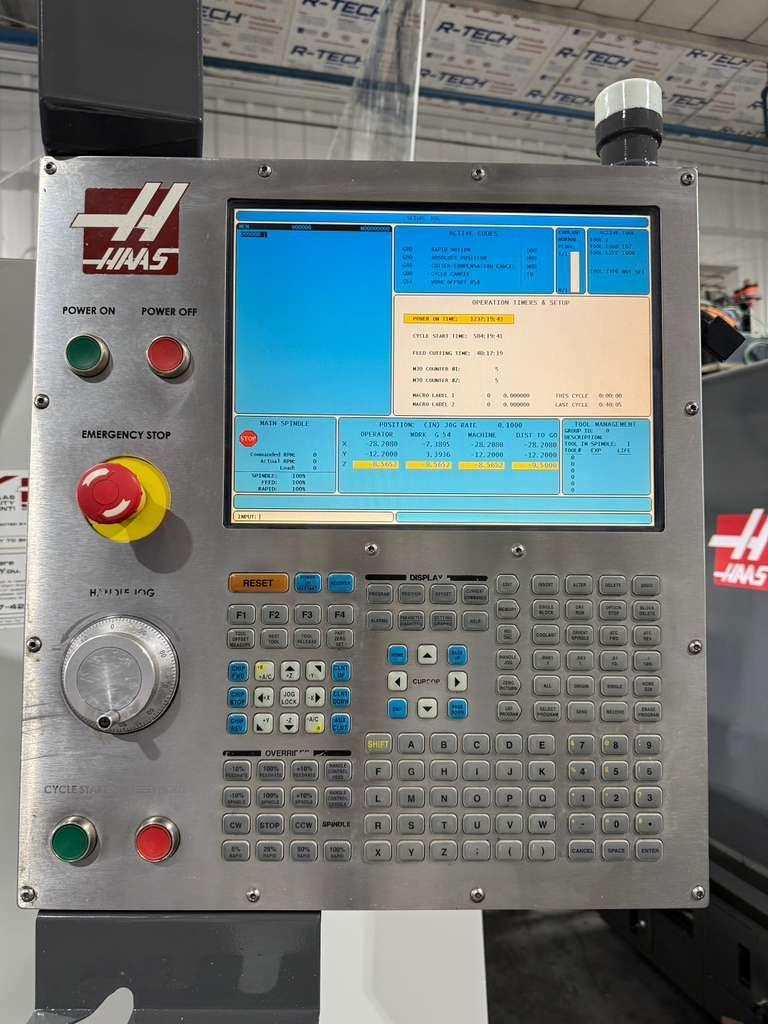

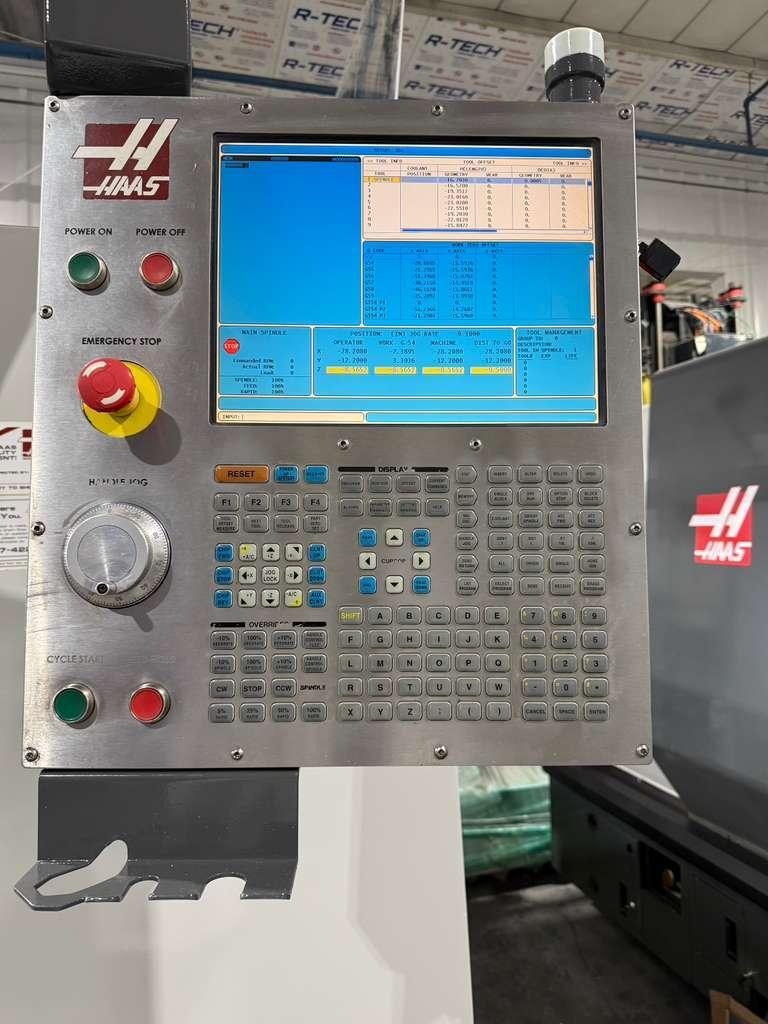

Haas CNC Control

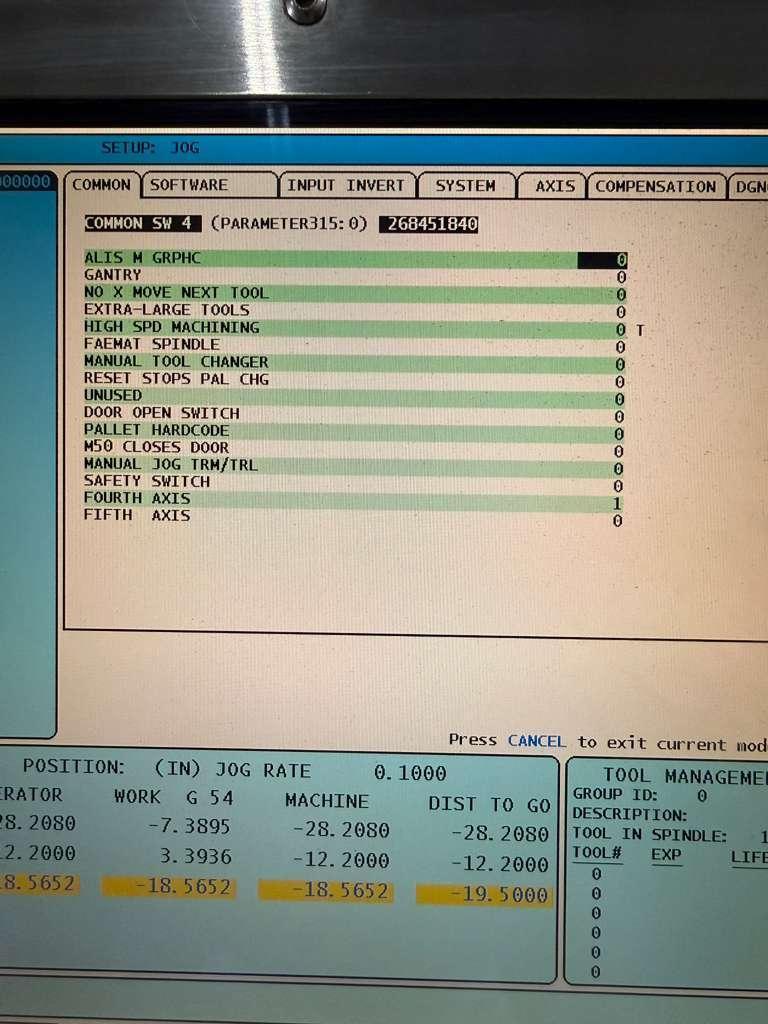

4th Axis Drive and Wiring (Upgraded $3,595 value Included)
12,000 RPM Inline Direct Drive Spindle
40 HP Vector Drive
24 Station High Speed Tool Changer
Linear Scales

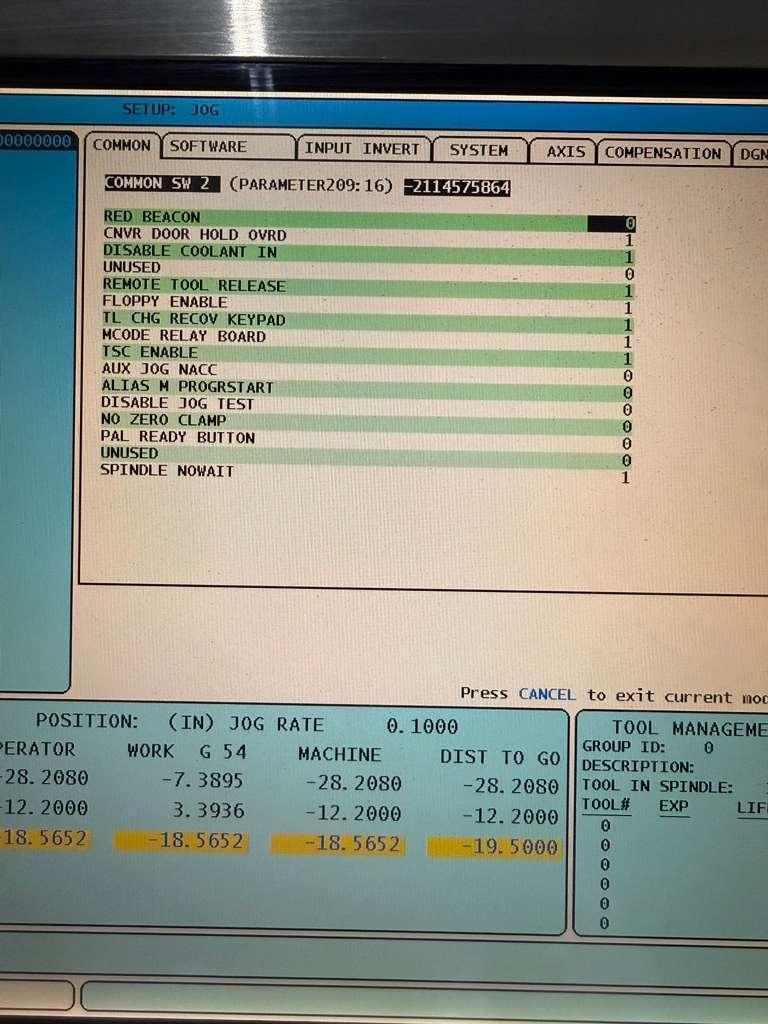

Through Spindle Coolant – 300 psi (Upgraded $7,095 value Included)
Renishaw Probing System (Probe Needed) (Upgraded $6,395 value Included)

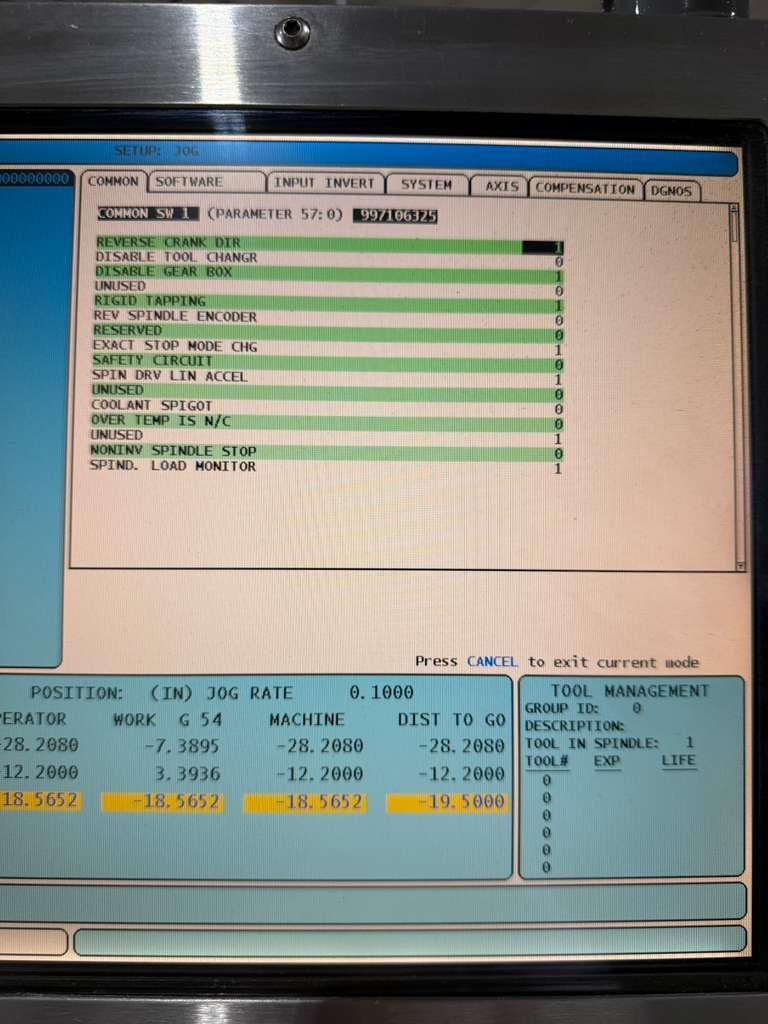

Rigid Tapping
Spindle Orientation
Quick Code Programming
Rotation and Scaling
Macros
DNC Enabled
Floppy Enabled
Coolant System
Chip Auger

Travels:
X-axis: 64″
Y-Axis: 32″
Z-Axis: 30″
Rapid Traverse Rates: 1200 IPM
Cutting Feed Rates: 833 IPM
Spindle Nose To Table (Min.- Max.): 4″ – 34″

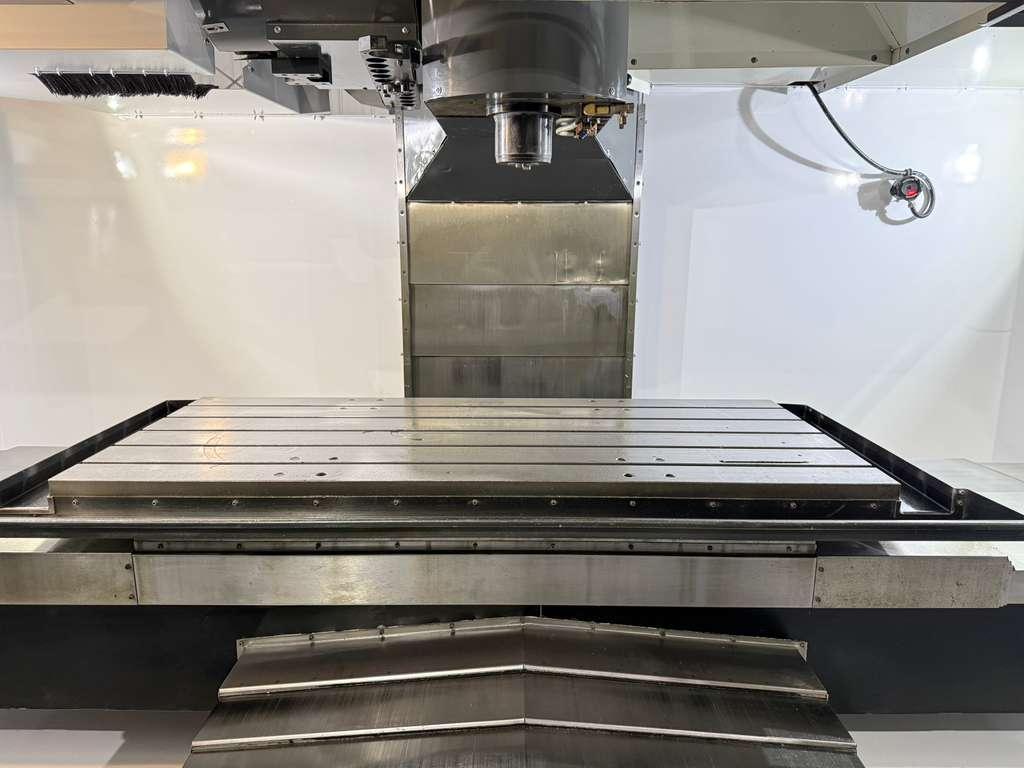

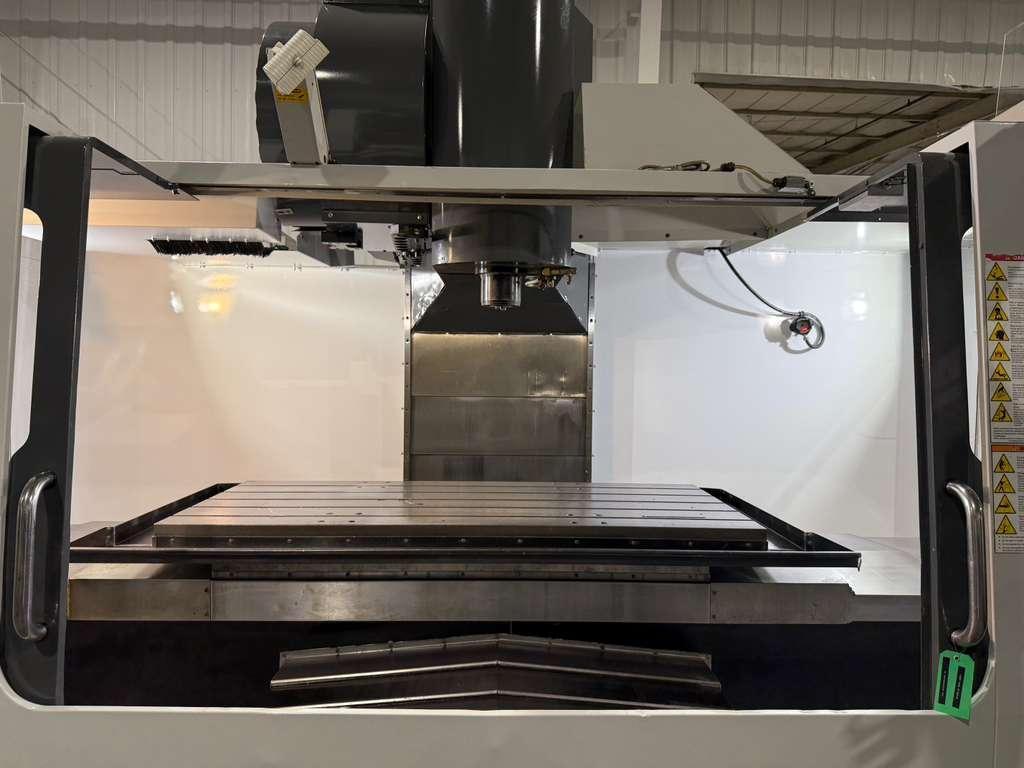

Table:
Length: 64″
Width: 28″
Number Of Std T-slots: 5
T-Slot Width: 5/8″
Max Weight On Table: 2000 Lbs

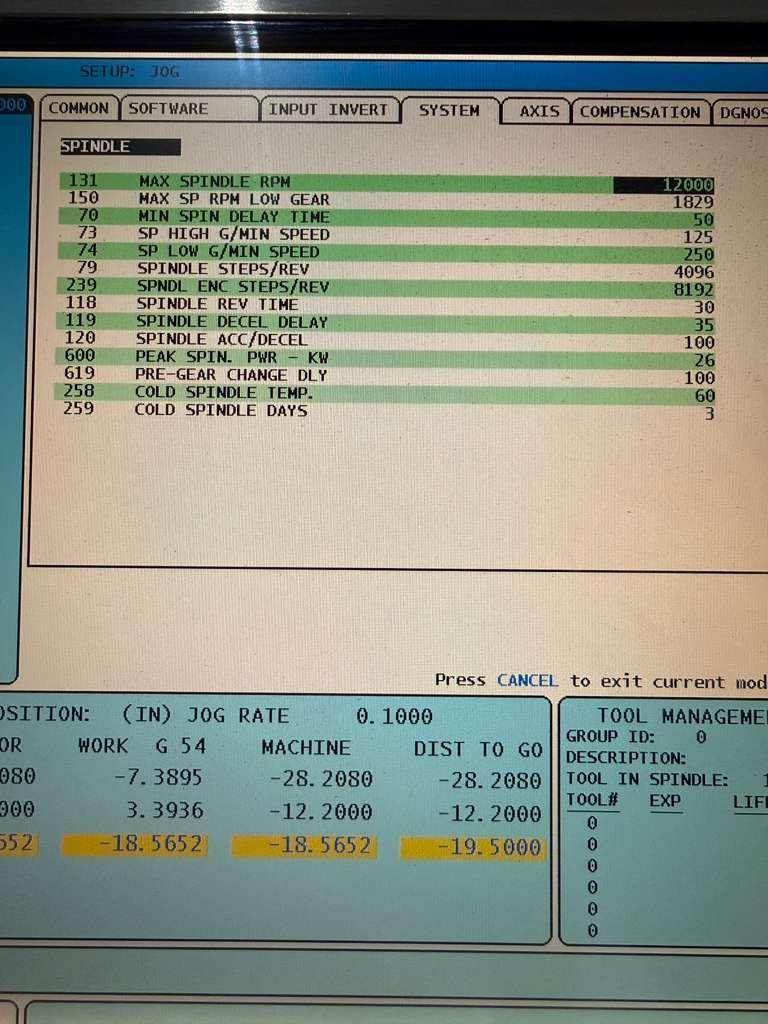

Spindle:
Taper Size: CAT-40
Speed Range: 12,000 RPM
Spindle Power: 40 HP
Vector Drive Max Torque: 90ft-lb @ 2000 RPM

Automatic Tool Changer:
Capacity: 24 Station Side Mounted
Tool Weight: 12 Lbs
Max Tool Diameter (Full): 2.5″
Max Tool Diameter (adjacent empty): 5″
Max Tool Length: 16″
Tool Changing Time: 3.2 Seconds
