Mazak Integrex e-650H II CNC Multi-Tasking Lathe, Mazatrol Matrix, 24" Chuck, A2-11, 1600 RPM, 120" Centers, 80 ATC, 10K RPM on Mill head, 60HP, New 2006

Mazak Integrex e-650H II CNC Multi-Tasking Lathe, Mazatrol Matrix, 24" Chuck, A2-11, 1600 RPM, 120" Centers, 80 ATC, 10K RPM on Mill head, 60HP, New 2006

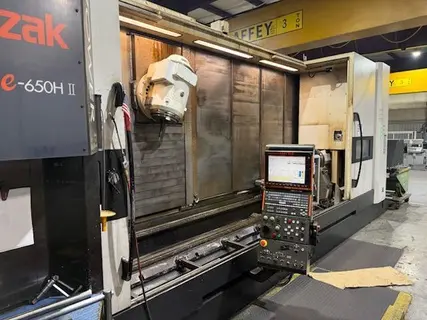

Name: Mazak Integrex e-650H II CNC Multi-Tasking Lathe, Mazatrol Matrix, 24" Chuck, A2-11, 1600 RPM, 120" Centers, 80 ATC, 10K RPM on Mill head, 60HP, New 2006
Brand: MAZAK
SKU: 56769
Availability: InStock

Brand

MAZAK

Location

Minnesota

Specifications
Files & Videos

CNC Control	yes
Type Of CNC Control	Mazatrol MATRIX
Number Of Axes	7
Number Of Spindles	1

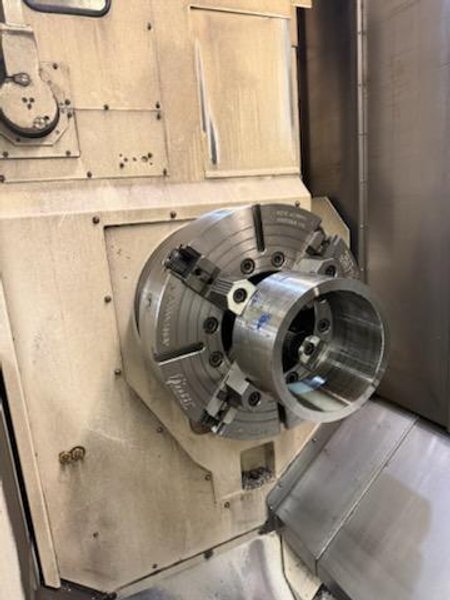

Chuck Size(s)	24"
Spindle Nose	A2-11
Max. Swing	32"
Bar Capacity	7.2"
Max. Turning Diameter And Length	120"
C-Axis Indexing	.0001"
Z-Axis Travel	120"
Maximum Spindle Speed	1600 RPM
X-Axis Travel	40.35"
Y Axis (Yes / No)	yes
Y Axis Travel	+25.6"/-12.8"
B-Axis Indexing	.0001"
MIll Head Spindle Speed	10,000 RPM
Mill Head Spindle Taper	Cat No. 50 Tooling
Mill Head HP	50 HP
B Axis Travel (+/- Degrees)	+210 to -30 Degrees
Automatic Tool Changer	80
Spindle Motor(s)	60 HP
Dimensions	368" x 155" x 155"
Machine Weight	77,900 Lbs.

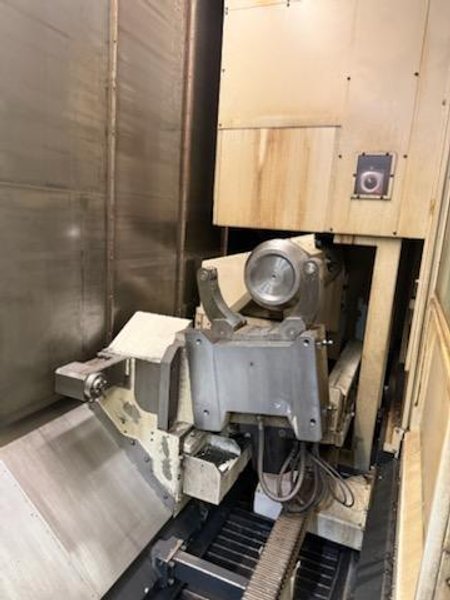

Control: Mazatrol Matrix E-Tower Mazak Super Flow HP Coolant - 1000 PSI 24" 3-Jaw Chucks Programmable Tailstock Programmable Hydraulic Steady Rest Long Boring Bar, Stocker with 2-type of Boring Bars - Enclose Auto Doors Chip Conveyor Dual Foot Trips Hours: Total Cut Hours: 33400
