Lincoln Electric eCell Dual‑Zone Robotic MIG Weld Cell – Fanuc ArcMate Robot, Power Wave MIG, Fume Extraction (Approx. 2007)

Inspection Recommended

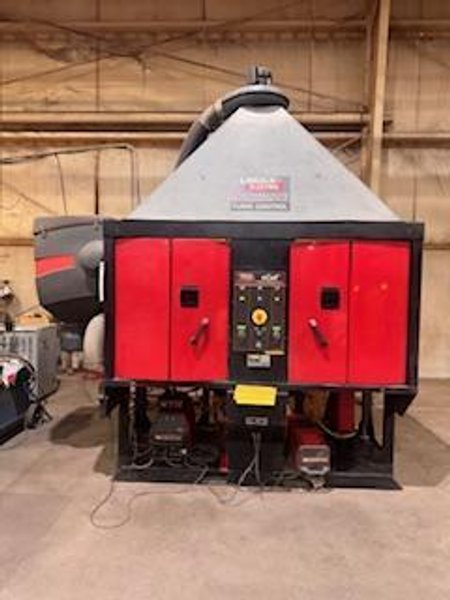

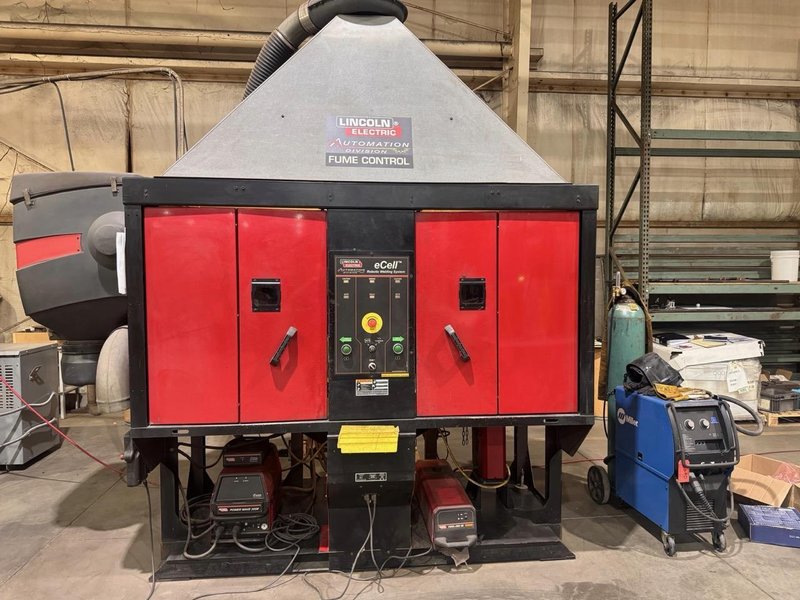

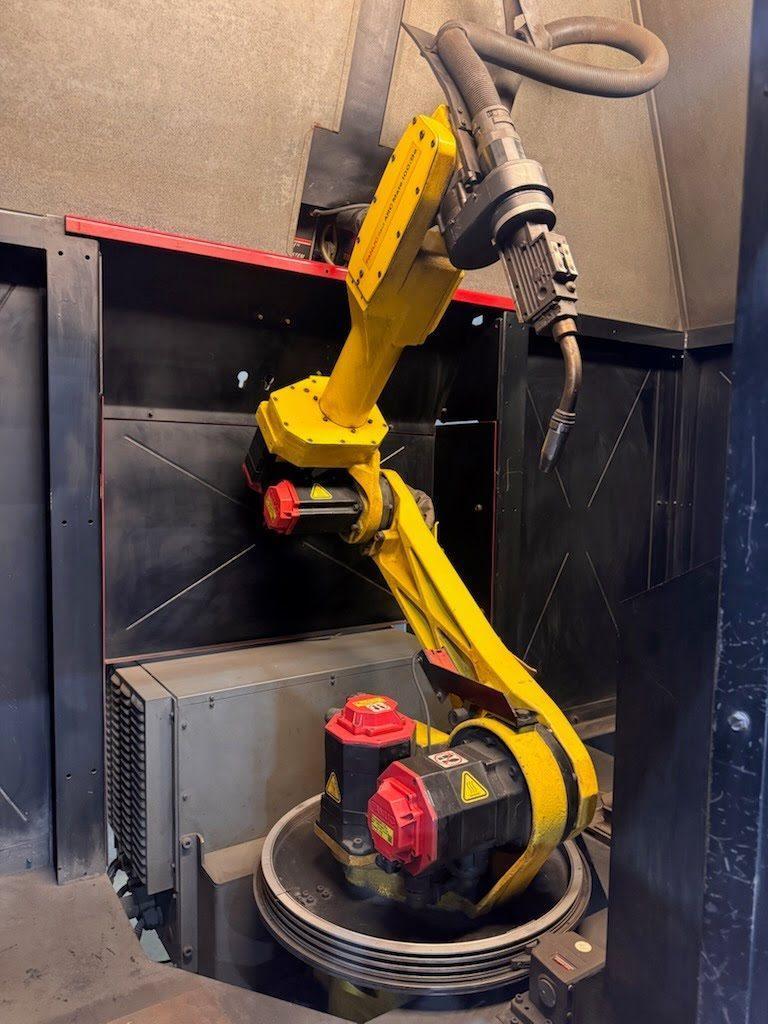

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Cell type: Enclosed dual‑zone fixed‑table robotic MIG weld cell, Lincoln eCell / System‑30 style

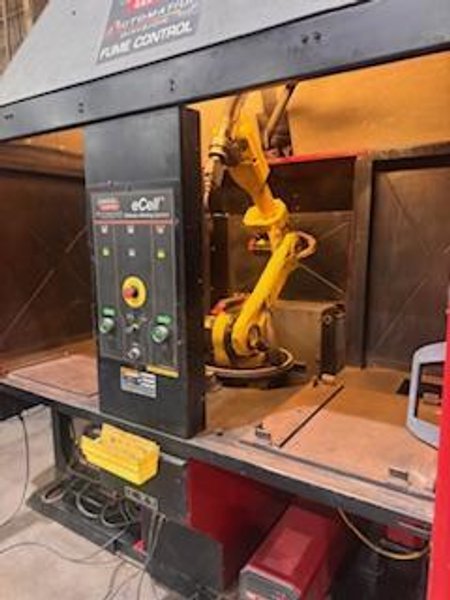

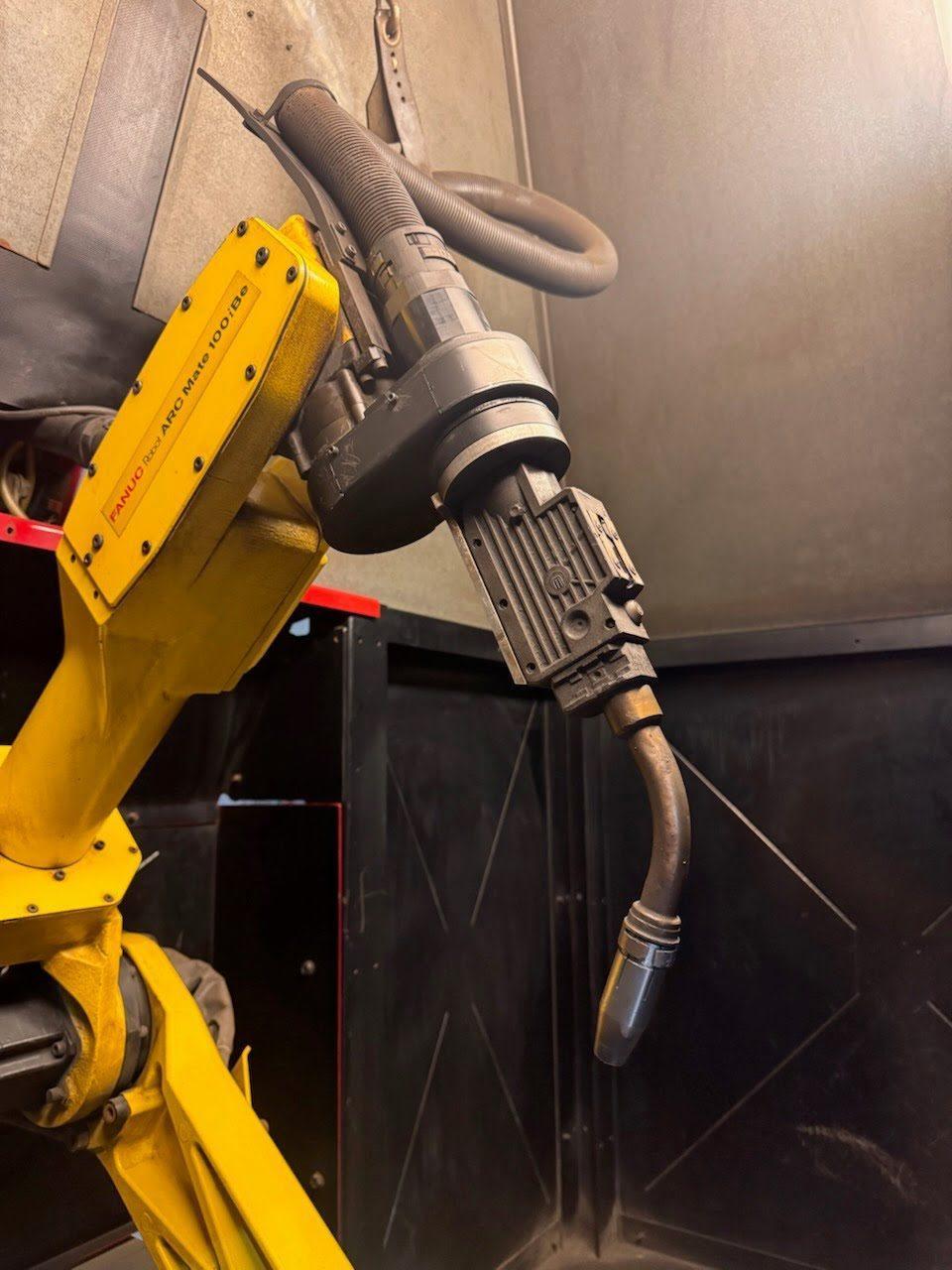

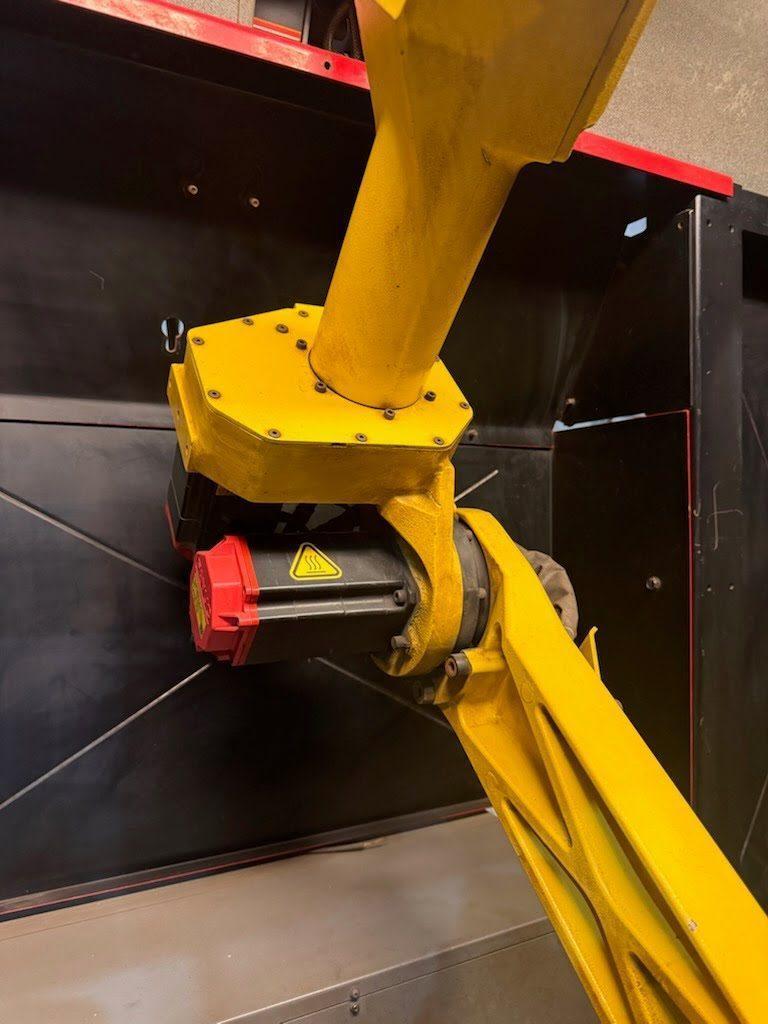

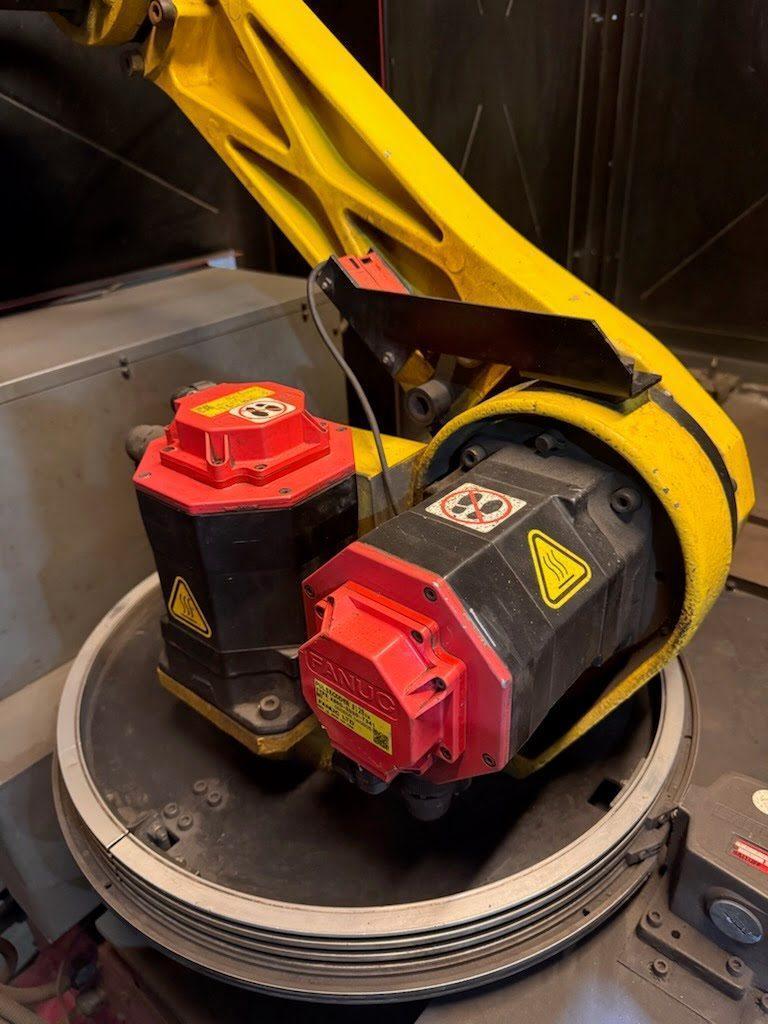

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Robot: Fanuc ArcMate‑series 6‑axis welding robot, F‑No. F63780 (exact model TBD – likely 100iB/100iC family)

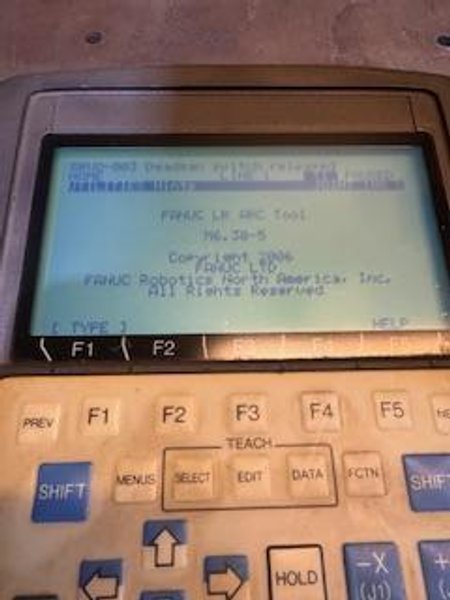

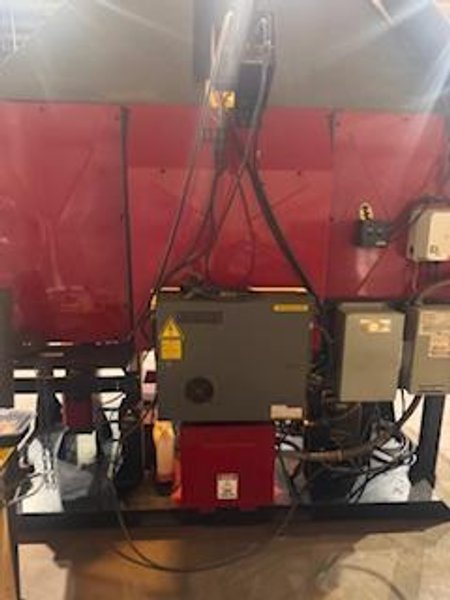

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Robot controller: Fanuc R‑J3iC / R‑30iA generation

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Welding process: MIG / Pulsed MIG / flux‑cored, air‑cooled torch

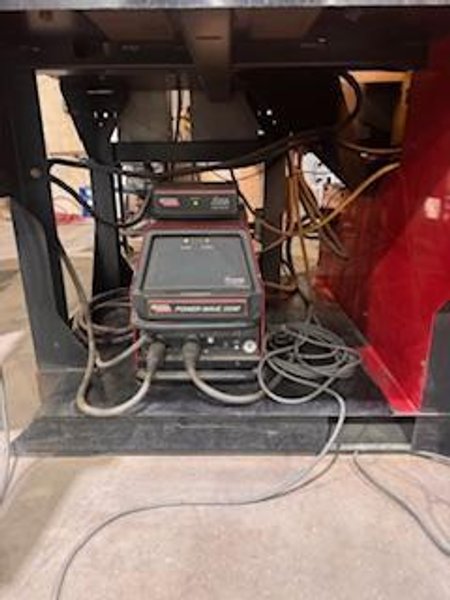

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Power source: Lincoln Power Wave‑series MIG power source (approx. 350–450A class) with Lincoln wire feeder

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Work zones: Two fixed workstations with precision tooling plates, approx. 24″ x 24″ work area per zone

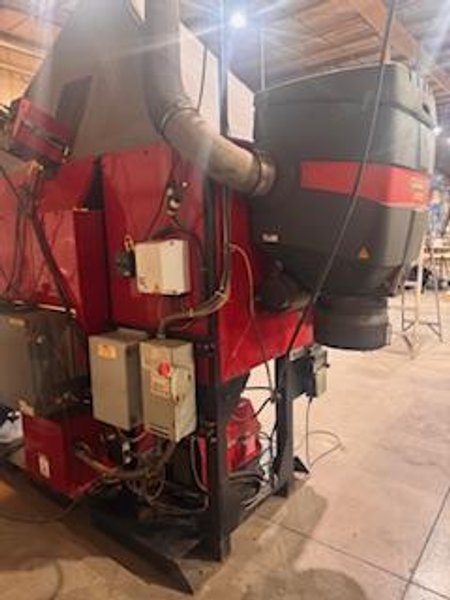

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Fume control: Integrated Lincoln fume‑extraction hood and base unit

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Safety: Fully enclosed cell with interlocked doors, operator control pendant, and E‑stop

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Input power: Approx. 230/460/575V, 3‑phase, 60 Hz, ~20–25 kVA max

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Estimated year: Mid‑2000s to early‑2010s based on eCell design and Power Wave hardware
