Lincoln Electric Power Wave R450 Robotic Welder, 2020 – ABB IRB 2600 Robot, Lincoln 4R220 Wire Feeder

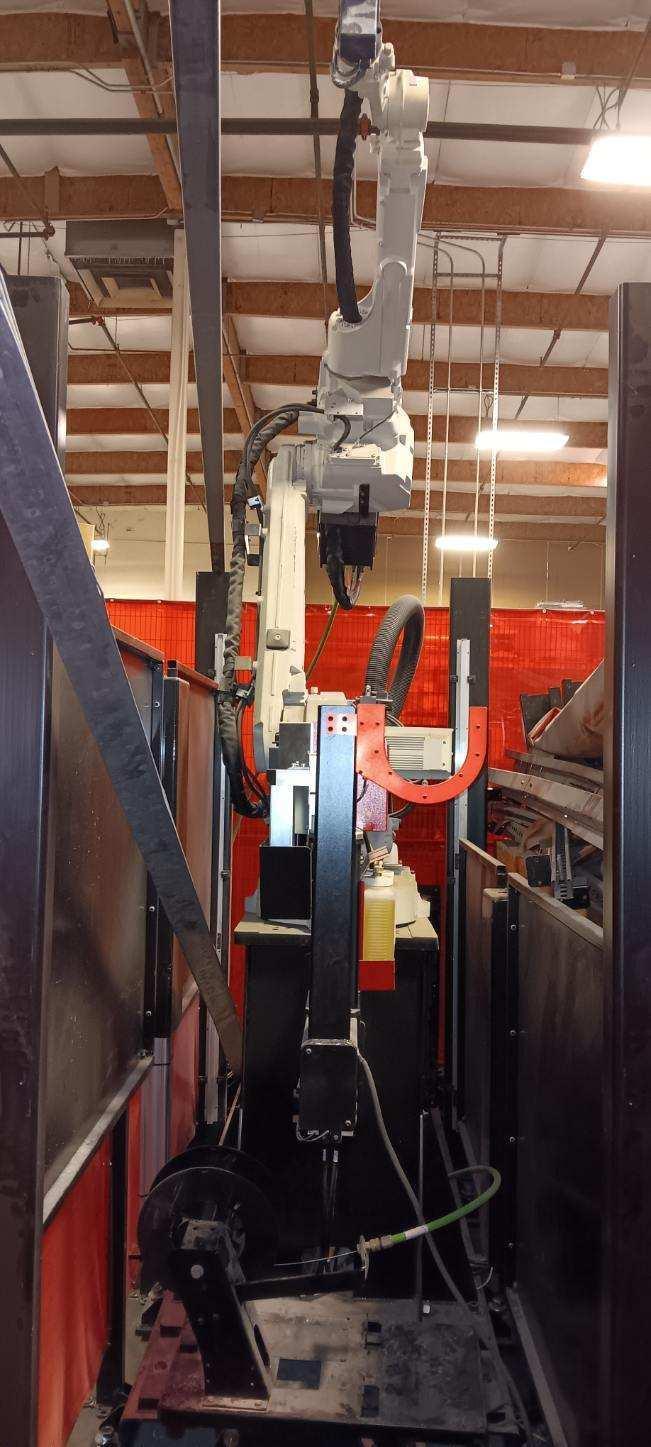

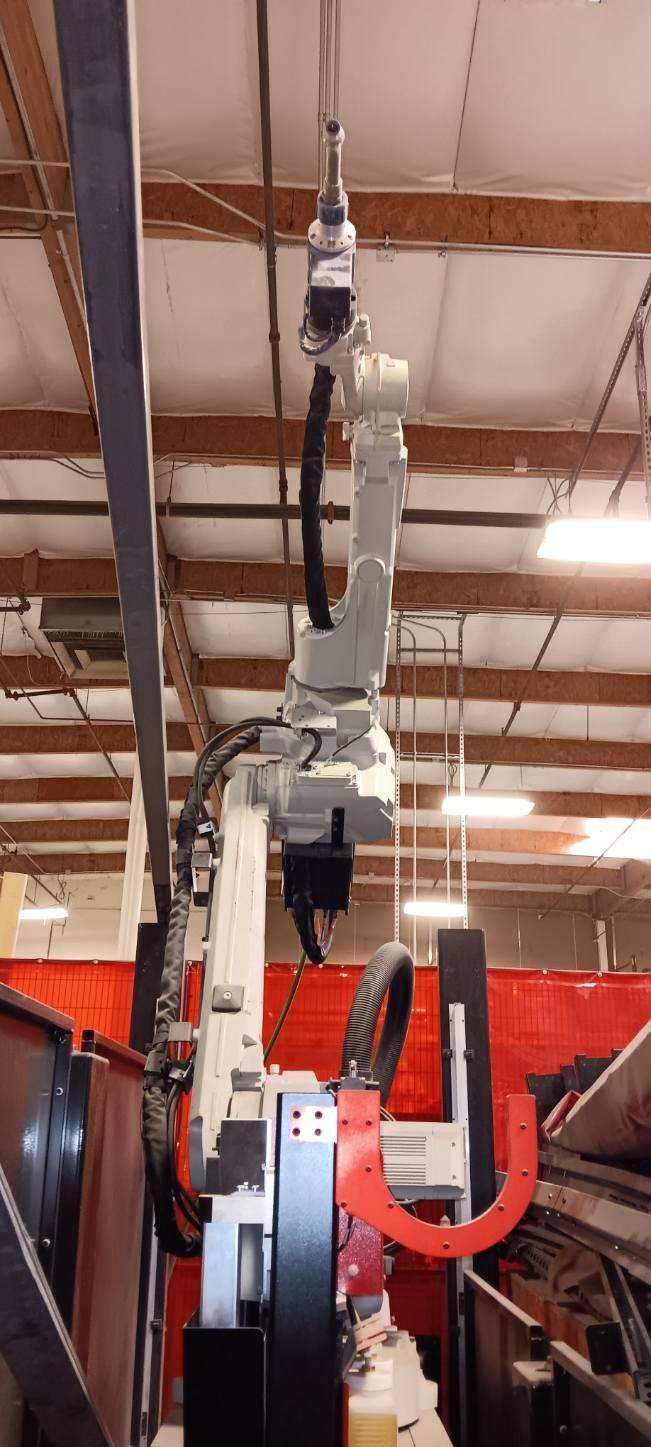

IRB 2600ID-8 2.0 Six Axis Robot Package Includes: » IRB 2600ID 6 Axis Robot » IRC5 Controller » Collision Detection » Path Recovery » Multitasking » Color Touch Screen FlexPendant (10m Cable) » Cable Management Specifications: » Reach: 78.74″ » Repeatability: 0.001″ » Payload Capacity: 17 LBS » 480V 3Ph

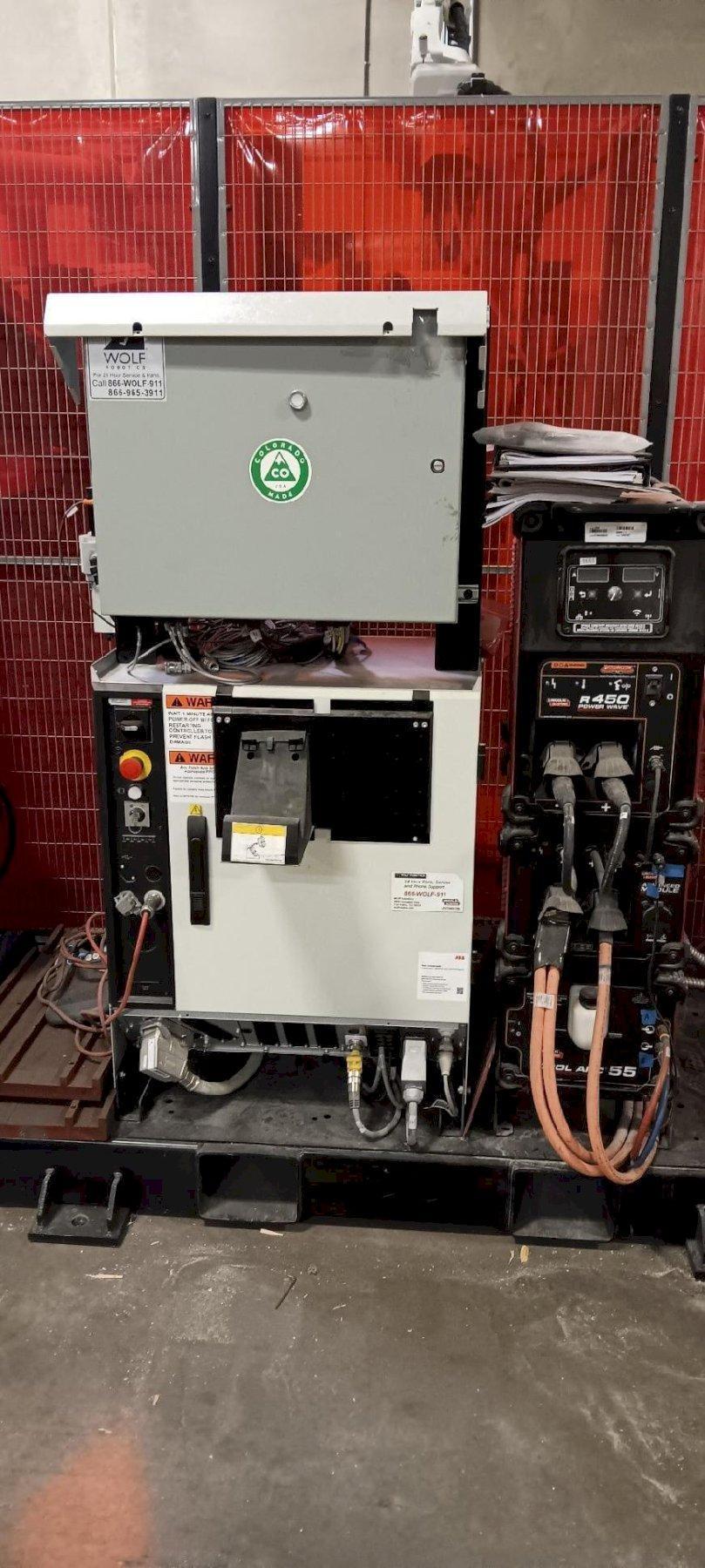

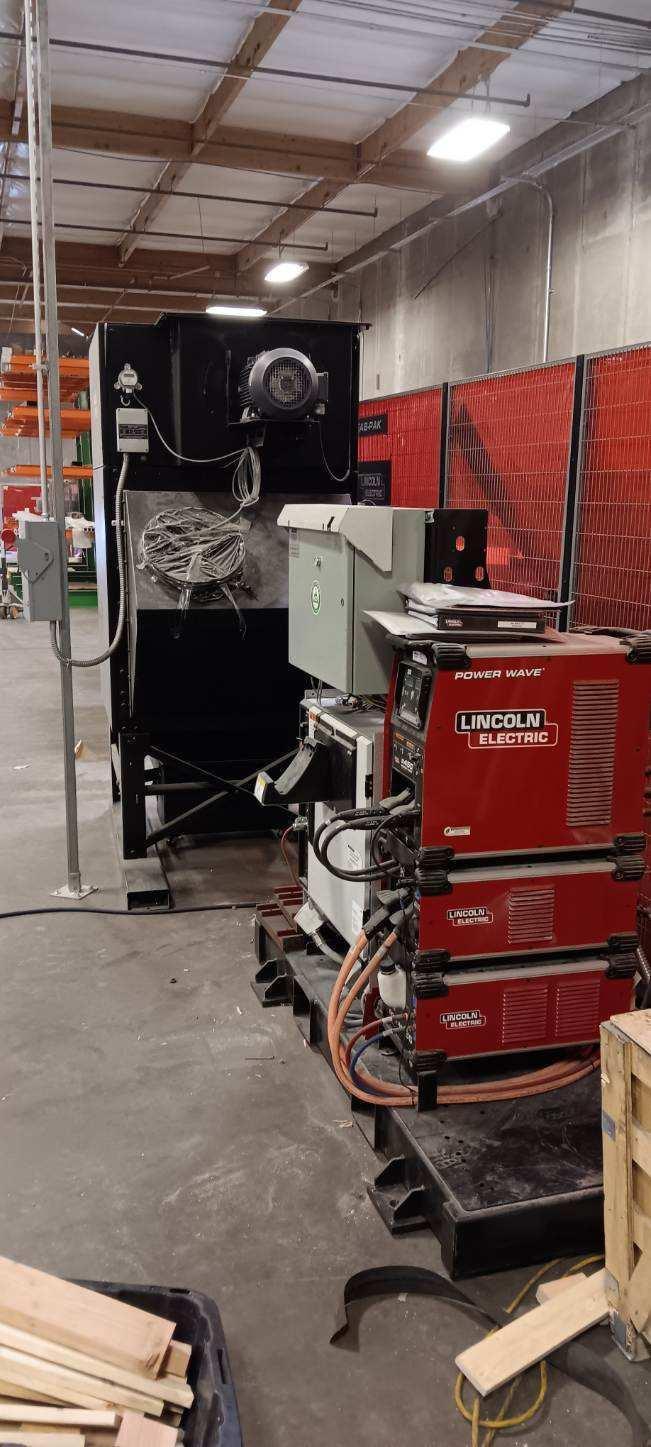

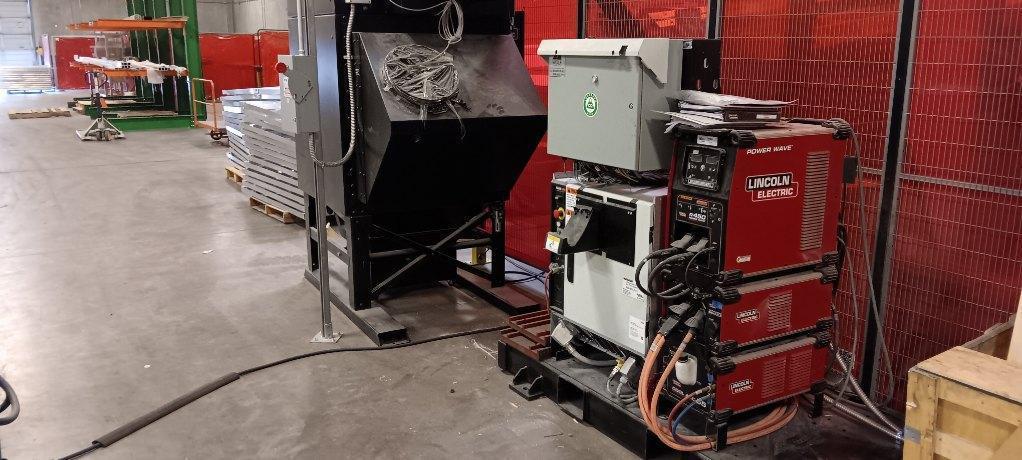

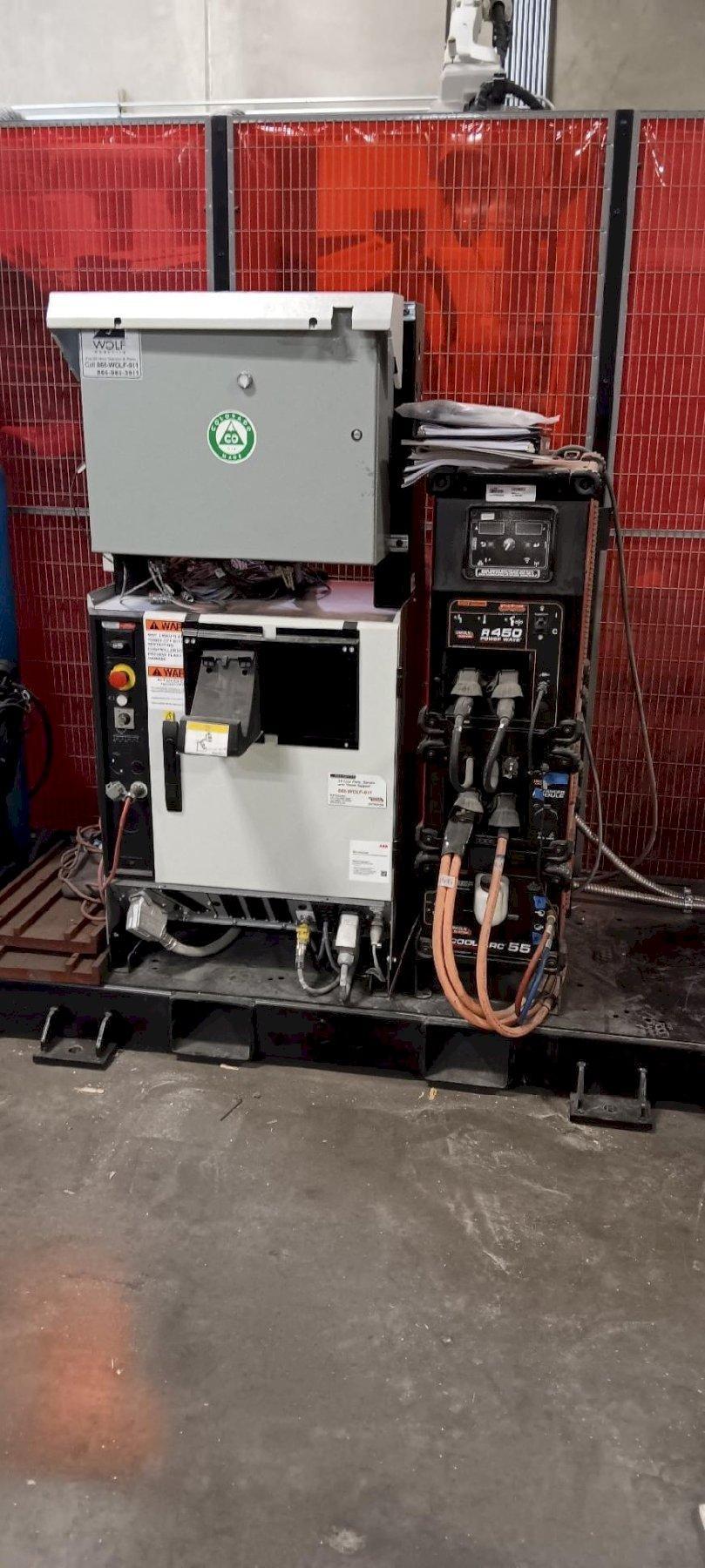

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Lincoln Power Wave R450 Welding Package Includes: » Power Wave R450 Power source » PowerConnectTM Technology (patent pending) – Automatically adjusts to input power while maintaining a constant welding output throughout the entire input voltage range » TribridTM Power Module – Exceptional welding performance with high power factor and efficiency » Built in feeder control » Gas flow sensor » Wire conduit from wire barrel to wire feeder Specifications: » 450A output at 100% duty cycle » 550A output at 40% duty cycle » Process Capabilities: o Pulse o Pulse-on-Pulse o Power Mode o RapidArc o Rapid XTM (When paired with STT Module)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Power Wave Advanced Process Welder Module » AC Aluminum waveforms enabled » Surface Tension Transfer (STT) process enabled. STT reduces spatter and helps with gap bridging through precise arc control » Exceptional Arc Control – Burnthrough control on thin metal or critical pipe welding » UltimarcTM – Dynamically and simultaneously controls all heat input parameters » Modular Design – Easy connection and fast digital communication » Compact Footprint – Connects directly to Power Wave » Self-Protecting Circuits – Protects itself from the excessive transient voltages associated with highly inductive weld circuits » Rapid XTM Weld Process Enabled o Provides excellent arc stability at shorter arc lengths o Increases Travel Speed by up to 40% o Reduced Spatter by up to 30% o Increases Penetration o Reduces Heat Input o Reduces Distortion Specifications: » 300A output at 100% duty cycle » 350A output at 40% duty cycle » Process Capabilities: o Multi-Process reverse polarity (DC+) o Straight polarity (DC-) o AC o High Frequency TIG o STT o Rapid XTM

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

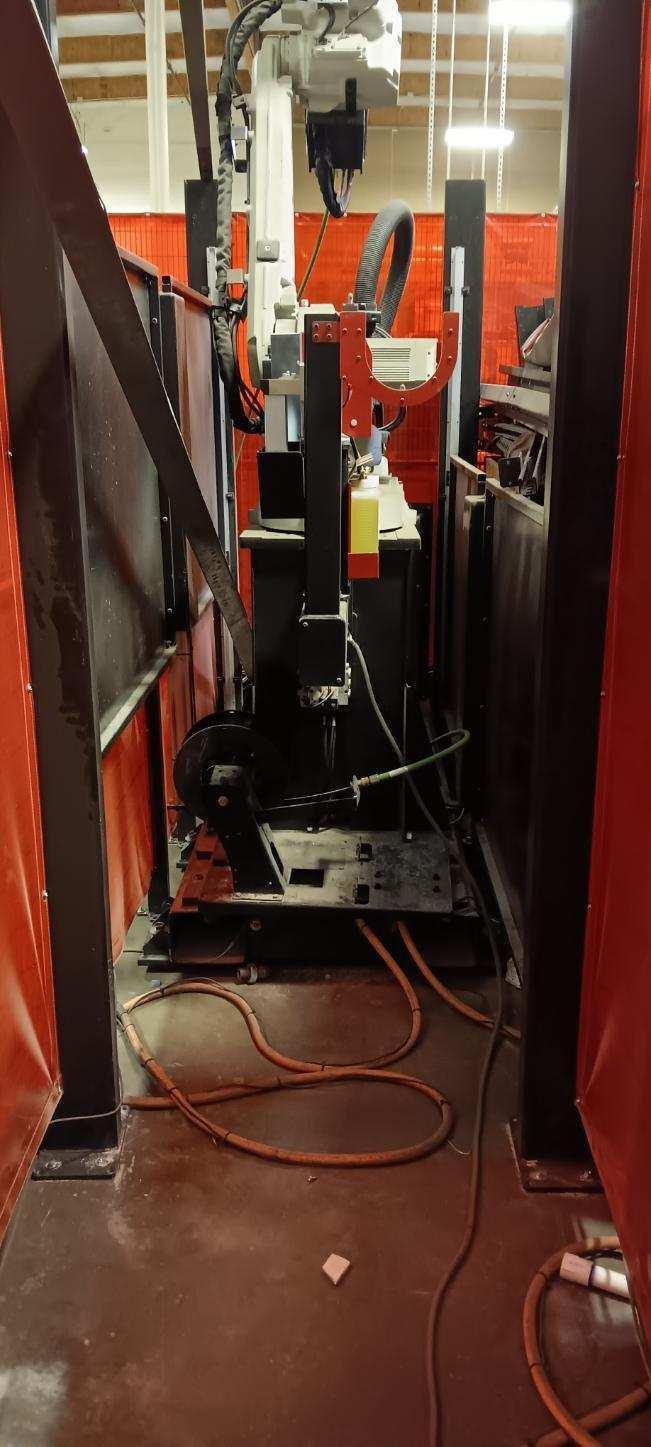

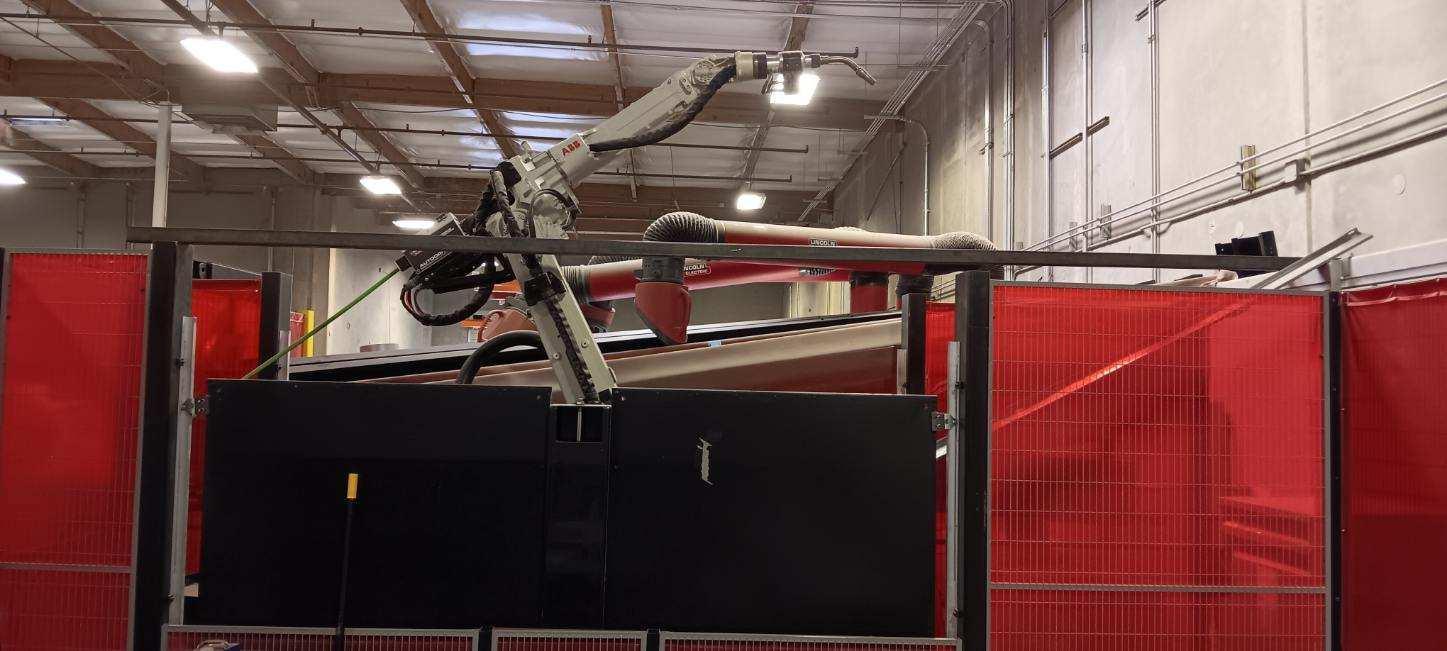

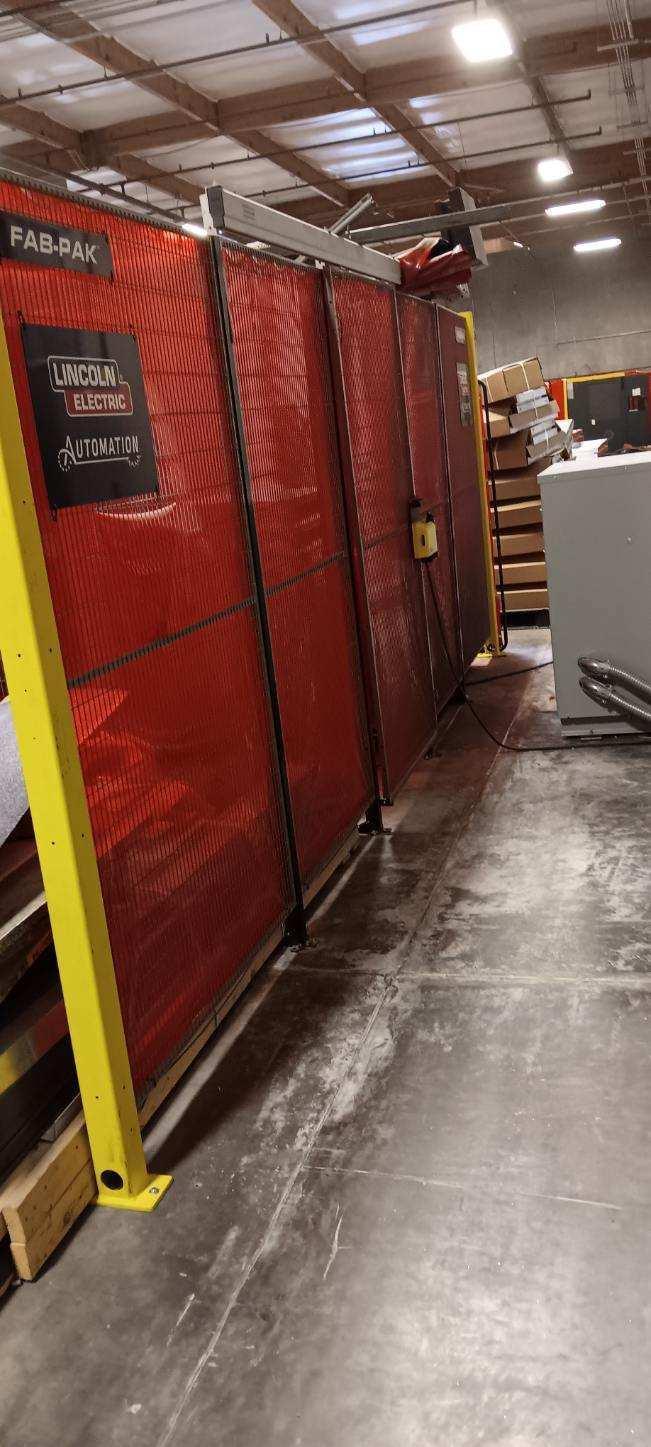

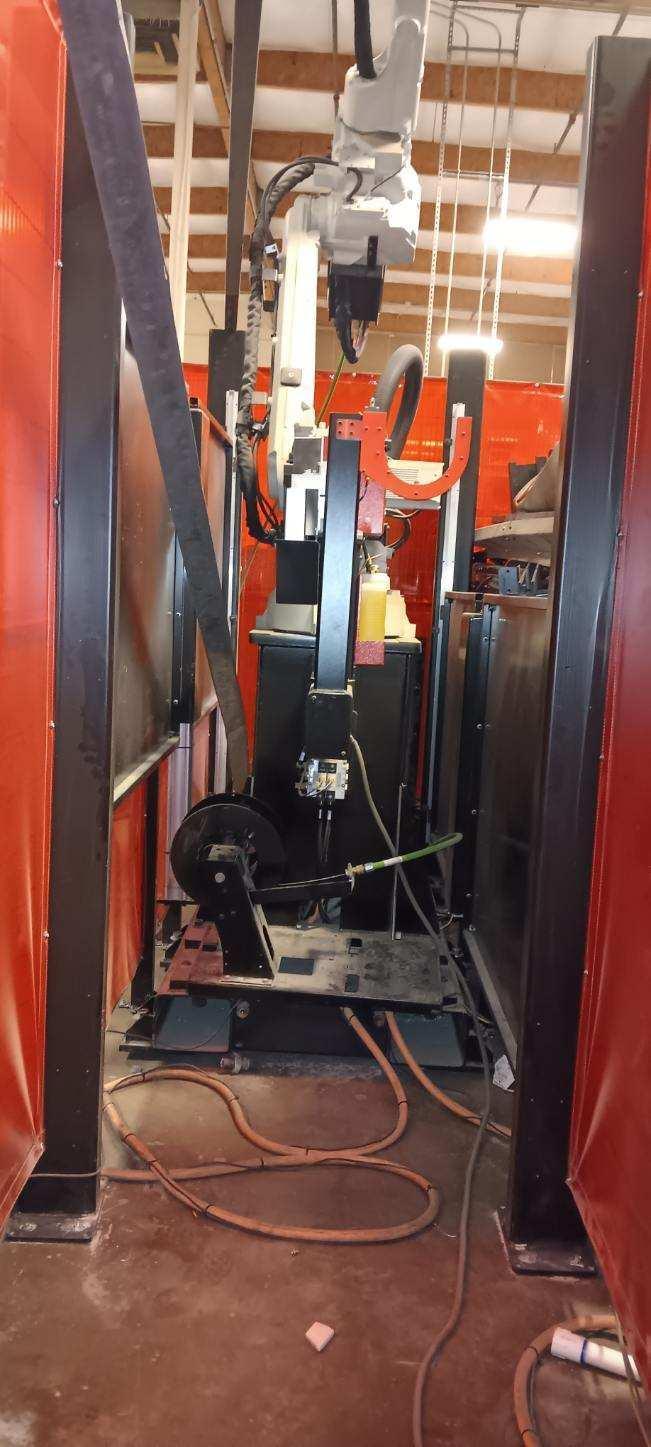

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,IRB 2600ID-8 2.0 Six Axis Robot Package BullsEye TCP Calibration System FHS-B2B System w/ Wire Mesh Paneling Lincoln Power Wave R450 Welding Package Lincoln AutoDrive SA Aluminum ServoTorch Package Power Wave Advanced Process Welder Module Touch Sense WolfArcTM Binzel Single Wire Torch Cleaner Virtual Cell In RobotStudio Operator Panel Product Documentation Fab-Pak FHS Installation Supervision

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Note: 2 Tables pictured are not included
